Page 4351 of 4378
Fig. 28: Horn Circuit
INSTRUMENT CLUSTER
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 29 © 2006 Mitchell Repair Information Company, LLC.
Page 4352 of 4378
Fig. 29: Instrument Cluster Circuit
INTERIOR LIGHTS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 30 © 2006 Mitchell Repair Information Company, LLC.
Page 4353 of 4378

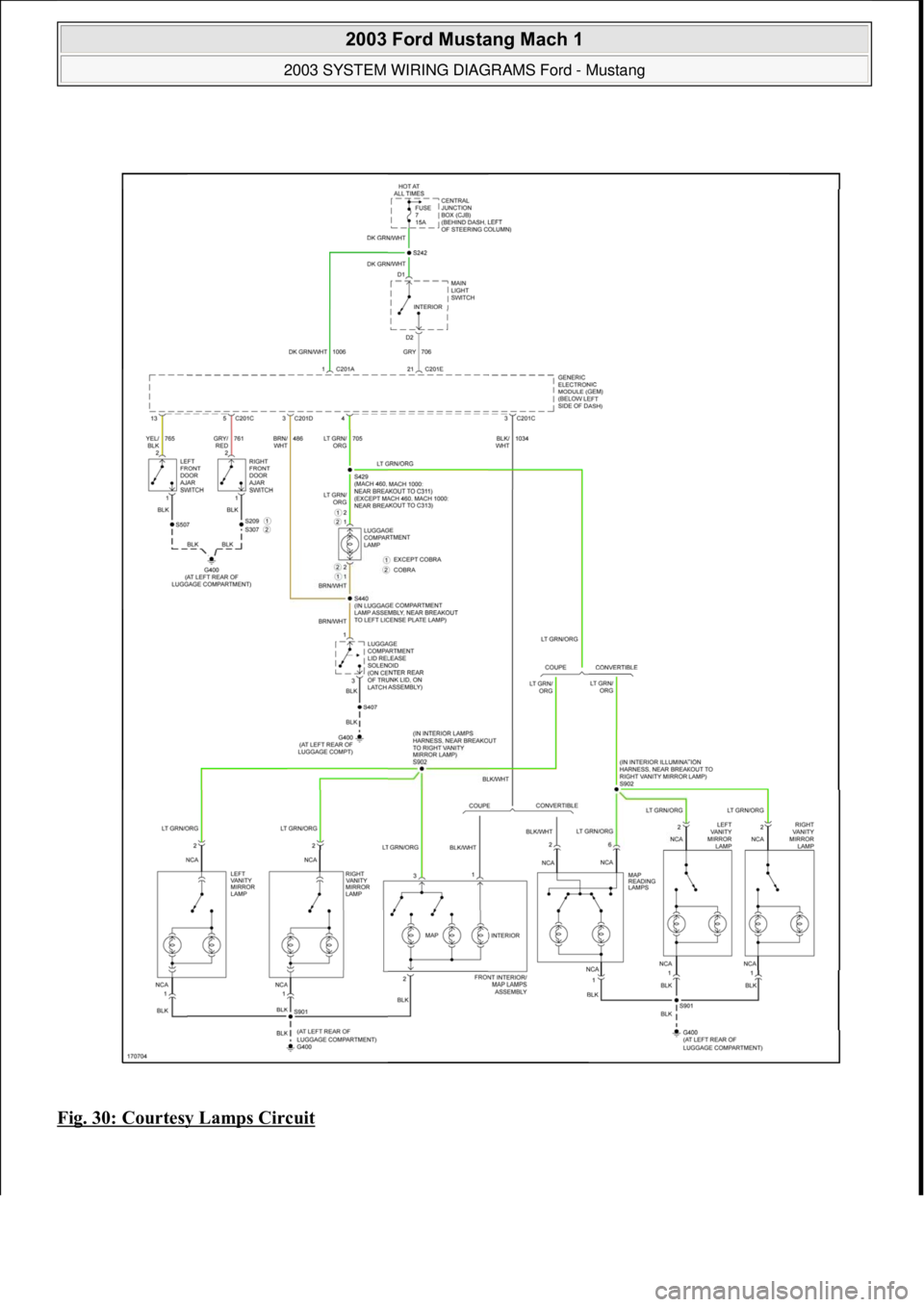

Fig. 30: Courtesy Lamps Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 31 © 2006 Mitchell Repair Information Company, LLC.
Page 4354 of 4378

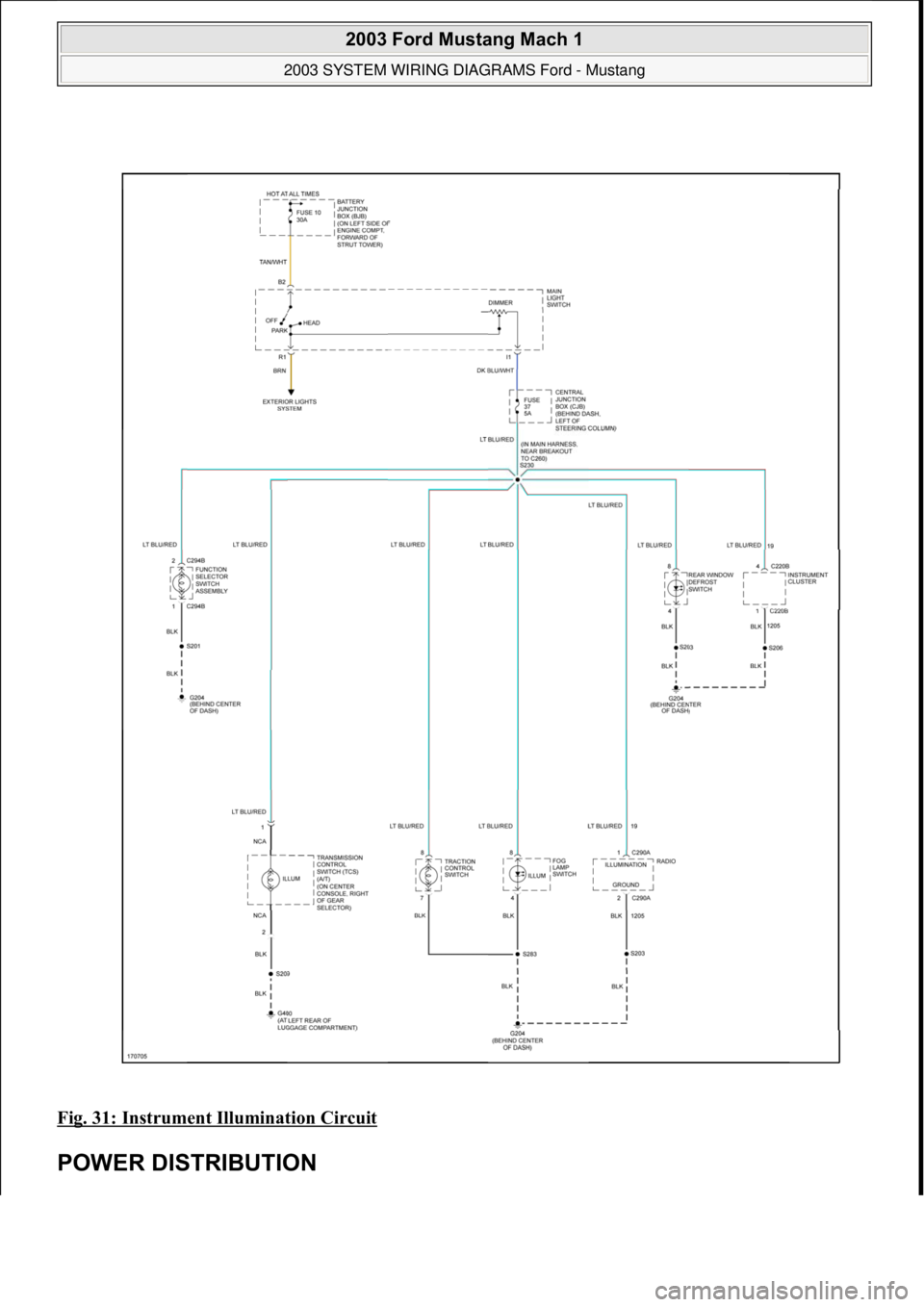

Fig. 31: Instrument Illumination Circuit
POWER DISTRIBUTION
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 32 © 2006 Mitchell Repair Information Company, LLC.
Page 4355 of 4378

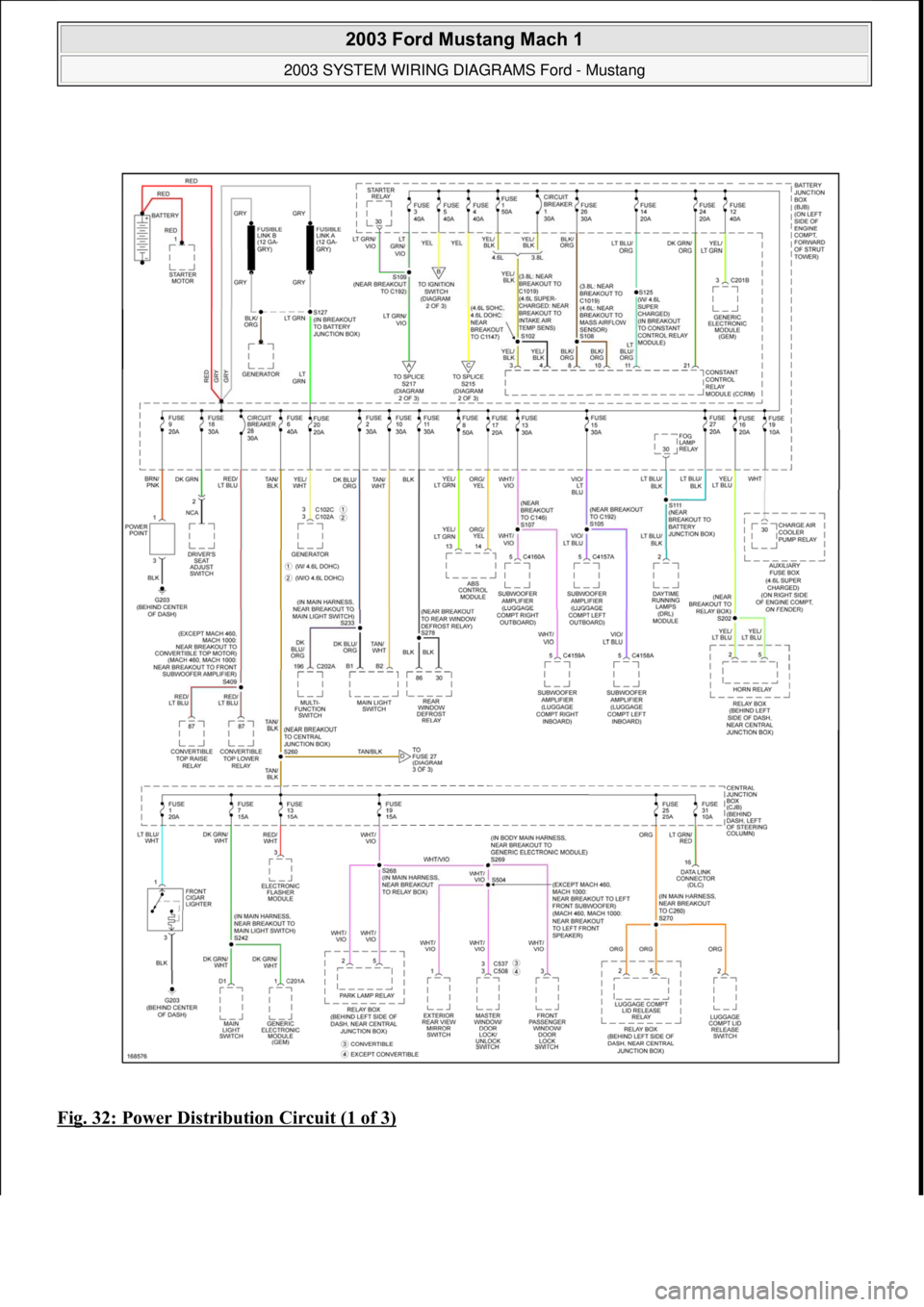

Fig. 32: Power Distribution Circuit (1 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 33 © 2006 Mitchell Repair Information Company, LLC.
Page 4356 of 4378

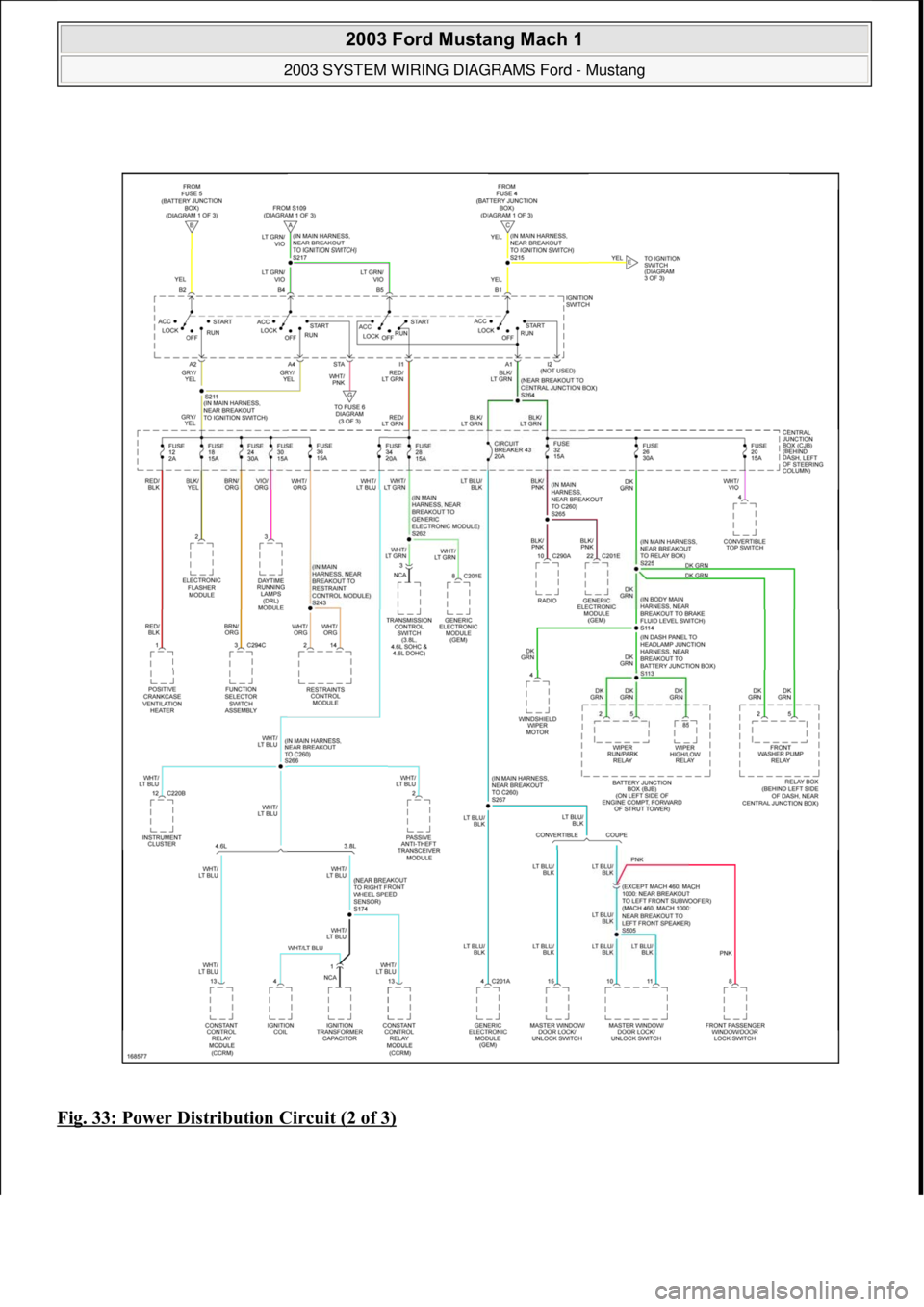

Fig. 33: Power Distribution Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 34 © 2006 Mitchell Repair Information Company, LLC.
Page 4357 of 4378

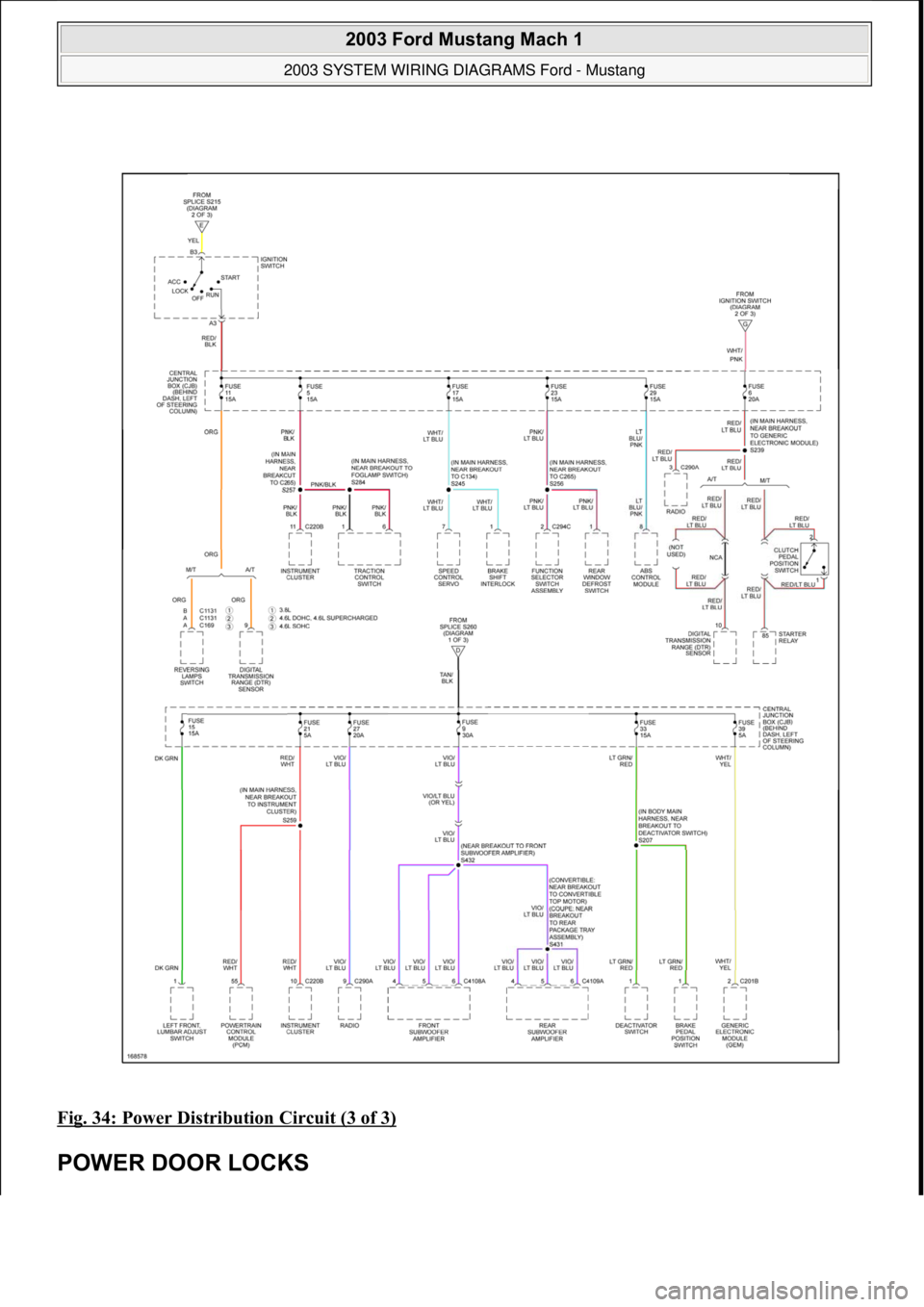

Fig. 34: Power Distribution Circuit (3 of 3)
POWER DOOR LOCKS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 35 © 2006 Mitchell Repair Information Company, LLC.
Page 4358 of 4378
Fig. 35: Power Door Locks Circuit
POWER MIRRORS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 36 © 2006 Mitchell Repair Information Company, LLC.
Page 4359 of 4378

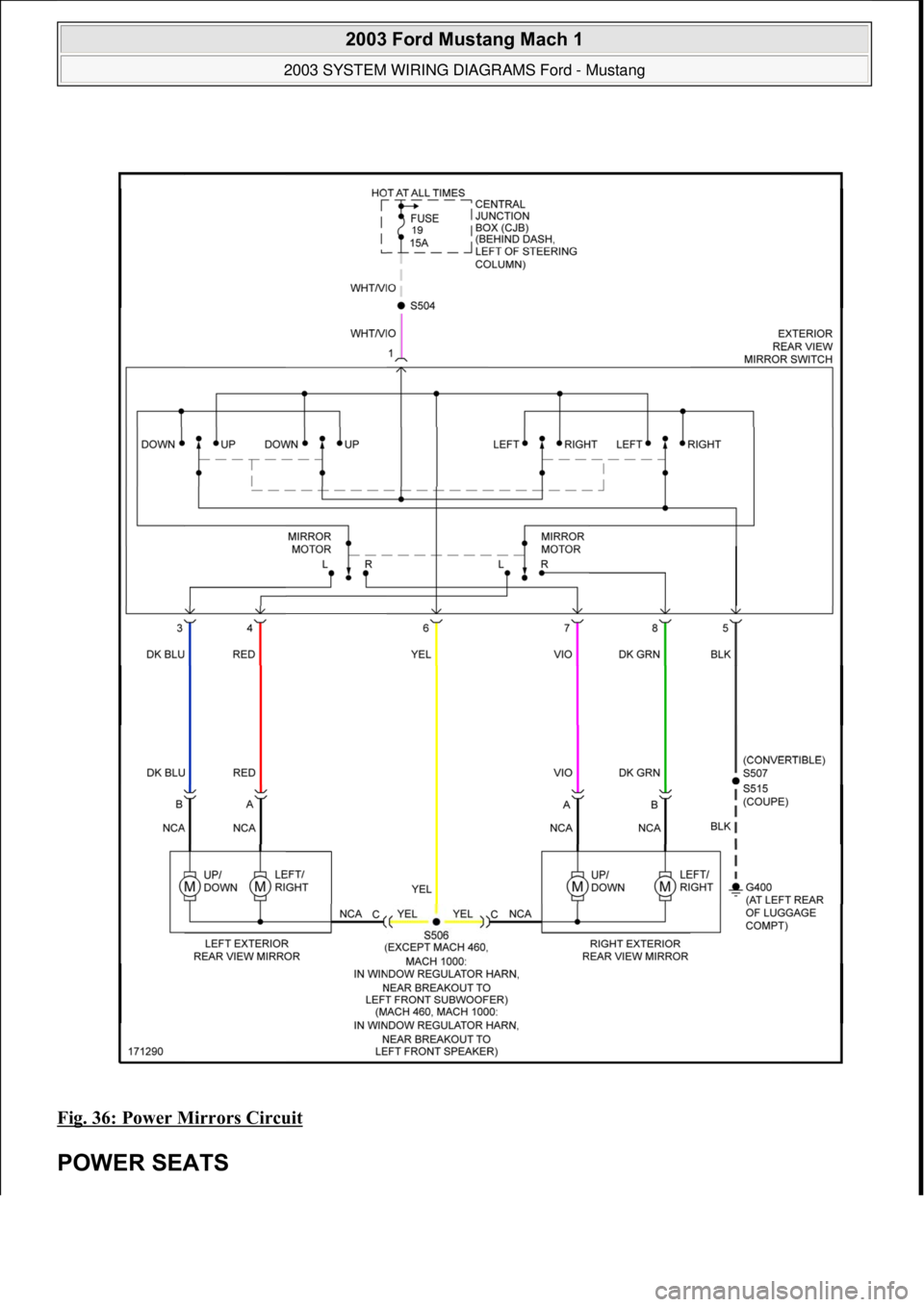

Fig. 36: Power Mirrors Circuit
POWER SEATS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 37 © 2006 Mitchell Repair Information Company, LLC.
Page 4360 of 4378

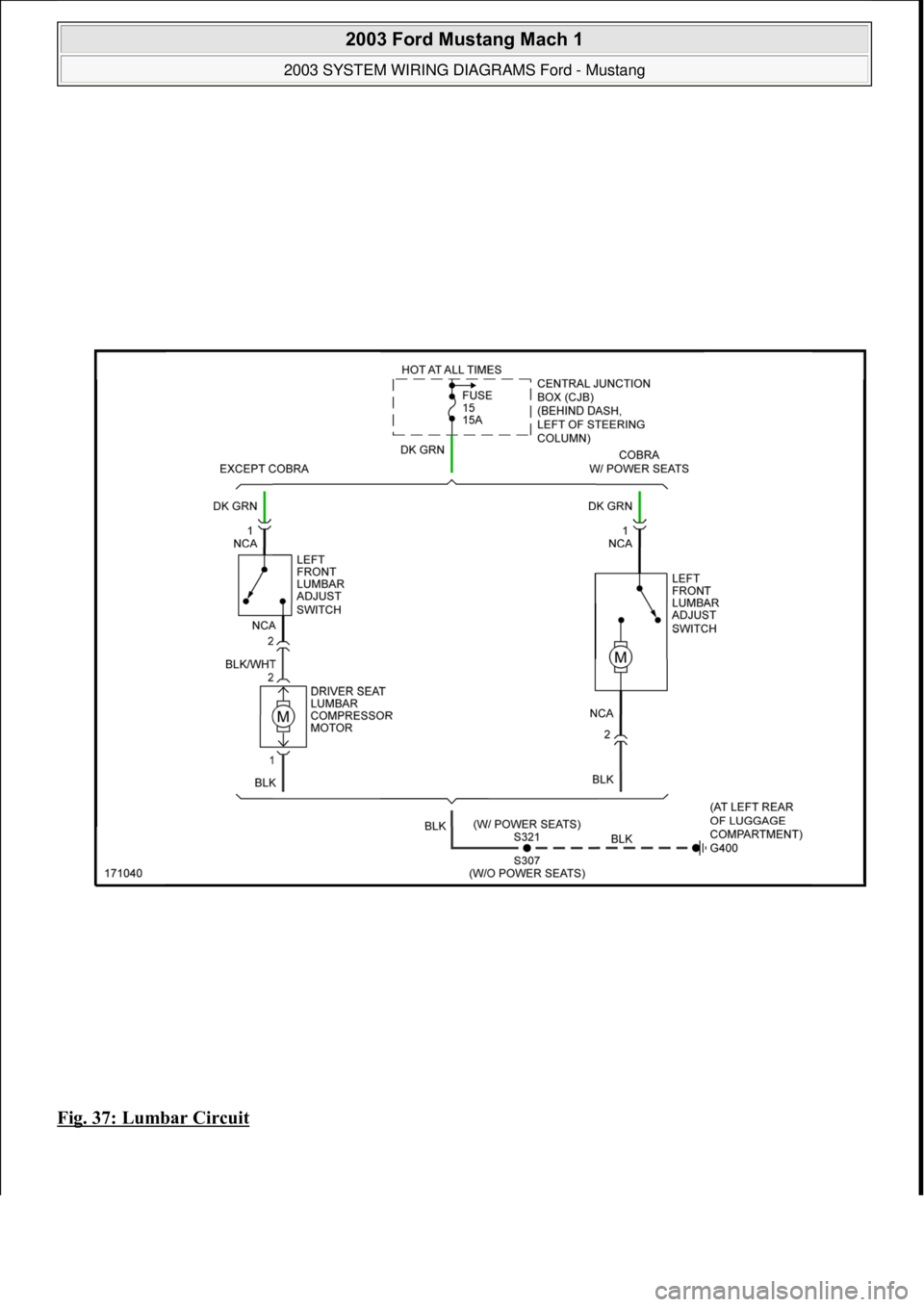

Fig. 37: Lumbar Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 38 © 2006 Mitchell Repair Information Company, LLC.
