Page 4361 of 4378

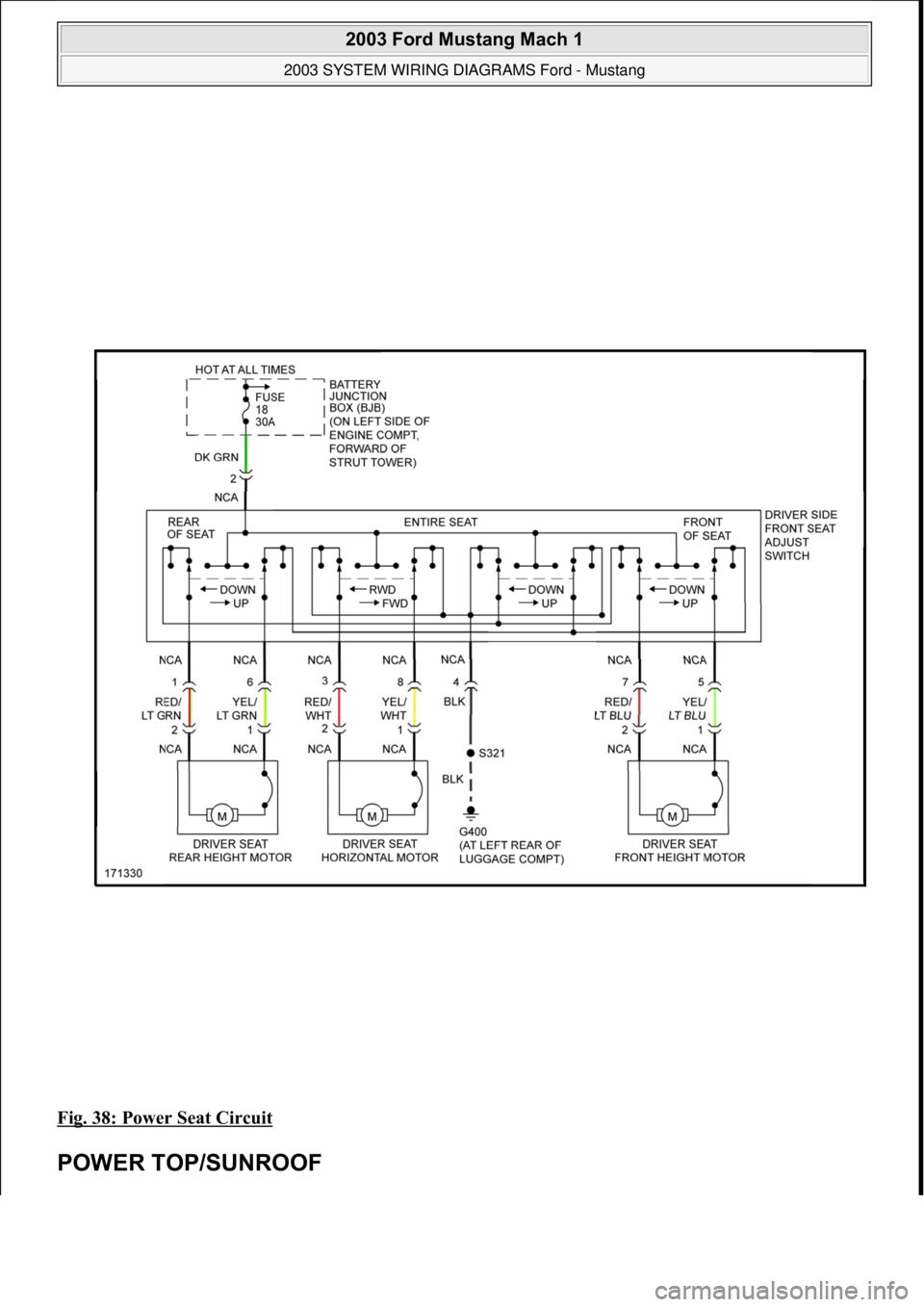

Fig. 38: Power Seat Circuit
POWER TOP/SUNROOF
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 39 © 2006 Mitchell Repair Information Company, LLC.
Page 4362 of 4378

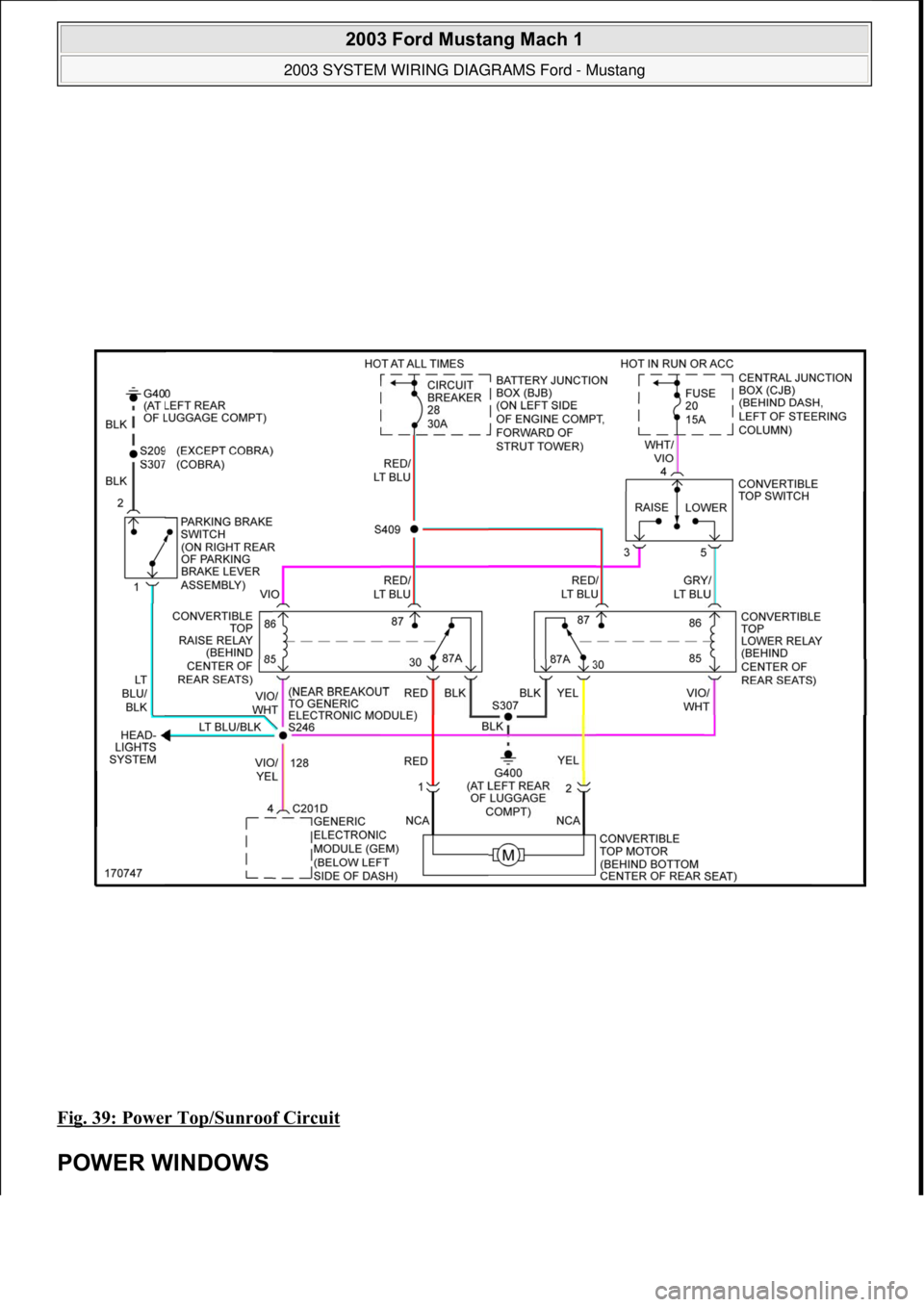

Fig. 39: Power Top/Sunroof Circuit
POWER WINDOWS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 40 © 2006 Mitchell Repair Information Company, LLC.
Page 4363 of 4378

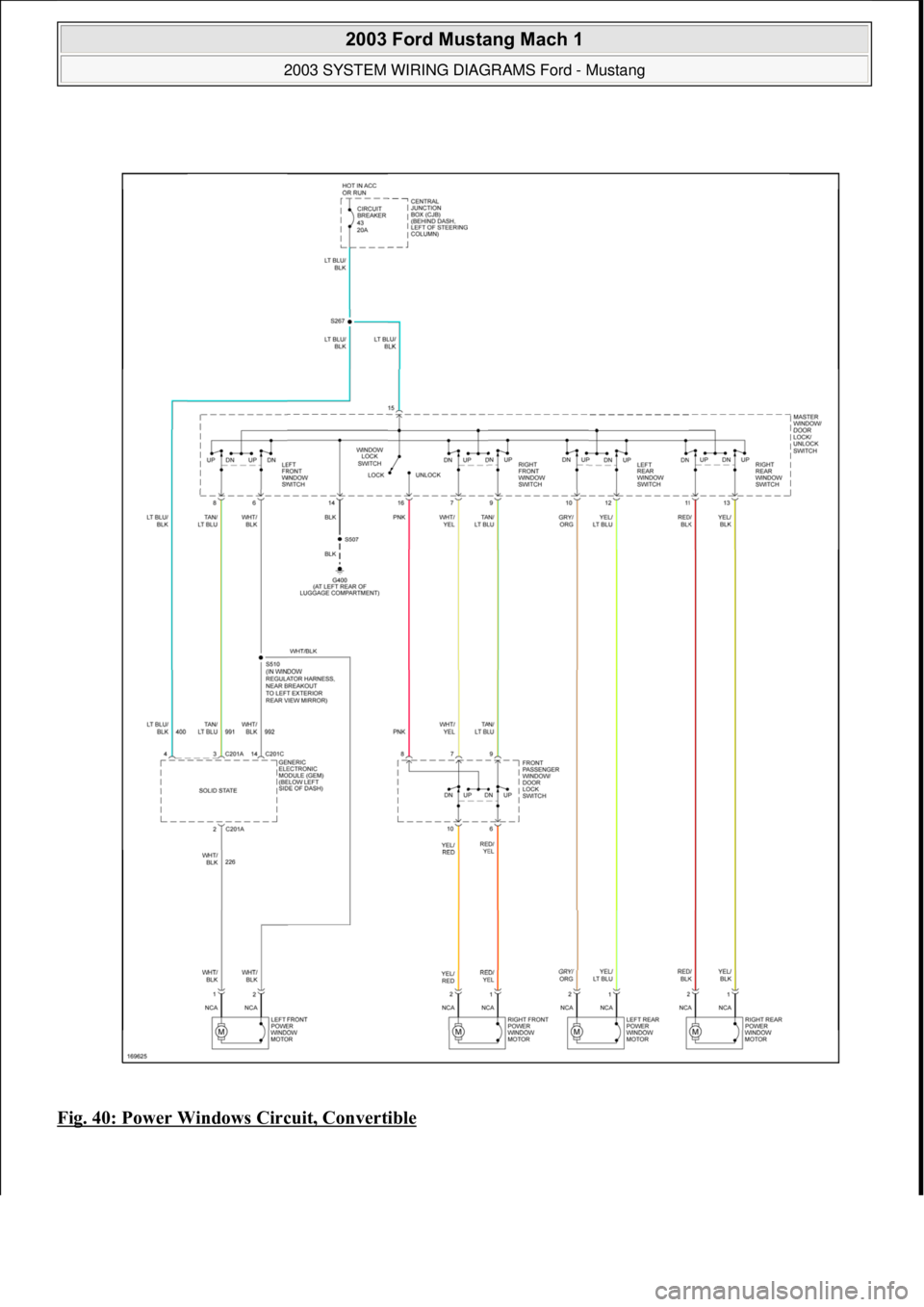

Fig. 40: Power Windows Circuit, Convertible
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 41 © 2006 Mitchell Repair Information Company, LLC.
Page 4364 of 4378

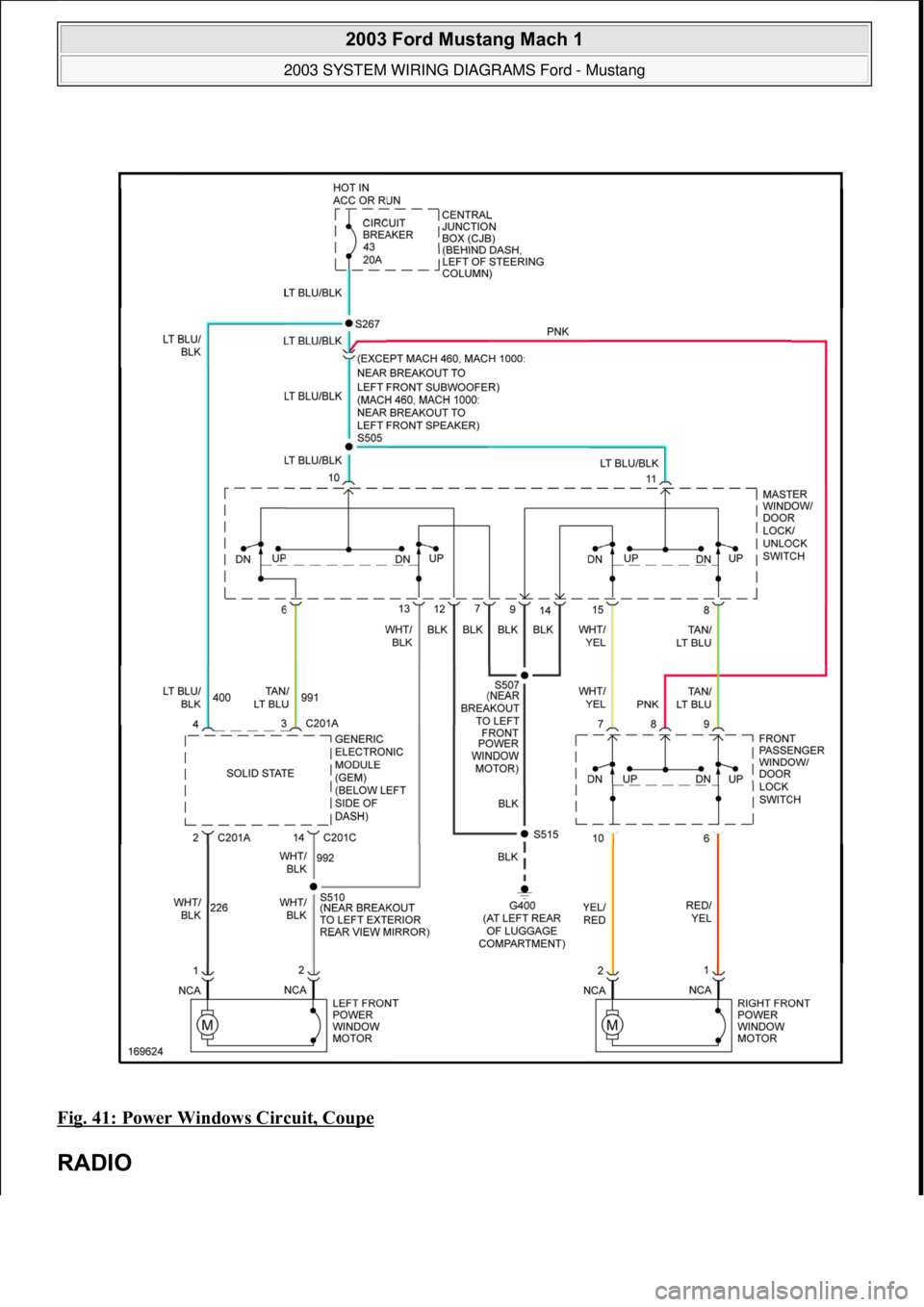

Fig. 41: Power Windows Circuit, Coupe
RADIO
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 42 © 2006 Mitchell Repair Information Company, LLC.
Page 4365 of 4378

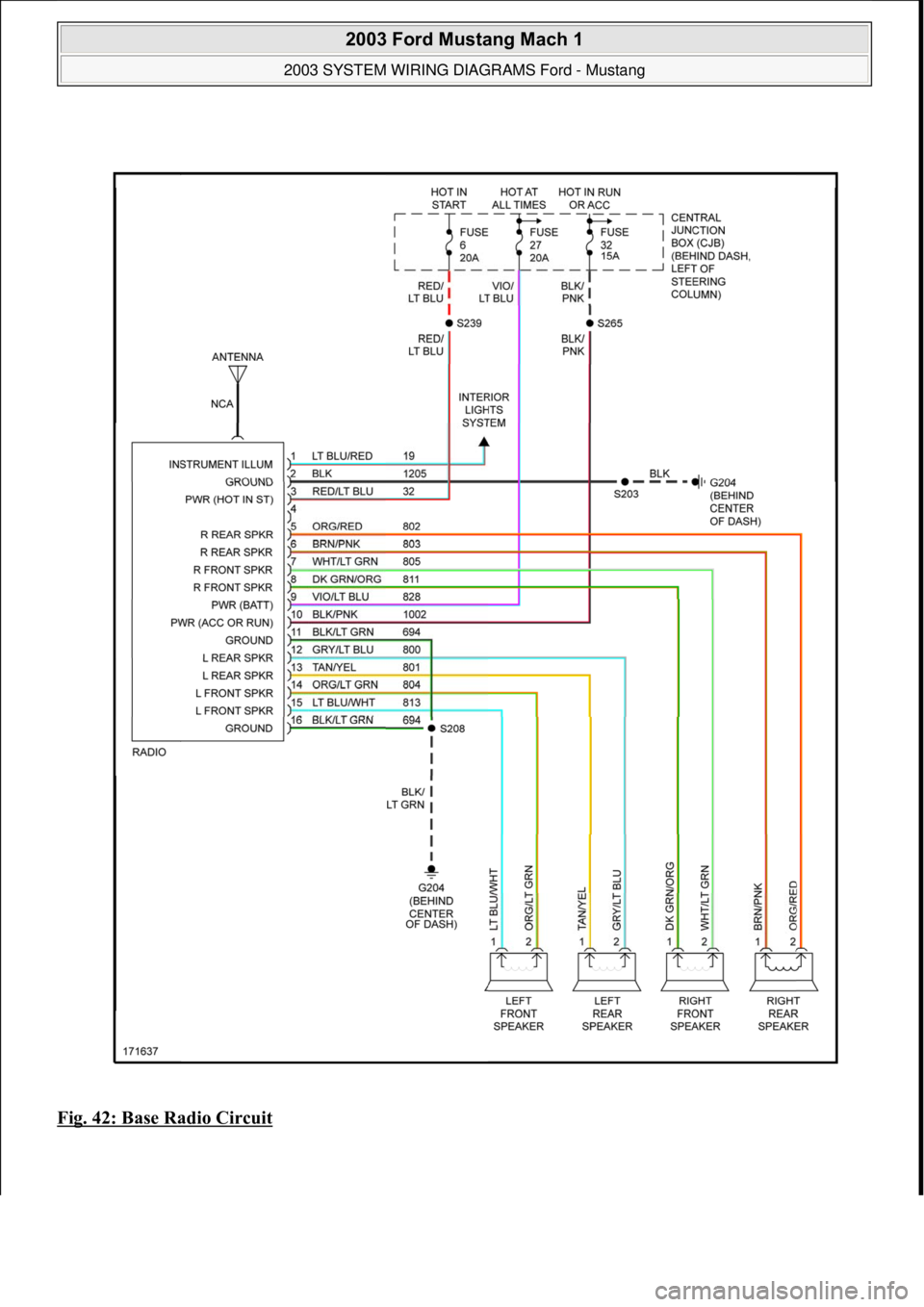

Fig. 42: Base Radio Circuit
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 43 © 2006 Mitchell Repair Information Company, LLC.
Page 4366 of 4378

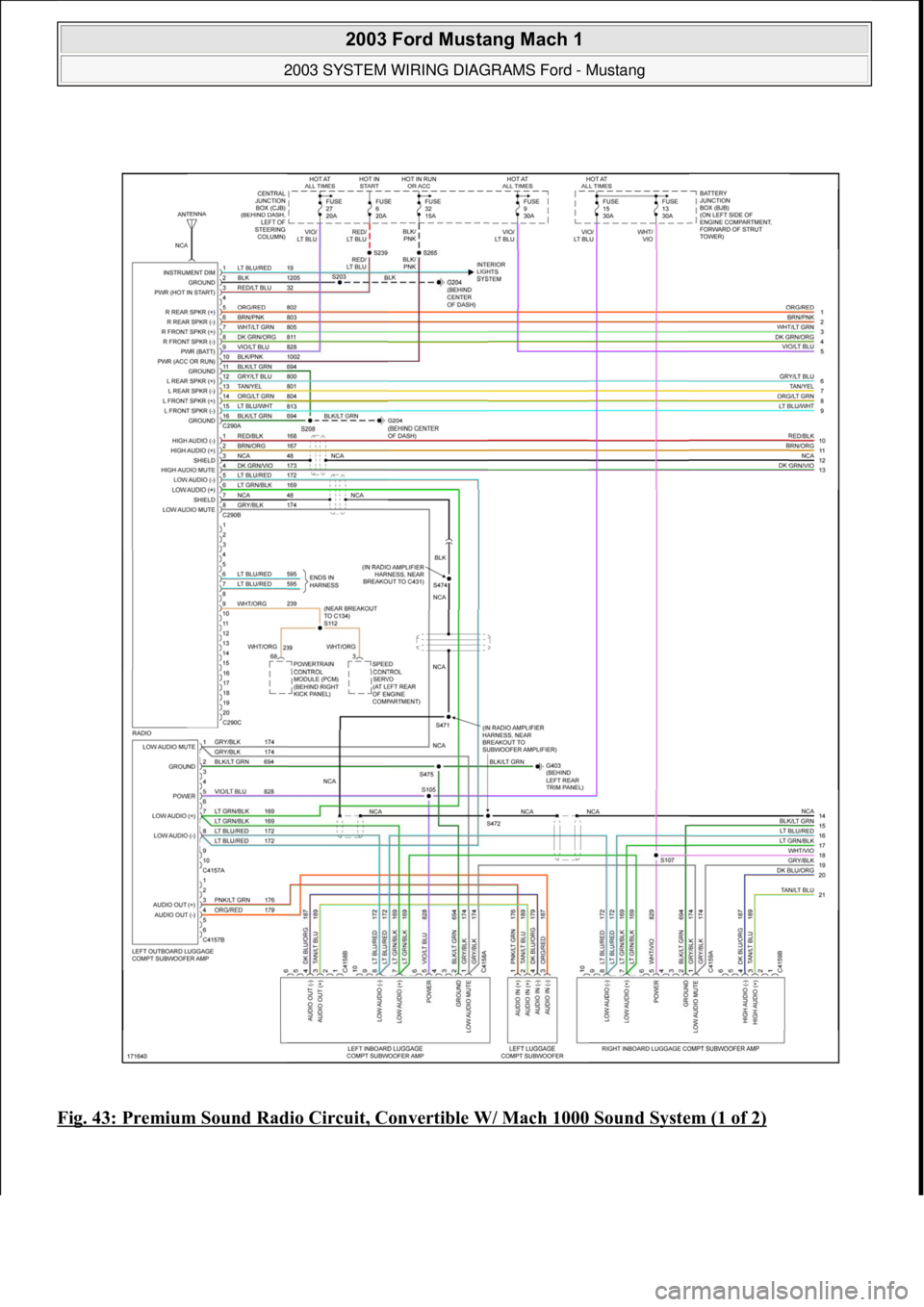

Fig. 43: Premium Sound Radio Circuit, Convertible W/ Mach 1000 Sound System (1 of 2)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 44 © 2006 Mitchell Repair Information Company, LLC.
Page 4367 of 4378

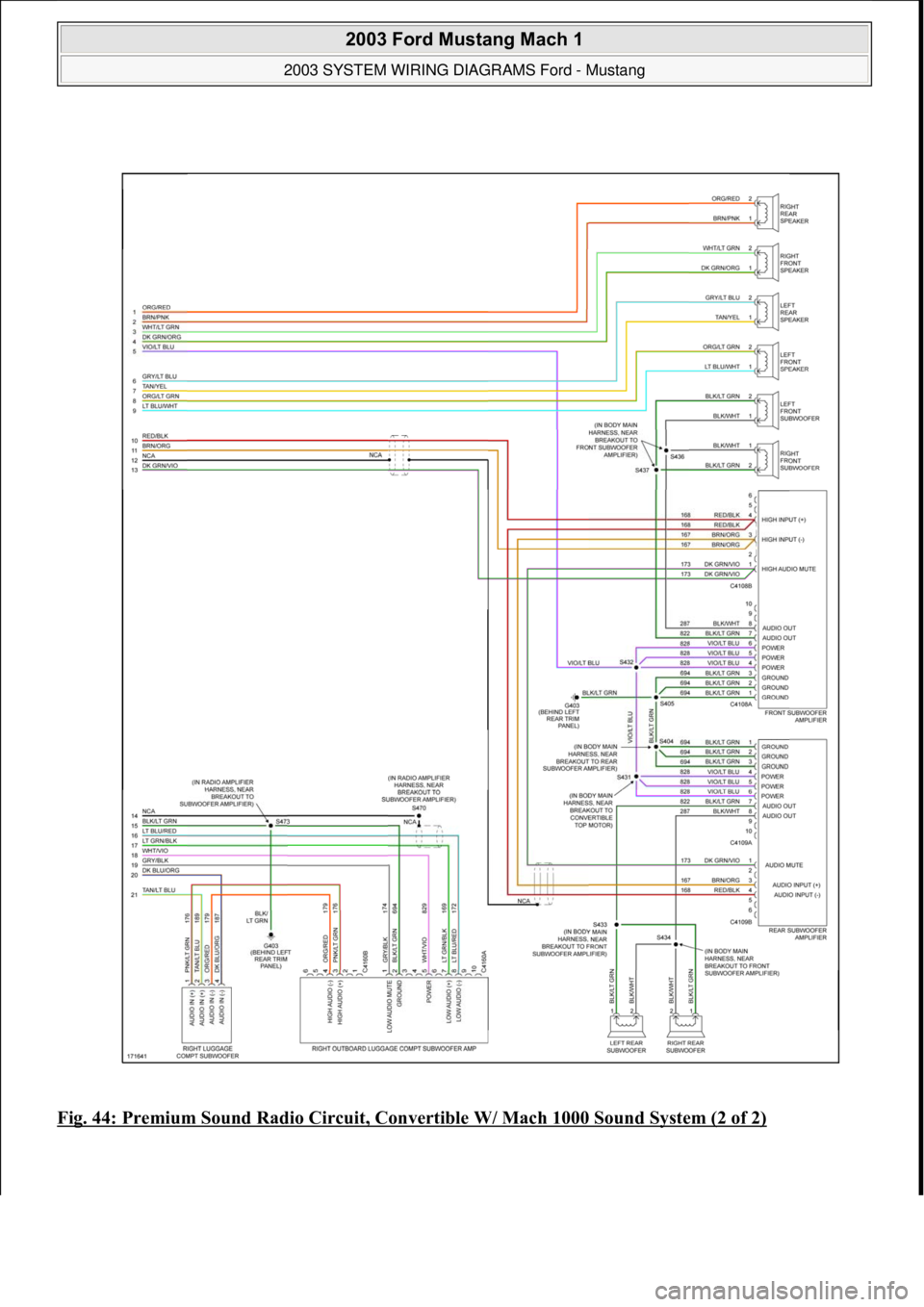

Fig. 44: Premium Sound Radio Circuit, Convertible W/ Mach 1000 Sound System (2 of 2)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 45 © 2006 Mitchell Repair Information Company, LLC.
Page 4368 of 4378

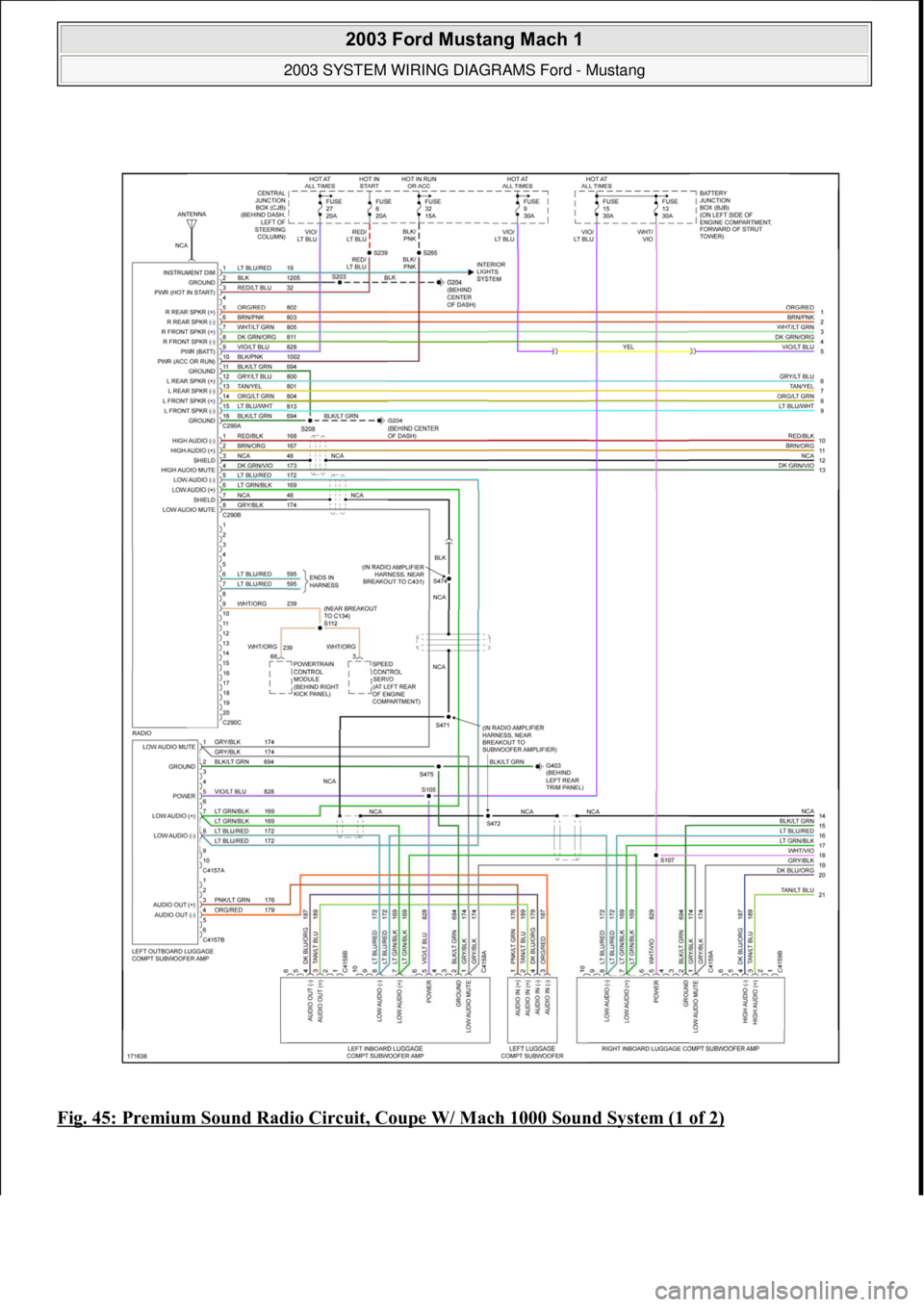

Fig. 45: Premium Sound Radio Circuit, Coupe W/ Mach 1000 Sound System (1 of 2)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 46 © 2006 Mitchell Repair Information Company, LLC.
Page 4369 of 4378

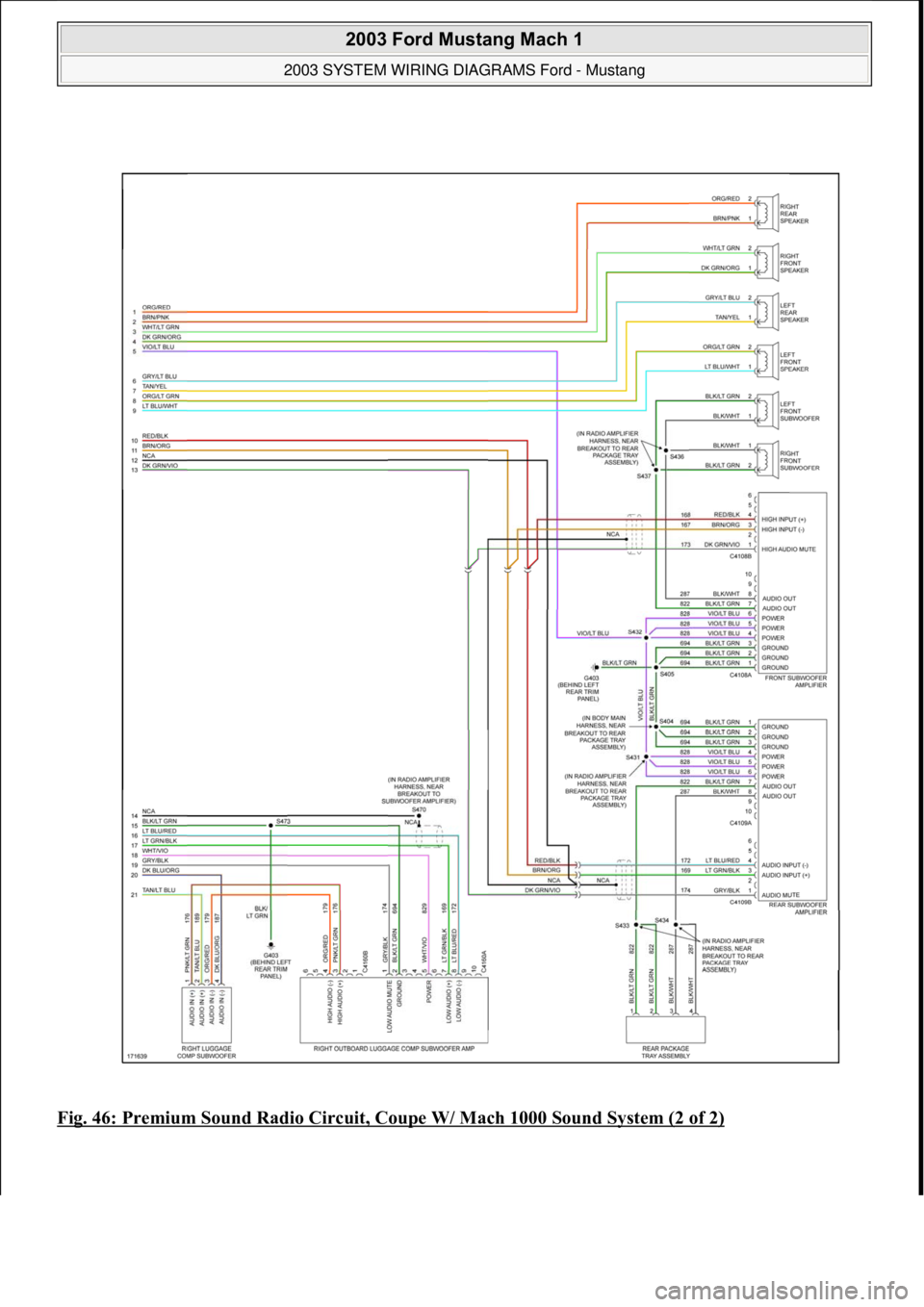

Fig. 46: Premium Sound Radio Circuit, Coupe W/ Mach 1000 Sound System (2 of 2)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 47 © 2006 Mitchell Repair Information Company, LLC.
Page 4370 of 4378
Fig. 47: Premium Sound Radio Circuit, W/ Mach 460 Sound System
SHIFT INTERLOCK
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 48 © 2006 Mitchell Repair Information Company, LLC.
