heater FORD MUSTANG 2003 Service Manual

To maintain the integrity of the coolant and the cooling system:
zAdd Motorcraft Premium Gold Engine Coolant VC -7-A (in Oregon VC -7-B) or equivalent
meeting Ford specification WSS- M97B51-A1 (yellow color). Use the same coolant that
was drained from the cooling system. Do not mix coolant types.
z Do not add/mix orange- colored Motorcraft Speciality Orange Engine Coolant VC- 2 or
equivalent meeting Ford specification WSS- M97B44-D. Mixing coolants may degrade the
coolant's corrosion protection.
z Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or
methanol antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification
WSS- M97B51- A1. Not all coolant recycling processes meet these Ford specifications.
Use of such coolants can harm the engine and cooling system components.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
1. Place the heater temperature selector in the maximum cool position.
2. CAUTION: On 3.8L engines, the vent plug must be removed before radiator fill or
the engine may not fill completely.
NOTE: It is important to maintain engine coolant concentrate between 40 percent or - 24°C (-11°
F) and 60 percent or - 52°C (-62°F).
Fill the engine cooling system with 50/50 mixture of water and engine coolant.
3. After filling the engine cooling system, add coolant to the vent until full. Install the vent plug.
4. Leave the pressure relief cap off and run the engine until it reaches normal operating temperature.
5. Stop the engine and add the correct engine coolant mixture to the degas bottle/coolant expansion tank until the coolant level is between the COOLANT FILL LEVEL marks.
6. Turn the engine off and allow the cooling system to cool. Check the level in the degas bottle/coolant expansion tank, and add a 50/50 mix as needed. Filling — 4.6L (2V) Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine
Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification WSS- M97B51-A1
(yellow color). Always fill the cooling system with the same coolant that is present in the
system. Do not mix coolant types.
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency,
and corrosion protection to the engine and cooling components. In order to obtain these
protections, the engine coolant must be maintained at the correct concentration and fluid level
in the degas bottle.
When adding engine coolant, use a 50/50 mixture of engine coolant and deionized water.
To maintain the integrity of the coolant and the cooling system:
zAdd Motorcraft Premium Gold Engine Coolant VC -7-A (in Oregon VC -7-B) or equivalent
meeting Ford specification WSS- M97B51-A1 (yellow color). Use the same coolant that
was drained from the cooling system. Do not mix coolant types.
z Do not add/mix orange- colored Motorcraft Speciality Orange Engine Coolant VC- 2 or
equivalent meeting Ford specification WSS- M97B44-D. Mixing coolants may degrade the
coolant's corrosion protection.
z Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or
methanol antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification
WSS- M97B51- A1. Not all coolant recycling processes meet these Ford specifications.
Use of such coolants can harm the engine and cooling system components.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
1. Remove the thermostat. For additional information, refer to Thermostat — 4.6L(2V) in this
section.
2. Disconnect the heater core coolant supply hose from the fitting at the rear of the manifold.
3. Add the coolant/water mixture through the thermostat opening until coolant appears at the heater core coolant supply outlet fitting at the rear of the manifold.
4. Install the heater hose, using an appropriately sized worm style clamp in place of the constant tension clamp.
5. Reinstall the thermostat gasket (O- ring) and the thermostat. For additional information, refer to
Thermostat — 4.6L(2V) in this section.
6. Add the correct engine coolant mixture to the degas bottle until the coolant level is between the Klj . 3 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

"COOLANT FILL LEVEL" marks and replace the pressure cap.
7. Select the maximum cool temperature setting.
8. Run the engine until it reaches operating temperature.
9. CAUTION: If the engine coolant temperature gauge does not move, the engine
coolant level in the engine is low and must be filled. Stop the engine, allow it to cool and
fill the cooling system.
Add the correct engine coolant mixture to the degas bottle until the coolant level is between the
"COOLANT FILL LEVEL" marks.
10. Repeat the two previous steps until the engine coolant mixture is between the "COOLANT FILL LEVEL" marks on the degas bottle. Turn off the engine and allow it to cool.
11. Check the freeze protection of the engine coolant mixture with the Battery/Anti- freeze Tester
014- R1060 or equivalent. Adjust freezing point range if necessary.
Filling — Cobra
CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine
Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification WSS- M97B51-A1
(yellow color). Always fill the cooling system with the same coolant that is present in the
system. Do not mix coolant types.
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency,
and corrosion protection to the engine and cooling components. In order to obtain these
protections, the engine coolant must be maintained at the correct concentration and fluid level
in the degas bottle.
When adding engine coolant, use a 50/50 mixture of engine coolant and deionized water.
To maintain the integrity of the coolant and the cooling system:
zAdd Motorcraft Premium Gold Engine Coolant VC -7-A (in Oregon VC -7-B) or equivalent
meeting Ford specification WSS- M97B51-A1 (yellow color). Use the same coolant that
was drained from the cooling system. Do not mix coolant types.
z Do not add/mix orange- colored Motorcraft Speciality Orange Engine Coolant VC- 2 or
equivalent meeting Ford specification WSS- M97B44-D. Mixing coolants may degrade the
coolant's corrosion protection.
z Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or
methanol antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification
WSS- M97B51- A1. Not all coolant recycling processes meet these Ford specifications.
Use of such coolants can harm the engine and cooling system components.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
1. Check all hose clamps for correct tightness. Make sure the radiator draincock is closed.
2. Place the heater temperature selector in maximum cool position. Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

was drained from the cooling system. Do not mix coolant types.
z Do not add/mix orange- colored Motorcraft Speciality Orange Engine Coolant VC- 2 or
equivalent meeting Ford specification WSS- M97B44-D. Mixing coolants may degrade the
coolant's corrosion protection.
z Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or
methanol antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification
WSS- M97B51- A1. Not all coolant recycling processes meet these Ford specifications.
Use of such coolants can harm the engine and cooling system components. Do not mix
coolant types
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
1. Remove the air intake scoop. For additional information, refer to Section 303 - 12 .
2. Check all hose clamps for correct tightness. Make sure the radiator draincock is closed.
3. Place the heater temperature selector in maximum cool position.
4. Remove the pressure cap from the cooling system reservoir and the fill plug from the engine crossover tube.
5. CAUTION: Do not fill the cooling system through the reservoir only. Coolant will not
enter the engine. Only the reservoir and the radiator will be filled and engine overheating
will occur.
Add coolant into the fill neck on the engine crossover tube until coolant reaches the top of the fill
neck on the cooling system reservoir.
6. Install the cooling system pressure cap on the reservoir.
7. Continue to fill the cooling system at the engine crossover fill neck until full.
8. Install the engine crossover tube fill plug.
9. WARNING: To avoid the possibility of personal injury or damage to the vehicle, do
not operate the engine with the hood open until the fan has been first examined for
possible cracks and separation.
CAUTION: If the engine temperature gauge does not move, coolant level is low in
the engine and must be filled. Stop the engine, allow to cool, and fill the cooling system
as outlined.
Run the engine until the thermostat opens (coolant flowing through the radiator lower hose
becomes hot).
10. Stop the engine and allow to cool.
11. Add coolant to the engine crossover tube fill neck until the cooling system is full.
12. Install the fill plug.
13. Repeat the fill procedure if necessary. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

14. Install the air intake scoop. For additional information, refer to
Section 303 - 12 .
Bleeding 1. Select the maximum heater temperature and blower motor speed settings. Position the control to discharge air at A/C vents in instrument panel.
2. Start the engine and allow to idle. While engine is idling, feel for hot air at A/C vents.
3. CAUTION: If the air discharge remains cool and the engine coolant temperature
gauge does not move, the engine coolant level is low and must be filled. Stop the engine,
allow the engine to cool and fill cooling system.
Start the engine and allow it to idle until normal operating temperature is reached. Hot air should
discharge from A/C vents. The engine coolant temperature gauge should maintain a stabilized
reading in the middle of the NORMAL range. The upper radiator hose should feel hot to the
touch.
4. Shut the engine off and allow the engine to cool.
5. Check the engine for coolant leaks.
6. Check the engine coolant level in the degas bottle/coolant expansion tank and fill as necessary. Klj . 7 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Install the coolant hose connection without the thermostat.
5.
NOTE: Refer to the cooling system flusher manufacturer's operating instructions for specific
vehicle hook- up.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
Using an appropriate cooling system flusher, flush the engine and radiator.
Use Ford Premium Cooling System Flush VC-1 or equivalent meeting Ford specification ESR-
M14P7-A. Always flush the cooling system with water thoroughly after using the VC- 1 flush and
prior to filling the cooling system with the same coolant that was present in the system. Do not
mix coolant types.
6. Install the thermostat.
7. Backflush the heater core. For additional information, refer to Heater Core Backflushing in this
section.
8. Fill the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Heater Core Backflushing
1. WARNING: Never remove the pressure relief cap while the engine is operating or
when the cooling system is hot. Failure to follow these instructions can result in damage
to the cooling system or engine or personal injury. To avoid having scalding hot coolant
or steam blow out of the degas bottle when removing the pressure relief cap, wait until
the engine is cooled, then wrap a thick cloth around the pressure relief cap and turn it
slowly. Step back while the pressure is released from the cooling system. When you are
sure all the pressure has been released, turn and remove the pressure relief cap (still
with a cloth).
Once pressure is released, remove the pressure relief cap.
2. Partially drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
3. NOTE: For additional information, refer to the cooling system flusher manufacturer's operating
instructions for particular vehicle hook- up.
Use an appropriate cooling system flusher to backflush the heater core. Use Motorcraft Cooling
System Flush VC-1 or equivalent meeting Ford specification ESR- M14P7-A. Flush with water
thoroughly after using VC- 1 or equivalent prior to refilling the cooling system
4. Fill the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Special Tool(s)
Flush Kit
164-
R3658 or equivalent Drain Kit
164-
R3662 or equivalent
Material Item Specification
Motorcraft Premium Cooling
System Flush
VC-
1 or equivalent ESR-
M14P7-A Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

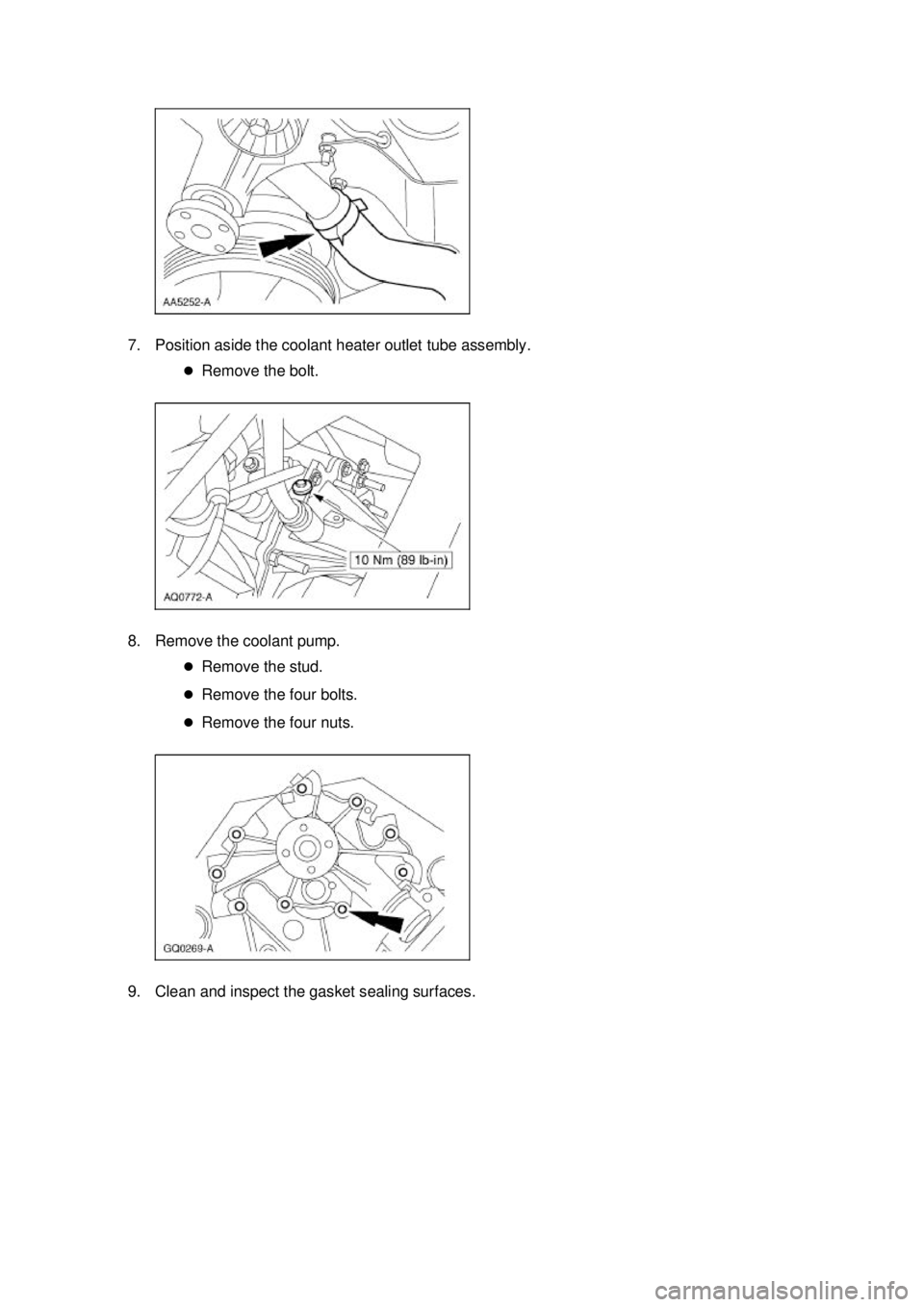

7. Position aside the coolant heater outlet tube assembly.
zRemove the bolt.
8. Remove the coolant pump. zRemove the stud.
z Remove the four bolts.
z Remove the four nuts.
9. Clean and inspect the gasket sealing surfaces. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Pressure Test
1. Turn the engine OFF.
2. WARNING: Never remove the pressure relief cap under any conditions while the
engine is operating. Failure to follow these instructions could result in damage to the
cooling system or engine and/or personal injury. To avoid having scalding hot coolant or
steam blow out of the cooling system, never remove the pressure relief cap from a hot
degas bottle. Wait until the engine has cooled, then wrap a thick cloth around the
pressure relief cap and turn it slowly one turn (counterclockwise). Step back while the
pressure is released from the cooling system. When certain all the pressure has been
released, remove the pressure relief cap (still with a cloth).
Check the intercooler coolant level. For additional information, refer to Supercharger Cooling System Draining, Filling and Bleeding in this section.
3. Connect the Radiator/Heater Core Pressure Tester to the degas bottle nipple. Install a pressure test pump to the quick- connect fitting of the test adapter.
4. NOTE: If the plunger of the pump is depressed too fast, an erroneous pressure reading will
result.
Slowly depress the plunger of the pressure test pump until the pressure gauge reading stops
increasing and note the highest pressure reading obtained.
5. If the pressure relief cap does not hold pressure, remove and wash the pressure relief cap in clean water to dislodge all foreign particles from the gaskets. Check the sealing surface in the
filler neck.
6. If 69 kPa (10 psi) cannot be reached, install a new pressure relief cap. If more than 12 kPa (18 psi) shows on the gauge, install a new pressure relief cap.
7. CAUTION: If the pressure drops, check for leaks at the intercooler hoses or other
system components and connections. Any leaks which are found must be corrected and
the system rechecked.
NOTE: Intercooler system is not connected to the main engine cooling system.
Pressurize the intercooler cooling system as described in Step 4 (using a pressure relief cap
that operates within the specified upper and lower pressure limits). Observe the gauge reading
for approximately two minutes; refer to General Specifications. Pressure should not drop during
this time. zIf the pressure drops and no external leak is found, the intercooler may be the cause.
Remove and inspect the intercooler. Install a new intercooler if necessary.
8. Release the system pressure by loosening the pressure relief cap. Check the coolant level and replenish, if necessary, with the correct coolant mixture. For additional information, refer to
Supercharger Cooling System Draining, Filling and Bleeding in this section.
Cap WARNING: Never remove the pressure relief cap under any conditions while the engine is Klj . 5 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

operating. Failure to follow these instructions could result in damage to the cooling system or
engine and/or personal injury. To avoid having scalding hot coolant or steam blow out of the
cooling system, use extreme care when removing the pressure relief cap from a hot degas
bottle. Wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap
and turn it slowly one turn (counterclockwise). Step back while the pressure is released from
the cooling system. When certain all the pressure has been released, remove pressure relief
cap (still with a cloth).
1. Immerse the pressure relief cap in water and install it on the shallow filler neck of Radiator/Heater Core Pressure Tester and Radiator Cap Adapter, part of Radiator/Heater Core
Pressure Tester.
2. Immerse the filler neck seal in water and install it in the filler neck adapter.
3. Install the filler neck adapter with the filler neck seal to the Radiator Cap Adapter.
4. Connect the female quick- connect fitting of the pressure test pump to the male quick- connect
fitting of the filler neck adapter.
5. NOTE: If the plunger of the pump is depressed too fast, an erroneous pressure reading will
result.
Slowly depress the plunger of the pressure test pump until the pressure gauge reading stops
increasing and note the highest pressure reading obtained.
6. Release the pressure by turning the relief screw counterclockwise. Then tighten the pressure relief screw and repeat Step 6 (at least twice) to make sure the reading is repeatable within the
specifications of the pressure relief cap.
7. If the pressure test gauge readings are not within specifications, install a new pressure relief cap. If the pressure test gauge readings are within specifications, carry out the cooling system
pressure test.
Radiator Leak Test, Removed From the Vehicle CAUTION: Never leak test an aluminum radiator or intercooler in the same water that
copper/brass radiators are tested in. Flux and caustic cleaners may be present in the cleaning
tank and they will damage aluminum radiators and intercoolers.
NOTE: Clean the radiator or intercooler before leak testing to avoid contamination of tank.
1. Leak test the radiator or intercooler in clean water with 138 kPa (20 psi) air pressure. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
