cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
Porosity/cross leaks, balls leaking ·
Inspect for porosity/leaks, ball missing. Install a new
pump as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as necessary. Torque Converter Assembly
·
Leakage, friction material damaged,
internal seals damaged ·
Inspect torque converter. Repair or install a new or
remanufactured torque converter as required.
Torque Converter Clutch Operation Concerns: Always Applied/Stalls Vehicle Possible Component Reference/Action
241 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, torque converter clutch
(TCC) solenoid, TFT sensor ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test B or
Go To Pinpoint Test A . Repair as required. Clear DTCs, road test
and repeat Self- Test. 341 —
HYDRAULIC/MECHANICAL ROUTINE Main Control
·
Drain back valve, torque
converter clutch (TCC) and
plunger stuck, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
TCC solenoid malfunction ·
Activate solenoid using scan tool. If solenoid operation cannot
be felt when placing hand on solenoid, install a new solenoid.
Inspect O- rings for damage. Repair as required. ·
No. 7 ball incorrect seating ·
Inspect for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Ball missing, leaking,
porosity/cross leaks ·
Inspect for porosity/leaks, balls missing. Install a new pump as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as required. Torque Converter Assembly Klj . 24 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

·
No end clearance ·
Inspect converter and install a new or remanufactured torque
converter as required. ·
Piston plate damaged or stuck
to cover ·
If cover is heat- stained, install a new converter and determine
the cause of the overheat condition.
Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter Possible Component Reference/Action
242 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, PCM, torque
converter clutch (TCC) solenoid,
OSS ·
Carry out Self-Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for
diagnosis and testing of the Powertrain Control System.
Go To Pinpoint Test E . Repair as required. Clear
DTCs, road test and repeat Self- Test. ·
Speed control equipped vehicles ·
Evaluate with speed control off. 342 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Condition ·
Inspect fluid condition. If burnt, drain fluid and converter.
Install a new fluid and filter assembly. Bring vehicle to
normal operating temperature. Carry out Transmission
Drive Cycle Test. Carry out Transmission Self- Test. If
condition still exists, continue diagnostics. Main Controls
·
Solenoid pressure regulator valve,
No. 7 check ball, bypass clutch
control valve and plunger, converter
pressure limit valve stuck, damaged
or assembled incorrectly ·
Inspect for damage. Repair as required. ·
Bolts not tightened to specifications ·
Tighten bolts to specifications. ·
Solenoid screen blocked or damaged ·
Clean or install a new screen. ·
TCC solenoid malfunction ·
Activate solenoid using scan tool. If solenoid operation
cannot be felt when placing hand on solenoid, install a
new solenoid. Inspect O- rings for damage. Repair as
required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Pump Assembly
·
Bolts not tightened to specification ·
Tighten bolts to specification. ·
Porosity/cross leaks, missing balls or
leaking ·
Inspect for porosity/leaks or missing balls. Install a new
pump as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Input Shaft
·
Seals damaged ·
Inspect for damage. Repair as required. Torque Converter
·
Excessive end clearance ·
Inspect converter. Install a new or re- manufactured
torque converter as required.
Other Concerns: No Engine Braking In Manual 2nd Or Manual 1st Position Klj . 25 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

mechanism damaged
Main Controls
·
Manual valve stuck or
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications.
Other Concerns: External Leaks Possible Component Reference/Action
252 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, sensor
seals leaking (digital TR, OSS,
vehicle speed sensor VSS, if
equipped, or transmission connector) ·
Inspect for leakage and repair as required. 352 —
HYDRAULIC/MECHANICAL ROUTINE Case
·
Case vent, case porosity, case
cracked ·
Check the vent for free breathing. Check the fluid level.
Check the transmission for overheat conditions. Repair
as required. Seals/Gaskets
·
Leakage at gaskets, seals, etc. (refer
to external sealing illustration for
potential leak locations) ·
Remove all traces of lubricant on exposed surfaces of
the transmission. Check the vent for free breathing.
Operate the transmission at normal temperatures and
perform fluid leakage check. Repair as required. Other
·
Cooler fitting, cooler lines pressure
tap, converter drain plug, band
anchor pins ·
Locate the source of the leak. Repair as required.
Other Concerns: Poor Vehicle Performance Possible Component Reference/Action
253 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs, vehicle
wiring harnesses, shift solenoids,
digital TR sensor, torque
converter clutch (TCC) solenoid,
transmission fluid temperature
(TFT) sensor ·
Carry out Self-Test. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual for diagnosis
and testing of the Powertrain Control System. Go To Pinpoint Test A ,
Go To Pinpoint Test B or
Go To Pinpoint Test C . Repair as required. Clear codes, road test and
repeat Self- Test. Also refer to Routines 241/341 Torque
Converter Operation Concern: Always Applied. ·
Engine driveability concerns ·
Inspect air intake/air filter system. Check the fuel system
and fuel pressure. Refer to the Powertrain
Control/Emissions Diagnosis (PC/ED) manual. Inspect the
exhaust system for restriction. Refer to Section 309 - 00 .
353 —
HYDRAULIC/MECHANICAL ROUTINE Shift Linkage, Digital TR Sensor Klj . 27 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

4. Use only clean automatic transmission fluid.
5. Once the fluid exchange has been completed, disconnect the flush and fill machine. Reconnect
any disconnected fluid cooler tubes.
6. With the engine running and the transmission at normal operating temperature 66- 77°C (150-
170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24- liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator).
Draining
Vehicles equipped with a torque converter drain plug 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Loosen the transmission fluid pan bolts and allow the fluid to drain.
3. After the fluid has drained, remove the transmission fluid pan.
4. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
5. Remove the torque converter drain plug cover. Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

10. Install the torque converter drain plug cover.
11. Position the magnet into the transmission fluid pan.
12.
NOTE: The fluid pan gasket is reusable, clean and inspect for damage. If not damaged, the
gasket should be reused.
Install the fluid pan and gasket. 1. Position the fluid pan with the gasket in place.
2. Install the bolts.
13. CAUTION: The use of any other transmission fluid can result in the transmission
failing to operate in a normal manner or transmission failure.
Fill the transmission.
zAdd 4.7 liters (5 qts) of clean automatic transmission fluid to the transmission through the
fluid filler tube.
14. Start the engine. Move the transmission range selector lever through all the gear ranges, checking for engagements.
15. With the engine running and the transmission at normal operating temperature 66- 77°C (150- Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

170°F), check and adjust the transmission fluid level, and check for any leaks. If fluid is needed,
add fluid in increments of 0.24-
liter (0.5-pint) until the correct level is achieved (fluid should be in
the cross- hatched area of the fluid level indicator).
Draining
Vehicles without a torque converter drain plug 1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Section 100 - 02 .
2. Loosen the transmission fluid pan bolts and allow the fluid to drain.
3. After the fluid has drained, remove the transmission fluid pan.
4. Do not remove the fluid filter. It is not necessary to change the fluid filter during a normal maintenance fluid change.
5. Clean and inspect the transmission fluid pan, transmission fluid pan gasket and magnet.
6. Thoroughly flush the cooler tubes. For additional information, refer to Transmission Fluid Cooler — Backflushing and Cleaning in this section. Klj . 5 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Fluid Pan, Gasket and Filter
1. Normal maintenance requires periodic automatic transmission fluid changes. If a major repair, such as a clutch, band, bearing, etc., is required, the automatic transmission will also have to be
removed for repair. At this time, the torque converter, transmission cooler and tubes must be
thoroughly flushed to remove any dirt. The transmission fluid needs to be changed if evidence
of fluid contamination is found. When used under continuous or severe conditions, the
transmission and torque converter should be drained and refilled with fluid as specified.
2. CAUTION: Do not use any supplemental transmission fluid additives or cleaning
agents. The use of these products could cause internal transmission components to fail;
this will effect the operation of the transmission.
CAUTION: Use of a fluid other than specified could result in transmission failure.
Refer to the vehicle certification label affixed to the LH front door lock face panel or door pillar
for the transmission code.
3. When filling a dry transmission and torque converter, refer to General Specifications chart in this section for capacity. Check the fluid level.
Removal
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. Place a drain pan under the transmission fluid pan.
4. Drain transmission fluid. zLoosen the transmission fluid pan bolts and allow fluid to drain. After fluid is drained
remove the bolts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Material
Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Main Control Valve Body
Removal 1. Drain transmission fluid and remove the transmission fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filter .
2. CAUTION: Do not pull on the molded lead frame. This may cause damage to the
connector ends. Carefully pry up on the locking tabs to disconnect the solenoids.
Disconnect the molded lead frame from the solenoids.
Disconnect the molded lead frame from the solenoids. 1. Disconnect the shift solenoid SSA and SSB.
2. Disconnect the torque converter clutch (TCC).
3. Disconnect the electronic pressure control (EPC) solenoid.
4. Disconnect the bulkhead inter- connector.
3. Remove the manual control valve detent lever spring. 1. Remove the bolt.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Gauge, Transmission Solenoid
Connectors
307-426 Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Extension Housing Seal and Gasket
Removal 1. Drain the transmission fluid. For additional information, refer to Fluid Pan, Gasket and Filter in
this section.
2. NOTE: The output shaft and driveshaft are a balanced assembly.
Mark the driveshaft flange and the rear companion flange for correct alignment during
assembly.
3. Remove the four driveshaft bolts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Slide Hammer
100-
001 (T50T-100- A) Installer, Transmission
Extension Housing Fluid Seal
308-
002 (T61L-7657- A) Remover, Transmission Fluid
Seal
307-
048 (T74P-77248- A) Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

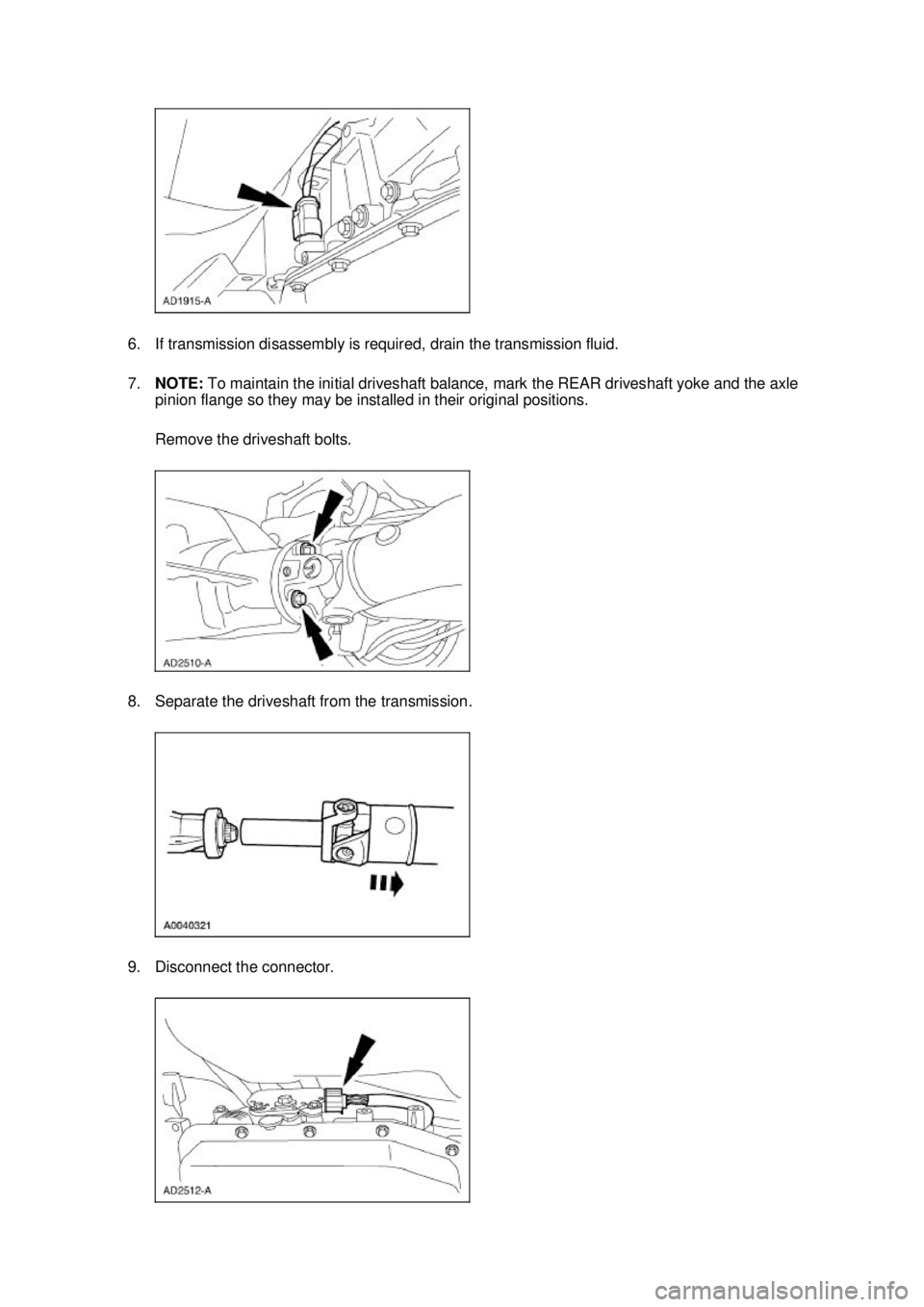

6. If transmission disassembly is required, drain the transmission fluid.
7.
NOTE: To maintain the initial driveshaft balance, mark the REAR driveshaft yoke and the axle
pinion flange so they may be installed in their original positions.
Remove the driveshaft bolts.
8. Separate the driveshaft from the transmission.
9. Disconnect the connector. Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
