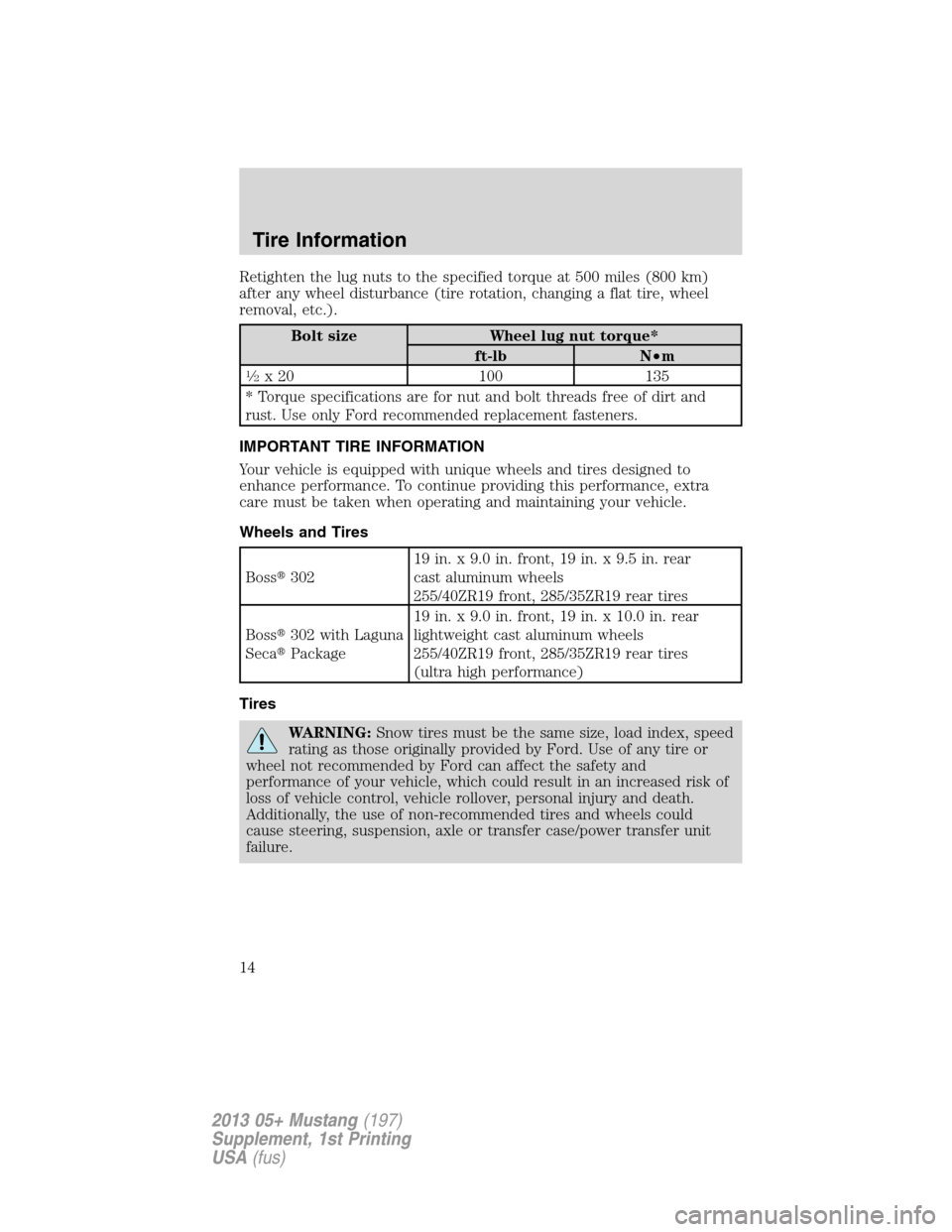

Page 14 of 32
Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
ft-lb N•m
1 2x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
IMPORTANT TIRE INFORMATION
Your vehicle is equipped with unique wheels and tires designed to
enhance performance. To continue providing this performance, extra
care must be taken when operating and maintaining your vehicle.
Wheels and Tires
Boss30219in.x9.0in.front,19in.x9.5in.rear
cast aluminum wheels
255/40ZR19 front, 285/35ZR19 rear tires
Boss302 with Laguna
SecaPackage19 in. x 9.0 in. front, 19 in. x 10.0 in. rear
lightweight cast aluminum wheels
255/40ZR19 front, 285/35ZR19 rear tires
(ultra high performance)
Tires
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
Tire Information
14
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

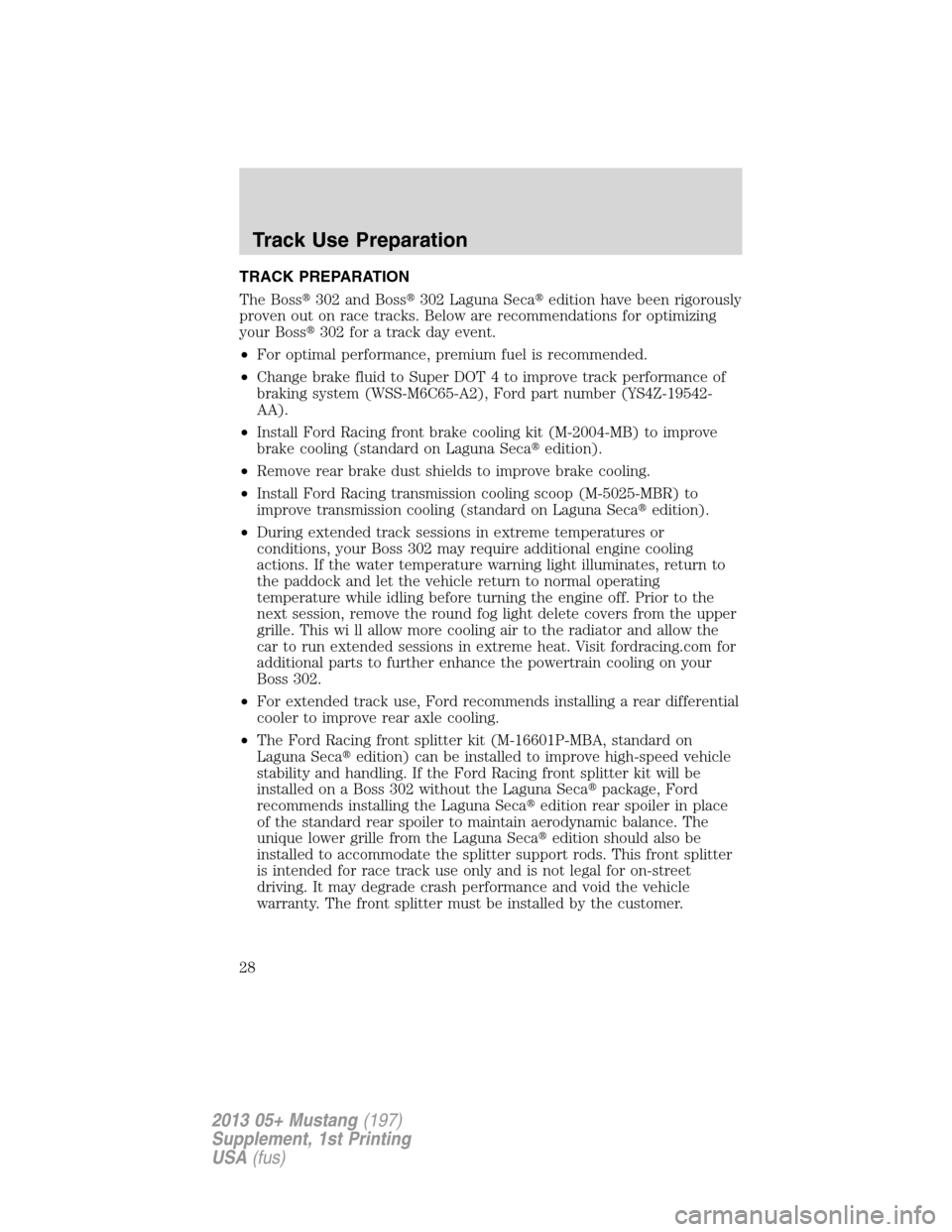

Page 28 of 32
TRACK PREPARATION
The Boss302 and Boss302 Laguna Secaedition have been rigorously
proven out on race tracks. Below are recommendations for optimizing
your Boss302 for a track day event.
•For optimal performance, premium fuel is recommended.
•Change brake fluid to Super DOT 4 to improve track performance of
braking system (WSS-M6C65-A2), Ford part number (YS4Z-19542-
AA).
•Install Ford Racing front brake cooling kit (M-2004-MB) to improve
brake cooling (standard on Laguna Secaedition).
•Remove rear brake dust shields to improve brake cooling.
•Install Ford Racing transmission cooling scoop (M-5025-MBR) to
improve transmission cooling (standard on Laguna Secaedition).
•During extended track sessions in extreme temperatures or
conditions, your Boss 302 may require additional engine cooling
actions. If the water temperature warning light illuminates, return to
the paddock and let the vehicle return to normal operating
temperature while idling before turning the engine off. Prior to the
next session, remove the round fog light delete covers from the upper
grille. This wi ll allow more cooling air to the radiator and allow the
car to run extended sessions in extreme heat. Visit fordracing.com for
additional parts to further enhance the powertrain cooling on your
Boss 302.
•For extended track use, Ford recommends installing a rear differential
cooler to improve rear axle cooling.
•The Ford Racing front splitter kit (M-16601P-MBA, standard on
Laguna Secaedition) can be installed to improve high-speed vehicle
stability and handling. If the Ford Racing front splitter kit will be
installed on a Boss 302 without the Laguna Secapackage, Ford
recommends installing the Laguna Secaedition rear spoiler in place
of the standard rear spoiler to maintain aerodynamic balance. The
unique lower grille from the Laguna Secaedition should also be
installed to accommodate the splitter support rods. This front splitter
is intended for race track use only and is not legal for on-street
driving. It may degrade crash performance and void the vehicle
warranty. The front splitter must be installed by the customer.
Track Use Preparation
28
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
