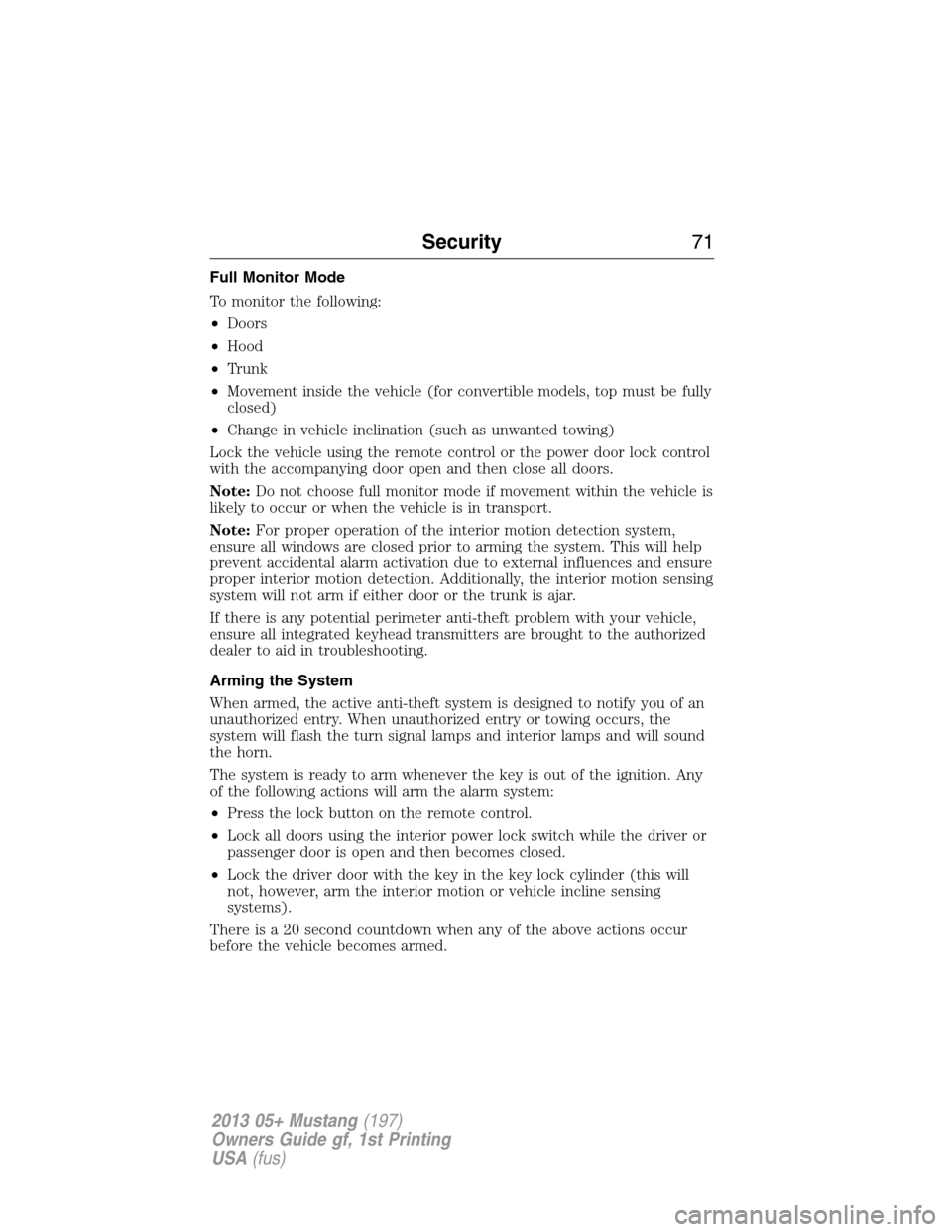

Full Monitor Mode
To monitor the following:
•Doors
•Hood
•Trunk
•Movement inside the vehicle (for convertible models, top must be fully
closed)
•Change in vehicle inclination (such as unwanted towing)
Lock the vehicle using the remote control or the power door lock control
with the accompanying door open and then close all doors.
Note:Do not choose full monitor mode if movement within the vehicle is
likely to occur or when the vehicle is in transport.
Note:For proper operation of the interior motion detection system,
ensure all windows are closed prior to arming the system. This will help
prevent accidental alarm activation due to external influences and ensure
proper interior motion detection. Additionally, the interior motion sensing
system will not arm if either door or the trunk is ajar.
If there is any potential perimeter anti-theft problem with your vehicle,
ensure all integrated keyhead transmitters are brought to the authorized
dealer to aid in troubleshooting.
Arming the System
When armed, the active anti-theft system is designed to notify you of an
unauthorized entry. When unauthorized entry or towing occurs, the
system will flash the turn signal lamps and interior lamps and will sound
the horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the lock button on the remote control.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then becomes closed.
•Lock the driver door with the key in the key lock cylinder (this will
not, however, arm the interior motion or vehicle incline sensing
systems).
There is a 20 second countdown when any of the above actions occur
before the vehicle becomes armed.
Security71
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

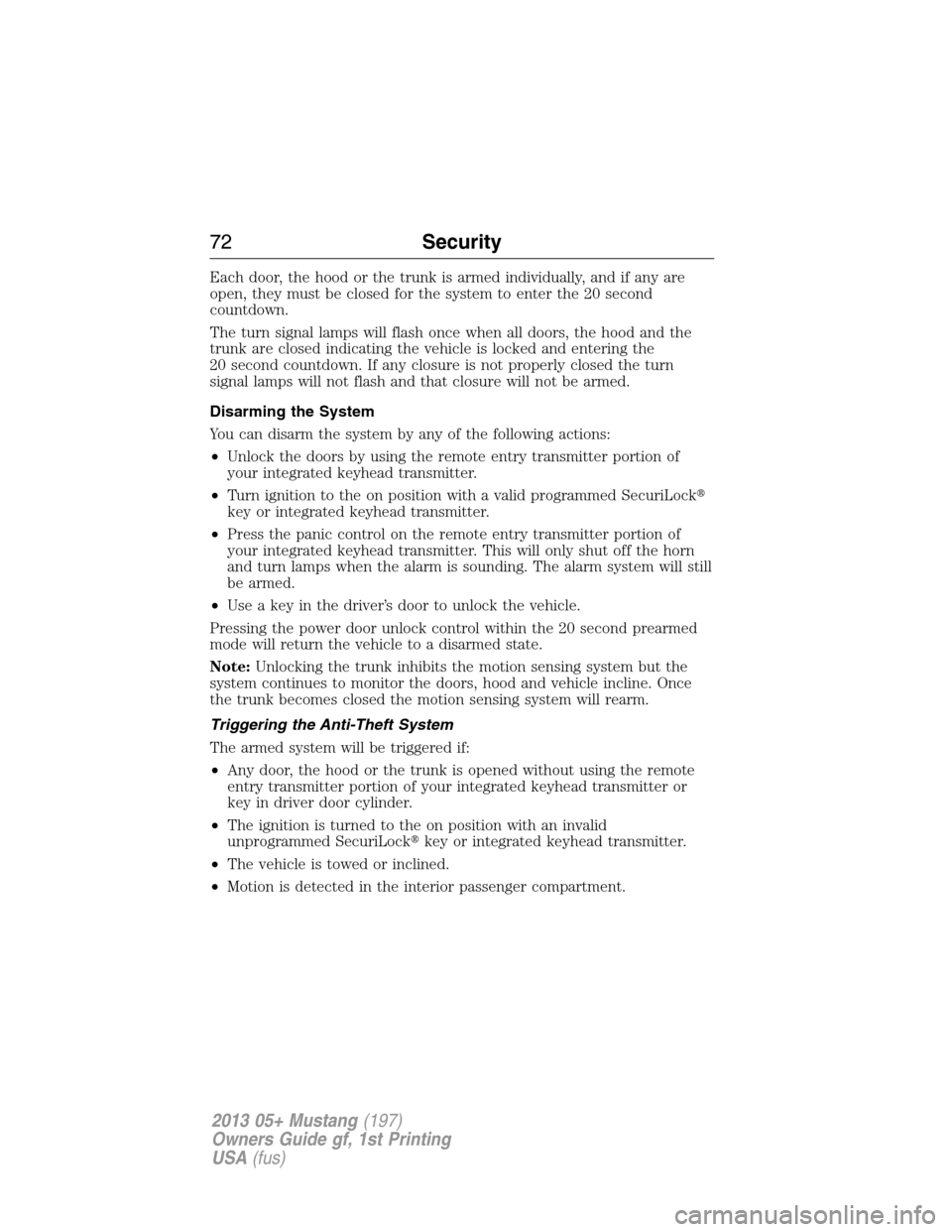

Each door, the hood or the trunk is armed individually, and if any are
open, they must be closed for the system to enter the 20 second
countdown.
The turn signal lamps will flash once when all doors, the hood and the
trunk are closed indicating the vehicle is locked and entering the
20 second countdown. If any closure is not properly closed the turn
signal lamps will not flash and that closure will not be armed.
Disarming the System
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter portion of
your integrated keyhead transmitter.
•Turn ignition to the on position with a valid programmed SecuriLock
key or integrated keyhead transmitter.
•Press the panic control on the remote entry transmitter portion of
your integrated keyhead transmitter. This will only shut off the horn
and turn lamps when the alarm is sounding. The alarm system will still
be armed.
•Use a key in the driver’s door to unlock the vehicle.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Note:Unlocking the trunk inhibits the motion sensing system but the
system continues to monitor the doors, hood and vehicle incline. Once
the trunk becomes closed the motion sensing system will rearm.
Triggering the Anti-Theft System
The armed system will be triggered if:
•Any door, the hood or the trunk is opened without using the remote
entry transmitter portion of your integrated keyhead transmitter or
key in driver door cylinder.
•The ignition is turned to the on position with an invalid
unprogrammed SecuriLockkey or integrated keyhead transmitter.
•The vehicle is towed or inclined.
•Motion is detected in the interior passenger compartment.
72Security
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

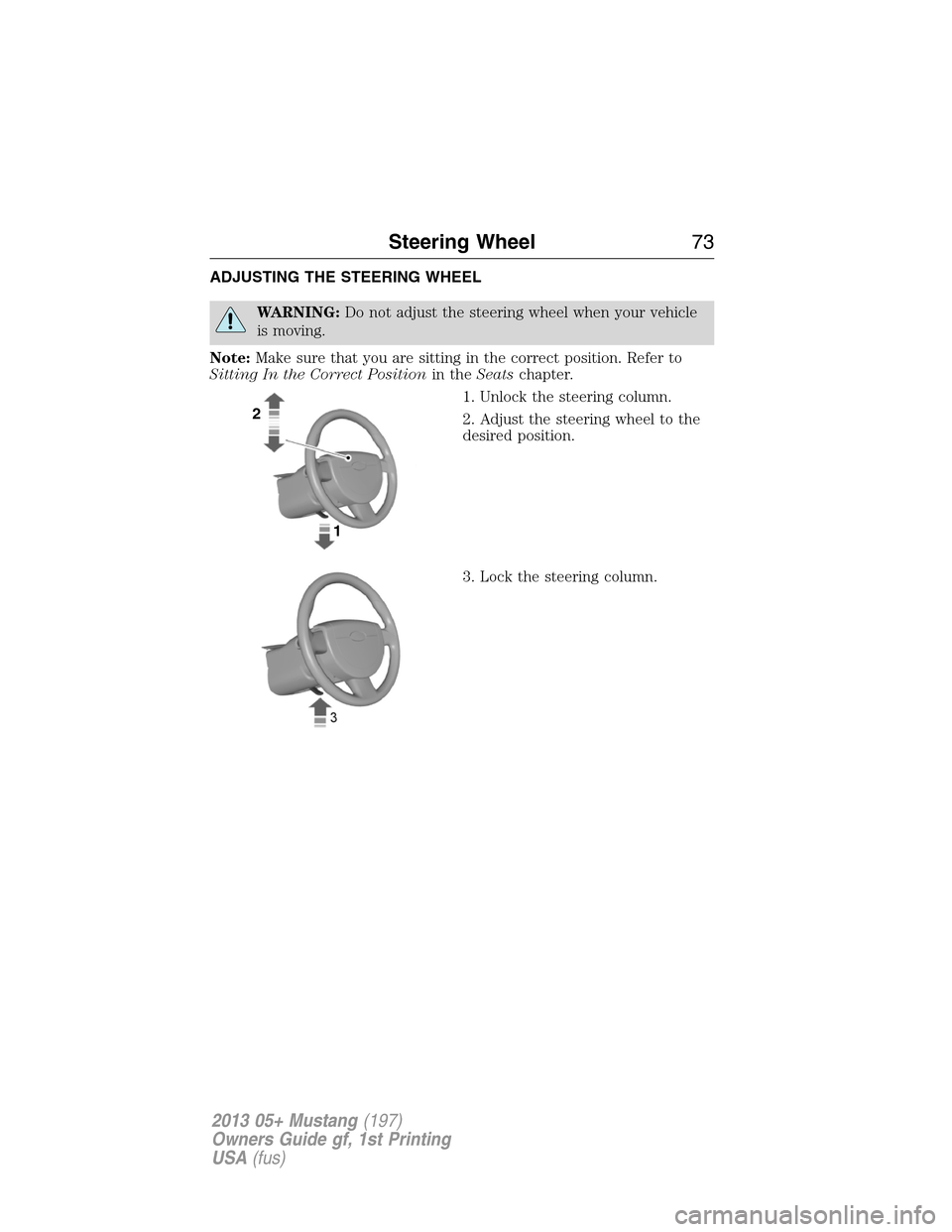

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
2
1
Steering Wheel73
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

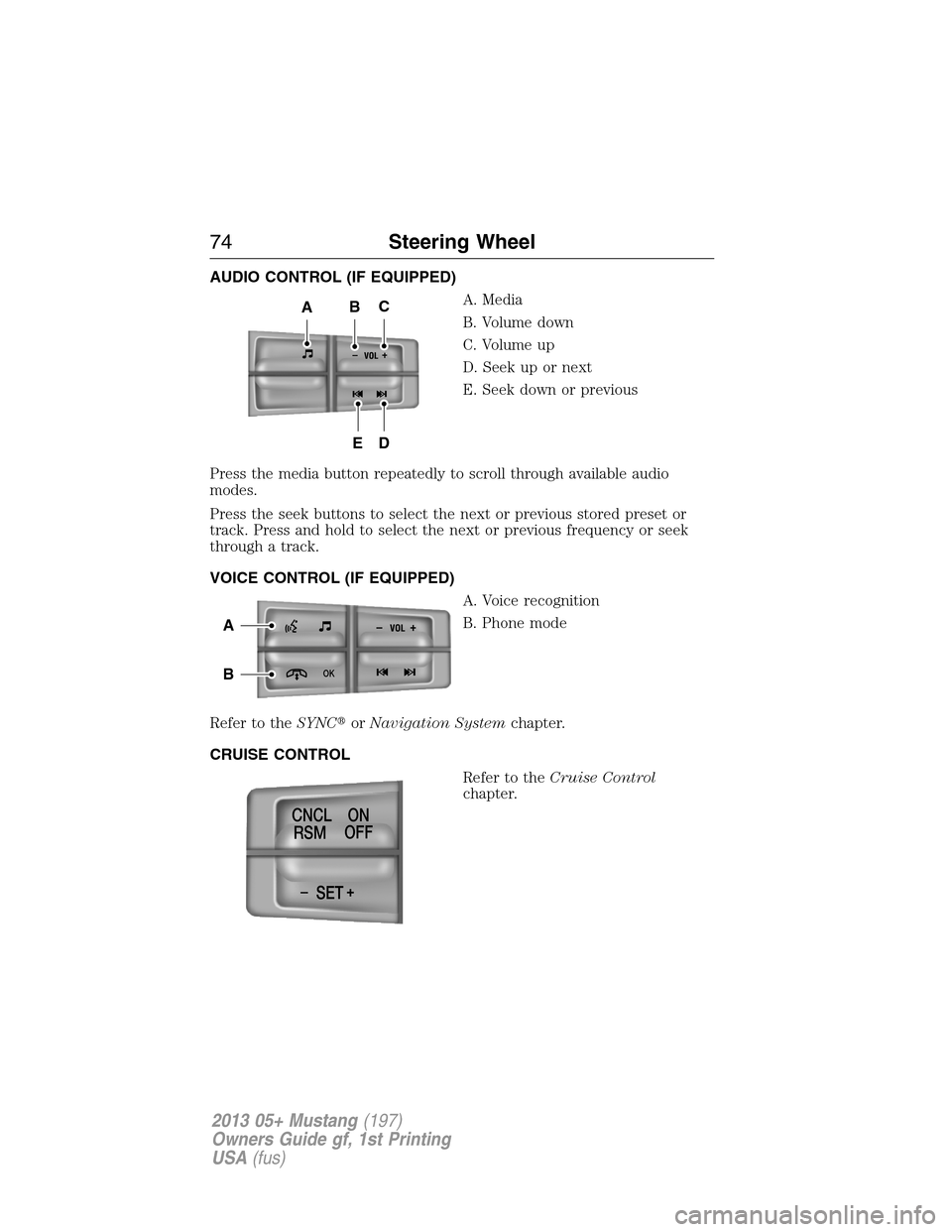

AUDIO CONTROL (IF EQUIPPED)
A. Media
B. Volume down
C. Volume up
D. Seek up or next
E. Seek down or previous
Press the media button repeatedly to scroll through available audio
modes.
Press the seek buttons to select the next or previous stored preset or
track. Press and hold to select the next or previous frequency or seek
through a track.
VOICE CONTROL (IF EQUIPPED)
A. Voice recognition
B. Phone mode
Refer to theSYNCorNavigation Systemchapter.
CRUISE CONTROL
Refer to theCruise Control
chapter.
-+
ABC
ED
-+
OK
A
B
-+SET CNCL
RSMON
OFF
74Steering Wheel
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

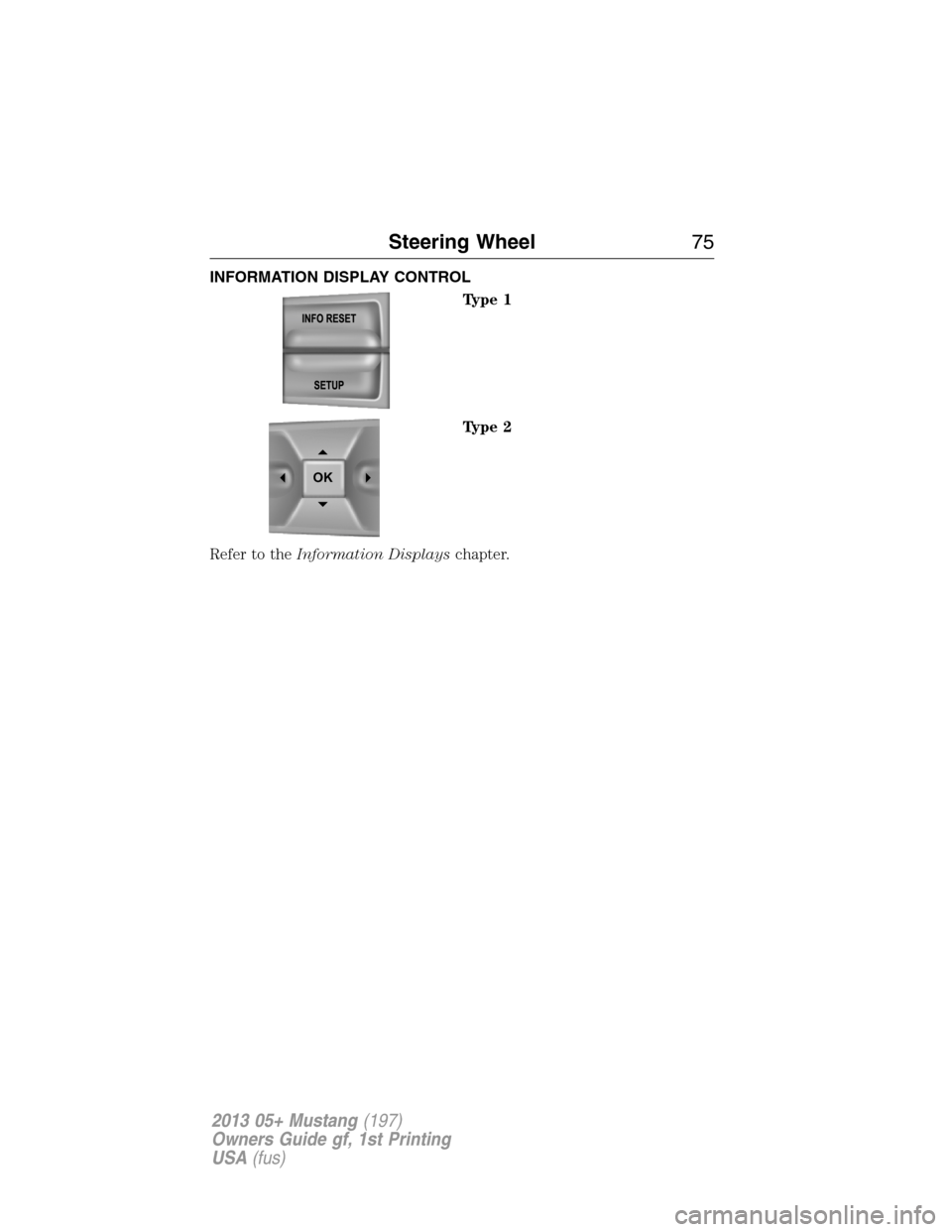

INFORMATION DISPLAY CONTROL
Type 1
Type 2
Refer to theInformation Displayschapter.
OK
Steering Wheel75
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

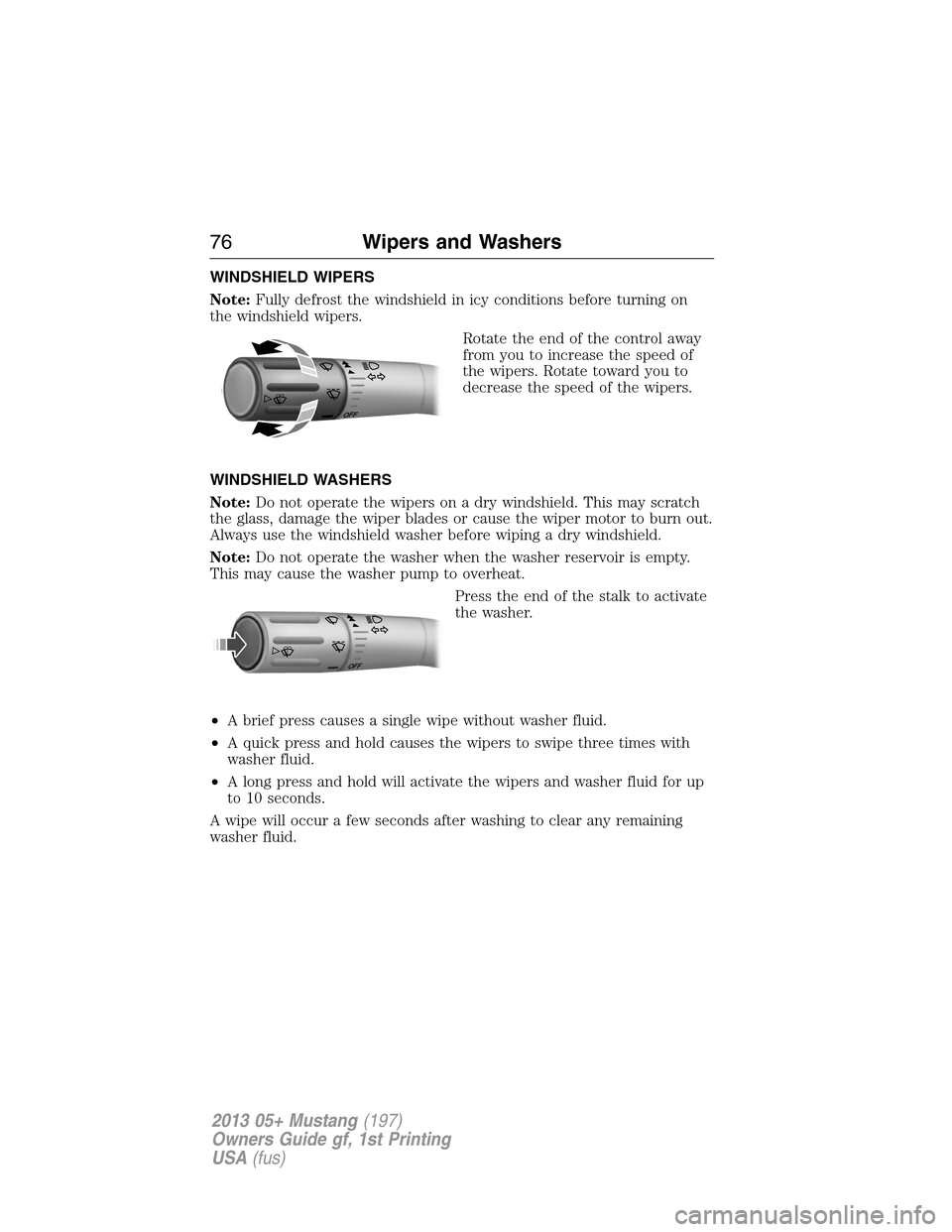

WINDSHIELD WIPERS
Note:Fully defrost the windshield in icy conditions before turning on
the windshield wipers.
Rotate the end of the control away
from you to increase the speed of
the wipers. Rotate toward you to
decrease the speed of the wipers.
WINDSHIELD WASHERS
Note:Do not operate the wipers on a dry windshield. This may scratch
the glass, damage the wiper blades or cause the wiper motor to burn out.
Always use the windshield washer before wiping a dry windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat.
Press the end of the stalk to activate
the washer.
•A brief press causes a single wipe without washer fluid.
•A quick press and hold causes the wipers to swipe three times with
washer fluid.
•A long press and hold will activate the wipers and washer fluid for up
to 10 seconds.
A wipe will occur a few seconds after washing to clear any remaining
washer fluid.
O
F
F
OFF
76Wipers and Washers
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

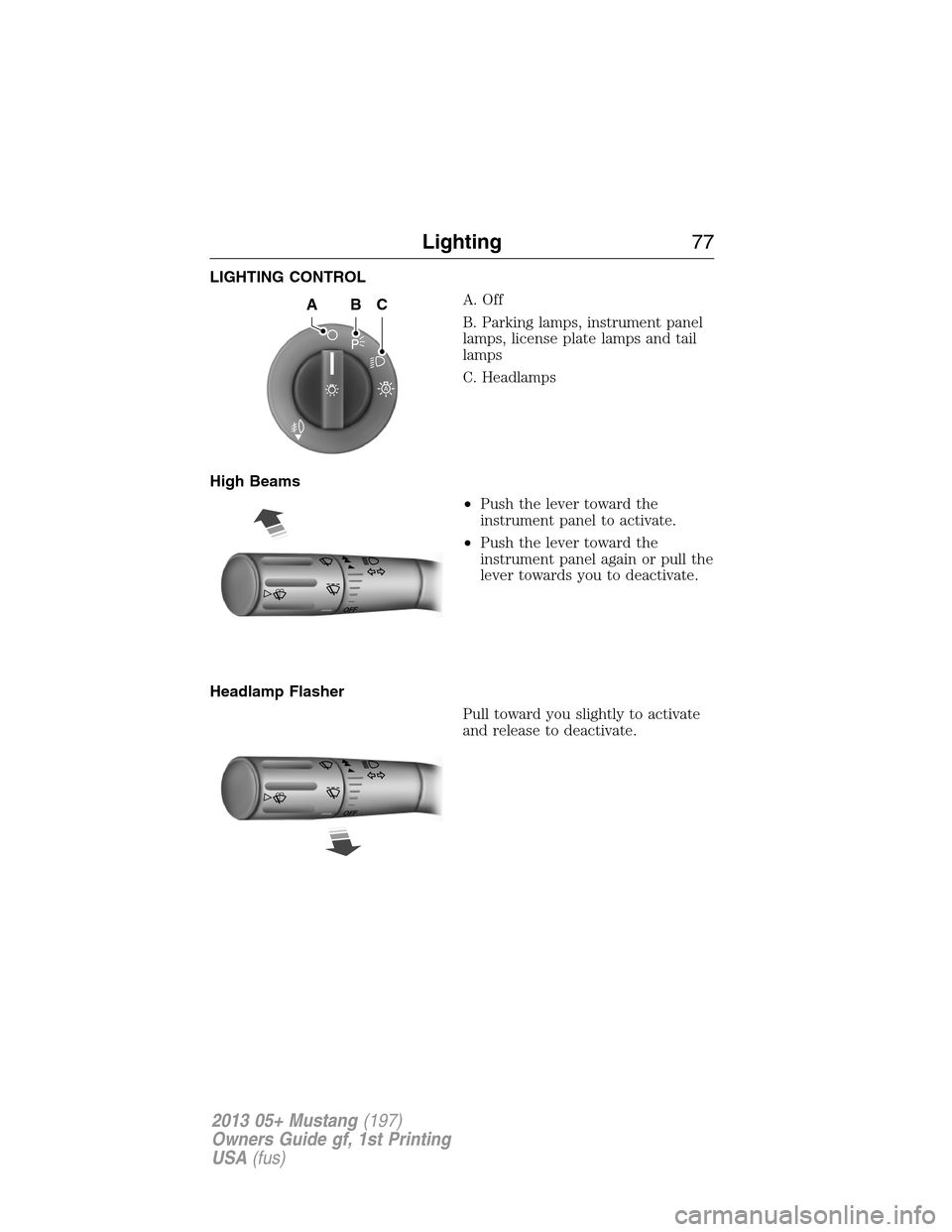

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
•Push the lever toward the
instrument panel to activate.
•Push the lever toward the
instrument panel again or pull the
lever towards you to deactivate.
Headlamp Flasher
Pull toward you slightly to activate
and release to deactivate.
A
ABC
OF
F
OF
F
Lighting77
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

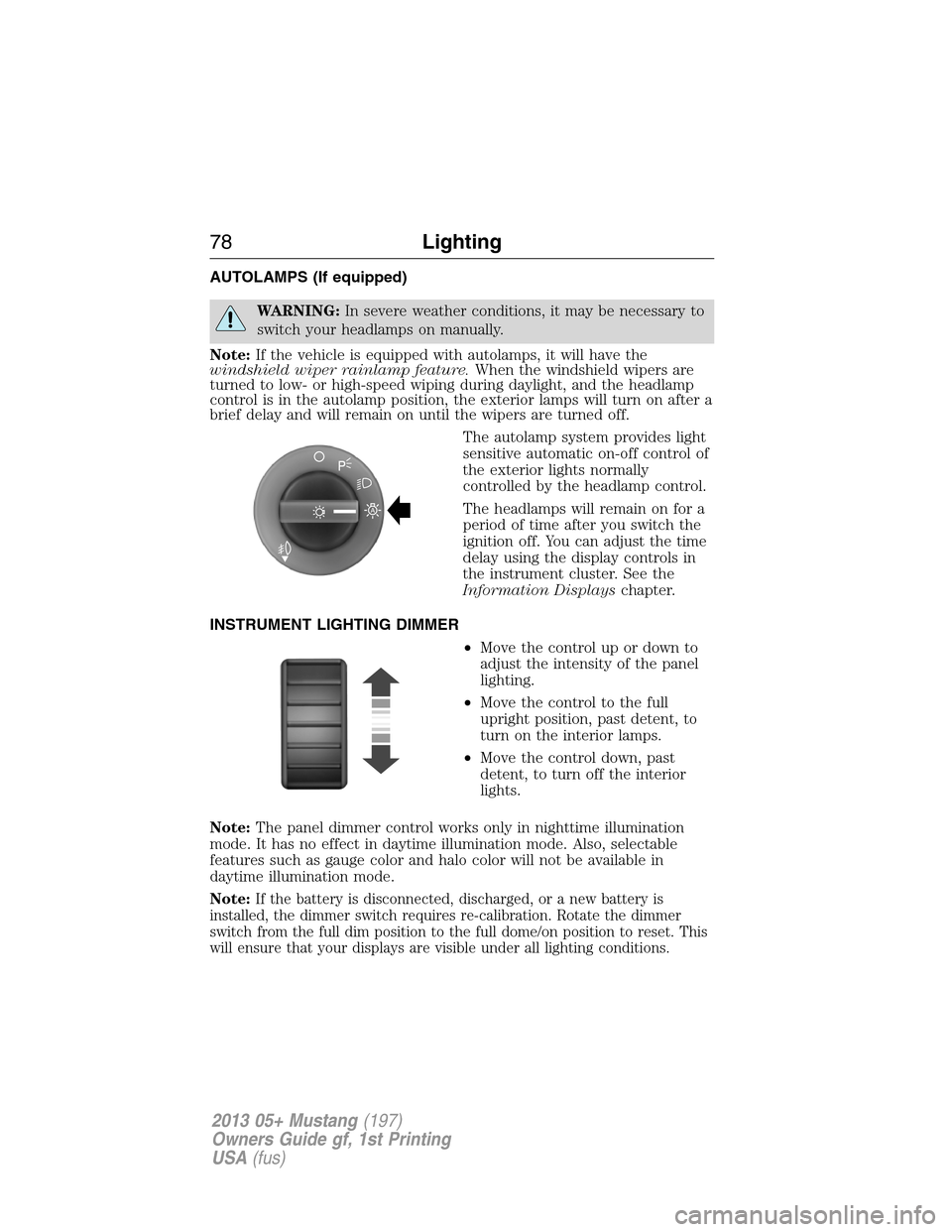

AUTOLAMPS (If equipped)
WARNING:In severe weather conditions, it may be necessary to
switch your headlamps on manually.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the display controls in
the instrument cluster. See the
Information Displayschapter.
INSTRUMENT LIGHTING DIMMER
•Move the control up or down to
adjust the intensity of the panel
lighting.
•Move the control to the full
upright position, past detent, to
turn on the interior lamps.
•Move the control down, past
detent, to turn off the interior
lights.
Note:The panel dimmer control works only in nighttime illumination
mode. It has no effect in daytime illumination mode. Also, selectable
features such as gauge color and halo color will not be available in
daytime illumination mode.
Note:
If the battery is disconnected, discharged, or a new battery is
installed, the dimmer switch requires re-calibration. Rotate the dimmer
switch from the full dim position to the full dome/on position to reset. This
will ensure that your displays are visible under all lighting conditions.
A
78Lighting
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

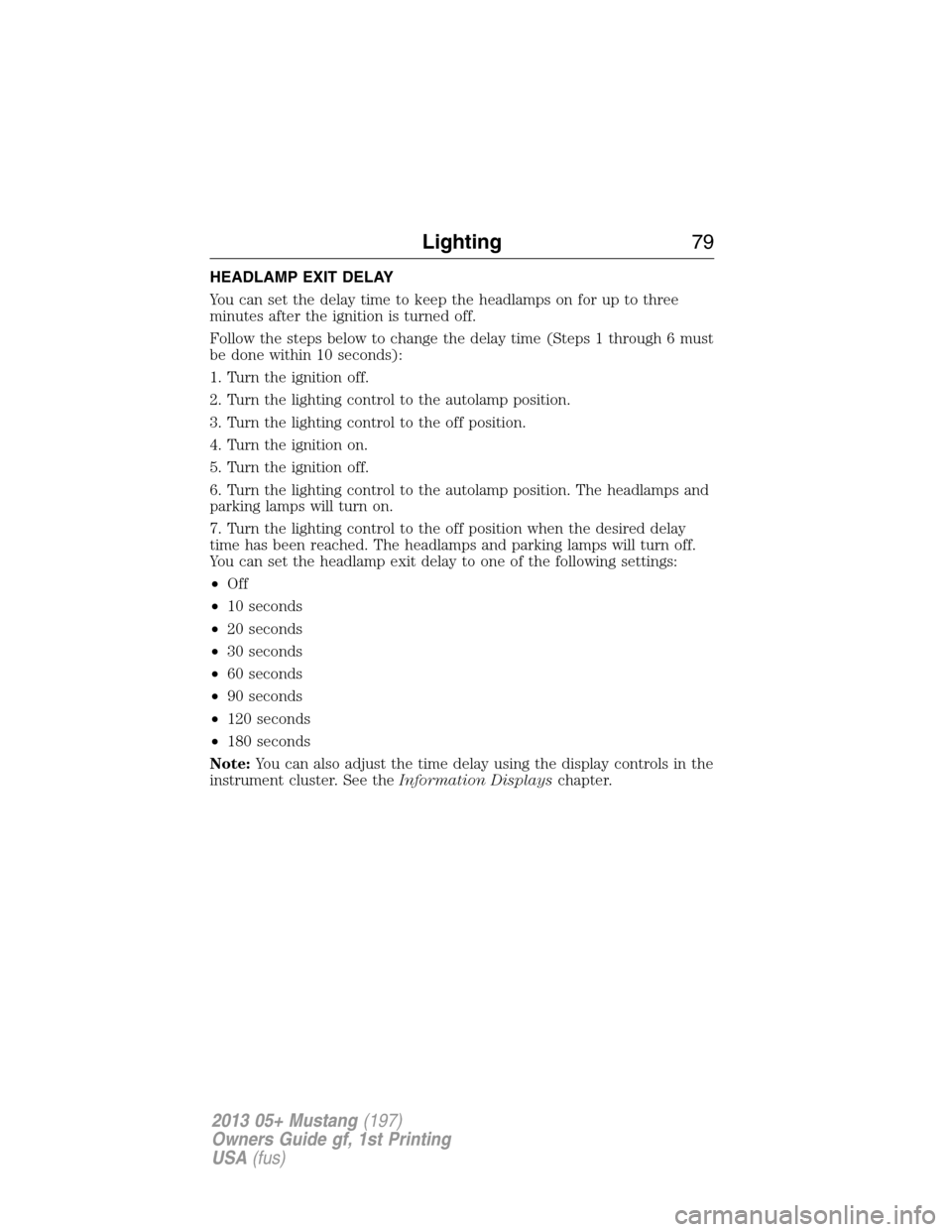

HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6 must
be done within 10 seconds):
1. Turn the ignition off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the ignition on.
5. Turn the ignition off.
6. Turn the lighting control to the autolamp position. The headlamps and
parking lamps will turn on.
7. Turn the lighting control to the off position when the desired delay
time has been reached. The headlamps and parking lamps will turn off.
You can set the headlamp exit delay to one of the following settings:
•Off
•10 seconds
•20 seconds
•30 seconds
•60 seconds
•90 seconds
•120 seconds
•180 seconds
Note:You can also adjust the time delay using the display controls in the
instrument cluster. See theInformation Displayschapter.
Lighting79
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

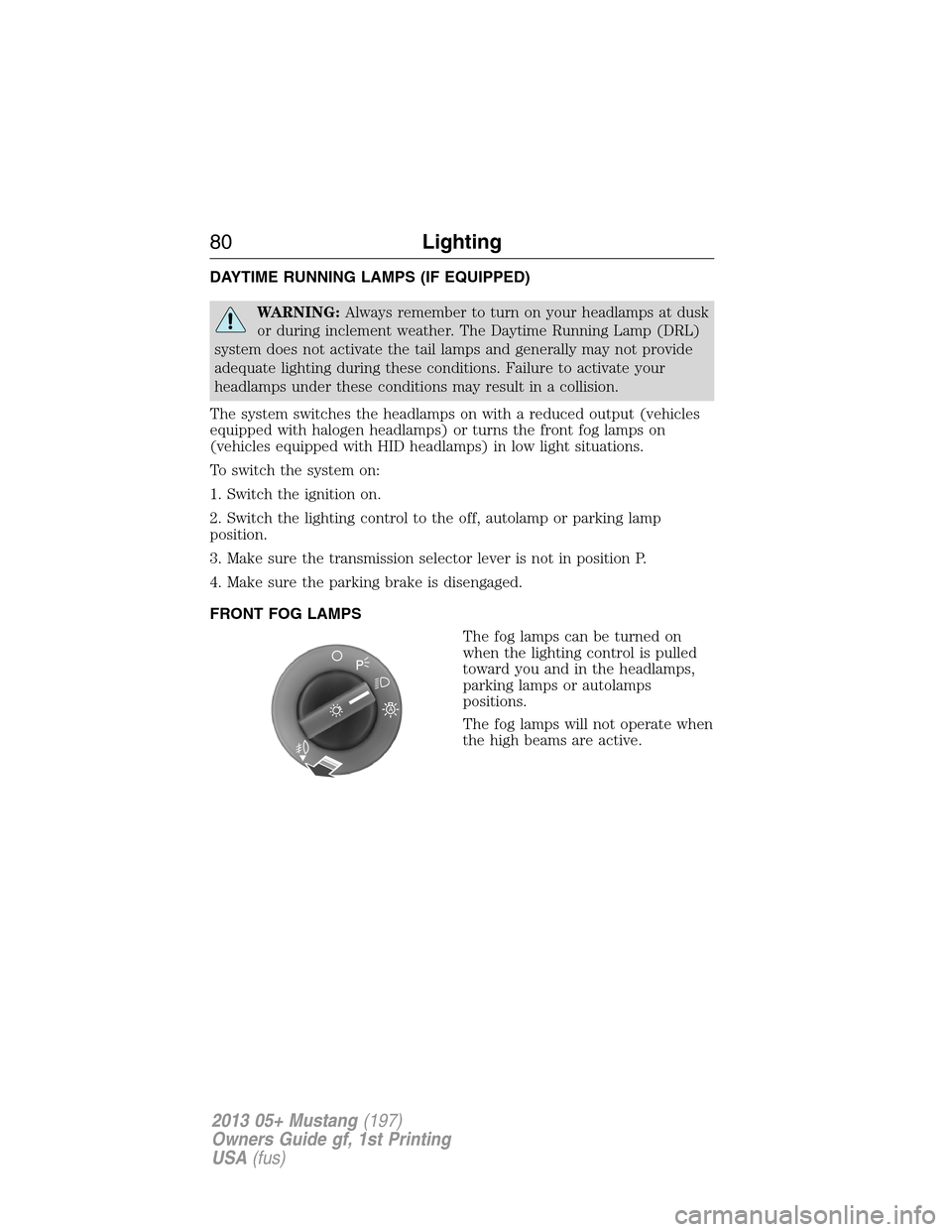

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at dusk
or during inclement weather. The Daytime Running Lamp (DRL)
system does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
The system switches the headlamps on with a reduced output (vehicles
equipped with halogen headlamps) or turns the front fog lamps on
(vehicles equipped with HID headlamps) in low light situations.
To switch the system on:
1. Switch the ignition on.
2. Switch the lighting control to the off, autolamp or parking lamp
position.
3. Make sure the transmission selector lever is not in position P.
4. Make sure the parking brake is disengaged.
FRONT FOG LAMPS
The fog lamps can be turned on
when the lighting control is pulled
toward you and in the headlamps,
parking lamps or autolamps
positions.
The fog lamps will not operate when
the high beams are active.
A
