DIRECTION INDICATORS
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
Note:An outage of any front turn signal lamp or the inner most of the
three-compartment rear turn signal lamps will result in a rapid flash rate.
INTERIOR LAMPS
Dome/Map lamps
The dome lamp lights when:.
•any door is opened.
•any of the remote entry controls
are pressed and the ignition is
off.
•the instrument panel dimmer
switch is rotated up, past the
detent, until the courtesy lamps
come on.
The map lamps are activated by pressing the controls on either side of
the lamp.
OF
F
Lighting81
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Press or lift the switches to operate
the windows.
•Press the switch to the first
detent and hold to open the
window.
•Lift the switch to the first detent
and hold to close the window.
One-Touch Up or Down (Front Windows)
This feature automatically opens or closes the window.
Press or lift the switch completely and release. The window will fully
open or close. Press or lift it again to stop the window.
Restoring the One-Touch Up Functionality
Note:Perform one-touch up re-calibration with the door closed.
Calibrating with the door open will cause the window to continuously
bounce back.
Functionality may be lost under low battery power conditions.
To reset this function after restoring full battery power:
1. Pull the switch to the one-touch up position.
2. Hold the switch until the glass reaches the stall position and continue
to hold for two seconds.
3. Press the switch down and operate the window to the full down
position. One-touch up will now be functional.
Bounce-Back
The window will stop automatically while closing and reverse some
distance if there is an obstacle in the way.
AUTOAUTO
82Windows and Mirrors
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

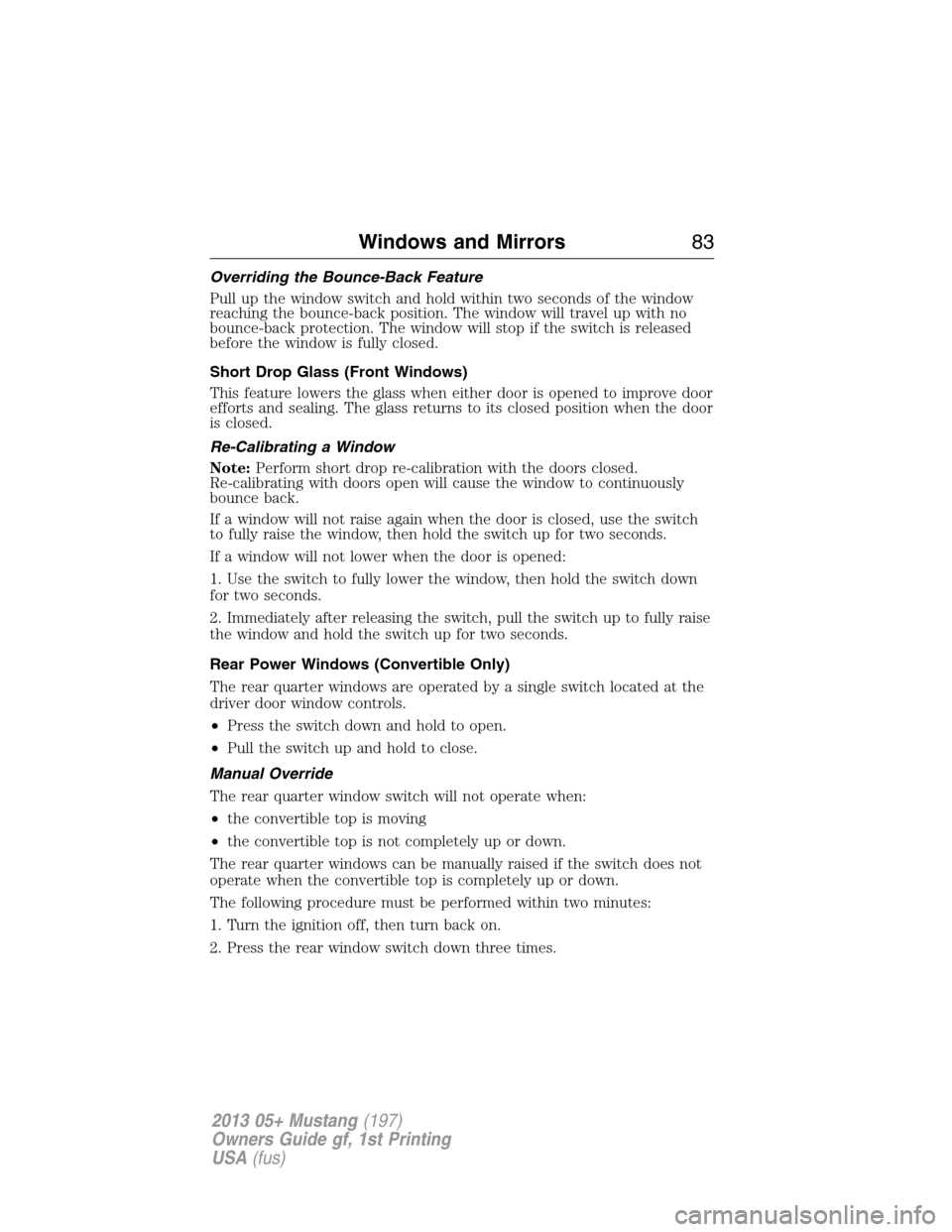

Overriding the Bounce-Back Feature
Pull up the window switch and hold within two seconds of the window
reaching the bounce-back position. The window will travel up with no
bounce-back protection. The window will stop if the switch is released
before the window is fully closed.
Short Drop Glass (Front Windows)
This feature lowers the glass when either door is opened to improve door
efforts and sealing. The glass returns to its closed position when the door
is closed.
Re-Calibrating a Window
Note:Perform short drop re-calibration with the doors closed.
Re-calibrating with doors open will cause the window to continuously
bounce back.
If a window will not raise again when the door is closed, use the switch
to fully raise the window, then hold the switch up for two seconds.
If a window will not lower when the door is opened:
1. Use the switch to fully lower the window, then hold the switch down
for two seconds.
2. Immediately after releasing the switch, pull the switch up to fully raise
the window and hold the switch up for two seconds.
Rear Power Windows (Convertible Only)
The rear quarter windows are operated by a single switch located at the
driver door window controls.
•Press the switch down and hold to open.
•Pull the switch up and hold to close.
Manual Override
The rear quarter window switch will not operate when:
•the convertible top is moving
•the convertible top is not completely up or down.
The rear quarter windows can be manually raised if the switch does not
operate when the convertible top is completely up or down.
The following procedure must be performed within two minutes:
1. Turn the ignition off, then turn back on.
2. Press the rear window switch down three times.
Windows and Mirrors83
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

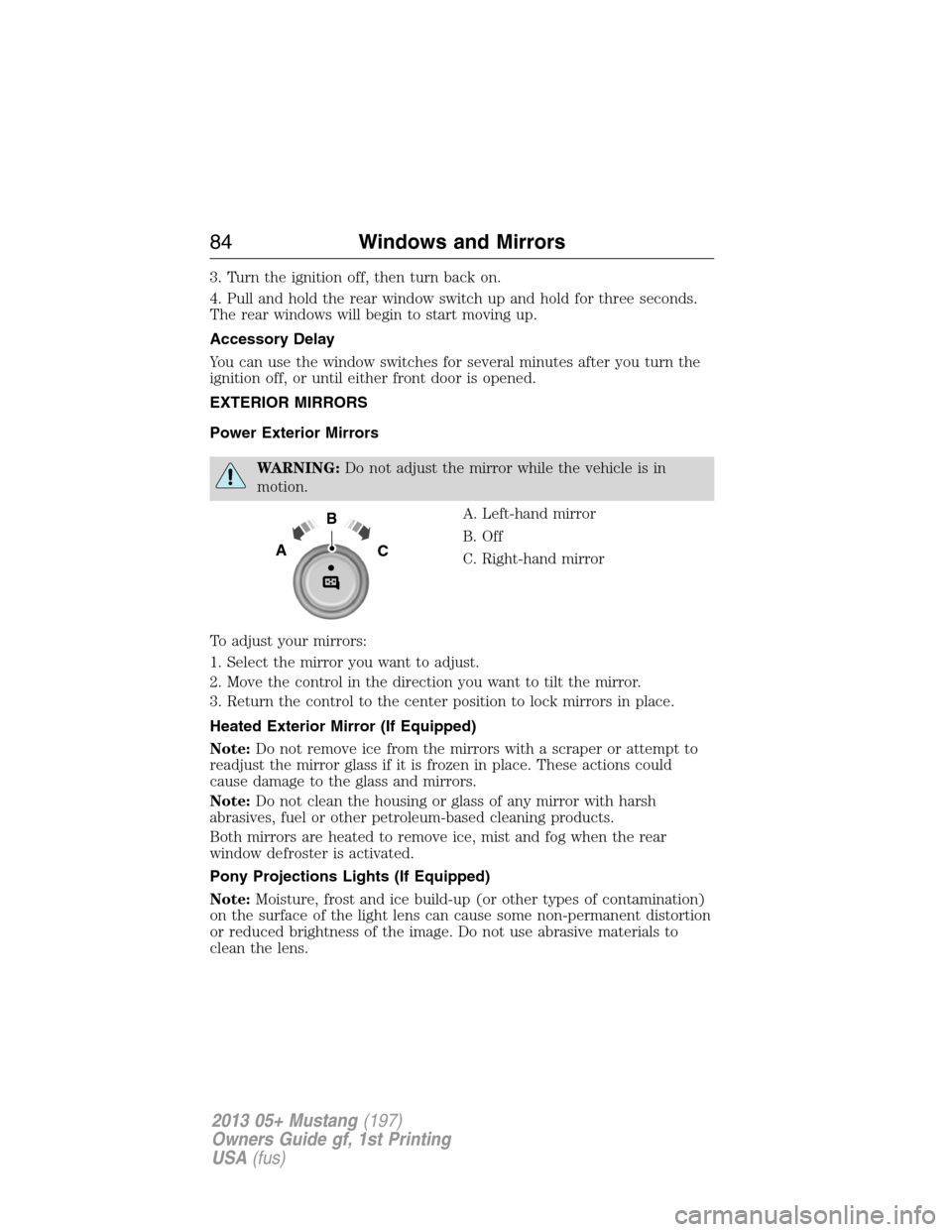

3. Turn the ignition off, then turn back on.
4. Pull and hold the rear window switch up and hold for three seconds.
The rear windows will begin to start moving up.
Accessory Delay
You can use the window switches for several minutes after you turn the
ignition off, or until either front door is opened.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
A. Left-hand mirror
B. Off
C. Right-hand mirror
To adjust your mirrors:
1. Select the mirror you want to adjust.
2. Move the control in the direction you want to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Heated Exterior Mirror (If Equipped)
Note:Do not remove ice from the mirrors with a scraper or attempt to
readjust the mirror glass if it is frozen in place. These actions could
cause damage to the glass and mirrors.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Both mirrors are heated to remove ice, mist and fog when the rear
window defroster is activated.
Pony Projections Lights (If Equipped)
Note:Moisture, frost and ice build-up (or other types of contamination)
on the surface of the light lens can cause some non-permanent distortion
or reduced brightness of the image. Do not use abrasive materials to
clean the lens.
B
AC
84Windows and Mirrors
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

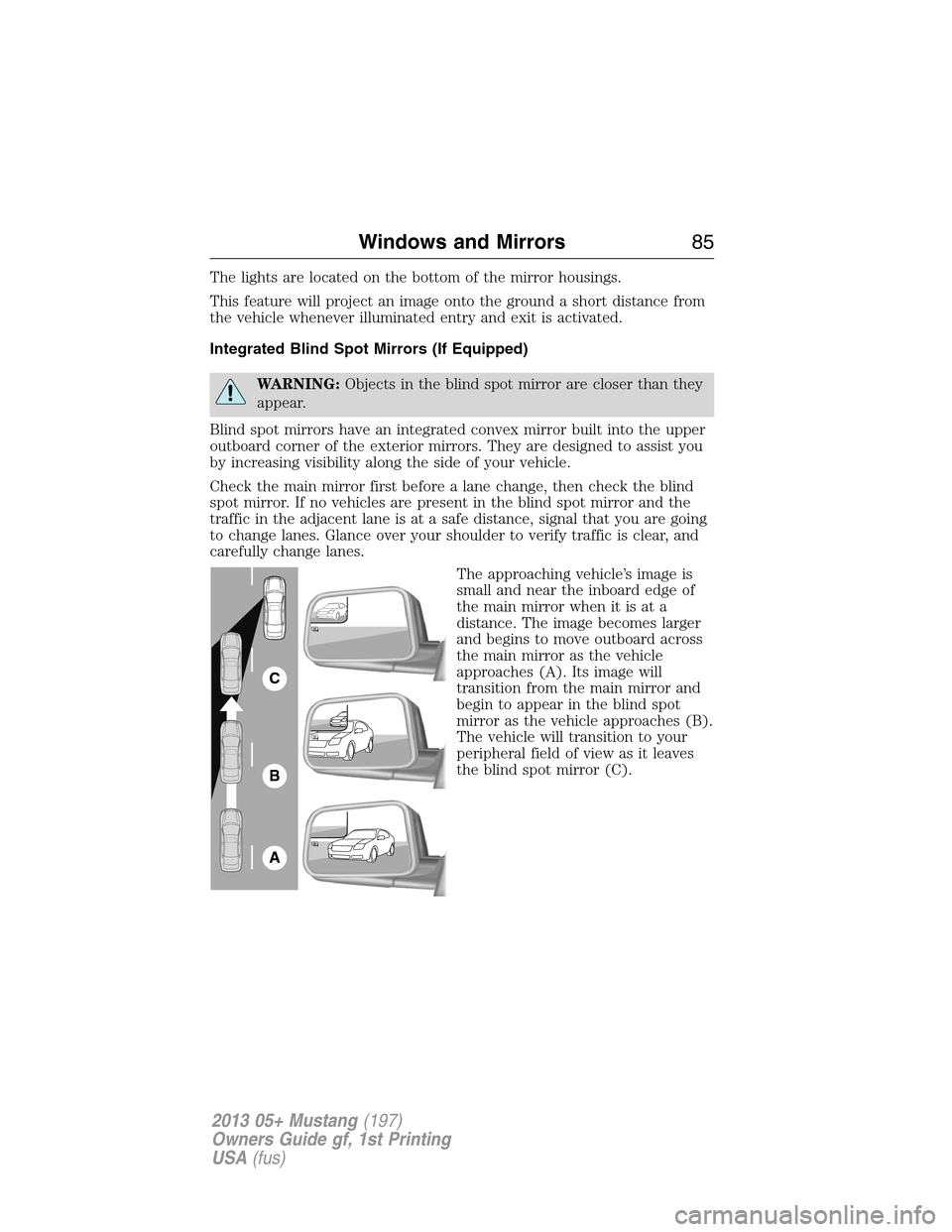

The lights are located on the bottom of the mirror housings.
This feature will project an image onto the ground a short distance from
the vehicle whenever illuminated entry and exit is activated.
Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Check the main mirror first before a lane change, then check the blind
spot mirror. If no vehicles are present in the blind spot mirror and the
traffic in the adjacent lane is at a safe distance, signal that you are going
to change lanes. Glance over your shoulder to verify traffic is clear, and
carefully change lanes.
The approaching vehicle’s image is
small and near the inboard edge of
the main mirror when it is at a
distance. The image becomes larger
and begins to move outboard across
the main mirror as the vehicle
approaches (A). Its image will
transition from the main mirror and
begin to appear in the blind spot
mirror as the vehicle approaches (B).
The vehicle will transition to your
peripheral field of view as it leaves
the blind spot mirror (C).
A
B
C
Windows and Mirrors85
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

INTERIOR MIRROR
WARNING:Do not adjust the mirror when your vehicle is
moving.
Note:Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum or ammonia based cleaning products.
You can adjust the interior mirror to your preference. Some mirrors also
have a second pivot point. This lets you move the mirror head up or
down and from side to side.
Pull the tab below the mirror toward you to reduce glare at night.
Auto-Dimming Mirror (If Equipped)
Note:Do not block the sensors on the front and back of the mirror.
Mirror performance may be affected. A rear center passenger or raised
rear center head restraint may also block light from reaching the sensor.
The mirror will dim automatically to reduce glare when bright lights are
detected from behind your vehicle. It will automatically return to normal
reflection when you select reverse gear to make sure you have a clear
view when backing up.
SUN VISORS
Slide-On-Rod
Rotate the visor toward the side
window and extend it rearward for
extra sunlight coverage.
Retract the visor before moving it
back toward the windshield and
storing it.
86Windows and Mirrors
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

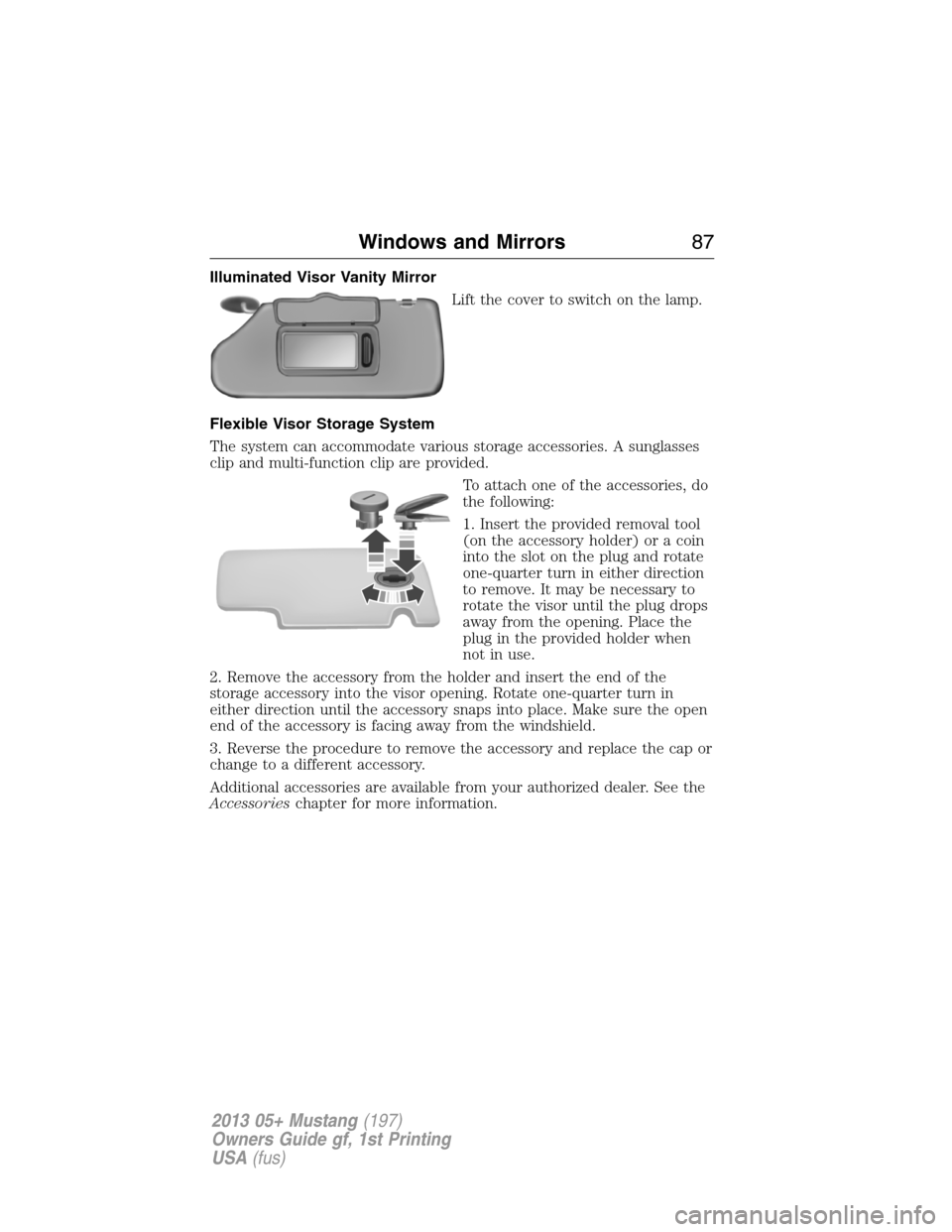

Illuminated Visor Vanity Mirror
Lift the cover to switch on the lamp.
Flexible Visor Storage System
The system can accommodate various storage accessories. A sunglasses
clip and multi-function clip are provided.
To attach one of the accessories, do
the following:
1. Insert the provided removal tool
(on the accessory holder) or a coin
into the slot on the plug and rotate
one-quarter turn in either direction
to remove. It may be necessary to
rotate the visor until the plug drops
away from the opening. Place the
plug in the provided holder when
not in use.
2. Remove the accessory from the holder and insert the end of the
storage accessory into the visor opening. Rotate one-quarter turn in
either direction until the accessory snaps into place. Make sure the open
end of the accessory is facing away from the windshield.
3. Reverse the procedure to remove the accessory and replace the cap or
change to a different accessory.
Additional accessories are available from your authorized dealer. See the
Accessorieschapter for more information.
Windows and Mirrors87
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

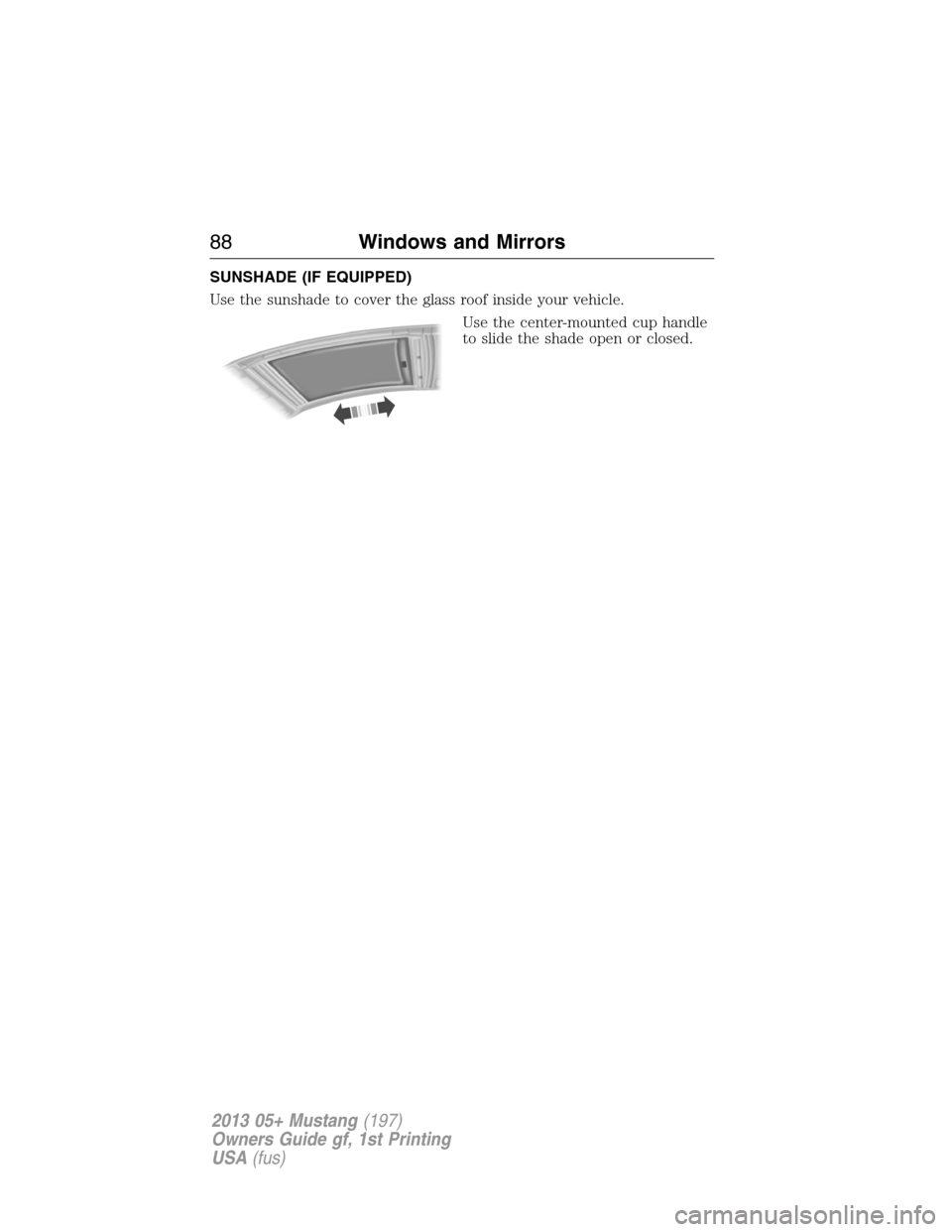

SUNSHADE (IF EQUIPPED)
Use the sunshade to cover the glass roof inside your vehicle.
Use the center-mounted cup handle
to slide the shade open or closed.
88Windows and Mirrors
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

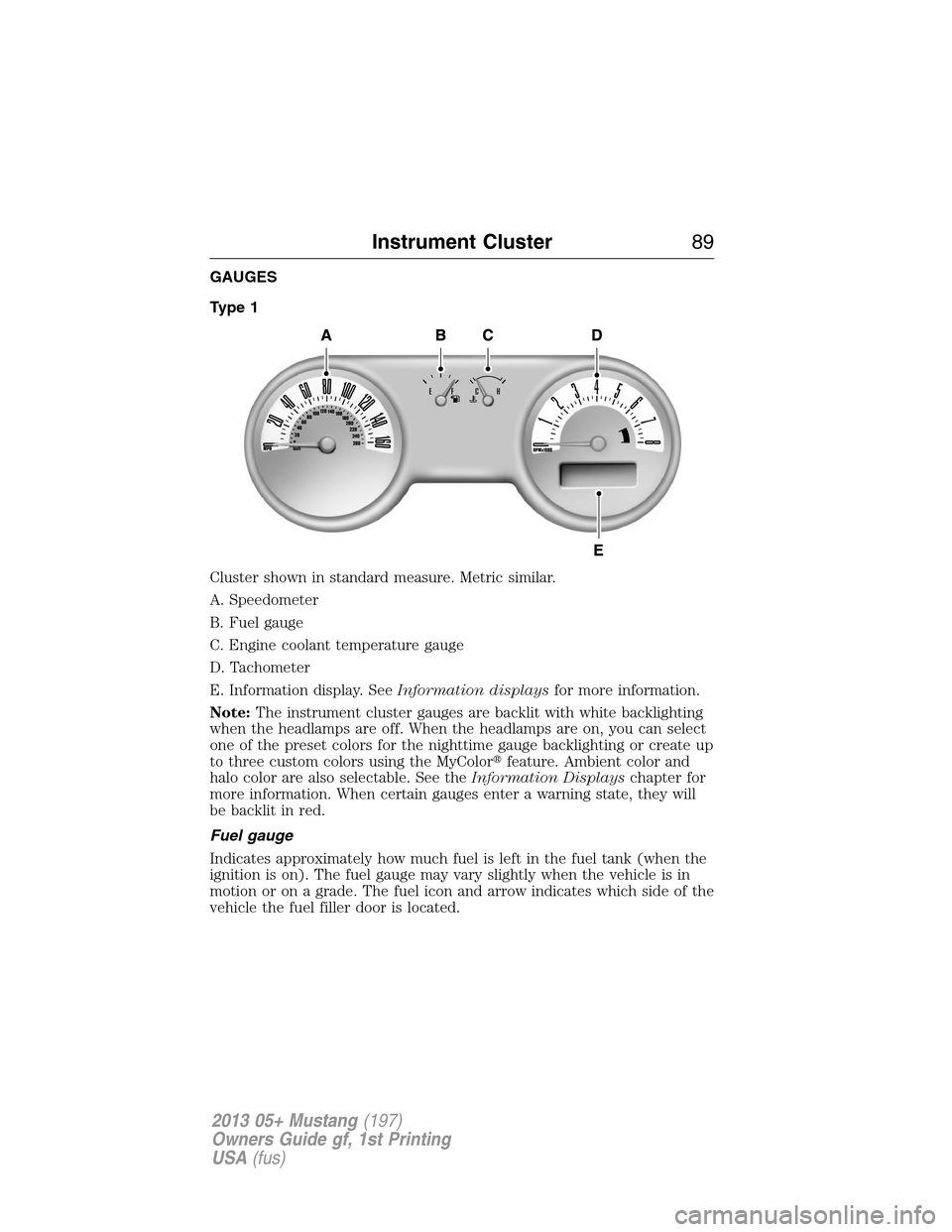

GAUGES
Type 1
Cluster shown in standard measure. Metric similar.
A. Speedometer
B. Fuel gauge
C. Engine coolant temperature gauge
D. Tachometer
E. Information display. SeeInformation displaysfor more information.
Note:The instrument cluster gauges are backlit with white backlighting
when the headlamps are off. When the headlamps are on, you can select
one of the preset colors for the nighttime gauge backlighting or create up
to three custom colors using the MyColorfeature. Ambient color and
halo color are also selectable. See theInformation Displayschapter for
more information. When certain gauges enter a warning state, they will
be backlit in red.
Fuel gauge
Indicates approximately how much fuel is left in the fuel tank (when the
ignition is on). The fuel gauge may vary slightly when the vehicle is in
motion or on a grade. The fuel icon and arrow indicates which side of the
vehicle the fuel filler door is located.
Instrument Cluster89
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

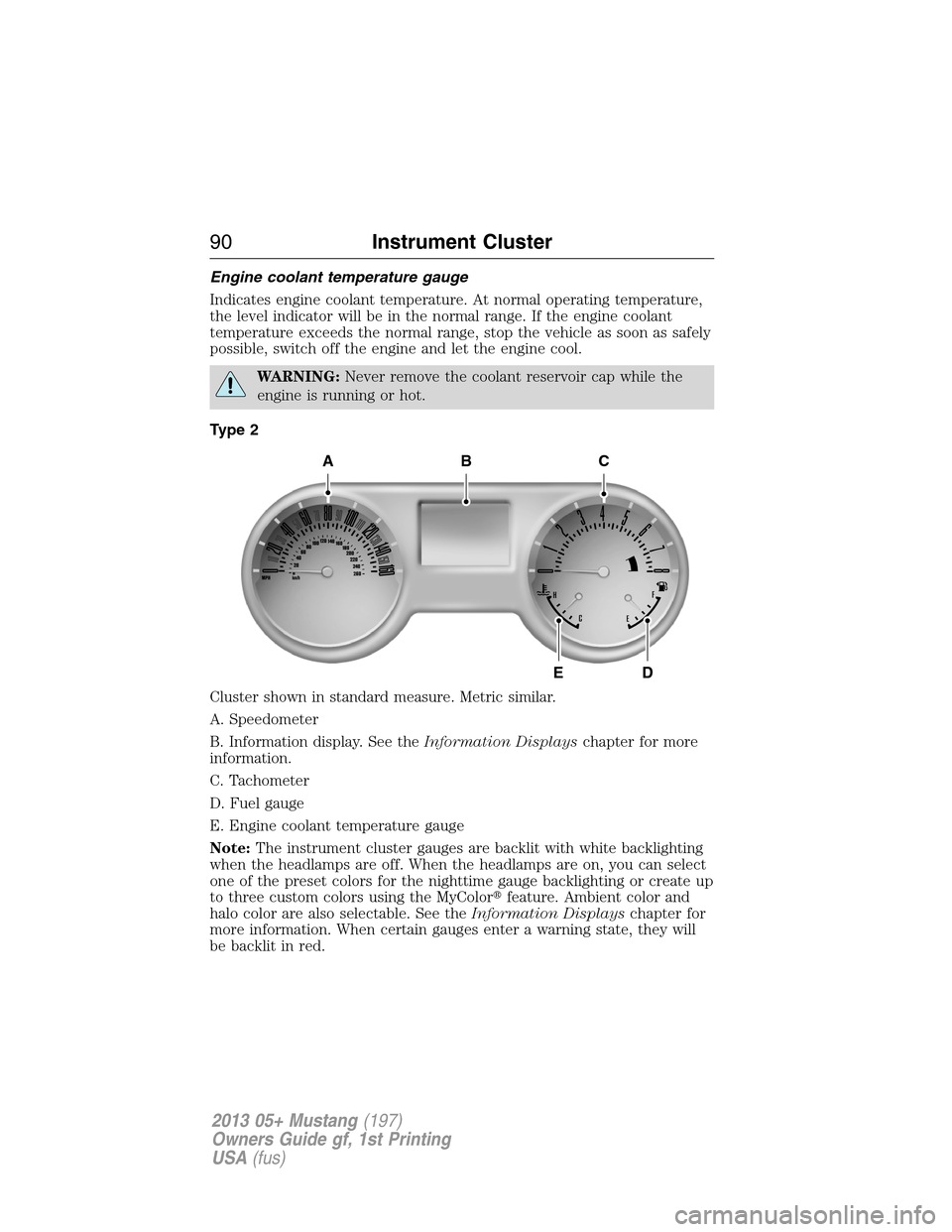

Engine coolant temperature gauge
Indicates engine coolant temperature. At normal operating temperature,
the level indicator will be in the normal range. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Type 2
Cluster shown in standard measure. Metric similar.
A. Speedometer
B. Information display. See theInformation Displayschapter for more
information.
C. Tachometer
D. Fuel gauge
E. Engine coolant temperature gauge
Note:The instrument cluster gauges are backlit with white backlighting
when the headlamps are off. When the headlamps are on, you can select
one of the preset colors for the nighttime gauge backlighting or create up
to three custom colors using the MyColorfeature. Ambient color and
halo color are also selectable. See theInformation Displayschapter for
more information. When certain gauges enter a warning state, they will
be backlit in red.
ABC
DE
90Instrument Cluster
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)
