FORD MUSTANG 2013 5.G Owners Manual

AUTOLAMP (SEC)
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
Press RESET to select the new Autolamp delay values of 0, 10, 20, 30,
60, 90, 120 or 180 seconds.
AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear and driven.
Press RESET to turn autolock on or off.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
Press RESET to turn autounlock on or off.
REAR PARK AID
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
Press RESET to turn it off or on.
CREATE MYKEY / MYKEY SETUP/ CLEAR MYKEY
For more information refer to theMyKeychapter.
LANGUAGE = ENGLISH / SPANISH / FRENCH
Allows you to choose which language for the information display.
Selectable languages are English, Spanish, or French.
Waiting four seconds or pressing the RESET button cycles through each
of the language choices.
Press and hold RESET for two seconds to set the language choice.
Information messages
SeeInformation messageslater in this chapter for more information.
Information Displays101
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

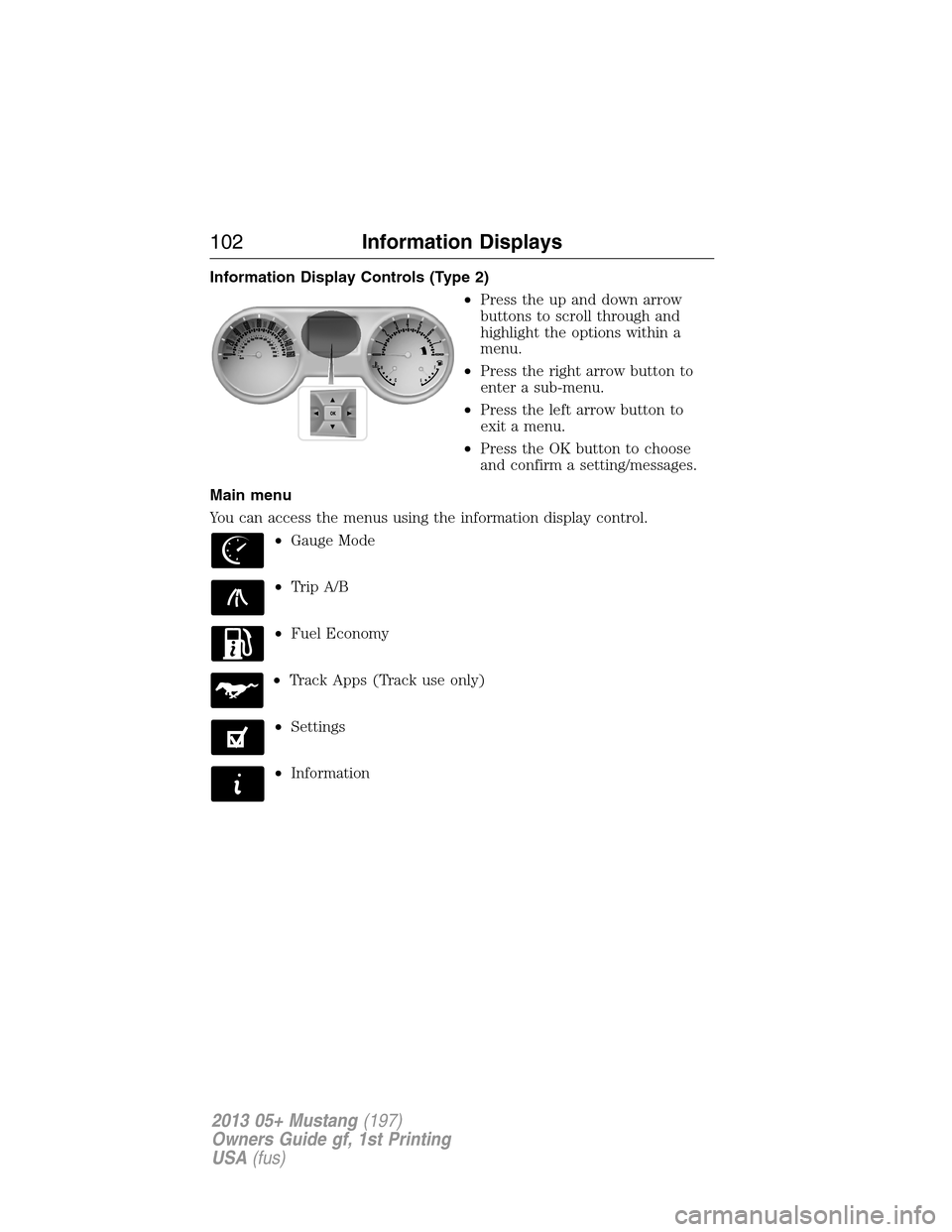

Information Display Controls (Type 2)
•Press the up and down arrow
buttons to scroll through and
highlight the options within a
menu.
•Press the right arrow button to
enter a sub-menu.
•Press the left arrow button to
exit a menu.
•Press the OK button to choose
and confirm a setting/messages.
Main menu
You can access the menus using the information display control.
•Gauge Mode
•Trip A/B
•Fuel Economy
•Track Apps (Track use only)
•Settings
•Information
102Information Displays
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

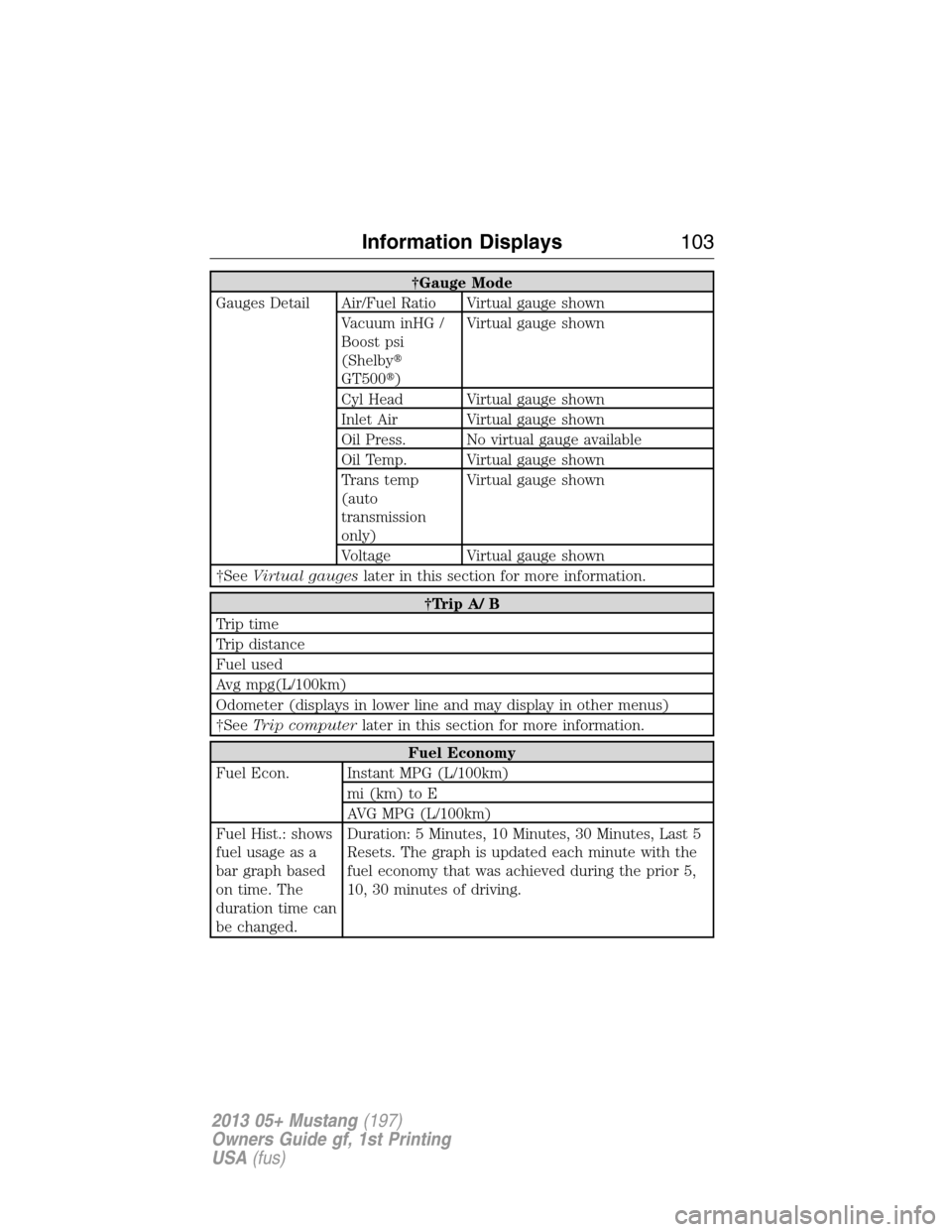

†Gauge Mode
Gauges Detail Air/Fuel Ratio Virtual gauge shown
Vacuum inHG /
Boost psi
(Shelby
GT500)Virtual gauge shown
Cyl Head Virtual gauge shown
Inlet Air Virtual gauge shown
Oil Press. No virtual gauge available
Oil Temp. Virtual gauge shown
Trans temp
(auto
transmission
only)Virtual gauge shown
Voltage Virtual gauge shown
†SeeVirtual gaugeslater in this section for more information.
†Trip A/ B
Trip time
Trip distance
Fuel used
Avg mpg(L/100km)
Odometer (displays in lower line and may display in other menus)
†SeeTrip computerlater in this section for more information.
Fuel Economy
Fuel Econ. Instant MPG (L/100km)
mi (km) to E
AVG MPG (L/100km)
Fuel Hist.: shows
fuel usage as a
bar graph based
on time. The
duration time can
be changed.Duration: 5 Minutes, 10 Minutes, 30 Minutes, Last 5
Resets. The graph is updated each minute with the
fuel economy that was achieved during the prior 5,
10, 30 minutes of driving.
Information Displays103
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

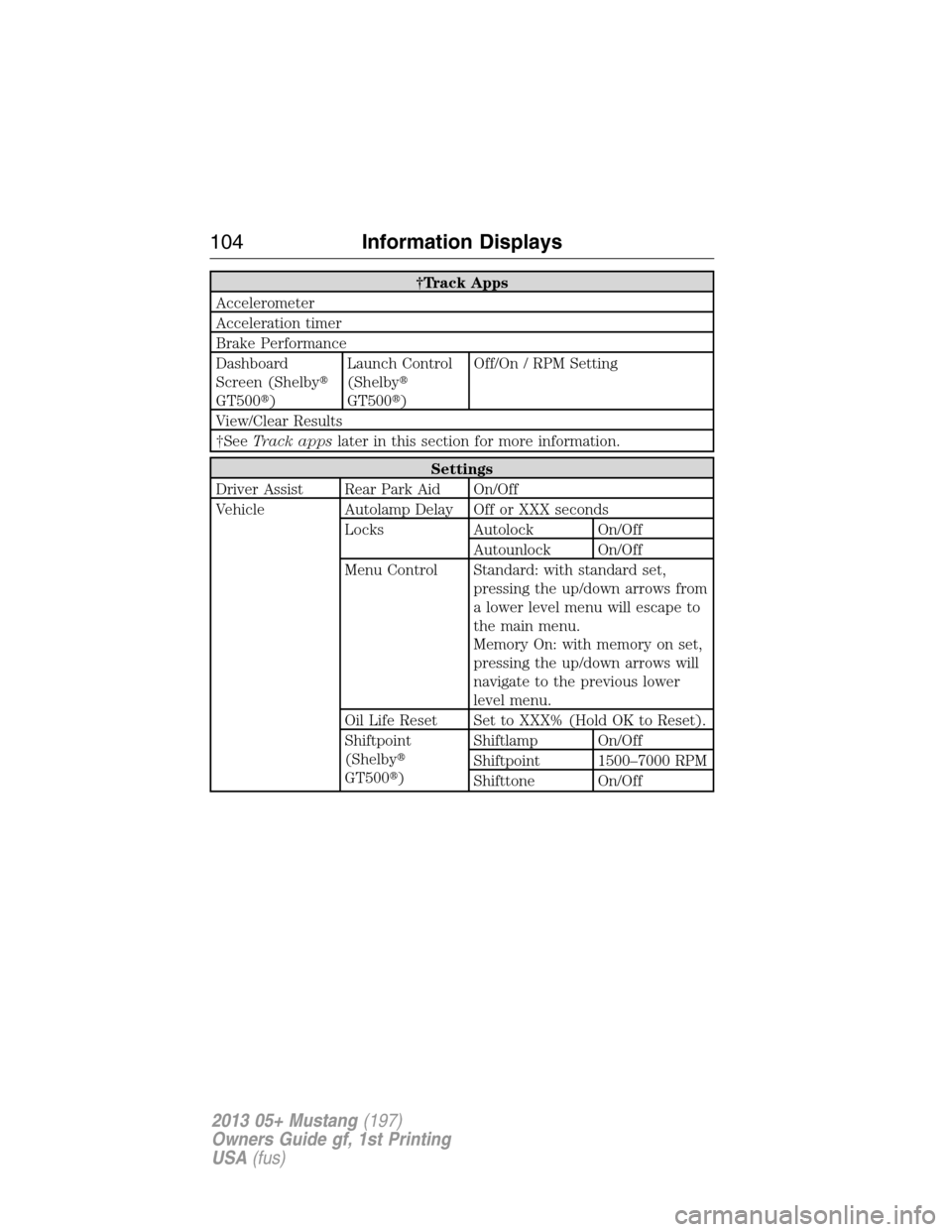

†Track Apps
Accelerometer
Acceleration timer
Brake Performance
Dashboard
Screen (Shelby
GT500)Launch Control
(Shelby
GT500)Off/On / RPM Setting
View/Clear Results
†SeeTrack appslater in this section for more information.
Settings
Driver Assist Rear Park Aid On/Off
Vehicle Autolamp Delay Off or XXX seconds
Locks Autolock On/Off
Autounlock On/Off
Menu Control Standard: with standard set,
pressing the up/down arrows from
a lower level menu will escape to
the main menu.
Memory On: with memory on set,
pressing the up/down arrows will
navigate to the previous lower
level menu.
Oil Life Reset Set to XXX% (Hold OK to Reset).
Shiftpoint
(Shelby
GT500)Shiftlamp On/Off
Shiftpoint 1500–7000 RPM
Shifttone On/Off
104Information Displays
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

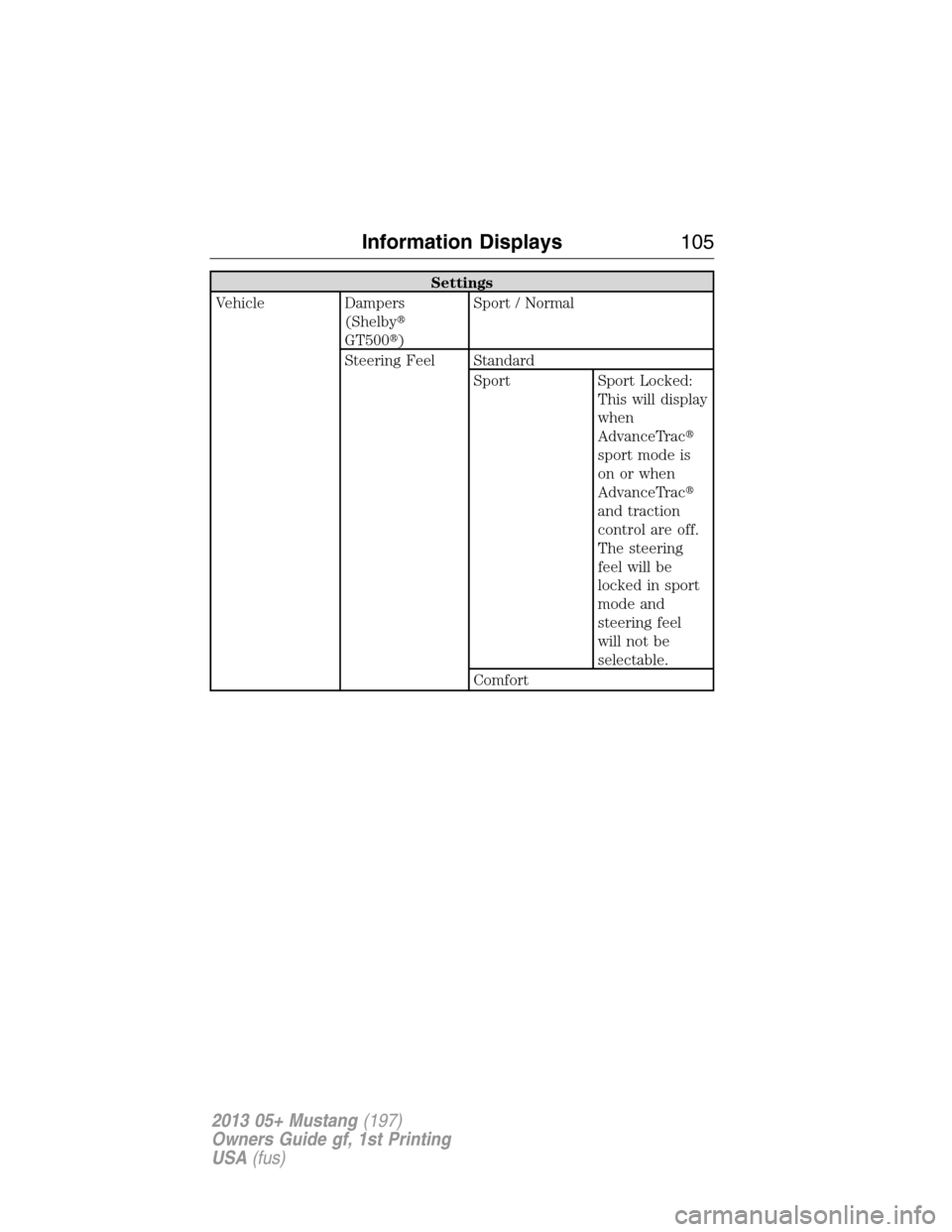

Settings
Vehicle Dampers
(Shelby
GT500)Sport / Normal
Steering Feel Standard
Sport Sport Locked:
This will display
when
AdvanceTrac
sport mode is
on or when
AdvanceTrac
and traction
control are off.
The steering
feel will be
locked in sport
mode and
steering feel
will not be
selectable.
Comfort
Information Displays105
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

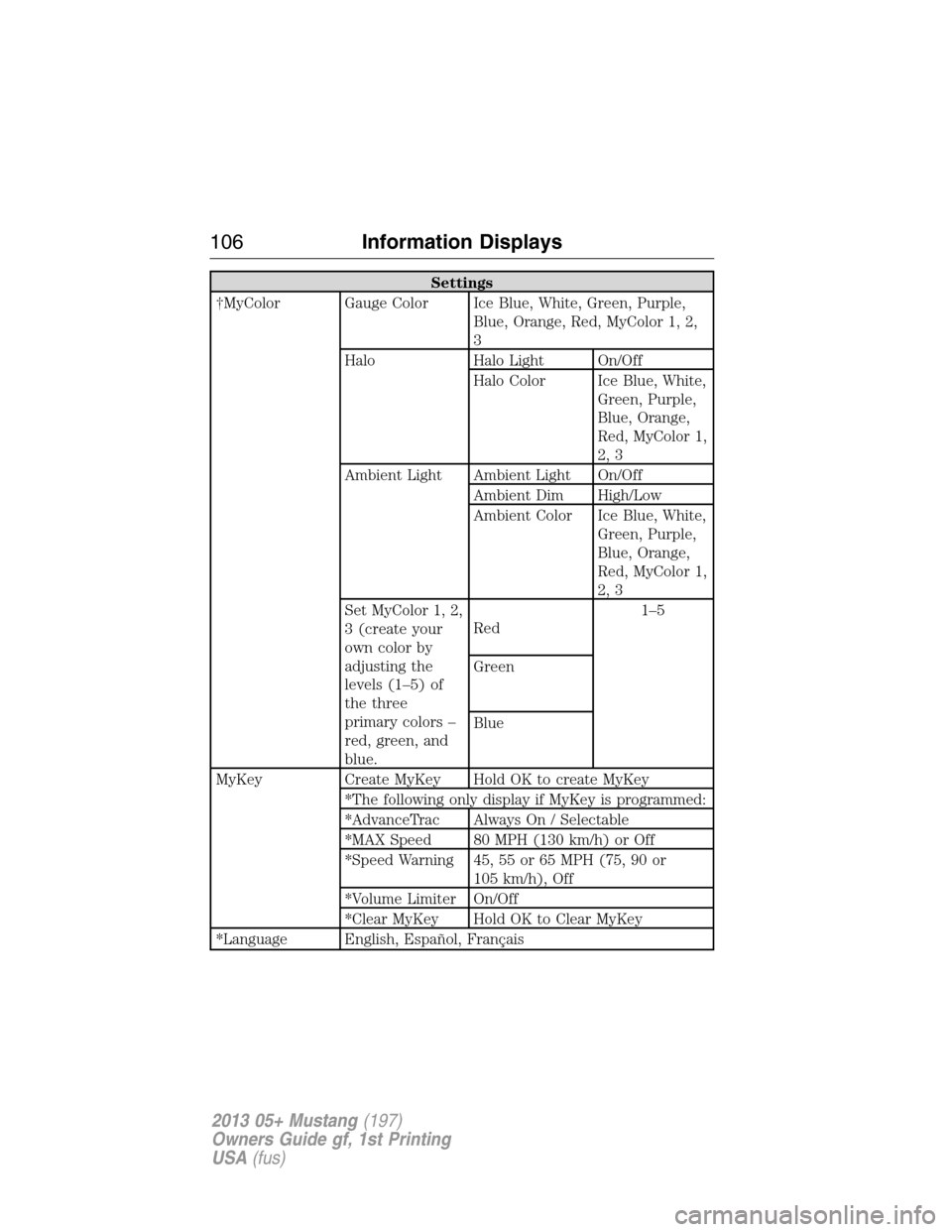

Settings
†MyColor Gauge Color Ice Blue, White, Green, Purple,
Blue, Orange, Red, MyColor 1, 2,
3
Halo Halo Light On/Off
Halo Color Ice Blue, White,
Green, Purple,
Blue, Orange,
Red, MyColor 1,
2, 3
Ambient Light Ambient Light On/Off
Ambient Dim High/Low
Ambient Color Ice Blue, White,
Green, Purple,
Blue, Orange,
Red, MyColor 1,
2, 3
Set MyColor 1, 2,
3 (create your
own color by
adjusting the
levels (1–5) of
the three
primary colors –
red, green, and
blue.Red1–5
Green
Blue
MyKey Create MyKey Hold OK to create MyKey
*The following only display if MyKey is programmed:
*AdvanceTrac Always On / Selectable
*MAX Speed 80 MPH (130 km/h) or Off
*Speed Warning 45, 55 or 65 MPH (75, 90 or
105 km/h), Off
*Volume Limiter On/Off
*Clear MyKey Hold OK to Clear MyKey
*Language English, Español, Français
106Information Displays
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

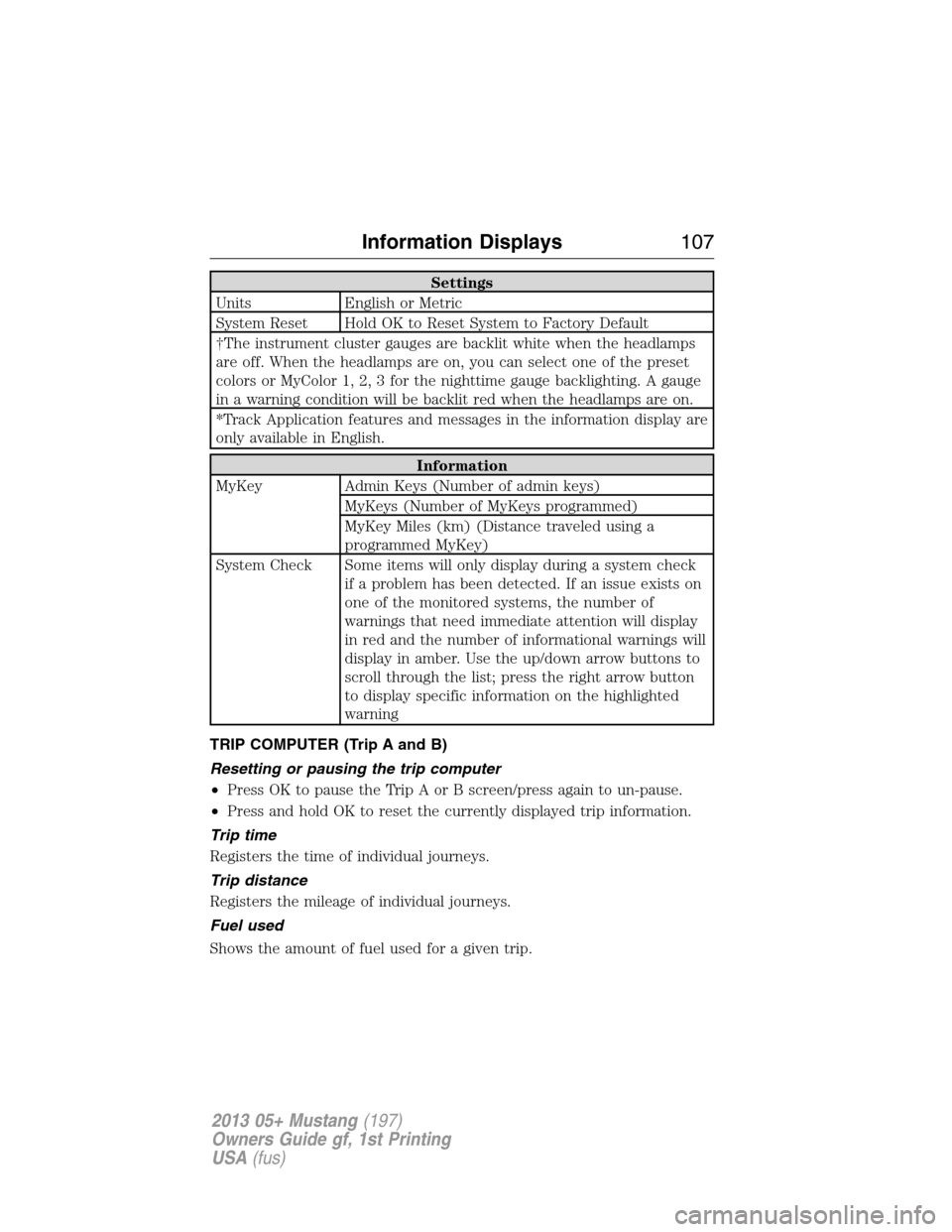

Settings
Units English or Metric
System Reset Hold OK to Reset System to Factory Default
†The instrument cluster gauges are backlit white when the headlamps
are off. When the headlamps are on, you can select one of the preset
colors or MyColor 1, 2, 3 for the nighttime gauge backlighting. A gauge
in a warning condition will be backlit red when the headlamps are on.
*Track Application features and messages in the information display are
only available in English.
Information
MyKey Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a
programmed MyKey)
System Check Some items will only display during a system check
if a problem has been detected. If an issue exists on
one of the monitored systems, the number of
warnings that need immediate attention will display
in red and the number of informational warnings will
display in amber. Use the up/down arrow buttons to
scroll through the list; press the right arrow button
to display specific information on the highlighted
warning
TRIP COMPUTER (Trip A and B)
Resetting or pausing the trip computer
•Press OK to pause the Trip A or B screen/press again to un-pause.
•Press and hold OK to reset the currently displayed trip information.
Trip time
Registers the time of individual journeys.
Trip distance
Registers the mileage of individual journeys.
Fuel used
Shows the amount of fuel used for a given trip.
Information Displays107
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

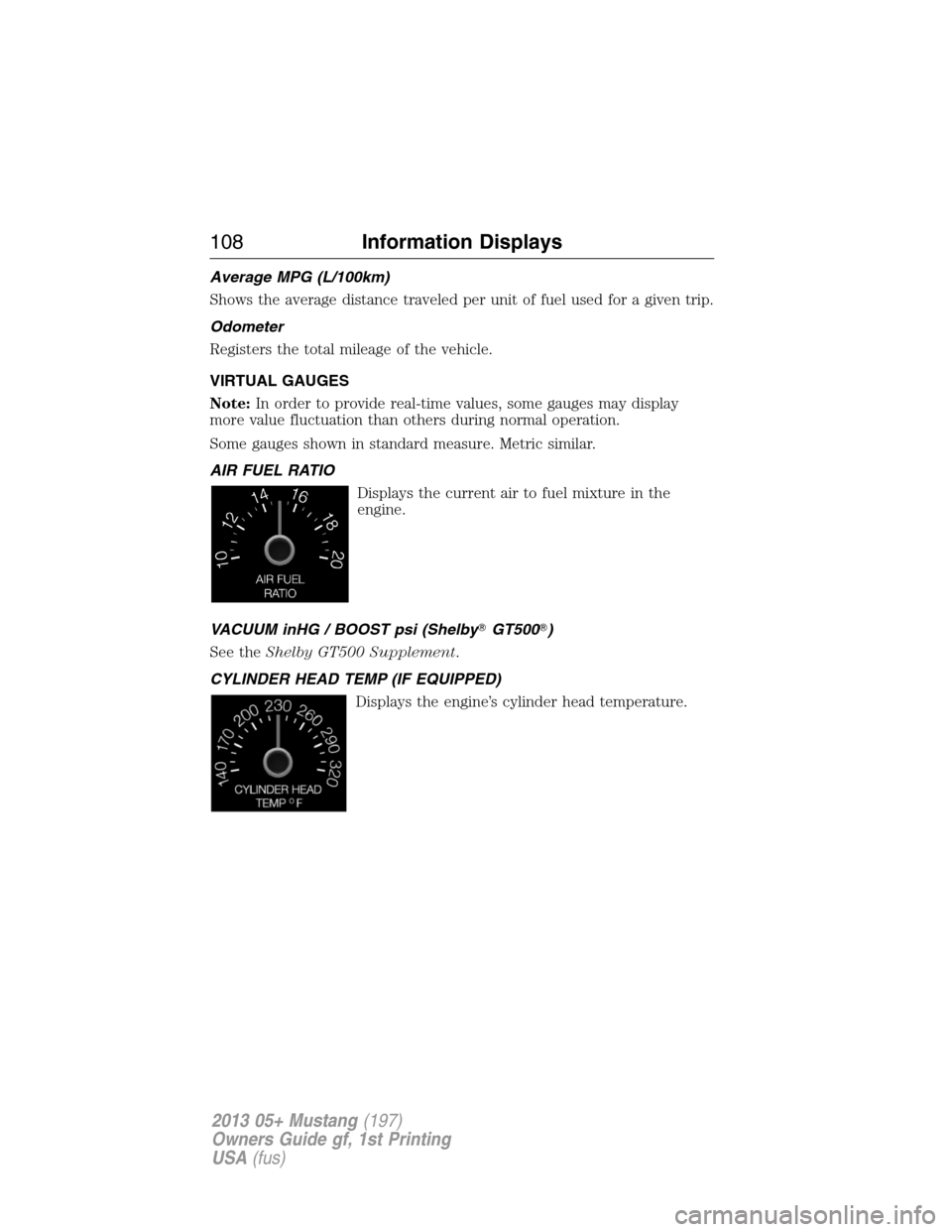

Average MPG (L/100km)
Shows the average distance traveled per unit of fuel used for a given trip.
Odometer
Registers the total mileage of the vehicle.
VIRTUAL GAUGES
Note:In order to provide real-time values, some gauges may display
more value fluctuation than others during normal operation.
Some gauges shown in standard measure. Metric similar.
AIR FUEL RATIO
Displays the current air to fuel mixture in the
engine.
VACUUM inHG / BOOST psi (ShelbyGT500)
See theShelby GT500 Supplement.
CYLINDER HEAD TEMP (IF EQUIPPED)
Displays the engine’s cylinder head temperature.
108Information Displays
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

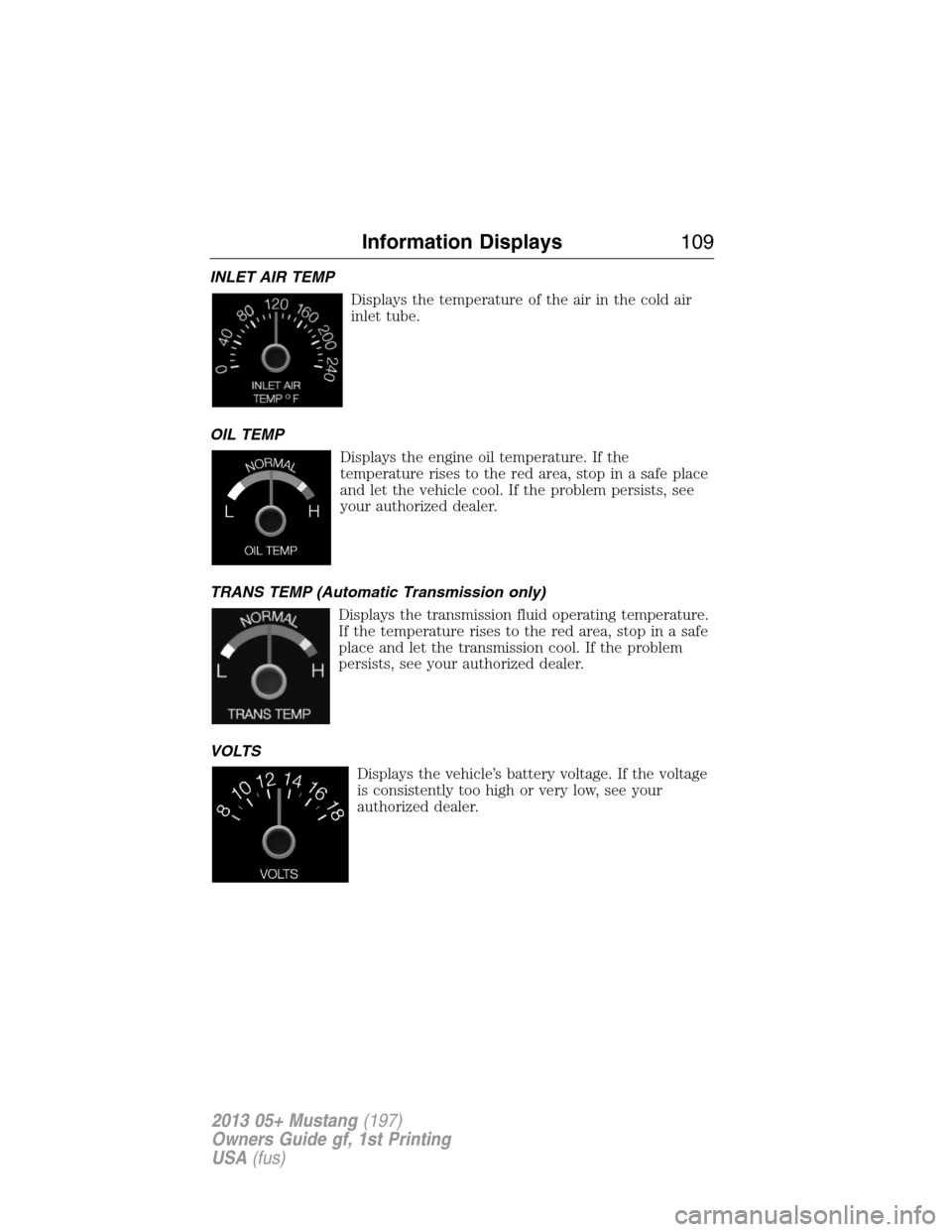

INLET AIR TEMP
Displays the temperature of the air in the cold air
inlet tube.
OIL TEMP
Displays the engine oil temperature. If the
temperature rises to the red area, stop in a safe place
and let the vehicle cool. If the problem persists, see
your authorized dealer.
TRANS TEMP (Automatic Transmission only)
Displays the transmission fluid operating temperature.
If the temperature rises to the red area, stop in a safe
place and let the transmission cool. If the problem
persists, see your authorized dealer.
VOLTS
Displays the vehicle’s battery voltage. If the voltage
is consistently too high or very low, see your
authorized dealer.
Information Displays109
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

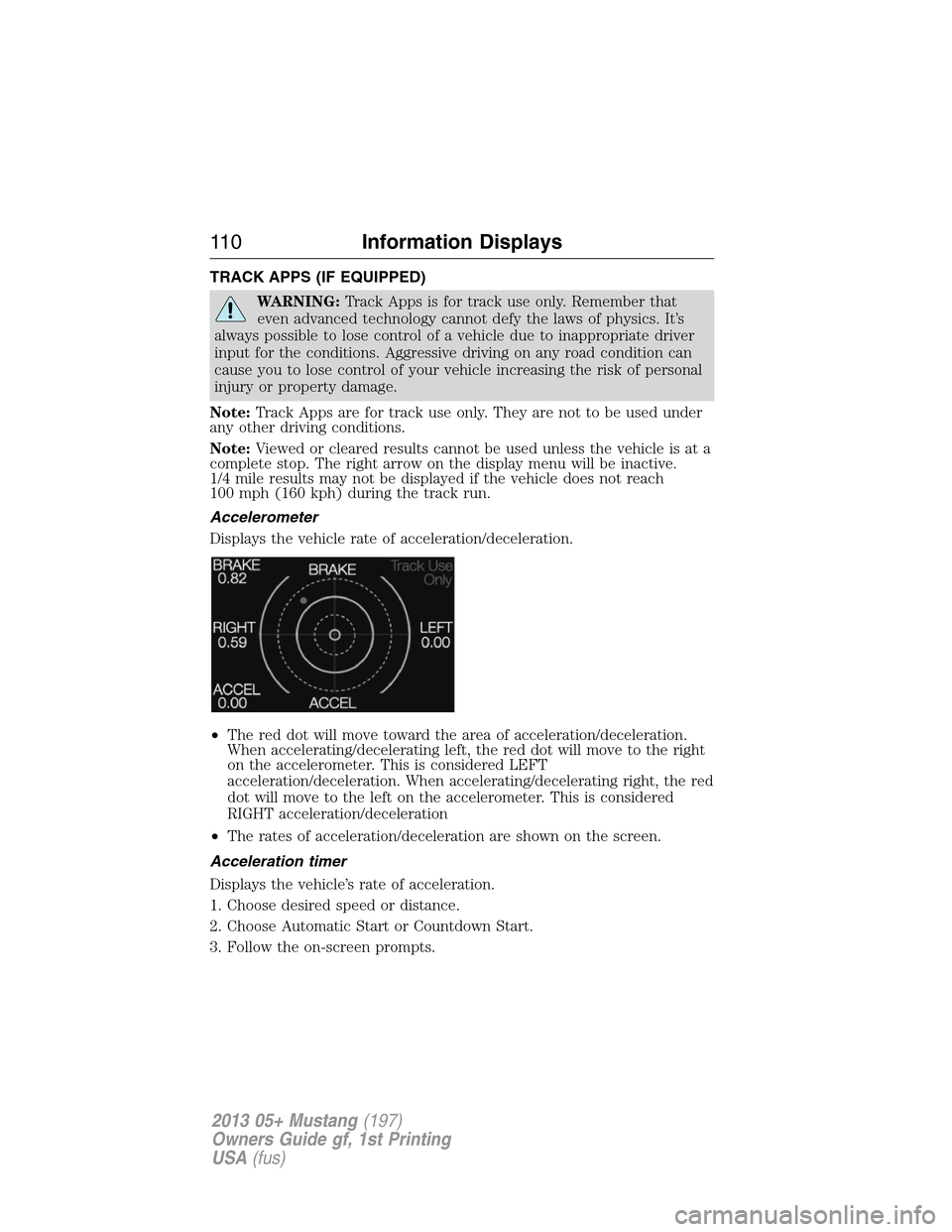

TRACK APPS (IF EQUIPPED)
WARNING:Track Apps is for track use only. Remember that
even advanced technology cannot defy the laws of physics. It’s
always possible to lose control of a vehicle due to inappropriate driver
input for the conditions. Aggressive driving on any road condition can
cause you to lose control of your vehicle increasing the risk of personal
injury or property damage.
Note:Track Apps are for track use only. They are not to be used under
any other driving conditions.
Note:Viewed or cleared results cannot be used unless the vehicle is at a
complete stop. The right arrow on the display menu will be inactive.
1/4 mile results may not be displayed if the vehicle does not reach
100 mph (160 kph) during the track run.
Accelerometer
Displays the vehicle rate of acceleration/deceleration.
•The red dot will move toward the area of acceleration/deceleration.
When accelerating/decelerating left, the red dot will move to the right
on the accelerometer. This is considered LEFT
acceleration/deceleration. When accelerating/decelerating right, the red
dot will move to the left on the accelerometer. This is considered
RIGHT acceleration/deceleration
•The rates of acceleration/deceleration are shown on the screen.
Acceleration timer
Displays the vehicle’s rate of acceleration.
1. Choose desired speed or distance.
2. Choose Automatic Start or Countdown Start.
3. Follow the on-screen prompts.
