FORD PROBE 1996 2.G Owner's Guide

29 [SR16921(ALL)05/95]
half page art:0032361-A
Routing safety belt through child seat or infant carrier
[SR16923(ALL)05/95]
half page art:0032386-A
Buckling the belt
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

30 [SR16930(ALL)05/95]4. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode).
[SR16935(ALL)05/95]
half page art:0032363-A

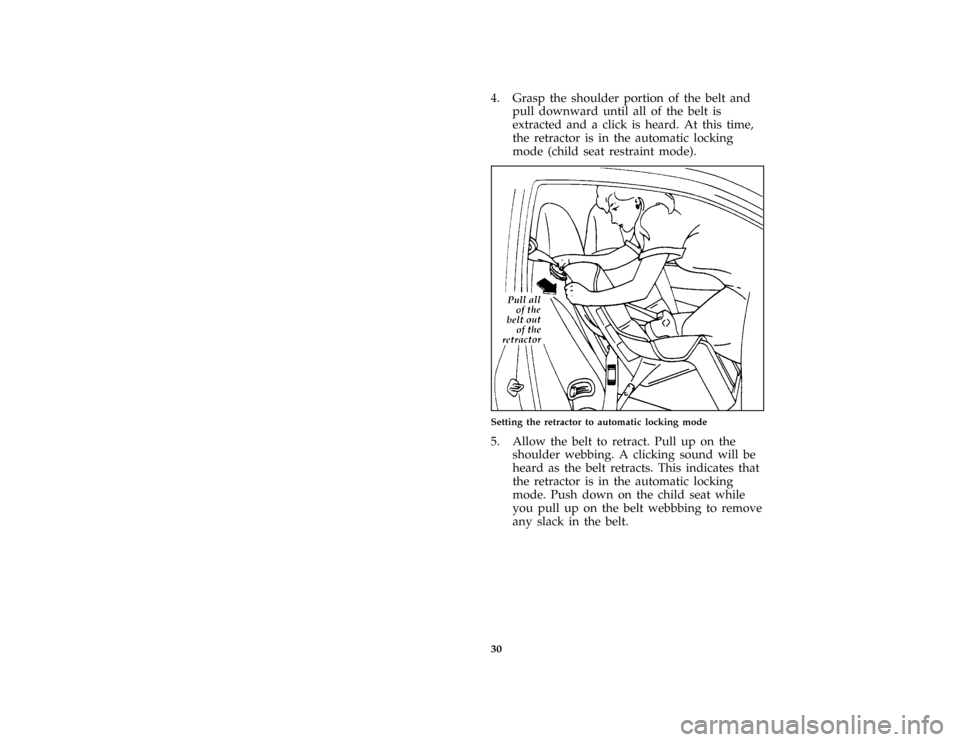

Setting the retractor to automatic locking mode
[SR16940(ALL)05/95]
5. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates that
the retractor is in the automatic locking
mode. Push down on the child seat while
you pull up on the belt webbbing to remove
any slack in the belt.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

31 [SR16950(ALL)05/95]
half page art:0032388-A

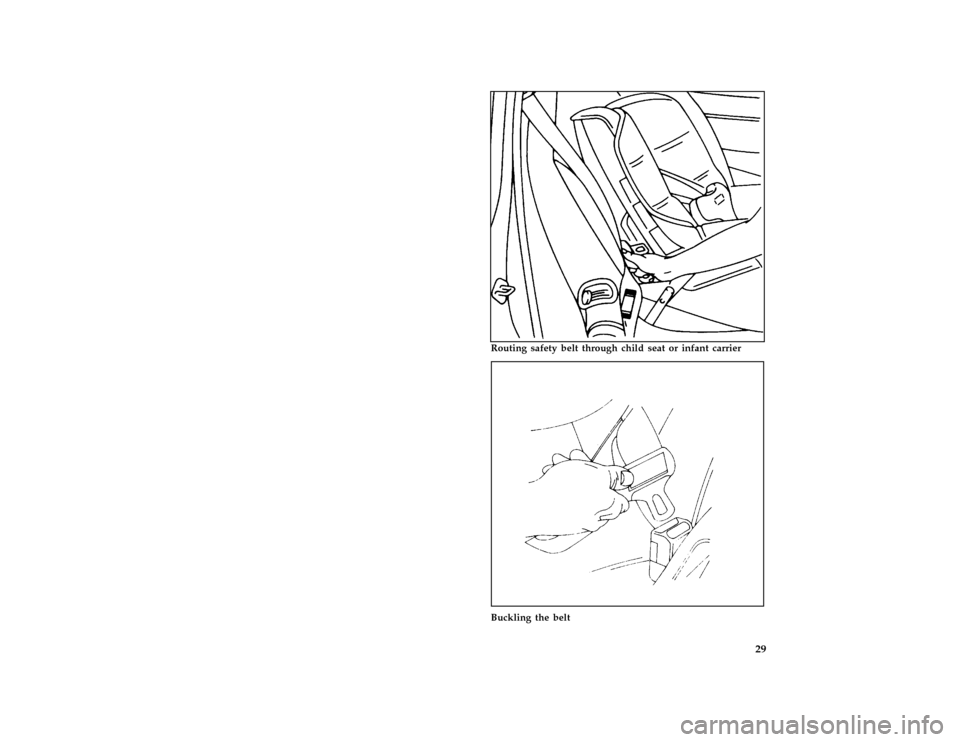

Removing slack from belt
[SR16955(ALL)05/95]
6. Before placing the child in the child seat or
infant carrier, forcibly tilt the seat from side
to side, and tug it forward to make sure that
the seat is securely held in place.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

32 [SR16957(ALL)03/94]

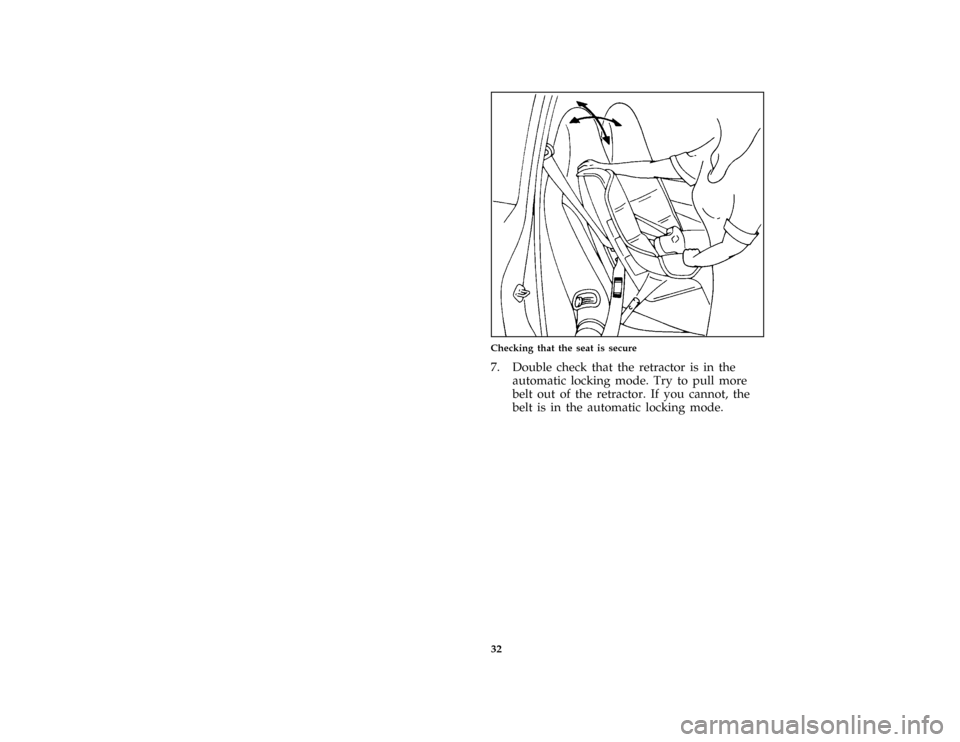

half page art:0032364-AChecking that the seat is secure
[SR16970(ALL)05/95]
7. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

33 [SR16975(ALL)05/95]
half page art:0032387-B
Checking the retractor
[SR16980(ALL)05/95]
8. Check to make sure that the child seat or
infant carrier is properly secured prior to
each use. If the belt is not locked, repeat
steps 4 through 7.
[SR16990(ALL)05/95]
NOTE: To remove the retractor from automatic
lock mode, allow seat belt retract fully
to its stowed position and the retractor
will automatically switch back to the
vehicle sensitive locking mode for
normal adult usage.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

34 [SR17000(ALL)05/95]
RWARNING
When using any infant or child restraint
system, it is important that you follow the
instructions and warnings provided by the
manufacturer concerning its installation
and use. Failure to follow each of the
restraint manufacturer's instructions could
increase the risk or severity of an injury
in the event of a collision or sudden stop.
*
[SR20200(ALL)05/95]
Attaching Safety Seats With Tether Straps
*
[SR20300(ALL)05/95]
Some manufacturers make safety seats that
include a tether strap that goes over the back of
the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of
your child safety seat for information about
ordering a tether strap.
*
[SR20410(ALL)05/95]
Front Seats
*
[SR20420(ALL)05/95]
To install a tether from a child safety seat in the
front seat:
*
[SR20430(ALL)05/95]
1. Buckle the lap/shoulder belt (in the seat
directly behind the front passenger seat in
which the child safety seat will be installed).
*
[SR20440(ALL)05/95]
2. Pull all the stored belt out of the rear seat
retractor to switch the retractor to automatic
locking mode.
*
[SR20450(ALL)05/95]
3. Let the retractor wind up the slack from the
lap/shoulder belt.
*
[SR20460(ALL)05/95]
4. Install the child safety seat in the front seat.
Refer to the previous section onInstalling
Safety Seats. Hook the tether strap hook
around the webbing near the center of the
shoulder portion of the locked lap/shoulder
belt.
*
[SR20470(ALL)05/95]
5. Tighten the tether strap.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

35
*
[SR20480(ALL)05/95]
Rear Seats
[SR20490(ALL)06/95]
If you use a tethered safety seat on one of the
rear seats, install a tether anchor bracket to one
of the two 0.3 inch (8 mm) weld nuts on the
rear of the cargo area below the opening for the
liftgate.
[SR20500(ALL)05/95]
Tether Anchorage Hardware
[SR20750(ALL)06/95]
Tether anchor hardware kits can be obtained at
no charge from any Ford or Lincoln-Mercury
dealer.
[SR20770(ALL)05/95]
Be sure to follow the child safety seat
manufacturer's instructions.
[SR20780(ALL)05/95]
RWARNING
Tighten the anchor according to
specifications. Otherwise, the safety seat
may not be properly secured and the child
may be injured in a sudden stop or
collision.
*
[SR20800(ALL)02/91]
Installing the Anchor Bracket
[SR21000(ALL)08/91]
1. Open the liftgate and take out the luggage
compartment cover (if equipped).
[SR21100(ALL)01/94]
2. The anchorage nuts used to secure the tether
anchor are located in the rear body panel
behind the trim at the rear of the luggage
compartment. Remove the trim panel. The
backside of the panel is scored at the
locations of the anchorage nuts. Make a hole
the size of the scoring in the trim panel to
provide access to the anchor nut. The hole
should be made on the same side of the
vehicle as the child safety seat will be
located. Reinstall the trim panel.
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

36 [SR21155(ALL)01/94]3. Install the hardware for anchoring the tether
following the instructions in the tether
anchorage hardware kit.
[SR21175(ALL)08/91]
4. Re-install luggage compartment cover.
[SR21600(ALL)01/94]
half page art:0030027-C

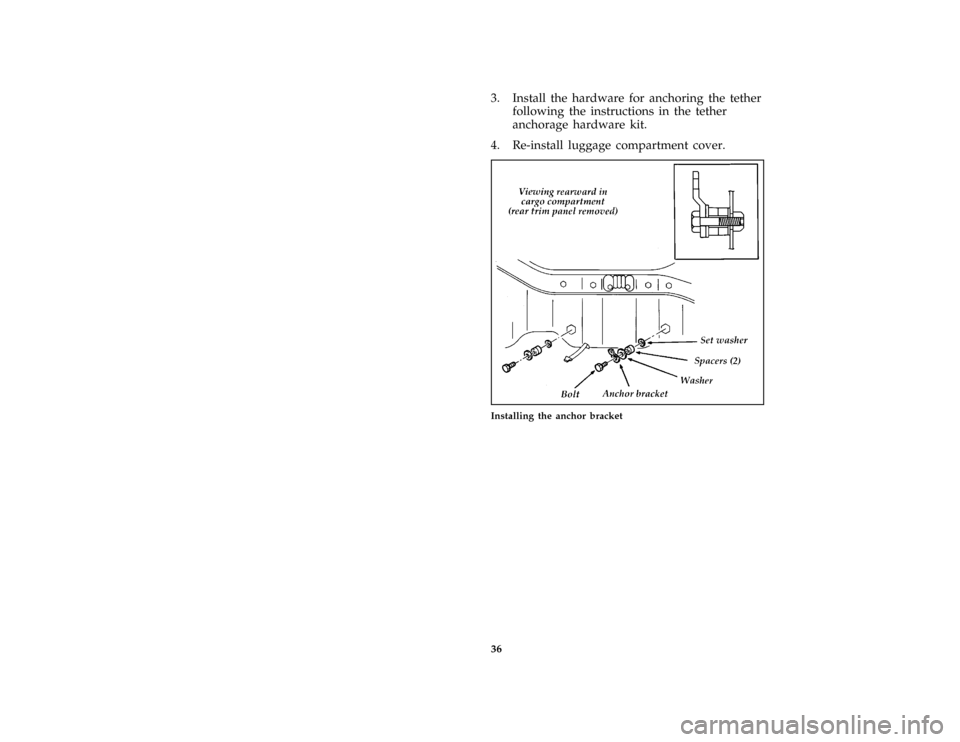

Installing the anchor bracket
File:prsrp.ex
Update:Fri Jun 23 19:39:12 1995

37
Starting Your Probe
*
[ST01700(ALL)03/95]
Ignition
*
[ST01800(ALL)01/95]
Understanding the Positions of the Ignition
[ST02050(ALL)01/92]
one third page art:0032054-A

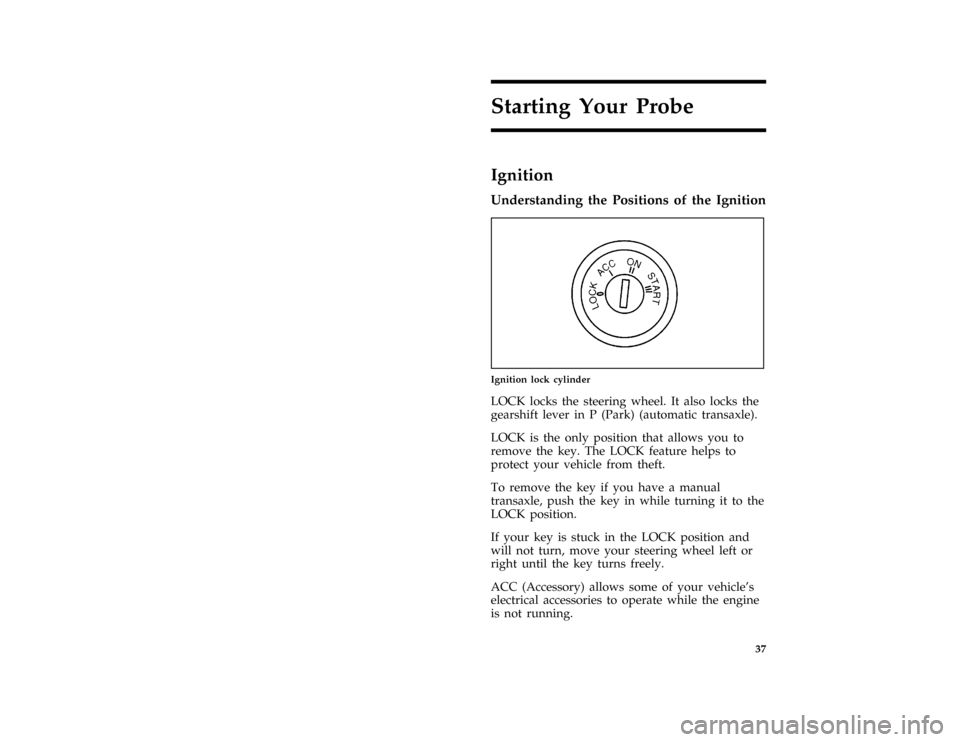

Ignition lock cylinder
*
[ST02100(ALL)09/93]
LOCK locks the steering wheel. It also locks the
gearshift lever in P (Park) (automatic transaxle).
*
[ST02200(ALL)01/95]
LOCK is the only position that allows you to
remove the key. The LOCK feature helps to
protect your vehicle from theft.
[ST02250(ALL)08/91]
To remove the key if you have a manual
transaxle, push the key in while turning it to the
LOCK position.
*
[ST02300(ALL)05/95]
If your key is stuck in the LOCK position and
will not turn, move your steering wheel left or
right until the key turns freely.
[ST02350(ALL)01/94]
ACC (Accessory) allows some of your vehicle's
electrical accessories to operate while the engine
is not running.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

38
*
[ST02400(ALL)05/95]
ON allows you to test your vehicle's warning
lights (except the brake system warning light) to
make sure they work before you start the
engine. The key returns to the ON position once
the engine is started and remains in this position
while the engine runs.
*
[ST02500(ALL)03/95]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
*
[ST02505(ALL)09/93]
Shift-lock System
*
[ST02510(ALL)09/93]
For your safety, the optional automatic transaxle
has the shift-lock system, which prevents shifting
the transaxle out of the P (Park) position without
depressing the brake pedal when the ignition
switch is in the ON position.
*
[ST02515(ALL)07/89]
To shift the transaxle out of the P (Park)
position:
*
[ST02521(ALL)05/90]
1. Depress and hold the brake pedal.
*
[ST02526(ALL)11/93]
2. Start the engine.
[ST02528(ALL)01/94]
3. Push in the thumb button and move the
shift selector lever.
[ST02530(ALL)06/93]
4. SeeShift Lock Emergency Overridein this
section for more information.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995
