FORD PROBE 1996 2.G Service Manual

39 [ST02532(ALL)06/93]
two third page art:0032064-D

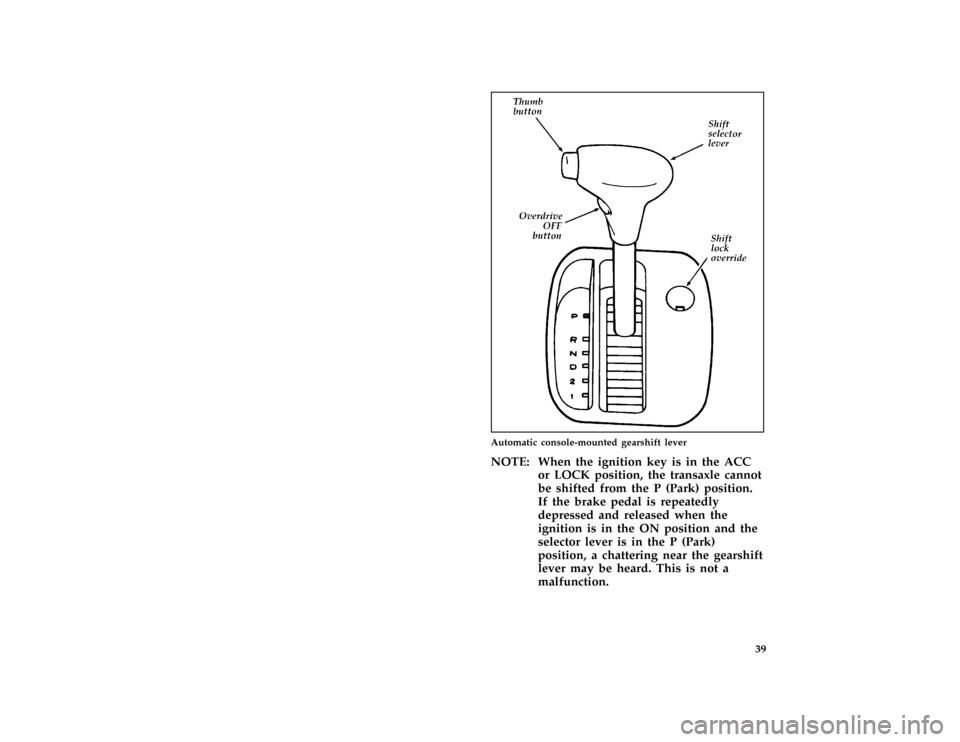

Automatic console-mounted gearshift lever
*
[ST02535(ALL)09/93]
NOTE: When the ignition key is in the ACC
or LOCK position, the transaxle cannot
be shifted from the P (Park) position.
If the brake pedal is repeatedly
depressed and released when the
ignition is in the ON position and the
selector lever is in the P (Park)
position, a chattering near the gearshift
lever may be heard. This is not a
malfunction.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

40
*
[ST02538(ALL)03/94]
NOTE: Your vehicle's gearshift lever is
securely latched in P (Park) if you
cannot move it without pushing in the
thumb button. Keep the brake pedal
depressed while moving your gearshift
lever.
*
[ST02540(ALL)09/93]
To make the system more effective, the ignition
key cannot be removed unless the gearshift
selector lever is in the P (Park) position.
[ST02545(ALL)06/93]
Shift lock emergency override
[ST02550(ALL)01/94]
If the gearshift selector lever should fail to move
from the P (Park) position with the brake pedal
depressed, continue depressing the brake pedal.
[ST02557(ALL)06/93]
1. Remove the shift lock override cover with a
screwdriver.
[ST02563(ALL)06/93]
2. Insert the screwdriver into the shift lock
override opening and push the screwdriver
handle down.
*
[ST02570(ALL)06/93]
3. Push and hold the thumb button.
[ST02600(ALL)01/94]
4. Move the shift selector lever.
*
[ST02690(ALL)06/95]
If you need to shift out of P (Park) by using the
alternate procedure described above, it is
possible that a fuse has blown and that your
brakelamps may also not be functional. Please
refer to the chapter titledServicing Your Probein
this Owner Guide for instructions on checking
and replacing fuses.
*
[ST02700(ALL)05/95]
RWARNING
DO NOT DRIVE YOUR VEHICLE UNTIL
YOU VERIFY THAT THE BRAKELAMPS
ARE WORKING.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

41 %
*
[ST02900(ALL)02/95]
Removing the Key From the Ignition
*
[ST03000(ALL)09/93]
1. Put the gearshift selector lever in P (Park)
(automatic transaxle) or 1 (First) (manual
transaxle).
*
[ST03100(ALL)01/95]
2. Set the parking brake fully.
[ST03400(ALL)01/94]
3.For a manual transaxle:Push in on the lock
cylinder and turn the key from ACC to
LOCK.
[ST03425(ALL)01/94]
For an automatic transaxle:Turn the key to
LOCK.
*
[ST03500(ALL)03/95]
4. Remove the key.
*
[ST03600(ALL)10/90]
If the driver or passenger door is open while the
key is still in the ignition, a warning chime
sounds.
*
[ST03700(ALL)05/95]
RWARNING
Always set the parking brake fully and
make sure that the gearshift is securely
latched in P (Park) (automatic transaxle) or
in 1 (First) (manual transaxle).
*
[ST03900(ALL)01/93]
RWARNING
Do not leave children, unreliable adults,
or pets alone in your vehicle. They could
accidentally injure themselves or others
through inadvertent operation of the
vehicle. Further, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe and possibly fatal injuries to
people as well as animals.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

42
%*
[ST04100(ALL)03/95]
Fuel-Injected Engines
*
[ST04200(ALL)03/95]
When starting a fuel-injected engine,the most
important thing to remember is to avoid
pressing down on the accelerator before or
during starting. Only use the accelerator when
you have problems getting your vehicle started.
SeeStarting Your Enginein this chapter for
details about when to use the accelerator while
you start your vehicle.
*
[ST04500(ALL)03/95]
Starting Your Vehicle
%*
[ST05000(ALL)05/94]
Preparing to Start Your Vehicle
*
[ST05100(ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST05200(ALL)01/95]
Before you start your vehicle, do the following:
*
[ST05300(ALL)01/95]
1. Make sure you and all your passengers
buckle your safety belts. SeeSafety Restraints
in the Index for more details.
*
[ST05400(ALL)03/95]
2. Make sure the headlamps and other
accessories are turned off when starting.
*
[ST05500(ALL)02/92]
3.If you have an automatic transaxle, make
sure that the gearshift is in P (Park) and the
parking brake is set before you turn the key.
*
[ST05600(ALL)07/93]
If you have a manual transaxle, make sure
that the parking brake is fully set, push the
clutch pedal to the floor, and put the
gearshift into Neutral before you turn the
key.(Remember, the starter will operate
only if the clutch pedal is pushed all the
way to the floor.)
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

43
*
[ST05700(ALL)03/95]
Testing the Warning Lights
*
[ST05800(ALL)03/95]
Before you start your vehicle, you should test
the warning lights on the instrument panel to
make sure that they work. Refer to theWarning
Lights and Gaugeschapter.
*
[ST06000(ALL)02/95]
Starting Your Engine
*
[ST06100(ALL)02/95]
To start your engine:
*
[ST06300(ALL)05/95]
1. Follow the steps underPreparing to Start
Your Vehicleat the beginning of this section.
*
[ST06320(ALL)03/95]
2. Keep your foot on the brake pedal and turn
the ignition key to the ON position.
*
[ST06330(ALL)03/95]
3. DO NOT depress the accelerator pedal when
starting your engine. DO NOT use the
accelerator while the vehicle is parked.
*
[ST06340(ALL)02/95]
4. Turn the key to the START position
(cranking) until the engine starts. Allow the
key to return to the ON position after the
engine has started.
*
[ST06400(ALL)02/95]
If you have difficulty in turning the key,
rotate the steering wheel slightly because it
may be binding.
%*
[ST06430(ALL)04/95]
For a cold engine:
*
[ST06440(ALL)05/95]
q
At temperatures10ÊF (-12ÊC) andbelow:If
the engine does not start infifteen (15)
secondson the first try, turn the key to OFF,
wait approximately ten (10) seconds so you
do not flood the engine, then try again.
*
[ST06450(ALL)04/95]
q
At temperaturesabove10ÊF(-12ÊC):If the
engine does not start infive (5) secondson
the first try, turn the key to OFF, wait
approximately ten (10) seconds so you do not
flood the engine, then try again.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

44 %
*
[ST06460(ALL)05/95]
For a warm engine:
*
[ST06470(ALL)04/95]
q
Do not hold the key in the START position
for more thanfive (5) secondsat a time. If
the engine does not start within five (5)
seconds on the first try, turn the key to the
OFF position. Wait a few seconds after the
starter stops, then try again.
*
[ST06480(ALL)05/95]
Whenever you start your vehicle, release the key
as soon as the engine starts. Excessive cranking
could damage the starter or flood the engine.
*
[ST06490(ALL)05/95]
After you start the engine, let it idle for a few
seconds. Keep your foot on the brake pedal and
put the gearshift lever in gear. Release the
parking brake. Slowly release the brake pedal
and drive away in the normal manner.
*
[ST06500(ALL)05/95]
NOTE: Your vehicle is equipped with an
automatic transaxle that has an
interlock that prevents you from
shifting out of P (Park) unless your
foot is on the brake pedal.
%*
[ST06510(ALL)04/95]
If the engine does not start after two attempts:
*
[ST06520(ALL)04/95]
1. Turn the ignition key to the OFF position.
*
[ST06530(ALL)04/95]
2. Press the accelerator all the way to the floor
and hold it.
*
[ST06540(ALL)04/95]
3. Turn the ignition key to the START position.
*
[ST06550(ALL)04/95]
4. Release the ignition key when the engine
starts.
*
[ST06560(ALL)04/95]
5. Release the accelerator gradually as the
engine speeds up. Then drive away in the
normal manner.
*
[ST06570(ALL)04/95]
If the engine still does not start, the fuel pump
shut-off switch may have been triggered. For
directions on how to reset the switch seeFuel
Pump Shut-Off Switchlater in this chapter.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

45 %
*
[ST06580(ALL)05/95]
A computer system controls the engine's idle
speed. When you start your vehicle, the engine's
idle speed normally runs high. These faster
engine speeds will make your vehicle move
slightly faster than its normal idle speed. It
should, however, slow down after a short time.
If it does not, have the idle speed checked.
*
[ST06585(ALL)05/95]
If the engine idle speed does not slow down
automatically, do not allow your vehicle to idle
for more than 10 minutes. Have the vehicle
checked.
*
[ST06590(ALL)05/95]
RWARNING
Extended idling at high engine speeds can
produce very high temperatures in the
engine and exhaust system, creating the
risk of fire or other damage.
*
[ST06600(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
%*
[ST08700(ALL)06/95]
Engine Block Heater (If equipped)
*
[ST08900(ALL)03/95]
Engine block heaters are strongly recommended
if you live in a region where temperatures reach
-10ÊF (-23ÊC) orbelow. An engine block heater
warms the engine coolant, which improves
starting, warms up the engine faster, and allows
the heater-defrost system to respond quickly.
*
[ST09100(ALL)02/95]
To turn the heater on, simply plug it into a
grounded 110-volt outlet. Ford recommends that
you use a 110-volt circuit that is protected by a
ground fault circuit interrupter.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

46
*
[ST09200(ALL)05/95]
RWARNING
To prevent electrical shock, do not use
your heater with ungrounded electrical
systems or two-pronged (cheater) adapters.
*
[ST09300(ALL)03/95]
For best results, plug the heater in at least three
hours before you start your vehicle. Using the
heater for longer than three hours will not
damage the engine, so you can plug it in at
night to start your vehicle the following
morning.
%
*
[ST10000(ALL)03/95]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
*
[ST10005(ALL)04/95]
The Fuel Pump Shut-off Switch
[ST10010(ALL)01/95]
If the engine cranks but does not start or does
not start after a collision, the fuel pump shut-off
switch may have been triggered. The shut-off
switch is a device intended to stop the fuel
pump when your vehicle has been involved in a
substantial jolt.
*
[ST10015(ALL)03/95]
Once the shut-off switch is triggered, you must
reset the switch by hand before you can start
your vehicle.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

47 [ST10025(ALL)01/95]
three fourths page art:0030295-I

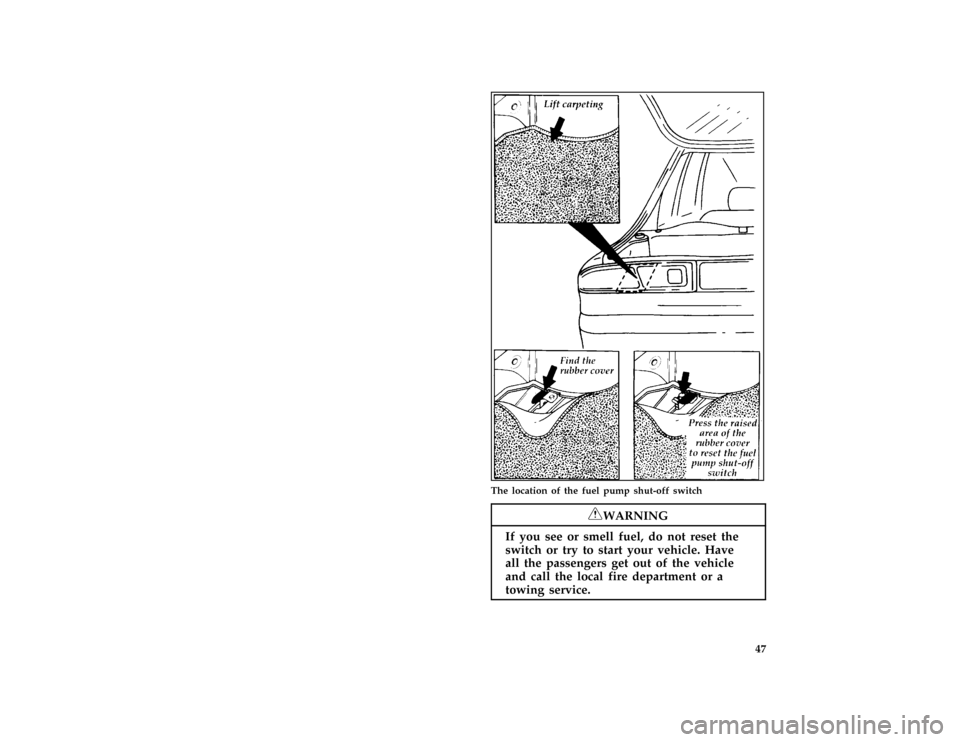

The location of the fuel pump shut-off switch
*
[ST10030(ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995

48
*
[ST10035(ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST10040(ALL)02/95]
1. Turn the key in the ignition to the LOCK
position.
*
[ST10045(ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST10050(ALL)01/95]
3. If you do not see or smell fuel, push the red
reset button on the fuel pump shut-off
switch down.
[ST10052(ALL)04/95]
The reset switch on your vehicle is located on
the left side of the luggage compartment
under the carpet. The red reset button is
under the raised area of the rubber cover.
*
[ST10055(ALL)02/95]
4. Attempt to start your vehicle. If the vehicle
starts, let it run a few seconds, then turn the
key to the LOCK position.
*
[ST10060(ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
%*
[ST11700(ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST11800(ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST11900(ALL)05/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
File:prstp.ex
Update:Fri Jun 23 19:38:23 1995
