Page 71 of 288
68
%*
[CF19100(ALL)01/96]
Windshield Wipers and Washer
*
[CF19200(ALL)01/96]
To operate the windshield wipers and washers,
make sure your ignition key is turned to the ON
position.
[CF19300(ALL)01/96]
The windshield wipers have two speeds. To
operate the wipers, pull down the lever on the
right side of your steering column. The first
position is LO (Low) and the second position is
HI (High). To turn the wipers off, return the
lever to the uppermost position.
[CF19400(ALL)01/96]
quarter page art:0032071-C
Windshield wiper control
[CF19500(ALL)01/96]
ONE-TOUCH WIPER CONTROL (If equipped)
Ð For one wiping cycle, push the lever away
from you and release it with the lever in the
OFF or interval position. The ignition switch
must be in the ON position for this operation.
[CF19600(ALL)01/96]
quarter page art:0032058-B
One touch wiper control
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 72 of 288
69 [CF19700(ALL)01/96]
Interval Wipers (If equipped)
[CF19800(ALL)01/96]
In addition to two speed wipers, your vehicle
may have wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
and more often in heavier rain.
[CF19900(ALL)01/96]

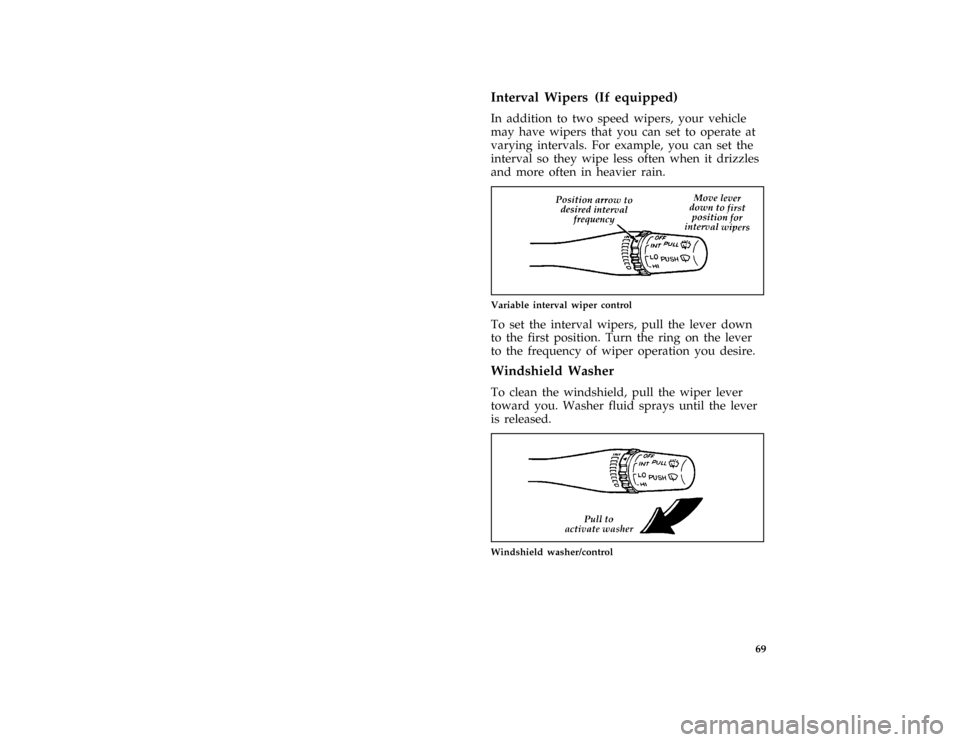

quarter page art:0032035-B
Variable interval wiper control
[CF19950(ALL)01/96]
To set the interval wipers, pull the lever down
to the first position. Turn the ring on the lever
to the frequency of wiper operation you desire.
*
[CF20000(ALL)01/96]
Windshield Washer
[CF20100(ALL)01/96]
To clean the windshield, pull the wiper lever
toward you. Washer fluid sprays until the lever
is released.
[CF20200(ALL)02/96]
quarter page art:0032057-B
Windshield washer/control
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 73 of 288
70
WARNING
Alwayswar mup thewindshiel dwit hthe
Page 74 of 288
71
WARNING

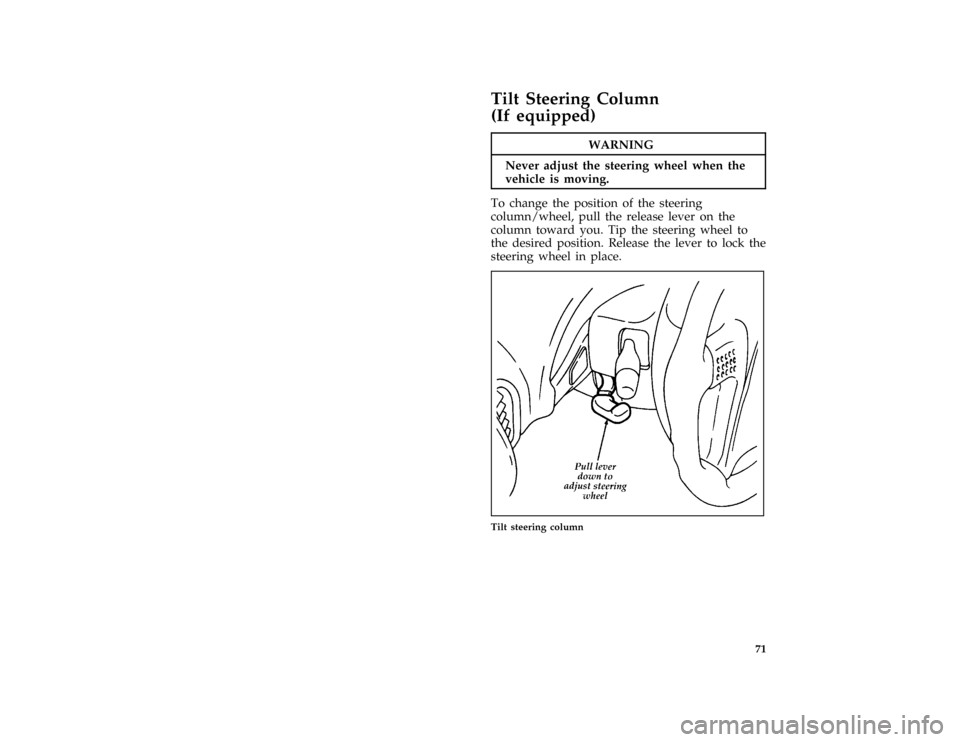

Neveradjus tth esteerin gwhee lwhe nthe
File:05prcfp.ex
Page 75 of 288
72
%*
[CF21300(ALL)03/96]
Speed Control (If equipped)
[CF21600(ALL)01/96]
half page art:0032031-C
Speed control switches on the steering wheel
%*
[CF21610(ALL)05/96]
To Turn Speed Control Off
[CF21612(ALL)05/96]
Press OFF, or
[CF21614(ALL)05/96]
Turn off the vehicle ignition.
*
[CF21616(ALL)05/96]
Once speed control is switched off, the
previously programmed set speed will be erased.
*
[CF21620(ALL)05/96]
To Turn Speed Control On
[CF21640(ALL)05/96]
Press ON
*
[CF21740(ALL)05/96]
To Set a Speed
[CF21760(ALL)05/96]
Press SET ACC. For speed control to operate,
the speed control must be ON and the vehicle
speed must be greater than 30 mph (48 km/h).
*
[CF21780(ALL)05/96]
If you drive up or down a steep hill, your
vehicle speed may vary slower or faster than the
set speed. This is normal.
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 76 of 288
73
WARNING
To kee pyou rvehicl eunde rcontrol ,do
Page 77 of 288
74
*
[CF22020(ALL)05/96]
To Disengage Speed Control
[CF22040(ALL)05/96]
Depress the brake pedal, or
[CF22060(ALL)05/96]
Depress the clutch pedal (if equipped).
*
[CF22080(ALL)05/96]
Disengaging the speed control will not erase the
previously programmed set speed.
*
[CF22100(ALL)05/96]
To Return to a Set Speed
[CF22120(ALL)05/96]
Press RSM. For RSM to operate, the vehicle
speed must be faster than 30 mph (48 km/h).
%
*
[CF25200(ALL)01/96]
Moon Roof (If equipped)
[CF25300(ALL)01/96]
The control switch for the sliding moon roof is
on the interior/map lamp control panel located
above the windshield and between the sun
visors. The ignition must be in the ON position
for the moon roof to be operational.
[CF25400(ALL)01/96]
To open the sliding moon roof to the vent
position, push the recessed part of the moon
roof switch until the back of the moon roof tilts
into the vent position. You must release the
switch after opening the vent before pressing it
again to slide the moon roof open. To close,
push the other side of the switch until the moon
roof sets back into place.
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 78 of 288
75 [CF25500(ALL)05/96]

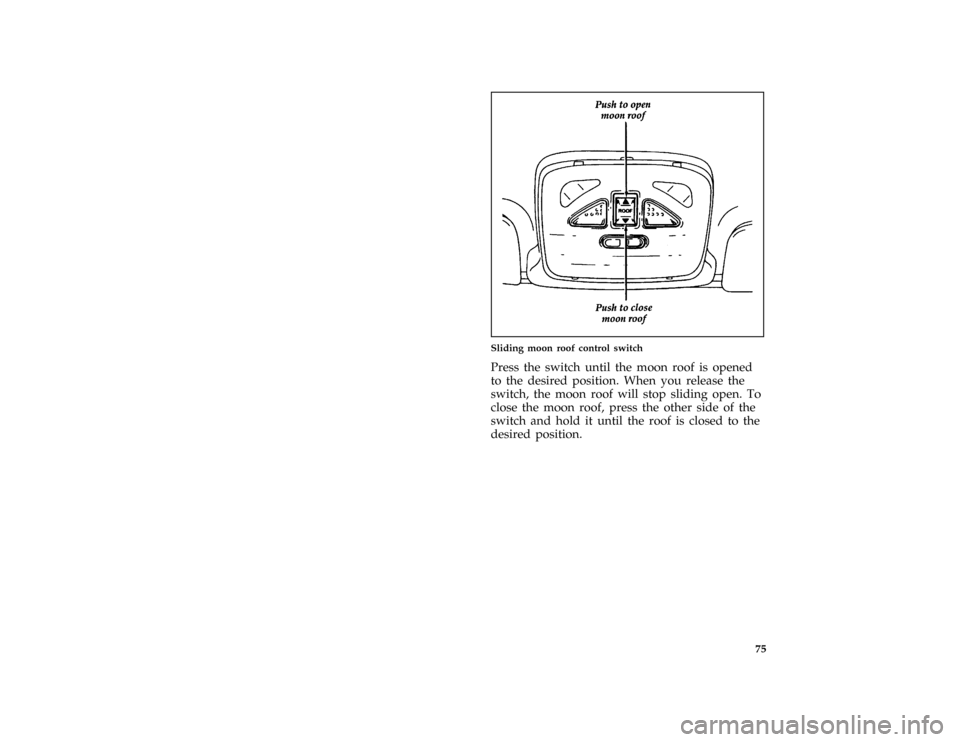

half page art:0032055-C
Sliding moon roof control switch
[CF25600(ALL)01/96]
Press the switch until the moon roof is opened
to the desired position. When you release the
switch, the moon roof will stop sliding open. To
close the moon roof, press the other side of the
switch and hold it until the roof is closed to the
desired position.
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 79 of 288
76
%*
[CF26000(ALL)02/96]
Doors
[CF26200(ALL)01/96]

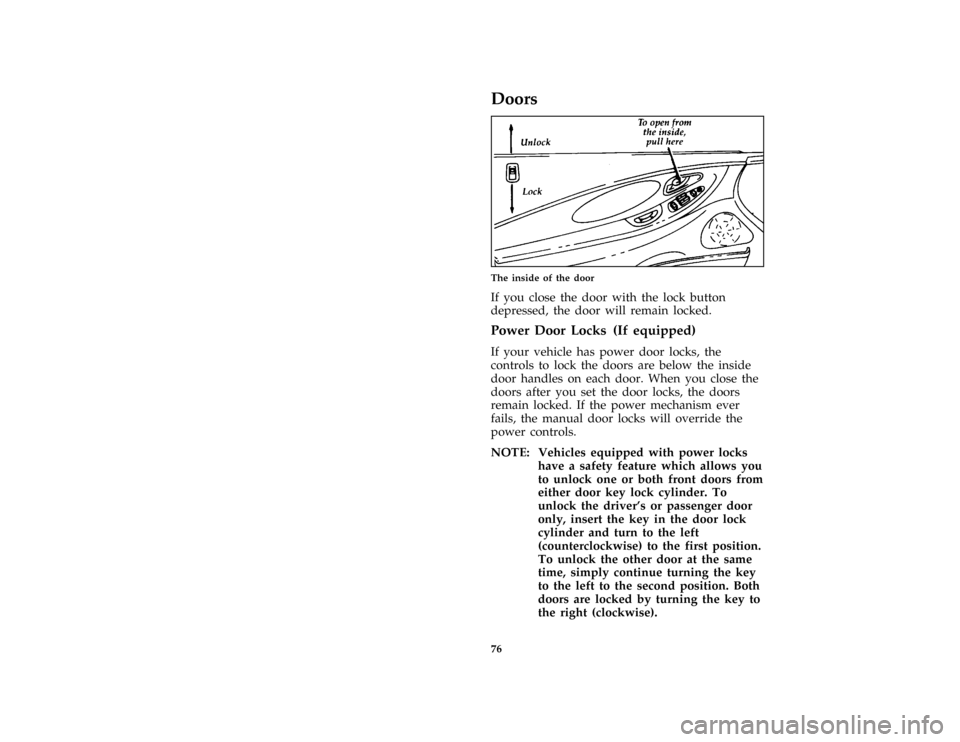

one third page art:0030073-C
The inside of the door
[CF26300(ALL)01/96]
If you close the door with the lock button
depressed, the door will remain locked.
%*
[CF26400(ALL)01/96]
Power Door Locks (If equipped)
[CF26500(ALL)01/96]
If your vehicle has power door locks, the
controls to lock the doors are below the inside
door handles on each door. When you close the
doors after you set the door locks, the doors
remain locked. If the power mechanism ever
fails, the manual door locks will override the
power controls.
[CF26600(ALL)01/96]
NOTE: Vehicles equipped with power locks
have a safety feature which allows you
to unlock one or both front doors from
either door key lock cylinder. To
unlock the driver's or passenger door
only, insert the key in the door lock
cylinder and turn to the left
(counterclockwise) to the first position.
To unlock the other door at the same
time, simply continue turning the key
to the left to the second position. Both
doors are locked by turning the key to
the right (clockwise).
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 80 of 288
77 [CF26700(ALL)01/96]

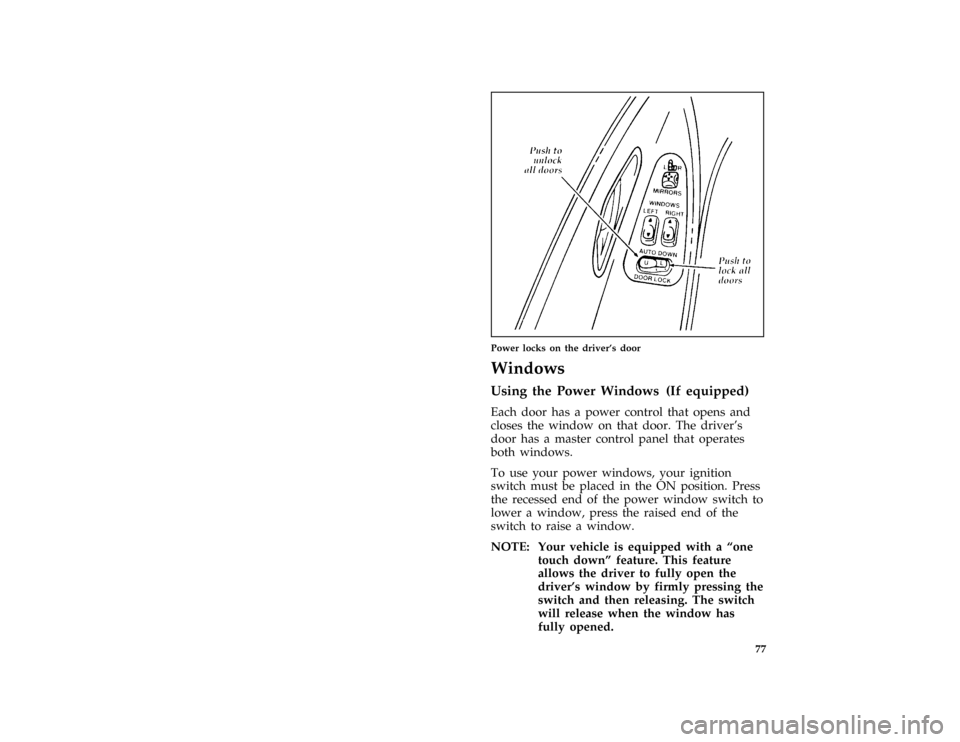

half page art:0030079-C
Power locks on the driver's door
%*
[CF27000(ALL)04/96]
Windows
%*
[CF27400(ALL)01/96]
Using the Power Windows (If equipped)
[CF27450(ALL)01/96]
Each door has a power control that opens and
closes the window on that door. The driver's
door has a master control panel that operates
both windows.
[CF27500(ALL)01/96]
To use your power windows, your ignition
switch must be placed in the ON position. Press
the recessed end of the power window switch to
lower a window, press the raised end of the
switch to raise a window.
% [CF27550(ALL)01/96]
NOTE: Your vehicle is equipped with a ªone
touch downº feature. This feature
allows the driver to fully open the
driver's window by firmly pressing the
switch and then releasing. The switch
will release when the window has
fully opened.
