FORD PROBE 1997 2.G Owners Manual

88 [CF51400(ALL)01/96]The transmitter can be snapped apart to replace
the batteries by twisting a thin coin between the
two halves of the transmitter.DO NOT TAKE
THE FRONT PART OF THE TRANSMITTER
APART.Carefully remove the old batteries.
When installing the new batteries, be sure to
place the positive (+) side down as marked.
Snap the two halves back together.
%*
[CF51500(ALL)02/96]
Replacement/additional transmitters
[CF51600(ALL)01/96]
In the event a transmitter is lost, return the
remaining transmitter(s) to your dealer for
reprogramming of your remote entry system.
This is necessary to prevent unauthorized use of
the lost transmitter.
*
[CF51700(ALL)01/96]
Additional transmitters may be purchased from
your dealer (remote entry system will work with
up to four transmitters). Follow the same
programming procedure as above.
[CF51800(ALL)01/96]
All transmitters must be programmed (or
reprogrammed) at the same time. If the
programming mode is entered and the
transmitters are not programmed (or
reprogrammed) at the same time, they will not
operate with the system.
*
[CF51900(ALL)01/96]
quarter page art:0060566-B
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

89
Seating and Safety
Restraints
%*
[SS00200(ALL)05/96]
Seats
*
[SS00300(ALL)05/96]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[SS00400(ALL)02/96]
RWARNING
Always drive and ride with your seatback
upright and the lap belt snug and low
across the hips.
*
[SS00500(ALL)02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
%*
[SS00600(ALL)05/96]
Head Restraints
[SS00700(ALL)02/96]
Head restraints help protect your head and neck
in a collision. The head restraints on your
vehicle are not adjustable.
[SS00800(ALL)02/96]

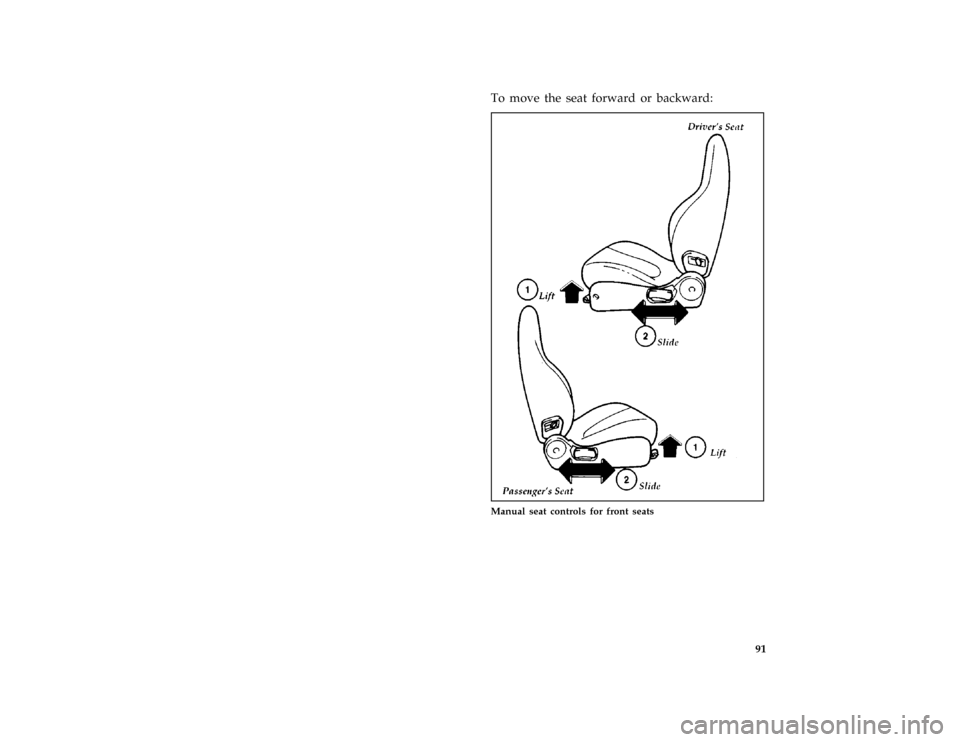

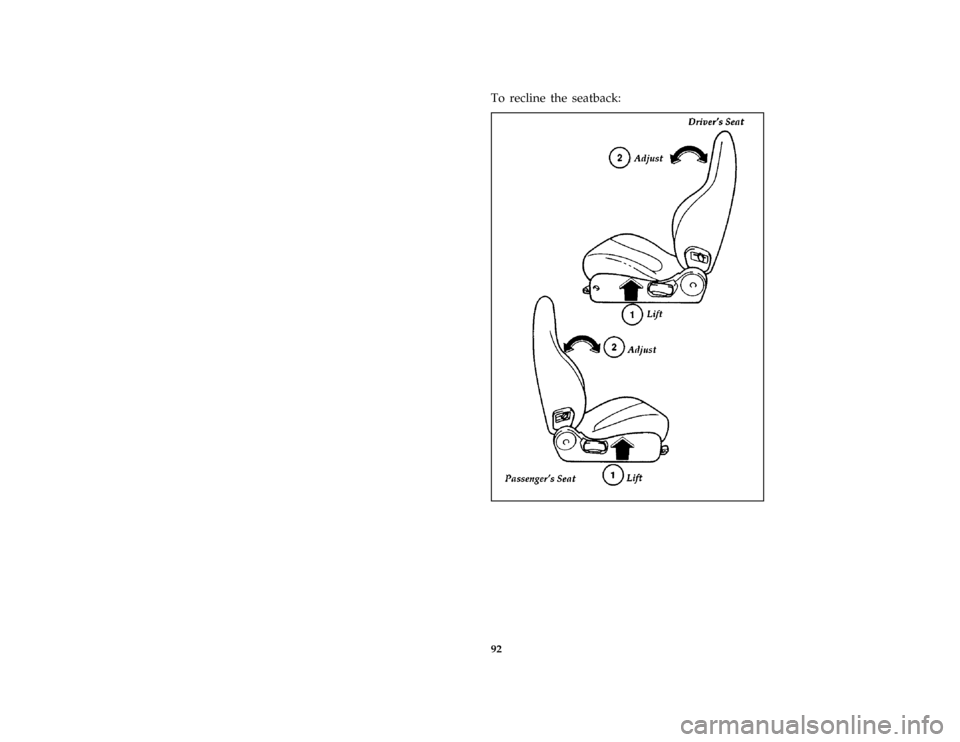

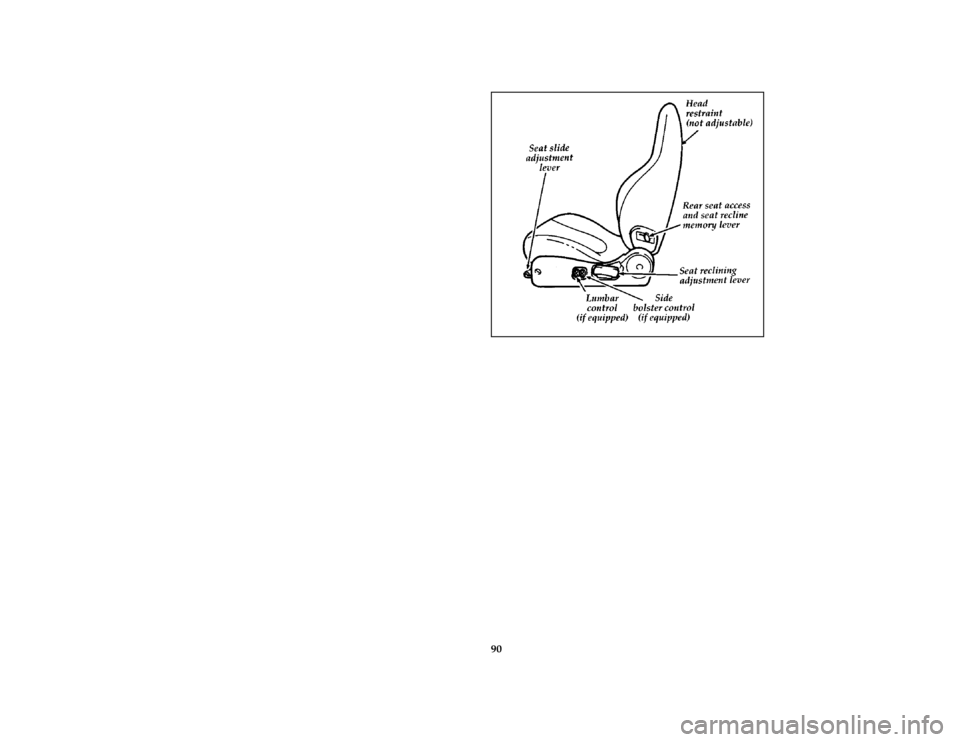

Manual Seat Adjustments
[SS00900(ALL)02/96]
You can move the front seats forward or
backward or tilt the back of the seat forward or
backward. The driver's seat also has controls for
lumbar support (if equipped) and side bolster
support (if equipped).
File:06prssp.ex
Update:Mon Jun 3 10:07:19 1996

90 [SS01000(ALL)02/96]
half page art:0032072-F
File:06prssp.ex
Update:Mon Jun 3 10:07:19 1996

91
File:06prssp.ex

92
File:06prssp.ex

93 [SS01500(ALL)01/96]
To gain access to the rear seat on the driver's or
passenger's side:
[SS01600(ALL)01/96]
one third page art:0032066-D

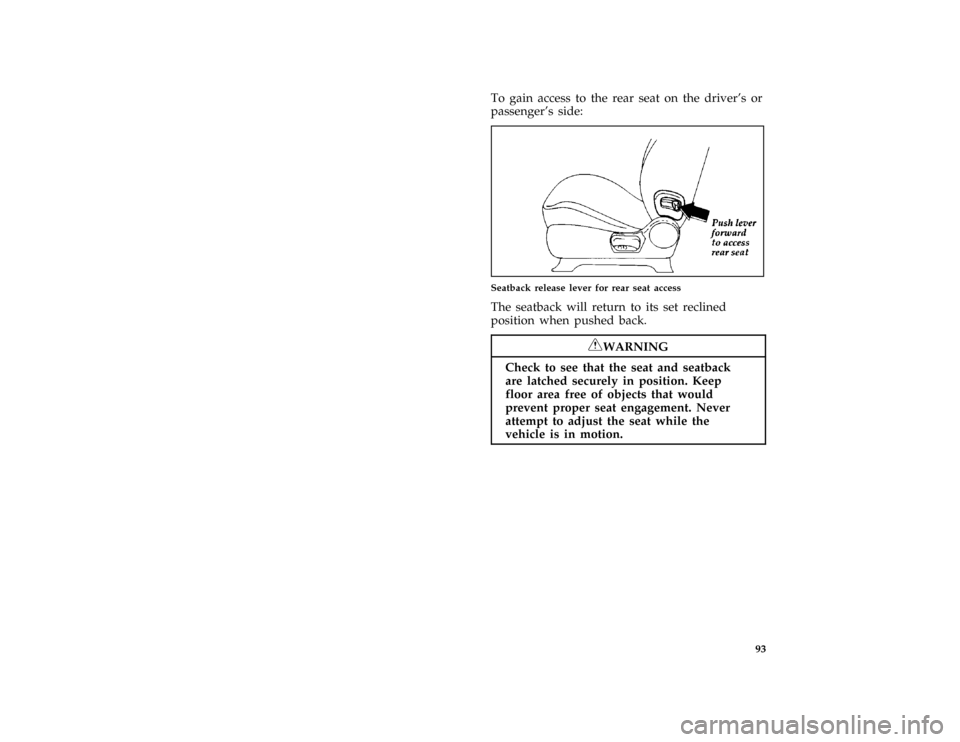

Seatback release lever for rear seat access
[SS01700(ALL)01/96]
The seatback will return to its set reclined
position when pushed back.
*
[SS01800(ALL)02/96]
RWARNING
Check to see that the seat and seatback
are latched securely in position. Keep
floor area free of objects that would
prevent proper seat engagement. Never
attempt to adjust the seat while the
vehicle is in motion.
File:06prssp.ex
Update:Mon Jun 3 10:07:19 1996

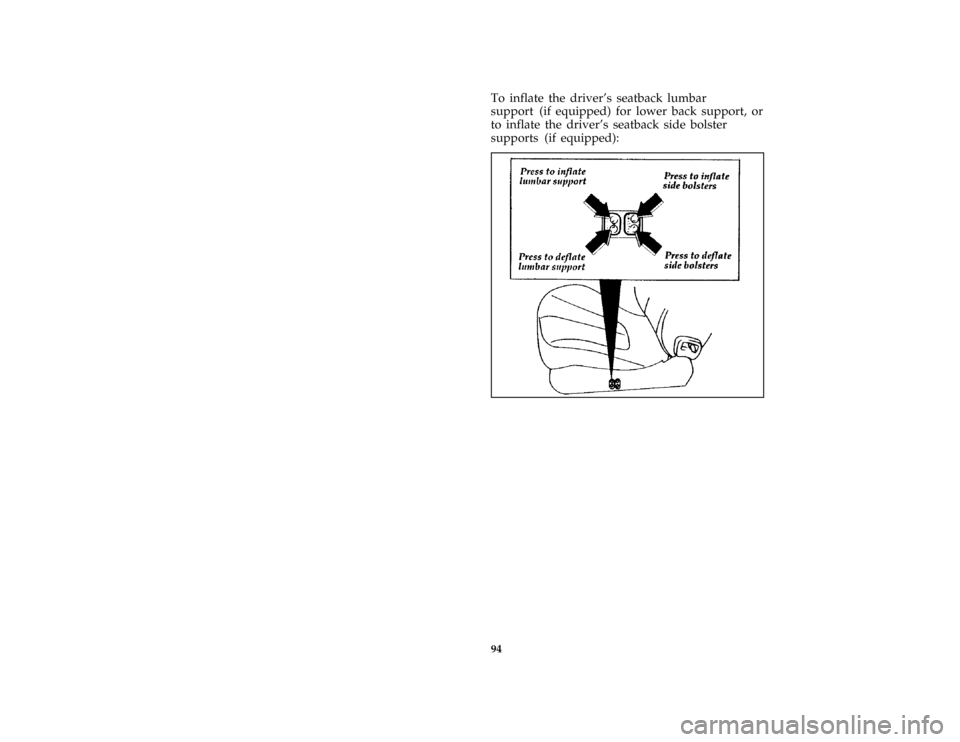

94 [SS01900(ALL)01/96]To inflate the driver's seatback lumbar
support (if equipped) for lower back support, or
to inflate the driver's seatback side bolster
supports (if equipped):
[SS02000(ALL)02/96]
half page art:0032390-AFile:06prssp.ex
Update:Mon Jun 3 10:07:19 1996

95
File:06prssp.ex

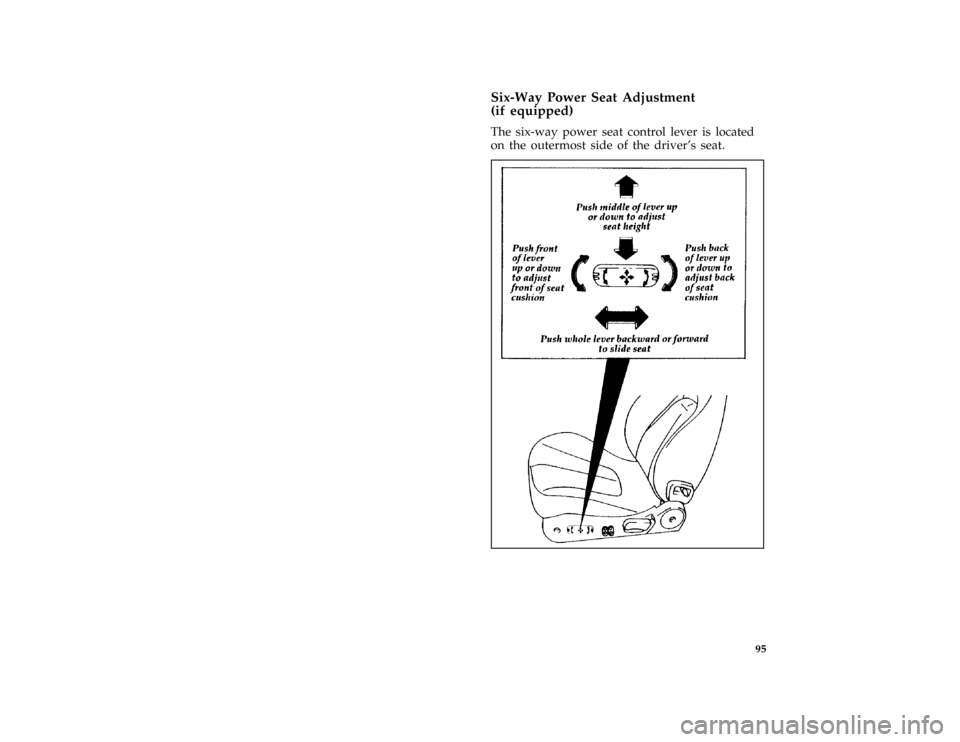

96 [SS02400(ALL)01/96]Your seat cushion power adjust lever is operated
by a motor. To avoid damage to the motor, you
should avoid operating this feature for an
extended period of time. You should also avoid
using the six-way power adjust lever
continuously with the engine stopped. This
could run down the battery.
[SS02500(ALL)01/96]
Use the lever to make only one adjustment at a
time.
%*
[SS02600(ALL)01/96]
Using the Split-Folding Rear Seat
*
[SS02700(ALL)01/96]
Your vehicle is equipped with split-folding rear
seats. One or both rear seatbacks can be folded
down to provide additional cargo space.
[SS02800(ALL)02/96]
NOTE: When folding down the rear seatback,
the seat belt tongue should be hanging
on the hook of the lower, side trim
panel, near the edge of the side of the
seat cushion.
File:06prssp.ex
Update:Mon Jun 3 10:07:19 1996

97 [SS02900(ALL)04/96]

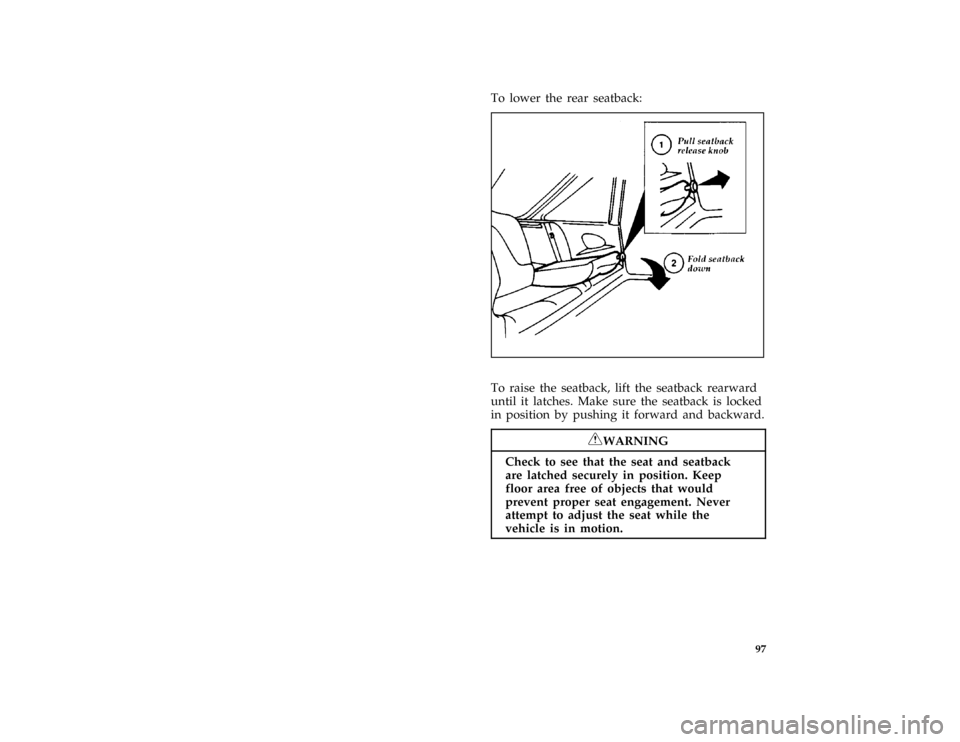

To lower the rear seatback:
[SS03000(ALL)01/96]
half page art:0030099-D[SS03100(ALL)04/96]
To raise the seatback, lift the seatback rearward
until it latches. Make sure the seatback is locked
in position by pushing it forward and backward.
*
[SS03200(ALL)02/96]
RWARNING
Check to see that the seat and seatback
are latched securely in position. Keep
floor area free of objects that would
prevent proper seat engagement. Never
attempt to adjust the seat while the
vehicle is in motion.
File:06prssp.ex
Update:Mon Jun 3 10:07:19 1996
