Page 81 of 288
78
WARNING
Do no tle tchildre npla ywit hthepower
%
WARNING
Th erigh tsid evie wmirro rmake sobjects
Page 82 of 288
79 [CF28200(ALL)01/96]
Dual-Electric Remote Control Mirrors
(If equipped)
[CF28300(ALL)01/96]
Dual-electric remote control mirrors are
collapsible. The mirror heads can be folded
rearward to prevent damage when using an
automatic car wash.
*
[CF28400(ALL)01/96]
To adjust the side mirrors:
[CF28500(ALL)01/96]
1. Locate the control switch in the power
control panel on the driver's door.
[CF28600(ALL)01/96]
2. Select the right or left mirror by moving the
selector switch right or left.
[CF28700(ALL)01/96]
3. Push the control switch in the direction you
want to move the mirror.
[CF28800(ALL)01/96]
4. Return the selector switch to the middle OFF
position to keep the mirror in place.
[CF28900(ALL)01/96]
half page art:0030108-C
Dual-electric side mirror control switches
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 83 of 288
80
WARNING
Do no tpu tobject son theledg ebetween
Page 84 of 288
81 [CF31200(ALL)01/96]
Center Console Storage (If equipped)
[CF31300(ALL)01/96]
To open the center console storage bin, push the
button and slide the lid back. When it is back as
far as it will go, push the button and lift the lid.
[CF31400(ALL)01/96]
Cupholders
[CF31500(ALL)01/96]
The cupholders are located inside the center
console storage bin. The driver cupholder is
integrated in the storage bin. To use the
passenger cupholder, rotate it upward then twist
the cupholder until it is in a horizontal position.
When the passenger cupholder is not in use,
twist it back to the vertical position and rotate it
into the storage bin.
*
[CF31600(ALL)04/96]
NOTE: Do not place heavy objects in the
cupholders.
[CF31700(ALL)01/96]

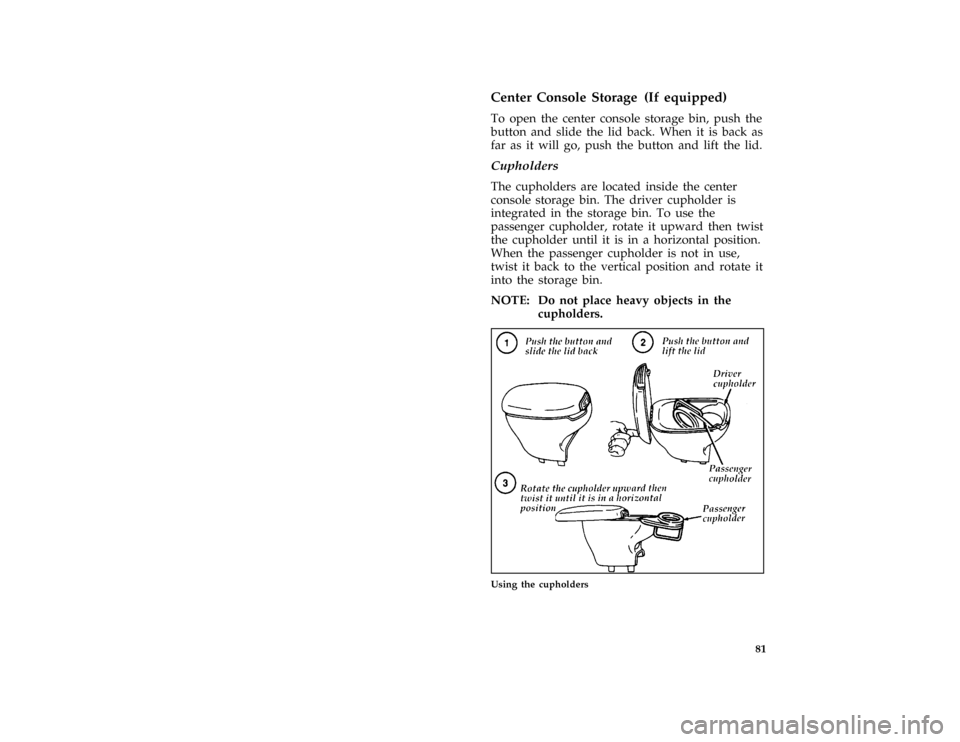

half page art:0032378-A
Using the cupholders
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 85 of 288
82
WARNING
If yo udriv ewit hthehatchbac klid open,
Page 86 of 288
83
[CF33300(ALL)01/96] Usingth eLuggag eCompartmen tCover
WARNING
D o no tpu tobject son theledg ebetween
Page 87 of 288
84 [CF33600(ALL)04/96]To remove the luggage compartment cover:
[CF34700(ALL)04/96]
1. Raise the hatchback to the fully open
position.
[CF34800(ALL)01/96]
2. Standing outside the vehicle, unfasten the lift
cords from the hatchback lid.
[CF34900(ALL)01/96]
3. Disconnect the two front package tray lift
cords from the lower trunk side trim.
[CF35000(ALL)01/96]
4. Lower the cover and slide it rearward to
disengage it from the sockets and remove it.
[CF35100(ALL)01/96]

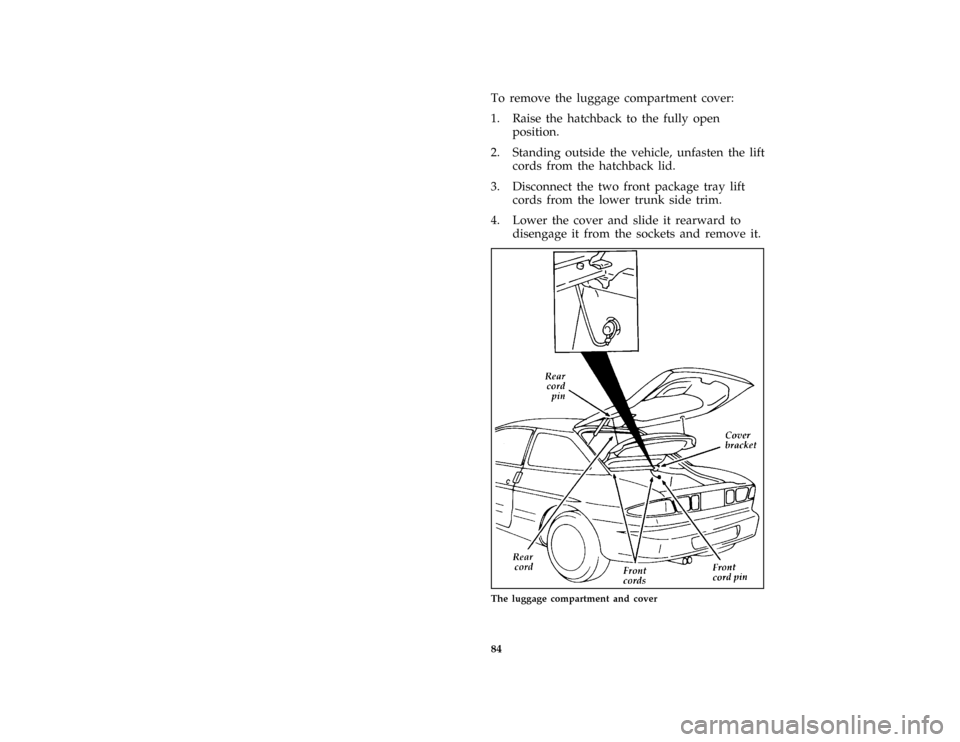

two third page art:0032088-D
The luggage compartment and cover
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 88 of 288
85
WARNING
Thecove rma ycaus einjur yin asudden
WARNING
Do no tpus hdow non theluggage
Page 89 of 288
86 [CF50300(ALL)01/96]By pressing the UNLOCK button on the
transmitter once, you can unlock the driver side
door. Pressing the UNLOCK button a second
time within five seconds of unlocking the
driver's door will unlock the other doors.
[CF50400(ALL)01/96]
You can lock all your vehicle doors by pressing
the LOCK button. If you press the LOCK button
a second time within five (5) seconds, the horn
will sound briefly to verify that the doors have
been locked.
[CF50500(ALL)01/96]
When the PANIC button is pressed, the horn
will sound and the hazard warning lamps will
flash. This will continue for up to approximately
two minutes and 45 seconds unless it is turned
off by pressing the PANIC button a second time.
The panic mode can also be cancelled by turning
the ignition key to ON or ACC.
[CF50600(ALL)01/96]
Up to four transmitters can be programmed for
your vehicle. Your vehicle comes with two
transmitters. Additional transmitters can be
ordered from your dealer.
[CF50700(ALL)05/96]

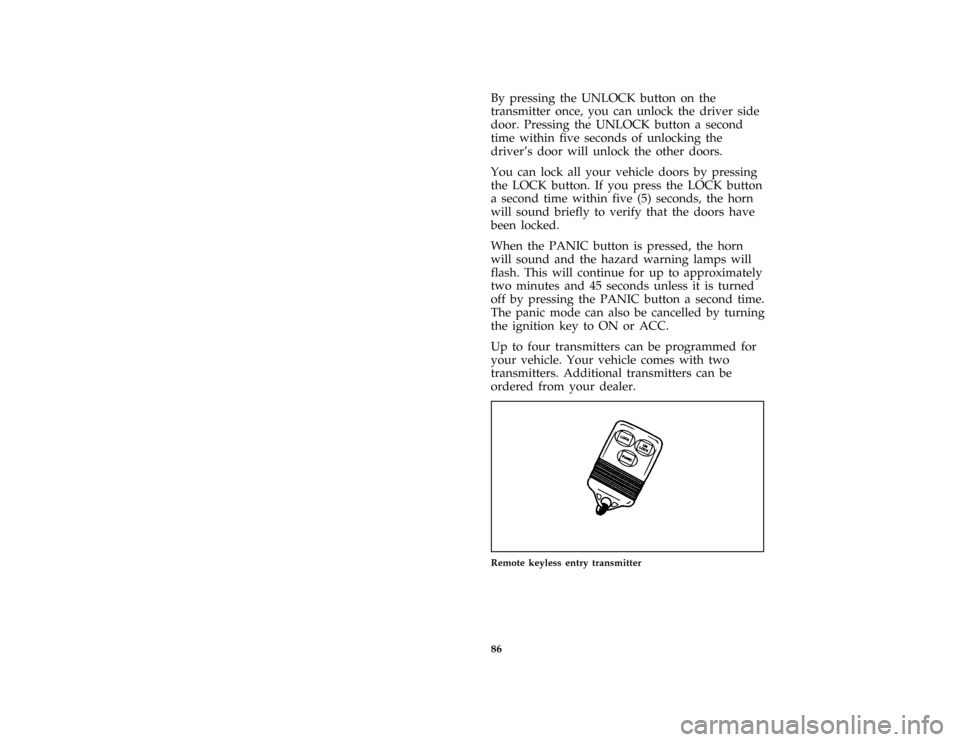

one third page art:0090226-A
Remote keyless entry transmitter
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
Page 90 of 288
87 [CF50800(ALL)03/96]
The remote keyless entry system is equipped
with an illuminated entry system.
[CF50900(ALL)03/96]
When the system is activated, the dome lamp
will illuminate and will stay lit for
approximately 25 seconds. The dome lamp will
shut off when the doors are closed.
%*
[CF51000(ALL)03/96]
Replacing the Batteries
*
[CF51100(ALL)01/96]
The remote entry transmitter is powered by two
coin type three-volt lithium 1616
batteries (included) that should last for several
years of normal use. If you notice a significant
decrease in operating range, the batteries should
be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or
at your Ford or Lincoln-Mercury dealer.
*
[CF51200(ALL)01/96]
NOTE: The operating range of the remote
entry system can also be affected by
weather conditions (such as very cold
temperatures) or structures around the
vehicle (buildings, other vehicles, radio
and TV towers, etc.). Typical operating
range will allow you to be up to 33
feet (10 meters) away from your
vehicle.
[CF51300(ALL)01/96]

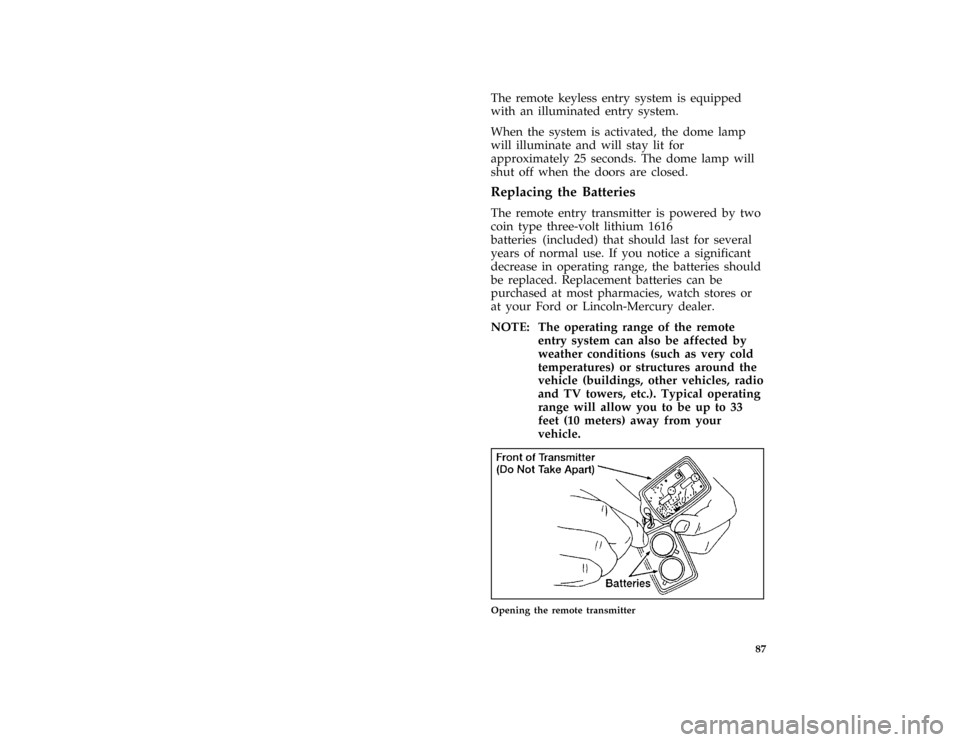

one third page art:0032393-A
Opening the remote transmitter
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996
