FORD TRANSIT 2006 7.G Body And Equipment Mounting Section Manual

CAN-Bus System (Architecture)
Antilock Brake SystemKCentral Junction Box (Passenger Junction
Box)
A
Powertrain Control ModuleLVoice Recognition Module/Wireless
connection (blue tooth)
B
Steering Angle SensorMAudio Control Unit (Radio/CD)C*
Yaw Rate SensorNNavigation (Radio/CD)D*
Diagnostic ConnectorPRemote Keyless EntryE
Park Aid ModeQPassive Anti-Theft SystemF
Restraints Control ModuleRRain SensorG
Hybrid Electronic ClusterSBattery Backed Sounder (BBS)H
Interior Motion Sensing (IMS)J
* Either Audio Control Unit or Navigation
4.1.2 Central Junction Box (CJB)
WARNING: Unapproved and/or
incorrect connection to any of the
mating wiring can cause either the
associated systems to shut down
(overload protection), or permanent
damage to the Central Junction Box
itself.
Basic vehicle functions (for example: headlights,
front wipers) are available on all Central Junction
Boxes (CJBs). Increased vehicle features are
available on the mid- and high-level CJBs, as per
the following list:
Incremental FunctionalityCentral Junction Box (CJB)
6C1T-14A073-A_ (low)
(in addition to low level CJB)6C1T-14A073-B_ (mid)
Reverse CyclingRemote Keyless Entry
Slam LockingVIN Identification
Front Fog LightsPerimeter Alarm
Theatre Dimming (Interior Lights)Central and double Locking
Heated WindscreenZonal unlocking
Heated MirrorsAuto Locking on drive away
Rear WipersAuto Relocking on time out
Heated Rear Window(s)Crash Activated unlocking
Mis-locking feedback (audible
and visual)
(in addition to mid-level CJB)6C1T-14A073-C_ (high)
Ambient air temperature meas-
urement
Battery Backed Sounder (BBS)
Rain SensorInterior Motion Sensor (IMS)
Daytime Running LightsZonal opposite door relocking
AutolampsConfigurable unlocking
Fuel Pump Control (petrol only)CAT 1 Alarm (BBS, IMS & Rear
Glass Breakage)
Cruise control
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
91

The Central Junction Box (CJB) is the prime
control module in the vehicle’s electrical
architecture. It is responsible for management of
most of the vehicle’s lighting, locking and security
systems. The following chart details the
consequences of overloading of the Central
Junction Box.
Maximum Loads on Central Junction Box
Overload ConditionMaximum
Load
Load TypeComponentFunction
Output driver damage5A/100msecRelayLow Side DriverBattery Discon-
nect Switch
Overheat - output shutdown75W@13VBulbLow Side DriverEntry Illumina-
tion
Overheat - output shutdown8A normal, 16A/
10msec in-rush
Electro-mechan-
ical horn
High Side DriverAlarm Siren
Output shutdown if more
than 35mA drawn
25mALogic supplyVoltage trackerAccelerator
Pedal
Blown fuse - if bigger fuse
fitted, relay and/or printed
circuit board damaged
100W@13VBulbRelayBattery Saver
Supply
Blown fuse - if bigger fuse
fitted, relay and/or printed
circuit board damaged
60W@13VBulbRelayLicence Plate
Overheat-output shutdown11W@13VBulbHigh Side DriverCluster Dimming
Blown fuse - if bigger fuse
fitted, relay and/or printed
circuit board damaged
63W@13VBulbRelayPosition Lamp
Left Hand
Blown fuse - if bigger fuse
fitted, relay and/or printed
circuit board damaged
43W@13VBulbRelayPosition Lamp
Right Hand
Overheat-output shutdown3x21W@13VBulbTurn Indicator
Left Hand
Overheat-output shutdown3x21W@13VBulbTurn Indicator
Right Hand
Blown fuse - if bigger fuse
fitted, relay and/or printed
circuit board damaged
15A (fuse
limited)
LatchRelayLock/double
lock
Relay and/or printed circuit
board damaged
5,42A@13V,
2,5mh
LatchUnlock Relay
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
92

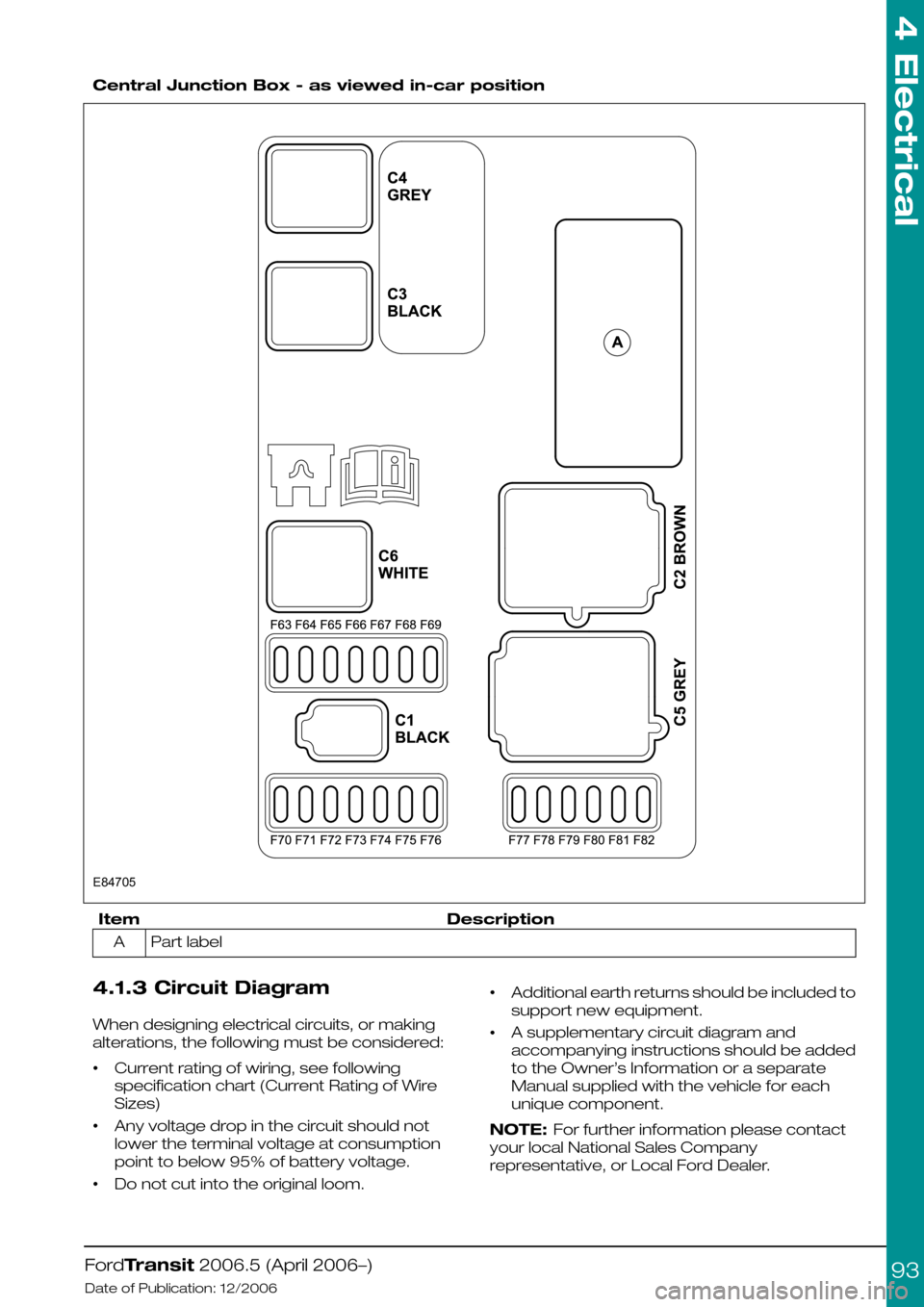

Central Junction Box - as viewed in-car position
DescriptionItem
Part labelA
4.1.3 Circuit Diagram
When designing electrical circuits, or making
alterations, the following must be considered:
•Current rating of wiring, see following
specification chart (Current Rating of Wire
Sizes)
•Any voltage drop in the circuit should not
lower the terminal voltage at consumption
point to below 95% of battery voltage.
•Do not cut into the original loom.
•Additional earth returns should be included to
support new equipment.
•A supplementary circuit diagram and
accompanying instructions should be added
to the Owner’s Information or a separate
Manual supplied with the vehicle for each
unique component.
NOTE: For further information please contact
your local National Sales Company
representative, or Local Ford Dealer.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
93E84705

4.2 Module Communications Network—Specifications
4.2.1 Circit Diagram

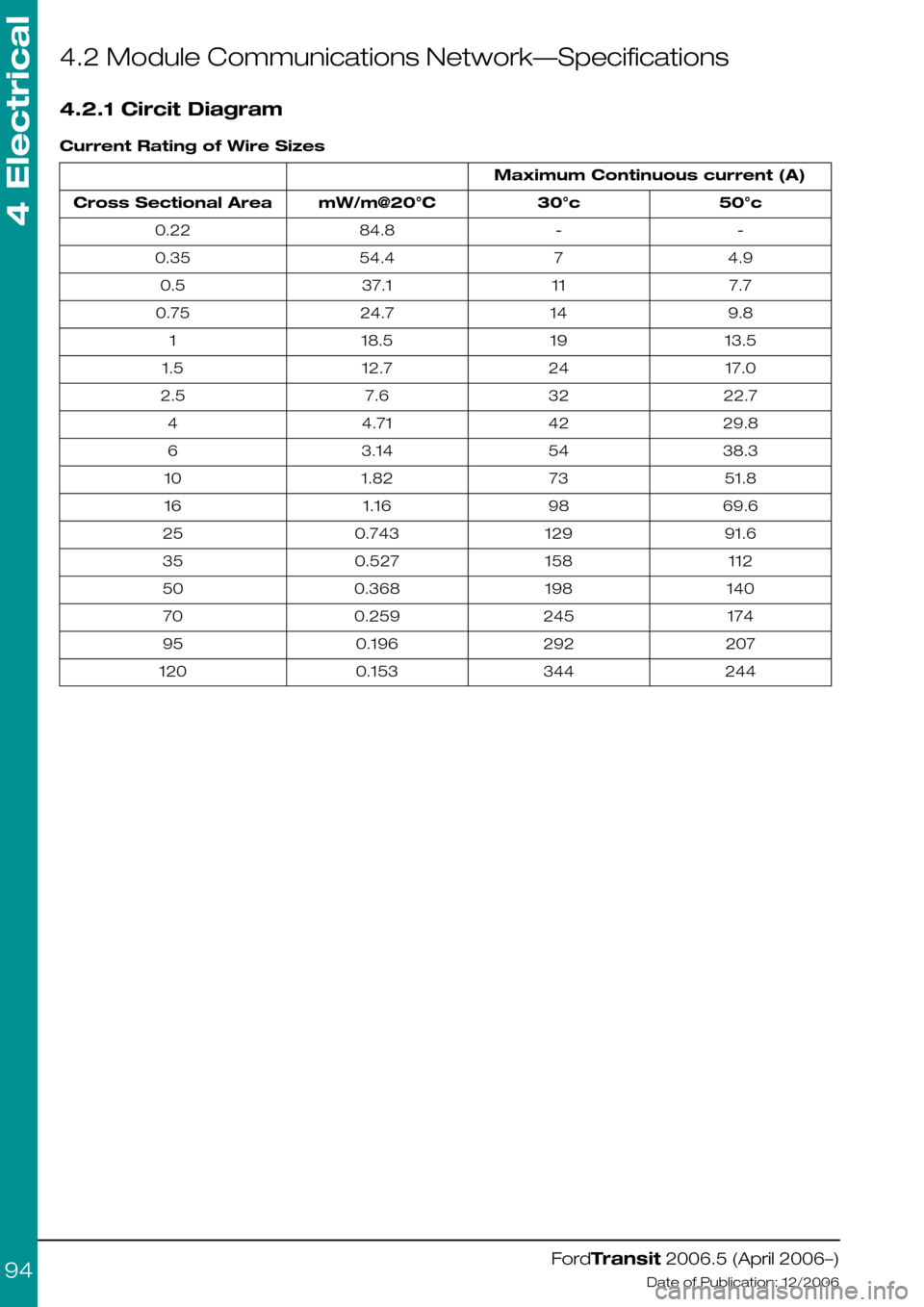

Current Rating of Wire Sizes
Maximum Continuous current (A)
50°c30°cmW/m@20°CCross Sectional Area
--84.80.22
4.9754.40.35
7.71137.10.5
9.81424.70.75
13.51918.51
17.02412.71.5
22.7327.62.5
29.8424.714
38.3543.146
51.8731.8210
69.6981.1616
91.61290.74325
1121580.52735
1401980.36850
1742450.25970
2072920.19695
2443440.153120
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
94

4.3 Charging System
4.3.1 General Information and
Specific Warnings
The Transit electrical system is a 12-Volt supply
with a negative earth return. The alternator and
battery equipment used as standard are
designed for normal operations with the type of
engine fitted. Higher capacity batteries are
available as standard production options and
special vehicle options. Before installing additional
electrical equipment check that the battery
capacity, harness load capability, and alternator
output are suitable for the extra load.
The battery capacity and charge available from
the alternator must be adequate to ensure
engine cranking in unfavorable climatic conditions
but excessive battery capacity could damage
the starter motor.
The Transit utilizes multiplexed vehicle electronics
- it is recommended that the appropriate Ford
proprietary accessory systems are used.
Inappropriate or incorrect connection of
additional equipment could cause mis-operation,
or damage to the vehicle, and so invalidate any
warranty.
Additional connection points are provided
specifically for customer use (except M1 and M2
Bus), and are located on the outside of the
driver's seat base.
Do not jump-start the vehicle directly from the
battery. Use designated jump-start points. Refer
to the owners literature.
4.3.2 Power Management
Settings
There are four Power Management Settings
available:
•Factory
•Transport
•Normal
•Crash
Factory and Transport modes are only active
with ignition off; with ignition on, the vehicle
operates with full functionality. When in Transport
mode, the interior lights, clocks, and power
locking and alarms (where fitted) do not work.
It is possible to switch from Transport Mode to
Normal Mode without the use of any ancillary
equipment, but not vice versa. To change mode,
the brake pedal must be depressed five times,
and the hazard warning switch operated twice
(in any combination) within 10 seconds.
WARNING: It is not possible to return
the transport setting without using
the vehicle's diagnostics.
At the end of production, the vehicle is
configured to the transport setting to minimize
power consumption. As part of the Pre Delivery
Inspection process at the Ford dealership, the
vehicle is reconfigured to normal operation.
4.3.3 Electrical Conversions
Operator requirements for additional and
specialised electrical equipment varies. The
vehicle converter/modifier must, therefore,
consider the following points when designing the
installation:
•Legality and regulatory conformity of the base
vehicle.
•Drive-ability and serviceability of the base
vehicle.
•The effect of regulations governing the
proposed conversion including National
Legislation in the country of sale.
•The method of integrating the circuit into the
base vehicle.
•No additional circuits are to be run alongside
the electrical circuits (shown in blue in the
figure below) associated with the
Management System (shown in green in the
figure below), due to the possible Electro
Motive Force (EMF) effect on the circuits.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
95

Electrical circuits associated with Management System
•The base vehicle will be equipped with a single
or dual battery system (with battery disconnect
switch). Additional batteries can be fitted in
conjunction with a battery disconnect switch
(cut-off relay), described in the section Battery
and Cables.
•When auxiliary electrical systems are added
to the vehicle, it is recommended that the
additional circuits are designed to be used with
the Special Vehicle Option Auxiliary Fuse Box
and / or the Link Harnesses, to maintain the
integrity of the electrical system.
Refer to: 4.13 Fuses and Relays (page 119).
•The materials and installation must meet the
quality standards described in this section.
•Any additional equipment or components must
be designed such that they have no Electro
Motive Force effect on the vehicle.
•The alternator and Engine Management
System [EMS, also referred to as Powertrain
Control Module (PCM)] are interdependent.
•The alternator should not be used as a source
for a conventional D+ signal.
Refer to: 4.14 Special Conversions (page 131).
•Take special care with the routing of existing
electrical looms within the vehicle to avoid
damage when fitting additional equipment.
WARNING: The fitting of voltage
boosters or other devices to
enhance alternator output are not
allowed. The fitting of such devices
will not only invalidate vehicle
warranties, but could damage either,
or both, the alternator and Engine
Management System or Powertrain
Control Module (PCM), and possibly
affect vehicle legal compliance.
Check local legislation.
Please see below the note concerning installation
of equipment containing an electric motor.
Where vehicles are equipped with twin battery
system, no additional connections should be
made to the terminal posts of the start relevant
battery. Further connections should only be made
via the customer connection point.
When an additional battery is fitted, this must be
connected to the appropriate battery.
Refer to: 4.4 Battery and Cables (page 98).
Disconnect all batteries, including earth, and the
alternator multi-plug prior to using welding or
cutting equipment and before working on any
electrical installations.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
96E84706

•Before disconnecting the battery, check
availability of radio key code.
•Fuses – when auxiliary electrical systems are
to be added to the vehicle it is mandatory that
the additional circuit design includes the
necessary fuses.
•The Special Vehicle Option auxiliary fuse box
is recommended.
Refer to: 4.13 Fuses and Relays (page 119).
4.3.4 Fitting of Equipment
Containing an Electric Motor
WARNINGS:
When equipment containing an
electrical motor is connected, it
must be connected via a blocking
diode or relay to prevent “back
Electro Motive Force (EMF)” being
applied to the auxiliary terminal.
When electric motors are to be
fitted, account must be taken of the
potentially high currents that a
motor can draw.
CAUTION: The following must be
observed:
•All motors must be driven via relays with
contacts rated at least 3 times the maximum
rated current of the motor.
•All motor supply circuits must be individually
fused with the proper fuse rating for the
motor.
•All power wiring must be rated for at least 3
times the rating of the motor and installed as
far away as possible from any existing vehicle
wiring.
•All motors fitted should be fully suppressed to
ensure electrical interference does not affect
the vehicle systems.
•Add EMC emissions statement to CE
approval.
4.3.5 Vehicle Electrical Capacity
- Alternator
WARNING: Do not cut into the
alternator wires or use the
alternator as a source to obtain a
'D+ Signal'
An engine run signal is available from the Central
Junction Box by installing a T-piece jumper
harness (Ford Part Number 6C1V-14A411-F_).
Refer to: 4.14 Special Conversions (page 131).
4.3.6 Charge Balance Guidelines
The base vehicle is fitted with a 150A alternator.
It is recommended to conduct a charge balance
calculation in case the conversion comprises a
high number of electrical consumers or high
electrical consumption is expected.
4.3.7 Circuit Diagrams
For circuit diagrams for Auxiliary Fuse Box
Connections and Standard Ford relays.
Refer to: 4.13 Fuses and Relays (page 119).
Full vehicle wiring and circuit diagrams are in the
Ford Workshop Manual.
NOTE: For further information please contact
your local National Sales Company
representative, or Local Ford Dealer. If they are
unable to help you then please contact the
Vehicle Converter Advisory Service at
[email protected].
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
97

4.4 Battery and Cables
4.4.1 Battery Information
In order to protect the battery system from direct
ground shorts, a special fuse is incorporated into
the battery positive feed, in the pre-fuse box
under the driver’s seat.
This fuse is not repairable – use only a Ford
replacement part.
Where extra batteries are required on vehicles
with a single battery installation, the battery
disconnect switch (split charge relay) and
associated wiring/hardware — fitted as standard
to vehicles equipped with dual batteries — can
be added.
Batteries – Additional – Heavy Duty
High current consumption may require a
heavy-duty battery or an additional battery.
Factory fitted Special Vehicle Options are available
for heavy-duty and/or extra batteries with the
battery disconnect switch (split charge relay).
The batteries can be retrofitted.
See diagram E74522 - Battery disconnect switch
(split charge relay) circuit.
Deep Cycle Battery (not for use as
primary, start-relevant battery)
A Special Vehicle Option is available. Please
contact your local National Sales Company
representative for availability and details.
•The deep cycle battery is used in conjunction
with the battery disconnect switch (split charge
relay) in applications where power to ancillary
circuits would heavily discharge the main
vehicle battery(s).
•Installation should be under the driver's seat.
When the deep cycle battery is installed, the
battery disconnect switch (split charge relay)
must be used.
•When the Deep Cycle Battery is installed it is
recommended that the Special Vehicle Option
auxiliary fuse box is fed from the customer
connection points.
Battery Part Numbers and Usage
SizeQuantityTypeBattery Part Number
Single Battery Installation Front Wheel Drive
T71680 CCA (70Ah @20 hour rate)98AB-10655-D_ (Turkey)
T71700 CCA (80Ah @20 hour rate)6G9N 10655 P_ (Southampton)
Dual Battery Installation Rear Wheel Drive and Front Wheel Drive with specific options
T62590 CCA (60Ah @20 hour rate)98AB-10655-C_ (Turkey)
T62590 CCA (60Ah @20 hour rate)6G9N 10655 N_ (Southampton)
Dual Battery Installation Rear Wheel Drive -29°C Territories
T72680 CCA (70Ah @20 hour rate)98AB-10655-D_ (Turkey)
T72700 CCA (80Ah @20 hour rate)6G9N 10655 P_ (Southampton)
Deep Cycle Battery
H82(90Ah @20 hour rate;70Ah@5 hour rate)V3C15-10655-A_
Battery Rules:
•Batteries in parallel must be of the same type
and capacity.
•Starter and deep cycle batteries may only be
mixed through an isolator.
•For External charging of batteries ensure that
the maximum voltage of 14.6V is not
exceeded.
NOTE: Deep cycle batteries can be drained but
high loads can damage them. Always observe
circuit set-up outlined in diagram E74522 -
Battery disconnect switch (split charge relay).
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
98

Battery Disconnect Switch (Split Charge Relay) circuit
Battery Disconnect Switch (Split Charge Relay)
Battery Disconnect Switch - Pin 11Central Junction Box (Passenger Junction Box)
- Fuse 77
A
Battery Disconnect Switch - Pin 22Battery Disconnect SwitchB
Battery Disconnect Switch - Pin 33Pre Fuse Box - Fuse 2C
Battery Disconnect Switch - Pin 44Start Relevant BatteryD
Central junction Box - Pin C4-355Non Start Relevant BatteryE
Central junction Box - Pin C4-346Pre Fuse BoxF
Central junction Box - Pin C1-27Central Junction Box (Passenger Junction Box)G
Battery Disconnect Switch (Split
Charge Relay)
Where a vehicle is equipped with a single battery,
a split charge option is available. This allows
auxiliary circuits, which would discharge the main
battery system, to be connected to an auxiliary
battery/batteries.
The battery disconnect switch is driven from the
central junction box and is always used with an
auxiliary battery/batteries, and can be fitted by
the vehicle converter. Reconfiguration of the
central junction box software by the Ford
Dealership is required to support this feature.
Where a vehicle already has a factory-fitted
dual-battery system, there is no provision or
need for a further battery cut-off relay, although
additional batteries can still be added in parallel
to the non start-relevant battery.
Outputs from the Central Junction
Box to the Battery Disconnect
Switch
The Battery Disconnect Switch is a bistable
device, requiring pulsed outputs to change state
(each pulse has duration of 50 ms at battery
voltage):
•C4-34 Pull-in
•C4-35 Pull-out
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
99E74522567ACDEGF4312B

Pull-in us actuvated within 70 ms of switching to
key position II
Pull-out is activated when switching to key
position I, or 0, and in key position II when no
engine run signal is sensed within 120 secs.
It is not possible to change state within 500 ms.
Removal of the Battery Disconnect
Switch (on twin battery models) and
wiring of batteries in parallel for high
current applications.
For vehicles equipped with a twin battery system,
wiring of the two batteries in parallel is not
recommended. If higher current is required,
680Ah batteries can be fitted (or a deep cycle
battery in lieu of the non-start relevant battery
only). Where a single passenger seat is fitted,
further batteries (1 or 2) can be installed in the
pedestal and added in parallel to the
non-start-relevant battery, although due
consideration then needs to be given to
increased current availability in the event of a
short circuit. Additional batteries should not be
installed under a passenger bench seat.
if this requirement is imperative, it would be
possible to disconnect the battery disconnect
switch and put the start-relevant and
non-start-relevant batteries in parallel using a
shorting bar (available from the Ford Delerships,
part number 6C1T-14A439-A*). There is one
important consideration when replacing the
battery disconnect switch with a shorting bar:
•Where the vehicle is configured for
twin-battery operation, the Central Junction
Box will detect if the battery disconnect switch
is missing (or has been removed), or the
mating connector short-circuited, and although
the vehicle will be functional, Diagnostic
Trouble Codes will be generated that will
flag-up during service. Hence if a shorting bar
is fitted, the vehicle needs to be reconfigured
(via the Dealership and Dealership Hotline).
Single to Dual Battery Conversion
For vehicles equipped with a single battery, it is
possible to upgrade to a twin battery system -
the connector for the battery disconnect switch
is present on all vehicles. In addition to
reconfiguring the vehicle for twin battery
operation (at a Dealership), the following battery
cables and components are required:
DescriptionPart Number
start relevant battery negative to vehicle ground point cable (right hand)
replaces C_ part
6C1T-14301-A_
start relevant battery negative to vehicle ground point cable (lefthand)
replaces D_ part
6C1T-14301-E_
start relevant battery negative to non-start relevant battery negative cable6C1T-14280-E_
pre-fuse box bus bar to non-start-relevant battery positive cable6C1T-14300-D_
Battery disconnect switch6C1T-10B728-A_
If a requirement exists (camper conversions for
example), it may be viable to order vehicles
installed with a single battery, a battery disconnect
switch, and a kit of harnesses – detailed above –
to be fitted by the installer.
Where required, e.g. for camper conversions,
gas-sealed battery boxes (with exterior venting)
are available. Ford part numbers:
6C1T-10N669-A_ (lefthand); 6C1T-10N669-B_
(right hand); 6C1T-10N725-A_ (lid).
The battery disconnect switch isolates the
auxiliary battery/batteries from the rest of the
base vehicle electrical system when the engine
is stopped.
The battery disconnect switch, together with
associated wiring and hardware, can be fitted as
part of an accessory kit (available from your local
Ford dealer) in the pre-fuse box.
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
100
