FORD TRANSIT 2015 5.G Owners Manual

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Circuits protected
Fuse rating
Fuse
Selective Catalytic Reduction - Diesel.
10A
F1
Selective Catalytic Reduction - Diesel.
15A
F2
Selective Catalytic Reduction - Diesel.
15A
F3
Selective Catalytic Reduction - Diesel.
10A
F4
188Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 FusesE148826

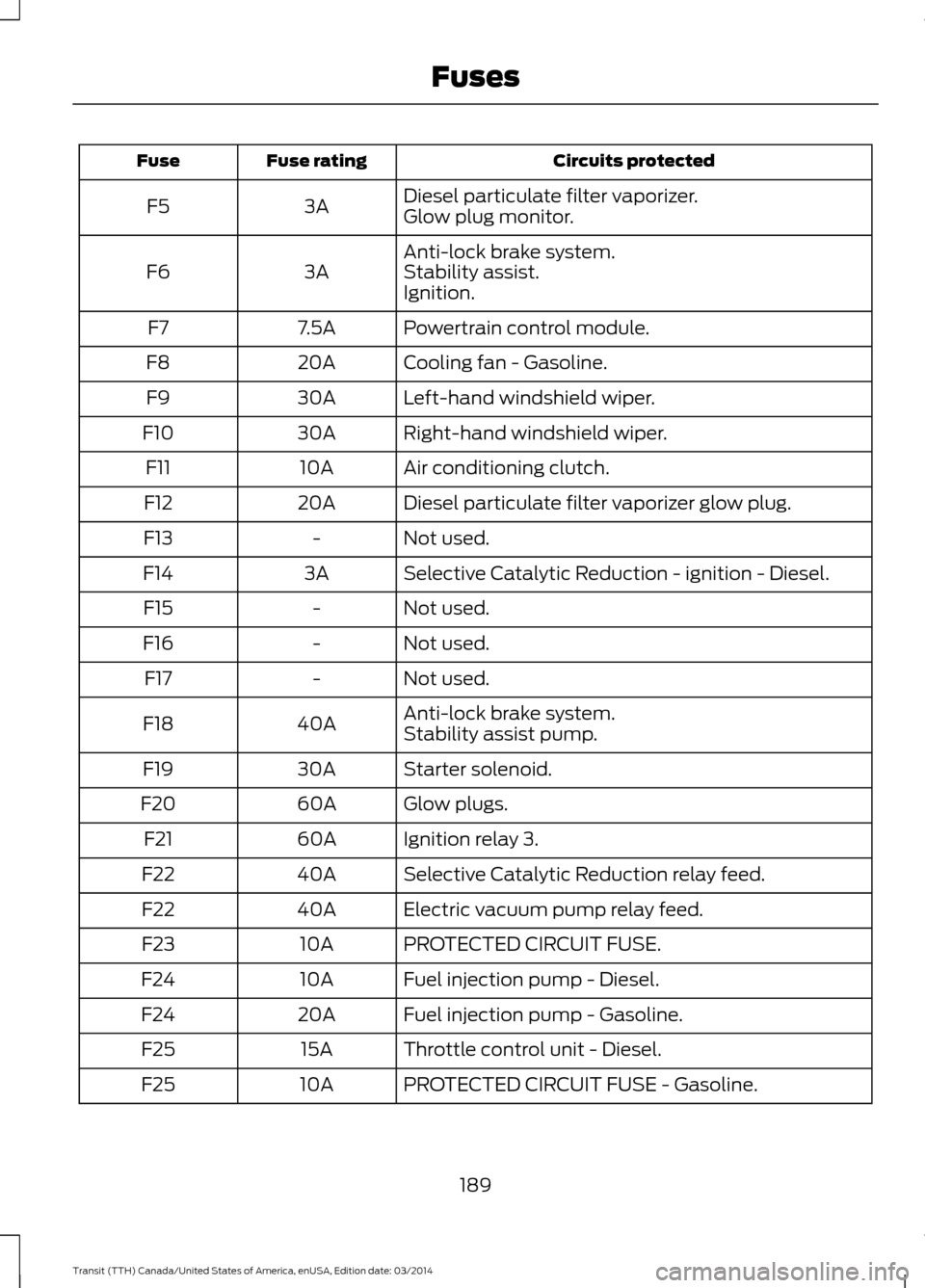

Circuits protected
Fuse rating
Fuse
Diesel particulate filter vaporizer.
3A
F5
Glow plug monitor.
Anti-lock brake system.
3A
F6 Stability assist.
Ignition.
Powertrain control module.
7.5A
F7
Cooling fan - Gasoline.
20A
F8
Left-hand windshield wiper.
30A
F9
Right-hand windshield wiper.
30A
F10
Air conditioning clutch.
10A
F11
Diesel particulate filter vaporizer glow plug.
20A
F12
Not used.
-
F13
Selective Catalytic Reduction - ignition - Diesel.
3A
F14
Not used.
-
F15
Not used.
-
F16
Not used.
-
F17
Anti-lock brake system.
40A
F18
Stability assist pump.
Starter solenoid.
30A
F19
Glow plugs.
60A
F20
Ignition relay 3.
60A
F21
Selective Catalytic Reduction relay feed.
40A
F22
Electric vacuum pump relay feed.
40A
F22
PROTECTED CIRCUIT FUSE.
10A
F23
Fuel injection pump - Diesel.
10A
F24
Fuel injection pump - Gasoline.
20A
F24
Throttle control unit - Diesel.
15A
F25
PROTECTED CIRCUIT FUSE - Gasoline.
10A
F25
189Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

Circuits protected
Fuse rating
Fuse
PROTECTED CIRCUIT FUSE.
20A
F26
Not used.
-
F27
Crankcase sensor - Diesel.
7.5A
F28
Injection power - Gasoline 3.7L.
10A
F28
Ignition feed - Audio - Gasoline.
3A
F29
Crank case ventilation heater – Diesel.
7.5A
F29
Single cooling fan.
60A
F30
Twin cooling fan.
40A
F30
Twin cooling fan 2 - Gasoline.
40A
F31
Windshield wiper motor.
30A
F32
Windshield dual wiper motors.
60A
F32
Start-Stop auxiliary water pump.
20A
F33
Not used.
-
F34
Powertrain control system supply - Gasoline.
20A
F35
Powertrain control system supply - Diesel.
15A
F35
Mass air flow sensor - Gasoline.
20A
F36
Mass air flow sensor .
15A
F36
NOX sensor 1, 2 - Diesel.
Volume Control Valve.
7.5A
F37
Air conditioning clutch - Gasoline.
20A
F38
Air conditioning clutch - Diesel.
7.5A
F38
UEGO, VAP PUMP, EBYPASS, EDF, HEDF - Gasoline.
10A
F39
UEGO, VAP PUMP, EBYPASS, EDF, HEDF - Diesel.
15A
F39
190Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

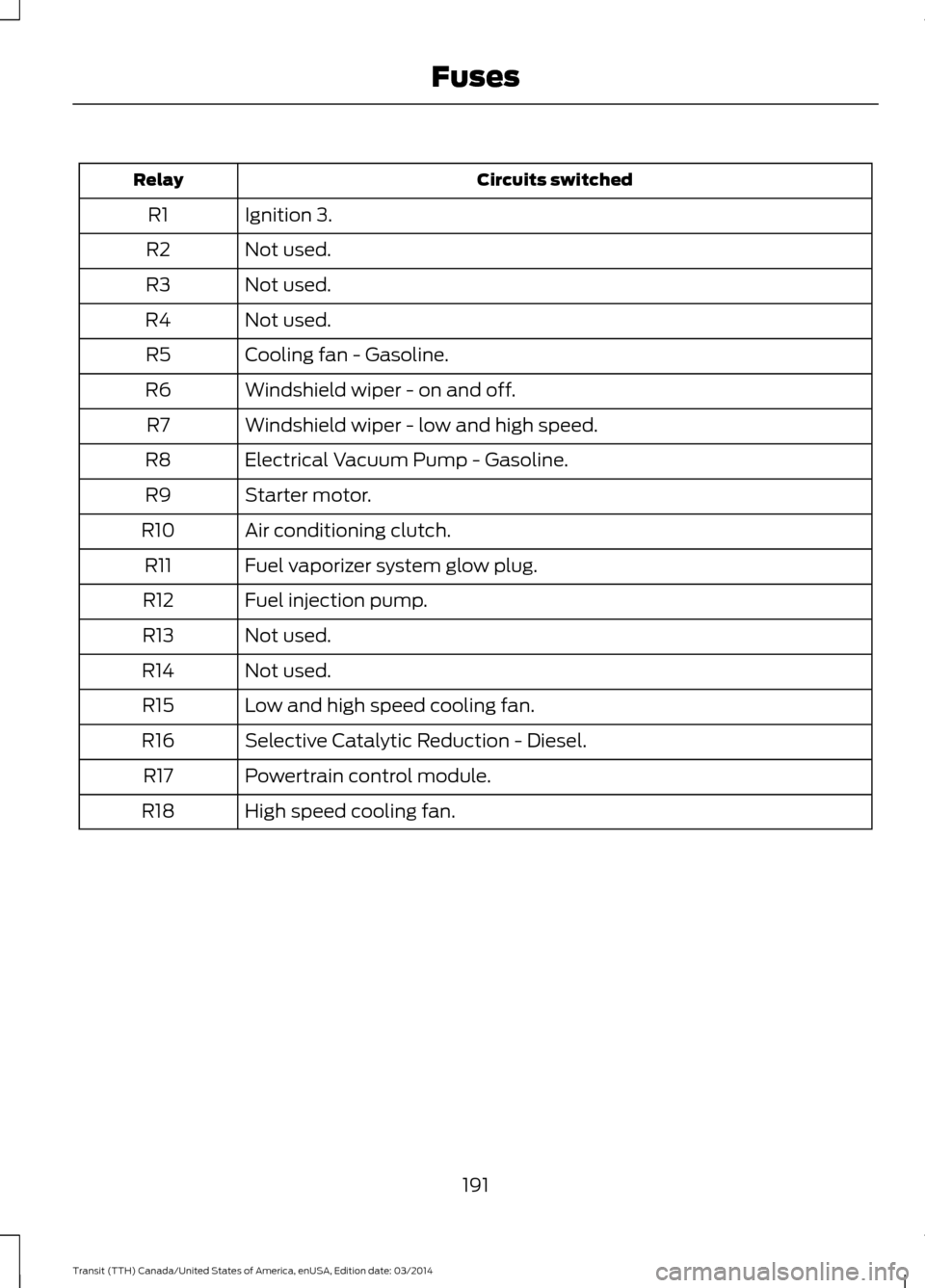

Circuits switched
Relay
Ignition 3.
R1
Not used.
R2
Not used.
R3
Not used.
R4
Cooling fan - Gasoline.
R5
Windshield wiper - on and off.
R6
Windshield wiper - low and high speed.
R7
Electrical Vacuum Pump - Gasoline.
R8
Starter motor.
R9
Air conditioning clutch.
R10
Fuel vaporizer system glow plug.
R11
Fuel injection pump.
R12
Not used.
R13
Not used.
R14
Low and high speed cooling fan.
R15
Selective Catalytic Reduction - Diesel.
R16
Powertrain control module.
R17
High speed cooling fan.
R18
191Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

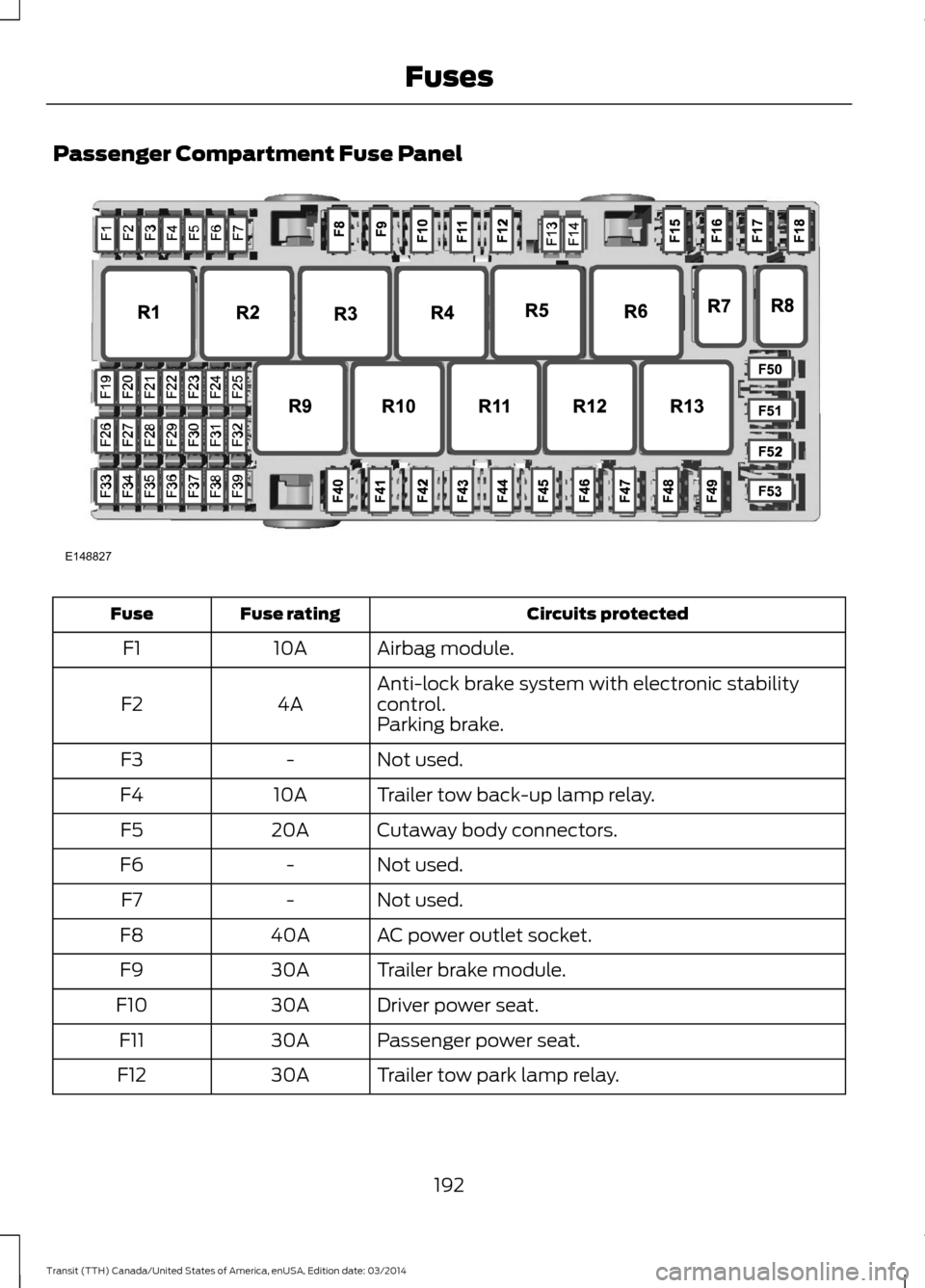

Passenger Compartment Fuse Panel
Circuits protected
Fuse rating
Fuse
Airbag module.
10A
F1
Anti-lock brake system with electronic stability
control.
4A
F2
Parking brake.
Not used.
-
F3
Trailer tow back-up lamp relay.
10A
F4
Cutaway body connectors.
20A
F5
Not used.
-
F6
Not used.
-
F7
AC power outlet socket.
40A
F8
Trailer brake module.
30A
F9
Driver power seat.
30A
F10
Passenger power seat.
30A
F11
Trailer tow park lamp relay.
30A
F12
192Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 FusesE148827

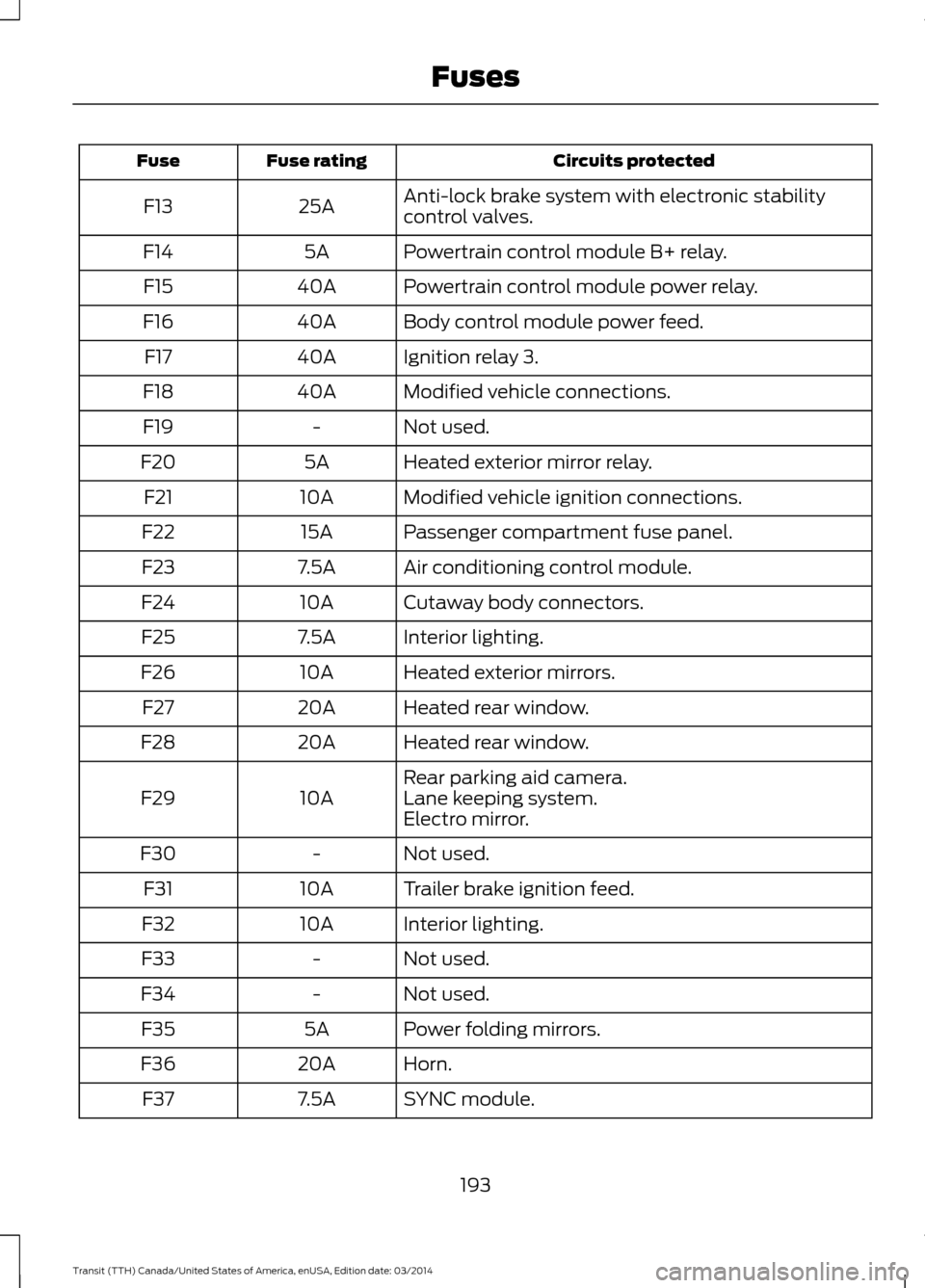

Circuits protected
Fuse rating
Fuse
Anti-lock brake system with electronic stability
control valves.
25A
F13
Powertrain control module B+ relay.
5A
F14
Powertrain control module power relay.
40A
F15
Body control module power feed.
40A
F16
Ignition relay 3.
40A
F17
Modified vehicle connections.
40A
F18
Not used.
-
F19
Heated exterior mirror relay.
5A
F20
Modified vehicle ignition connections.
10A
F21
Passenger compartment fuse panel.
15A
F22
Air conditioning control module.
7.5A
F23
Cutaway body connectors.
10A
F24
Interior lighting.
7.5A
F25
Heated exterior mirrors.
10A
F26
Heated rear window.
20A
F27
Heated rear window.
20A
F28
Rear parking aid camera.
10A
F29 Lane keeping system.
Electro mirror.
Not used.
-
F30
Trailer brake ignition feed.
10A
F31
Interior lighting.
10A
F32
Not used.
-
F33
Not used.
-
F34
Power folding mirrors.
5A
F35
Horn.
20A
F36
SYNC module.
7.5A
F37
193Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

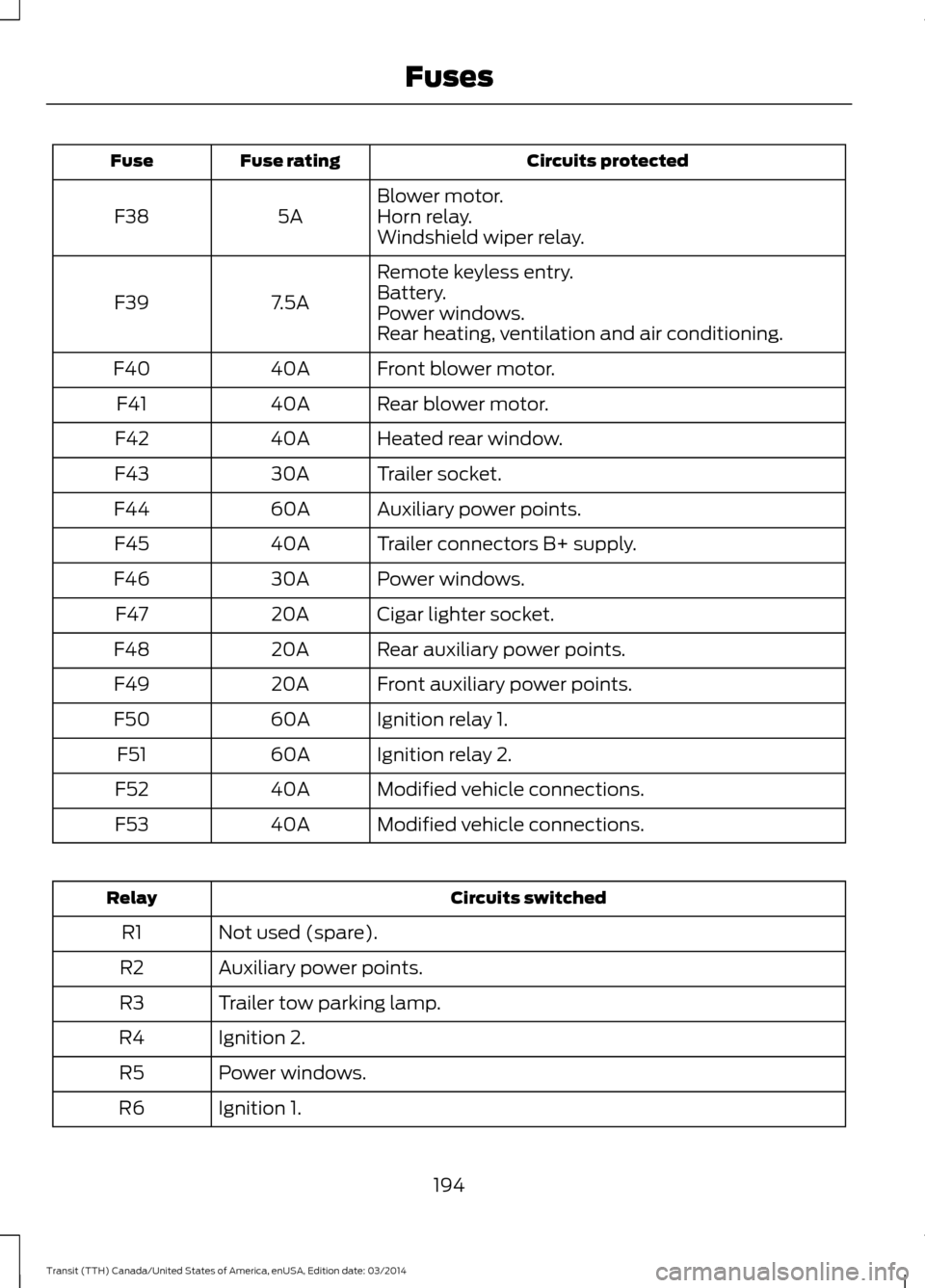

Circuits protected
Fuse rating
Fuse
Blower motor.
5A
F38 Horn relay.
Windshield wiper relay.
Remote keyless entry.
7.5A
F39 Battery.
Power windows.
Rear heating, ventilation and air conditioning.
Front blower motor.
40A
F40
Rear blower motor.
40A
F41
Heated rear window.
40A
F42
Trailer socket.
30A
F43
Auxiliary power points.
60A
F44
Trailer connectors B+ supply.
40A
F45
Power windows.
30A
F46
Cigar lighter socket.
20A
F47
Rear auxiliary power points.
20A
F48
Front auxiliary power points.
20A
F49
Ignition relay 1.
60A
F50
Ignition relay 2.
60A
F51
Modified vehicle connections.
40A
F52
Modified vehicle connections.
40A
F53 Circuits switched
Relay
Not used (spare).
R1
Auxiliary power points.
R2
Trailer tow parking lamp.
R3
Ignition 2.
R4
Power windows.
R5
Ignition 1.
R6
194Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

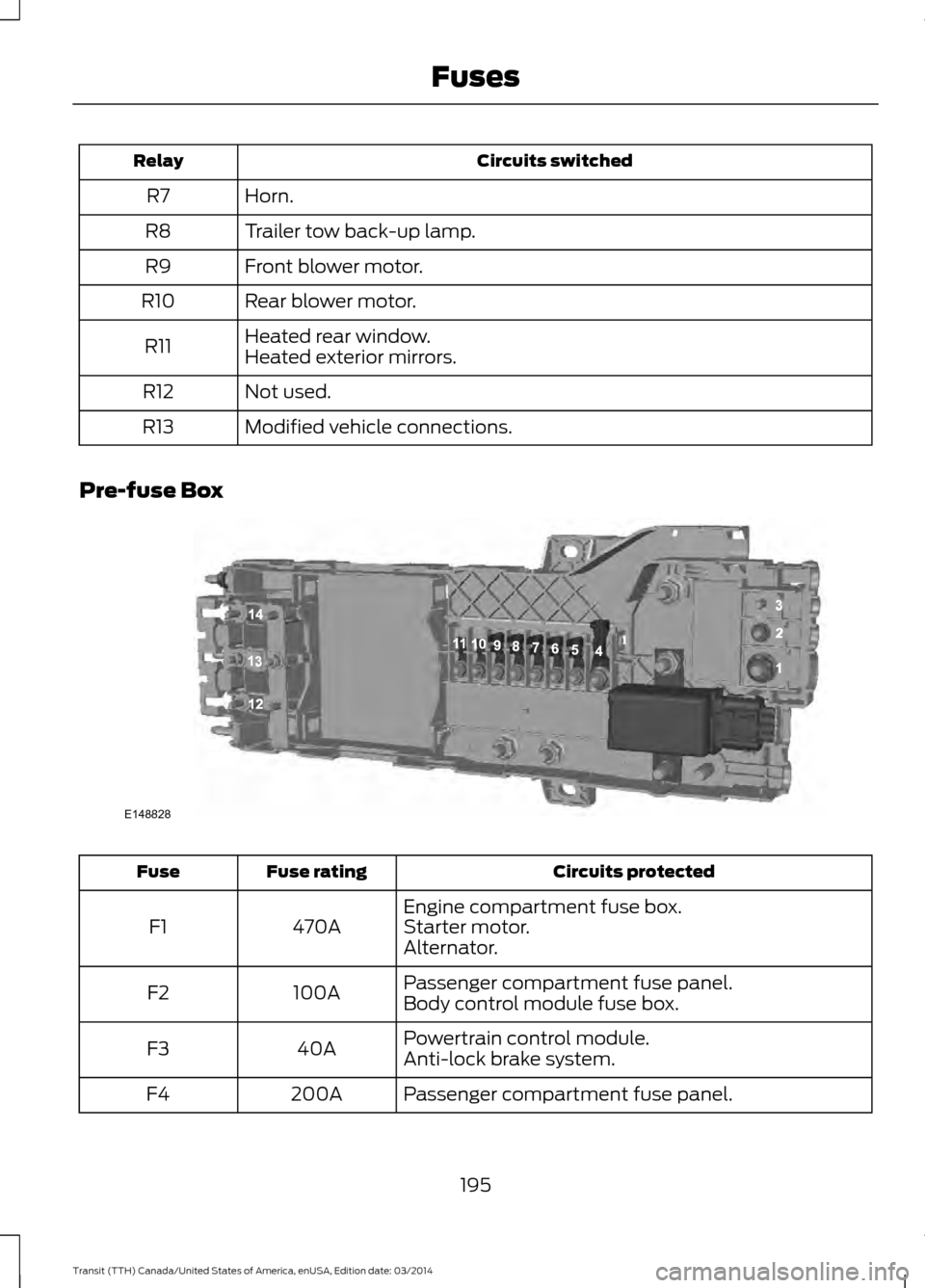

Circuits switched
Relay
Horn.
R7
Trailer tow back-up lamp.
R8
Front blower motor.
R9
Rear blower motor.
R10
Heated rear window.
R11 Heated exterior mirrors.
Not used.
R12
Modified vehicle connections.
R13
Pre-fuse Box Circuits protected
Fuse rating
Fuse
Engine compartment fuse box.
470A
F1 Starter motor.
Alternator.
Passenger compartment fuse panel.
100A
F2
Body control module fuse box.
Powertrain control module.
40A
F3
Anti-lock brake system.
Passenger compartment fuse panel.
200A
F4
195Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 FusesE148828

Circuits protected
Fuse rating
Fuse
Passenger compartment fuse panel.
100A
F5
Positive temperature coefficient heater.
80A
F6
Not used.
-
F7
Engine junction box feed.
100A
F8
Passenger compartment fuse panel.
100A
F9
Passenger compartment fuse panel supply.
60A
F10
Passenger compartment fuse panel supply.
60A
F11
Auxiliary power point 1.
60A
F12
Auxiliary power point 2.
60A
F13
Auxiliary power point 3.
60A
F14
196Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 Fuses

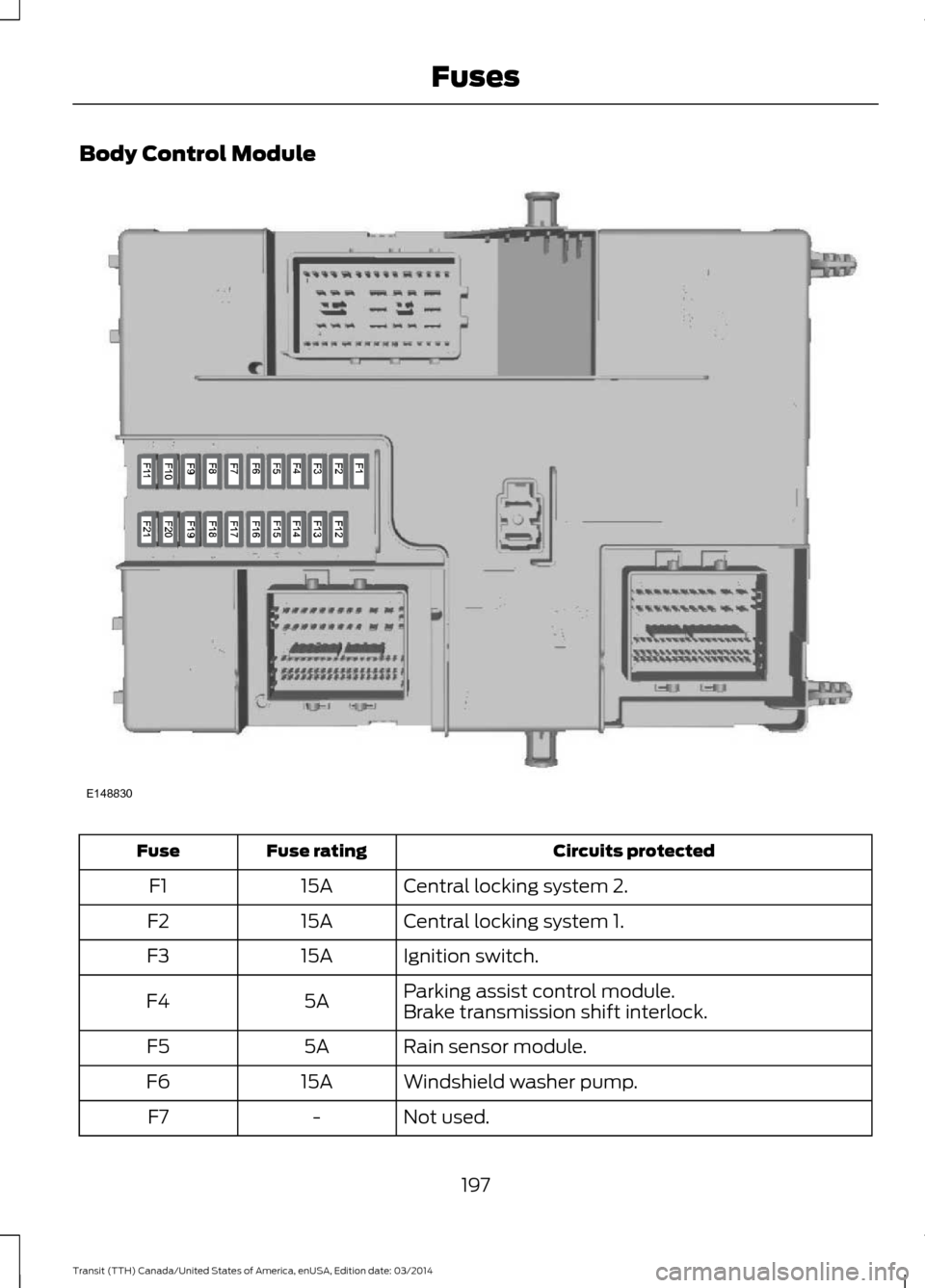

Body Control Module
Circuits protected
Fuse rating
Fuse
Central locking system 2.
15A
F1
Central locking system 1.
15A
F2
Ignition switch.
15A
F3
Parking assist control module.
5A
F4
Brake transmission shift interlock.
Rain sensor module.
5A
F5
Windshield washer pump.
15A
F6
Not used.
-
F7
197Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014 FusesE148830
