FORD WINDSTAR 1997 1.G Owners Manual

130
%*
[CF37700(ALL)01/96]
Dual Electric Remote Controlled Mirrors (If equipped)
[CF37800(ALL)12/95]
If you have power side view mirrors, you can adjust them in
any direction by using the mirror controls on the door panel.
[CF37900(ALL)12/95]
10-1/2 pica
art:0050031-A
The electric mirror controls
*
[CF38000(ALL)05/96]
To adjust the remote controlled side mirrors:
[CF38100(ALL)12/95]1.
Select the right or left mirror by sliding the selector lever
towards the right arrow or the left arrow.
*
[CF38200(ALL)01/96]2.
Move the control knob in the direction you want to move
the mirror.
[CF38300(ALL)12/95]3.
Return the selector lever to the middle position to keep the
mirror in place.
[CF38400(ALL)12/95]
7-1/2 pica art:0050214-A
Operating the electric mirrors
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
131
% [CF38500(ALL)12/95]
Heated Side View Mirrors (If equipped)
[CF38600(ALL)12/95]
The heated side view mirrors are automatically activated
whenever you activate the rear defogger. The defogger in your
vehicle automatically shuts off after 10 minutes. If additional
defogging is necessary, reactivate the rear defogger.
[CF38700(ALL)01/96]
Compact Disc and Cassette Storage Console
(If equipped)
[CF38800(ALL)01/96]
A storage compartment is included below the radio for storage
of your discs or cassettes. There is also a compact disc and
cassette storage insert in the storage compartment located under
the front passenger seat (if equipped).
[CF38900(ALL)01/96]
13-1/2 pica
art:0050014-A
Compact disc/cassette storage
% [CF39000(ALL)01/96]
Console (If equipped)
[CF39100(ALL)01/96]
Your vehicle may have a full console. Console features are
detailed in the following illustration. To open the console lid,
lift up on the latch toward the rear of the console. If your
vehicle has the CD changer (a dealer installed option), this
console could also house the changer and conceal it from sight.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

132
[CF39200(ALL)01/96]
17-1/2 pica
art:0050015-B

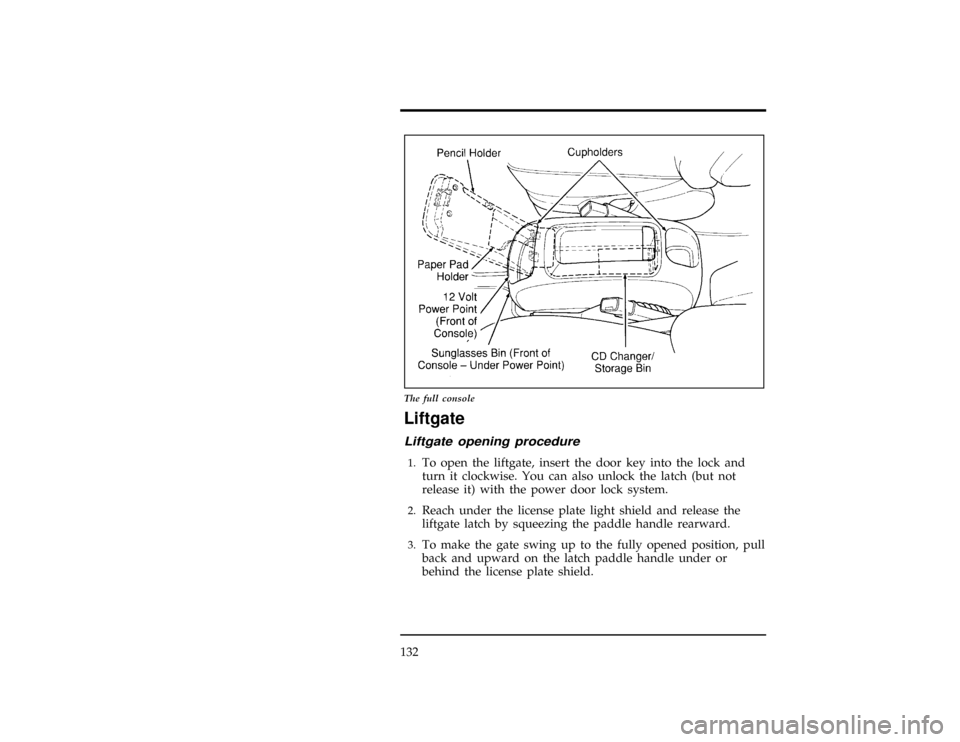

The full console
%*
[CF39300(ALL)01/96]
Liftgate
*
[CF39400(ALL)01/96]
Liftgate opening procedure
[CF39500(ALL)01/96]1.
To open the liftgate, insert the door key into the lock and
turn it clockwise. You can also unlock the latch (but not
release it) with the power door lock system.
*
[CF39600(ALL)01/96]2.
Reach under the license plate light shield and release the
liftgate latch by squeezing the paddle handle rearward.
[CF39700(ALL)01/96]3.
To make the gate swing up to the fully opened position, pull
back and upward on the latch paddle handle under or
behind the license plate shield.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
133
[CF39800(ALL)01/96]
13-1/2 pica
art:0050108-B

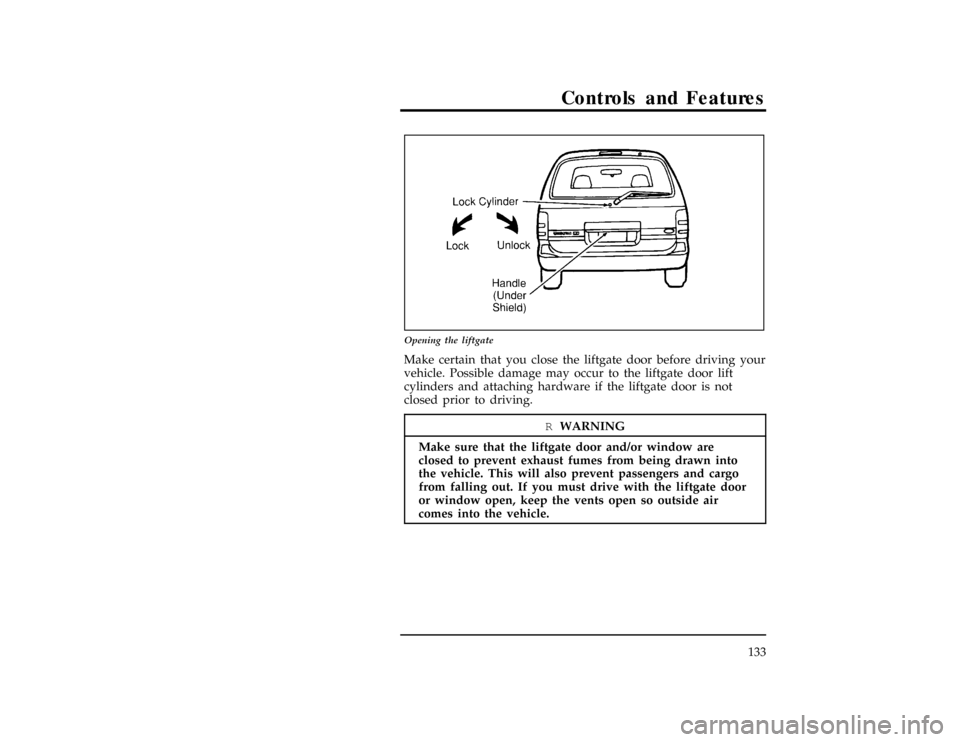

Opening the liftgate
[CF39900(ALL)01/96]
Make certain that you close the liftgate door before driving your
vehicle. Possible damage may occur to the liftgate door lift
cylinders and attaching hardware if the liftgate door is not
closed prior to driving.
*
[CF40000(ALL)01/96]
RWARNING
Make sure that the liftgate door and/or window are
closed to prevent exhaust fumes from being drawn into
the vehicle. This will also prevent passengers and cargo
from falling out. If you must drive with the liftgate door
or window open, keep the vents open so outside air
comes into the vehicle.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

134
*
[CF40100(ALL)01/96]
Liftgate closing procedure
*
[CF40200(ALL)01/96]1.
To make the liftgate swing downward, reach up and pull the
lower edge of the liftgate (or the loop handle on the inner
trim panel of vehicles with this option) and pull downward.
*
[CF40300(ALL)01/96]2.
When you have pulled down the liftgate enough so that you
can reach the license plate light shield, push the shield down
and forward to close the latch and liftgate. At this point, the
latch is not locked.
[CF40400(ALL)01/96]3.
You can lock the liftgate latch by pushing down the
night-lock button (located on the inside of the liftgate at the
bottom of the window) before you pull down and close the
liftgate. You can also lock the liftgate latch by inserting your
vehicle's door key and turning it counterclockwise after you
have closed the liftgate, or by using the power door locks on
the front doors or the power lock switch in the cargo area.
*
[CF40500(ALL)01/96]
The liftgate area is only intended for cargo, not passengers. You
can open and close the liftgate from outside the vehicle. It
cannot be opened from inside the cargo area.
%*
[CF40600(ALL)01/96]
Cargo Net (If equipped)
*
[CF40700(ALL)01/96]
The cargo net is designed to hold your cargo upright between
the third row bench seat and the liftgate to prevent it from
moving around the cargo area.
*
[CF40800(ALL)01/96]
To install the cargo net:
*
[CF40900(ALL)01/96]
Attach the loops on the four corners of the net to the four
retainers on the cargo area rear quarter panels. Pull on the net
to be sure that it is fastened securely.
*
[CF41000(ALL)01/96]
RWARNING
Be sure to secure all four loops into the retainers. The
cargo restrained in the net must not exceed 50 lbs.
(22.5 kg) or the net may not stay secured.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
135
*
[CF41100(ALL)01/96]
To remove the cargo net, remove the loops from the four
retainers.
[CF41200(ALL)12/95]
24 pica art:0050013-A

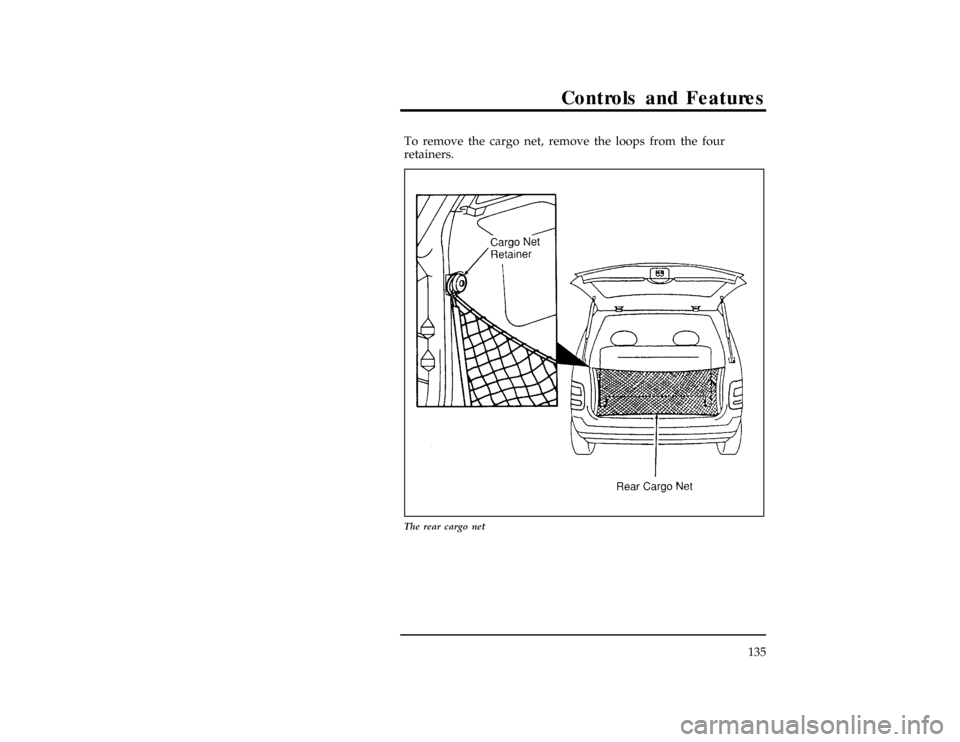

The rear cargo net
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

136
% [CF41300(ALL)07/96]
Keyless Entry System (If equipped)
[CF41400(ALL)01/96]
If you have chosen the keyless entry system option for your
vehicle, you can lock or unlock the doors and liftgate without
using a key. The keypad is above the outside door handle on
the driver's side. See alsoRemote Entry Systemwhich follows
this description.
[CF41500(ALL)01/96]
13-1/2 pica
art:0050107-A

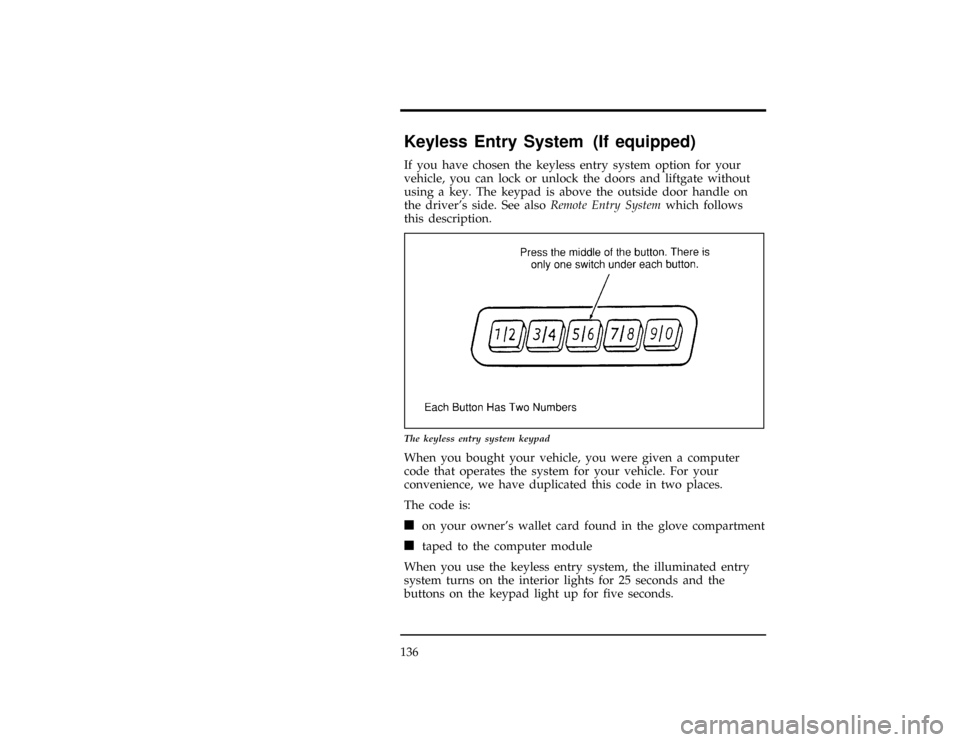

The keyless entry system keypad
[CF41600(ALL)04/96]
When you bought your vehicle, you were given a computer
code that operates the system for your vehicle. For your
convenience, we have duplicated this code in two places.
*
[CF41700(ALL)05/96]
The code is:
*
[CF41800(ALL)05/96]
n
on your owner's wallet card found in the glove compartment
[CF41900(ALL)04/96]
n
taped to the computer module
[CF42000(ALL)01/96]
When you use the keyless entry system, the illuminated entry
system turns on the interior lights for 25 seconds and the
buttons on the keypad light up for five seconds.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
137
[CF42100(ALL)04/96]
Do not push the keypad buttons with a key, ball-point pen,
pencil, or any other hard object since they could damage the
buttons.
[CF42200(ALL)07/96]
Using the Keyless Entry System
[CF42300(ALL)04/96]
To operate the Keyless Entry System, you must be familiar with
the ªpersonal codeº and the ªpermanent code.º The personal
code is a code number that you select that is easy for you to
remember. This is the number that you enter on the keypad to
unlock the door. The personal code can be changed as often as
you like.
[CF42400(ALL)01/96]
The permanent code is a number that is assigned to your
vehicle and can be used to program your personal code into the
system.
[CF42500(ALL)01/96]
For your convenience, one additional piece of tape with the
permanent code has been included in the glove box. Place this
additional piece of tape in a safe location where you can refer
to it when necessary. Do not put it in any location that is
accessible to unauthorized persons, since this would allow them
entrance to your vehicle.
% [CF42600(ALL)04/96]
Programming your Personal Code
[CF42700(ALL)01/96]
A personal code does not replace the permanent code that the
dealership gave you. The original dealer code will always work
in addition to your personal code.
*
[CF42800(ALL)05/96]
To program your own code:
*
[CF42900(ALL)05/96]1.
Select five digits for your personal code.
[CF43000(ALL)01/96]2.
Enter the permanent code.
[CF43100(ALL)01/96]3.
Within five seconds, press the 1/2 button.
[CF43200(ALL)01/96]4.
Within five seconds of pressing the 1/2 button, enter your
personal code. Press each digit within five seconds of the
previous digit.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

138
[CF43300(ALL)01/96]5.
The keyless system registers this second code. To open your
vehicle, you can now use either code. The module
remembers only one personal code at a time. Entering a
second personal code will erase the first and replace it with
the new code.
[CF43400(ALL)01/96]6.
After you have entered your personal code, the driver's door
will unlock.
*
[CF43500(ALL)05/96]
To erase your personal code:
*
[CF43600(ALL)05/96]1.
Enter the original permanent code.
[CF43700(ALL)01/96]2.
Press the 1/2 button within five seconds of step #1.
*
[CF43800(ALL)05/96]3.
Wait six seconds.
[CF43900(ALL)01/96]4.
The keyless entry system automatically erases your personal
code. The system will now only respond to the permanent
code.
*
[CF44000(ALL)05/96]
Do not set a code that presents the numbers in sequential order,
such as 1/2, 3/4, 5/6, 7/8, 9/0. Studies show that people who
idly press the buttons usually press a sequential pattern. Also,
do not select a code that uses the same button five times.
Thieves can easily figure out these types of codes.
% [CF44100(ALL)04/96]
Unlocking the Doors with the Keyless Entry System
[CF44200(ALL)01/96]
You must unlock the driver's door before you unlock any of the
other doors. If you let more than five seconds pass between
pressing numbers, the system shuts down and you have to
enter the code again. The system has shut down if the keypad
light is out. If the keyless entry system does not work properly,
use the key or Remote Entry transmitter(s) to lock and unlock
the doors or liftgate until the system can be serviced.
[CF44300(ALL)01/96]1.
To unlock the driver's door, enter the code. All codes have 5
numbers. After you press the fifth number, the driver's door
unlocks.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
139
[CF44400(ALL)01/96]2.
To unlock the passenger's door, sliding door and liftgate,
press 3/4 within five seconds of step #1, or re-enter the code
to open the driver's door then press 3/4.
*
[CF44500(ALL)05/96]
Locking the Doors with the Keyless Entry System
*
[CF44600(ALL)01/96]
Along with unlocking your doors, you can use the keyless entry
system to lock the doors.
[CF44700(ALL)01/96]
To lock all of the doors at the same time, press the 7/8 and 9/0
buttons at the same time. It is not necessary to first enter the
keypad code. This will also arm your Ford anti-theft system.
%*
[CF44800(ALL)01/96]
Battery Saver
[CF44900(ALL)01/96]
When the ignition switch is turned to OFF, the vehicle will turn
off battery voltage to the interior lamps after 45 minutes. (The
exterior lamps are not affected.) The purpose is to minimize
extended battery drain if the lights have inadvertently been left
on or if a door or the glove box is not completely closed.
However, the timer will be immediately reset to another 45
minutes if any of the following occurs:
[CF45000(ALL)01/96]
n
any door is open or closed
[CF45100(ALL)01/96]
n
the front door handle is lifted (for Illuminated Entry only)
[CF45200(ALL)01/96]
n
taking the key IN or OUT of the ignition switch
[CF45300(ALL)01/96]
n
the Keyless Entry keypad is used
[CF45400(ALL)01/96]
n
the Remote Entry transmitter is activated
*
[CF45500(ALL)05/96]
Remote Entry System (If equipped)
[CF45600(ALL)01/96]
If your vehicle has the remote entry system, you can lock and
unlock the vehicle doors without using a key. The remote entry
system also has a personal alarm feature. The buttons that
control the system are located on the hand held transmitter that
come with your vehicle.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996
