Unfastening the combination lap and shoulder belts
[SS13300(ALL)04/96]
While the belt retracts, guide the tongue to its original position
to prevent it from striking you or part of the vehicle.
[SS13400(ALL)12/95]
Shoulder Belt Adjustment (Driver and Right Front
Passenger)
[SS13500(ALL)12/95]
You can adjust the shoulder belt height to one of five (5)
positions. To adjust, pinch the release button and slide it up or
down until the belt rests on your shoulder near your neck.
Release the button and make sure the adjuster is firmly seated
in one of the five (5) positions.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

172
[SS13600(ALL)12/95]
10-1/2 pica
art:0050166-A
The shoulder belt height adjuster
[SS13700(ALL)12/95]
Combination Lap and Shoulder Belt Ð Second Row
Bench Seat
*
[SS13800(ALL)01/96]
There is a unique safety restraint system for the outside seating
position of the second row bench seat. It is very important that
you read and understand this section before anyone rides in the
outside seating position (near the sliding door) of the
two-passenger bench seat.
[SS13900(ALL)12/95]
In addition to safety belt anchorages in the floor and roof
structures, the second row bench seat has a detachable safety
belt anchor mounted to the right window side of the seat. The
safety belt should always remain attached to this anchor except
when removing this seat.
[SS14000(ALL)12/95]
The second row passenger side outboard seating position uses a
hook above the sliding door to stow the shoulder safety belt
when entering or exiting the vehicle or when it is not being
used.
[SS14100(ALL)05/96]
NOTE: When the belt is stowed using the hook, DO NOT use
the hanging belt as an assist when entering the
vehicle.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
173
[SS14200(ALL)12/95]
27-1/2 pica
art:0050212-D
Proper stowage of second row shoulder safety belt
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

174
[SS14300(ALL)12/95]
When removing the second row bench seat:
[SS14400(ALL)12/95]1.
Disengage the safety belt from the seat by inserting a key or
small screwdriver into the slot provided on the detachable
anchor (see Figure 1). When this shoulder belt assembly is
free of the seat, allow the retractor to wind up the slack in
the belt.
[SS14500(ALL)01/96]2.
Using the clip attached to the end of the shoulder belt, clip
the end of the belt to the stationary portion of the shoulder
belt (see Figure 2). The end of the shoulder beltmustbe
clipped in order to keep it from striking anything during
vehicle operation.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
175
[SS14600(ALL)12/95]
27-1/2 pica art:0050169-F

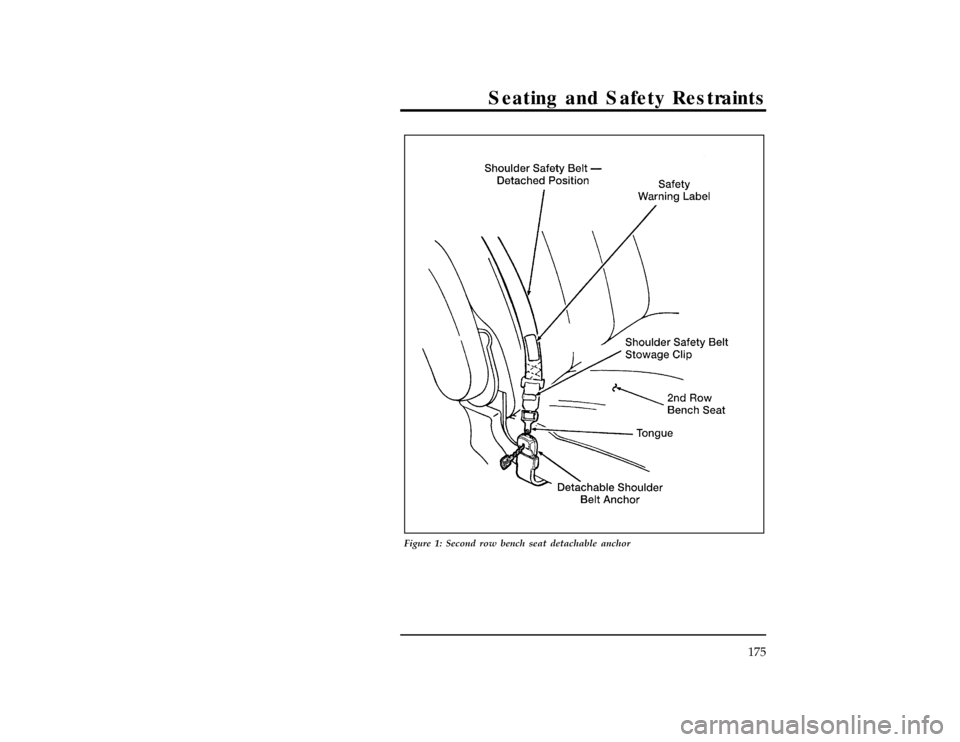

Figure 1: Second row bench seat detachable anchor
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

176
[SS14700(ALL)01/96]
24 pica art:0050170-D

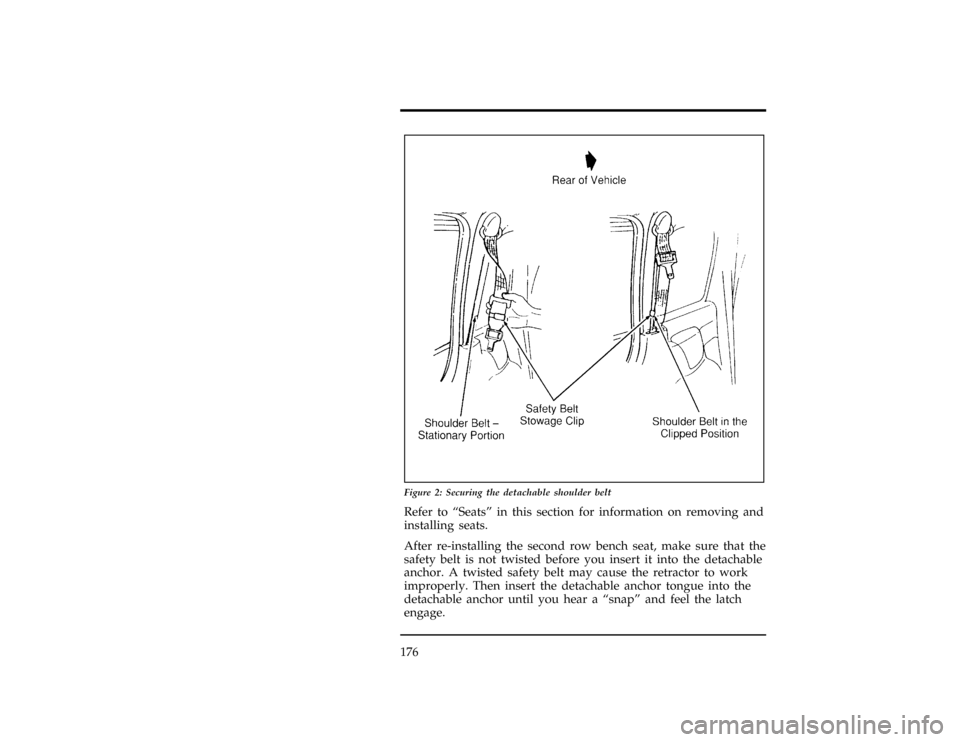

Figure 2: Securing the detachable shoulder belt
[SS14800(ALL)12/95]
Refer to ªSeatsº in this section for information on removing and
installing seats.
[SS14900(ALL)12/95]
After re-installing the second row bench seat, make sure that the
safety belt is not twisted before you insert it into the detachable
anchor. A twisted safety belt may cause the retractor to work
improperly. Then insert the detachable anchor tongue into the
detachable anchor until you hear a ªsnapº and feel the latch
engage.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seatingan dSafet yRestraints
177
WARNING
Whe nreinstallin garea rsea tin you rvehicl eit mus tbe

178
*
[SS16100(ALL)01/96]
To switch the retractor from the emergency locking mode to the
automatic locking mode, perform the following steps:
*
[SS16200(ALL)02/96]1.
Buckle the lap/shoulder combination belt.
*
[SS16300(ALL)12/95]2.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted, and when allowed to retract,
a clicking sound will be heard. At this time, the belt retractor
is in the automatic locking mode (child restraint mode).
[SS16400(ALL)12/95]3.
A clicking sound will be heard as the belt is allowed to
retract. This indicates that the retractor is in the automatic
locking mode.
[SS16500(ALL)12/95]
NOTE: When the combination lap/shoulder belt is unbuckled
and allowed to retract completely, the retractor will
switch back to the vehicle sensitive (emergency)
locking mode. See detailed instructions under Safety
Seats for Children later in this chapter.
%*
[SS16600(ALL)12/95]
Lap Belts
*
[SS16700(ALL)12/95]
The lap belt in the center of the rear seat does not adjust
automatically. You must adjust it to fit snugly and as low as
possible around your hips. Do not wear it around your waist.
%*
[SS16800(ALL)01/96]
If you need to lengthen the belt, unfasten it and tip the belt
tongue at a right angle to the belt. Pull the belt tongue over
your lap until it reaches the buckle.
*
[SS16900(ALL)01/96]
If you need to shorten the belt, pull on the loose end of the
webbing until the belt fits snugly.
[SS17000(ALL)12/95]
To unfasten the belt, push the release button on the buckle.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
179
[SS17100(ALL)12/95]
10-1/2 pica
art:0050085-A
Unfastening the lap belt in the center rear seating position
%*
[SS17200(ALL)03/96]
Safety Belt Maintenance
*
[SS17300(ALL)02/96]
Check the safety belt systems periodically to make sure that
they work properly and are not damaged.
*
[SS17400(ALL)03/96]
All safety belt assemblies, including retractors, buckles, front
seat belt buckle support assemblies (slide bar) (if so equipped),
child safety seat tether bracket assemblies (if so equipped), and
attaching hardware, should be inspected after any collision. Ford
recommends that all safety belt assemblies used in vehicles
involved in a collision be replaced. However, if the collision was
minor and a qualified technician finds that the belts do not
show damage and continue to operate properly, they do not
need to be replaced. Safety belt assemblies not in use during a
collision should also be inspected and replaced if either damage
or improper operation is noted.
%*
[SS17700(ALL)02/96]
Safety Belt Extension Assembly
*
[SS17800(ALL)01/96]
For some people, the safety belt may be too short even when it
is fully extended. You can add about eight inches (20 cm) to the
belt length with a safety belt extension assembly (part number
611C22). Safety belt extensions are available at no cost from
your dealer.
