GENESIS G90 2021 Owner's Manual

3-90
Convenient features of your vehicle
High Beam Assist (HBA)
(if equipped)
The High Beam Assist is a system
that automatically adjusts the head-
lamp range (switches between high
beam and low beam) depending on
the brightness of detected vehicles
and certain road conditions.
Operating condition
1. Place the headlamp switch in the
AUTO position.
2. Turn on the high beam by pushing
the lever away from you.
The High Beam Assist ( ) indica-
tor will illuminate.
3. The High Beam Assist will turn on
when vehicle speed is above 25
mph (40 km/h).
• If the headlamp lever is pushed
away when the High Beam Assist
is operating, the High Beam Assist
will turn off and the high beam will
be on continuously.
• If the headlamp lever is pulled
towards you when the high beam
is off, the high beam will turn on
without the High Beam Assist
canceled. When you let go of the
headlamp lever, the lever will
move to the middle and the high
beam will turn off.• If the headlamp lever is pulled
towards you when the high beam
is on by the High Beam Assist, the
low beam will be on and the High
Beam Assist will turn off.
• If the headlamp lever is placed to
the headlamp ON position, the
High Beam Assist will turn off
and the low beam will be on con-
tinuously.
When the High Beam Assist is on,
the high beam switches to low beam
if any of the following conditions
occur :
- When the headlamp of an on-com-
ing vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of
a motorcycle or a bicycle is detect-
ed.
- When the surrounding ambient
light is bright enough that high
beams are not required.
- When streetlights or other lights
are detected.
- When the headlamp switch is not
in the AUTO position.
- When the High Beam Assist is off.
- When vehicle speed is below 15
mph (24 km/h).
OHI048533

3-91
03
Warning light and message
When the High Beam Assist is not
working properly, the Check High
Beam Assist warning message will
come on for a few second. After the
message disappears, the master
warning light ( ) will illuminate.
Take your vehicle to an authorized
retailer of Genesis Branded products
and have the system checked.
The High Beam Assist system
may not work properly in the
following situations.
• When the light from an on-
coming or front vehicle is dim.
Such examples may include:
- Light from a vehicle is not
detected because of lamp
damage, or because it is hid-
den from sight, etc.
- Headlamp of a vehicle is
covered with dust, snow or
water.
- A vehicle’s headlamps are
off but the fog lamps are on
and etc.
WARNING
• When the system is affected
by external conditions. Such
examples may include:
- There is a lamp that has a
similar shape as a vehicle’s
lamp.
- Headlamps have been dam-
aged or not repaired proper-
ly.
- Headlamps are not aimed
properly.
- Driving on a narrow curved
road, rough road, uphill or
downhill.
- Vehicle in front is partially
visible on a crossroad or
curved road.
- There is a traffic light, reflect-
ing sign, flashing sign or
mirror ahead.
- There is a temporary reflec-
tor or flash ahead (construc-
tion area).
- The road conditions are bad
such as being wet, iced or
covered with snow.
- A vehicle suddenly appears
from a curve.
- The vehicle is tilted from a
flat tire or being towed.
- The Lane Keeping Assist
system indicator (yellow)
light illuminates.
• When front visibility is poor.
Such examples may include:
- Light from a vehicle is not
detected because of exhaust
fume, smoke, fog, snow, etc.
- The front windshield is cov-
ered with foreign substance.
OHI048142L

3-92
Convenient features of your vehicle
• Do not attempt to disassemble
the front view camera without
the assistance of an authorized
retailer of Genesis Branded
products technician. If camera
is removed for any reason, the
system may need to be re-cali-
brated. Have the system
inspected by an authorized
retailer of Genesis Branded
products.
• If the windshield of your vehi-
cle is replaced, most likely the
front view camera will need to
be re-calibrated. If this occurs,
have your vehicle inspected
and have the system re-cali-
brated by an authorized retailer
of Genesis Branded products.
• Be careful that water doesn't
get into the High Beam Assist
unit and do not remove or dam-
age related components of the
High Beam Assist system.
• Pay extreme caution to keep
the camera dry.
• NEVER disassemble the cam-
era assembly, or apply any
impact on the camera assem-
bly.
• Do not place objects on the
dashboard that reflect light
such as mirrors, white paper,
etc. The system may not be
able to function properly if sun-
light is reflected.
• At times, the High Beam Assist
may not work properly. The
system is for your convenience
only. It is the responsibility of
the driver for safe driving prac-
tices and always check the
road conditions for your safety.
• When the system does not
operate normally, switch the
headlamp position manually
between the high beam and
low beam.WARNING

3-93
03
Turn signals and lane change
signals
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A).
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
Onetouch turn signal function
To activate the One Touch Turn Signal
function, push the turn signal lever up
or down to position (B) and then
release it.
The lane change signals will blink 3,
5 or 7 times.
You can activate or deactivate the
One Touch Turn Signal function or
choose the number of blinking (3, 5,
or 7) from the Settings menu in the
AVN system screen. Select:
- Setup →Vehicle Settings →Lights
→1 Touch Turn Signal →Off / 3
flashes / 5 flashes / 7 flashes
For detailed information, scan the
QR code in a separately supplied
simple manual.
Battery saver function
The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lamp when the
driver turns the engine off and opens
the driver-side door.
With this feature, the parking lamps
will turn off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lamps on
when the engine is turned off, perform
the following:
1) Open the driver-side door.
2) Turn the parking lamps OFF and
ON again using the light switch on
the steering column.
OHI048534

3-94
Convenient features of your vehicle
Headlamp delay function
If the Engine Start/Stop button is
placed in the ACC position or the
OFF position with the headlamps
ON, the headlamps (and/or parking
lamps) remain on for about 5 min-
utes. However, if the driver’s door is
opened and closed, the headlights
are turned off after 15 seconds. Also,
with the engine off if the driver's door
is opened and closed, the headlamps
(and/or parking lamps) are turned off
after 15 seconds.
The headlamps (and/or parking
lamps) can be turned off by pressing
the lock button on the smart key
twice or turning the light switch to the
OFF or AUTO position.
You can activate or deactivate the
Headlamp Delay function from the
Settings menu in the AVN system
screen. Select:
- Setup →Vehicle Settings →Lights
→Headlight Delay
For detailed information, scan the
QR code in a separately supplied
simple manual.
If the driver exits the vehicle
through another door besides the
driver door, the battery saver func-
tion does not operate and the
headlamp delay function does not
turn OFF automatically. This may
cause the battery to discharge. To
avoid battery discharge, turn OFF
the headlamps manually from the
headlamp switch before exiting the
vehicle
AFS (Adaptive Front-Lighting
System) (if equipped)
Adaptive front lighting system uses
vehicle speed and angle, to keep
your field of vision wide by leveling
the headlamp.
Change the switch to the AUTO posi-
tion when the engine is running. The
adaptive front lighting system will
operate when the headlamp is ON.
The system raises the low beam
angle when the vehicle speed is
above 72 mph (115 km/h), to secure
safety during high speed driving.
To turn off AFS, change the switch to
other positions. The headlamp level-
ing by the headlamp leveling device
still operates even after the AFS has
turned off.
NOTICE
OHI048473
OHI048105

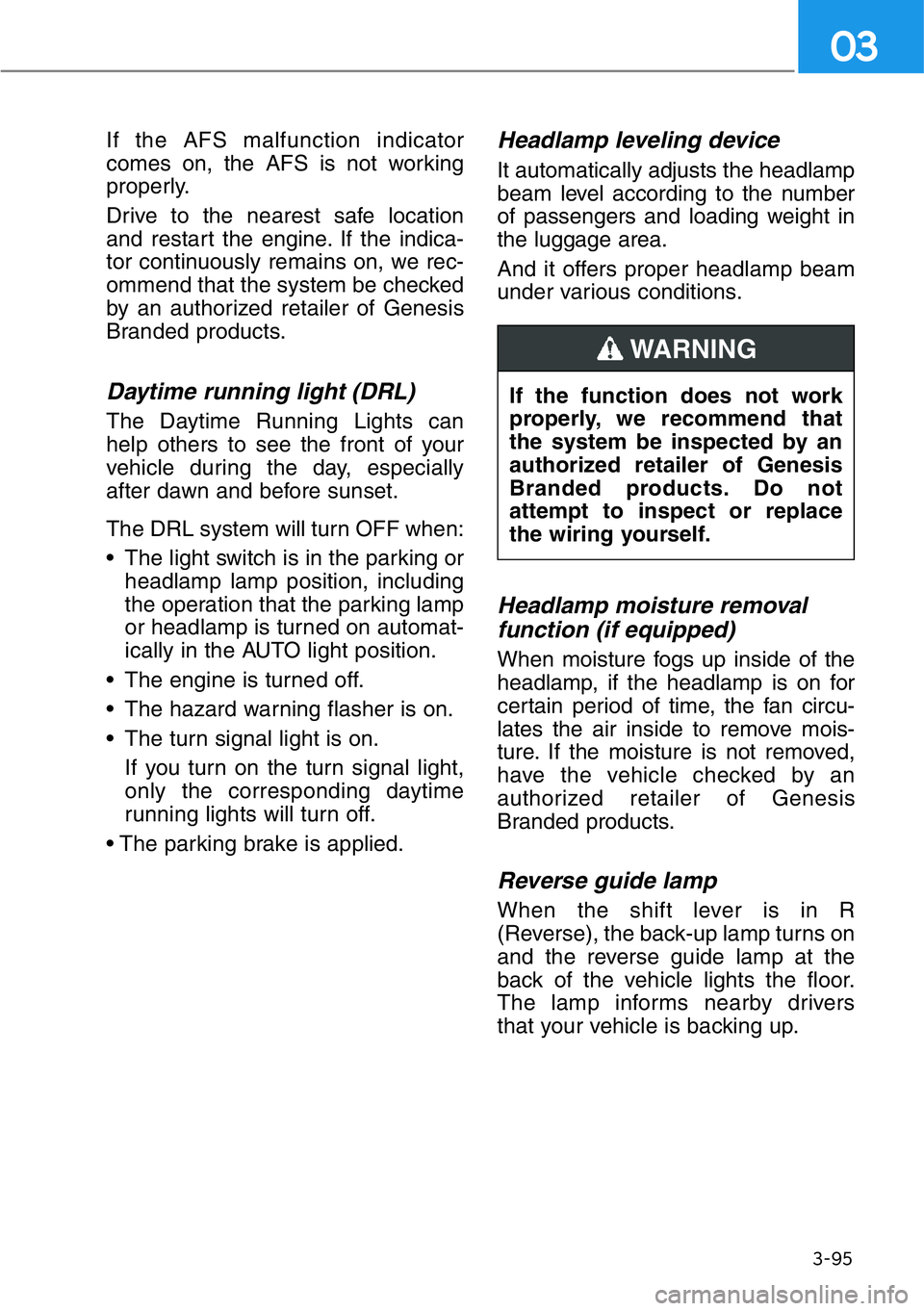

3-95
03
If the AFS malfunction indicator
comes on, the AFS is not working
properly.
Drive to the nearest safe location
and restart the engine. If the indica-
tor continuously remains on, we rec-
ommend that the system be checked
by an authorized retailer of Genesis
Branded products.
Daytime running light (DRL)
The Daytime Running Lights can
help others to see the front of your
vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn OFF when:
• The light switch is in the parking or
headlamp lamp position, including
the operation that the parking lamp
or headlamp is turned on automat-
ically in the AUTO light position.
• The engine is turned off.
• The hazard warning flasher is on.
• The turn signal light is on.
If you turn on the turn signal light,
only the corresponding daytime
running lights will turn off.
• The parking brake is applied.
Headlamp leveling device
It automatically adjusts the headlamp
beam level according to the number
of passengers and loading weight in
the luggage area.
And it offers proper headlamp beam
under various conditions.
Headlamp moisture removal
function (if equipped)
When moisture fogs up inside of the
headlamp, if the headlamp is on for
certain period of time, the fan circu-
lates the air inside to remove mois-
ture. If the moisture is not removed,
have the vehicle checked by an
authorized retailer of Genesis
Branded products.
Reverse guide lamp
When the shift lever is in R
(Reverse), the back-up lamp turns on
and the reverse guide lamp at the
back of the vehicle lights the floor.
The lamp informs nearby drivers
that your vehicle is backing up.If the function does not work
properly, we recommend that
the system be inspected by an
authorized retailer of Genesis
Branded products. Do not
attempt to inspect or replace
the wiring yourself.
WARNING

3-96
Convenient features of your vehicle
Interior Lights
Do not use the interior lights for
extended periods when the engine
is turned off or the battery will dis-
charge.
Interior lamp AUTO cut
The interior lamps will automatically
go off approximately 20 minutes after
the engine is turned off and the
doors are closed. If a door is opened,
the lamp will go off 40 minutes after
the engine is turned off. If the doors
are locked by the remote key or
smart key and the vehicle enters the
armed stage of the theft alarm sys-
tem, the lamps will go off five sec-
onds later.
Front lamps
•:
Press either of these buttons to
turn the map lamp on or off. This
light produces a spot beam for con-
venient use as a map lamp at night
or as a personal lamp for the driver
and the front passenger.
•
:
Press the button to turn ON all
front lamps. Re-repress the button
to turn OFF all front lamps.
NOTICE
OHI048423
Do not use the interior lights
when driving in the dark. The inte-
rior lights may obscure your view
and cause an accident.
WARNING

3-97
03
•:
The front or rear room lamps come
on when the front or rear doors are
opened if the engine is running or
not. When doors are unlocked by
the Smart Key, the front and rear
lamps come on for approximately
30 seconds as long as any door is
not opened. The front and rear room
lamps go out gradually after approx-
imately 30 seconds if the door is
closed. However, if the Engine Start/
Stop button is in the ON position or
all doors are locked, the front and
rear lamps will turn off. If a door is
opened with the Engine Start/Stop
button in the ACC position or the
OFF position, the front and rear
lamps stay on for about 20 minutes.
•
:
Press this button to turn the front
and rear room lamps on and off.
Rear lamp
•:
Press the button to turn ON both
rear lamps. You cannot separately
turn OFF the rear lamp type B.
Repress the button to turn OFF the
rear lamps.
•
:
Press the button to dim the rear
lamp type A. Re-press the button to
turn OFF the lamp.
•
:
Press this button to turn the rear
lamp type B on and off.
OHI048424
■Type A
■ Type B
OHI048425

3-98
Convenient features of your vehicle
Trunk lamp
The trunk lamp comes on when the
trunk is opened.
Vanity mirror lamp (Front)
Opening the lid of the vanity mirror
will automatically turn on the mirror
light.
Rear mirror lamp (if equipped)
Press the cover and it will slowly
open and the mirror lamp will turn
ON.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
If the glove box is not closed, the
lamp will turn off after 20 minutes.
OHI048430
OHI048427
OHI049426N
OHI048428

3-99
03
Puddle lamp
Welcome light
When all doors (and trunk) are
closed and locked, the puddle lamp
will come on for 15 seconds if the
door is unlocked by the smart key or
when you put your hand in the out-
side door handle with the smart key
in possession.
For more details, refer to
"Welcome System" in this chap-
ter.
Escort light
When the Engine Start/Stop button
is in the OFF position and the driver's
door is opened, the puddle lamp will
come on for 30 seconds. If the dri-
ver's door is closed within the 30
seconds, the puddle lamp will turn off
after 15 seconds. If the driver's door
is closed and locked, the puddle
lamp will turn off immediately.
The Puddle Lamp Escort Light will
turn on only the first time the driver's
door is opened after the engine is
turned off.
Welcome System
Welcome light
Puddle lamp and door handle lamp
With all the doors (and trunk) closed
and locked, the puddle lamp and
door handle lamp will come on for
approximately 15 seconds if any of
the below is performed.
• When the door unlock button is
pressed on the smart key.
• When you put your hand in the out-
side door handle with the smart
key in possession.
• If ' Setup →Vehicle Settings →
Convenience →Welcome
Mirror/Light →Enable on Driver
Approach' is selected from the
Settings menu in the AVN system
screen, the lamps will turn on when
the vehicle is approached with the
smart key in possession.
You can activate or deactivate this
function from the Settings menu in
the AVN system screen
For detailed information, scan
the QR code in a separately sup-
plied simple manual.
OHI049411N
OHI049429N
