GENESIS G90 2021 Owner's Manual

Interior lamp
When the interior lamp switch is in
the DOOR position and all doors (and
trunk) are closed and locked, the
room lamp will come on for 30 sec-
onds if any of the below is performed.
• When the door unlock button is
pressed on the smart key.
• When you put your hand into the
door handle while carrying the
smart key.
At this time, if you press the door lock
or unlock button on the remote key or
smart keythe room lamp will turn off
immediately.
3-100
Convenient features of your vehicle

3-101
03
A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Auto control wipe time adjust-
ment
C : Wash with brief wipes
Windshield Wipers
Operates as follows when the ignition
switch is in the ON position.
MIST : For a single wiping cycle, push
the lever upward and release.
The wipers will operate continu-
ously if the lever is held in this
position.
OFF : Wiper is not in operation.
INT : Wiper operates intermittently at
the same wiping intervals. To vary
the speed setting, move the
speed control lever. The top most
setting will run the wipers most
frequently (for more rain). The bot-
tom setting will run the wipers the
least frequently (for less rain).
LO : The wiper runs at a lower speed.
HI : The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.
Information
If the wiper switch is set in AUTO
mode when Engine Start/Stop button
is in the ON position, the wiper will
operate once to perform a self-check
of the system. Set the wiper to the
OFF position when the wiper is not in
use.
i
i
WIPERS AND WASHERS
OHI048575L

3-102
Convenient features of your vehicle
• When washing the vehicle, set
the wiper switch in the OFF (O)
position to stop the auto wiper
operation. The wiper may oper-
ate and be damaged if the switch
is set in the AUTO mode while
washing the vehicle.
• Do not remove the sensor cover
located on the upper end of the
passenger side windshield
glass. Damage to system com-
ponents could occur and may
not be covered by your vehicle
warranty.
Windshield Washers
In the OFF position, pull the lever gen-
tly toward you to spray washer fluid on
the windshield and to run the wipers
1-3 cycles. The spray and wiper oper-
ation will continue until you release
the lever. If the washer does not work,
you may need to add washer fluid to
the washer fluid reservoir.
NOTICE
OHI048536
To avoid personal injury from
the windshield wipers, when the
engine is running and the wind-
shield wiper switch is placed in
the AUTO mode:
• Do not touch the upper end of
the windshield glass facing
the rain sensor.
• Do not wipe the upper end of
the windshield glass with a
damp or wet cloth.
• Do not put pressure on the
windshield glass.
WARNING

3-103
03
• To prevent possible damage to
the washer pump, do not oper-
ate the washer when the fluid
reservoir is empty.
• To prevent possible damage to
the wipers or windshield, do not
operate the wipers when the
windshield is dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to
the wipers and washer system,
use anti-freezing washer fluids
in the winter season or cold
weather.
NOTICE
When the outside temperature is
below freezing, ALWAYS warm
the windshield using the
defroster to prevent the washer
fluid from freezing on the wind-
shield and obscuring your vision
which could result in an acci-
dent and serious injury or death.
WARNING

3-104
Convenient features of your vehicle
SURROUND VIEW MONITOR
Surround View Monitor system can
assist in parking by allowing the driv-
er to see around the vehicle.
For detailed information, scan the
QR code in a separately supplied
simple manual.• The system is activated when the
following steps are performed.
1. The surround view monitor but-
ton (1,indicator ON) is pressed
2. The shift lever is in D (Drive), N
(Neutral) or R (Reverse) and
vehicle speed is under 10 mph
(15 km/h)
3. The Parking Distance Warning
(Reverse/Forward) system is
activated
• The system is deactivated when
one of the following is performed.
- The surround view monitor button
(1, indicator OFF) is pressed again
- Vehicle speed is over 10 mph (15
km/h)
• When vehicle speed is over
15km/h, the system will turn off.
The system will not automatically
turn on again, even though vehicle
speed gets below 10 mph (15
km/h). Press the button (1, indica-
tor ON) again, to turn on the sys-
tem.
• When the vehicle is backing up, the
system will turn ON regardless of
vehicle speed or button status.
However, if vehicle speed is over
10 mph (15 km/h) when driving for-
ward, the Surround View Monitor
system will turn off.
• An indicator on the screen appears
when:
- The trunk is opened
- The driver's door is opened
- The passenger's door is opened
- The outer side view mirror is folded
• If the system is not operating nor-
mally, the system should be
checked by an authorized retailer
of Genesis Branded products.
OHI048408L
OHI048563

3-105
03
Always keep the camera lens
clean. The camera may not work
normally if the lens is covered
with foreign material.
NOTICE
(1) Front camera
(2) Left/Right cam-
era
(3) Rear camera
Surround View Monitor system
only serves to assist the driver
in parking. ALWAYS look around
your vehicle to make sure there
are no objects or obstacles
before moving the vehicle.
CAUTION
ODH047435

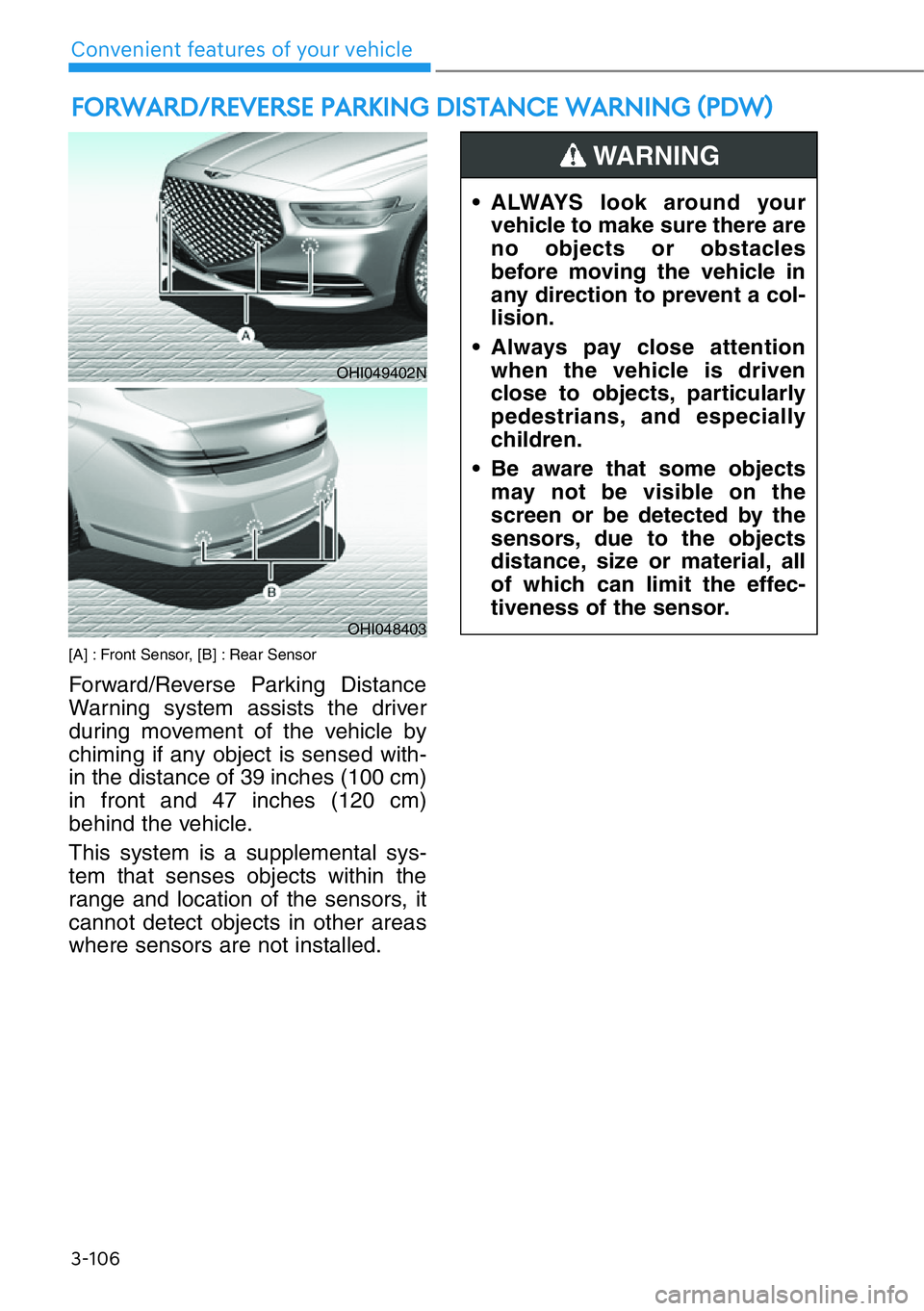

[A] : Front Sensor, [B] : Rear Sensor
Forward/Reverse Parking Distance
Warning system assists the driver
during movement of the vehicle by
chiming if any object is sensed with-
in the distance of 39 inches (100 cm)
in front and 47 inches (120 cm)
behind the vehicle.
This system is a supplemental sys-
tem that senses objects within the
range and location of the sensors, it
cannot detect objects in other areas
where sensors are not installed.
3-106
Convenient features of your vehicle
FORWARD/REVERSE PARKING DISTANCE WARNING (PDW)
• ALWAYS look around your
vehicle to make sure there are
no objects or obstacles
before moving the vehicle in
any direction to prevent a col-
lision.
• Always pay close attention
when the vehicle is driven
close to objects, particularly
pedestrians, and especially
children.
• Be aware that some objects
may not be visible on the
screen or be detected by the
sensors, due to the objects
distance, size or material, all
of which can limit the effec-
tiveness of the sensor.
WARNING
OHI049402N
OHI048403

Forward/Reverse Parking
Distance Warning system
Operating condition
• This system will activate when
Forward/Reverse Parking Distance
Warning system button is pressed
with the engine running.
• Sensing distance when backing up
is approximately 47 in (120 cm)
when you are driving less than
6 mph (10 km/h).
• Sensing distance when moving for-
ward is approximately 39 in (100
cm) when you are driving less than
6 mph (10 km/h).• When more than two objects are
sensed at the same time, the clos-
est one will be recognized first.
• If you move the shift lever to the R
(Reverse) position with the engine
running and Forward/Reverse
Parking Distance Warning system
off, the system will operate auto-
matically. But it will turn off automat-
ically, when the vehicle speed
exceeds 12 mph (20 km/h). The
system will automatically operate
again if vehicle speed returns to 6
mph (10 km/h).
3-107
03
OHI048405L

3-108
Convenient features of your vehicle
Distance
from object
inches (cm) Warning indicator
Warning soundWhen driving
forwardWhen driving
rearward
24 ~ 39
(60 ~ 100)Front-Buzzer beeps
intermittently
24 ~ 47
(60 ~ 120)Rear-Buzzer beeps
intermittently
12 ~ 24
(30 ~ 60)
FrontBuzzer beeps
frequently
Rear-Buzzer beeps
frequently
12
(30)
FrontBuzzer sounds
continuously
Rear-Buzzer sounds
continuously
Types of warning sound and indicator
Information
The indicator may differ from the
illustration depending on objects or
sensors status. If the indicator blinks,
have your vehicle checked by an
authorized retailer of Genesis
Branded products.
When you shift the gear to R
(Reverse) and if one or more of the
below occurs you may have a mal-
function with the Forward/Reverse
Parking Distance Warning system.
• The audible warning does not
sound.• The buzzer sounds intermittently.
• A message appears on the
instrument cluster LCD display.
If one of the above occurs, have
your vehicle checked by an
authorized retailer of Genesis
Branded products as soon as
possible.
NOTICE
i
OHI048174L

Non-operational Conditions of
Forward/Reverse Parking
Distance Warning system
Forward/Reverse Parking
Distance Warning system may
not operate normally when any
of the following occur:
• Moisture is frozen to the sensor.
• Sensor is covered with foreign mat-
ter, such as snow or water, or the
sensor cover is blocked.
The Forward/Reverse Parking
Distance Warning system may
experience a malfunction when
the following occurs:
• Driving on uneven road surfaces
such as unpaved roads, gravel,
bumps, or gradient.
• Objects generating excessive noise
such as vehicle horns, loud motor-
cycle engines, or truck air brakes
can interfere with the sensor.
• Heavy rain or water spray is present.
• Wireless transmitters or mobile
phones are present near the sensor.
• The sensor is covered with snow.
• Any non-factory equipment or
accessories have been installed, or
if the vehicle bumper height or sen-
sor installation has been modified.
Detecting range may decrease
when:
• Outside air temperature is
extremely hot or cold.
• Undetectable objects smaller than
40 inches (1 m) and narrower than
6 inches (14 cm) in diameter.
The following objects may not
be recognized by the sensor:
• Sharp or slim objects such as
ropes, chains or small poles.
• Objects, which tend to absorb sen-
sor frequency such as clothes,
spongy material or snow.
3-109
03
