GMC SIERRA 1994 Owners Manual

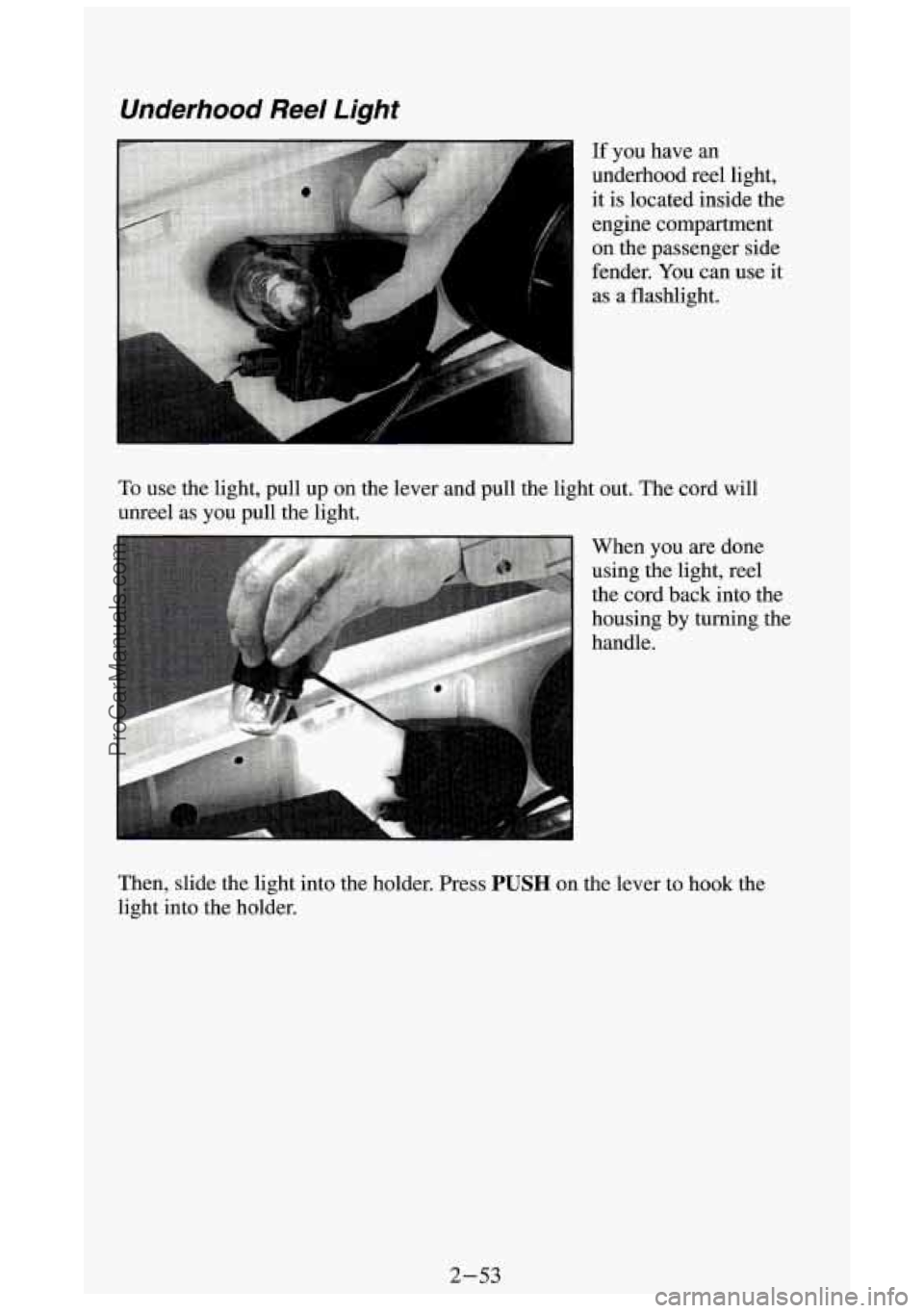

Underhood Reel Light
... .
If you have an
underhood reel light,
it is located inside the
engine compartment
on the passenger side
fender. You can use
it
as a flashlight.
To use the light, pull up on the lever and pull the light out. The cord will
unreel as
you pull the light.
When you are done
using the light, reel
the cord back into the
housing by turning the
handle.
Then, slide the light into the holder. Press
PUSH on the lever to hook the
light into the holder.
2-53
ProCarManuals.com

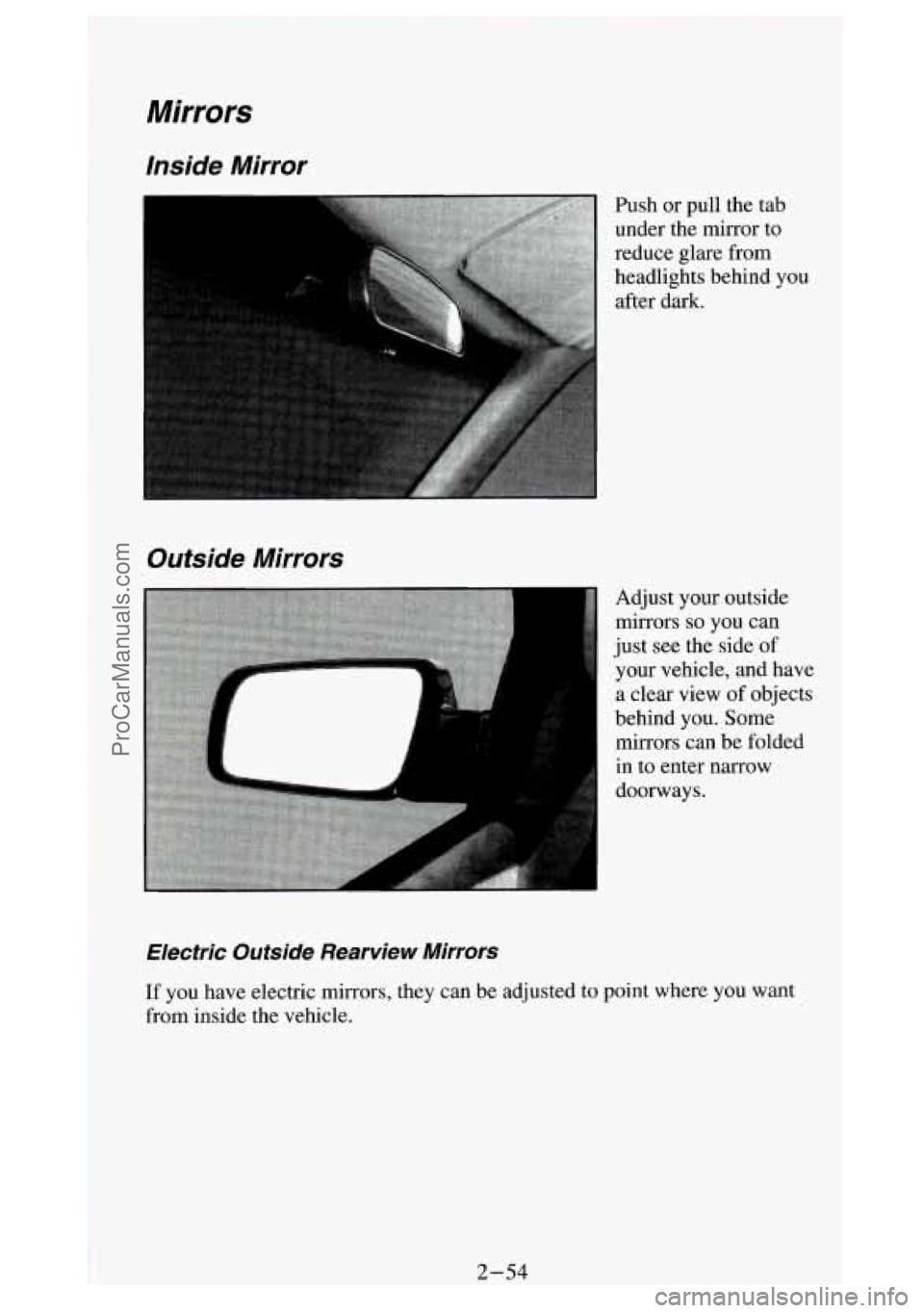

Mirrors
Inside Mirror
Push or pull the tab
under the mirror to
reduce glare from
headlights behind you
after dark.
Outside Mirrors
1
Electric Outside Rearwie w Mirrors
Adjust your outside
mirrors
so you can
just see the side of
your vehicle, and have
a clear view
of objects
behind you. Some
mirrors can be folded
in to enter narrow
doorways.
If you have electric mirrors, they can be adjusted to point where you want
from inside the vehicle.
ProCarManuals.com

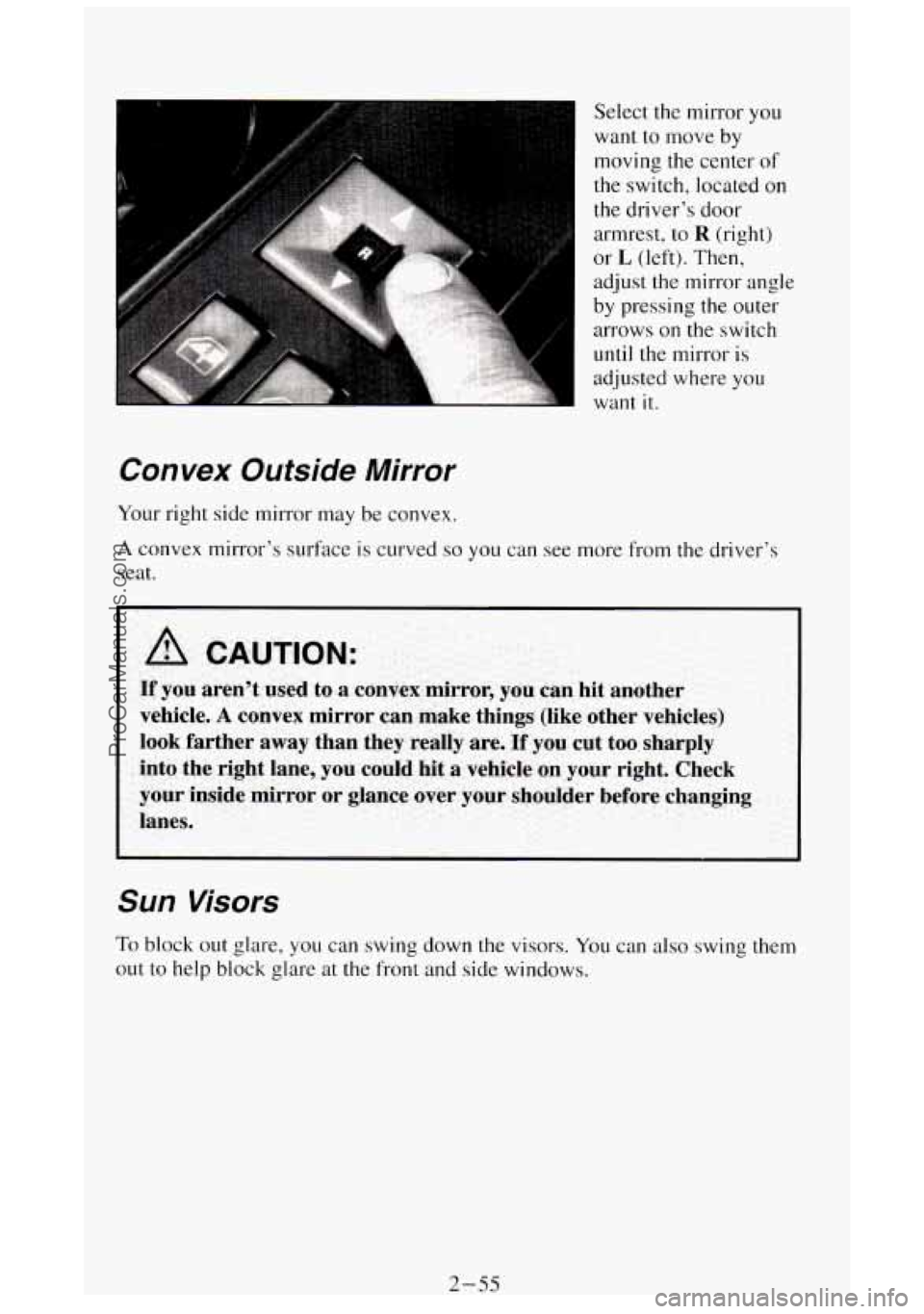

Select the mirror you
want to move by
moving
the center of
the switch, located on
the driver’s door
armrest, to
R (right)
or
L (left). Then,
adjust the mirror angle
by pressing the outer
arrows on the switch
until the mirror is
adjusted where
you
want it.
Convex Outside Mirror
Your right side mirror may be convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
Sun Visors
To block out glare, you can swing down the visors. You can also swing them
out to help block glare at the front and side windows.
2-55
ProCarManuals.com

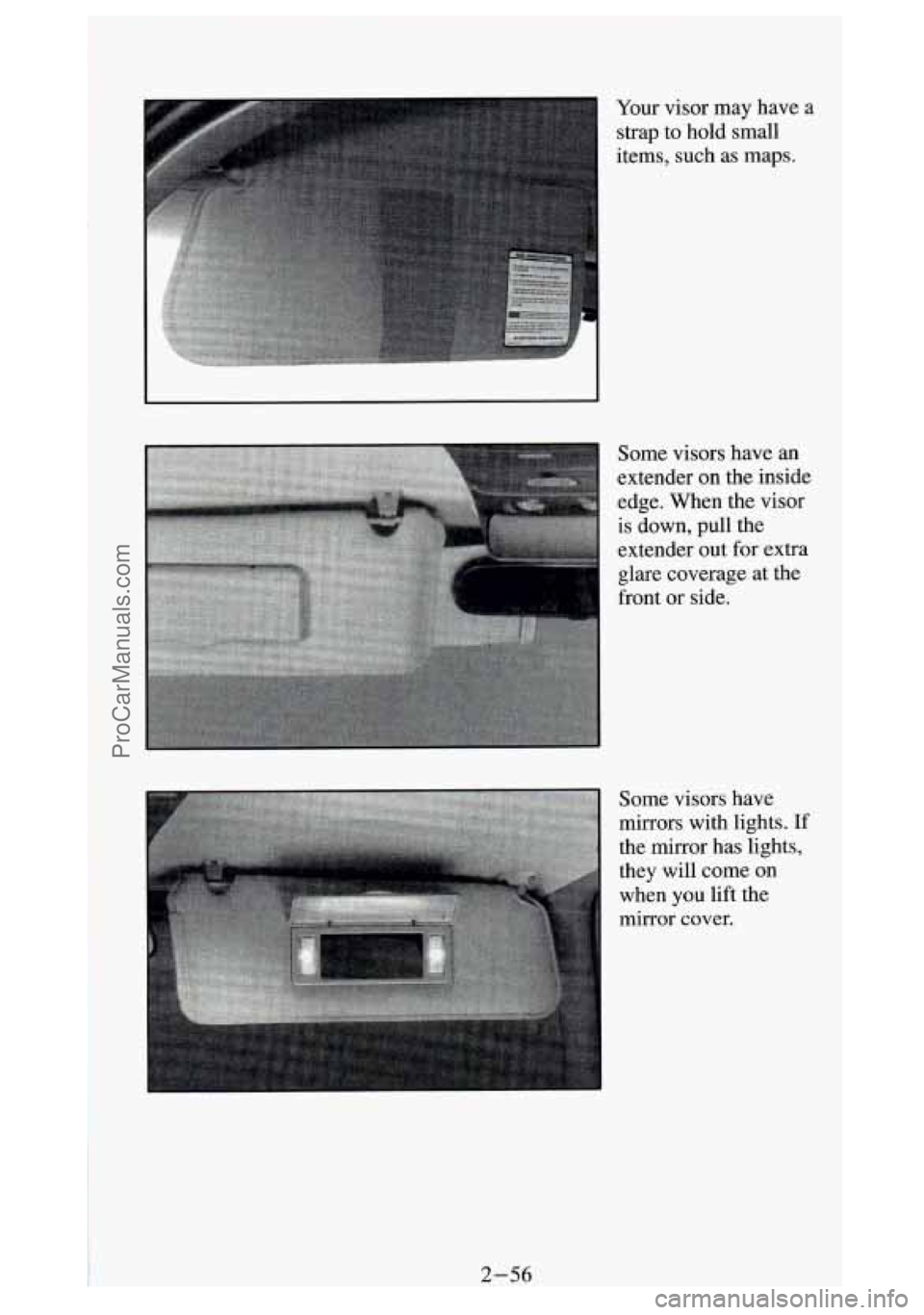

Your visor may have a
strap to hold small
items, such as maps.
Some visors have an
extender on the inside
edge. When
the visor
is down, pull the
extender out for extra
glare coverage at the
front
or side.
Some visors have
mirrors with lights.
If
the &or has lights,
they will come
on
when you lift the
mirror cover.
ProCarManuals.com

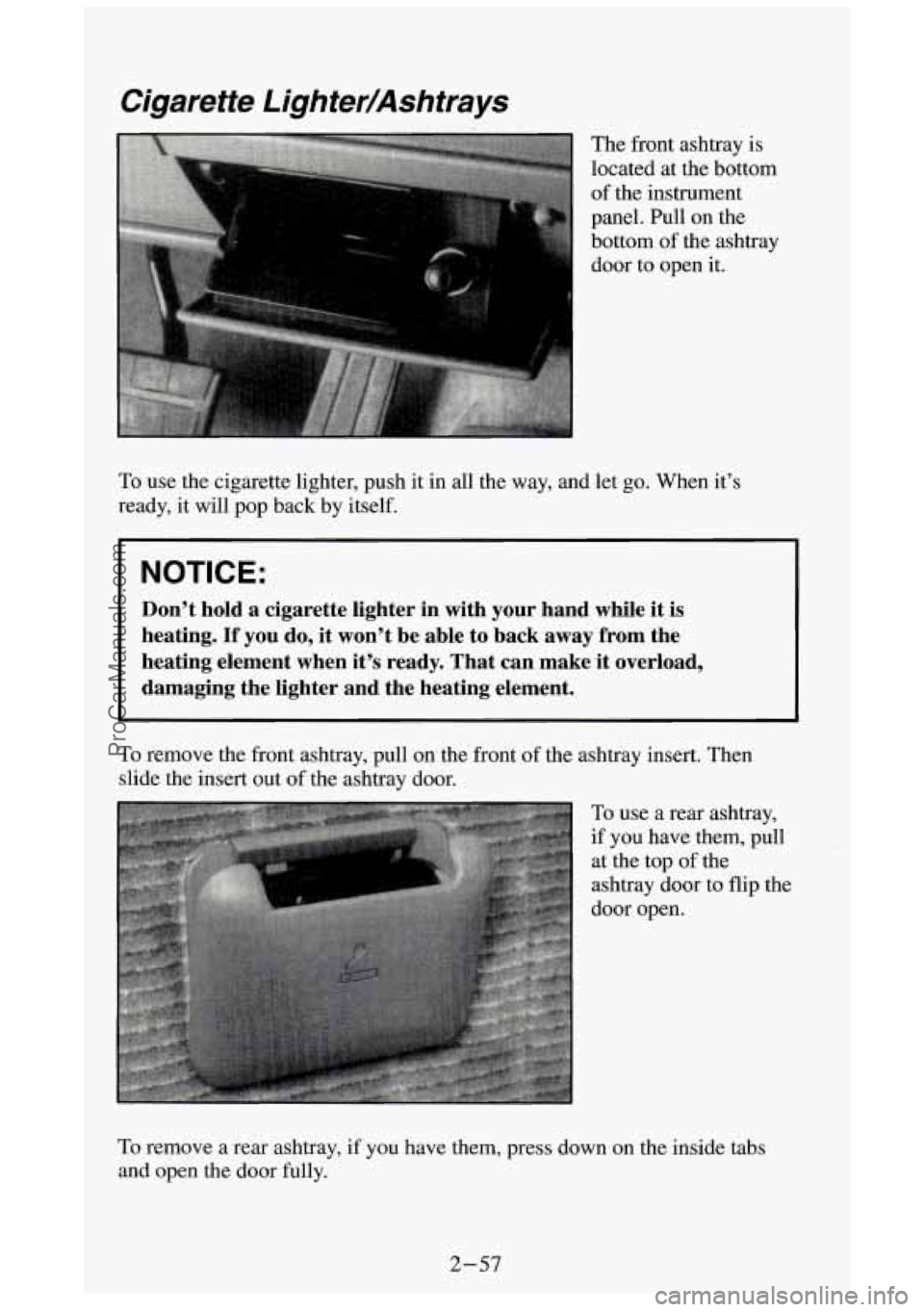

Cigarette Lighter/Ashtrays
The front ashtray is
located at the bottom
of the instrument
panel. Pull on the
bottom of the ashtray
door to open it.
To use the cigarette lighter, push it in all the way, and let go. When it’s
ready, it will pop back by itself.
I NOTICE:
Don’t hold a cigarette lighter in with your hand while it is
heating. If you do, it won’t be able to back away from the
heating element when it’s ready. That can make it overload, \
damaging the lighter and the heating element.
To remove the front ashtray, pull on the front of the ashtray insert. Then
slide the insert out
of the ashtray door.
To use
a rear ashtray,
if you have them, pull at the top
of the
ashtray door to flip the
door open.
To remove a rear ashtray, if you have them, press down on the i\
nside tabs
and open the door fully.
2-57
ProCarManuals.com

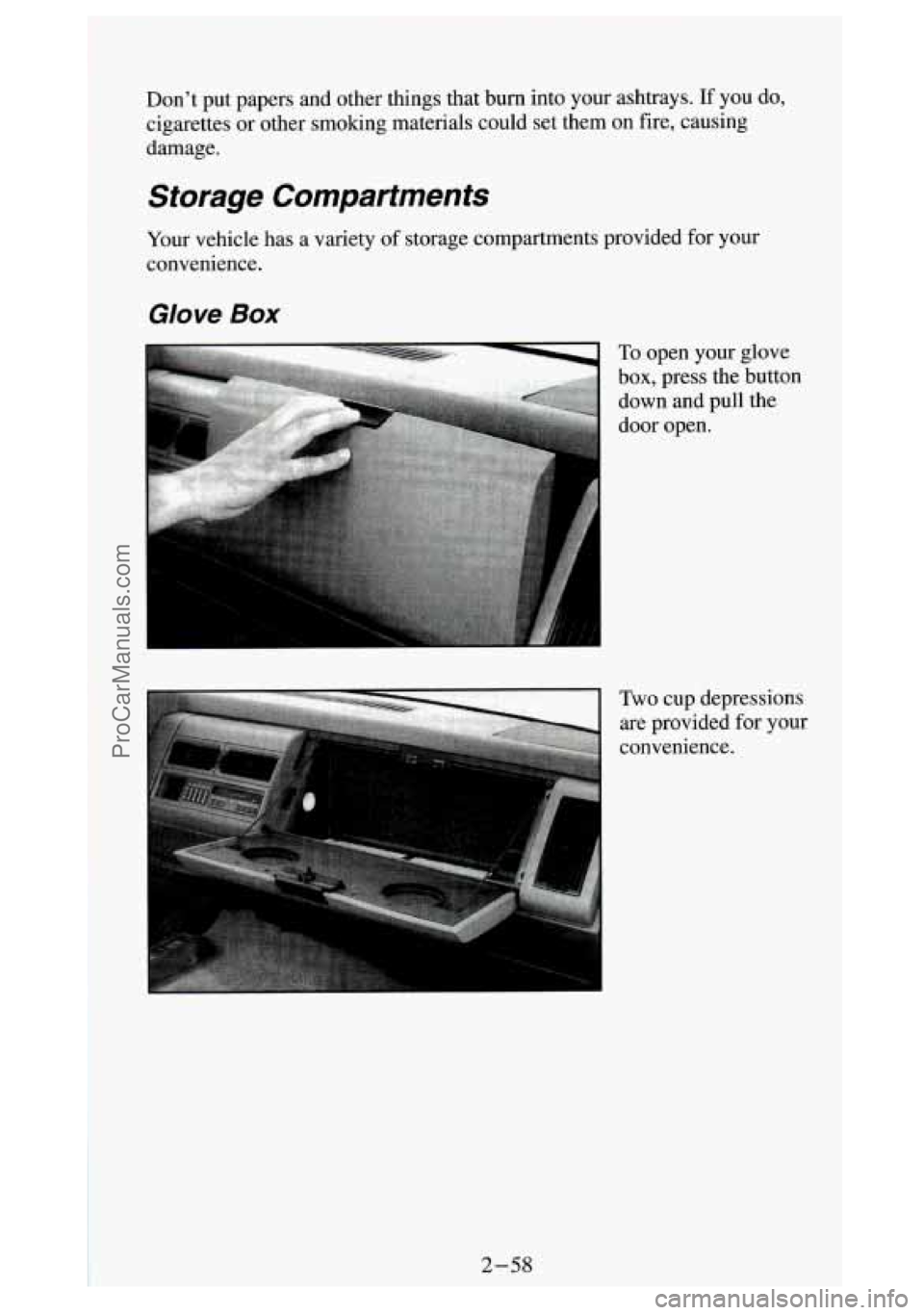

Don't put papers and other things that burn into your ashtrays\
. If you do,
cigarettes or other smoking materials could set them on fire, causing
damage.
Storage Compartments
Your vehicle has a variety of storage compartments provided for your
convenience.
Glove Box
To open your glove
box, press the button
down and pull the
door open.
Two cup depressions are provided for your
convenience.
2-58
ProCarManuals.com

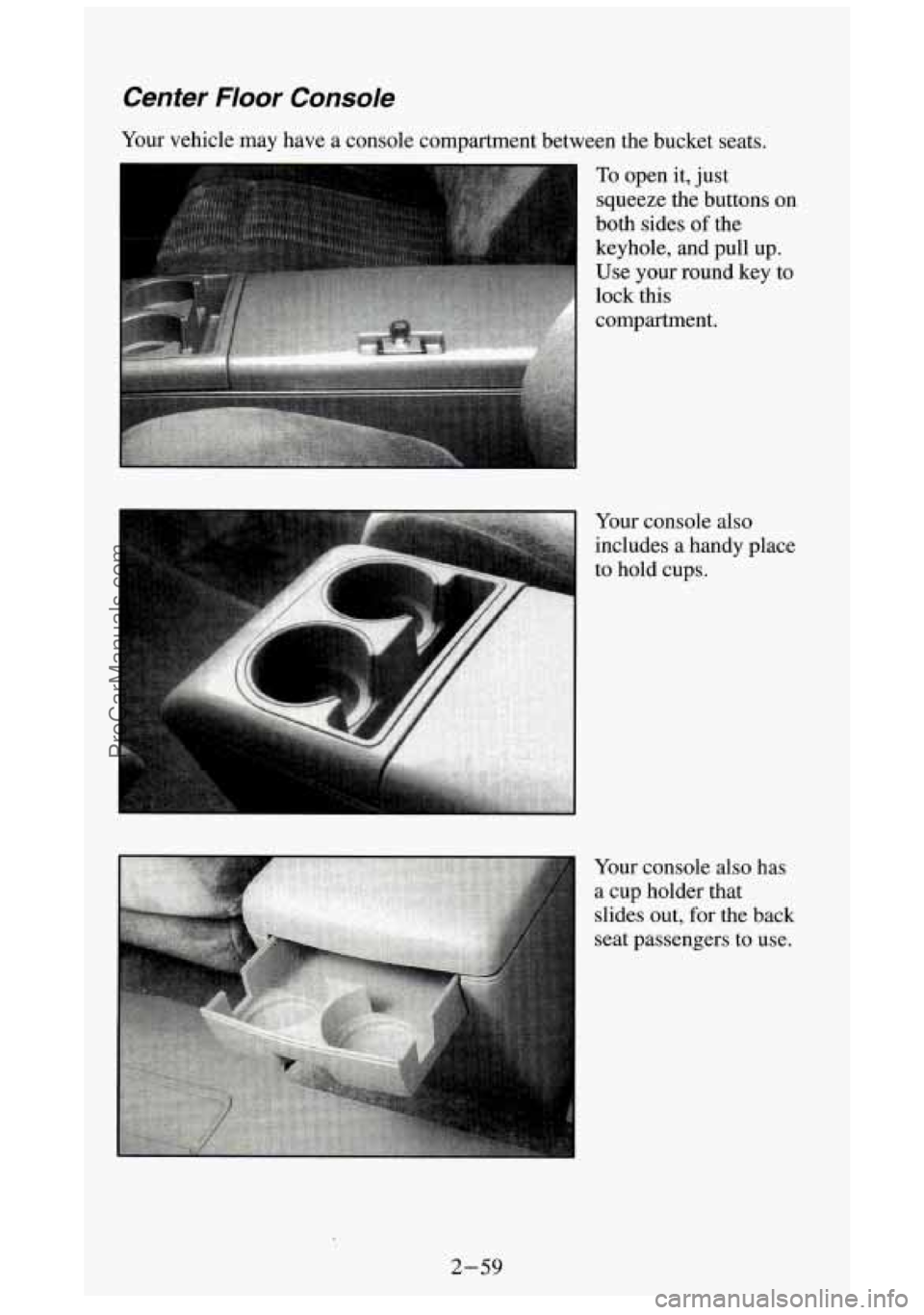

Center Floor Console
Your vehicle may have a console compartment between the bucket \
seats.
To open it, just
squeeze the buttons on
I both sides of the
keyhole, and pull up.
Use your round key to lock this
compartment.
Your console also
includes a handy place
to hold cups.
Your console also has
a cup holder that slides out, for the back
seat passengers to use.
2-59
ProCarManuals.com

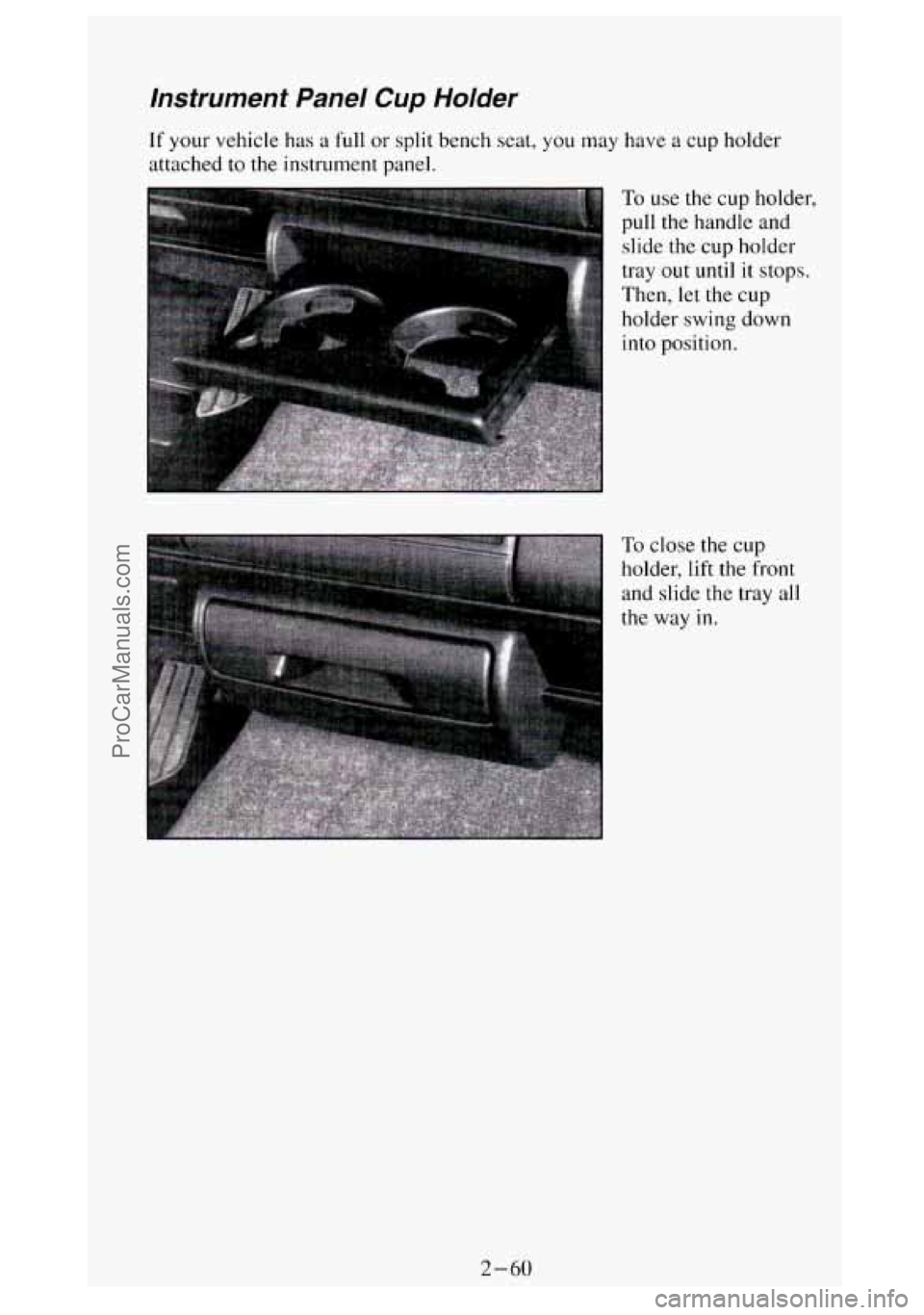

Instrument Panel Cup Holder
If your vehicle has a full or split bench seat, you may have a cup holder
attached
to the instrument panel.
To use the cup holder,
pull the handle and
slide
the cup holder
tray out until it stops.
Then, let the cup
holder swing down
into position.
To close the cup
holder, lift the front
and slide the tray all
the way
in.
2-60
ProCarManuals.com

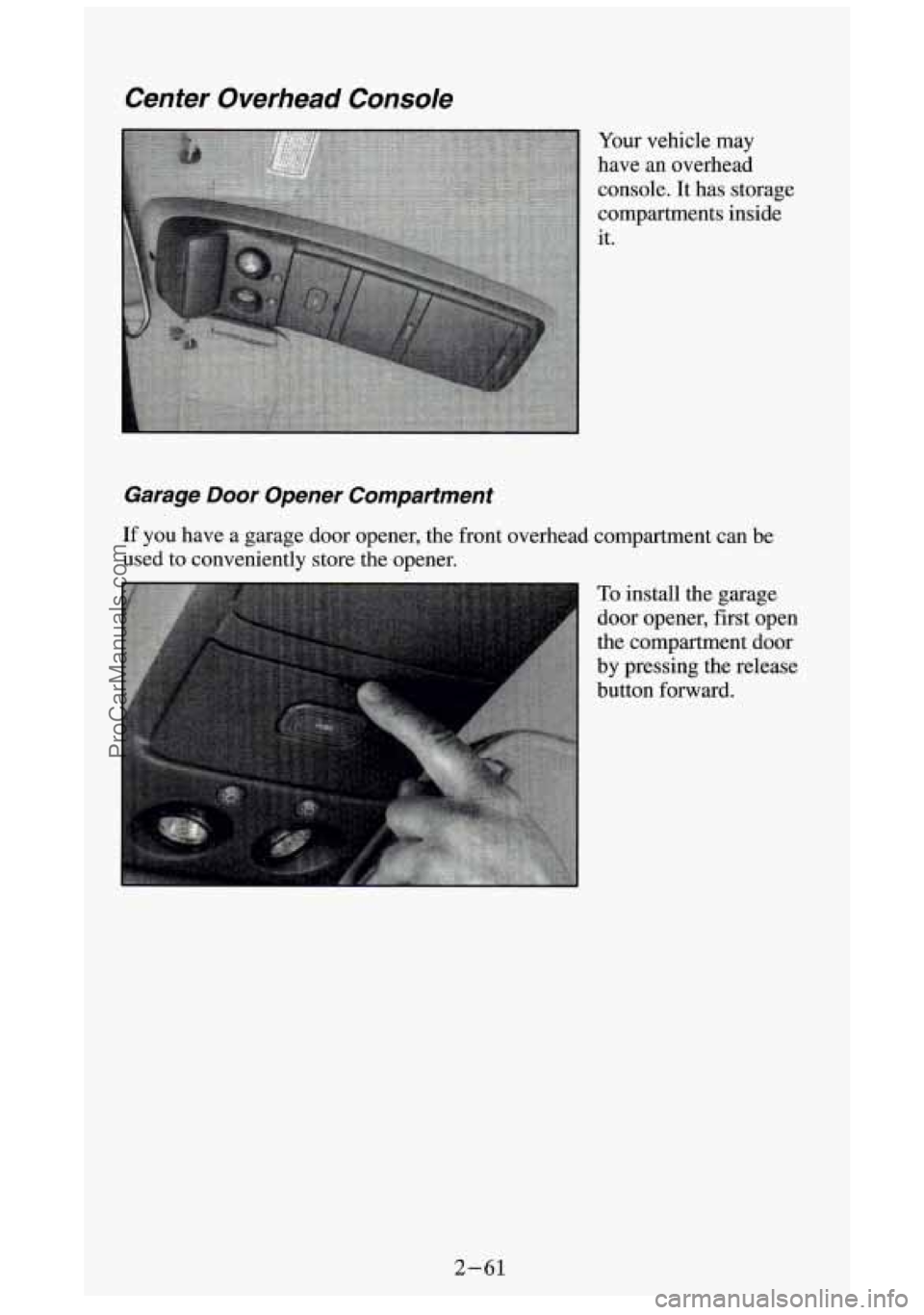

Center Overhead Console
Your vehicle may
have an overhead console. It has storage
compartments inside
it.
Garage Door Opener Compartment
If you have a garage door opener, the front overhead compartment can be
used to conveniently store the opener.
To install the garage
door opener, fist open
the compartment door
by pressing the release
button forward.
2-61
ProCarManuals.com

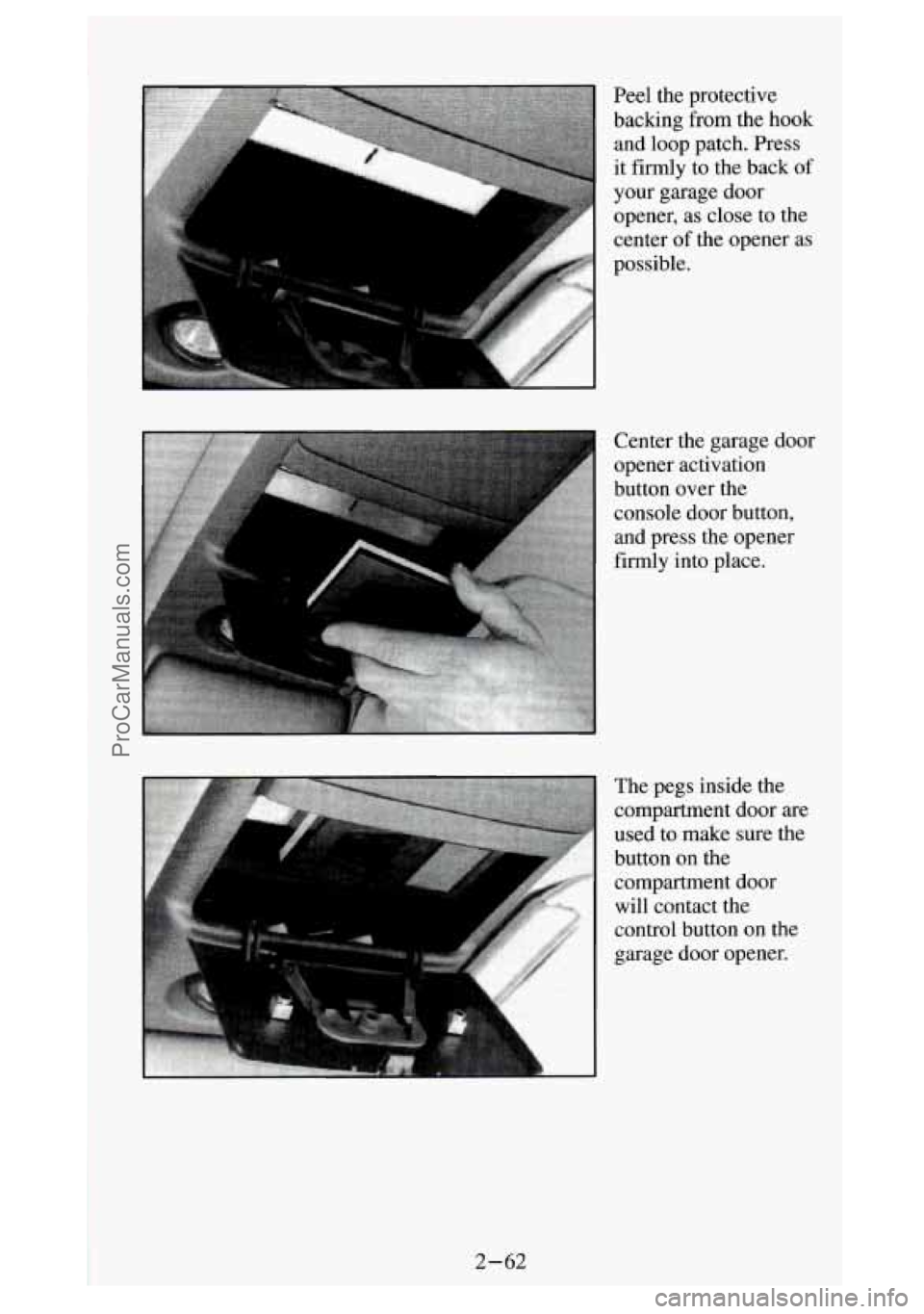

Peel the protective
backing from the hook and loop patch. Press
it firmly to the back of
your garage door
opener, as close to the
center
of the opener as
possible.
Center the garage door
opener activation
button over the console
door button,
and press the opener
firmly into place.
The pegs inside the compartment door are
used to make sure the button on the
compartment door
will contact the
control button on the
garage door opener.
2-62
