GMC SIERRA 1994 Owners Manual

L

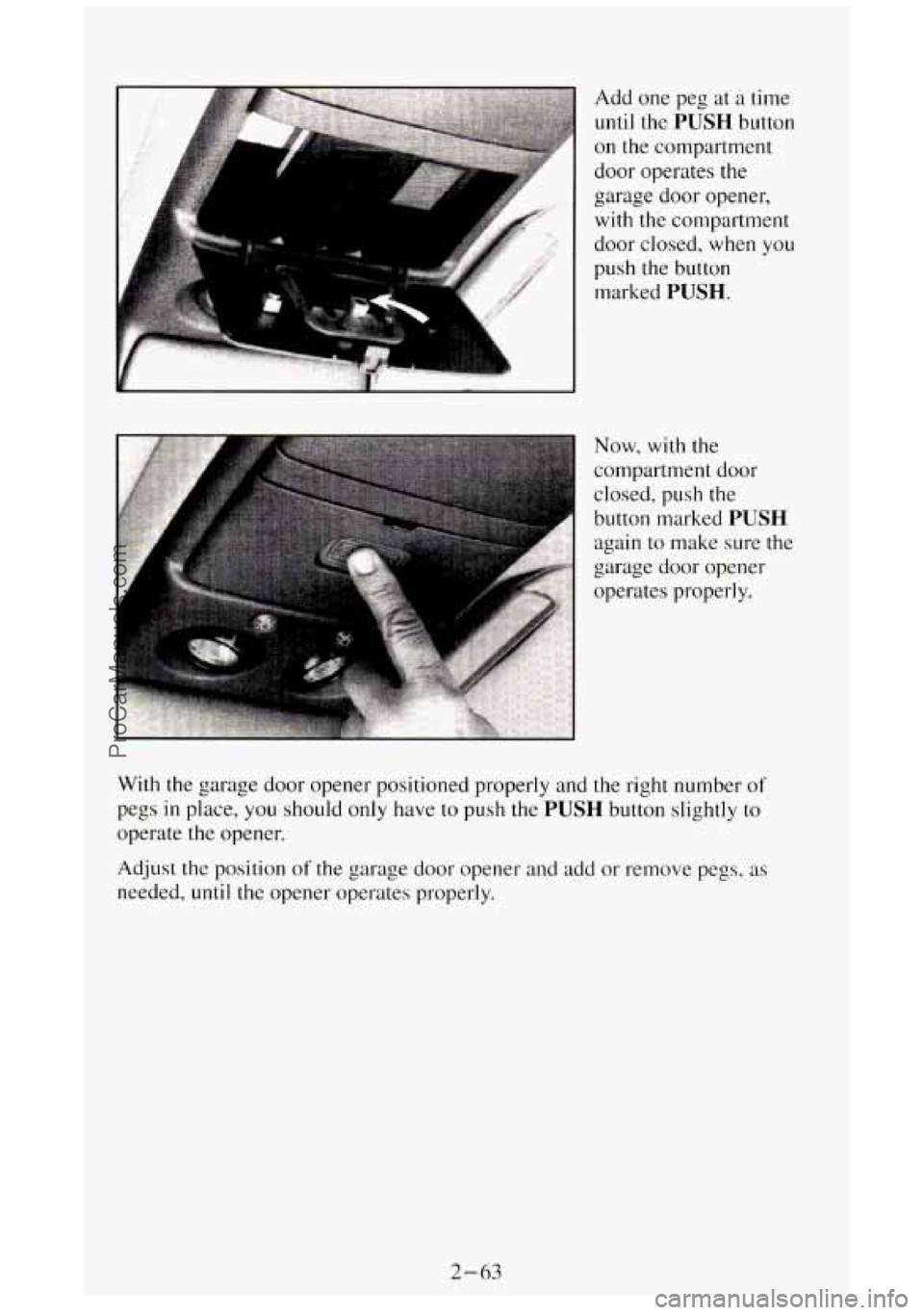

Add one peg at a time
until the PUSH button
on the compartment
door operates the
garage door opener,
with the compartment
door closed,
when you
push
the button
marked
PUSH.
Now, with the
compartment door
closed, push the
button marked
PUSH
again to make sure the
garage door opener
operates properly.
With the garage door opener positioned properly and the right number
of
pegs in place, you should only have to push the PUSH button slightly to
operate
the opener.
Adjust the position
of the garage door opener and add or remove pe,:, 0s as
needed,
until the opener operates properly.
2-63
ProCarManuals.com

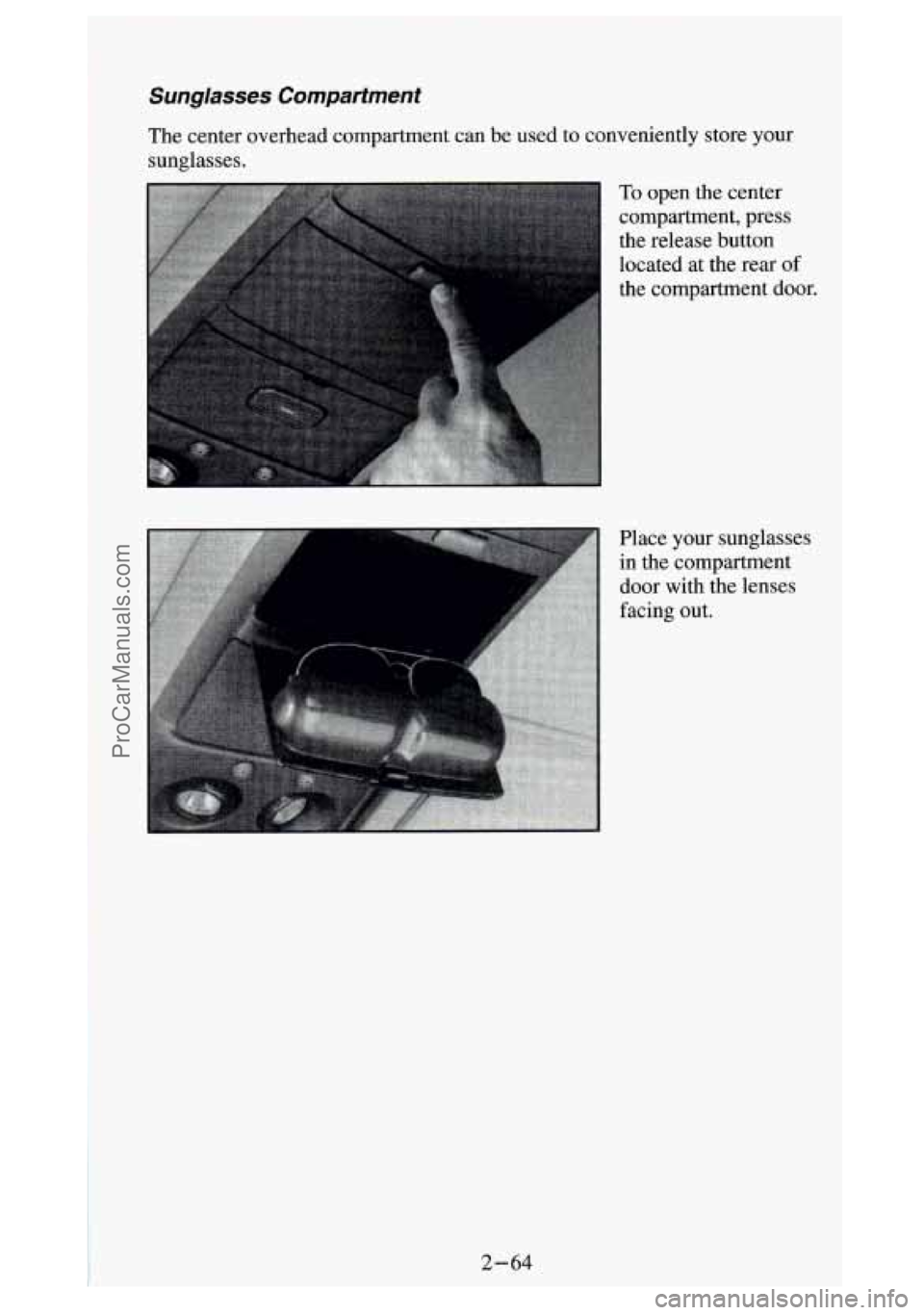

Sunglasses Compartment
The center overhead compartment can be used to conveniently store your
sunglasses.
To open the center
compartment, press
the release button
located at the rear
of
the compartment door.
Place your sunglasses
in the compartment
door
with the lenses
facing out.
2-64
ProCarManuals.com

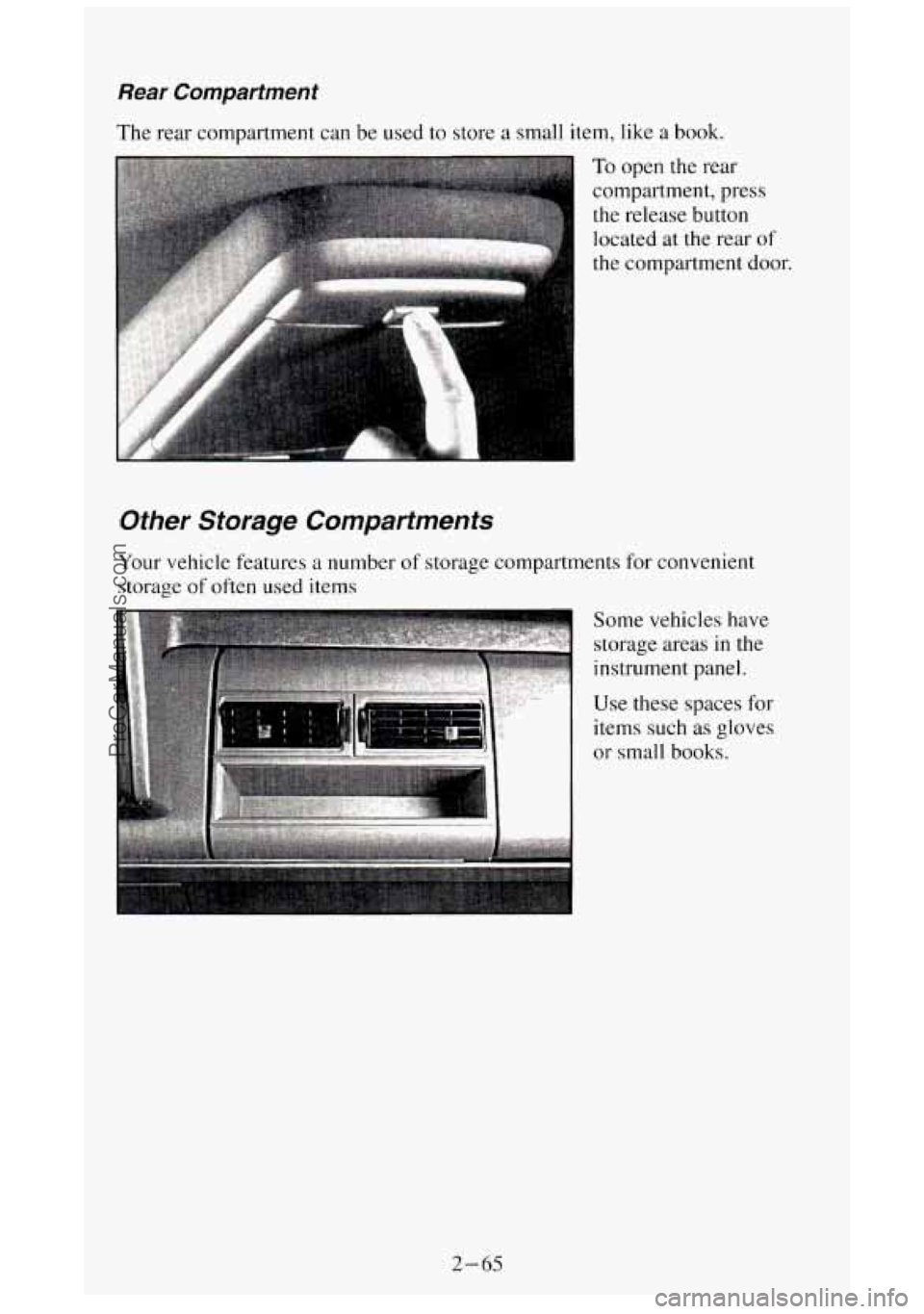

Rear Compartment
The rear compartment can be used to store a small item, like a book.
To open the rear
compartment, press
the release button
located
at the rear of
the compartment door.
Other Storage Compartments
Your vehicle features a number of storage compartments for convenient
storage
of often used items
Some vehicles have
storage areas
in the
instrument panel.
Use these spaces for
items such
as gloves
or small books.
I
2-65
ProCarManuals.com

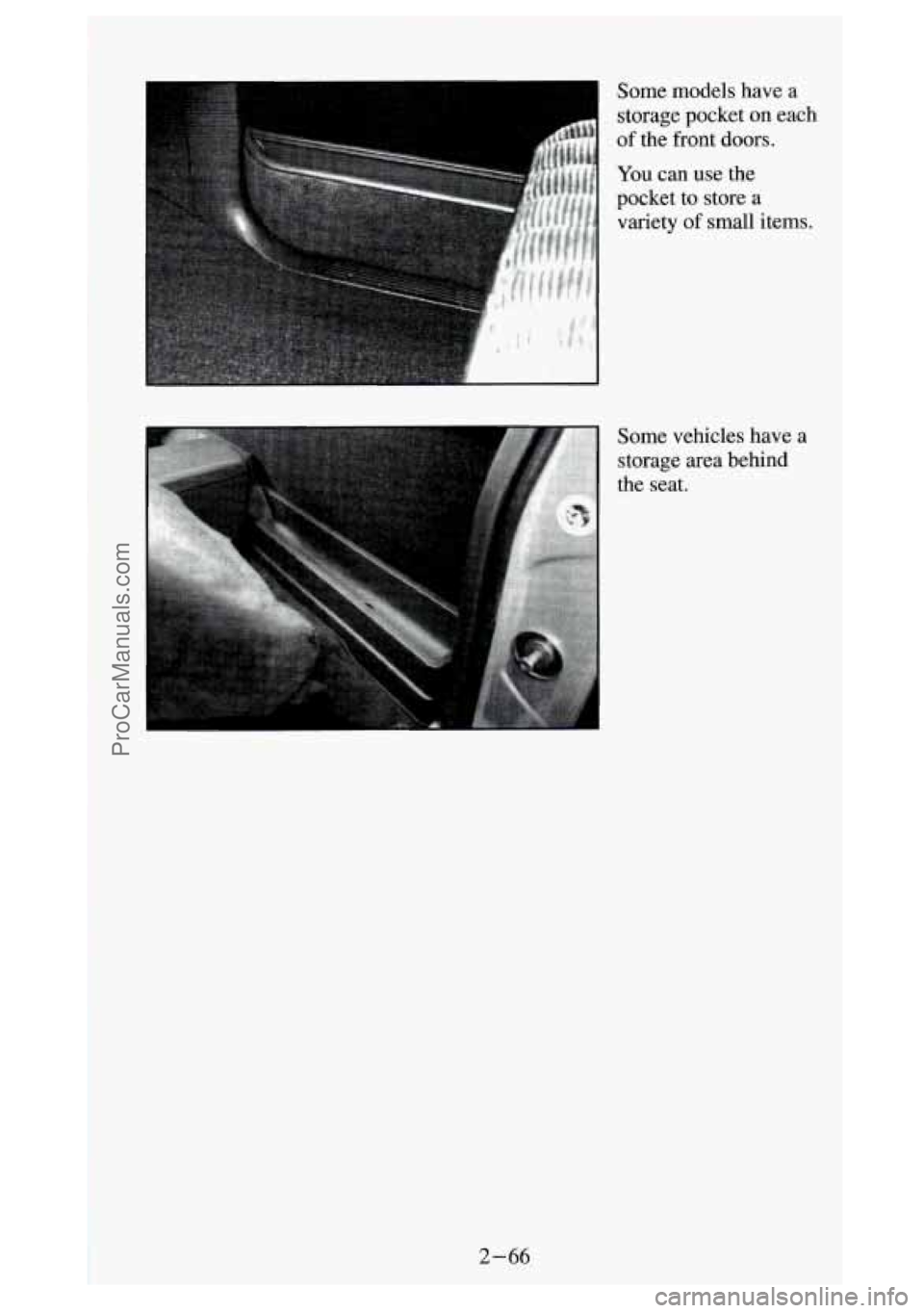

Some models have a
storage pocket
on each
of the front doors.
You can use the
pocket to store a
variety
of small items.
Some vehicles have a
storage area behind
the seat.
ProCarManuals.com

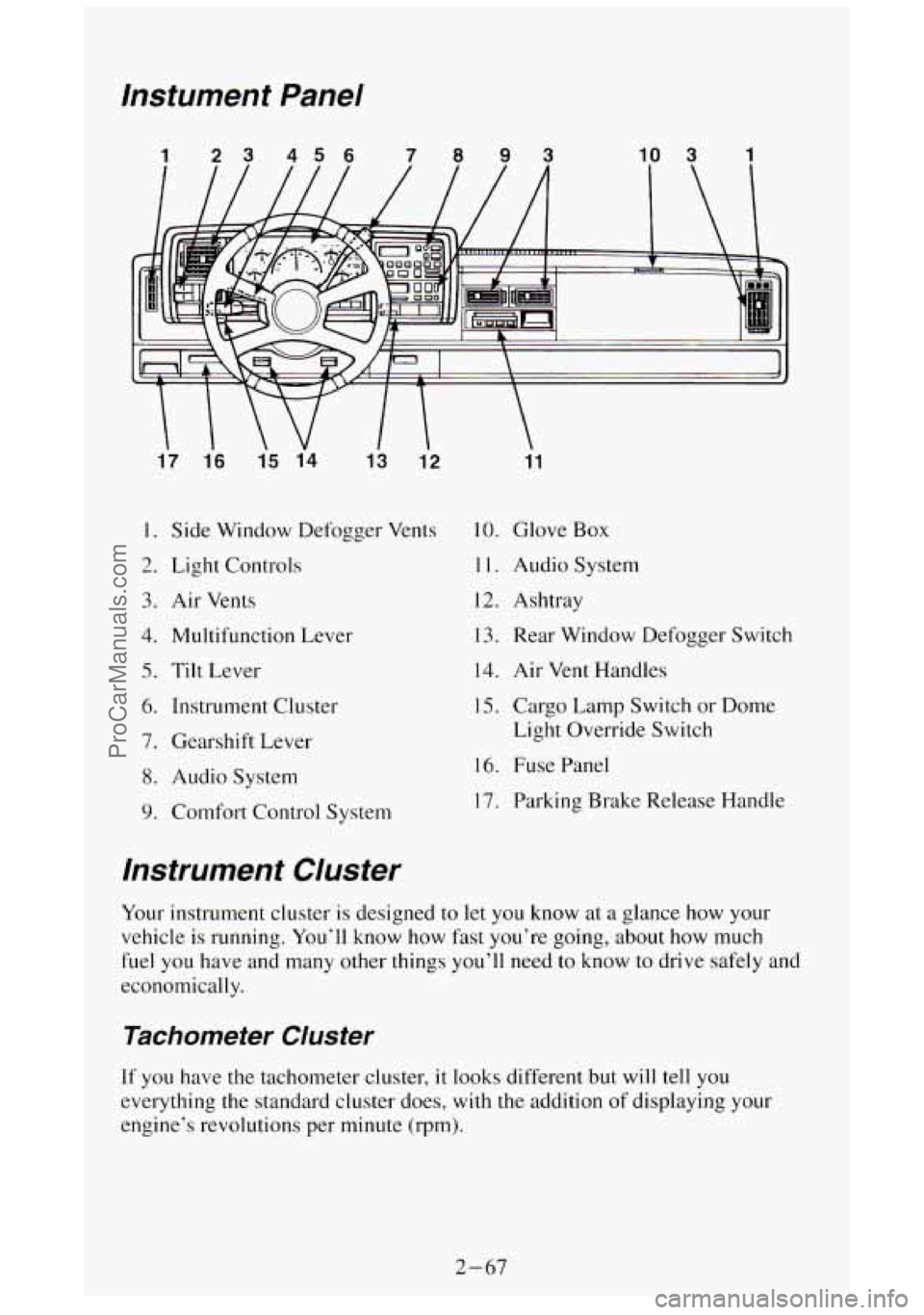

lnstument Panel
1 23 456 7093 10 3 1
17 1.6
15 14
13 12
I. Side Window Defogger Vents
2. Light Controls
3. Air Vents
4. Multifunction Lever
5. Tilt Lever
6. Instrument Cluster
7. Gearshift Lever
8. Audio System
9. Comfort Control System
11
10. Glove Box
1 1. Audio System
12. Ashtray
13. Rear Window Defogger Switch
14. Air Vent Handles
15. Cargo Lamp Switch or Dome
Light Override Switch
16. Fuse Panel
17. Parking Brake Release Handle
lnstrument Cluster
Your instrument cluster is designed to let you know at a glance how your
vehicle is running. You’ll know
how fast you’re going, about how much
fuel you have and many other things you’ll need
to know to drive safely and
economically.
Tachometer Cluster
If you have the tachometer cluster, it looks different but will tell you
everything the standard cluster does, with
the addition of displaying your
engine’s revolutions per minute (rpm).
2-67
ProCarManuals.com

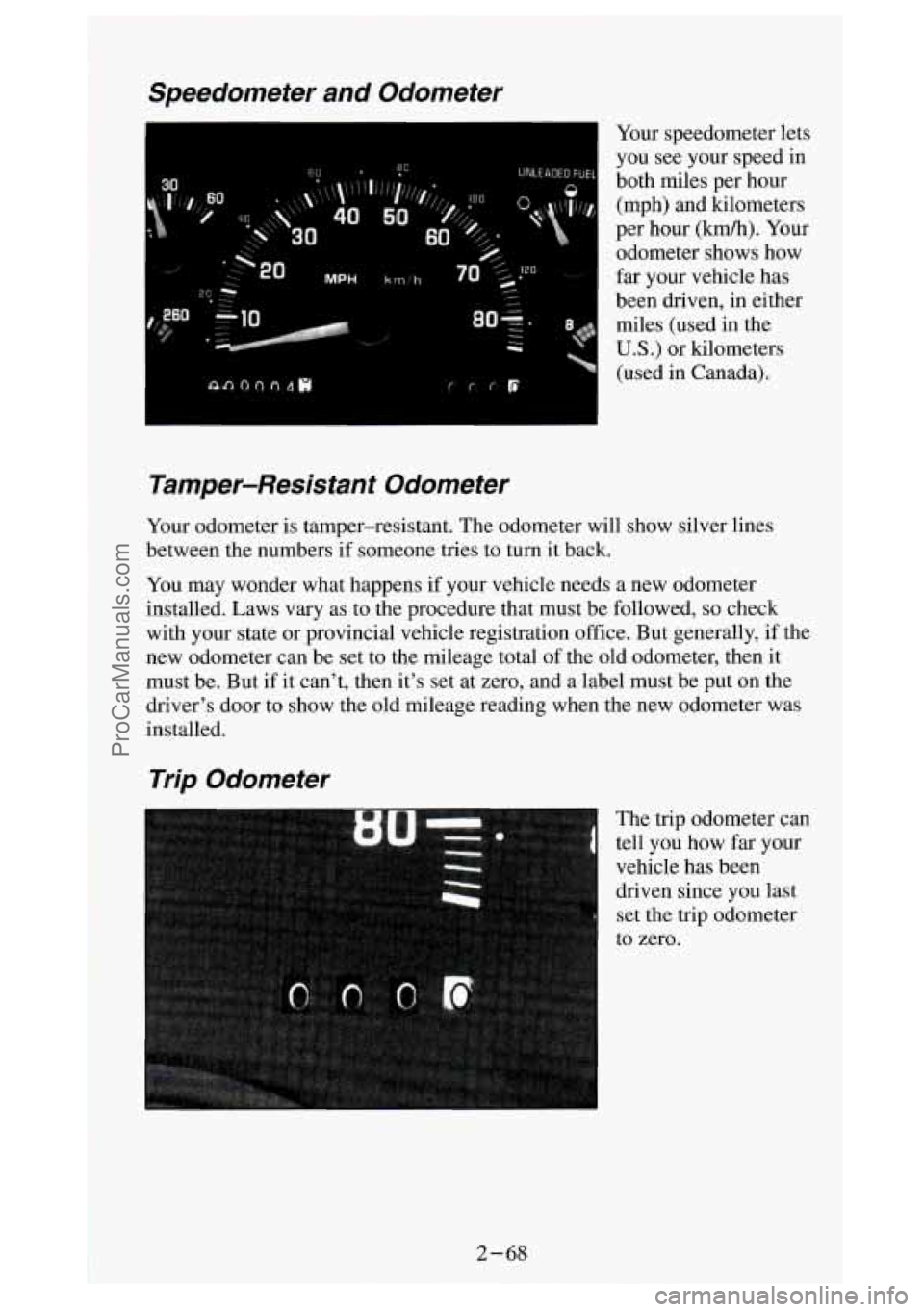

Speedometer and Odometer
I Your speedometer lets
you
see your speed in
both miles per hour
(mph) and kilometers
per hour
(km/h). Your
odometer shows how
far your vehicle has
been driven, in either
miles (used in the
US.) or kilometers
(used in Canada).
Tamper-Resistant Odometer
Your odometer is tamper-resistant. The odometer will show silver lines
between the numbers
if someone tries to turn it back.
You may wonder what happens if your vehicle needs a new odometer
installed. Laws vary as to the procedure that must be followed,
so check
with your state or provincial vehicle registration office. But generally, if the
new odometer can be set
to the mileage total of the old odometer, then it
must be. But if it can’t, then it’s set at zero, and a label must be put on the
driver’s door to show the old mileage reading when the new odometer was
installed.
Trip Odometer
The trip odometer can
tell you how far your
vehicle has been driven since you last
set the trip odometer
to zero.
2-68
E
ProCarManuals.com

To reset the trip odometer, fully press the reset button located \
near the trip
odometer readout. If the reset button is not fully pressed, the trip odometer
may not go all the way back to zero. If it doesn’t, you may have to press the
reset button again to reset the readout to zero.
Tachometer
If you have a
tachometer, it displays
the engine speed in
revolutions per minute
(rpm).
I NOTICE:
Do not operate the engine with the tachometer in the red area\
,
your engine or other parts could be damaged.
Damage to your engine or vehicle caused by operating the
engine in the red area isn’t covered by your vehicle warranty.
Warning Lights and Indicators
This section describes the warning lights and gages that may b\
e on your
vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something
is wrong before it
becomes serious enough to cause an expensive repair or replacem\
ent.
Paying attention to your warning lights and gages could also s\
ave you or
others from injury.
Warning lights go on when there may be
or is a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition\
key just to
let you know they’re working.
If you are familiar with this section, you
should not be alarmed when this happens.
2-69
ProCarManuals.com

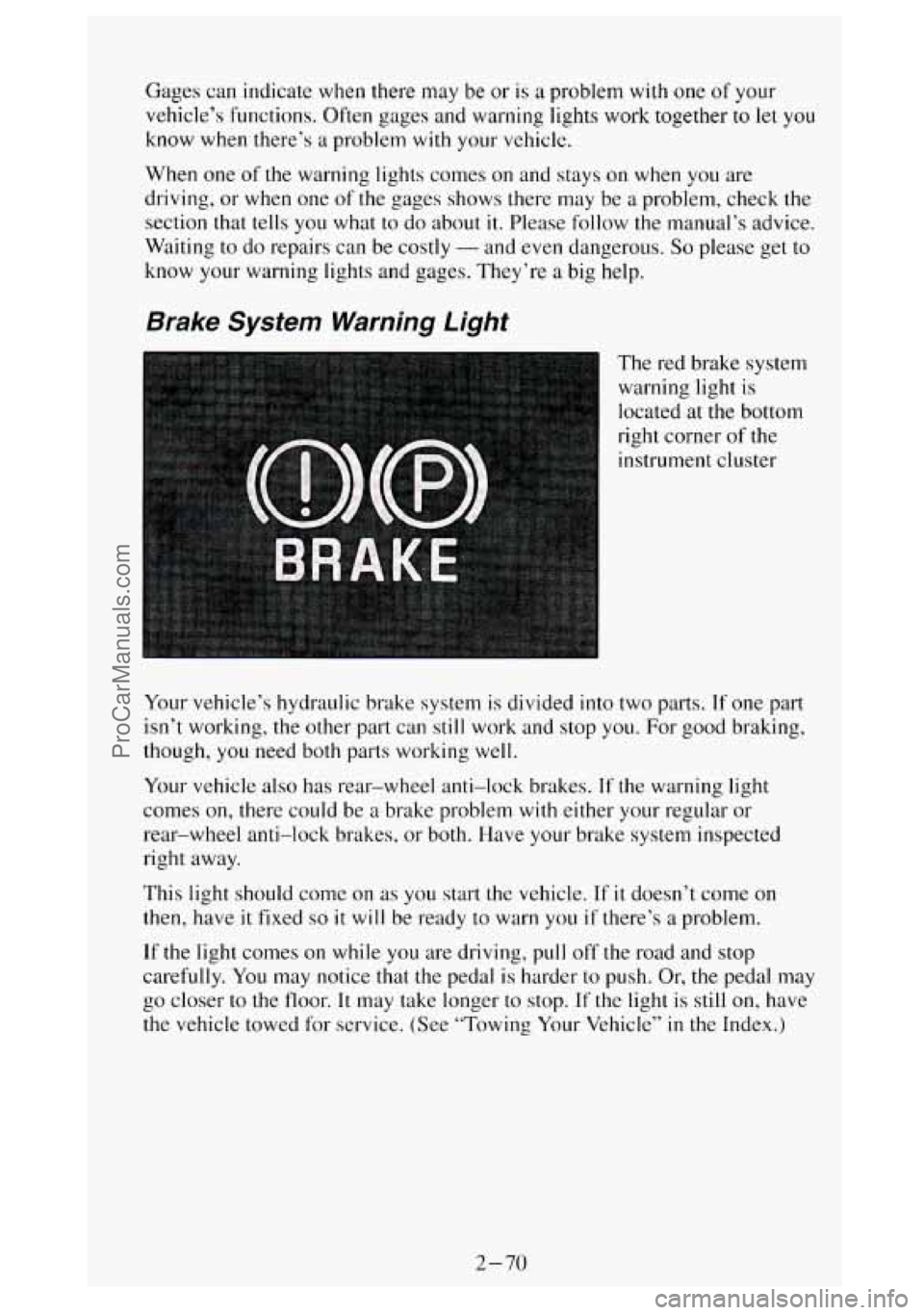

Gages can indicate when there may be or is a problem with one of your
vehicle’s functions. Often gages and warning lights work together to let
you
know when there’s a problem with your vehicle.
When one of the warning lights comes on and stays on when you are
driving,
or when one of the gages shows there may be a problem, check the
section that tells you what to do about
it. Please follow the manual’s advice.
Waiting
to do repairs can be costly - and even dangerous. So please get to
know your warning lights and gages. They’re
a big help.
Brake System Warning Light
The red brake system
warning light is
located at the bottom
right corner
of the
instrument cluster
Your vehicle’s hydraulic brake system
is divided into two parts. If one part
isn’t working, the other part can still work and stop you. For good braking,
though, you need both parts working well.
Your vehicle also has rear-wheel anti-lock brakes.
If the warning light
comes on, there could be
a brake problem with either your regular or
rear-wheel anti-lock brakes, or both. Have your brake system inspected
right away.
This light should come on
as you start the vehicle. If it doesn’t come on
then, have it fixed so it will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the road and stop
carefully.
You may notice that the pedal is harder to push. Or, the pedal may
go closer
to the floor. It may take longer to stop. If the light is still on, have
the vehicle towed for service. (See “Towing Your Vehicle”
in the Index.)
2-70
ProCarManuals.com

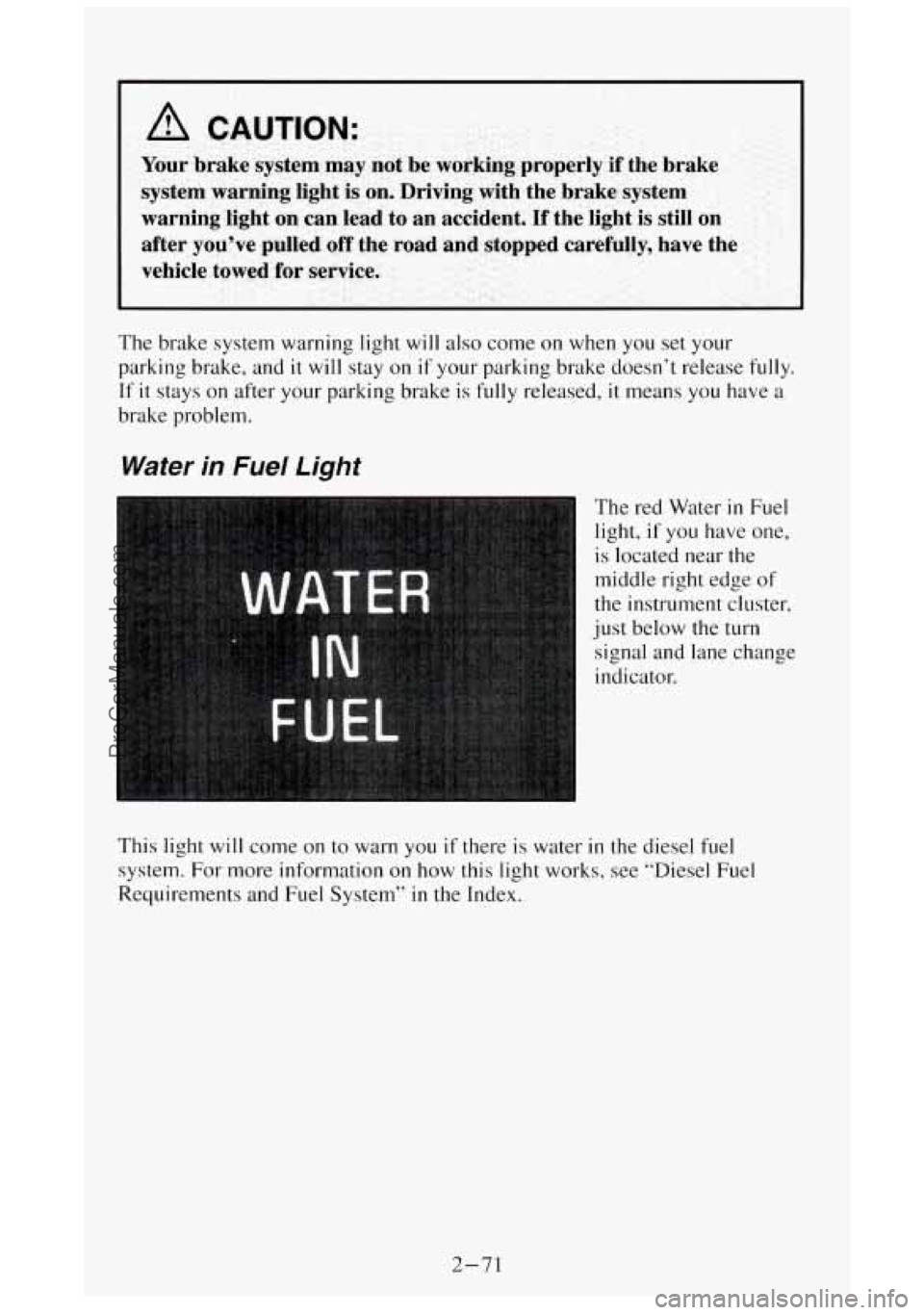

A CAUTION:
The brake system warning light will also come on when you set your
parking brake, and
it will stay on if your parking brake doesn’t release fully.
If it stays on after your parking brake is fully released, it means you have a
brake problem.
Water in Fuel Light
The red Water in Fuel
light,
if you have one,
is located near the
middle right edge of
the instrument cluster,
just below the turn
signal and lane change
indicator.
This light will come on to warn you
if there is water in the diesel fuel
system. For more information on how this light works, see “Diesel Fuel
Requirements and Fuel System”
in the Index.
2-71
ProCarManuals.com

Service Throttle Soon Light
The orange Service
Throttle Soon light,
if
you have one, is
located near the
middle left edge of the
instrument cluster
On diesel engines, a computer monitors the operation of the electronic
accelerator. This light should come on when the ignition is on but the engine
is not running, as a check to show you its working.
If it does not come on at
all, have it fixed right away. If the light stays on after the engine starts or
comes on while you are driving, the computer is indicating that you have a
problem. You should take your vehicle in for service soon.
Glow Plugs Light
The orange Glow
Plugs light, if you
have one, is located
near the upper right
corner
of the
instrument cluster.
If you have a diesel engine,
it has a special starting system. An instrument
panel Glow Plugs light tells you when the engine is ready
to be started. For
more details, see “Starting Your Diesel Engine” in the Index.
2-72
