GREAT WALL HOVER 2006 Service Repair Manual

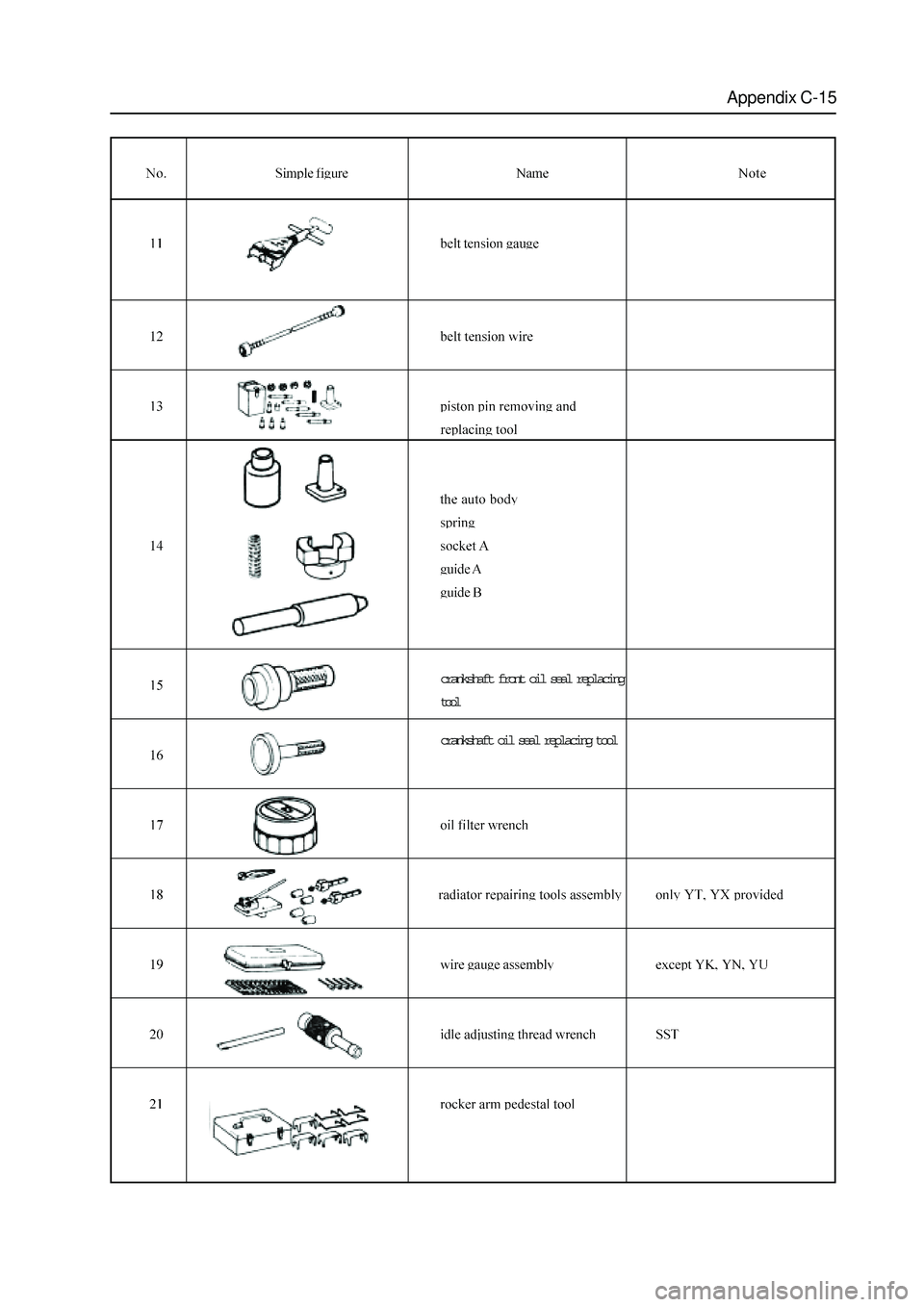

Appendix C-15
crankshaft front oil seal replacing
tool
crankshaft oil seal replacing tool

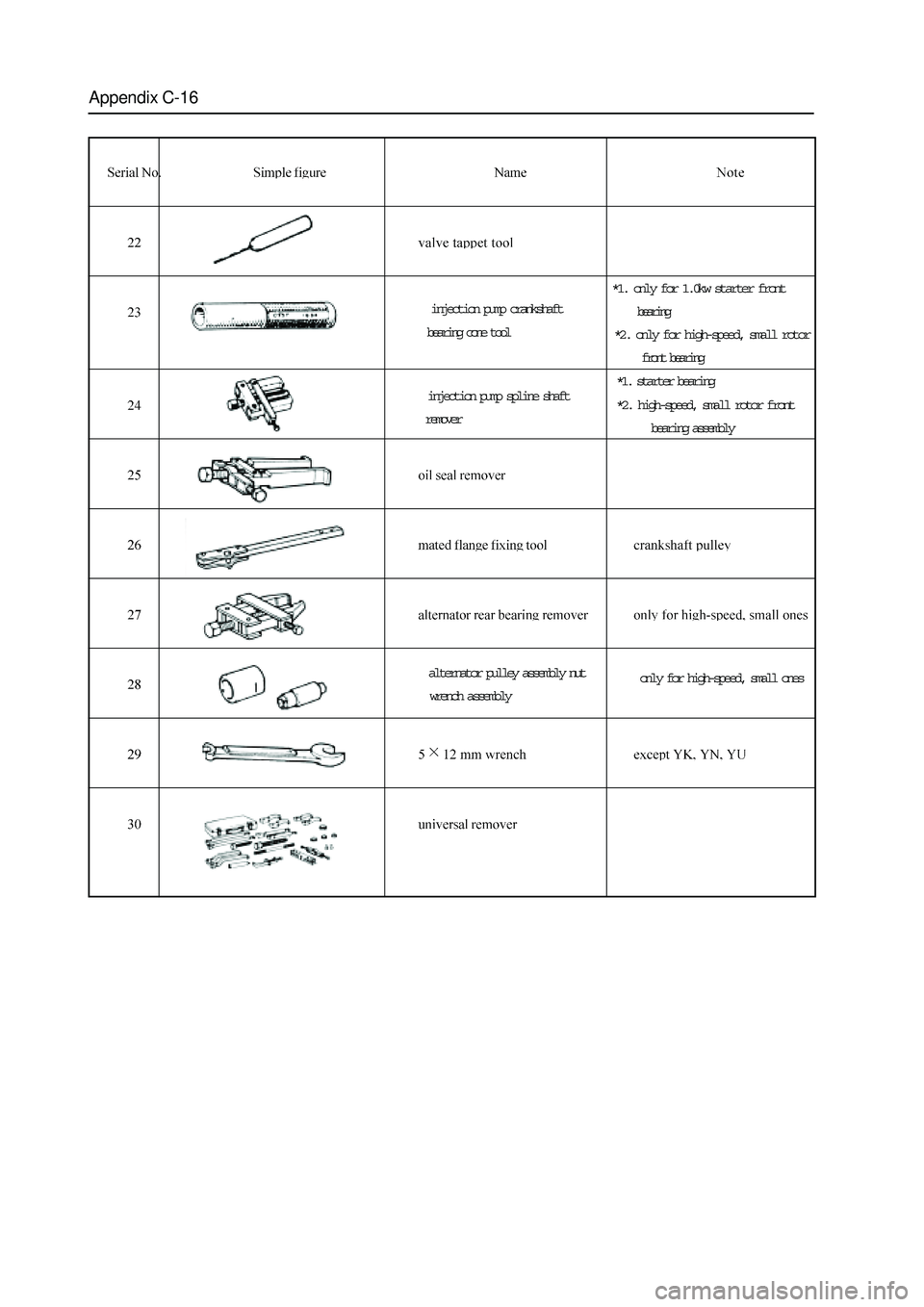

Appendix C-16
*1. only for 1.0kw starter front
bearing injection pump crankshaft
bearing cone tool
*2. only for high-speed, small rotor
front bearing
injection pump spline shaft
remover*1. starter bearing
*2. high-speed, small rotor front
bearing assembly
only for high-speed, small ones alternator pulley assembly nut
wrench assembly

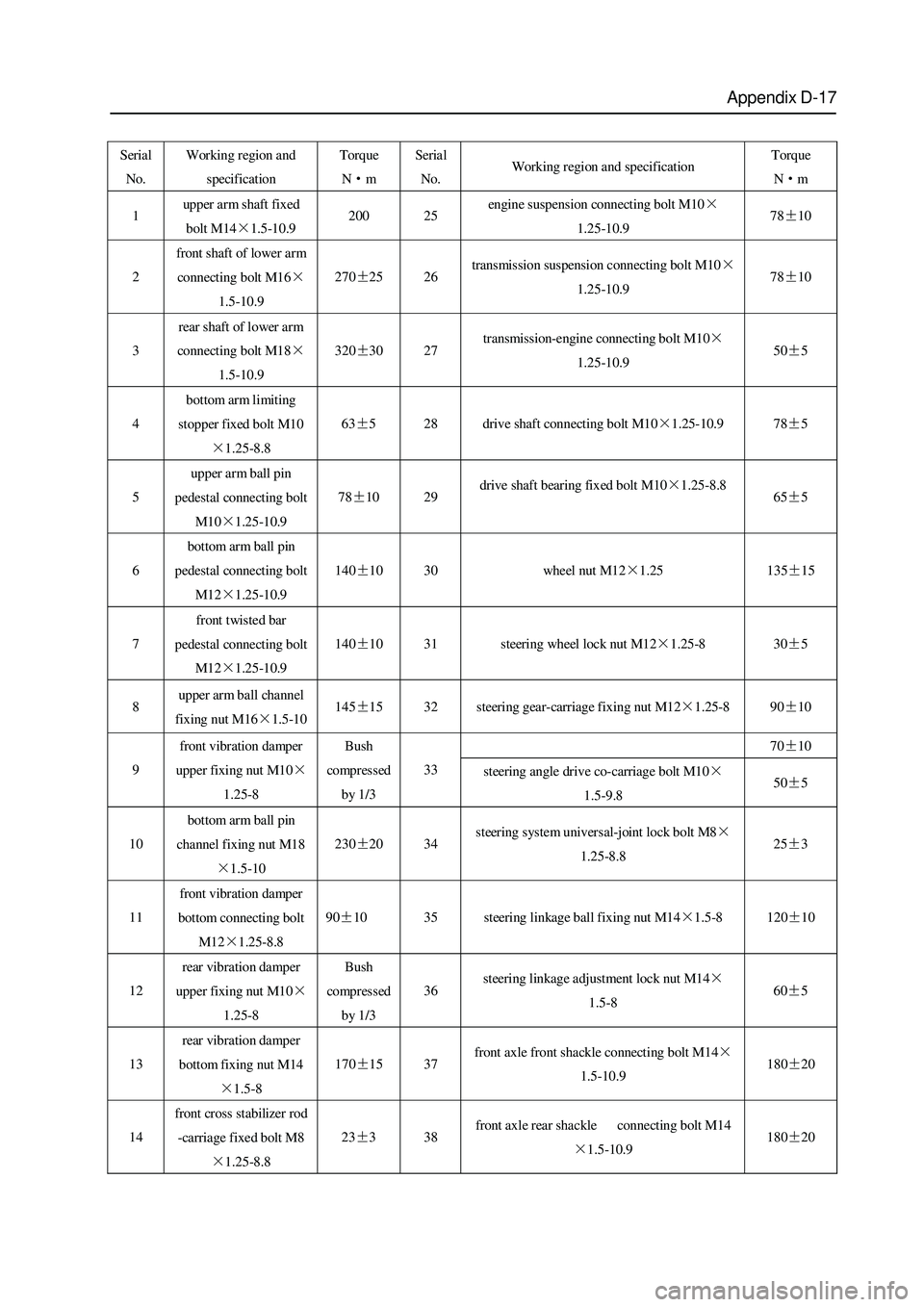

Appendix D-17
Serial
No. Working region and
specification Torque
N·m Serial
No. Working region and specification Torque
N·m
1 upper arm shaft fixed
bolt M14×1.5-10.9 200 25 engine suspension connecting bolt M10×
1.25-10.9 78±10
2 front shaft of lower arm
connecting bolt M16×
1.5-10.9 270±25 26 transmission suspension connecting bolt M10×
1.25-10.9 78±10
3 rear shaft of lower arm
connecting bolt M18×
1.5-10.9 320±30 27 transmission-engine connecting bolt M10×
1.25-10.9 50±5
4 b ottom ar m l imit ing
stopper fixed bolt M10
×1.25-8.8 63±5 28 drive shaft connecting bolt M10×1.25-10.9 78±5
5 upper arm ball pin
pedestal connecting bolt
M10×1.25-10.9 78±10 29 drive shaft bearing fixed bolt M10×1.25-8.8
65±5
6 bottom ar m ball p in
pedestal connecting bolt
M12×1.25-10.9 140±10 30 wheel nut M12×1.25 135±15
7 front twisted bar
pedestal connecting bolt
M12×1.25-10.9 140±10 31 steering wheel lock nut M12×1.25-8 30±5
8 upper arm ball channel
fixing nut M16×1.5-10 145±15 32 steering gear-carriage fixing nut M12×1.25-8 90±10
70±10
9 front vibration damper
upper fixing nut M10×
1.25-8 Bush
co mpr es sed
by 1/3 33
steering angle drive co-carriage bolt M10×
1.5-9.8 50±5
10 bottom ar m ball p in
channel fixing nut M18
×1.5-10 230±20 34 steering system universal-joint lock bolt M8×
1.25-8.8 25±3
11 front vibration damper
bottom connecting bolt
M12×1.25-8.8 90±10 35 steering linkage ball fixing nut M14×1.5-8 120±10
12 rear vibration damper
upper fixing nut M10×
1.25-8 Bush
co mpr es sed
by 1/3 36 steering linkage adjustment lock nut M14×
1.5-8 60±5
13 rear vibration damper
bottom fixing nut M14
×1.5-8 170±15 37 front axle front shackle connecting bolt M14×
1.5-10.9 180±20
14 front cross stabilizer rod
-carriage fixed bolt M8
×1.25-8.8 23±3 38 front axle rear shackle connecting bolt M14
×1.5-10.9 180±20

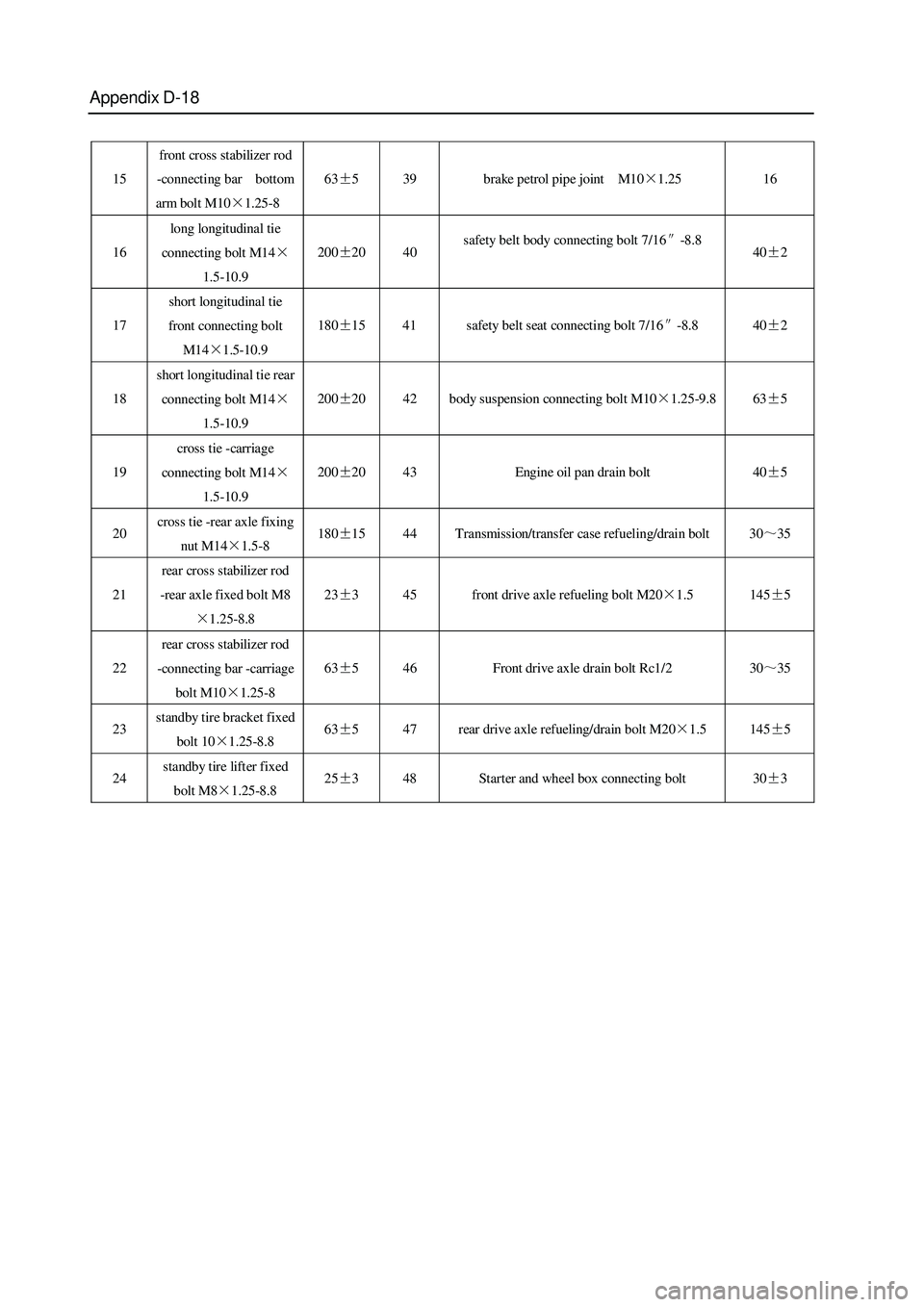

Appendix D-18
15 front cross stabilizer rod
-connecting bar bottom
arm bolt M10×1.25-8 63±5 39 brake petrol pipe joint M10×1.25 16
16 long longitudinal tie
connecting bolt M14×
1.5-10.9 200±20 40 safety belt body connecting bolt 7/16″-8.8
40±2
17 short longitudinal tie
front connecting bolt
M14×1.5-10.9 180±15 41 safety belt seat connecting bolt 7/16″-8.8 40±2
18 short longitudinal tie rear
connecting bolt M14×
1.5-10.9 200±20 42 body suspension connecting bolt M10×1.25-9.8 63±5
19 cross tie -carriage
connecting bolt M14×
1.5-10.9 200±20 43 Engine oil pan drain bolt 40±5
20 cross tie -rear axle fixing
nut M14×1.5-8 180±15 44 Transmission/transfer case refueling/drain bolt 30～35
21 rear cross stabilizer rod
-rear axle fixed bolt M8
×1.25-8.8 23±3 45 front drive axle refueling bolt M20×1.5 145±5
22 rear cross stabilizer rod
-connecting bar -carriage
bolt M10×1.25-8 63±5 46 Front drive axle drain bolt Rc1/2 30～35
23 standby tire bracket fixed
bolt 10×1.25-8.8 63±5 47 rear drive axle refueling/drain bolt M20×1.5 145±5
24 standby tire lifter fixed
bolt M8×1.25-8.8 25±3 48 Starter and wheel box connecting bolt 30±3
