GREAT WALL HOVER 2006 Service Repair Manual

Safety airbag-31
release wiring harness.
driver’s side safety airbag module
release wiring harness

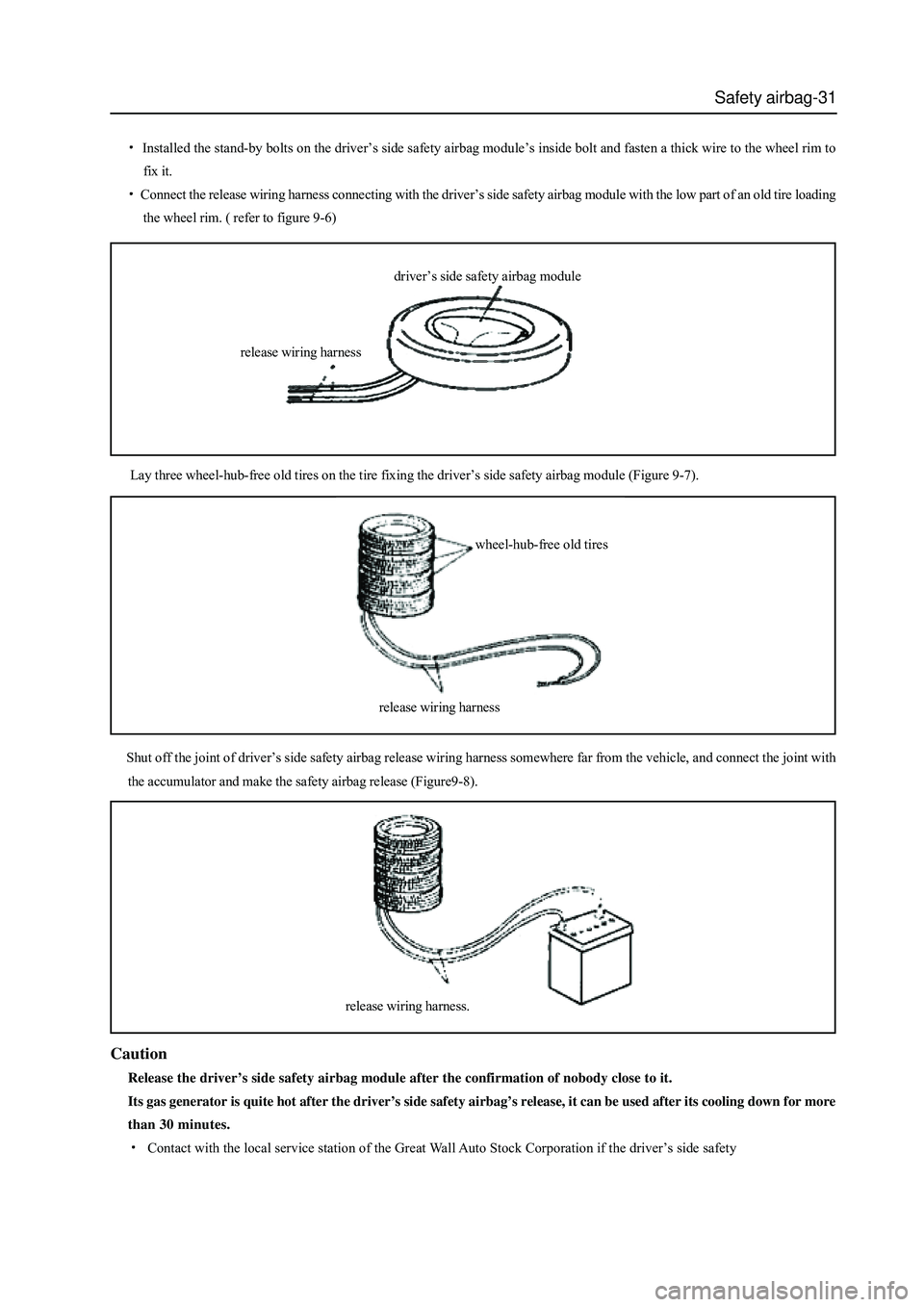

Installed the stand-by bolts on the driver’s side safety airbag module’s inside bolt and fasten a thick wire to the wheel rim to
fix it.
Connect the release wiring harness connecting with the driver’s side safety airbag module with the low part of an old tire loading
the wheel rim. ( refer to figure 9-6)
Lay three wheel-hub-free old tires on the tire fixing the driver’s side safety airbag module (Figure 9-7).
wheel-hub-free old tires
release wiring harness
Shut off the joint of driver’s side safety airbag release wiring harness somewhere far from the vehicle, and connect the joint with
the accumulator and make the safety airbag release (Figure9-8).
Caution
Release the driver’s side safety airbag module after the confirmation of nobody close to it.
Its gas generator is quite hot after the driver’s side safety airbag’s release, it can be used after its cooling down for more
than 30 minutes.
Contact with the local service station of the Great Wall Auto Stock Corporation if the driver’s side safety

Safety airbag-15
Y esPr
esen t f
ailu re codes
R e plac e S R S saf ety airb ag system unit
S e e h e removal/ins talla tion ofS R
S
sa f ety airb ag system unit
Hi stor y a ccum ulated failu re code
s
T h e e nd offailur e d iagn osis4 Pl
ac e t he i gnition switch i nL O C K position
R e l eas e a ccum ulator negative wire and w ait f or 1 m inut
e
pl us
R e mo vethe l eft t rim c over
Sh ut off S R S safety airb ag system unit tran slat io
n
co nn ecto r cl ips
I n stal l b ack t he
accu mulato r n egativ e w ire, plac e t he
ig nition switch inON position
I s the p oten tial of S R S s afety a irba g s ystem u nit c
onne ctor
cl ip s s titc h 5 , 6( g roun ding ) a bove 9V
? No
R eplac e w irin g h arne ss

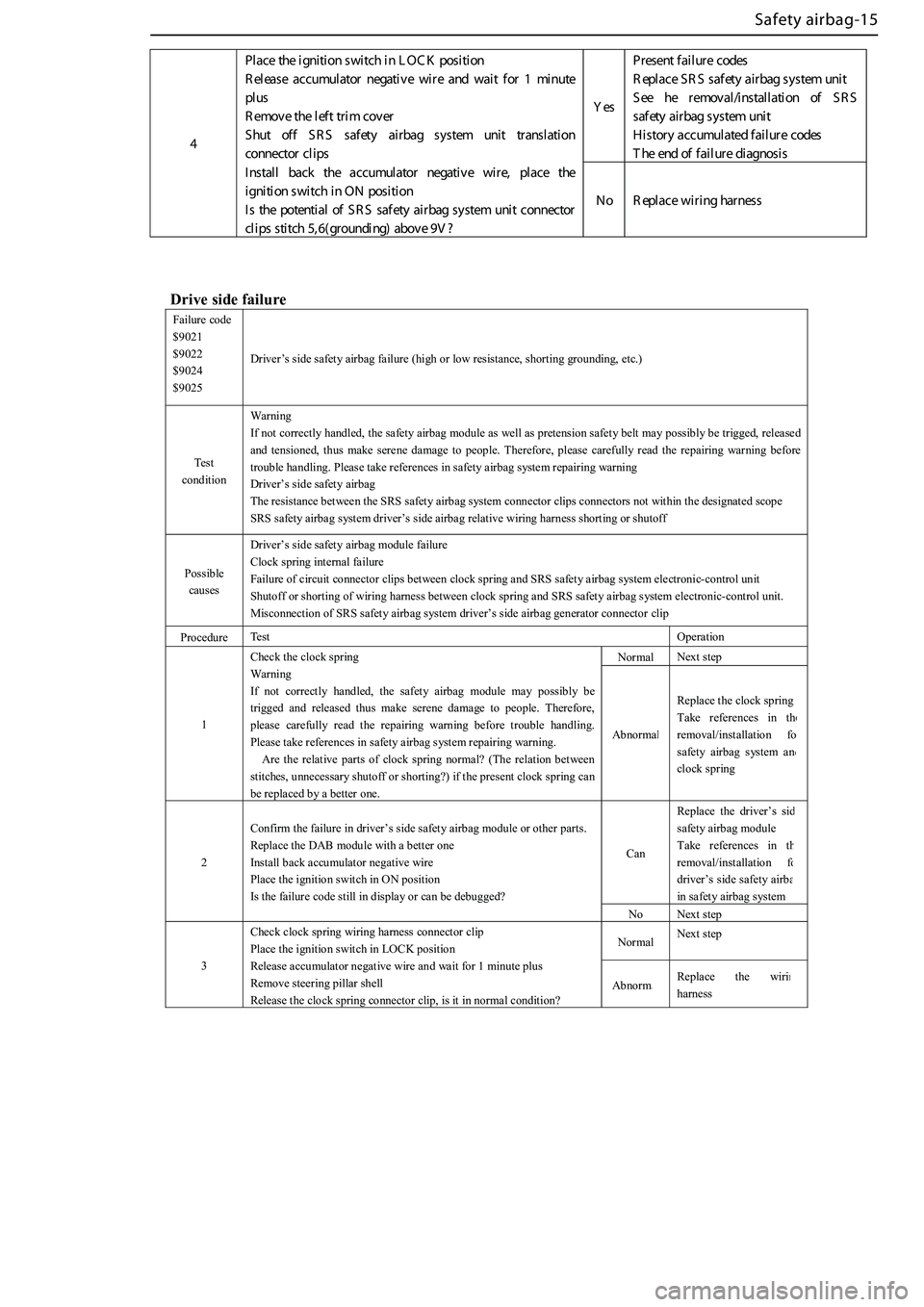

Drive side failure
Failure code
$9021
$9022
$9024
$9025
Driver’s side safety airbag failure (high or low resistance, shorting grounding, etc.)
Test
condition
Warning
If not correctly handled, the safety airbag module as well as pretension safety belt may possibly be trigged, released
and tensioned, thus make serene damage to people. Therefore, please carefully read the repairing warning before
trouble handling. Please take references in safety airbag system repairing warning
Driver’s side safety airbag
The resistance between the SRS safety airbag system connector clips connectors not within the designated scope
SRS safety airbag system driver’s side airbag relative wiring harness shorting or shutoff
Possible
causes
Driver’s side safety airbag module failure
Clock spring internal failure
Failure of circuit connector clips between clock spring and SRS safety airbag system electronic-control unit
Shutoff or shorting of wiring harness between clock spring and SRS safety airbag system electronic-control unit.
Misconnection of SRS safety airbag system driver’s side airbag generator connector clip
Procedure Test Operation
Normal Next step
1
Check the clock spring
Warning
If not correctly handled, the safety airbag module may possibly be
trigged and released thus make serene damage to people. Therefore,
please carefully read the repairing warning before trouble handling.
Please take references in safety airbag system repairing warning.
Are the relative parts of clock spring normal? (The relation between
stitches, unnecessary shutoff or shorting?) if the present clock spring can
be replaced by a better one.
Abnormal
Replace the clock spring
Take references in the
removal/installation for
safety airbag system and
clock spring
Can
Replace the driver’s side
safety airbag module
Take references in the
removal/installation for
driver’s side safety airbag
in safety airbag system
2
Confirm the failure in driver’s side safety airbag module or other parts.
Replace the DAB module with a better one
Install back accumulator negative wire
Place the ignition switch in ON position
Is the failure code still in display or can be debugged?
No Next step
Normal Next step
3
Check clock spring wiring harness connector clip
Place the ignition switch in LOCK position
Release accumulator negative wire and wait for 1 minute plus
Remove steering pillar shell
Release the clock spring connector clip, is it in normal condition? Abnormal Replace the wiring
harness

Safety airbag-16
Yes Next step

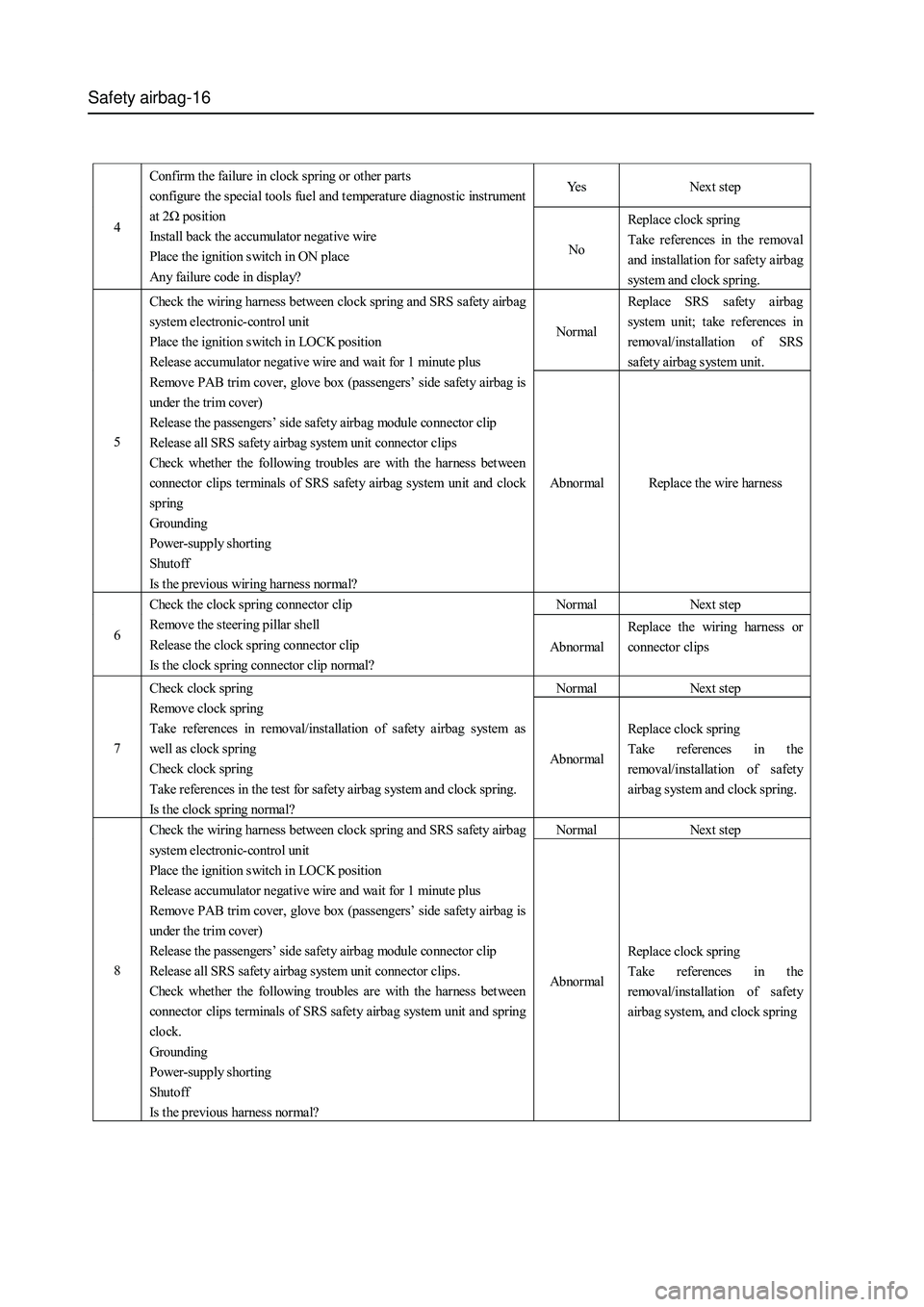

4 Confirm the failure in clock spring or other parts
configure the special tools fuel and t emperature diagnostic instrument
at 2Ω position
Install back the accumulator negative wire
Place the ignition switch in ON place
Any failure code in display? No Replace clock spring
Take references in the removal
and installation for safety airbag
system and clock spring.
Nor mal Replace SRS safety airbag
system unit; take references in
removal/installation of SRS
safety airbag system unit.
5 Check the wiring harness between clock spring and SRS safety airbag
system electronic-control unit
Place the ignition switch in LOCK position
Release accumulator negative wire and wait for 1 minute plus
Remove PAB trim cover, glove box (passengers’ side safety airbag is
under the trim cover)
Release the passengers’ side safety airbag module connector clip
Release all SRS safety airbag system unit connector clips
Check whether the following troubles are with the harness between
connector clips terminals of SRS safety airbag system unit and clock
spring
Grounding
Power-supply shorting
Shutoff
Is the previous wiring harness normal? Abnormal Replace the wire harness
Nor mal Next step
6 Check the clock spring connector clip
Remove the steering pillar shell
Release the clock spring connector clip
Is the clock spring connector clip normal? Abnormal Replace the wiring harness or
connector clips

Nor mal Next step
7 Check clock spring
Remove clock spring
Take references in removal/installation of safet y airbag system as
well as clock spring
Check clock spring
Take references in the test for safety airbag system and clock spring.
Is the clock spring normal? Abnormal Replace clock spring
Take references in the
removal/installation of safety
airbag system and clock spring.
Nor mal Next step
8 Check the wiring harness between clock spring and SRS safety airbag
system electronic-control unit
Place the ignition switch in LOCK position
Release accumulator negative wire and wait for 1 minute plus
Remove PAB trim cover, glove box (passengers’ side safety airbag is
under the trim cover)
Release the passengers’ side safety airbag module connector clip
Release all SRS safety airbag system unit connector clips.
Check whether the following troubles are with the harness between
connector clips terminals of SRS safety airbag system unit and spring
clock.
Grounding
Power-supply shorting
Shutoff
Is the previous harness normal? Abnormal Replace clock spring
Take references in the
removal/installation of safety
airbag system, and clock spring

Safety airbag-17

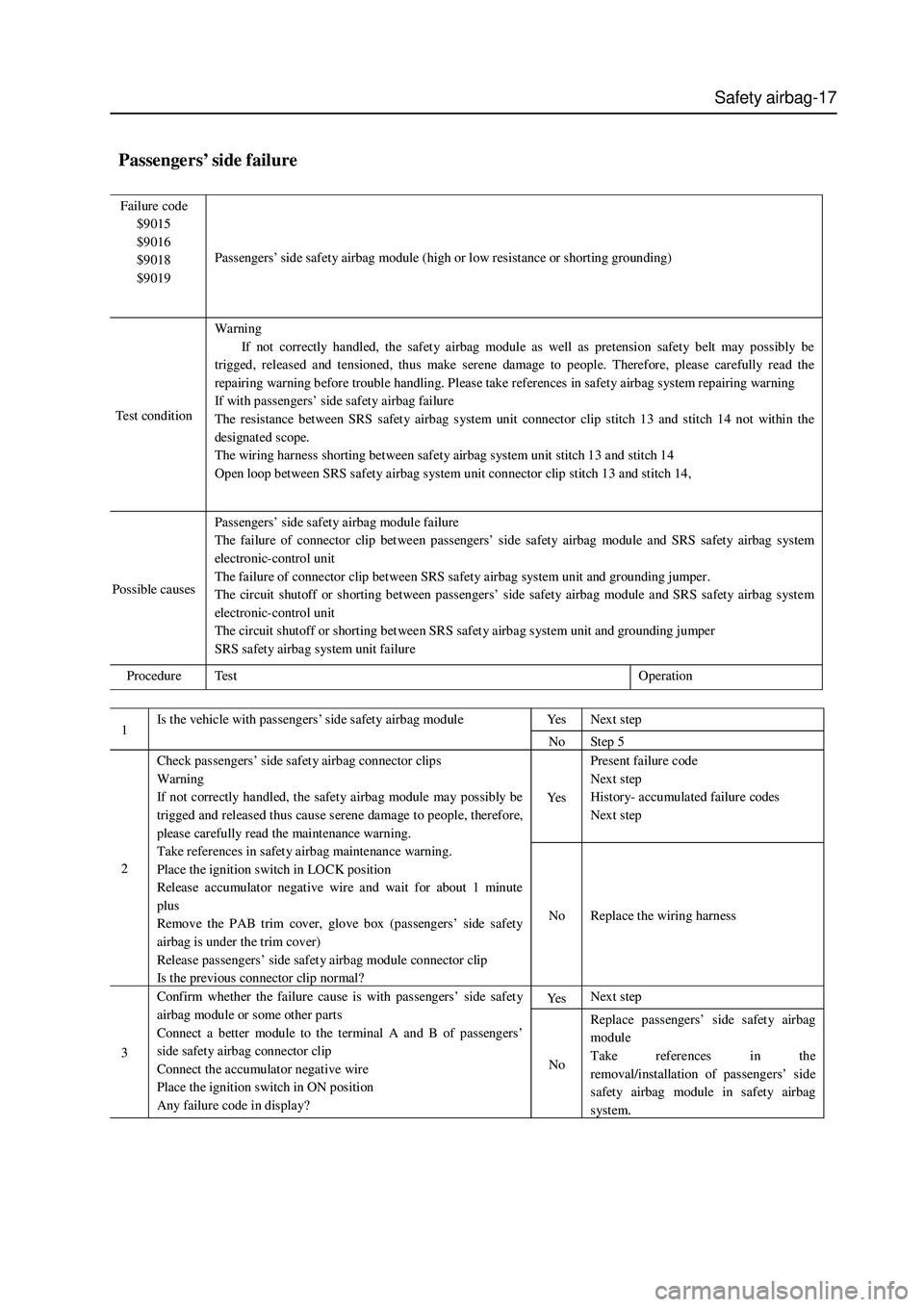

Passengers’ side failure

Failure code
$9015
$9016
$9018
$9019 Passengers’ side safety airbag module (high or low resistance or shorting grounding)
Tes t co n d it i o n Warning
If not correctly handled, the safety airbag module as well as pretension safety belt may possibly be
trigged, released and tensioned, thus make serene damage to people. Therefore, please carefully read the
repairing warning before trouble handling. Please take references in safety airbag system repairing warning
If with passengers’ side safety airbag failure
The resistance between SRS safety airbag system unit connector clip stitch 13 and stitch 14 not within the
designated scope.
The wiring harness shorting between safety airbag system unit stitch 13 and stitch 14
Open loop between SRS safety airbag system unit connector clip stitch 13 and stitch 14,
Possible causes Passengers’ side safety airbag module failure
The failure of connector clip between passengers’ side safety airbag module and SRS safety airbag system
electronic-control unit
The failure of connector clip between SRS safety airbag system unit and grounding jumper.
The circuit shutoff or shorting between passengers’ side safety airbag module and SRS safety airbag system
electronic-control unit
The circuit shutoff or shorting between SRS safety airbag system unit and grounding jumper
SRS safety airbag system unit failure
Procedure Test Operation

Yes Next step
1 Is the vehicle with passengers’ side safety airbag module
No Step 5
Ye s Present failure code
Next step
History- accumulated failure codes
Next step
2 Check passengers’ side safety airbag connector clips
Warning
If not correctly handled, the safety airbag module may possibly be
trigged and released thus cause serene damage to people, therefore,
please carefully read the maintenance warning.
Take references in safety airbag maintenance warning.
Place the ignition switch in LOCK position
Release accumulator negative wire and wait for about 1 minute
plus
Remove the PAB trim cover, glove box (passengers’ side safety
airbag is under the trim cover)
Release passengers’ side safety airbag module connector clip
Is the previous connector clip normal? No Replace the wiring harness
Ye s Next step
3 Confirm whether the failure cause is with passengers’ side safet y
airbag module or some other parts
Connect a better module to the terminal A and B of passengers’
side safety airbag connector clip
Connect the accumulator negative wire
Place the ignition switch in ON position
Any failure code in display? No Replace passengers’ side safety airbag
module
Take references in the
removal/installation of passengers’ side
safety airbag module in safety airbag
system.

Safety airbag-18
Nor mal Present failure code
Replace SRS safety airbag system
unit
Take references in
removal/installation of SRS
safety airbag system unit in safety
airbag system.
History-accumulated failure
codes
The end of failure diagnosis
4 Check the wiring harness between passengers’ side safety airbag
module and SRS safet y airbag system electronic-control unit
Place the ignition switch in LOCK position
Release accumulator negative wire and then wait for about 1
minute plus
Remove steering pillar shell
Release clock spring connector clip
Release driver’s and passengers’ side safety airbag module
connector clips
Release all SRS safety airbag system unit connector clips
Check whether the following troubles are with the circuit of the
connector clips terminals between SRS safety airbag system
electronic-control unit and passengers’ side safety airbag
module
Grounding
Power-supply shorting
Shutoff
Is the previous circuit normal? Abnormal Replace the relative wiring
harness

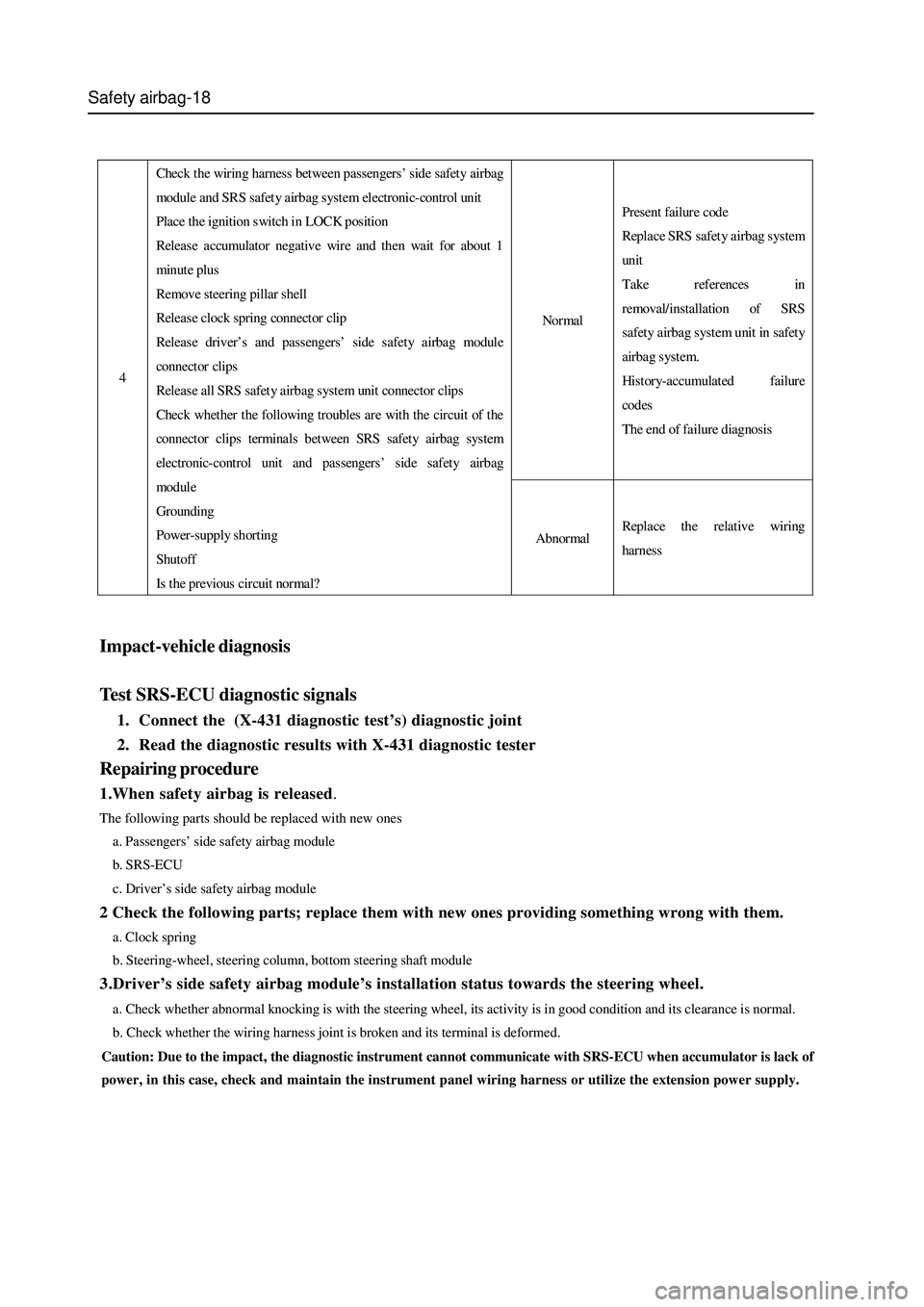

Impact-vehicle diagnosis
Test SRS-ECU diagnostic signals
1. Connect the (X-431 diagnostic test’s) diagnostic joint
2. Read the diagnostic results with X-431 diagnostic tester
Repairing procedure
1.When safety airbag is released.
The following parts should be replaced with new ones
a. Passengers’ side safety airbag module
b. SRS-ECU
c. Driver’s side safety airbag module
2 Check the following parts; replace them with new ones providing something wrong with them.
a. Clock spring
b. Steering-wheel, steering column, bottom steering shaft module
3.Driver’s side safety airbag module’s installation status towards the steering wheel.
a. Check whether abnormal knocking is with the steering wheel, its activity is in good condition and its clearance is normal.
b. Check whether the wiring harness joint is broken and its terminal is deformed.
Caution: Due to the impact, the diagnostic instrument cannot communicate with SRS-ECU when accumulator is lack of
power, in this case, check and maintain the instrument panel wiring harness or utilize the extension power supply.

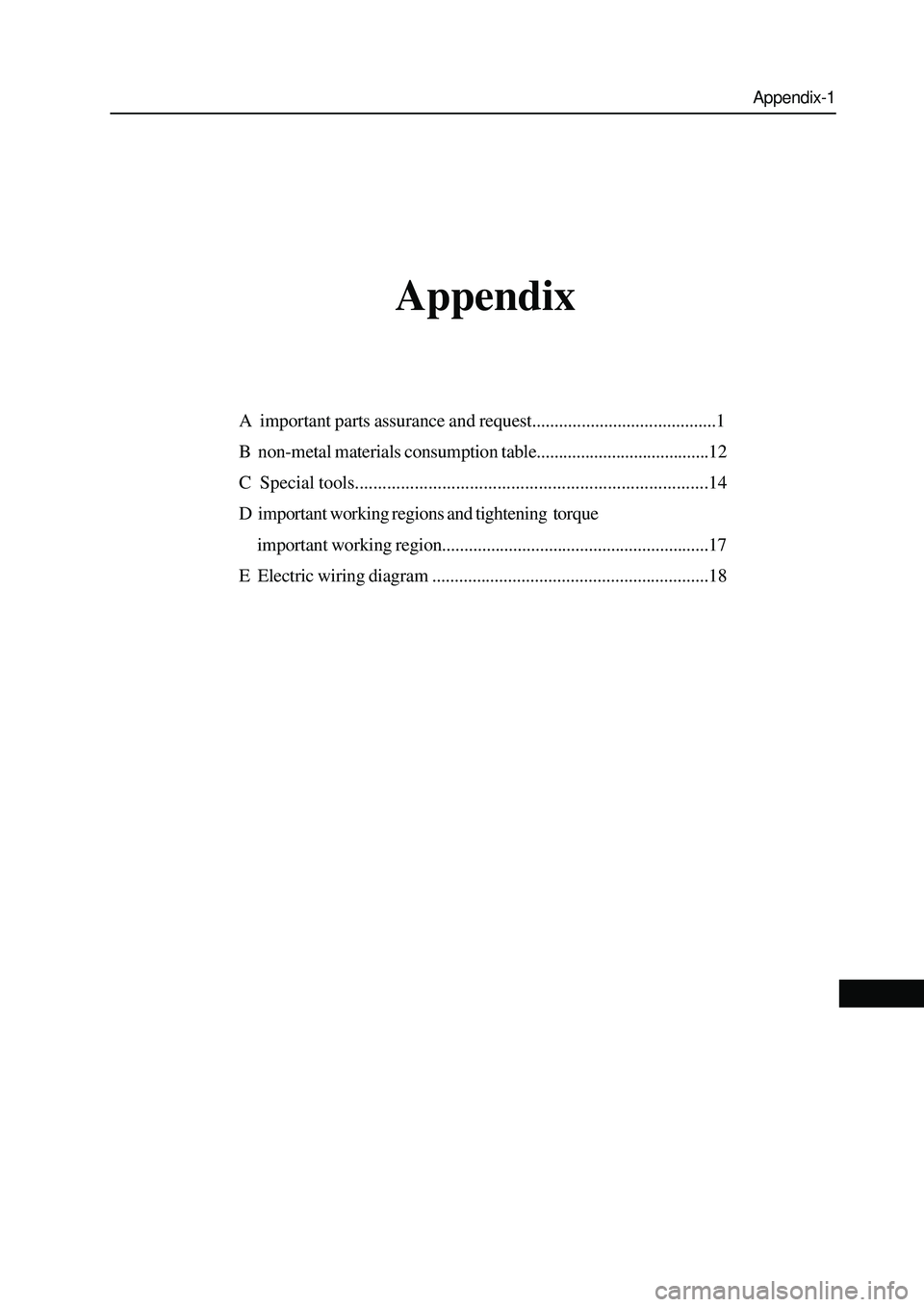

Appendix-1
A important parts assurance and request.........................................1
B non-metal materials consumption table.......................................12
C Special tools.............................................................................14
D important working regions and tightening torque
important working region............................................................17
E Electric wiring diagram ..............................................................18
Appendix

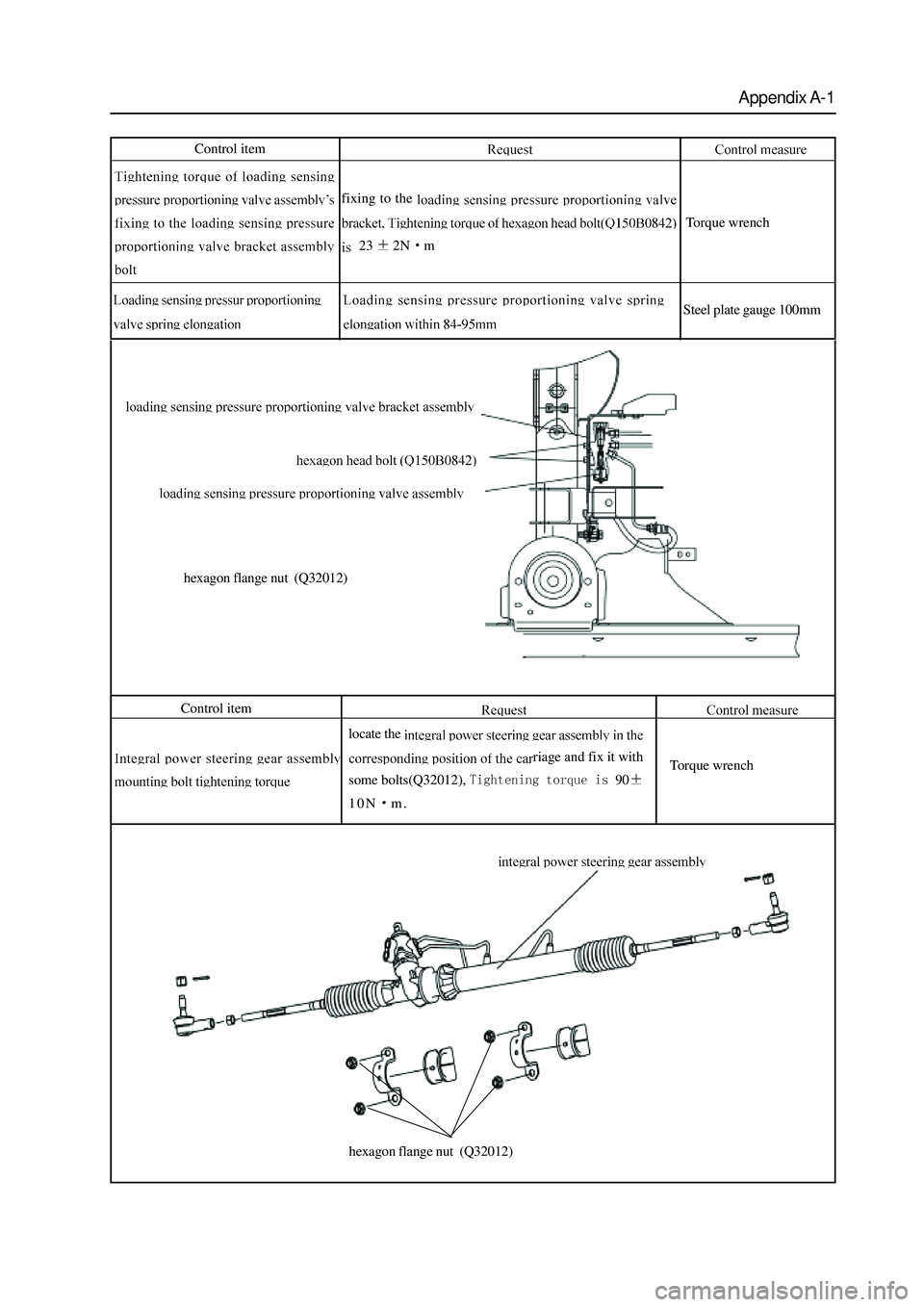

Appendix A-1
Control item
fixing to the
232NmTorque wrench
Steel plate gauge 100mm
hexagon flange nut (Q32012)
hexagon flange nut (Q32012)
Control item
locate the
riage and fix it with
some bolts(Q32012),
90
10Nm.Torque wrench

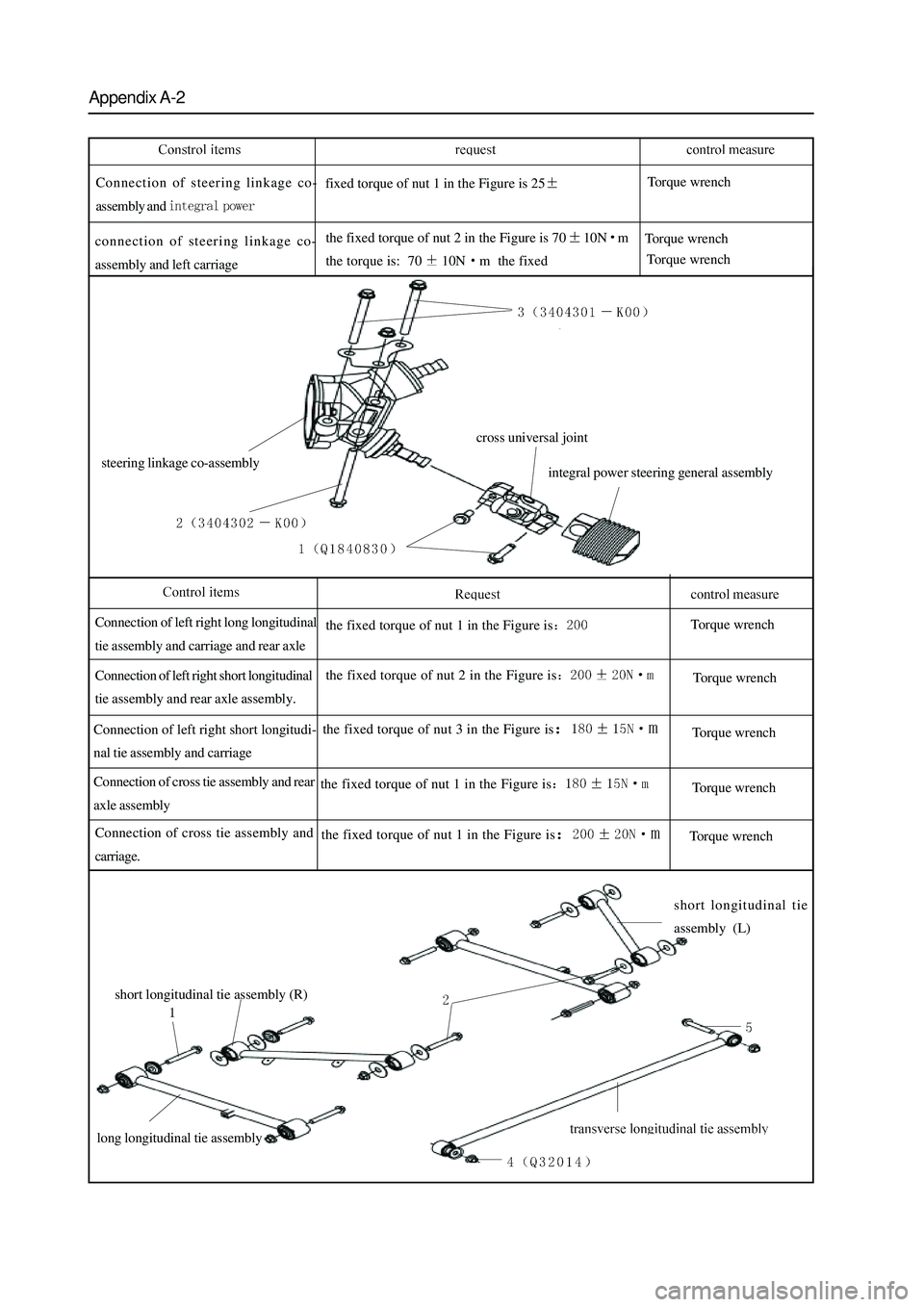

Appendix A-2
the fixed torque of nut 2 in the Figure is 7010Nm
the torque is: 70
10Nm the fixed
Connection of steering linkage co-
assembly and fixed torque of nut 1 in the Figure is 25Torque wrench
connection of steering linkage co-
assembly and left carriageTorque wrench
Torque wrench
Connection of left right long longitudinal
tie assembly and carriage and rear axle the fixed torque of nut 1 in the Figure isTorque wrench
the fixed torque of nut 2 in the Figure isTorque wrench
Connection of left right short longitudi-
nal tie assembly and carriagethe fixed torque of nut 3 in the Figure is
Torque wrench
Connection of cross tie assembly and rear
axle assemblythe fixed torque of nut 1 in the Figure isTorque wrench
the fixed torque of nut 1 in the Figure isTorque wrench
steering linkage co-assemblycross universal joint
integral power steering general assembly
Connection of left right short longitudinal
tie assembly and rear axle assembly.
Connection of cross tie assembly and
carriage.
short longitudinal tie assembly (R)
long longitudinal tie assemblyshort longitudinal tie
assembly (L)

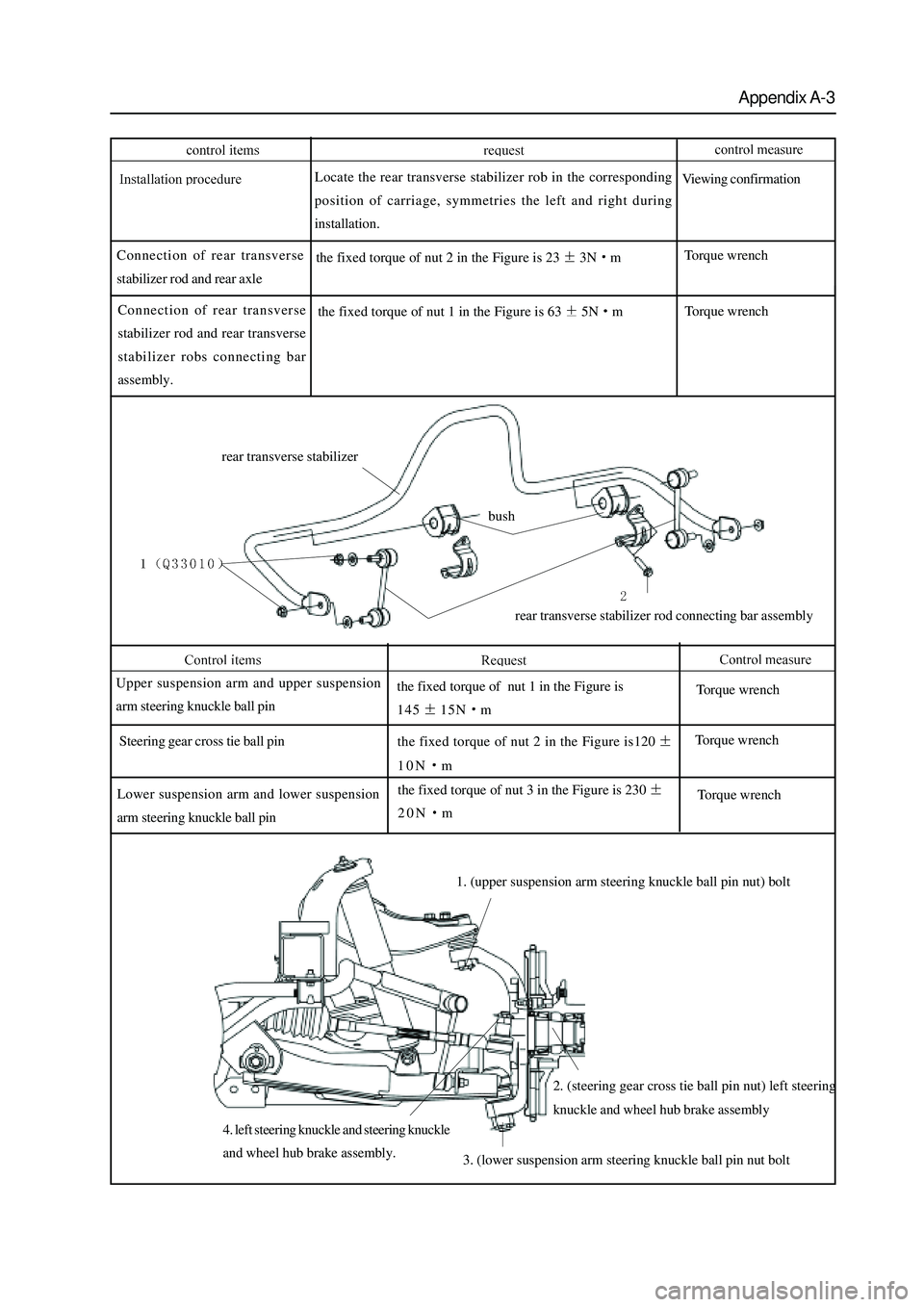

Appendix A-3
1. (upper suspension arm steering knuckle ball pin nut) bolt
Locate the rear transverse stabilizer rob in the corresponding
position of carriage, symmetries the left and right during
installation.
Connection of rear transverse
stabilizer rod and rear axleViewing confirmation
the fixed torque of nut 2 in the Figure is 23
3NmTorque wrench
Connection of rear transverse
stabilizer rod and rear transverse
stabilizer robs connecting bar
assembly.the fixed torque of nut 1 in the Figure is 63
5NmTorque wrench
rear transverse stabilizer
rear transverse stabilizer rod connecting bar assembly bush
Upper suspension arm and upper suspension
arm steering knuckle ball pin
Steering gear cross tie ball pin
Lower suspension arm and lower suspension
arm steering knuckle ball pinthe fixed torque of nut 1 in the Figure is
145
15Nm
the fixed torque of nut 2 in the Figure is120
10Nm
the fixed torque of nut 3 in the Figure is 230
20Nm
Torque wrench
Torque wrench
Torque wrench
2. (steering gear cross tie ball pin nut) left steering
knuckle and wheel hub brake assembly
3. (lower suspension arm steering knuckle ball pin nut bolt 4. left steering knuckle and steering knuckle
and wheel hub brake assembly.

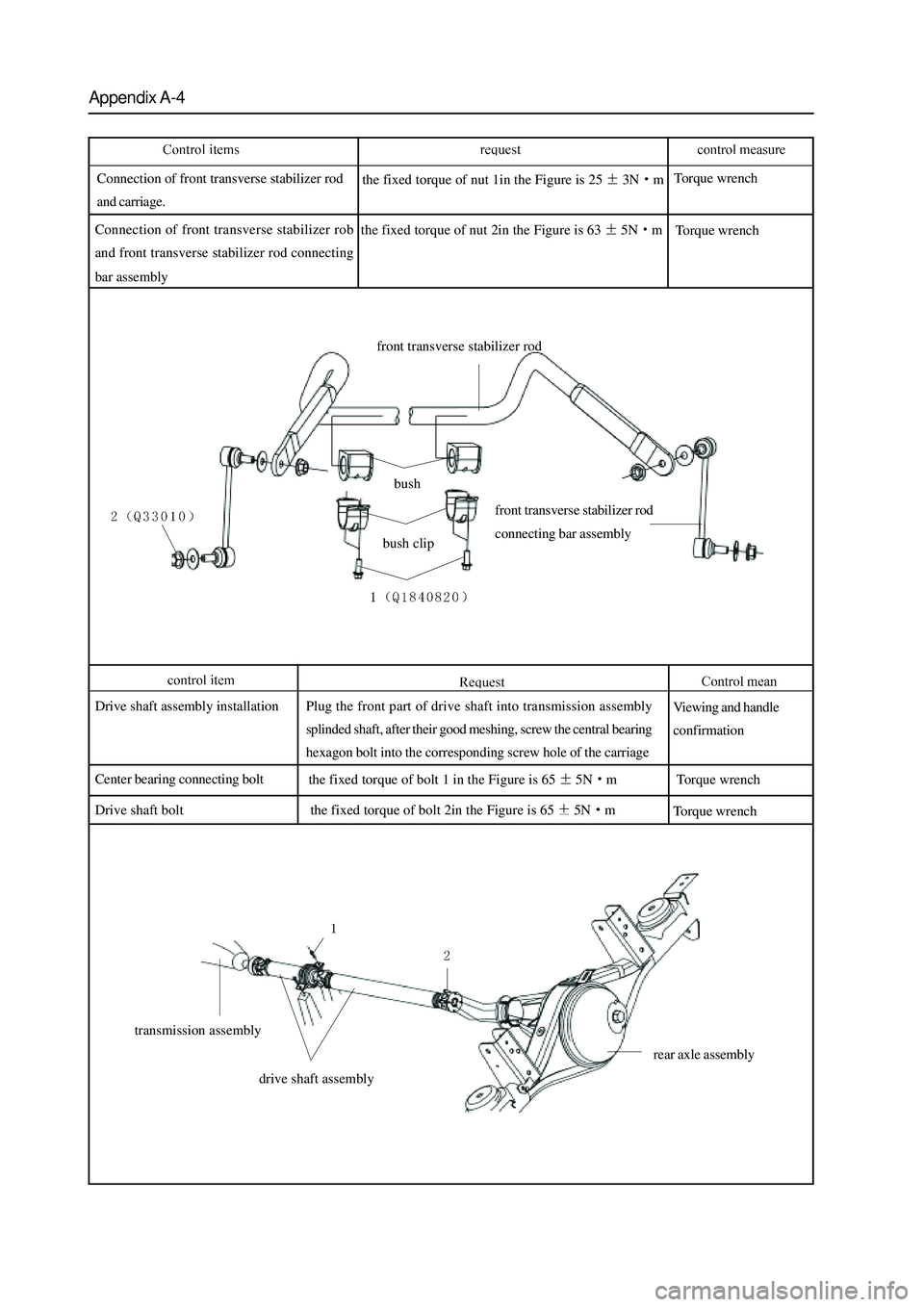

Appendix A-4
Connection of front transverse stabilizer rod
and carriage.the fixed torque of nut 1in the Figure is 253Nm
the fixed torque of nut 2in the Figure is 63
5Nm Connection of front transverse stabilizer rob
and front transverse stabilizer rod connecting
bar assemblyTorque wrench
Torque wrench
transmission assembly
drive shaft assemblyrear axle assembly
Drive shaft assembly installationPlug the front part of drive shaft into transmission assembly
splinded shaft, after their good meshing, screw the central bearing
hexagon bolt into the corresponding screw hole of the carriage
Center bearing connecting bolt
the fixed torque of bolt 1 in the Figure is 65
5Nm
Drive shaft bolt
the fixed torque of bolt 2in the Figure is 65
5Nm
Torque wrenchTorque wrench Viewing and handle
confirmation
front transverse stabilizer rod
bush
bush clipfront transverse stabilizer rod
connecting bar assembly
