HONDA ACCORD HYBRID 2014 9.G Owners Manual

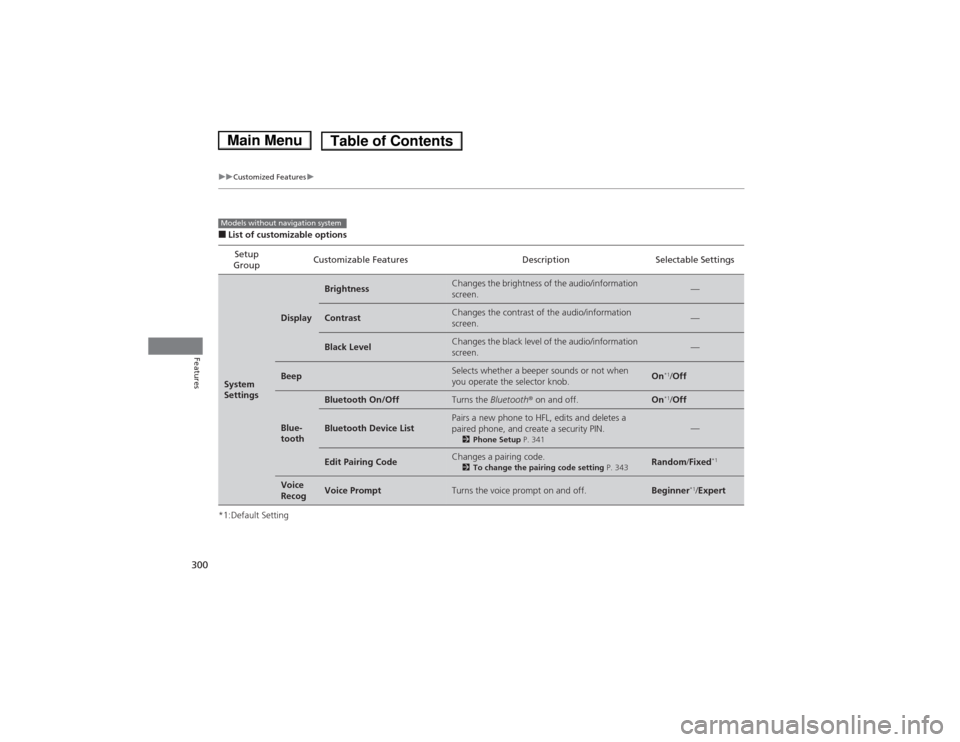

300
uuCustomized Featuresu
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Description Selectable Settings
System
Settings
Display
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
BeepSelects whether a beeper sounds or not when
you operate the selector knob.On
*1
/Off
Blue-
tooth
Bluetooth On/OffTurns the Bluetooth® on and off.On *1
/Off
Bluetooth Device ListPairs a new phone to HFL, edits and deletes a
paired phone, and create a security PIN.
2Phone Setup P. 341—
Edit Pairing CodeChanges a pairing code.
2To change the pairing code setting P. 343Random/Fixed *1
Voice
RecogVoice PromptTurns the voice prompt on and off.Beginner *1
/Expert
Models without navigation system
Main MenuTable of Contents

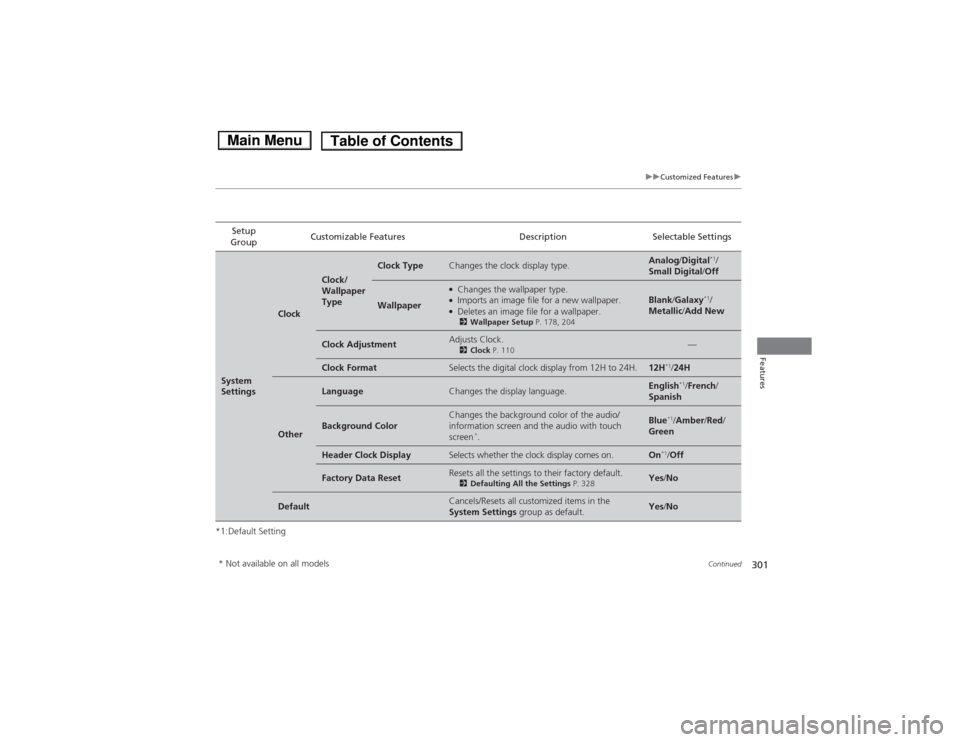

301
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Clock
Clock/
Wallpaper
Type
Clock TypeChanges the clock display type.Analog
/Digital *1
/
Small Digital /Off
Wallpaper
●
Changes the wallpaper type.
● Imports an image file for a new wallpaper.
● Deletes an image file for a wallpaper.
2 Wallpaper Setup P. 178, 204Blank/Galaxy *1
/
Metallic /Add New
Clock AdjustmentAdjusts Clock.
2Clock P. 110—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1
/24H
Other
LanguageChanges the display language.English *1
/French /
Spanish
Background ColorChanges the background color of the audio/
information screen and the audio with touch
screen *
.Blue *1
/Amber /Red /
Green
Header Clock DisplaySelects whether the clock display comes on.On *1
/Off
Factory Data ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 328Yes/No
DefaultCancels/Resets all customized items in the
System Settings group as default.Yes/No
* Not available on all models
Main MenuTable of Contents

302
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings TPMS Calibration
Cancels/Calibrates the TPMS. Cancel*1
/Calibrate
Driver
Assist
System
Setup *Forward Collision Warning
Distance
Changes at which distance FCW alerts, or turns
FCW on and off. Long
/Normal *1
/
Short /Off
Head-up Warning Turns the heads-up warning lights on to flash or off. On*1
/Off
Meter
Setup Language Selection
Changes the displayed language on the multi-
information display. English
*1
/French /
Spanish
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C *1
~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A. With Refuel
/IGN Off /
Manually Reset *1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B. With Refuel
/IGN Off /
Manually Reset *1
Fuel Efficiency Backlight Turns the ambient meter feature on and off. On*1
/Off
Driving
Position
Setup *Memory Position Link
Changes the driver’s seat position to a stored setting.
On
*1
/Off
* Not available on all models
Main MenuTable of Contents

303
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Keyless
Access
Setup
Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only
*1
/
All Doors
Keyless Access Light Flash Causes some exterior lights to blink when you
unlock/lock the doors.
On
*1
/Off
Keyless Access Beep Sets the beeper sound or not when you grab
either front door handle. On
*1
/Off
Lighting Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors. 60seconds
/
30seconds *1
/
15seconds
Headlight Auto Off Timer Changes the length of time the exterior lights
stay on after you close the driver's door. 60seconds
/
30seconds /
15seconds *1
/
0seconds
Auto Light Sensitivity Changes the timing for the headlights to come on. Max
/High /Mid *1
/
Low /Min
Main MenuTable of Contents

304
uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Door
SetupAuto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1
/
Shift from P /Off
Auto Door Unlock Changes the setting for when the doors
automatically unlock. All Doors When
Driver’s Door Opens
*1
/
All Doors When
Shifted to Park /All
Doors When Ignition
Switched Off /Off
Key And Remote Unlock
Mode Sets up either the driver's door or all doors to
unlock on the first push of the remote. Driver Door
*1
/All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1
/Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds *1
Mainte-
nance
Info. Maintenance Reset
Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle Settings
group as default. Yes
/No
Main MenuTable of Contents

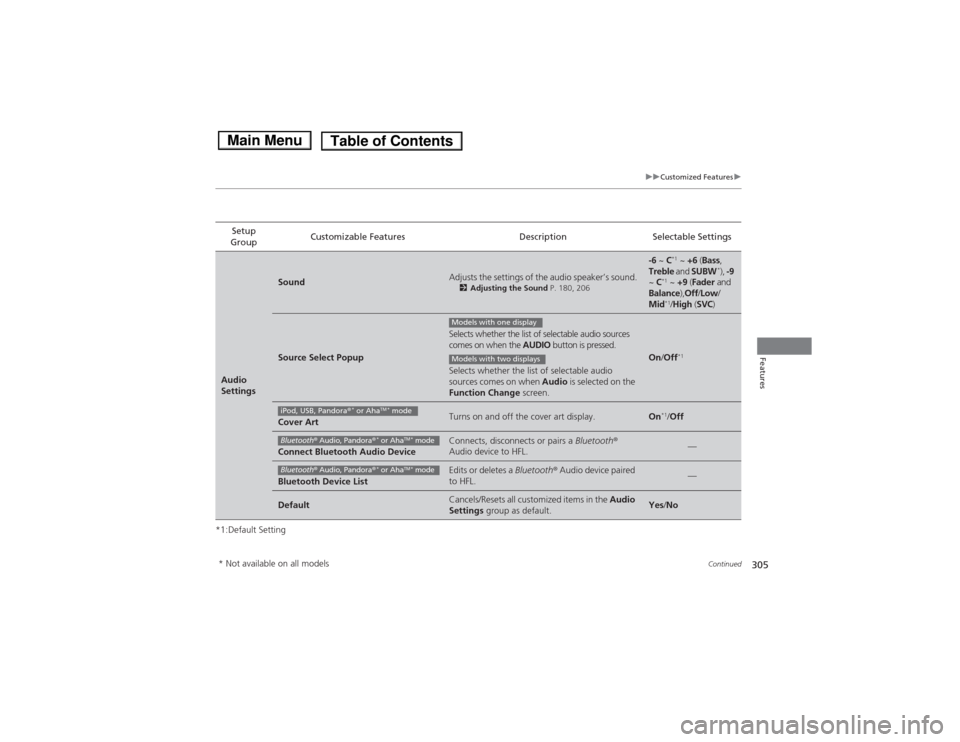

305
uuCustomized Featuresu
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Audio
Settings
SoundAdjusts the settings of the audio speaker’s sound.
2Adjusting the Sound P. 180, 206
-6 ~ C*1
~ +6 (Bass ,
Treble and SUBW *
), -9
~ C*1
~ +9 (Fader and
Balance ),Off /Low /
Mid *1
/High (SVC )
Source Select Popup
Selects whether the list of selectable audio sources
comes on when the AUDIO button is pressed.
Selects whether the list of selectable audio
sources comes on when Audio is selected on the
Function Change screen.
On/Off *1
Cover ArtTurns on and off the cover art display.On*1
/Off
Connect Bluetooth Audio DeviceConnects, disconnects or pairs a Bluetooth®
Audio device to HFL.—
Bluetooth Device ListEdits or deletes a Bluetooth® Audio device paired
to HFL.—
DefaultCancels/Resets all customized items in the Audio
Settings group as default.Yes/No
Models with one display
Models with two displays
iPod, USB, Pandora ®*
or Aha TM *
mode
Bluetooth ® Audio, Pandora ®*
or Aha TM *
mode
Bluetooth ® Audio, Pandora ®*
or Aha TM *
mode
* Not available on all models
Main MenuTable of Contents

306
uuCustomized Featuresu
Features
Setup
Group Customizable Features Description Selectable Settings
Info
Settings Clock/
Wall-
paper
type
Clock Type
See System Settings on P. 300 to P. 301
Wallpaper
Clock Adjustment
Clock Format
Default Cancels/Resets all customized items in the
Info
Settings group as default. Yes
/No
Main MenuTable of Contents

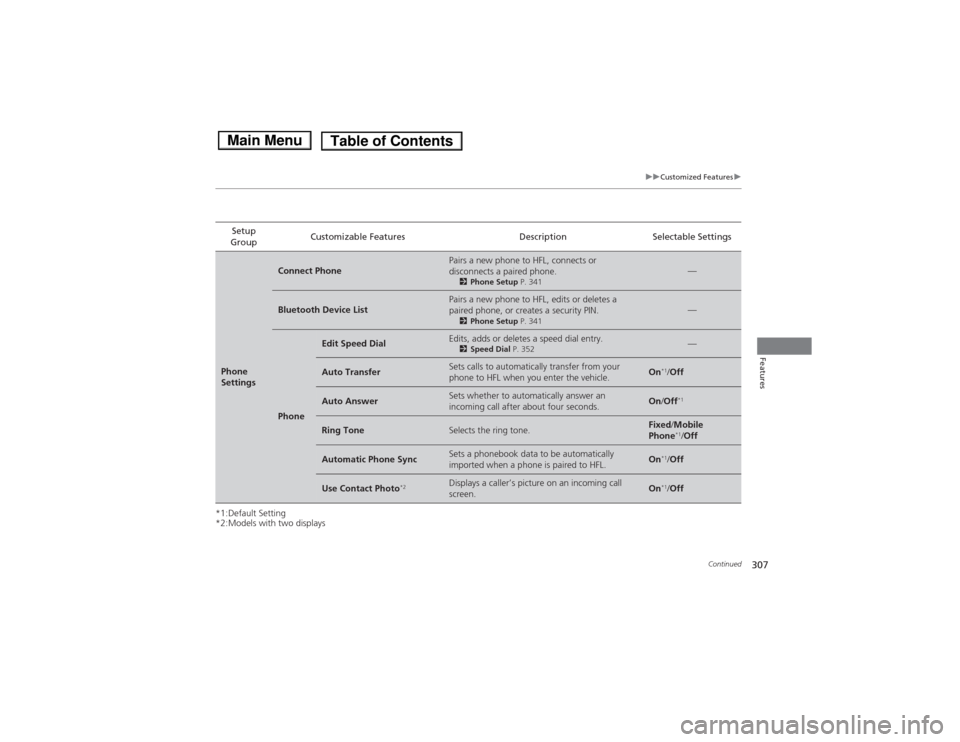

307
uuCustomized Featuresu
Continued
Features
*1:Default Setting
*2:Models with two displaysSetup
Group Customizable Features Description Selectable Settings
Phone
Settings
Connect PhonePairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 341—
Bluetooth Device ListPairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.
2Phone Setup P. 341—
Phone
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 352—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1
/Off
Auto AnswerSets whether to automatically answer an
incoming call after about four seconds.On /Off *1
Ring ToneSelects the ring tone.Fixed
/Mobile
Phone *1
/Off
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phone is paired to HFL.On *1
/Off
Use Contact Photo *2Displays a caller’s picture on an incoming call
screen.On*1
/Off
Main MenuTable of Contents

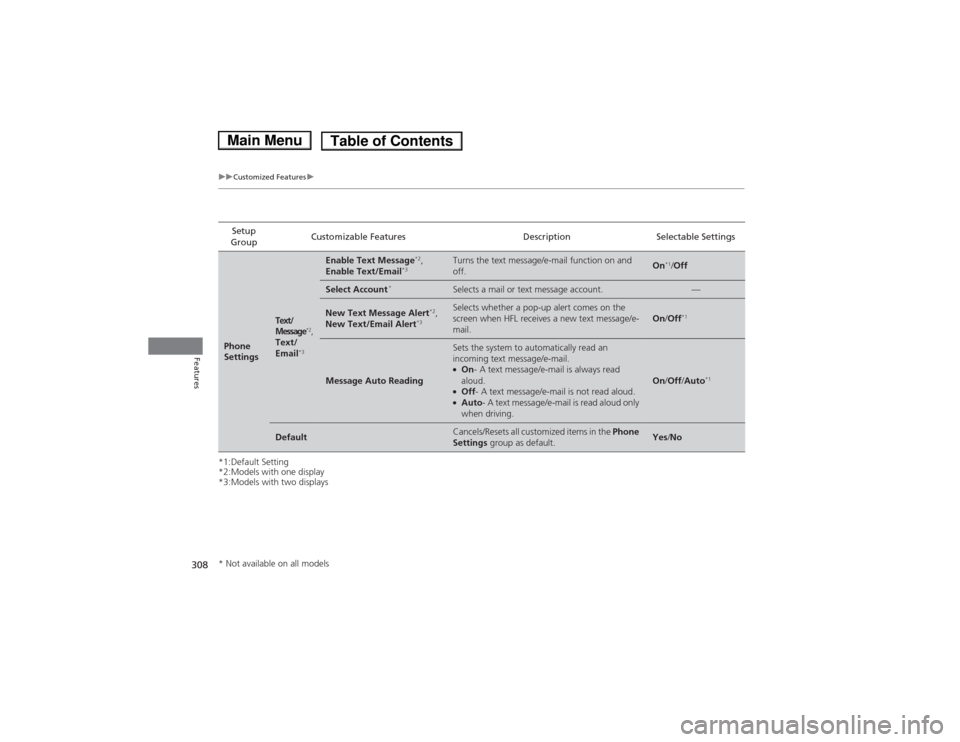

308
uuCustomized Featuresu
Features
*1:Default Setting
*2:Models with one display
*3:Models with two displaysSetup
Group Customizable Features Description Selectable Settings
Phone
Settings
Text/
Message*2,Text/
Email
*3
Enable Text Message
*2
,
Enable Text/Email *3Turns the text message/e-mail function on and off.On
*1
/Off
Select Account *Selects a mail or text message account.—
New Text Message Alert *2
,
New Text/Email Alert *3Selects whether a pop-up alert comes on the
screen when HFL receives a new text message/e- mail.On
/Off *1
Message Auto Reading
Sets the system to automatically read an
incoming text message/e-mail. ●
On - A text message/e-mail is always read
aloud.
● Off - A text message/e-mail is not read aloud.
● Auto - A text message/e-mail is read aloud only
when driving.
On /Off /Auto *1
DefaultCancels/Resets all customized items in the
Phone
Settings group as default.Yes/No
* Not available on all models
Main MenuTable of Contents

309
uuCustomized Featuresu
Continued
Features
*1:Default Setting
*2:Models with two displaysSetup
Group Customizable Features Description Selectable Settings
Camera
Settings Lane- WatchShow with Turn Signal
Select whether the LaneWatch display comes on
when you move the turn signal lever to the
passenger side. On
*1
/Off
Reference Lines Selects whether the reference lines come on the
LaneWatch monitor. On
*1
/Off
Display Brightness
Adjusts the LaneWatch display settings. —
Contrast
Black Level
Color
Tint
Default *2
Cancels/Resets all customized items in the LaneWatch
group as default. Yes
/No
Rear
Camera Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
On
*1
/Off
Dynamic Guideline Selects whether the dynamic guidelines come on
the rear camera monitor.
On
*1
/Off
Default Cancels/Resets all customized items in the
Rear
Camera group as default. Yes
/No
Default Cancels/Resets all customized items in the
Camera Settings
group as default. Yes
/No
