HONDA ACCORD HYBRID 2017 9.G Owners Manual

110

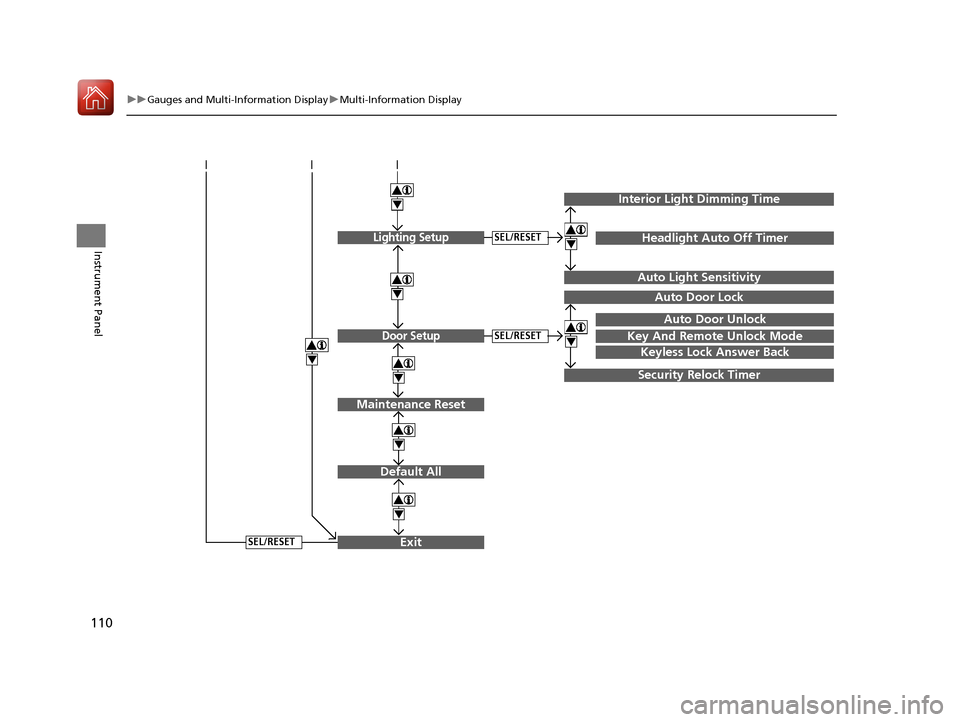

uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Exit
4
4
4
Door Setup
Maintenance Reset
Default All
SEL/RESET
4
SEL/RESET
4
Lighting SetupSEL/RESET
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
4
4
17 ACCORD FHEV-31T3W6200.book 110 ページ ２０１６年４月１１日　月曜日　午後２時４０分

111
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

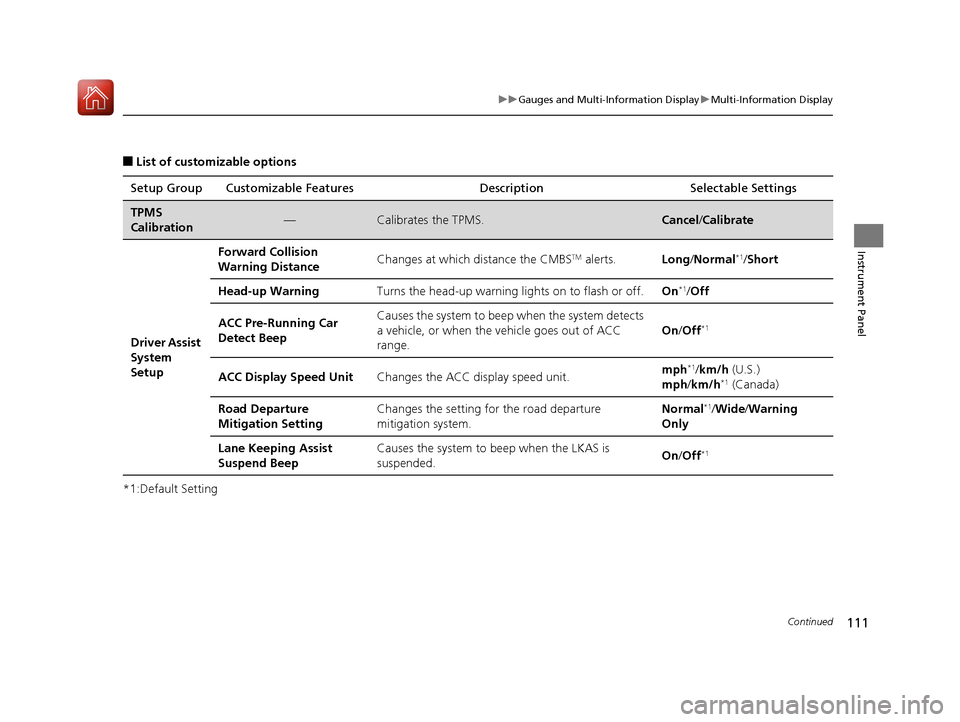

■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup
Forward Collision
Warning DistanceChanges at which distance the CMBSTM alerts.Long /Normal*1/ Short
Head-up WarningTurns the head-up wa rning lights on to flash or off.On*1/Off
ACC Pre-Running Car
Detect BeepCauses the system to beep when the system detects
a vehicle, or when the vehicle goes out of ACC
range.
On /Off*1
ACC Display Speed UnitChanges the ACC display speed unit.mph*1/km/h (U.S.)
mph /km/h*1 (Canada)
Road Departure
Mitigation SettingChanges the setting fo r the road departure
mitigation system.Normal*1/ Wide /Warning
Only
Lane Keeping Assist
Suspend BeepCauses the system to b eep when the LKAS is
suspended.On /Off*1
17 ACCORD FHEV-31T3W6200.book 111 ページ ２０１６年４月１１日　月曜日　午後２時４０分

112
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

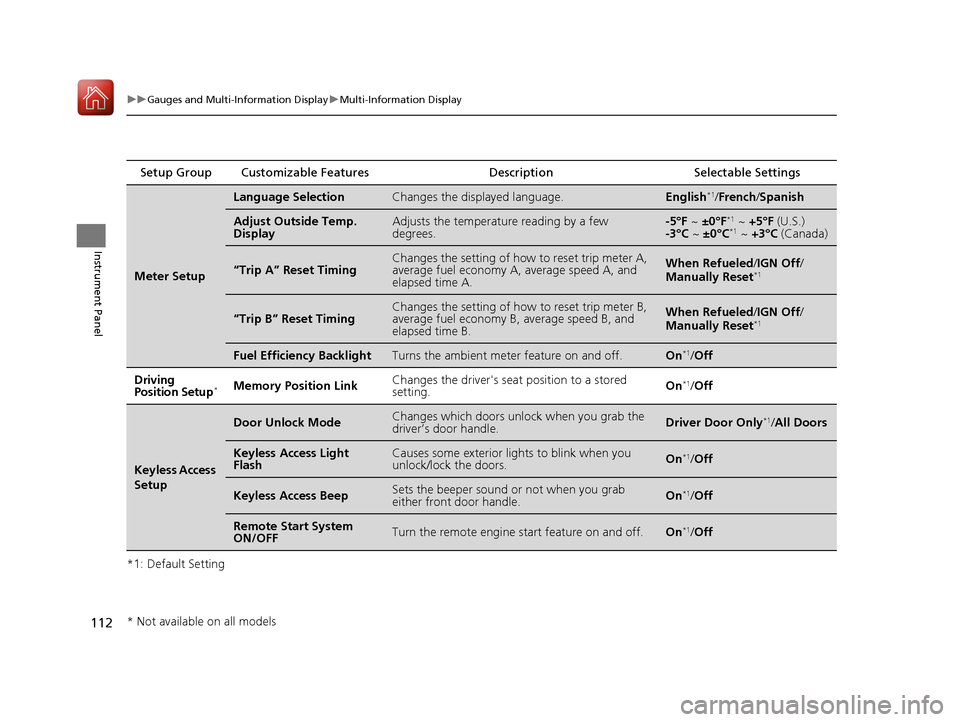

*1: Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/French /Spanish
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few
degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset TimingChanges the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN Off /
Manually Reset*1
“Trip B” Reset TimingChanges the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN Off /
Manually Reset*1
Fuel Efficiency BacklightTurns the ambient meter feature on and off.On*1/ Off
Driving
Position Setup
*Memory Position Link Changes the driver's seat position to a stored
setting. On*1/
Off
Keyless Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/All Doors
Keyless Access Light
FlashCauses some exterior lig hts to blink when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepSets the beeper sound or not when you grab
either front door handle.On*1/Off
Remote Start System
ON/OFFTurn the remote engine start feature on and off.On*1/Off
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 112 ページ ２０１６年４月１１日　月曜日　午後２時４０分

113
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

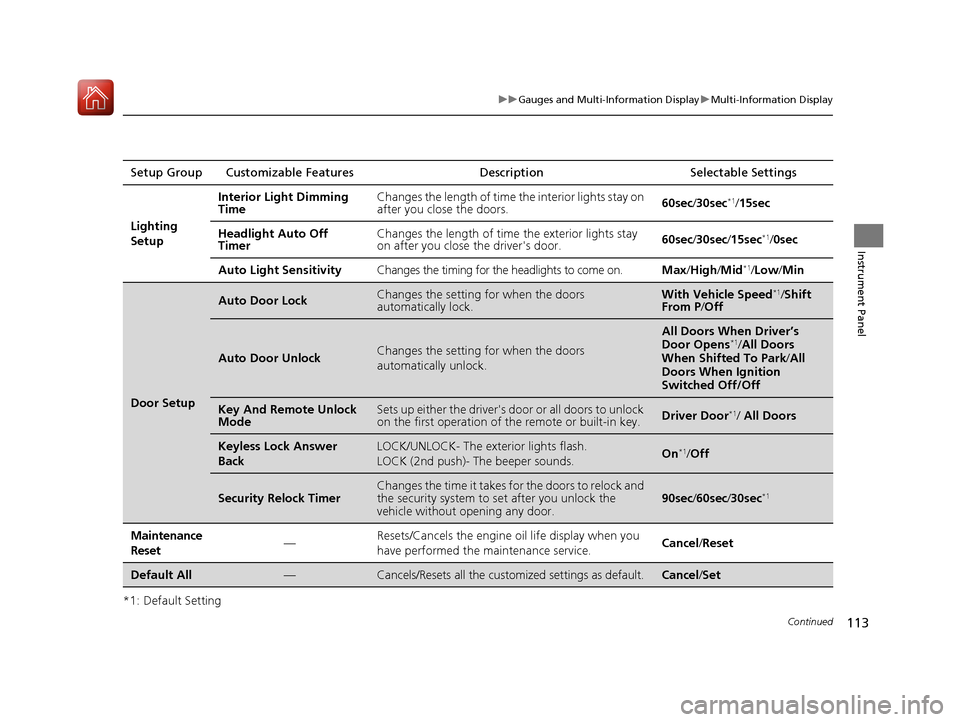

*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay on
after you close the doors.
60sec
/30sec
*1/15sec
Headlight Auto Off
Timer Changes the length of time
the exterior lights stay
on after you close the driver's door. 60sec
/30sec /15sec
*1/ 0sec
Auto Light Sensitivity Changes the timing for the headlights to come on. Max/High /Mid
*1/Low /Min
Door Setup
Auto Door LockChanges the setting for when the doors
automatically lock.With Vehicle Speed*1/Shift
From P /Off
Auto Door UnlockChanges the setting for when the doors
automatically unlock.
All Doors When Driver’s
Door Opens*1/All Doors
When Shifted To Park /All
Doors When Ignition
Switched Off/Off
Key And Remote Unlock
ModeSets up either the driver's door or all doors to unlock
on the first operation of the remote or built-in key.Driver Door*1/ All Doors
Keyless Lock Answer
BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/Off
Security Relock TimerChanges the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without op ening any door.90sec/60sec /30sec*1
Maintenance
Reset—Resets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel /Reset
Default All—Cancels/Resets all the customized settings as default.Cancel /Set
17 ACCORD FHEV-31T3W6200.book 113 ページ ２０１６年４月１１日　月曜日　午後２時４０分

114
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

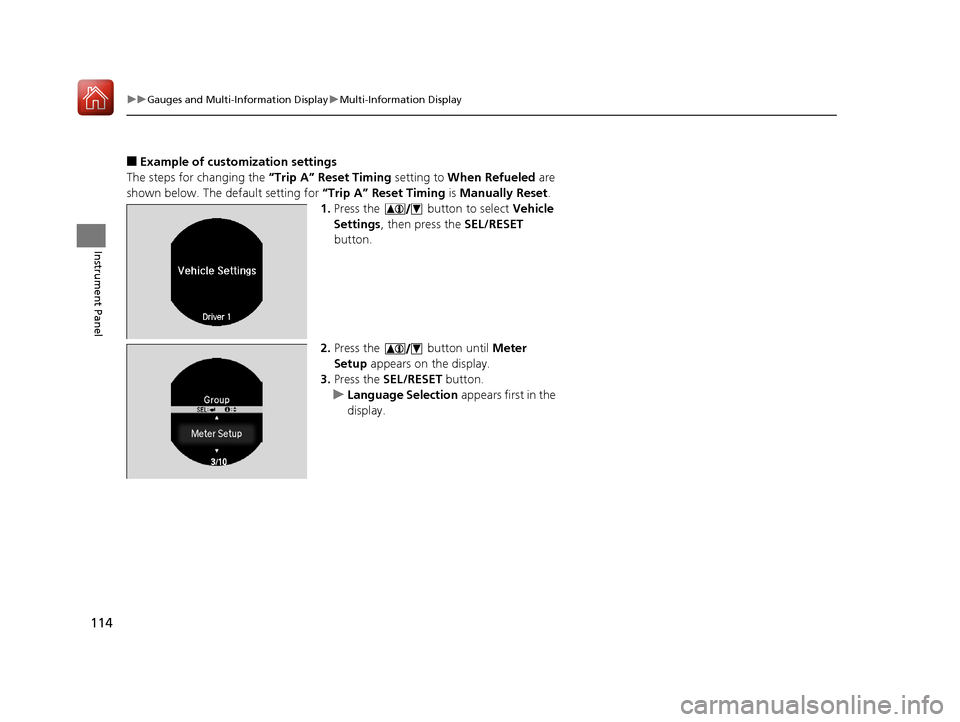

■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button to select Vehicle
Settings , then press the SEL/RESET
button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
u Language Selection appears first in the
display.
17 ACCORD FHEV-31T3W6200.book 114 ページ ２０１６年４月１１日　月曜日　午後２時４０分

115
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

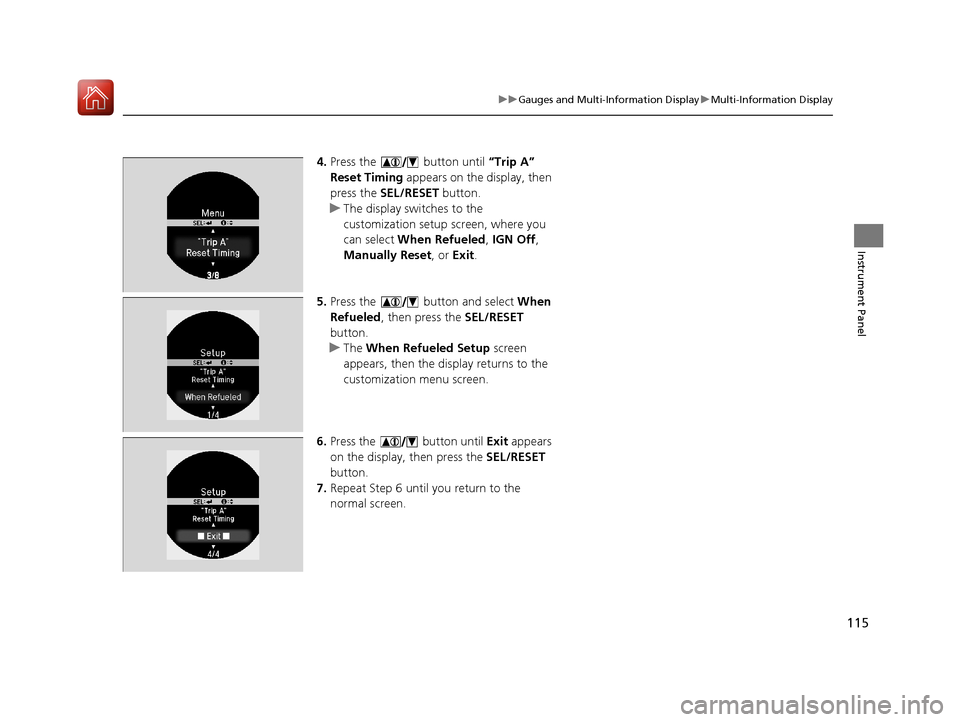

4. Press the button until “Trip A”
Reset Timing appears on the display, then
press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select When Refueled , IGN Off,
Manually Reset , or Exit .
5. Press the button and select When
Refueled , then press the SEL/RESET
button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the button until Exit appears
on the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
17 ACCORD FHEV-31T3W6200.book 115 ページ ２０１６年４月１１日　月曜日　午後２時４０分

116
17 ACCORD FHEV-31T3W6200.book 116 ページ ２０１６年４月１１日　月曜日　午後２時４０分

117

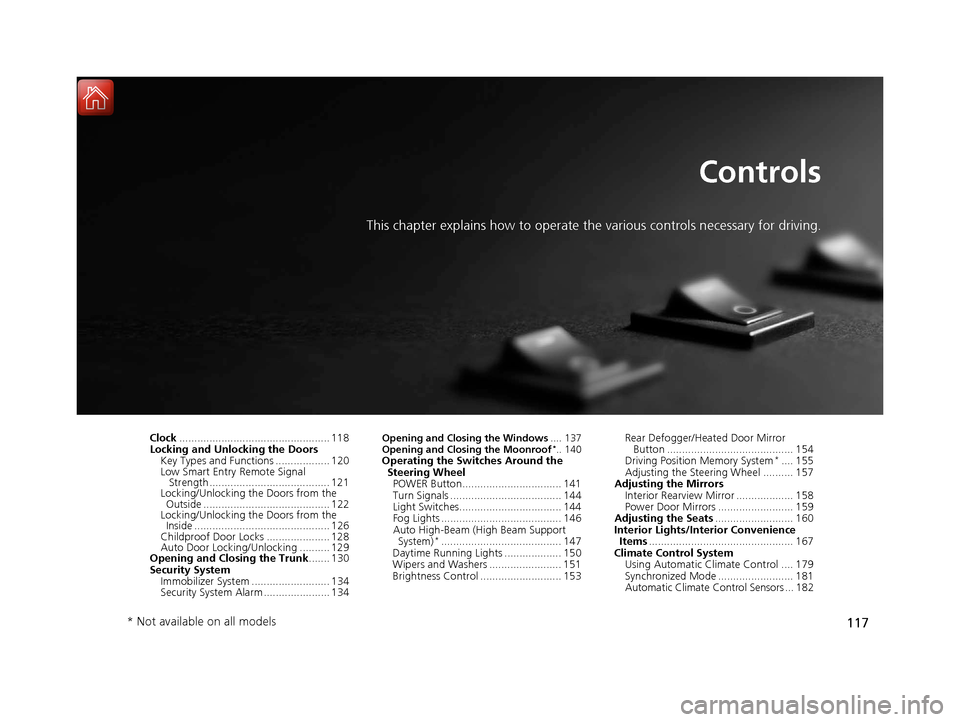

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 118
Locking and Unlocking the Doors
Key Types and Functions .................. 120
Low Smart Entry Remote Signal Strength ........................................ 121
Locking/Unlocking the Doors from the Outside .......................................... 122
Locking/Unlocking the Doors from the Inside ............................................. 126
Childproof Door Locks ..................... 128
Auto Door Locking/Unlocking .......... 129
Opening and Closing the Trunk ....... 130
Security System Immobilizer System .......................... 134
Security System Alarm ...................... 134Opening and Closing the Windows .... 137
Opening and Closing the Moonroof*.. 140Operating the Switches Around the Steering Wheel POWER Button................................. 141
Turn Signals ..................................... 144
Light Switches.................................. 144
Fog Lights ........................................ 146
Auto High-Beam (H igh Beam Support
System)
*........................................ 147
Daytime Running Lights ................... 150
Wipers and Washers ........................ 151
Brightness Control ........................... 153 Rear Defogger/Heated Door Mirror
Button .......................................... 154
Driving Position Memory System
*.... 155
Adjusting the Steering Wheel .......... 157
Adjusting the Mirrors
Interior Rearview Mirror ................... 158
Power Door Mirrors ......................... 159
Adjusting the Seats .......................... 160
Interior Lights/Interior Convenience Items ................................................ 167
Climate Control System
Using Automatic Climate Control .... 179
Synchronized Mode ......................... 181
Automatic Climate Control Sensors ... 182
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 117 ページ ２０１６年４月１１日　月曜日　午後２時４０分

118
Controls

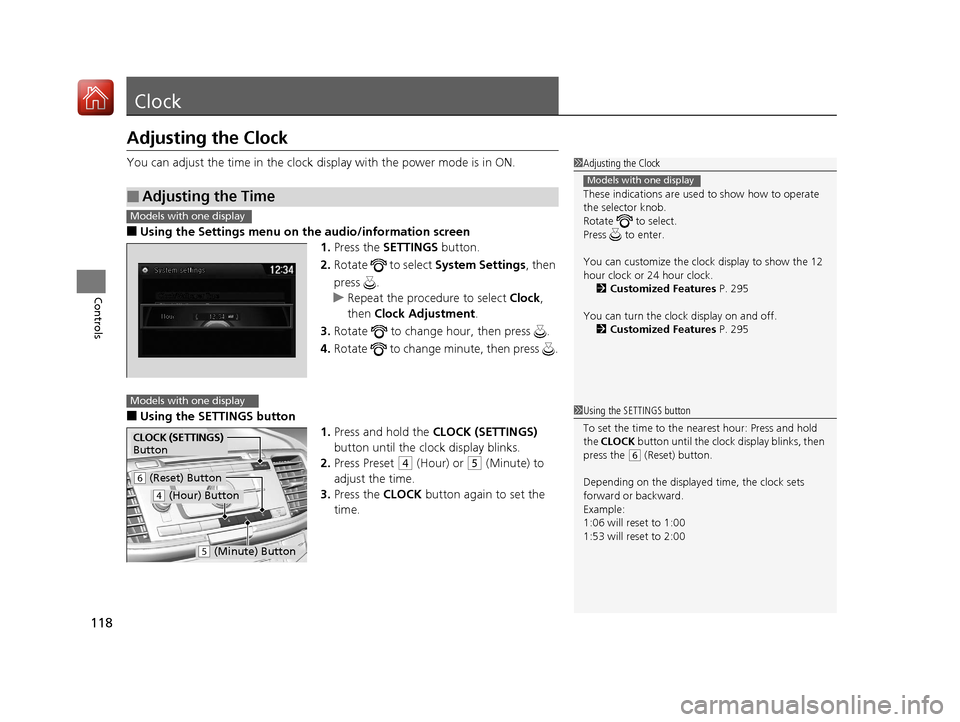

Clock
Adjusting the Clock
You can adjust the time in the clock display with the power mode is in ON.
■Using the Settings menu on the audio/information screen
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Clock,
then Clock Adjustment .
3. Rotate to change hour, then press .
4. Rotate to change minute, then press .
■Using the SETTINGS button
1.Press and hold the CLOCK (SETTINGS)
button until the clock display blinks.
2. Press Preset
(4 (Hour) or (5 (Minute) to
adjust the time.
3. Press the CLOCK button again to set the
time.
■Adjusting the Time
1 Adjusting the Clock
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 295
You can turn the clock display on and off. 2 Customized Features P. 295
Models with one display
Models with one display
1Using the SETTINGS button
To set the time to the nearest hour: Press and hold
the CLOCK button until the clock display blinks, then
press the
( 6 (Reset) button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Models with one display
CLOCK (SETTINGS)
Button
( 6 (Reset) Button
(4 (Hour) Button
(5 (Minute) Button
17 ACCORD FHEV-31T3W6200.book 118 ページ ２０１６年４月１１日　月曜日　午後２時４０分

119
uuClock uAdjusting the Clock
Controls

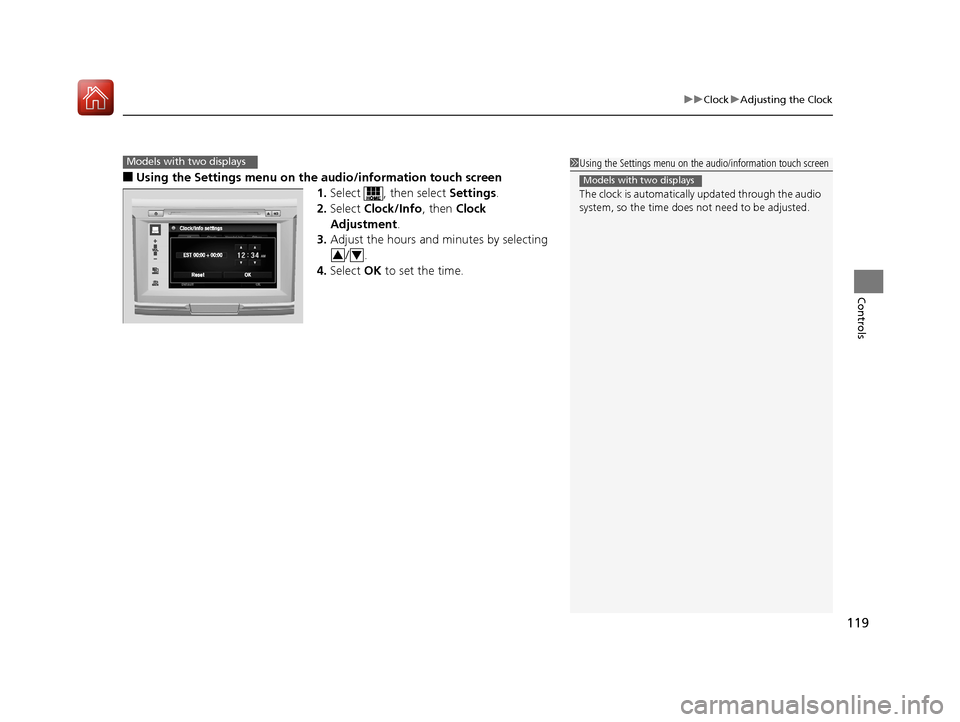

■Using the Settings menu on the audio/information touch screen
1.Select , then select Settings.
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
Models with two displays1Using the Settings menu on the audio/information touch screen
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
Models with two displays
34
