HONDA ACCORD HYBRID 2017 9.G Owners Manual

100
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

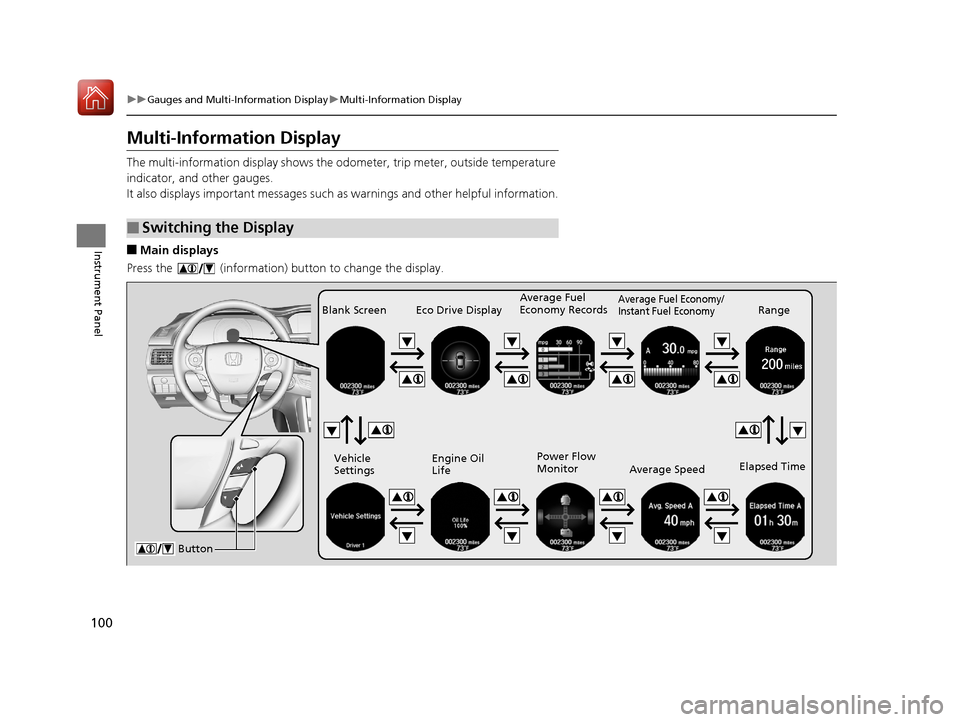

Multi-Information Display
The multi-information display shows the od ometer, trip meter, outside temperature
indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (information) button to change the display.
■Switching the Display
Average Fuel Economy/
Instant Fuel EconomyRange
Elapsed Time
Average Speed
Blank Screen
Vehicle
Settings Engine Oil
Life
ButtonAverage Fuel
Economy Records
Eco Drive Display
Power Flow
Monitor
17 ACCORD FHEV-31T3W6200.book 100 ページ ２０１６年４月１１日　月曜日　午後２時４０分

101
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

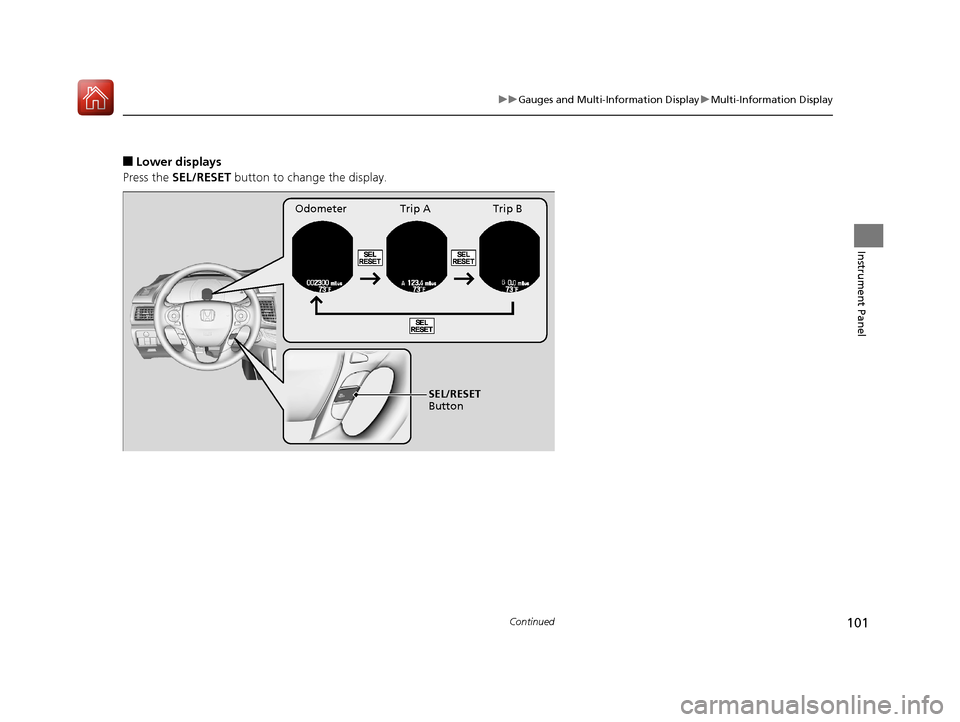

■Lower displays
Press the SEL/RESET button to change the display.
Odometer Trip A Trip B
SEL/RESET
Button
17 ACCORD FHEV-31T3W6200.book 101 ページ ２０１６年４月１１日　月曜日　午後２時４０分

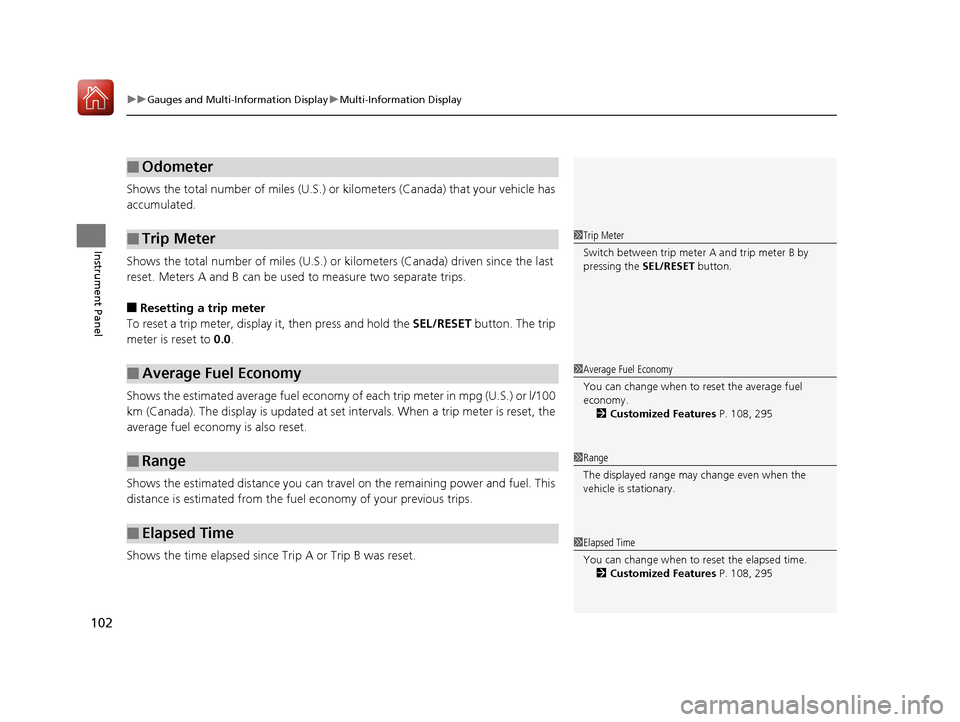

uuGauges and Multi-Information Display uMulti-Information Display
102
Instrument Panel
Shows the total number of miles (U.S.) or ki lometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining power and fuel. This
distance is estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
■Odometer
■Trip Meter
■Average Fuel Economy
■Range
■Elapsed Time
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 108, 295
1Range
The displayed ra nge may change even when the
vehicle is stationary.
1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 108, 295
17 ACCORD FHEV-31T3W6200.book 102 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Continued103
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

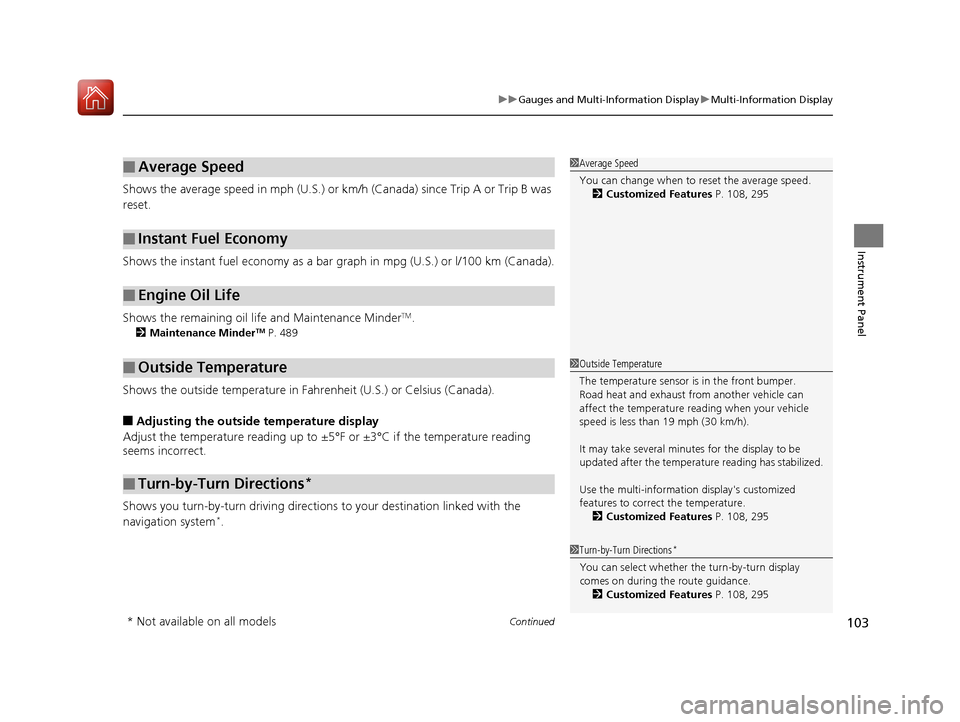

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 489
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5 °F or ±3°C if the temperature reading
seems incorrect.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system
*.
■Average Speed
■Instant Fuel Economy
■Engine Oil Life
■Outside Temperature
■Turn-by-Turn Directions*
1 Average Speed
You can change when to reset the average speed.
2 Customized Features P. 108, 295
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature. 2 Customized Features P. 108, 295
1Turn-by-Turn Directions*
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 108, 295
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 103 ページ ２０１６年４月１１日　月曜日　午後２時４０分

104
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

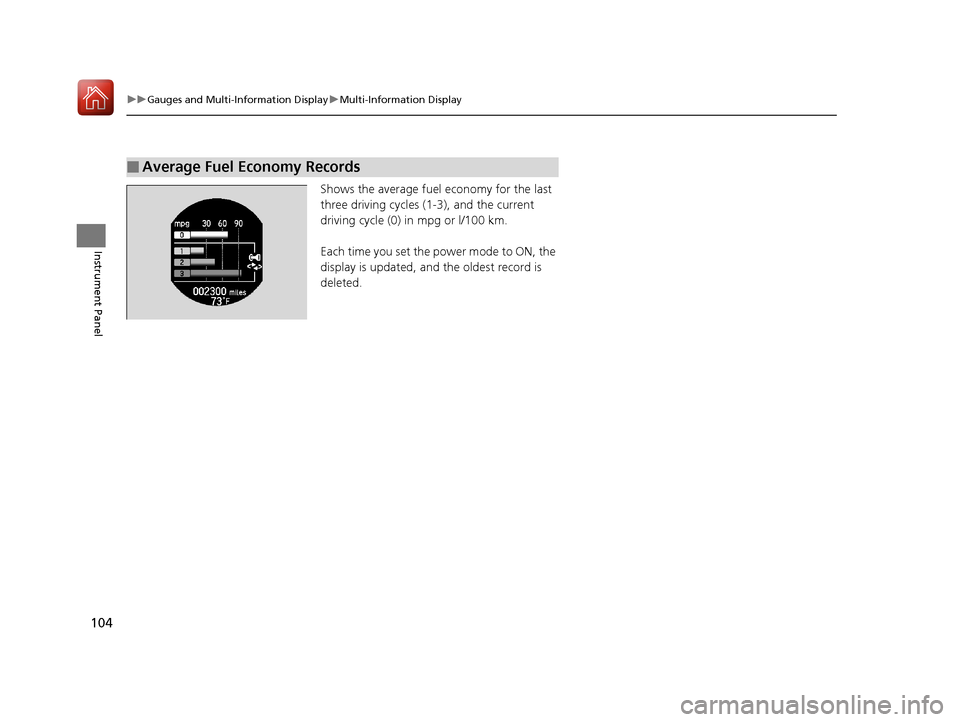

Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Average Fuel Economy Records
17 ACCORD FHEV-31T3W6200.book 104 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Continued105
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is , the further the icon moves forward.
The more aggressive the deceleration is , the further the icon moves backward.
Keep the icon near the cent er of the circle for better fuel economy while driving.
The fuel economy display color changes while driving. The area around the vehicle
icon becomes blue with aggressive acceleration and deceleration, and blue green as
fuel economy gets better, then green when driving in the most fuel efficient style.
Keep the color green as long as possible.
■Eco Drive Display/Drive Cycle Score/Lifetime Points1Eco Drive Display
The ambient meter color changes corresponding to
the eco drive display.
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Blue Green Blue
Moderate
Deceleration
Slow
Acceleration/
Deceleration Moderate
Acceleration
Blue green Blue green
17 ACCORD FHEV-31T3W6200.book 105 ページ ２０１６年４月１１日　月曜日　午後２時４０分

106
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

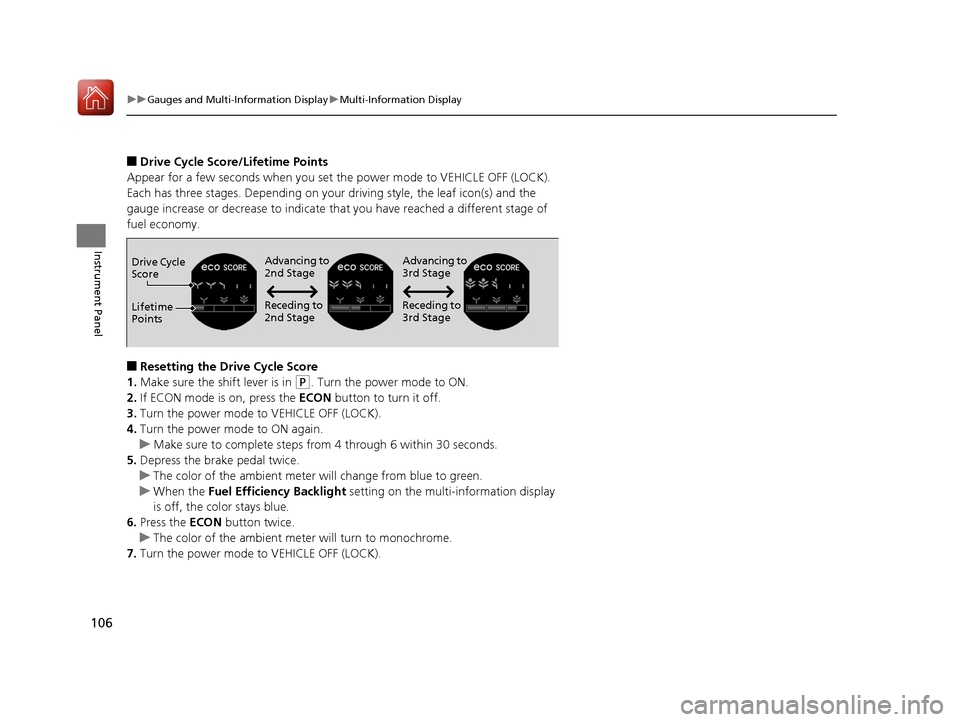

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set the power mode to VEHICLE OFF (LOCK).
Each has three stages. Depending on your dr iving style, the leaf icon(s) and the
gauge increase or decrease to indicate that you have reached a different stage of
fuel economy.
■Resetting the Drive Cycle Score
1. Make sure the shift lever is in
(P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF (LOCK).
4. Turn the power mode to ON again.
u Make sure to complete steps from 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from blue to green.
u When the Fuel Efficiency Backlight setting on the multi-information display
is off, the color stays blue.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Turn the power mode to VEHICLE OFF (LOCK).
Drive Cycle
Score
Lifetime
PointsAdvancing to
2nd Stage
Receding to
2nd Stage Advancing to
3rd Stage
Receding to
3rd Stage
17 ACCORD FHEV-31T3W6200.book 106 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Continued107
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel

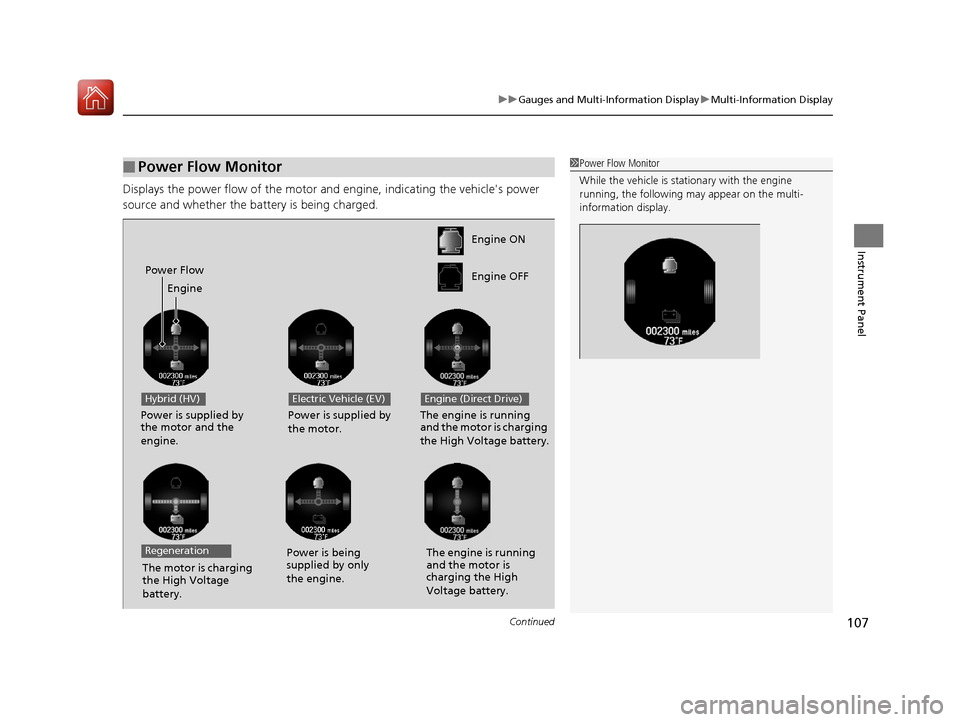

Displays the power flow of the motor an d engine, indicating the vehicle's power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following may appear on the multi-
information display.
Power is supplied by
the motor and the
engine.
The motor is charging
the High Voltage
battery. The engine is running
and the motor is
charging the High
Voltage battery.
RegenerationPower is being
supplied by only
the engine.
Hybrid (HV)
Engine ON
Engine OFF
Power is supplied by
the motor.
Electric Vehicle (EV)
The engine is running
and the motor is charging
the High Voltage battery.
Engine (Direct Drive)
Power Flow Engine
17 ACCORD FHEV-31T3W6200.book 107 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuGauges and Multi-Information Display uMulti-Information Display
108
Instrument Panel

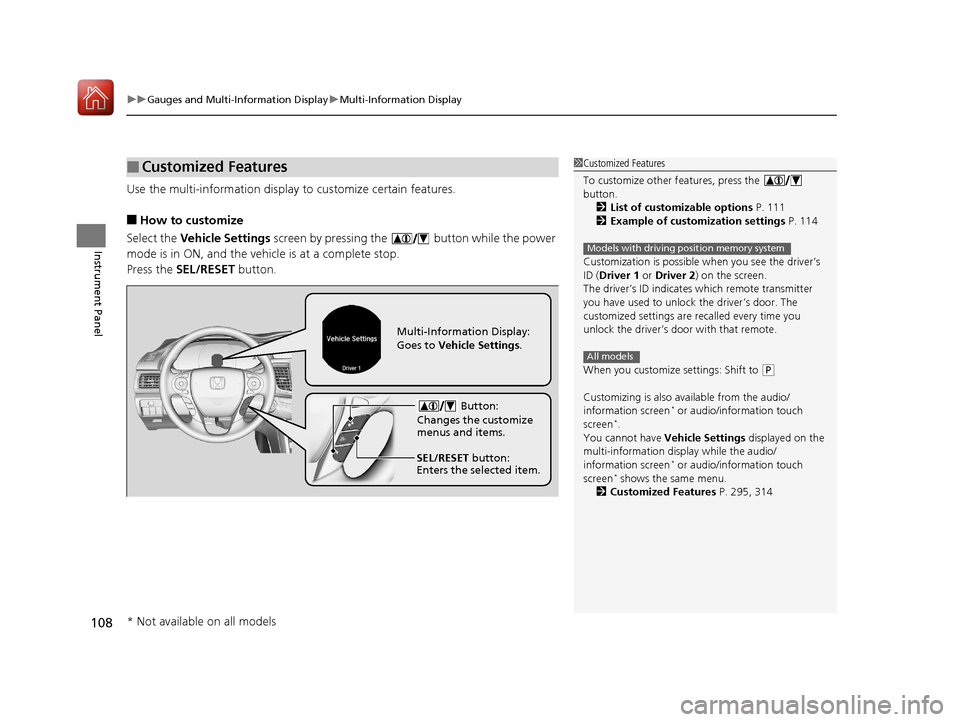

Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing th e button while the power
mode is in ON, and the vehicle is at a complete stop.
Press the SEL/RESET button.
■Customized Features1Customized Features
To customize other features, press the
button.
2 List of customizable options P. 111
2 Example of customization settings P. 114
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
When you customize settings: Shift to
( P
Customizing is also av ailable from the audio/
information screen* or audio/information touch
screen*.
You cannot have Vehicle Settings displayed on the
multi-information display while the audio/
information screen
* or audio/information touch
screen* shows the same menu.
2 Customized Features P. 295, 314
Models with driving position memory system
All models
Button:
Changes the customize
menus and items.
Multi-Information Display:
Goes to Vehicle Settings .
SEL/RESET button:
Enters the selected item.
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 108 ページ ２０１６年４月１１日　月曜日　午後２時４０分

109
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel

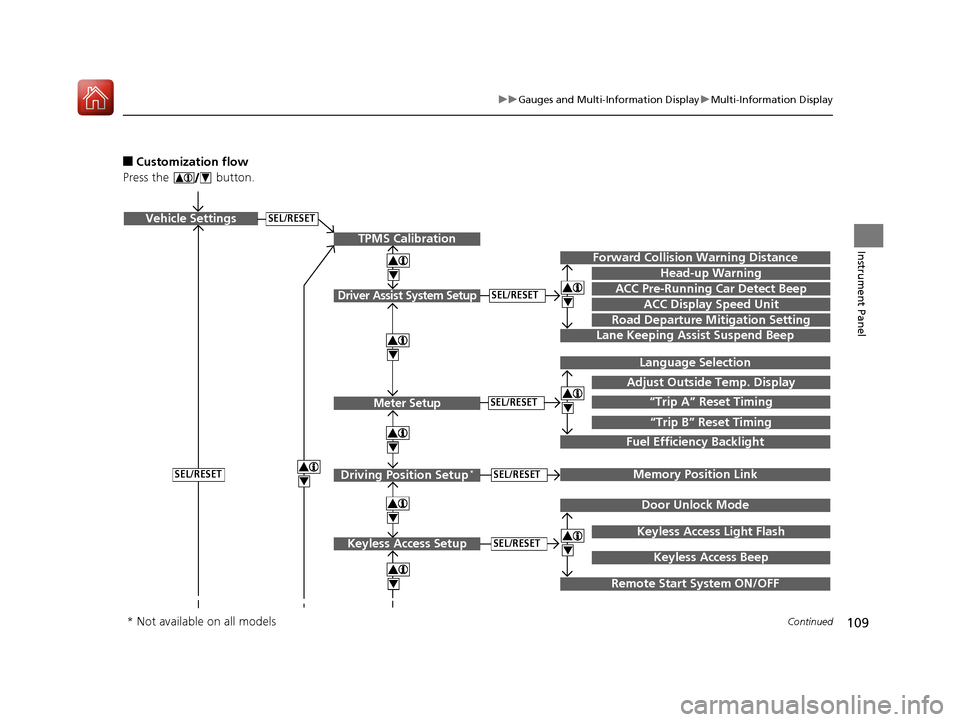

■Customization flow
Press the button.
SEL/RESETVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
Memory Position Link
Door Unlock Mode
Keyless Access Light Flash
4
4
4
4
TPMS Calibration
Driver Assist System Setup
Meter Setup
Driving Position Setup*
Keyless Access Setup
SEL/RESET
SEL/RESET
SEL/RESET
SEL/RESET
“Trip B” Reset Timing
4
Head-up Warning
ACC Pre-Running Car Detect Beep
Lane Keeping Assist Suspend Beep
4Fuel Efficien cy Backlight
SEL/RESET
Remote Start System ON/OFF
Forward Collision Warning Distance
4
4
4
ACC Display Speed Unit
Road Departure Mitigation Setting
Keyless Access Beep
* Not available on all models
