HONDA ACCORD HYBRID 2017 9.G Owners Manual

130
Controls

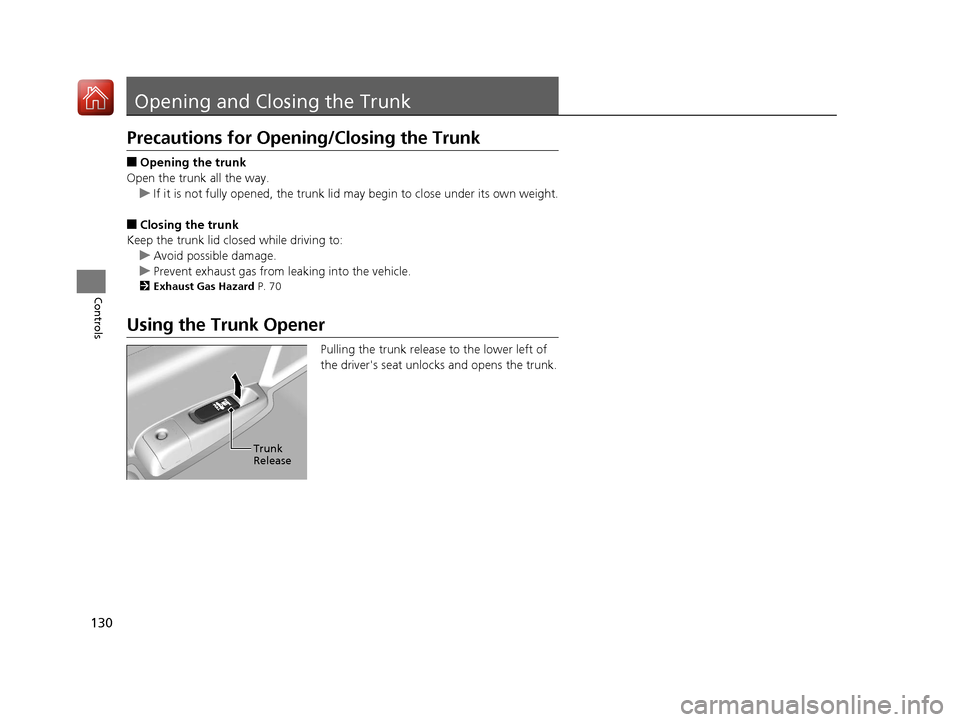

Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 70
Using the Trunk Opener
Pulling the trunk release to the lower left of
the driver's seat unlocks and opens the trunk.
Trunk
Release
17 ACCORD FHEV-31T3W6200.book 130 ページ ２０１６年４月１１日　月曜日　午後２時４０分

131
uuOpening and Closing the Trunk uUsing the Trunk Release Button
Controls

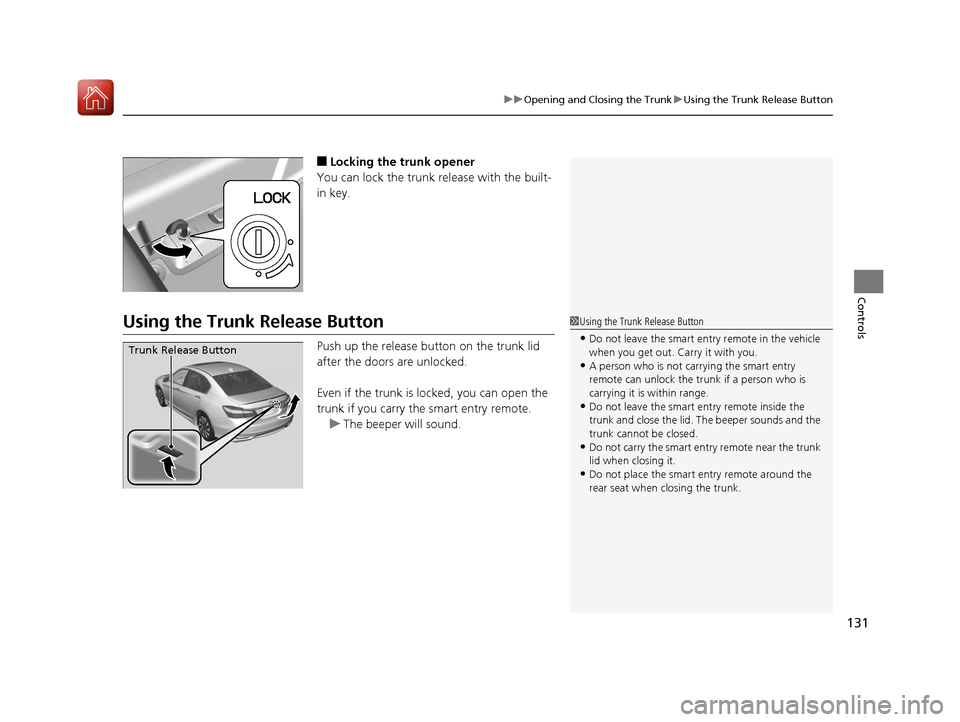

■Locking the trunk opener
You can lock the trunk release with the built-
in key.
Using the Trunk Release Button
Push up the release bu tton on the trunk lid
after the doors are unlocked.
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
u The beeper will sound.
1Using the Trunk Release Button
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
•Do not leave the smart entry remote inside the
trunk and close the lid. The beeper sounds and the
trunk cannot be closed.
•Do not carry the smart entry remote near the trunk
lid when closing it.
•Do not place the smart entry remote around the
rear seat when closing the trunk.
Trunk Release Button
17 ACCORD FHEV-31T3W6200.book 131 ページ ２０１６年４月１１日　月曜日　午後２時４０分

132
uuOpening and Closing the Trunk uUsing the Remote Transmitter
Controls

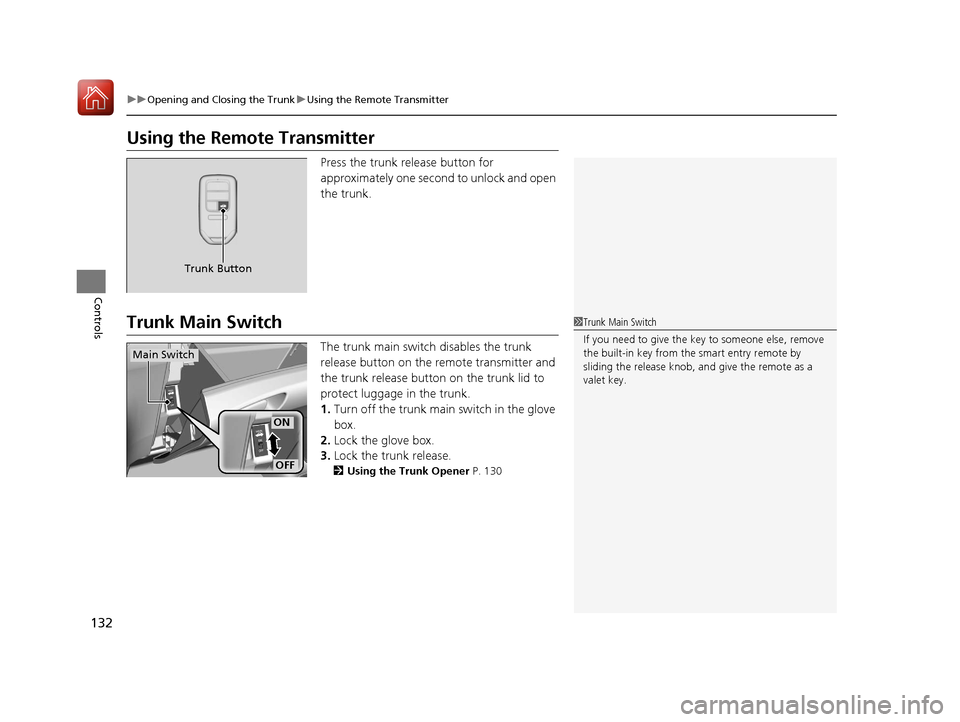

Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
Trunk Main Switch
The trunk main switch disables the trunk
release button on the remote transmitter and
the trunk release button on the trunk lid to
protect luggage in the trunk.
1. Turn off the trunk main switch in the glove
box.
2. Lock the glove box.
3. Lock the trunk release.
2 Using the Trunk Opener P. 130
Trunk Button
1Trunk Main Switch
If you need to give the ke y to someone else, remove
the built-in key from the smart entry remote by
sliding the release knob, and give the remote as a
valet key.
ON
OFF
Main Switch
17 ACCORD FHEV-31T3W6200.book 132 ページ ２０１６年４月１１日　月曜日　午後２時４０分

133
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls

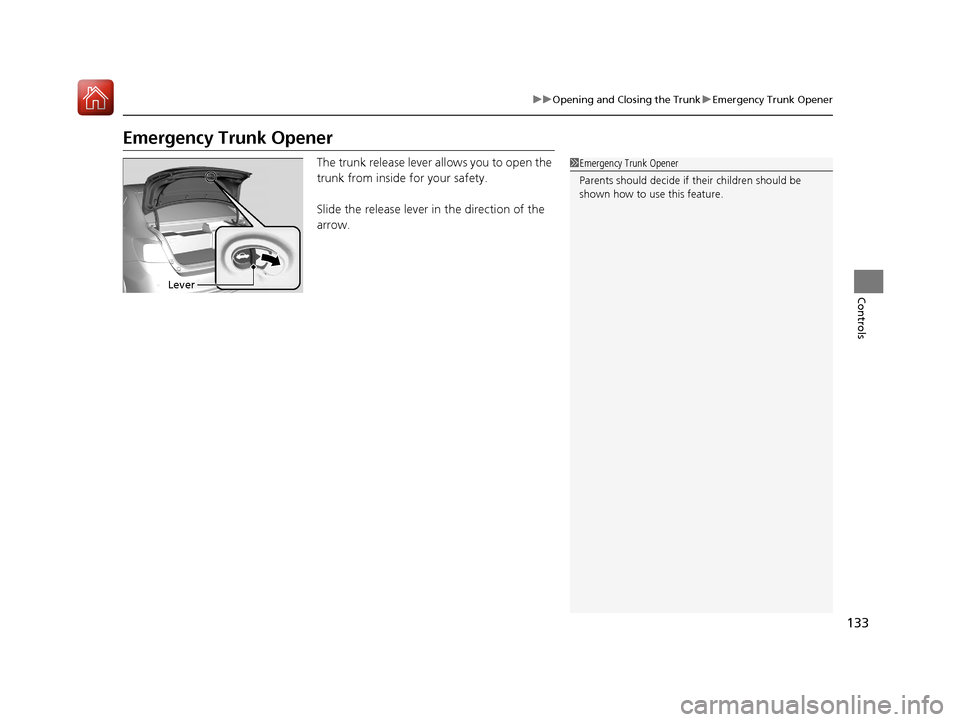

Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
17 ACCORD FHEV-31T3W6200.book 133 ページ ２０１６年４月１１日　月曜日　午後２時４０分

134
Controls

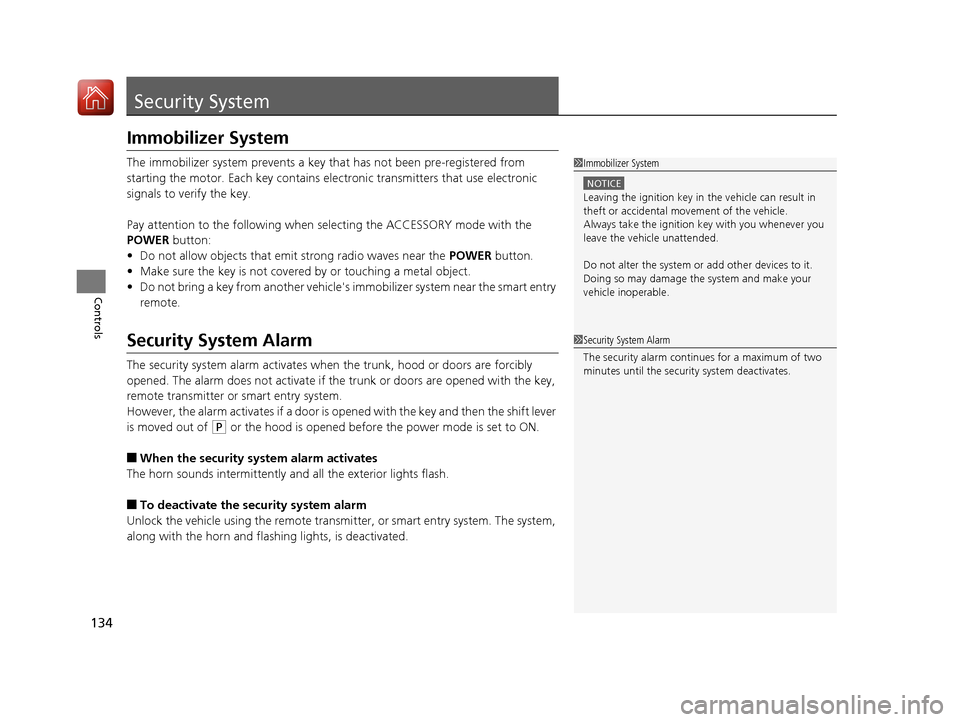

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the motor. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when selecting the ACCESSORY mode with the
POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle's immobilizer system near the smart entry
remote.
Security System Alarm
The security system alarm activates when the trunk, hood or doors are forcibly
opened. The alarm does not activate if th e trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm activates if a door is opened with the key and then the shift lever
is moved out of
(P or the hood is opened before the power mode is set to ON.
■When the security sy stem alarm activates
The horn sounds intermittently and all the exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter, or smart entry system. The system,
along with the horn and flas hing lights, is deactivated.
1Immobilizer System
NOTICE
Leaving the ignition key in the vehicle can result in
theft or accidental move ment of the vehicle.
Always take the ignition key with you whenever you
leave the vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1 Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
17 ACCORD FHEV-31T3W6200.book 134 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Continued135
uuSecurity System uSecurity System Alarm
Controls

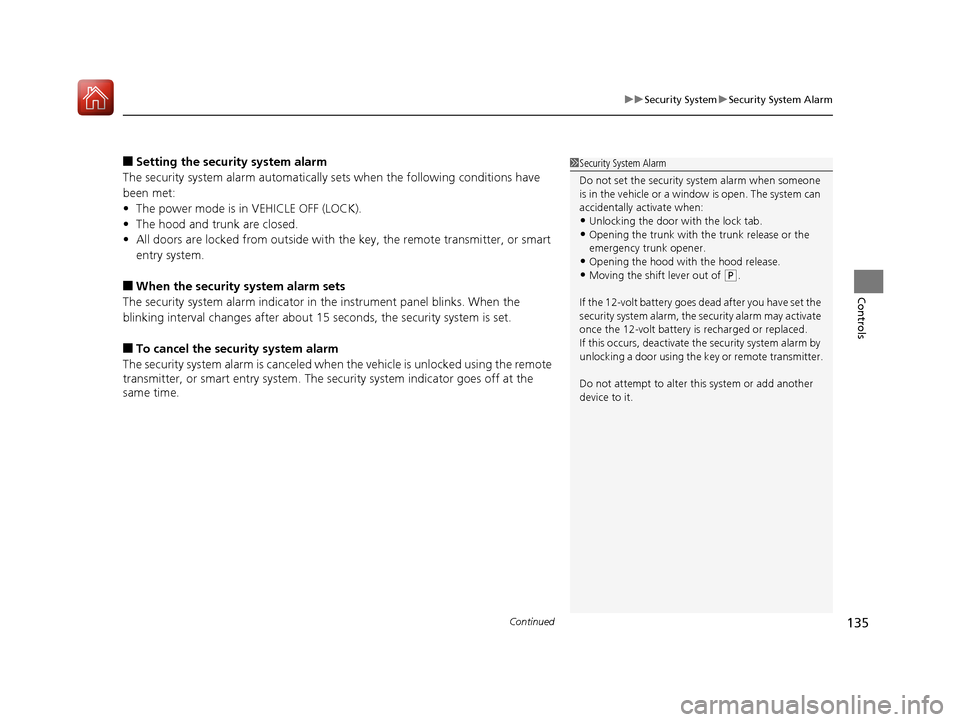

■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is in VEHICLE OFF (LOCK).
• The hood and trunk are closed.
• All doors are locked from outside with the key, the remote transmitter, or smart
entry system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 seconds, the security system is set.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter, or smart entry system. The se curity system indicator goes off at the
same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk release or the
emergency trunk opener.
•Opening the hood with the hood release.•Moving the shift lever out of ( P.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may activate
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y or remote transmitter.
Do not attempt to alter th is system or add another
device to it.
17 ACCORD FHEV-31T3W6200.book 135 ページ ２０１６年４月１１日　月曜日　午後２時４０分

136
uuSecurity System uSecurity System Alarm
Controls

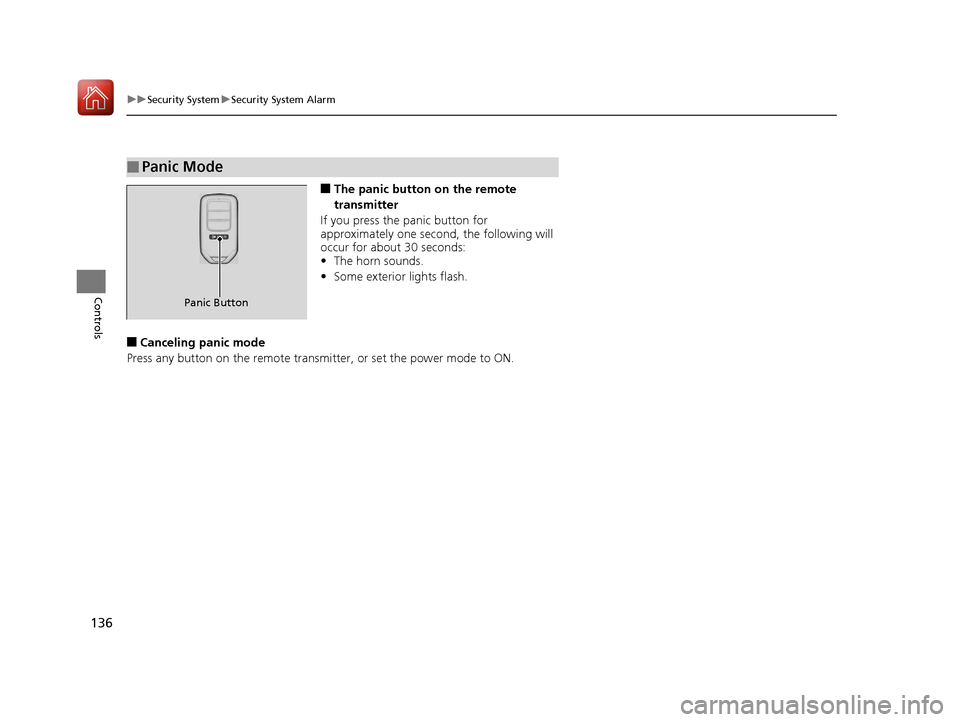

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or set the power mode to ON.
■Panic Mode
Panic Button
17 ACCORD FHEV-31T3W6200.book 136 ページ ２０１６年４月１１日　月曜日　午後２時４０分

137Continued
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors. The driver's side switches can be used to open and
close all of the windows.
The power window lock button on the driver's side must be switched off (not
pushed in, indicator off) to open and cl ose the windows from anywhere other than
the driver's seat.
When the power window lock button is pushed in, you can only operate the driver's
window. Turn the power window lock butto n on when children are in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■Opening/Closing Windows with Auto-Open/Close Function
1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF (LOCK).
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it stops clos ing and reverse direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
On
Off
Power Window
Lock Button
Indicator
Driver’s
Window
Switch
Front Passenger’s
Window Switch
17 ACCORD FHEV-31T3W6200.book 137 ページ ２０１６年４月１１日　月曜日　午後２時４０分

138
uuOpening and Closing the Windows uOpening/Closing th e Power Windows
Controls

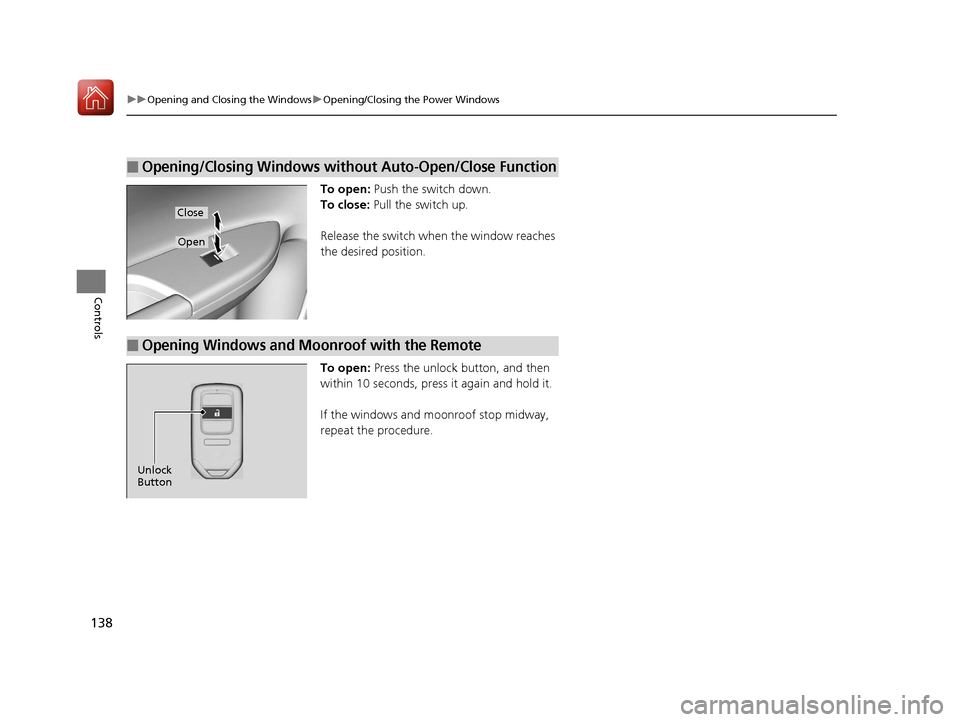

To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it.
If the windows and moonroof stop midway,
repeat the procedure.
■Opening/Closing Windows without Auto-Open/Close Function
Close
Open
■Opening Windows and Moonroof with the Remote
Unlock
Button
17 ACCORD FHEV-31T3W6200.book 138 ページ ２０１６年４月１１日　月曜日　午後２時４０分

139
uuOpening and Closing the Windows uOpening/Closing the Power Windows
Controls

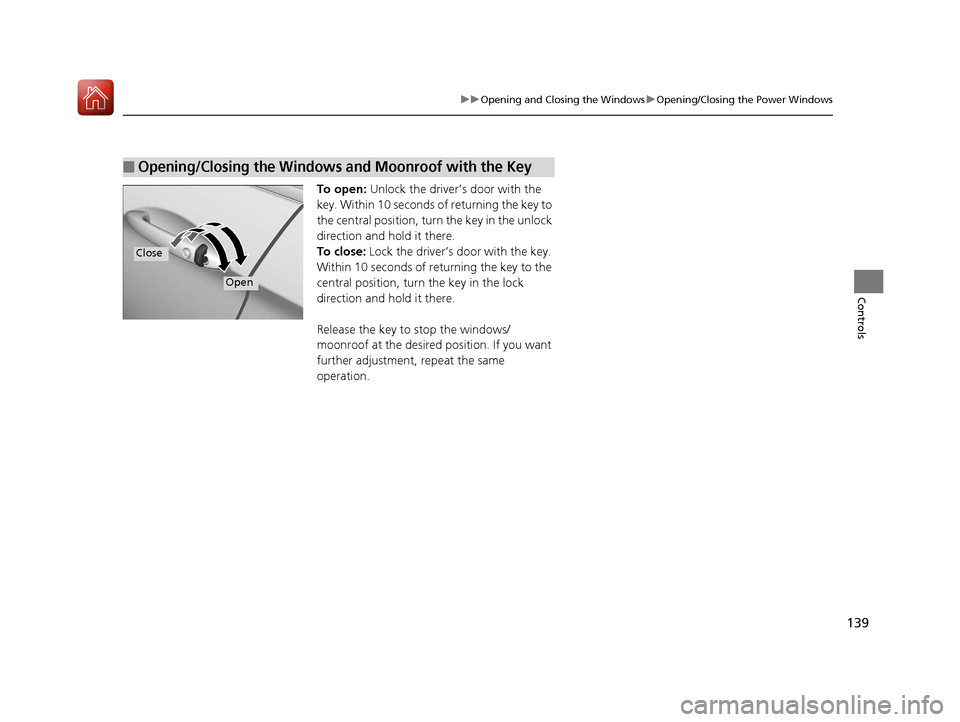

To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows/
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.
■Opening/Closing the Windows and Moonroof with the Key
Close
Open
17 ACCORD FHEV-31T3W6200.book 139 ページ ２０１６年４月１１日　月曜日　午後２時４０分
