HONDA ACCORD HYBRID 2017 9.G Owners Manual

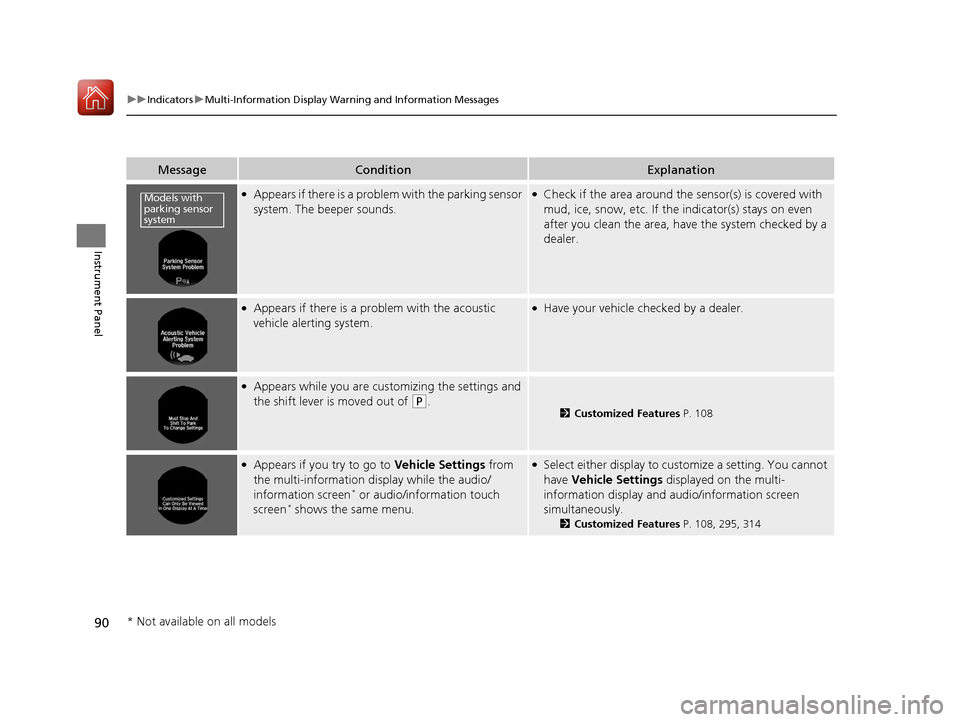

90
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the parking sensor
system. The beeper sounds.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
●Appears if there is a pr oblem with the acoustic
vehicle alerting system.●Have your vehicle ch ecked by a dealer.
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.2Customized Features P. 108
●Appears if you try to go to Vehicle Settings from
the multi-information di splay while the audio/
information screen
* or audio/information touch
screen* shows the same menu.
●Select either display to customize a setting. You cannot
have Vehicle Settings displayed on the multi-
information display and au dio/information screen
simultaneously.
2 Customized Features P. 108, 295, 314
Models with
parking sensor
system
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 90 ページ ２０１６年４月１１日　月曜日　午後２時４０分

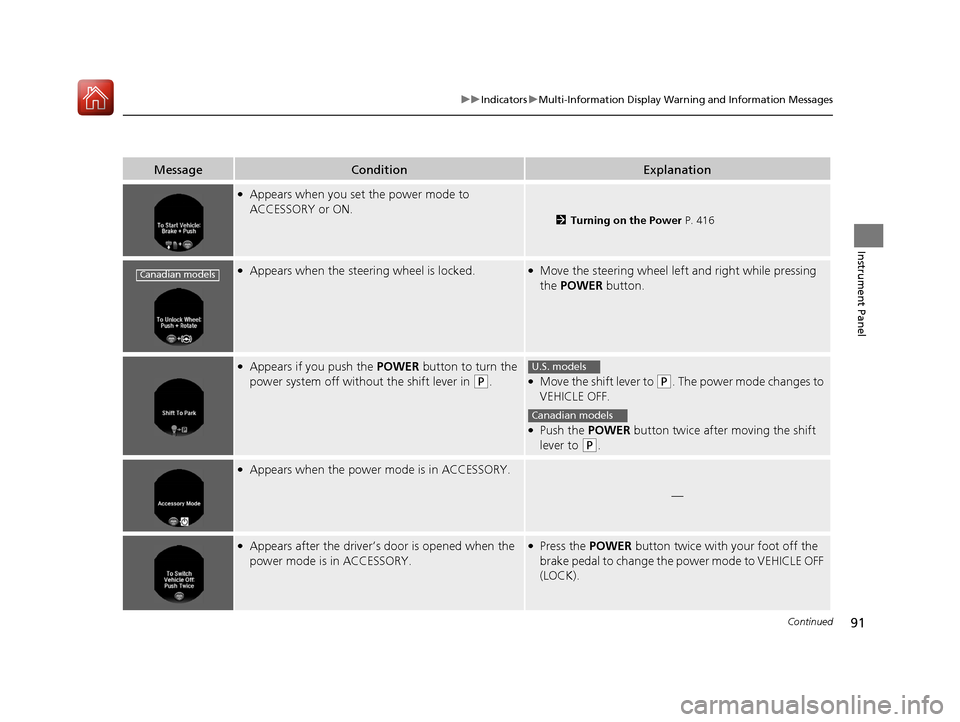

91
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you set the power mode to
ACCESSORY or ON.
2 Turning on the Power P. 416
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing
the POWER button.
●Appears if you push the POWER button to turn the
power system off without the shift lever in
(P.●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Push the POWER button twice after moving the shift
lever to
(P.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE OFF
(LOCK).
Canadian models
U.S. models
Canadian models
17 ACCORD FHEV-31T3W6200.book 91 ページ ２０１６年４月１１日　月曜日　午後２時４０分

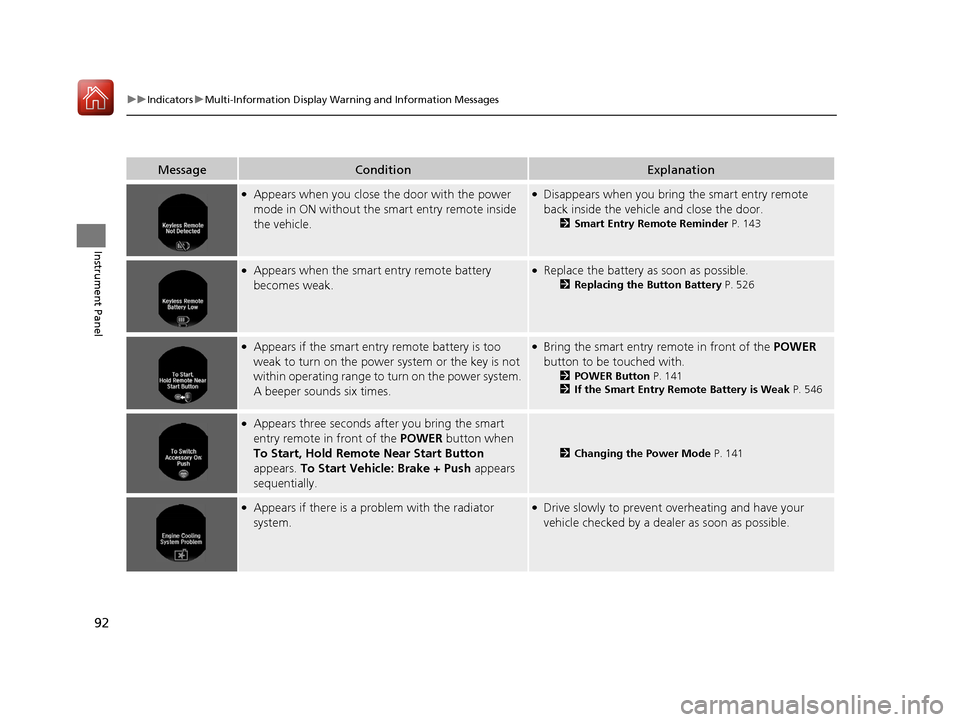

92
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote
back inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 143
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 526
●Appears if the smart entry remote battery is too
weak to turn on the power system or the key is not
within operating range to turn on the power system.
A beeper sounds six times.●Bring the smart entry remote in front of the POWER
button to be touched with.
2 POWER Button P. 141
2 If the Smart Entry Remote Battery is Weak P. 546
●Appears three seconds after you bring the smart
entry remote in front of the POWER button when
To Start, Hold Remote Near Start Button
appears. To Start Vehicle: Brake + Push appears
sequentially.
2 Changing the Power Mode P. 141
●Appears if there is a problem with the radiator
system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
17 ACCORD FHEV-31T3W6200.book 92 ページ ２０１６年４月１１日　月曜日　午後２時４０分

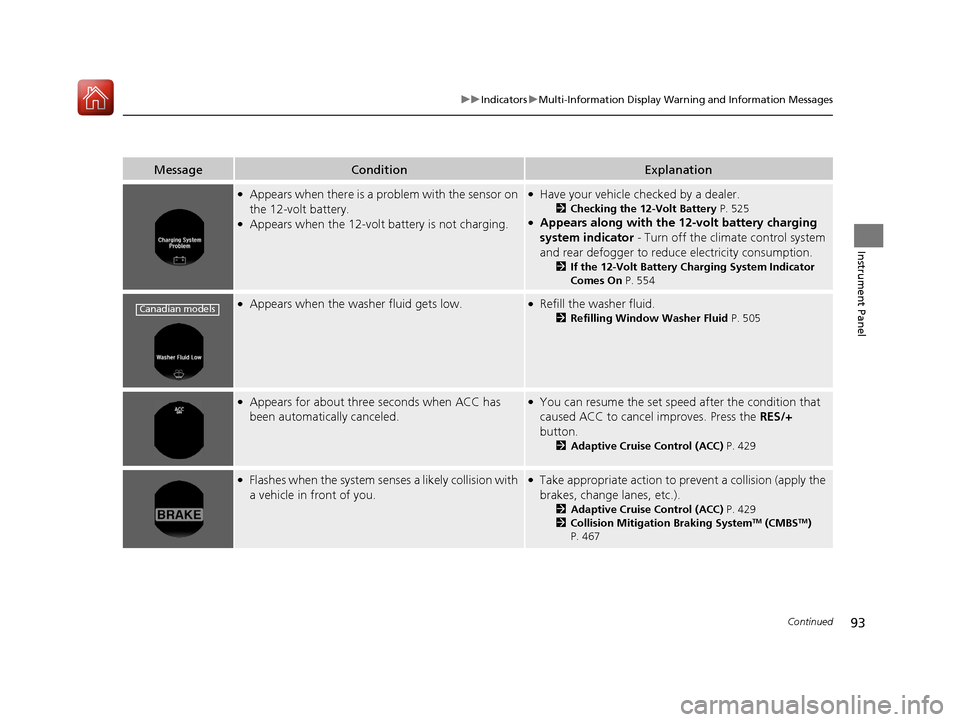

93
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when there is a problem with the sensor on
the 12-volt battery.
●Appears when the 12-volt battery is not charging.
●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 525●Appears along with the 12 -volt battery charging
system indicator - Turn off the climate control system
and rear defogger to reduce electricity consumption.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 554
●Appears when the washer fluid gets low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 505
●Appears for about three seconds when ACC has
been automatically canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC) P. 429
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take appropriate action to prevent a collision (apply the
brakes, change lanes, etc.).
2 Adaptive Cruise Control (ACC) P. 429
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 467
Canadian models
17 ACCORD FHEV-31T3W6200.book 93 ページ ２０１６年４月１１日　月曜日　午後２時４０分

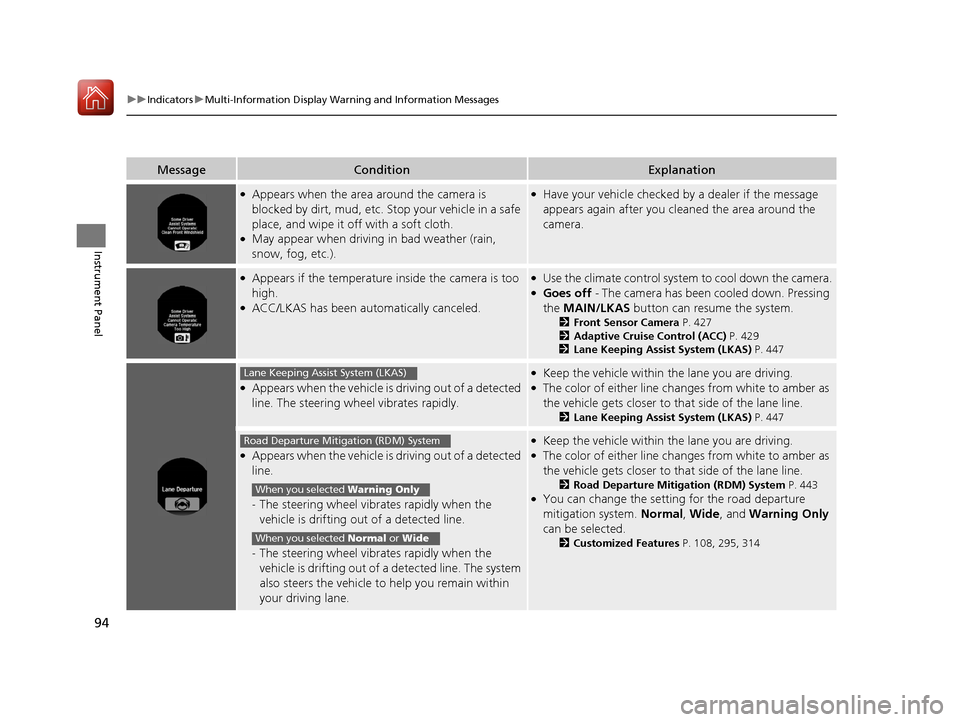

94
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the area around the camera is
blocked by dirt, mud, etc. Stop your vehicle in a safe
place, and wipe it off with a soft cloth.
●May appear when driving in bad weather (rain,
snow, fog, etc.).
●Have your vehicle checked by a dealer if the message
appears again after you cl eaned the area around the
camera.
●Appears if the temperature inside the camera is too
high.
●ACC/LKAS has been automatically canceled.
●Use the climate control system to cool down the camera.●Goes off - The camera has been cooled down. Pressing
the MAIN/LKAS button can resume the system.
2Front Sensor Camera P. 427
2 Adaptive Cruise Control (ACC) P. 429
2 Lane Keeping Assist System (LKAS) P. 447
●Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.●The color of either line ch anges from white to amber as
the vehicle gets closer to that side of the lane line.
2 Lane Keeping Assist System (LKAS) P. 447
●Appears when the vehicle is driving out of a detected
line.
-The steering wheel vibrat es rapidly when the
vehicle is drifting out of a detected line.
- The steering wheel vibrat es rapidly when the
vehicle is drifting out of a detected line. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.●The color of either line ch anges from white to amber as
the vehicle gets closer to that side of the lane line.
2 Road Departure Mitigation (RDM) System P. 443●You can change the setting for the road departure
mitigation system. Normal, Wide , and Warning Only
can be selected.
2 Customized Features P. 108, 295, 314
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Normal or Wide
17 ACCORD FHEV-31T3W6200.book 94 ページ ２０１６年４月１１日　月曜日　午後２時４０分

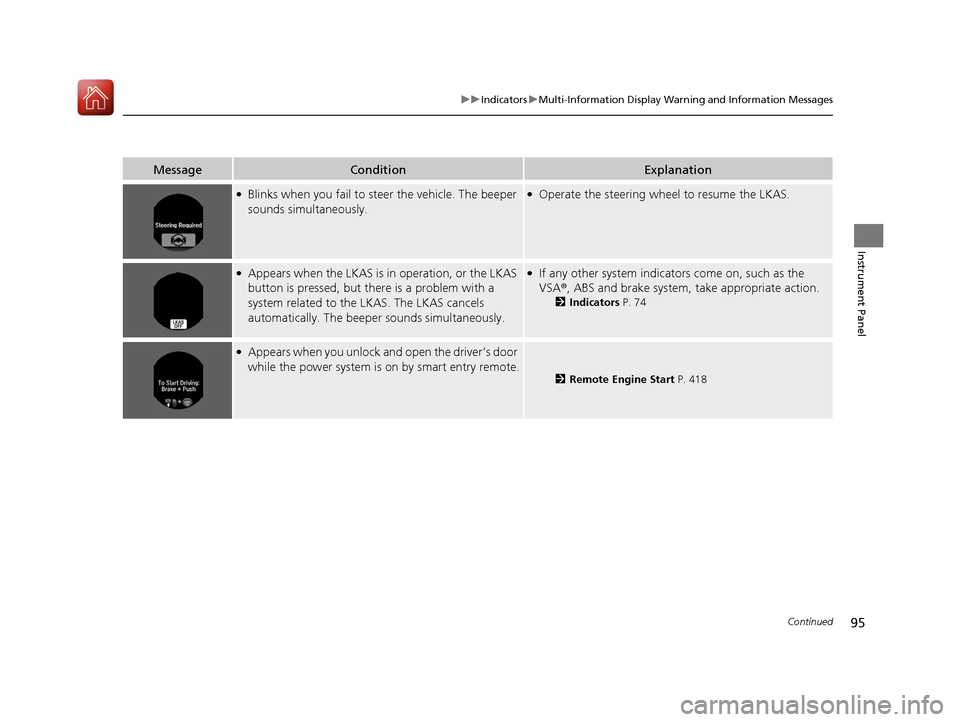

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Blinks when you fail to st eer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicato rs come on, such as the
VSA ®, ABS and brake system, take appropriate action.
2 Indicators P. 74
●Appears when you unlock an d open the driver’s door
while the power system is on by smart entry remote.
2Remote Engine Start P. 418
17 ACCORD FHEV-31T3W6200.book 95 ページ ２０１６年４月１１日　月曜日　午後２時４０分

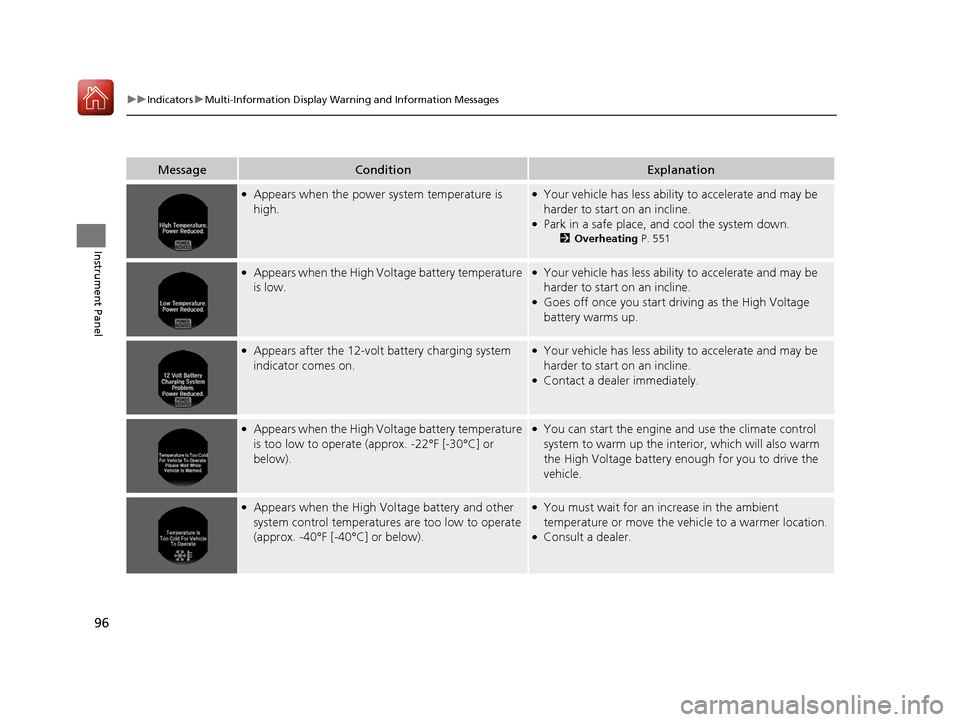

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the power system temperature is
high.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Park in a safe place, and cool the system down.
2Overheating P. 551
●Appears when the High Voltage battery temperature
is low.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Goes off once you start driving as the High Voltage
battery warms up.
●Appears after the 12-volt battery charging system
indicator comes on.●Your vehicle has less ability to accelerate and may be
harder to start on an incline.
●Contact a dealer immediately.
●Appears when the High Voltage battery temperature
is too low to operate (approx. -22°F [-30°C] or
below).●You can start the engine an d use the climate control
system to warm up the inte rior, which will also warm
the High Voltage battery en ough for you to drive the
vehicle.
●Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
●Consult a dealer.
17 ACCORD FHEV-31T3W6200.book 96 ページ ２０１６年４月１１日　月曜日　午後２時４０分

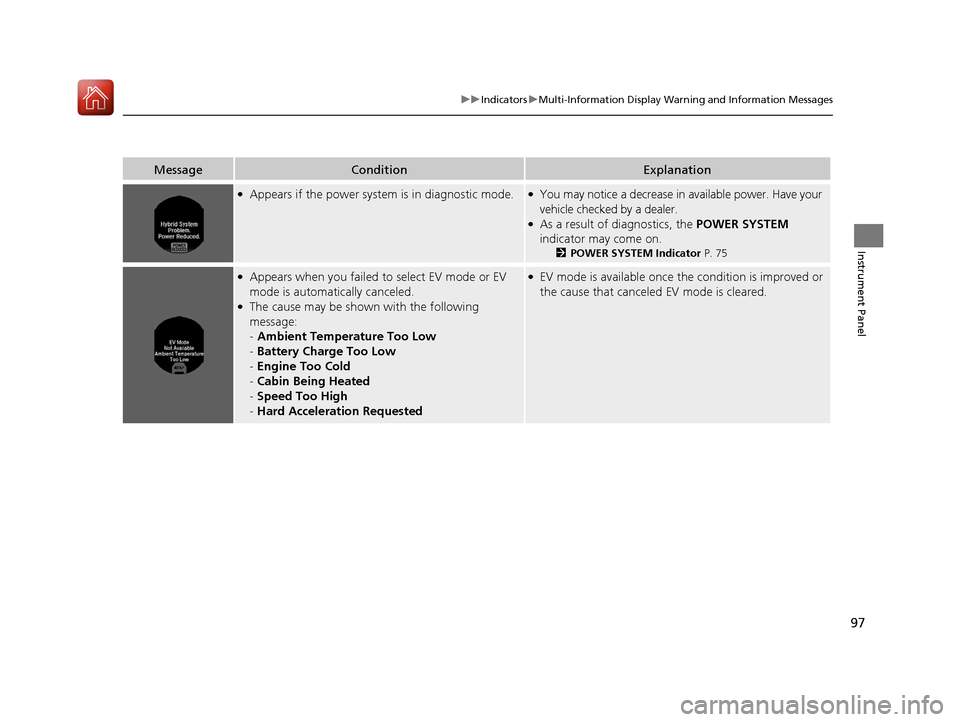

97
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the power system is in diagnostic mode.●You may notice a decrease in available power. Have your
vehicle checked by a dealer.
●As a result of diagnostics, the POWER SYSTEM
indicator may come on.
2 POWER SYSTEM Indicator P. 75
●Appears when you failed to select EV mode or EV
mode is automatically canceled.
●The cause may be shown with the following
message:
- Ambient Temperature Too Low
- Battery Charge Too Low
- Engine Too Cold
- Cabin Being Heated
- Speed Too High
- Hard Acceleration Requested
●EV mode is available once th e condition is improved or
the cause that canceled EV mode is cleared.
17 ACCORD FHEV-31T3W6200.book 97 ページ ２０１６年４月１１日　月曜日　午後２時４０分

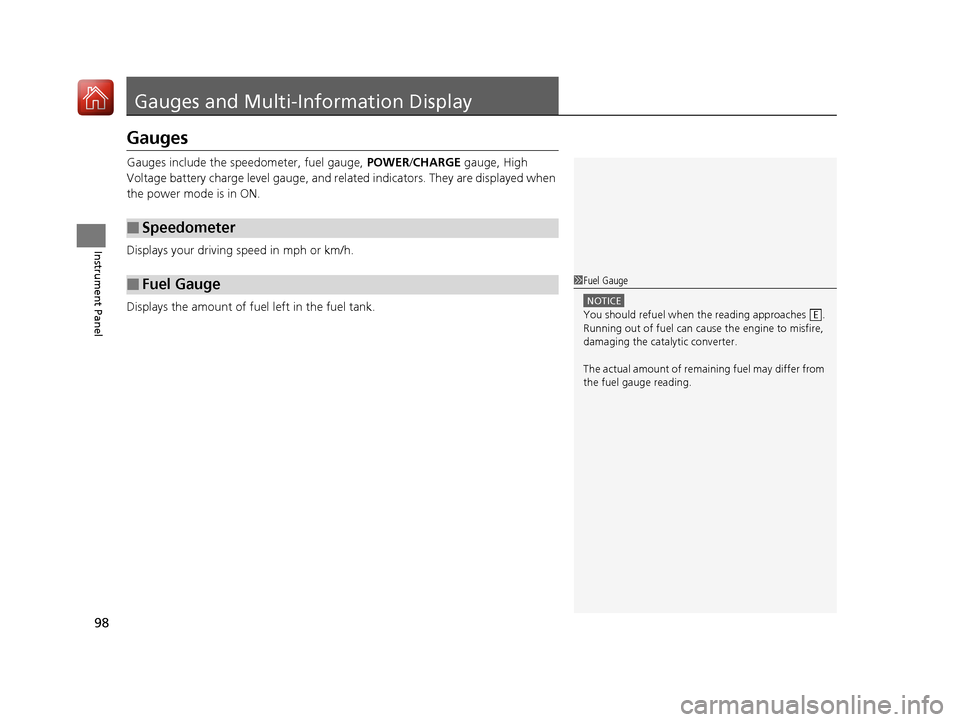

98
Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, High
Voltage battery charge level gauge, and related indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph or km/h.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Fuel Gauge1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
17 ACCORD FHEV-31T3W6200.book 98 ページ ２０１６年４月１１日　月曜日　午後２時４０分

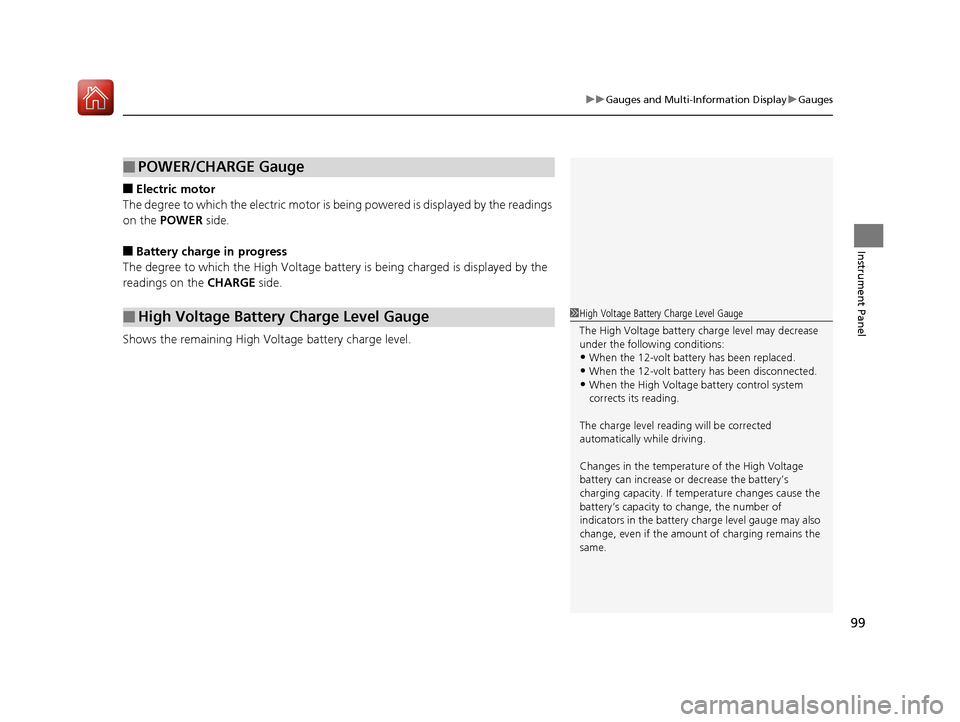

99
uuGauges and Multi-Information Display uGauges
Instrument Panel
■Electric motor
The degree to which the electric motor is be ing powered is displayed by the readings
on the POWER side.
■Battery charge in progress
The degree to which the High Voltage battery is being charged is displayed by the
readings on the CHARGE side.
Shows the remaining High Voltage battery charge level.
■POWER/CHARGE Gauge
■High Voltage Battery Charge Level Gauge1 High Voltage Battery Charge Level Gauge
The High Voltage battery ch arge level may decrease
under the following conditions:
•When the 12-volt battery has been replaced.
•When the 12-volt battery has been disconnected.
•When the High Voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temp erature changes cause the
battery’s capacity to change, the number of
indicators in the battery ch arge level gauge may also
change, even if the amount of charging remains the
same.
17 ACCORD FHEV-31T3W6200.book 99 ページ ２０１６年４月１１日　月曜日　午後２時４０分
