HONDA ACCORD HYBRID 2019 Owners Manual

189
Controls

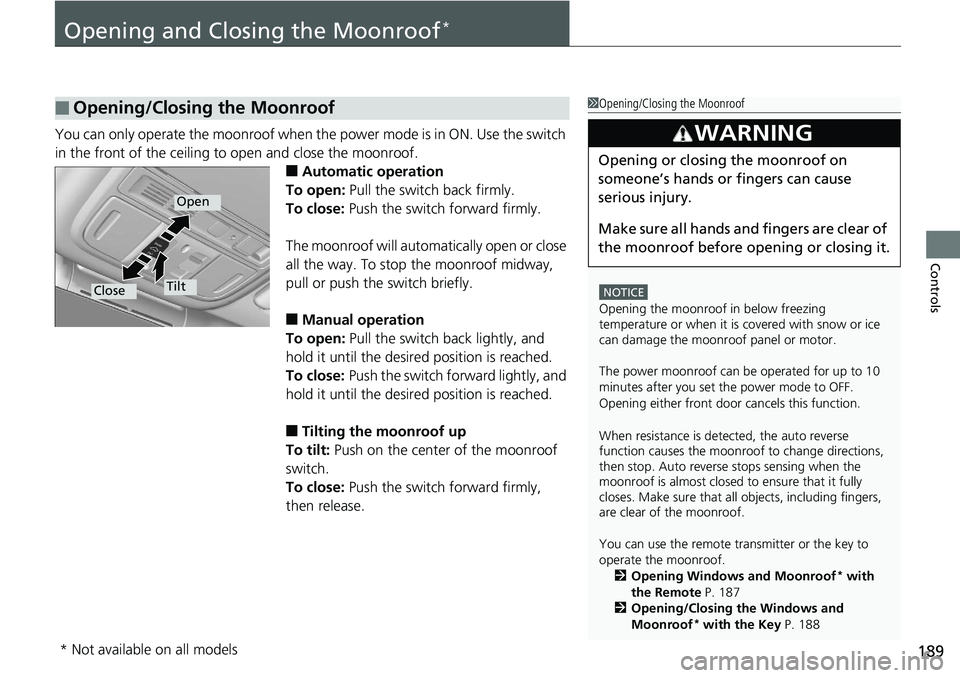

Opening and Closing the Moonroof *
You can only operate the moonroof when th e power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof.
■ Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automa tically open or close
all the way. To stop the moonroof midway,
pull or push the switch briefly.
■ Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch fo rward lightly, and
hold it until the desired position is reached.
■ Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly,
then release.■ Opening/Closing the Moonroof 1 Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you set the power mode to OFF.
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the
moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to
operate the moonroof.
2 Opening Windows and Moonroof *
with
the Remote P. 187
2 Opening/Closing the Windows and
Moonroof *
with the Key P. 1883
WARNING Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.Open
Close Tilt
* Not available on all models

190

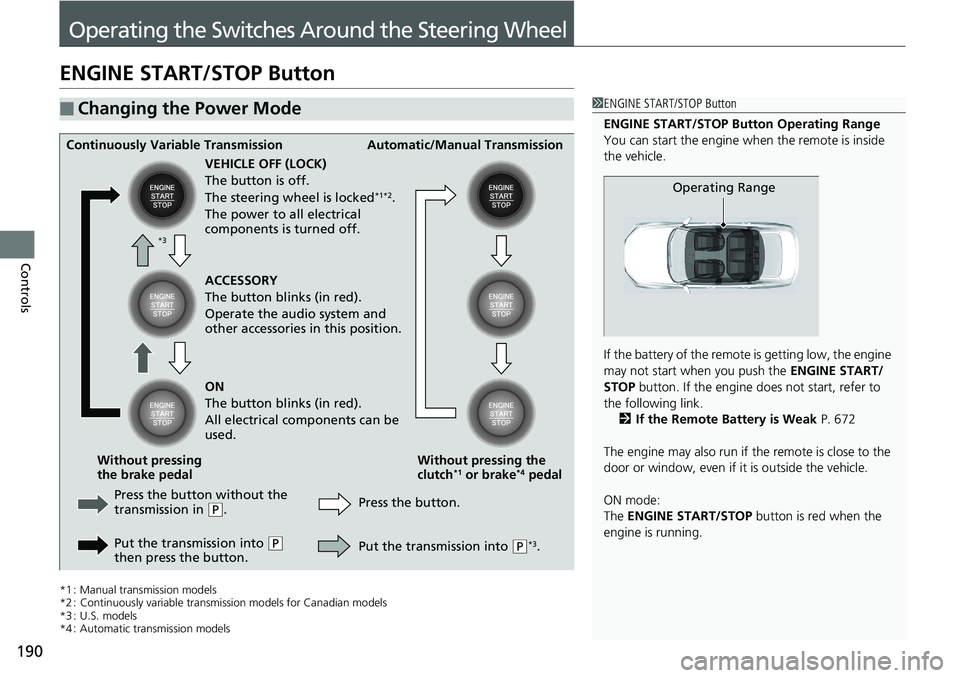

Controls Operating the Switches Around the Steering WheelENGINE START/STOP Button
*1 : Manual transmission models
*2 : Continuously variable transmi ssion models for Canadian models
*3 : U.S. models
*4 : Automatic transmission models■ Changing the Power Mode 1 ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine wh en the remote is inside
the vehicle.
If the battery of the remote is getting low, the engine
may not start when you push the ENGINE START/
STOP button. If the engine do es not start, refer to
the following link.
2 If the Remote Battery is Weak P. 672
The engine may also run if the remote is close to the
door or window, even if it is outside the vehicle.
ON mode:
The ENGINE START/STOP button is red when the
engine is running. Operating RangeContinuously Variable Transmission Automatic/Manual Transmission
VEHICLE OFF (LOCK)
The button is off.
The steering wheel is locked *1*2
.
The power to all electrical
components is turned off.
Press the button without the
transmission in ( P
.
Put the transmission into ( P

then press the button. Press the button. Without pressing the
clutch *1
or brake *4
pedalWithout pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and
other accessories in this position.
ON
The button blinks (in red).
All electrical components can be
used.
Put the transmission into ( P *3
.*3

Continued
191uu Operating the Switches Around the Steering Wheel u ENGINE START/STOP Button
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in ( P *1
and the
power mode in ACCESSORY, the vehicle automa tically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with the re mote transmitter or the smart entry with
push button start system *
.
Press the ENGINE START/STOP button twice to switch the mode to VEHICLE OFF
(LOCK).
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
buzzer sounds.
*1 : Automatic transmission/Continuously variable transmission models■ Automatic Power Off
■ Power Mode Reminder 1 Changing the Power Mode
If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the st eering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Do not leave the power mode in ACCESSORY or ON
when you get out. Manual transmission models
Continuously variable transmission models
for Canadian models
Manual transmission models
Continuously variable transmission models
for Canadian models
* Not available on all models

uu Operating the Switches Around the Steering Wheel u ENGINE START/STOP Button
192

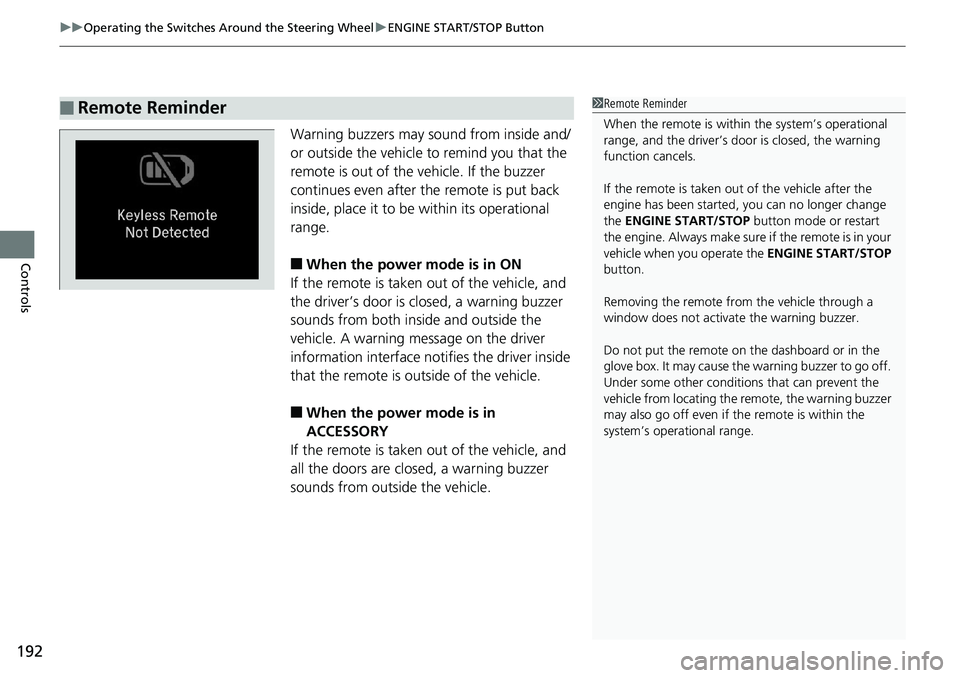

Controls Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
remote is out of the vehicle. If the buzzer
continues even after the remote is put back
inside, place it to be within its operational
range.
■ When the power mode is in ON
If the remote is taken out of the vehicle, and
the driver’s door is closed, a warning buzzer
sounds from both inside and outside the
vehicle. A warning me ssage on the driver
information interface noti fies the driver inside
that the remote is outside of the vehicle.
■ When the power mode is in
ACCESSORY
If the remote is taken out of the vehicle, and
all the doors are closed, a warning buzzer
sounds from outside the vehicle.■ Remote Reminder 1 Remote Reminder
When the remote is within the system’s operational
range, and the driver’s door is closed, the warning
function cancels.
If the remote is taken out of the vehicle after the
engine has been started, you can no longer change
the ENGINE START/STOP button mode or restart
the engin e. Always make sure if the remote is in your
vehicle when you operate the ENGINE START/STOP
button.
Removing the remote fr om the vehicle through a
window does not activate the warning buzzer.
Do not put the remote on the dashboard or in the
glove box. It may cause the warning buzzer to go off.
Under some other conditions that can prevent the
vehicle from locating the remote, the warning buzzer
may also go off even if the remote is within the
system’s operational range.

193uu Operating the Switches Around the Steering Wheel u Turn Signals
Continued
Controls

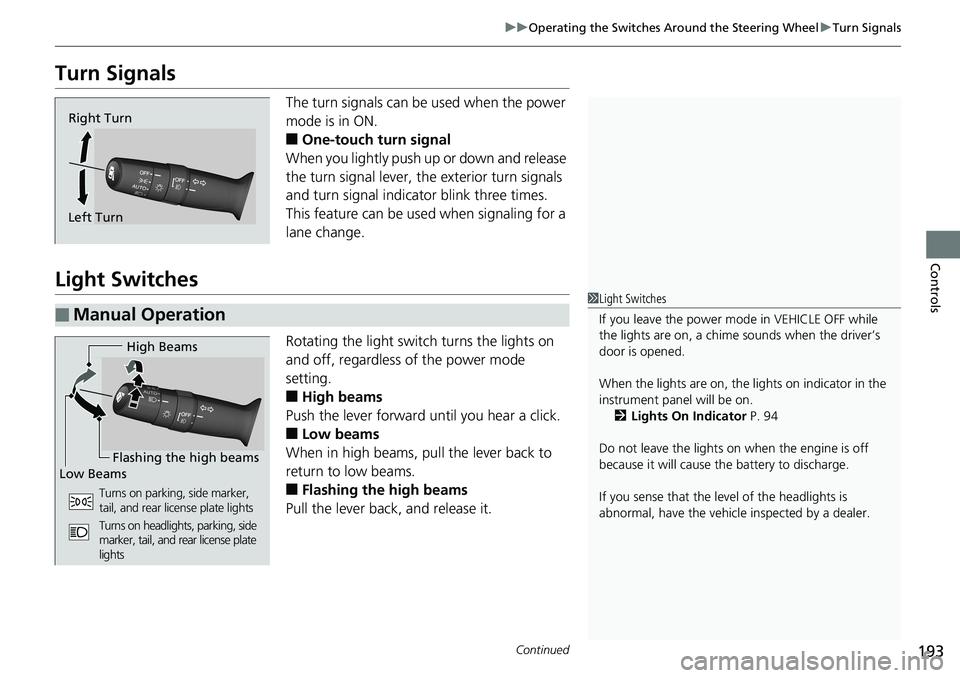

Turn Signals The turn signals can be used when the power
mode is in ON.
■ One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■ High beams
Push the lever forward until you hear a click.
■ Low beams
When in high beams, pull the lever back to
return to low beams.
■ Flashing the high beams
Pull the lever back, and release it.Right Turn
Left Turn
■ Manual Operation 1 Light Switches
If you leave the power mode in VEHICLE OFF while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 94
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights

uu Operating the Switches Around the Steering Wheel u Light Switches
194
Controls Automatic lighting control can be used when
the power mode is in ON.
When you turn the light switch to AUTO , the
headlights and other exte rior lights will switch
on and off automatically depending on the
ambient brightness.
u You can change the au to light sensitivity
setting. 2 Customized Features P. 370, 381
The headlights comes on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.■ Automatic Operation (automatic lighting control) 1 Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor Models without automatic
intermittent wipers
Light Sensor Models with automatic
intermittent wipers

195uu Operating the Switches Around the Steering Wheel u Fog Lights *
Controls

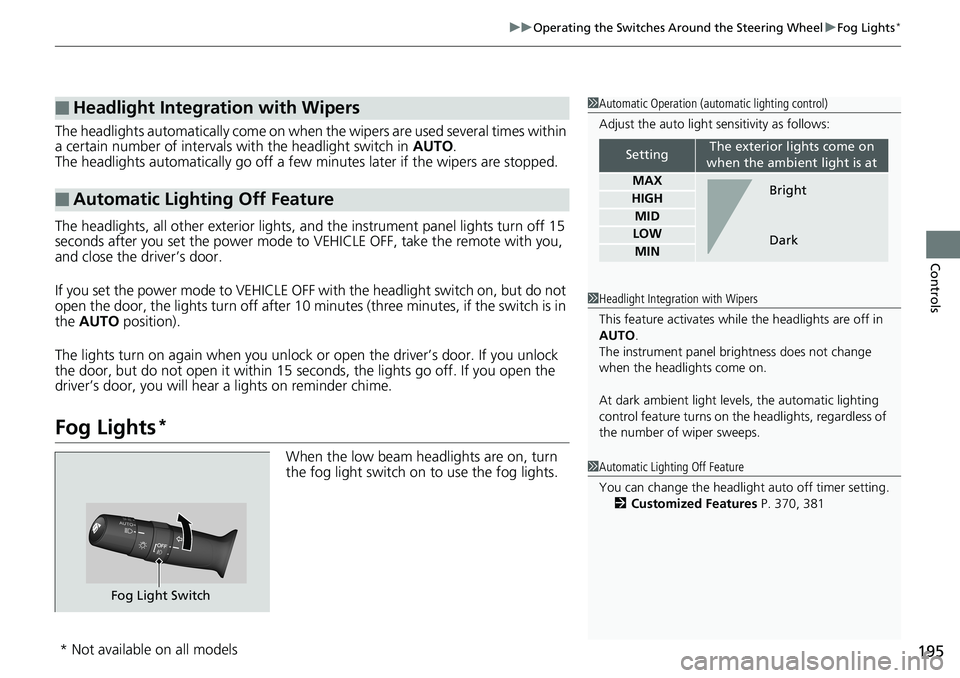

The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO .
The headlights automatically go off a few mi nutes later if the wipers are stopped.
The headlights, all other exterior lights, a nd the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF, take the remote with you,
and close the driver’s door.
If you set the power mode to VEHICLE OFF with the head light switch on, but do not
open the door, the lights turn off after 10 minutes (three minutes, if the switch is in
the AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
Fog Lights *
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.■ Headlight Integration with Wipers
■ Automatic Lighting Off Feature 1 Automatic Operation (aut omatic lighting control)
Adjust the auto light sensitivity as follows:
Setting The exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN Bright
Dark
1 Headlight Integration with Wipers
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
1 Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Customized Features P. 370, 381
Fog Light Switch
* Not available on all models

196 uu Operating the Switches Around the Steering Wheel u Daytime Running Lights

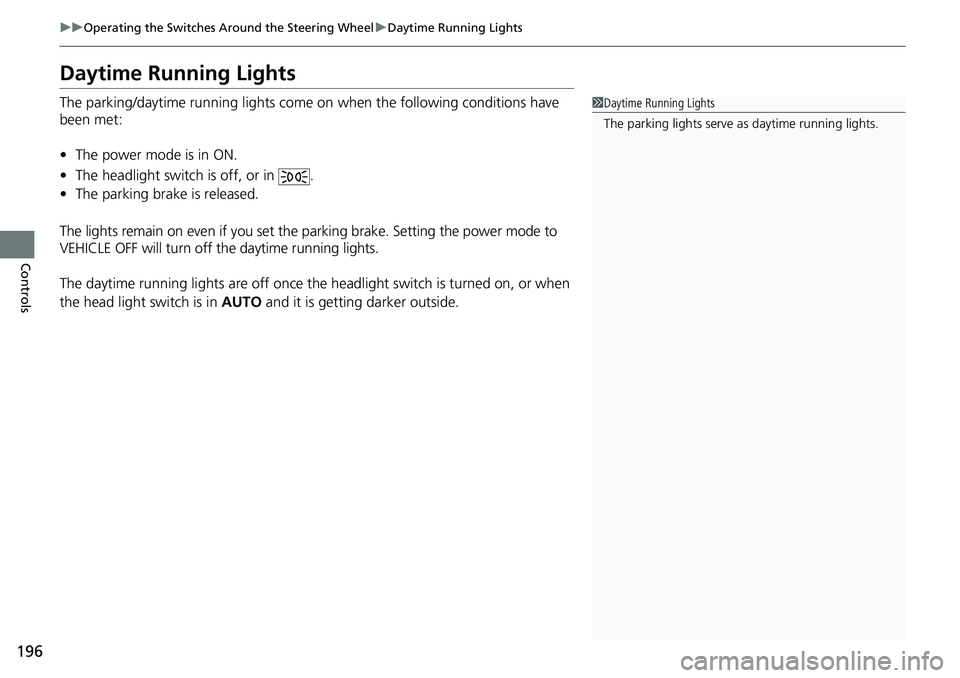

Controls Daytime Running Lights The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set the parking brake. Setting the power mode to
VEHICLE OFF will turn off the daytime running lights.
The daytime running lights are off once the headlight switch is turned on, or when
the head light switch is in AUTO and it is getting darker outside. 1 Daytime Running Lights
The parking lights serve as daytime running lights.

197uu Operating the Switches Around the Steering Wheel u Auto High-Beam
Continued
Controls

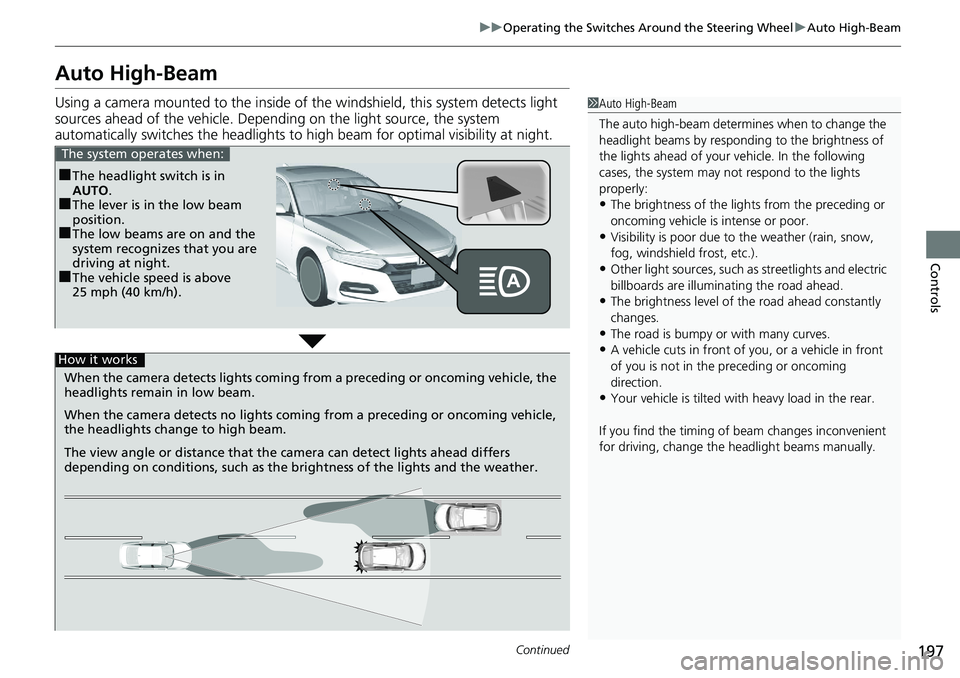

Auto High-Beam Using a camera mounted to the inside of the windshield, this system detects light
sources ahead of the vehicle. Depend ing on the light source, the system
automatically switches the headlights to hi gh beam for optimal visibility at night. 1 Auto High-Beam
The auto high-beam determines when to change the
headlight beams by responding to the brightness of
the lights ahead of your vehicle. In the following
cases, the system may not respond to the lights
properly:
• The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
• Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
• Other light sources, such as streetlights and electric
billboards are illumina ting the road ahead.
• The brightness level of th e road ahead constantly
changes.
• The road is bumpy or with many curves.
• A vehicle cuts in front of you, or a vehicle in front
of you is not in the preceding or oncoming
direction.
• Your vehicle is tilted with heavy load in the rear.
If you find the timing of be am changes inconvenient
for driving, change the headlight beams manually.■ The headlight switch is in
AUTO .
■ The lever is in the low beam
position.
■ The low beams are on and the
system recognizes that you are
driving at night.
■ The vehicle speed is above
25 mph (40 km/h).The system operates when:
When the camera detects lig hts coming from a preceding or oncoming vehicle, the
headlights remain in low beam.
When the camera detects no lights coming from a preceding or oncoming vehicle,
the headlights change to high beam.
The view angle or distance that the camera can detect lights ahead differs
depending on conditions, such as the brightness of the lights and the weather.How it works

uu Operating the Switches Around the Steering Wheel u Auto High-Beam
198
Controls To activate the system, turn the headlight
switch to AUTO and then set the headlights
to low beam. The auto high-beam indicator
will come on. 2 Light Switches P. 193
The high beams remain on unless:
• You have been driving below 15 mph (24 km/h) for an extended amount of time.
• The speed of the vehicle drops below 6 mph (10 km/h).
• The windshield wipers have been running at a high speed for more than a few
seconds.
• You enter a well lit location.
The high beams come back on once the condition that caused them to turn off no
longer exists.
If needed, you can temporarily turn the high beams off manually. Turn on the high
beams by pushing the lever forward until yo u hear a click, or flash the high beams
once by pulling the lever toward you. To turn the high beams back on, repeat one
of the procedures.■ Operating the System 1 Operating the System
For the auto high-beam to work properly:
• Do not place an object that reflects light on the
dashboard.
• Keep the windshield around the camera clean.
When cleaning the windshield, be careful not to
apply the windshield cleans er to the camera lens.
• Do not attach an object, sticker or film to the area
around the camera.
• Do not touch the camera lens.
If you do not want the system to be activated at any
time when the headlight switch is in AUTO , consult a
dealer or disable the system.
2 Disabling or Re-enabling the System P. 199
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
To help reduce the likel ihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a sh ady area or face the front
of the vehicle away from the sun.
If you use a reflective sun shade, do not allow it to
cover the camera housing. Covering the camera can
concentrate heat on the camera.
If the message appears:
• Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.Headlight Switch
