HONDA ACCORD HYBRID 2019 Owners Manual

209uu Adjusting the Mirrors u Power Door Mirrors
Controls

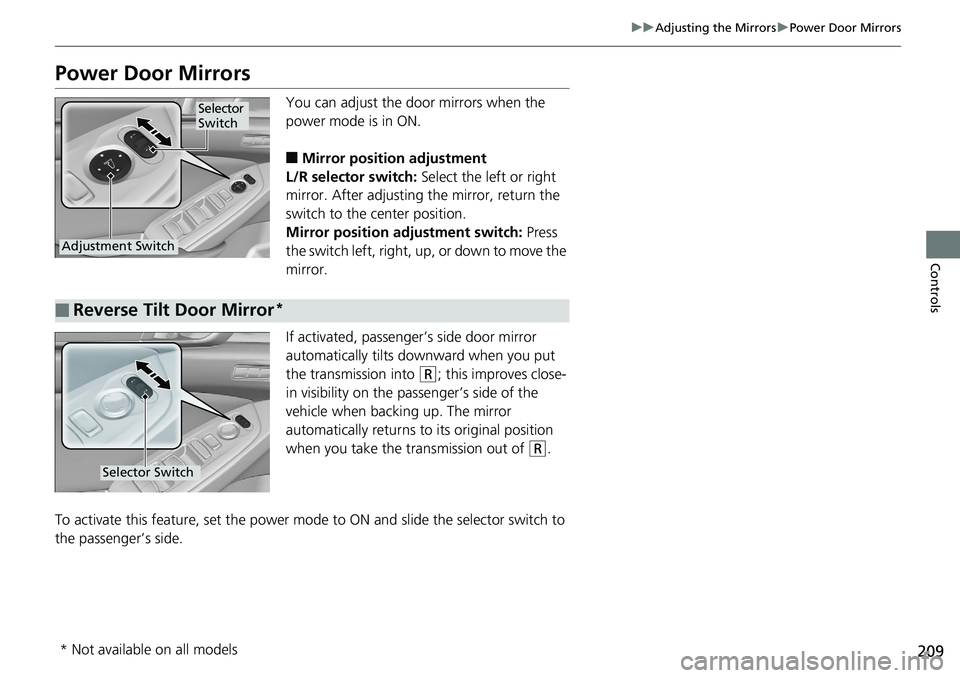

Power Door Mirrors You can adjust the door mirrors when the
power mode is in ON.
■ Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
If activated, passenger’s side door mirror
automatically tilts do wnward when you put
the transmission into ( R
; this improves close-
in visibility on the passenger’s side of the
vehicle when back ing up. The mirror
automatically returns to its original position
when you take the transmission out of ( R
.
To activate this feature, set the power mode to ON and slide the selector switch to
the passenger’s side. Selector
Switch
Adjustment Switch
■ Reverse Tilt Door Mirror *
Selector Switch
* Not available on all models

210

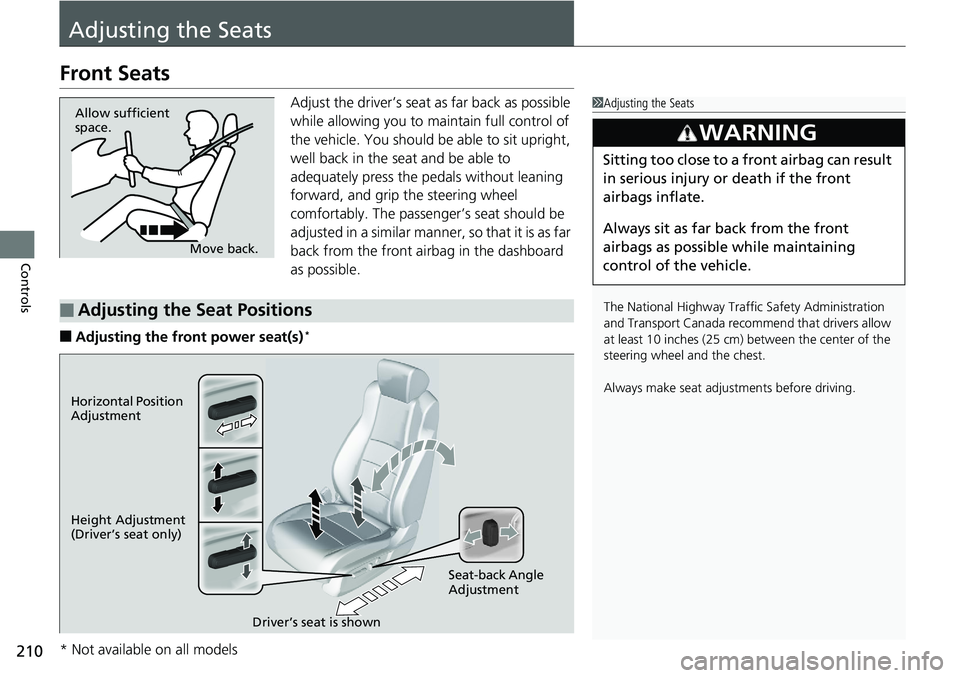

Controls Adjusting the SeatsFront Seats Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
■ Adjusting the front power seat(s) * 1 Adjusting the Seats
The National Highway Traffic Safety Administration
and Transport Cana da recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.
Always make seat adjustments before driving.3
WARNING Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.Move back.Allow sufficient
space.
■ Adjusting the Seat Positions Horizontal Position
Adjustment
Height Adjustment
(Driver’s seat only)
Seat-back Angle
Adjustment
Driver’s seat is shown
* Not available on all models

211 uu Adjusting the Seats u Front Seats
Continued
Controls

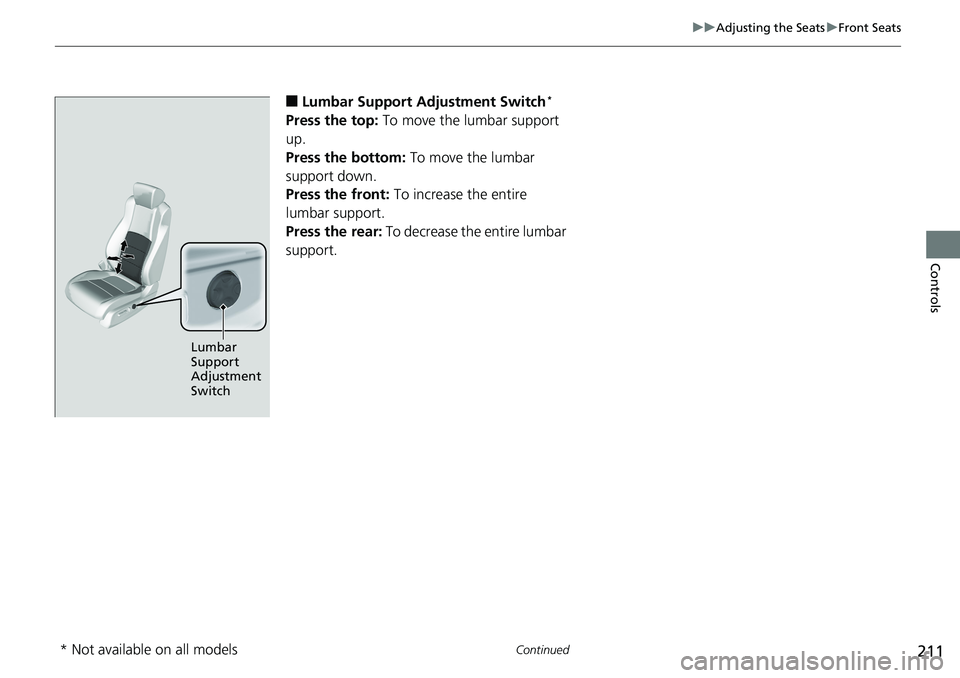

■ Lumbar Support Adjustment Switch *
Press the top: To move the lumbar support
up.
Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
Lumbar
Support
Adjustment
Switch
* Not available on all models

uu Adjusting the Seats u Front Seats
212

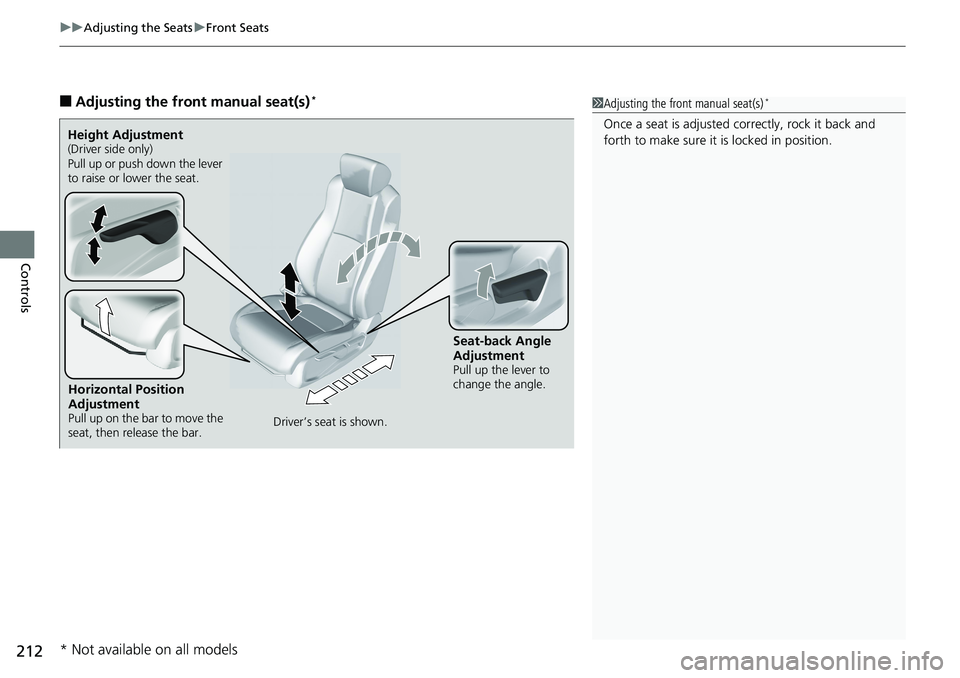

Controls ■ Adjusting the front manual seat(s) *
1 Adjusting the front manual seat(s) *
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment Pull up on the bar to move the
seat, then release the bar.Height Adjustment (Driver side only)
Pull up or push down the lever
to raise or lower the seat.
Seat-back Angle
Adjustment Pull up the lever to
change the angle.
Driver’s seat is shown.
* Not available on all models

213 uu Adjusting the Seats u Front Seats
Controls

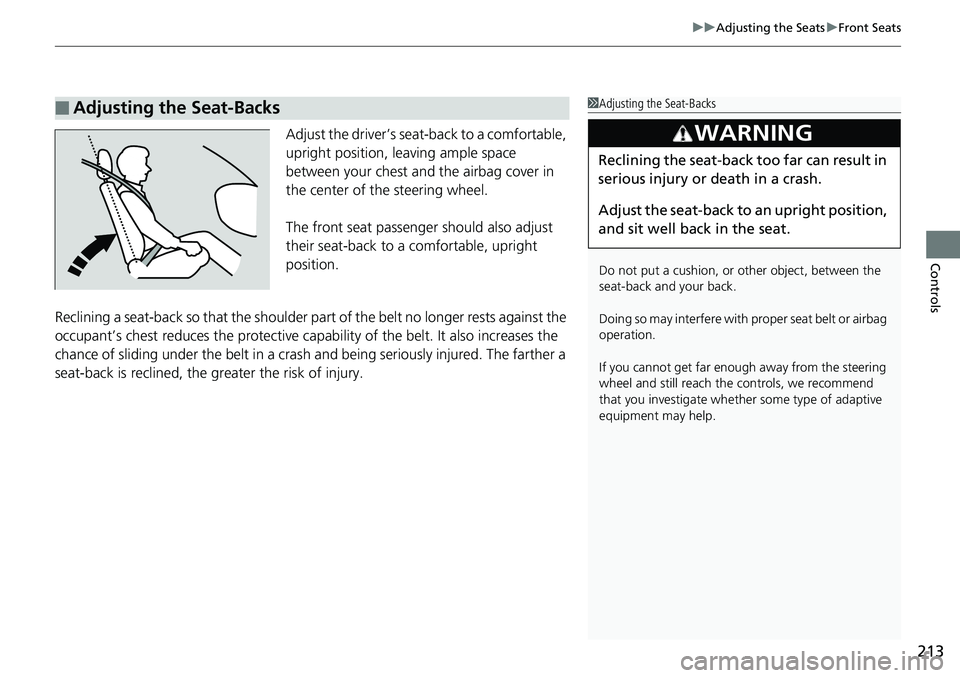

Adjust the driver’s seat -back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.■ Adjusting the Seat-Backs 1 Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.3
WARNING Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.

214 uu Adjusting the Seats u Rear Seats
Controls Rear Seats 1. Remove the center shoulder belt from the
guide.
2. Pull the release lever in the trunk to release
the lock.
3. Fold the seat-back down.■ Folding Down the Rear Seat(s) 1 Folding Down the Rear Seat(s)
The rear seat-back(s *
) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open.
2 Exhaust Gas Hazard P. 75
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re -positioned in the guide.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Front Airbag Off Indicator P. 59
Make sure all items in the trunk or items
extending through the opening into the rear
seat is properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.Guide
Center
Shoulder Belt
Release
Lever
Release
Lever *
* Not available on all models

215uu Adjusting the Seats u Maintain a Proper Sitting Position
Controls

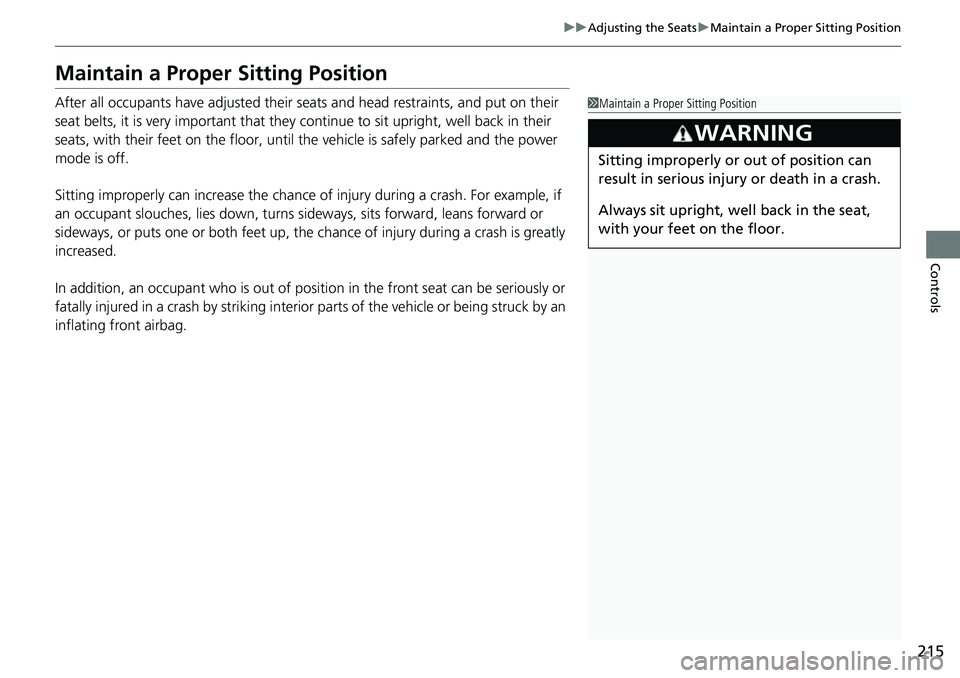

Maintain a Proper Sitting Position After all occupants have adjusted their s eats and head restrain ts, and put on their
seat belts, it is very important that they continue to sit uprigh t, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the power
mode is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of posi tion in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag. 1 Maintain a Proper Sitting Position
3
WARNING Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.

216 uu Adjusting the Seats u Head Restraints

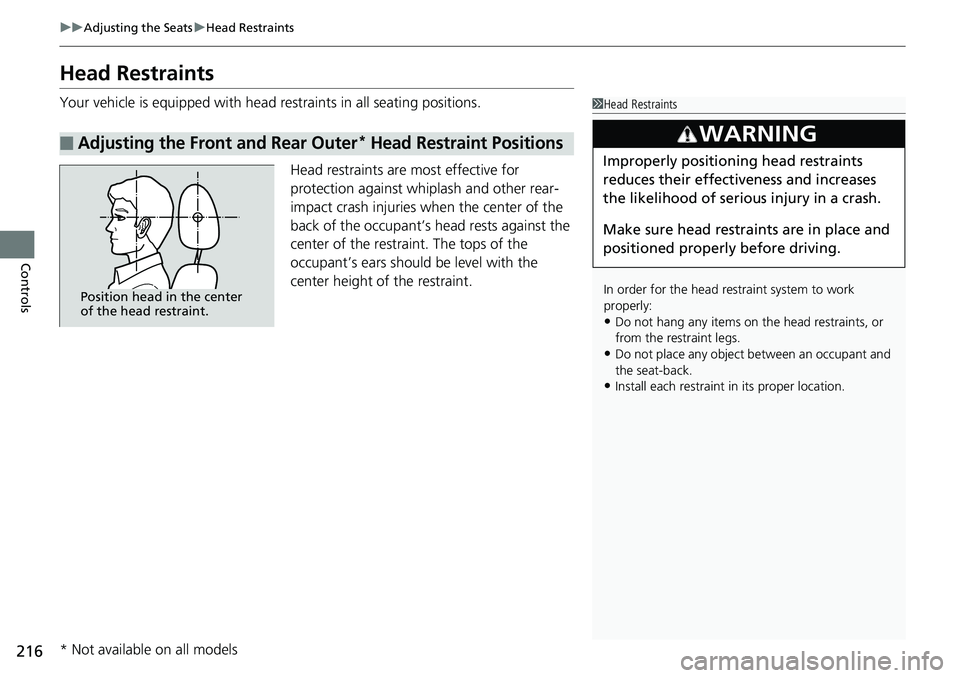

Controls Head Restraints Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.■ Adjusting the Front and Rear Outer *
Head Restraint Positions 1 Head Restraints
In order for the head restraint system to work
properly:
• Do not hang any items on the head restraints, or
from the restraint legs.
• Do not place any object be tween an occupant and
the seat-back.
• Install each restraint in its proper location.3
WARNING Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.Position head in the center
of the head restraint.
* Not available on all models

217uu Adjusting the Seats u Head Restraints
Continued
Controls

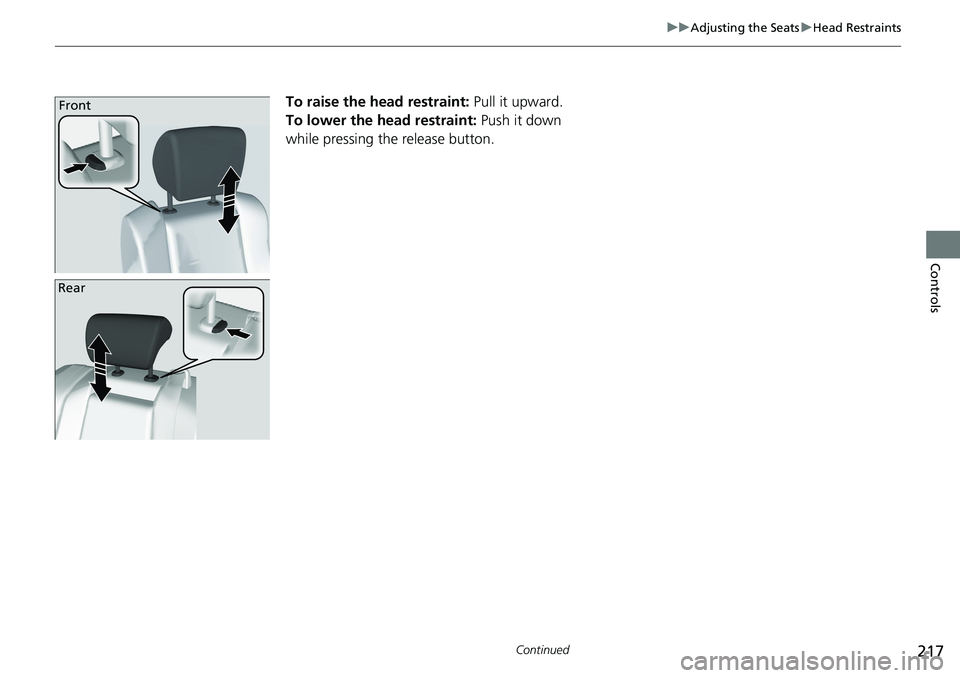

To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.Front
Rear

uu Adjusting the Seats u Head Restraints
218

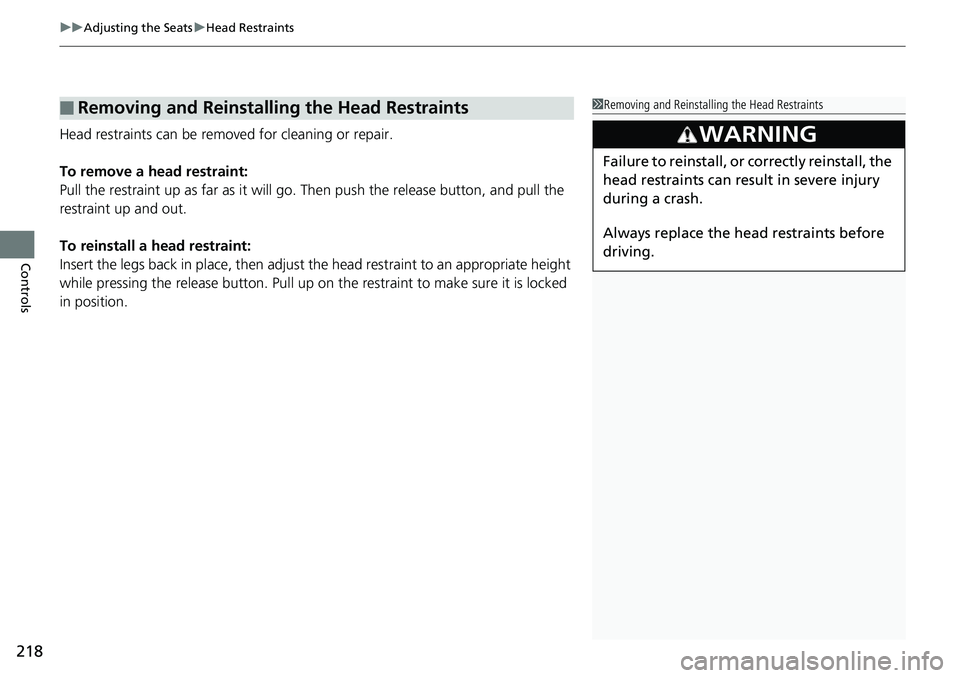

Controls Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release butto n. Pull up on the restraint to make sure it is locked
in position.■ Removing and Reinstalling the Head Restraints 1 Removing and Reinstalling the Head Restraints
3
WARNING Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
