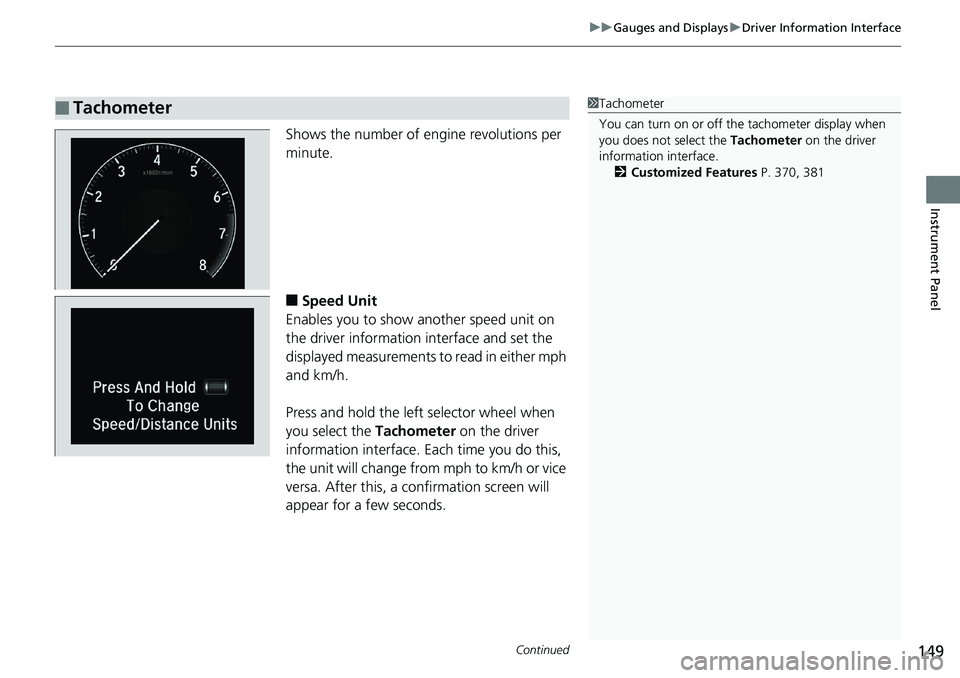

149uu Gauges and Displays u Driver Information Interface
Instrument Panel
Shows the number of engine revolutions per
minute.
■ Speed Unit
Enables you to show another speed unit on
the driver information interface and set the
displayed measurements to read in either mph
and km/h.
Press and hold the left selector wheel when
you select the Tachometer on the driver
information interface. Each time you do this,
the unit will change from mph to km/h or vice
versa. After this, a confirmation screen will
appear for a few seconds.■ Tachometer 1 Tachometer
You can turn on or off the tachometer display when
you does not select the Tachometer on the driver
information interface.
2 Customized Features P. 370, 381

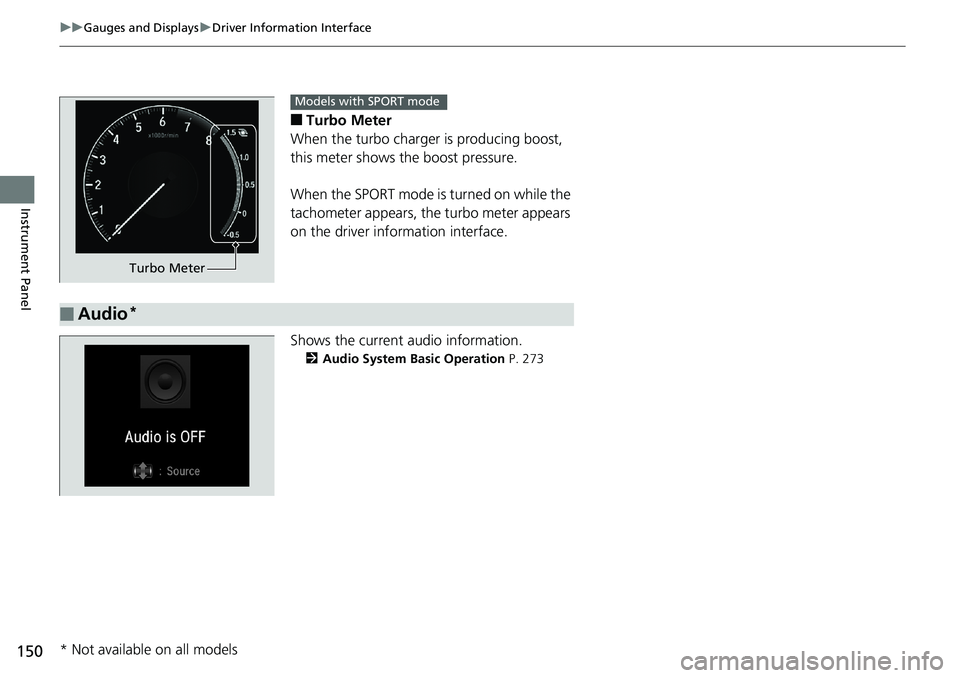

150 uu Gauges and Displays u Driver Information Interface
Instrument Panel ■ Turbo Meter
When the turbo charger is producing boost,
this meter shows th e boost pressure.
When the SPORT mode is turned on while the
tachometer appears, the turbo meter appears
on the driver information interface.
Shows the current audio information. 2 Audio System Basic Operation P. 273Turbo Meter Models with SPORT mode
■ Audio *
* Not available on all models

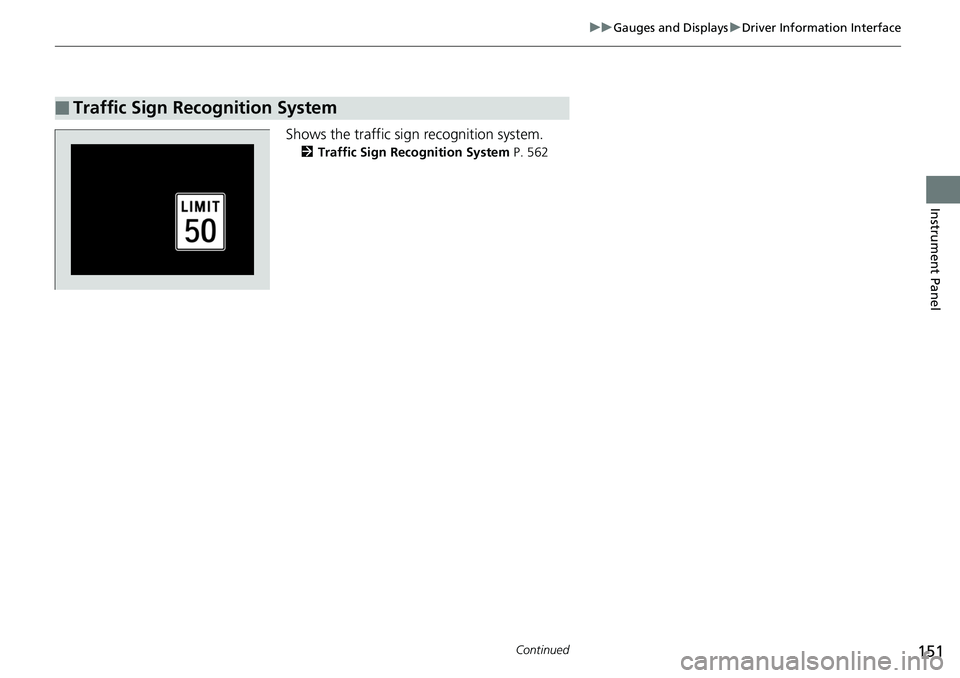

151uu Gauges and Displays u Driver Information Interface
Continued
Instrument Panel
Shows the traffic sign recognition system. 2 Traffic Sign Recognition System P. 562
■ Traffic Sign Recognition System

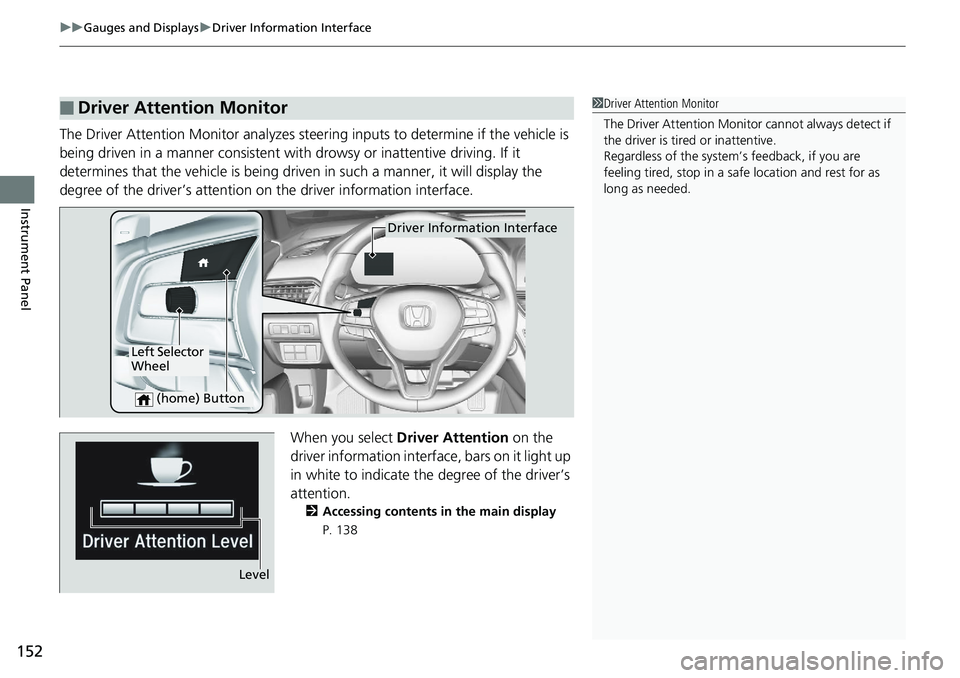

uu Gauges and Displays u Driver Information Interface
152
Instrument Panel The Driver Attention Monitor analyzes steer ing inputs to determine if the vehicle is
being driven in a manner consistent with drowsy or inattentive driving. If it
determines that the vehicle is being driven in such a manner, it will display the
degree of the driver’s attention on the driver information interface.
When you select Driver Attention on the
driver information interface, bars on it light up
in white to indicate the degree of the driver’s
attention. 2 Accessing contents in the main display
P. 138■ Driver Attention Monitor 1 Driver Attention Monitor
The Driver Attenti on Monitor cannot always detect if
the driver is tired or inattentive.
Regardless of the system’s feedback, if you are
feeling tired, stop in a safe location and rest for as
long as needed.
Driver Information Interface
Left Selector
Wheel
(home) Button
Level

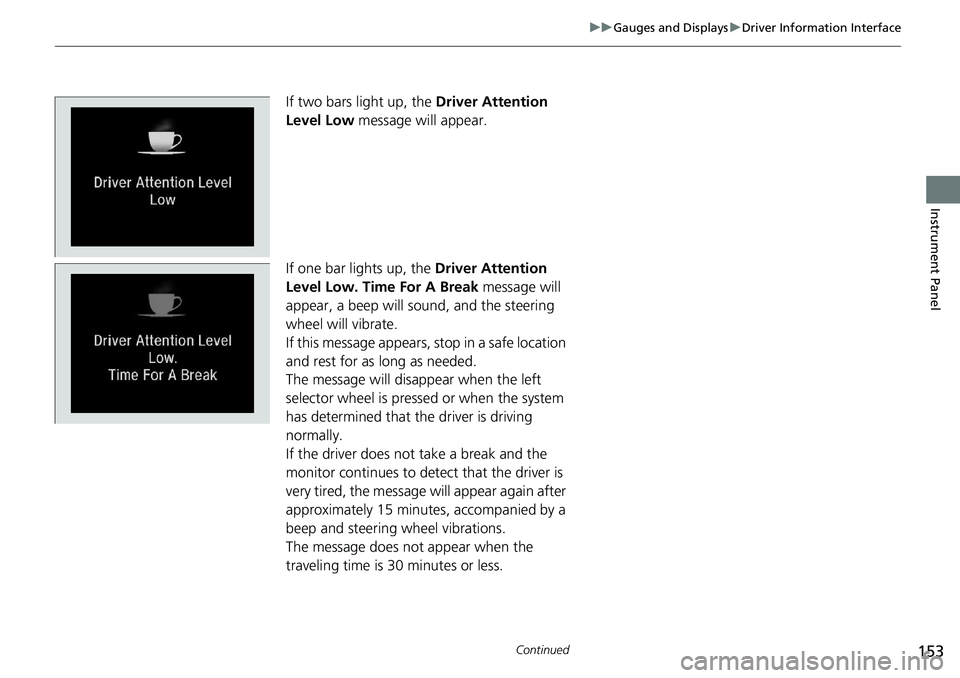

153uu Gauges and Displays u Driver Information Interface
Continued
Instrument Panel
If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the left
selector wheel is presse d or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.

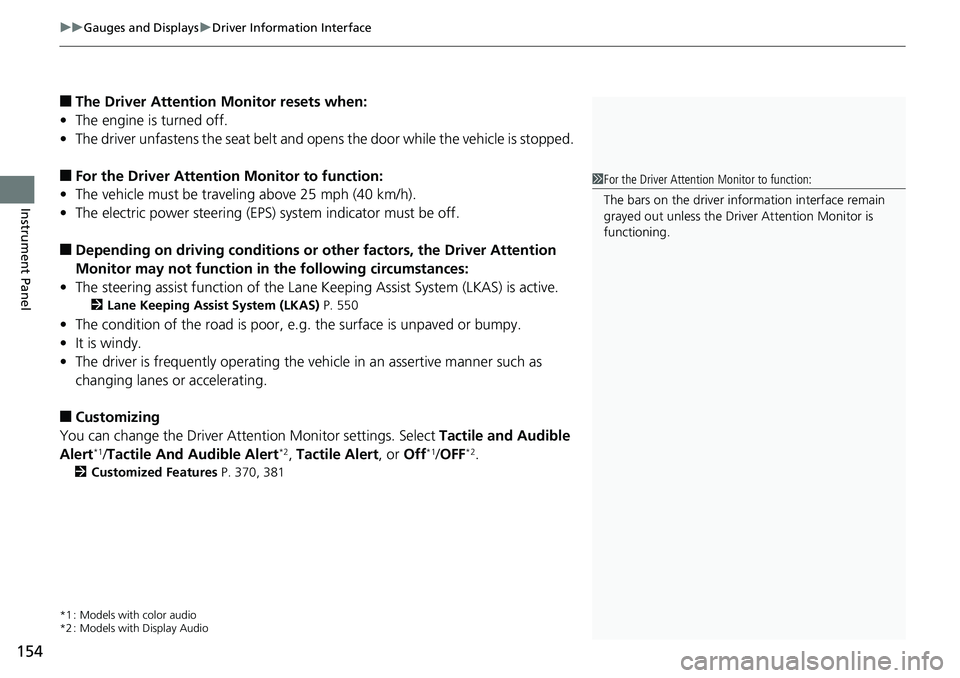

uu Gauges and Displays u Driver Information Interface
154
Instrument Panel ■ The Driver Attention Monitor resets when:
• The engine is turned off.
• The driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■ For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■ Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.2 Lane Keeping Assist System (LKAS) P. 550
• The condition of the road is poor, e.g. the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■ Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile and Audible
Alert *1
/ Tactile And Audible Alert *2
, Tactile Alert , or Off *1
/ OFF *2
.2 Customized Features P. 370, 381
*1 : Models with color audio
*2 : Models with Display Audio 1 For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.

Continued

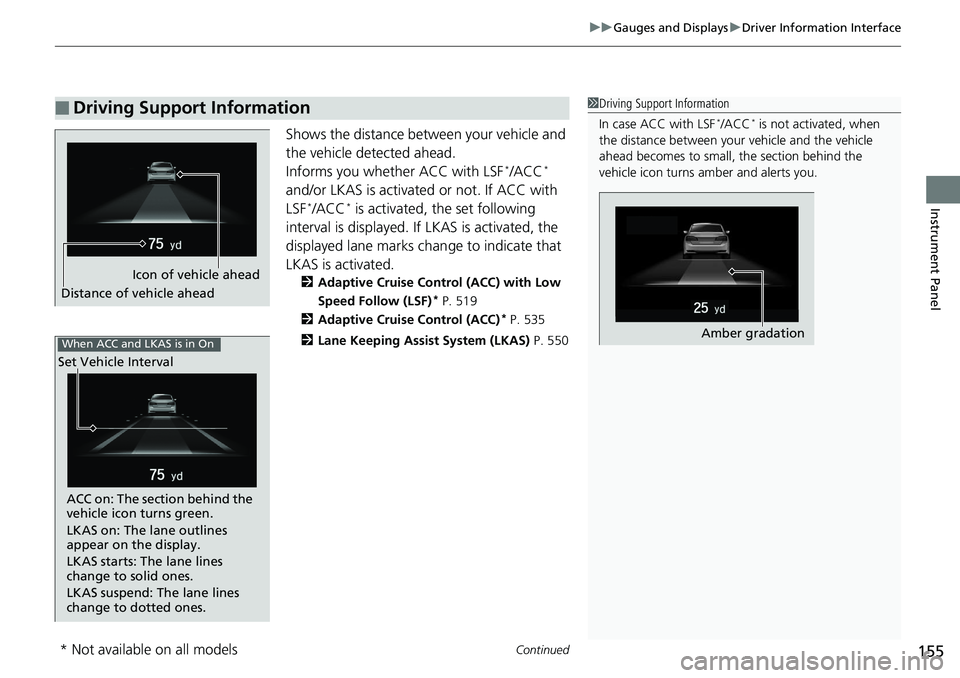

155uu Gauges and Displays u Driver Information Interface
Instrument Panel
Shows the distance between your vehicle and
the vehicle detected ahead.
Informs you whether ACC with LSF *
/ACC *

and/or LKAS is activa ted or not. If ACC with
LSF *
/ACC *
is activated, the set following
interval is displayed. If LKAS is activated, the
displayed lane marks chan ge to indicate that
LKAS is activated. 2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) *
P. 519
2 Adaptive Cruise Control (ACC) *
P. 535
2 Lane Keeping Assist System (LKAS) P. 550■ Driving Support Information 1 Driving Support Information
In case ACC with LSF *
/ACC *
is not activated, when
the distance between your vehicle and the vehicle
ahead becomes to small, the section behind the
vehicle icon turns amber and alerts you.
Amber gradationIcon of vehicle ahead
Distance of vehicle ahead
When ACC and LKAS is in On
Set Vehicle Interval
ACC on: The section behind the
vehicle icon turns green.
LKAS on: The lane outlines
appear on the display.
LKAS starts: The lane lines
change to solid ones.
LKAS suspend: The lane lines
change to dotted ones.
* Not available on all models

uu Gauges and Displays u Driver Information Interface
156

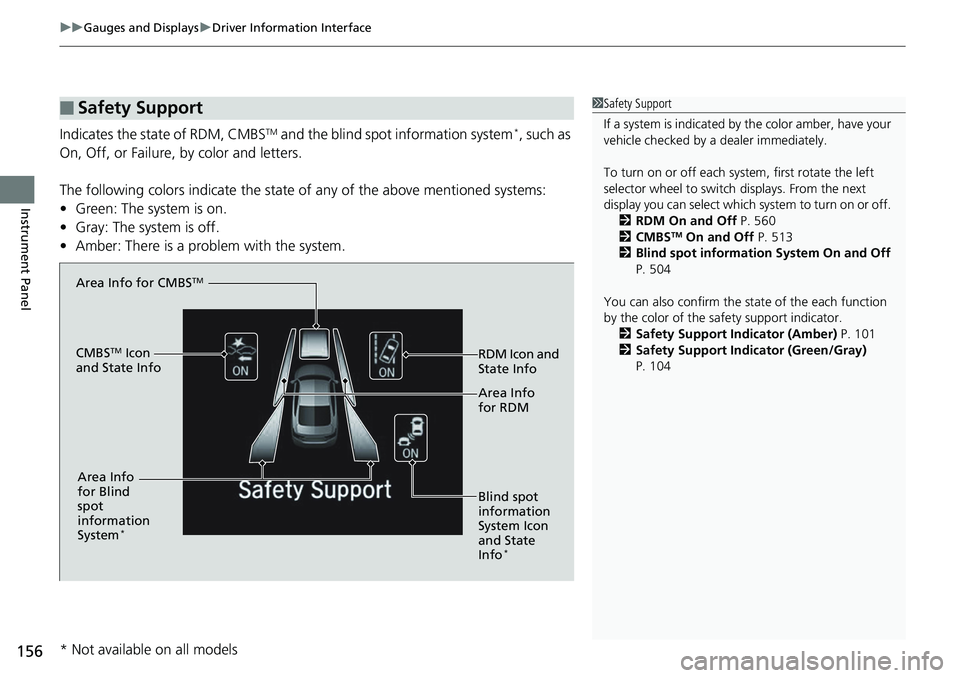

Instrument Panel Indicates the state of RDM, CMBS TM
and the blind spot information system *
, such as
On, Off, or Failure, by color and letters.
The following colors indica te the state of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a probl em with the system.
■ Safety Support 1 Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first rotate the left
selector wheel to switch displays. From the next
display you can select which system to turn on or off.
2 RDM On and Off P. 560
2 CMBS TM
On and Off P. 513
2 Blind spot information System On and Off
P. 504
You can also confirm the st ate of the each function
by the color of the sa fety support indicator.
2 Safety Support Indicator (Amber) P. 101
2 Safety Support Indicator (Green/Gray)
P. 104Area Info for CMBS TM
CMBS TM
Icon
and State Info
Area Info
for Blind
spot
information
System * RDM Icon and
State Info
Area Info
for RDM
Blind spot
information
System Icon
and State
Info *
* Not available on all models

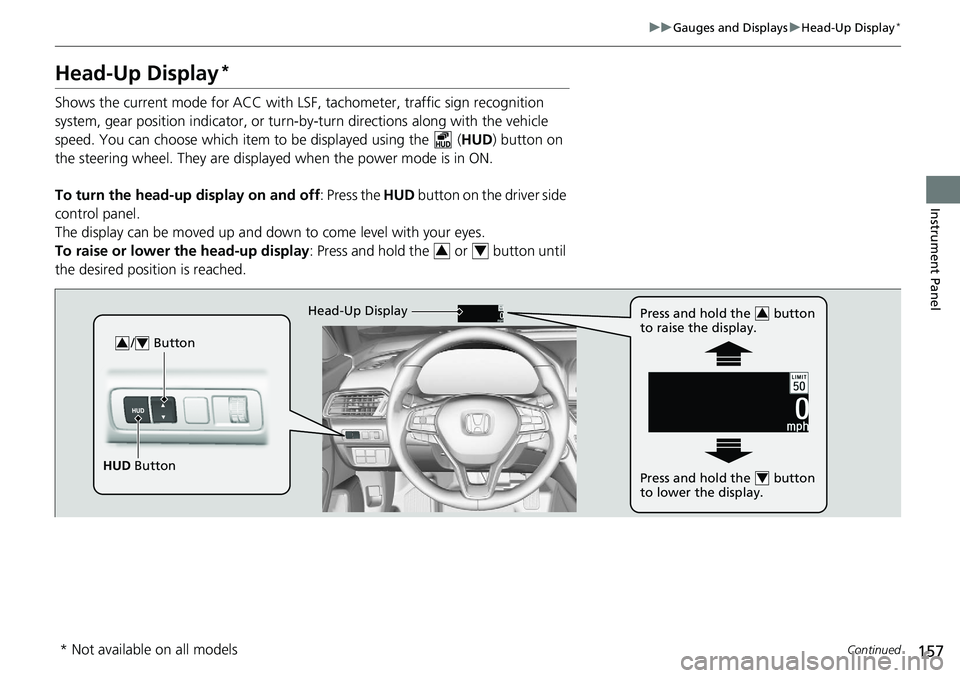

157uu Gauges and Displays u Head-Up Display *
Continued
Instrument Panel
Head-Up Display *Shows the current mode for ACC with LSF, tachometer, traffic sign recognition
system, gear position indicator, or turn-by-turn directions al ong with the vehicle
speed. You can choose which item to be displayed using the ( HUD ) button on
the steering wheel. They are displayed when the power mode is in ON.
To turn the head-up display on and off : Press the HUD button on the driver side
control panel.
The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached. 3 4
/ Button3 4
HUD Button Head-Up Display
Press and hold the button
to raise the display. 3
Press and hold the button
to lower the display. 4
* Not available on all models

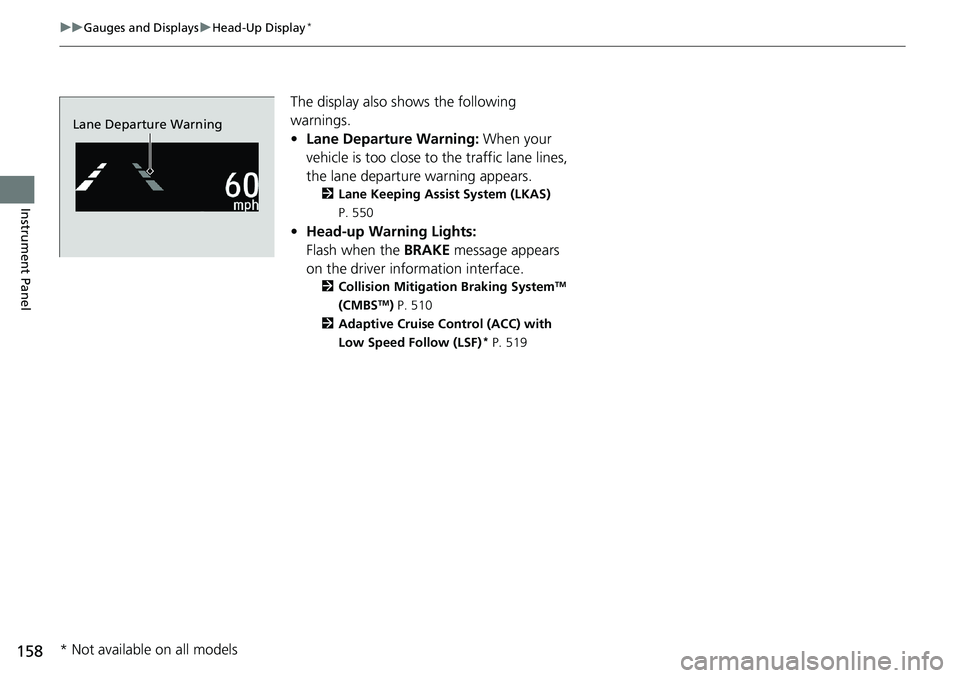

158 uu Gauges and Displays u Head-Up Display *
Instrument Panel The display also s hows the following
warnings.
• Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears. 2 Lane Keeping Assist System (LKAS)
P. 550
• Head-up Warning Lights:
Flash when the BRAKE message appears
on the driver information interface. 2 Collision Mitigation Braking System TM

(CMBS TM
) P. 510
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) *
P. 519Lane Departure Warning
