169uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside When you carry the re mote, you can lock/
unlock the doors, fuel fill door, and open the
trunk.
You can lock/unlock the doors, fuel fill door
within a radius of about 32 inches (80 cm) of
the outside door handle. You can open the
trunk within about 32 inches (80 cm) radius
from the trunk release button.
■ Locking the doors
Touch the door lock sensor on the front door.
u Some exterior lights flash; the beeper
sounds; all the doors and fuel fill door
lock; and the security system sets.■ Using the Smart Entry with Push Button Start System * 1 Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 221
Door Lock Sensor 1 Using the Smart Entry with Push Button Start System *
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors and trunk will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
• Do not leave the remote in the vehicle when you
get out. Carry it with you.
• Even if you are not carr ying the remote, you can
lock/unlock the doors whil e someone else with the
remote is within range.
• The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the remote is within range.
• If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
• After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked.
* Not available on all models

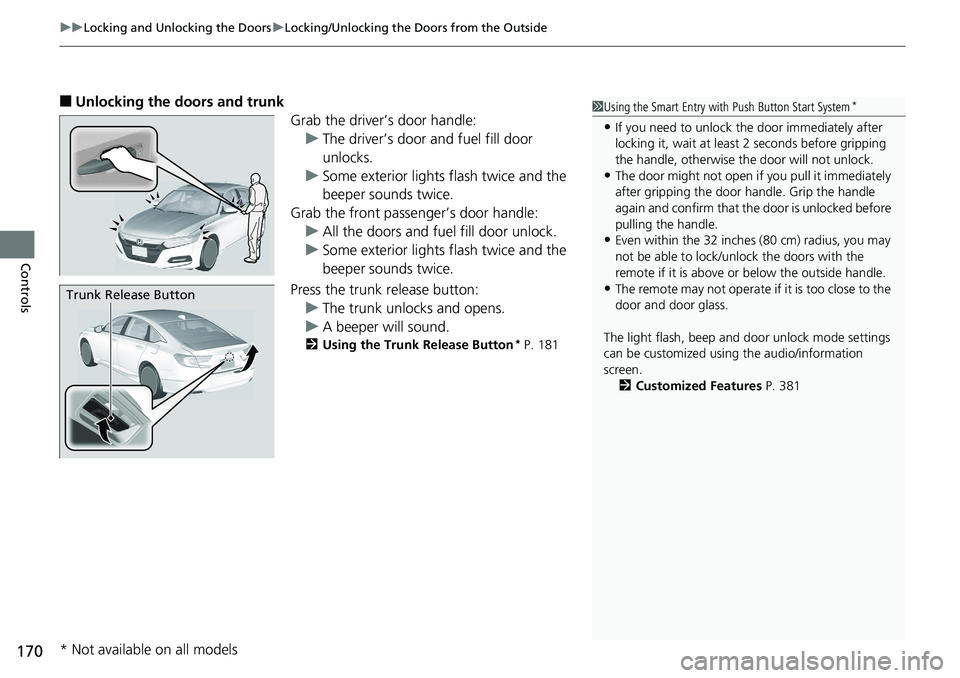

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
170
Controls ■ Unlocking the doors and trunk
Grab the driver’s door handle:
u The driver’s door and fuel fill door
unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and fuel fill door unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button:
u The trunk unlocks and opens.
u A beeper will sound. 2 Using the Trunk Release Button *
P. 181Trunk Release Button 1 Using the Smart Entry with Push Button Start System *
• If you need to unlock the door immediately after
locking it, wait at least 2 seconds before gripping
the handle, otherwise th e door will not unlock.
• The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
• Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
remote if it is above or below the outside handle.
• The remote may not operate if it is too close to the
door and door glass.
The light flash, beep and door unlock mode settings
can be customized using the audio/information
screen.
2 Customized Features P. 381
* Not available on all models

Continued

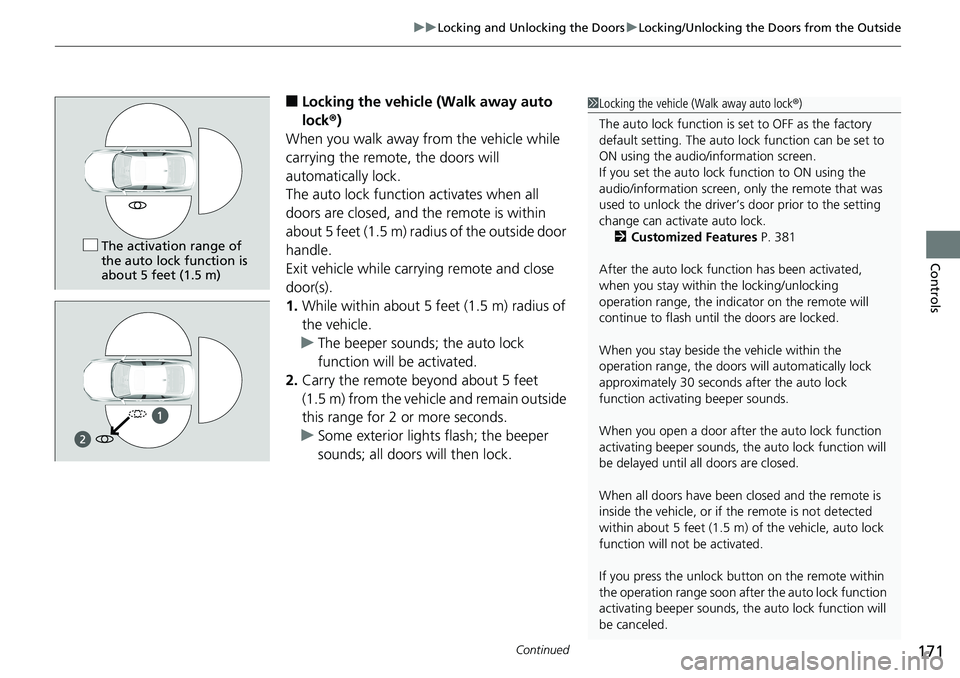

171uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
■ Locking the vehicle (Walk away auto
lock ® )
When you walk away from the vehicle while
carrying the remote , the doors will
automatically lock.
The auto lock function activates when all
doors are closed, and the remote is within
about 5 feet (1.5 m) radius of the outside door
handle.
Exit vehicle while carrying remote and close
door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the remote beyond about 5 feet
(1.5 m) from the vehicle and remain outside
this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors will then lock. 1 Locking the vehicle (Walk away auto lock ® )
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote that was
used to unlock the driver’s door prior to the setting
change can activate auto lock.
2 Customized Features P. 381
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indica tor on the remote will
continue to flash until the doors are locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until al l doors are closed.
When all doors have been closed and the remote is
inside the vehicle, or if the remote is not detected
within about 5 feet (1.5 m) of the vehicle, auto lock
function will not be activated.
If you press the unlock but ton on the remote within
the operation range soon after the auto lock function
activating beeper sounds, the auto lock function will
be canceled.The activation range of
the auto lock function is
about 5 feet (1.5 m)

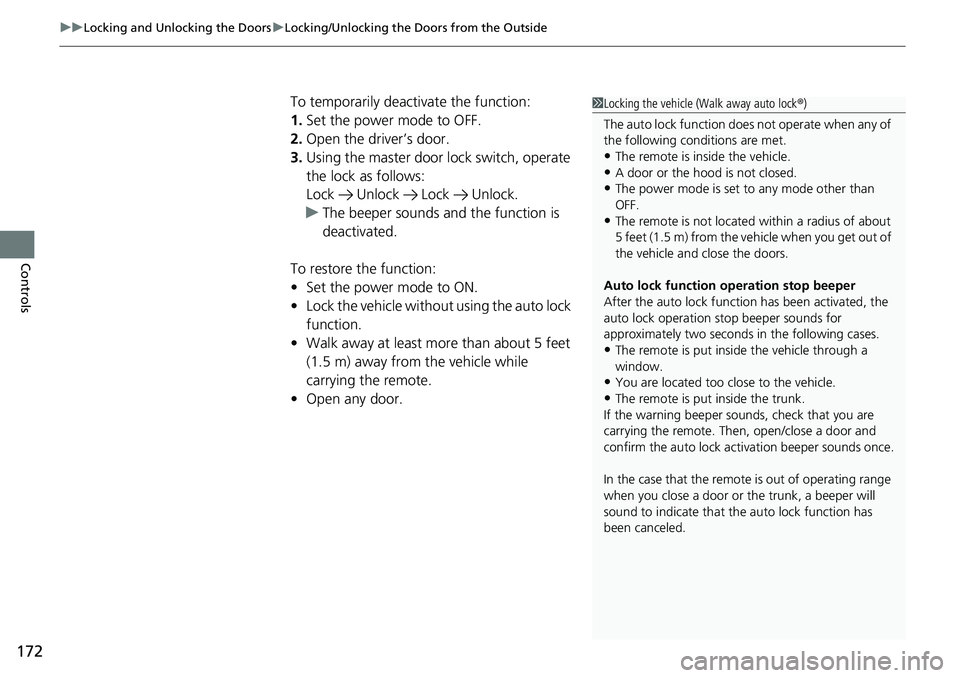

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
172
Controls To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function.
• Walk away at least more than about 5 feet
(1.5 m) away from the vehicle while
carrying the remote.
• Open any door. 1 Locking the vehicle (Walk away auto lock ® )
The auto lock function does not operate when any of
the following conditions are met.
• The remote is inside the vehicle.
• A door or the hood is not closed.
• The power mode is set to any mode other than
OFF.
• The remote is not located within a radius of about
5 feet (1.5 m) from the ve hicle when you get out of
the vehicle and close the doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
• The remote is put inside the vehicle through a
window.
• You are located too close to the vehicle.
• The remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the remote. Then, open/close a door and
confirm the auto lock ac tivation beeper sounds once.
In the case that the remote is out of operating range
when you close a door or the trunk, a beeper will
sound to indicate that the auto lock function has
been canceled.

Continued

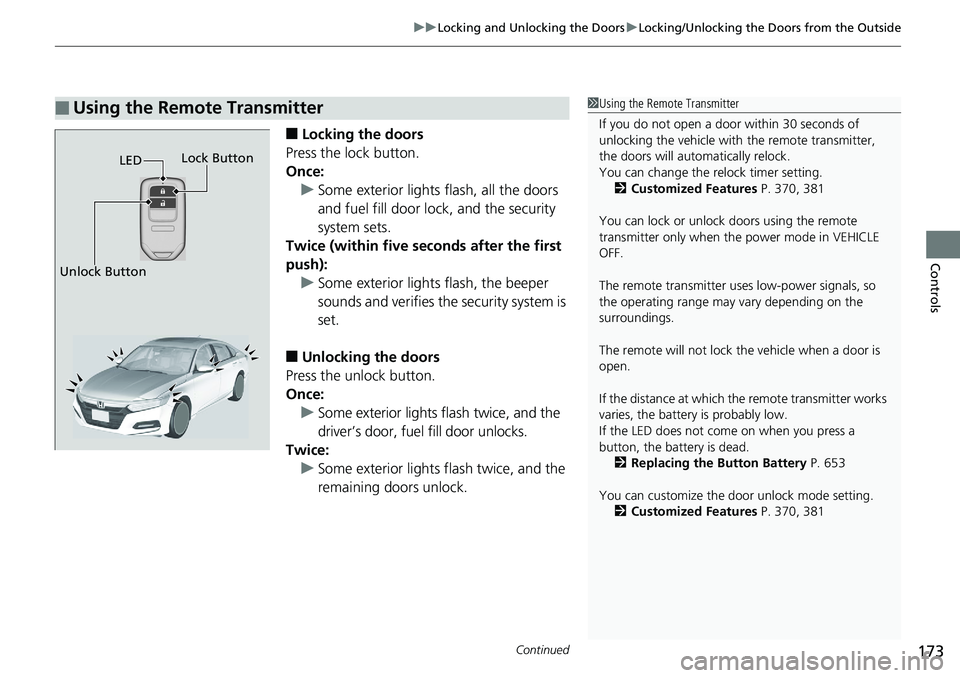

173uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
■ Locking the doors
Press the lock button.
Once:
u Some exterior lights flash, all the doors
and fuel fill door lo ck, and the security
system sets.
Twice (within five se conds after the first
push):
u Some exterior lights flash, the beeper
sounds and verifies the security system is
set.
■ Unlocking the doors
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door, fuel fill door unlocks.
Twice:
u Some exterior lights flash twice, and the
remaining doors unlock.■ Using the Remote Transmitter 1 Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting.
2 Customized Features P. 370, 381
You can lock or unlock doors using the remote
transmitter only when the power mode in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 653
You can customize the door unlock mode setting.
2 Customized Features P. 370, 381LED
Unlock Button Lock Button

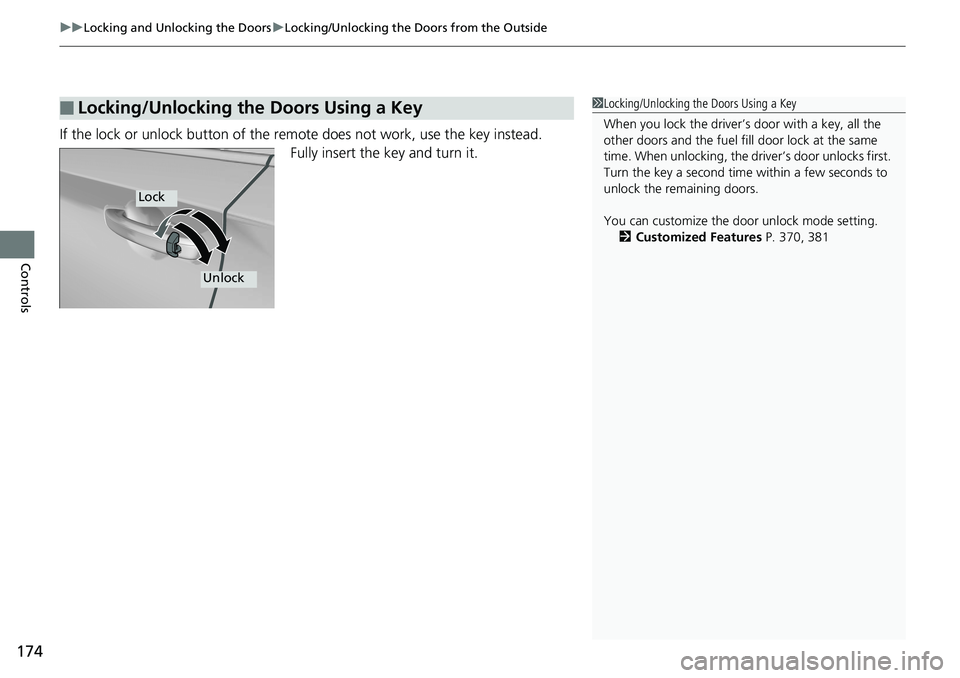

uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
174
Controls If the lock or unlock button of the remote does not work, use the key instead.
Fully insert the key and turn it.
■ Locking/Unlocking the Doors Using a Key 1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and the fuel fi ll door lock at the same
time. When unlocking, the driver’s door unlocks first.
Turn the key a second time within a few seconds to
unlock the remaining doors.
You can customize the door unlock mode setting.
2 Customized Features P. 370, 381Lock
Unlock

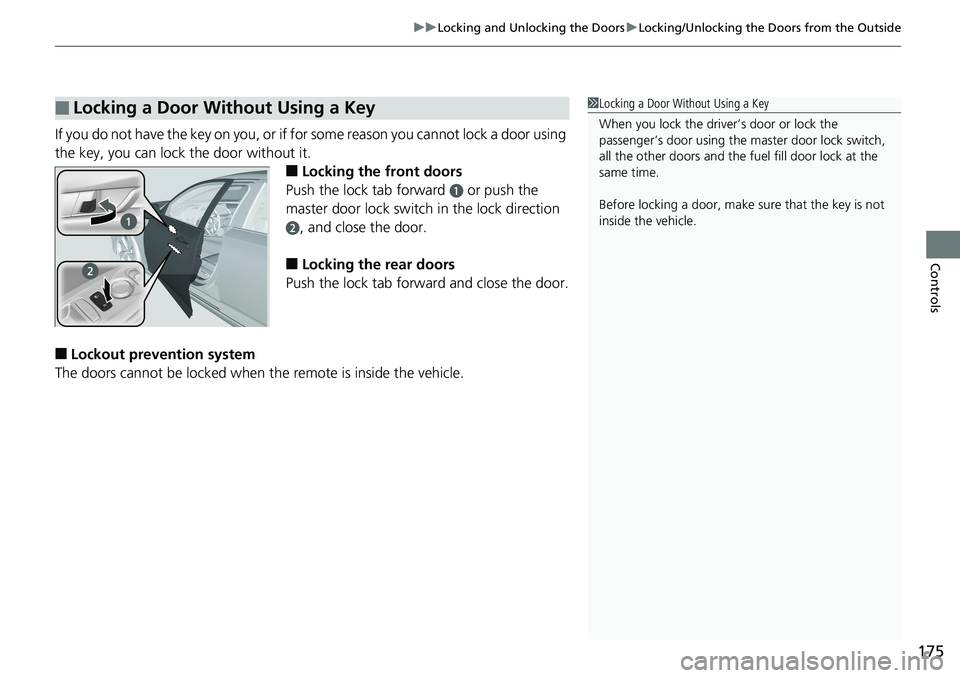

175uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■ Locking the front doors
Push the lock tab forward a
or push the
master door lock switch in the lock direction b
, and close the door.
■ Locking the rear doors
Push the lock tab forward and close the door.
■ Lockout prevention system
The doors cannot be locked when the remote is inside the vehicle.■ Locking a Door Without Using a Key 1 Locking a Door Without Using a Key
When you lock the driver’s door or lock the
passenger’s door using the master door lock switch,
all the other doors and the fu el fill door lock at the
same time.
Before locking a door, make sure that the key is not
inside the vehicle.

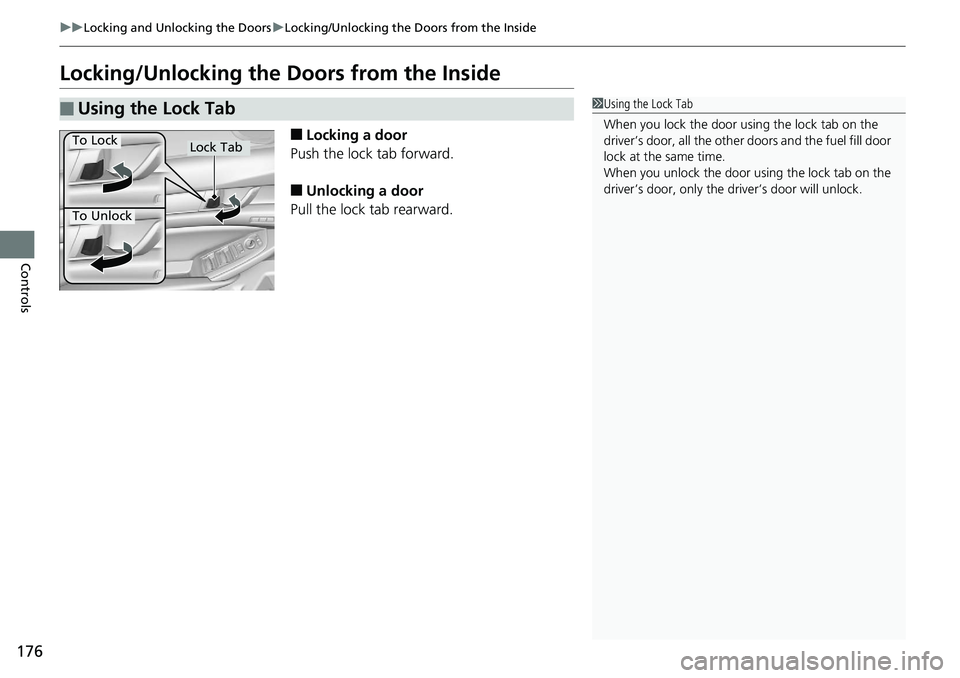

176 uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls Locking/Unlocking the Doors from the Inside ■ Locking a door
Push the lock tab forward.
■ Unlocking a door
Pull the lock tab rearward.
■ Using the Lock Tab 1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all the other doors and the fuel fill door
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock Lock TabTo Lock

Continued

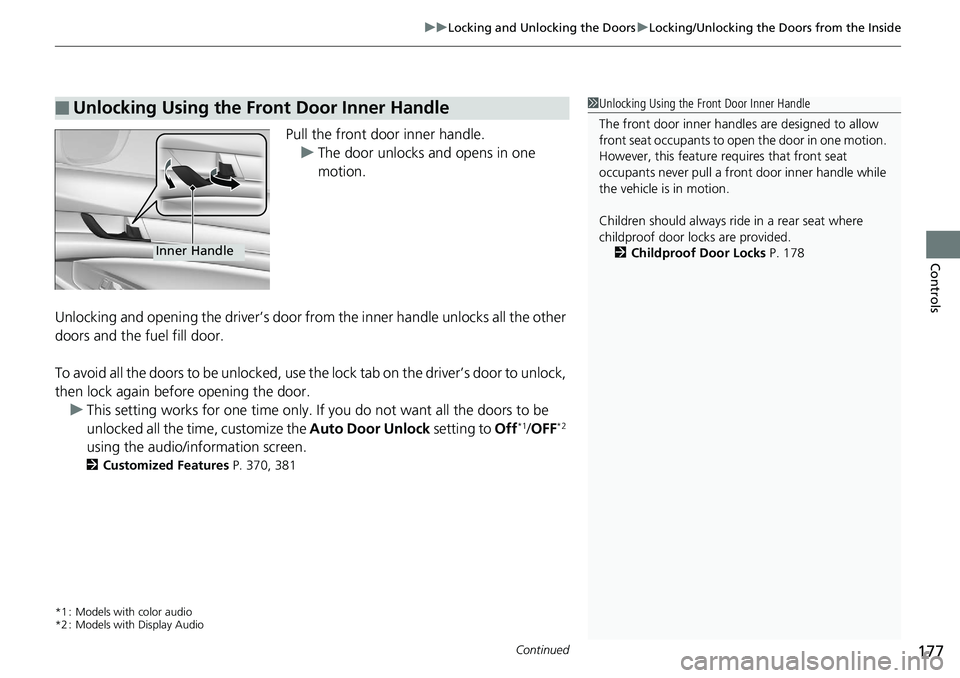

177uu Locking and Unlocking the Doors u Locking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors and the fuel fill door.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
u This setting works for one time only. If you do not want all the doors to be
unlocked all the ti me, customize the Auto Door Unlock setting to Off *1
/ OFF *2

using the audio/information screen. 2 Customized Features P. 370, 381
*1 : Models with color audio
*2 : Models with Display Audio■ Unlocking Using the Front Door Inner Handle 1 Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 178Inner Handle

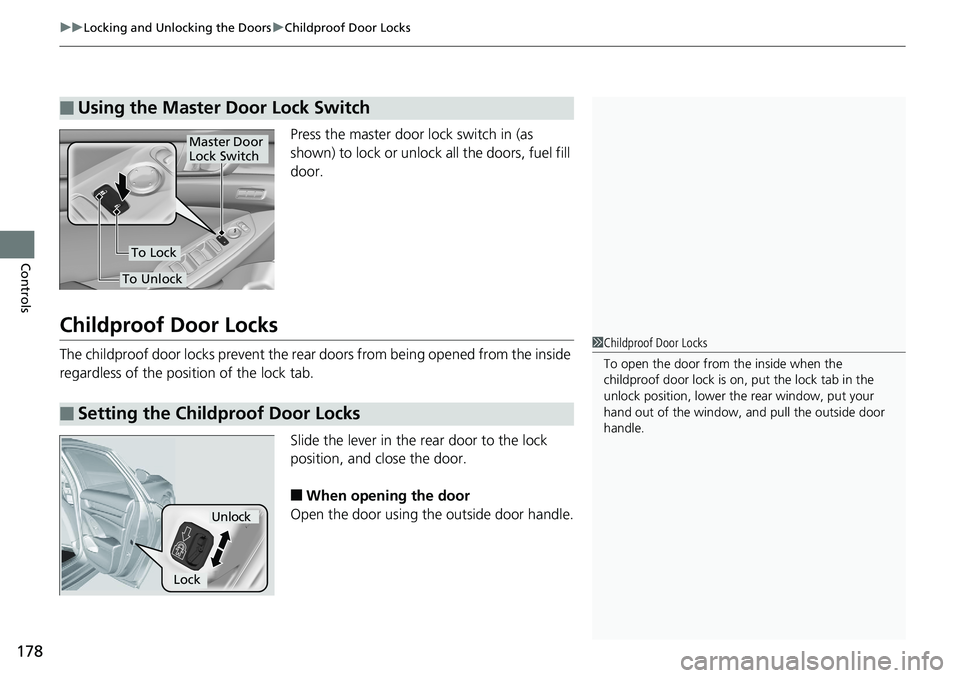

uu Locking and Unlocking the Doors u Childproof Door Locks
178
Controls Press the master door lock switch in (as
shown) to lock or unlock all the doors, fuel fill
door.
Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■ When opening the door
Open the door using the outside door handle.■ Using the Master Door Lock Switch
To Unlock Master Door
Lock Switch
To Lock
■ Setting the Childproof Door Locks 1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Unlock
Lock
