HONDA ACCORD HYBRID 2019 Owners Manual

589uu Parking Your Vehicle u Parking Sensor System *
Driving
1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF.
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for ten seconds. Release the button when the indicator
in the button blinks.
u The beeper sounds once.
4. Press the button again. The indi cator in the button goes off.
u The beeper sounds twice. The rear sensors are now turned off.
To turn the rear sensors on again, follo w the above procedure. The beeper sounds
three times when the rear sensors come back on.■ Turning off All Rear Sensors 1 Turning off All Rear Sensors
When you put the transmission into ( R
, the indicator
in the parking sensor system button blinks as a
reminder that the rear sens ors have been turned off.

590 uu Parking Your Vehicle u Cross Traffic Monitor *
Driving Cross Traffic Monitor *Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space. 1 Cross Traffic Monitor *
The parking sensor system’s alerting buzze r overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.3
CAUTION Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing. Models with parking sensor system
* Not available on all models

Continued
591uu Parking Your Vehicle u Cross Traffic Monitor *
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on. 2 Cross Traffic Monitor On and Off P. 593
• The transmission is in ( R
.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestri ans, bicycles, or stationary objects.■ How the System Works 1 Cross Traffic Monitor *
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
• An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
• Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
• A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
• The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
• Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
• When there is bad weather.
• Your vehicle is on an incline.
• Your vehicle is tilt ed due to a heavy load in the rear.
• Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the se nsors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.Radar sensors:
Underneath the rear bumper
corners
* Not available on all models

uu Parking Your Vehicle u Cross Traffic Monitor *
592
Driving An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.■ When the System Detects a Vehicle 1 When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in ( R
, mud snow or ice may
have accumulated in the vi cinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.
If the comes on when the transmission is in ( R
,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in ( R
, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.Wide ViewNormal View Arrow Icon
Top Down View

593uu Parking Your Vehicle u Cross Traffic Monitor *
Driving

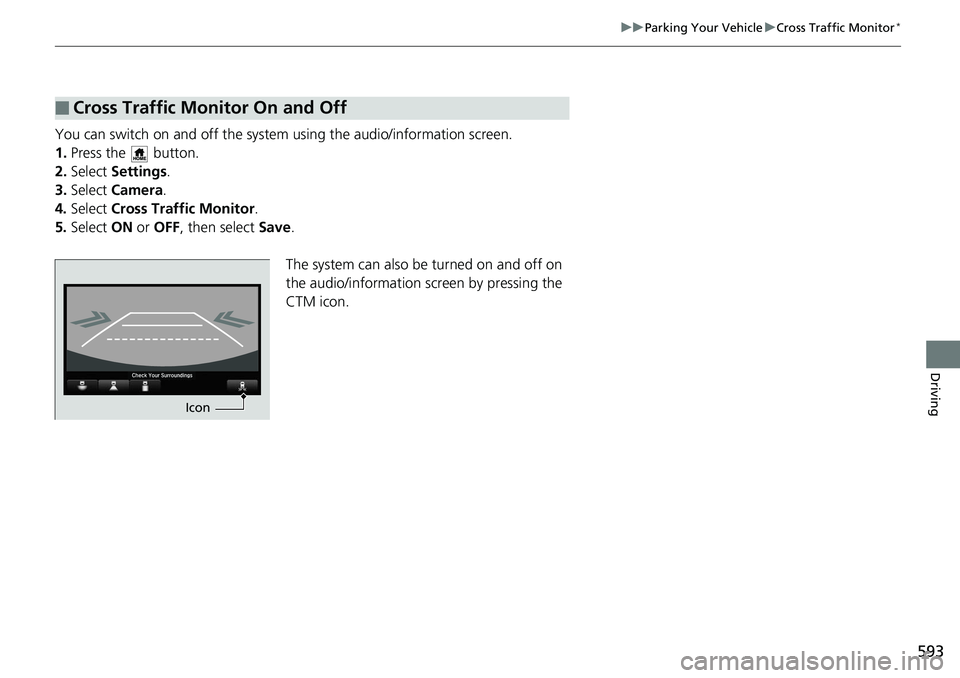

You can switch on and off the system using the audio/information screen.
1. Press the button.
2. Select Settings .
3. Select Camera .
4. Select Cross Traffic Monitor .
5. Select ON or OFF , then select Save .
The system can also be turned on and off on
the audio/information sc reen by pressing the
CTM icon.■ Cross Traffic Monitor On and Off $IFDL
:PVS
4VSSPVOEJOHT
Icon

594

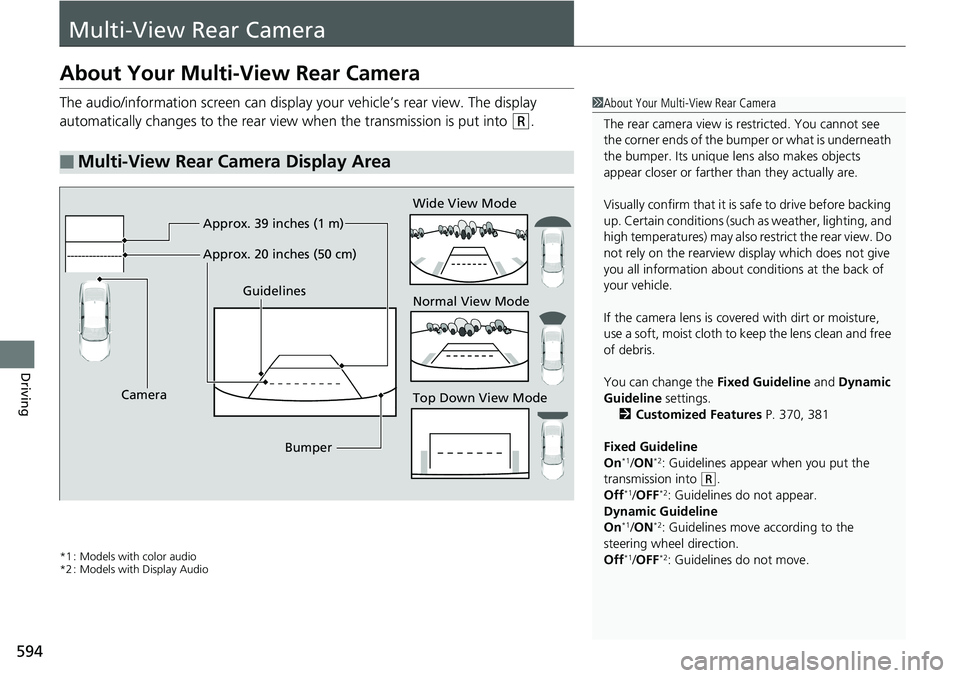

Driving Multi-View Rear CameraAbout Your Multi-View Rear Camera The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into ( R
.
*1 : Models with color audio
*2 : Models with Display Audio■ Multi-View Rear Camera Display Area 1 About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bum per or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is cove red with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 370, 381
Fixed Guideline
On *1
/ ON *2
: Guidelines appear when you put the
transmission into ( R
.
Off *1
/ OFF *2
: Guidelines do not appear.
Dynamic Guideline
On *1
/ ON *2
: Guidelines move according to the
steering wheel direction.
Off *1
/ OFF *2
: Guidelines do not move.Top Down View ModeNormal View ModeWide View Mode
Guidelines
BumperCamera Approx. 39 inches (1 m)
Approx. 20 inches (50 cm)

595uu Multi-View Rear Camera u About Your Multi-View Rear Camera
Continued
Driving

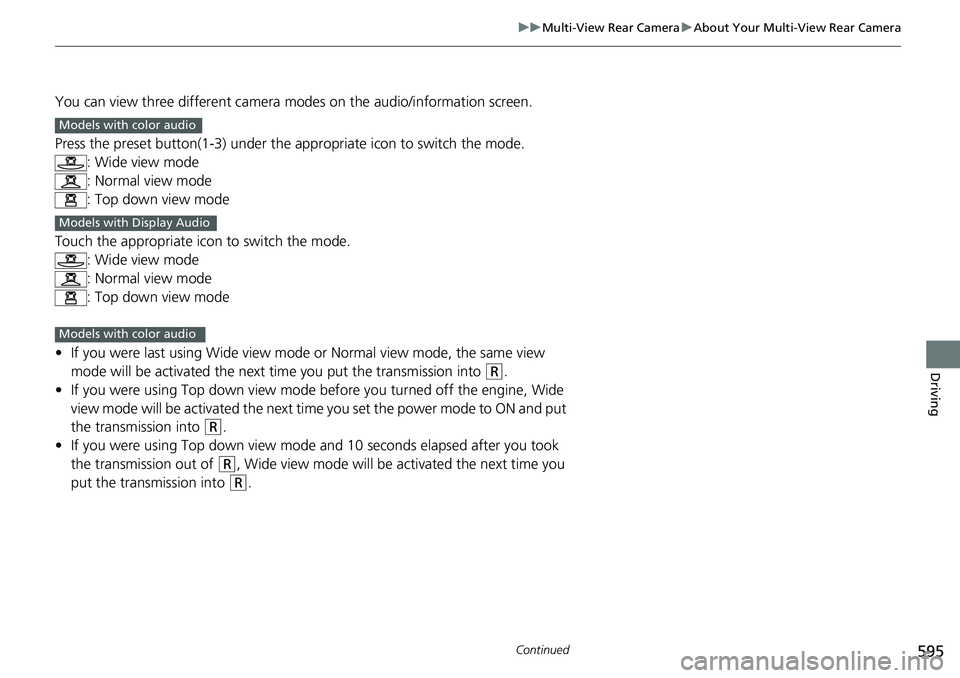

You can view three different camera modes on the audio/information screen.
Press the preset button(1-3) under the appropriate icon to switch the mode.
: Wide view mode
: Normal view mode
: Top down view mode
Touch the appropriate icon to switch the mode.
: Wide view mode
: Normal view mode
: Top down view mode
• If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next ti me you put the transmission into ( R
.
• If you were using Top down view mode before you turned off the engine, Wide
view mode will be activated the next time you set the power mode to ON and put
the transmission into ( R
.
• If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of ( R
, Wide view mode will be activated the next time you
put the transmission into ( R
.Models with color audio
Models with Display Audio
Models with color audio

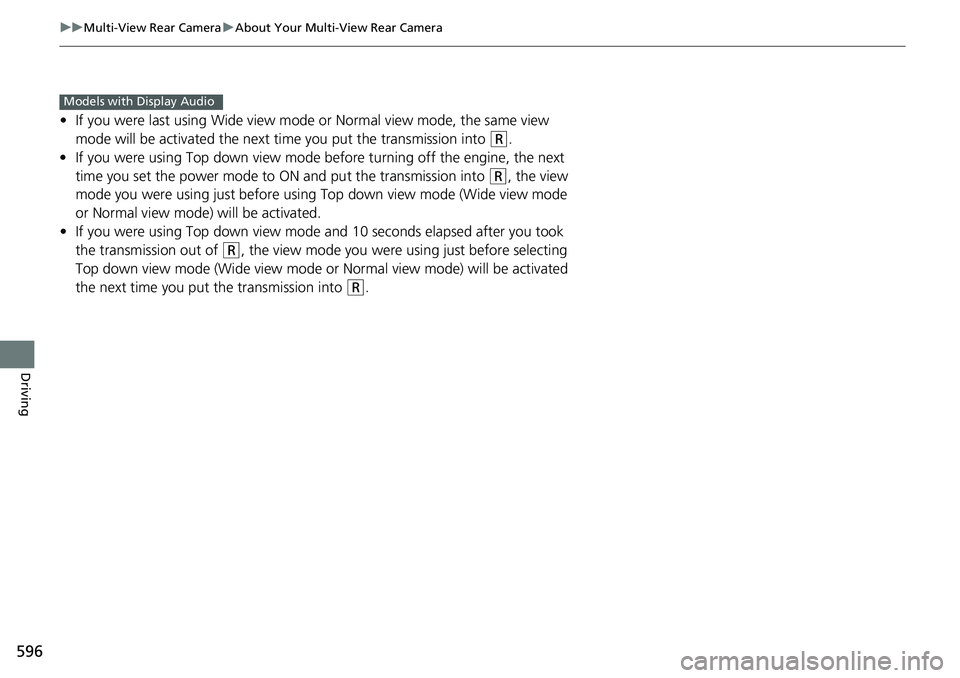

596 uu Multi-View Rear Camera u About Your Multi-View Rear Camera
Driving • If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next time you put the transmission into ( R
.
• If you were using Top down view mode before turning off the engine, the next
time you set the power mode to ON and put the transmission into ( R
, the view
mode you were using just before using Top down view mode (Wide view mode
or Normal view mode) will be activated.
• If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of ( R
, the view mode you were using just before selecting
Top down view mode (Wide view mode or Normal view mode) will be activated
the next time you put the transmission into ( R
.Models with Display Audio

597
Driving

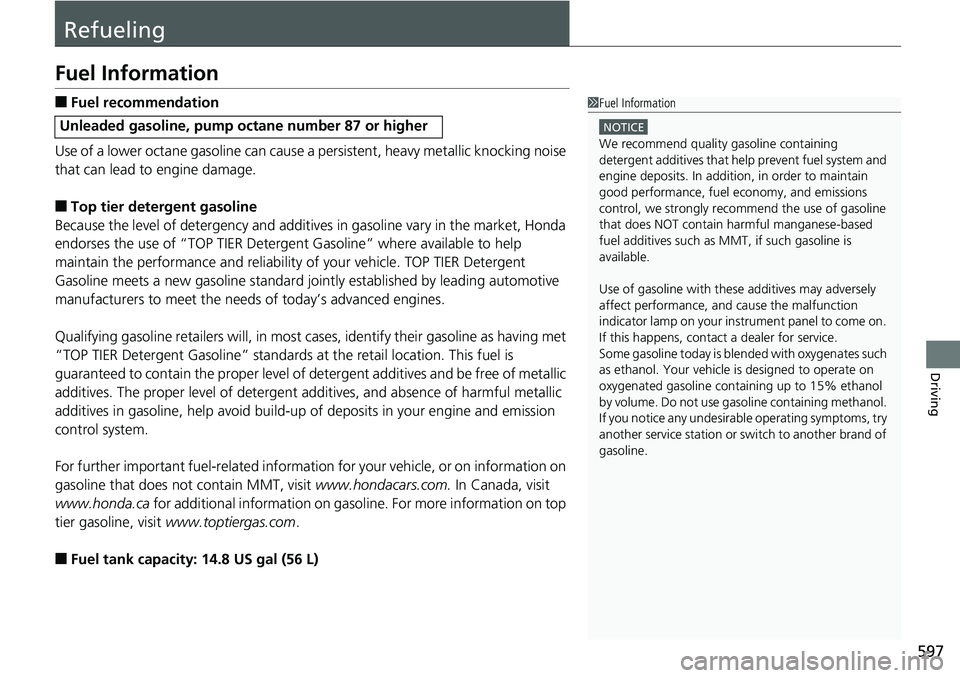

RefuelingFuel Information ■ Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■ Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gaso line. For more information on top
tier gasoline, visit www.toptiergas.com .
■ Fuel tank capacity: 14.8 US gal (56 L)Unleaded gasoline, pump octane number 87 or higher 1 Fuel Information NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service.
Some gasoline today is ble nded with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.

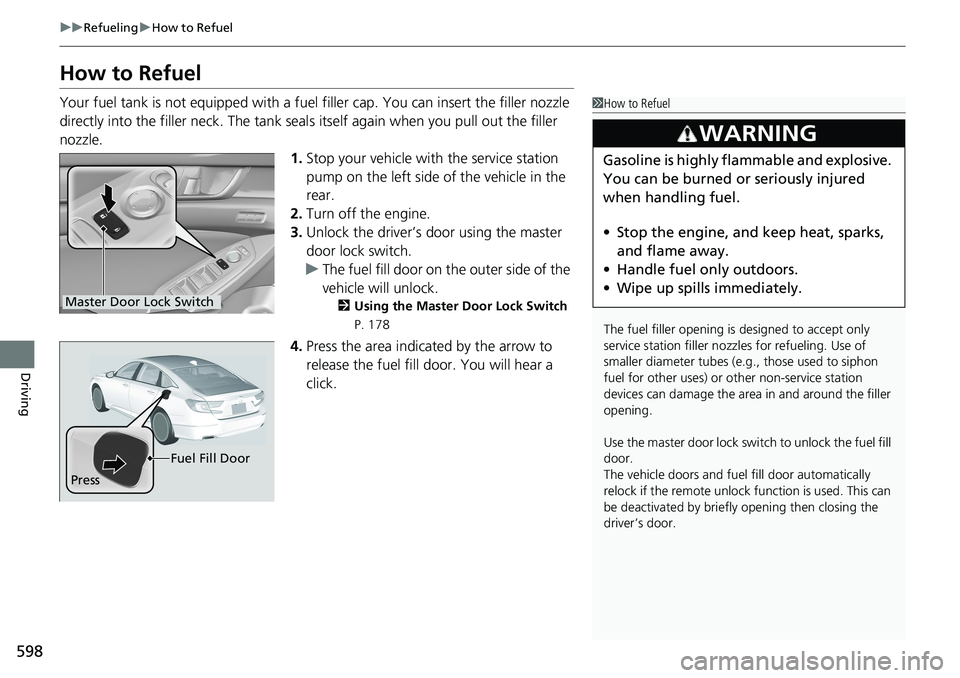

598 uu Refueling u How to Refuel
Driving How to Refuel Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seal s itself again when you pull out the filler
nozzle.
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Unlock the driver’s door using the master
door lock switch.
u The fuel fill door on the outer side of the
vehicle will unlock. 2 Using the Master Door Lock Switch
P. 178
4. Press the area indicated by the arrow to
release the fuel fill door. You will hear a
click. 1 How to Refuel
The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diamet er tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.
Use the master door lock swit ch to unlock the fuel fill
door.
The vehicle doors and fuel fill door automatically
relock if the remote unlock function is used. This can
be deactivated by briefl y opening then closing the
driver’s door.3
WARNING Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Master Door Lock Switch
Press Fuel Fill Door
