HONDA ACCORD HYBRID 2019 Owners Manual

Continued

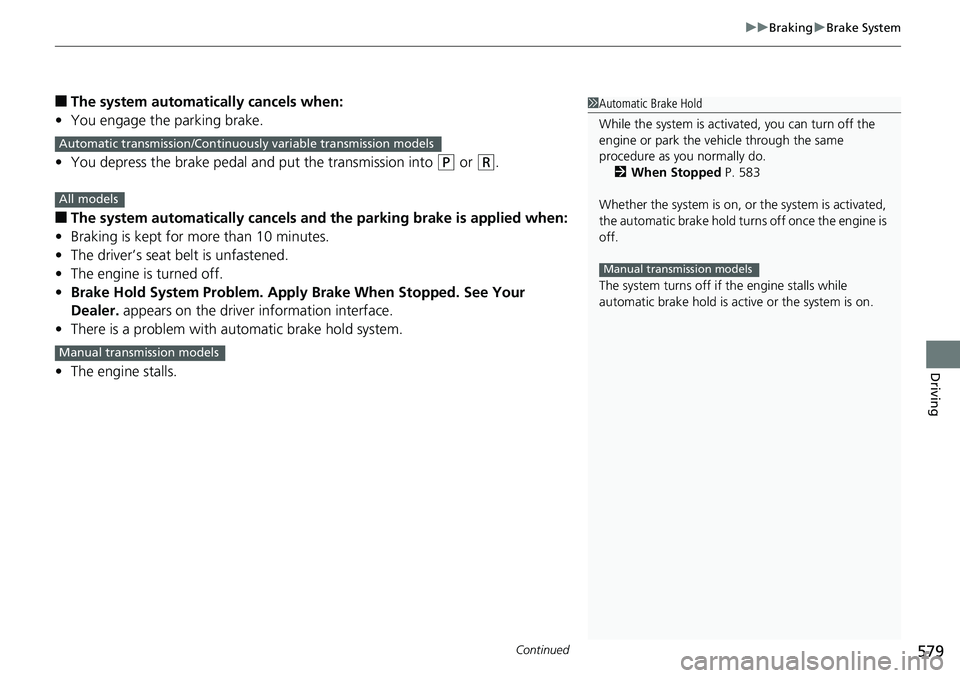

579 uu Braking u Brake System
Driving
■ The system automatically cancels when:
• You engage the parking brake.
• You depress the brake pedal a nd put the transmission into ( P
or ( R
.
■ The system automatically cancels and the parking brake is applied when:
• Braking is kept for more than 10 minutes.
• The driver’s seat belt is unfastened.
• The engine is turned off.
• Brake Hold System Problem. Apply Brake When Stopped. See Your
Dealer. appears on the driver information interface.
• There is a problem with automatic brake hold system.
• The engine stalls. 1 Automatic Brake Hold
While the system is activated, you can turn off the
engine or park the ve hicle through the same
procedure as you normally do.
2 When Stopped P. 583
Whether the system is on, or the system is activated,
the automatic brake hold turn s off once the engine is
off.
The system turns off if the engine stalls while
automatic brake hold is acti ve or the system is on.Manual transmission modelsAutomatic transmission/Continuousl y variable transmission models
All models
Manual transmission models

uu Braking u Brake System
580

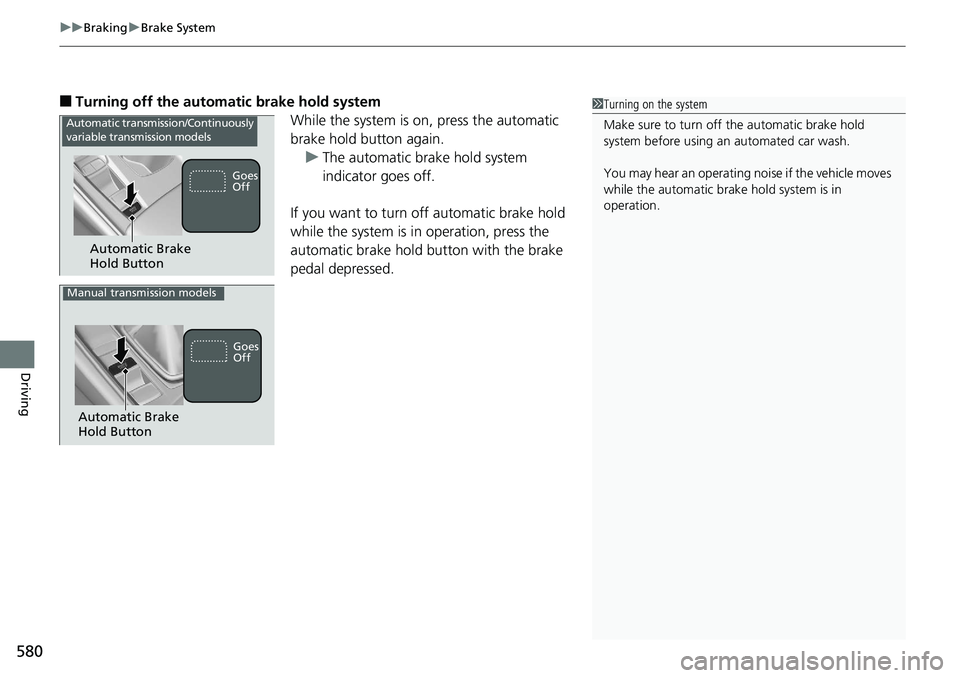

Driving ■ Turning off the automatic brake hold system
While the system is on, press the automatic
brake hold button again.
u The automatic brake hold system
indicator goes off.
If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed. 1 Turning on the system
Make sure to turn off the automatic brake hold
system before using an automated car wash.
You may hear an operating noi se if the vehicle moves
while the automatic brake hold system is in
operation.
Automatic Brake
Hold Button Goes
OffAutomatic transmission/Continuously
variable transmission models
Automatic Brake
Hold Button Goes
OffManual transmission models

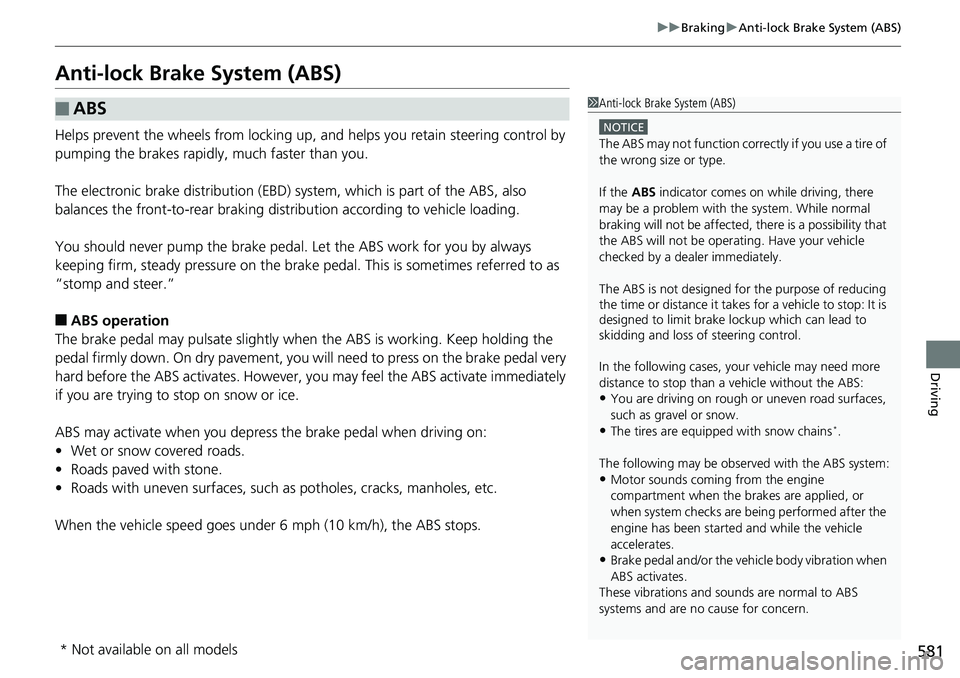

581uu Braking u Anti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS) Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribu tion (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ ABS operation
The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you w ill need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.
ABS may activate when you depres s the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surf aces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.■ ABS 1 Anti-lock Brake System (ABS) NOTICE
The ABS may not function correc tly if you use a tire of
the wrong size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system. While normal
braking will not be affected, there is a possibility that
the ABS will not be opera ting. Have your vehicle
checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
• You are driving on rough or uneven road surfaces,
such as gravel or snow.
• The tires are equipped with snow chains *
.
The following may be observed with the ABS system:
• Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and wh ile the vehicle
accelerates.
• Brake pedal and/or the ve hicle body vibration when
ABS activates.
These vibrations and sou nds are normal to ABS
systems and are no cause for concern.
* Not available on all models

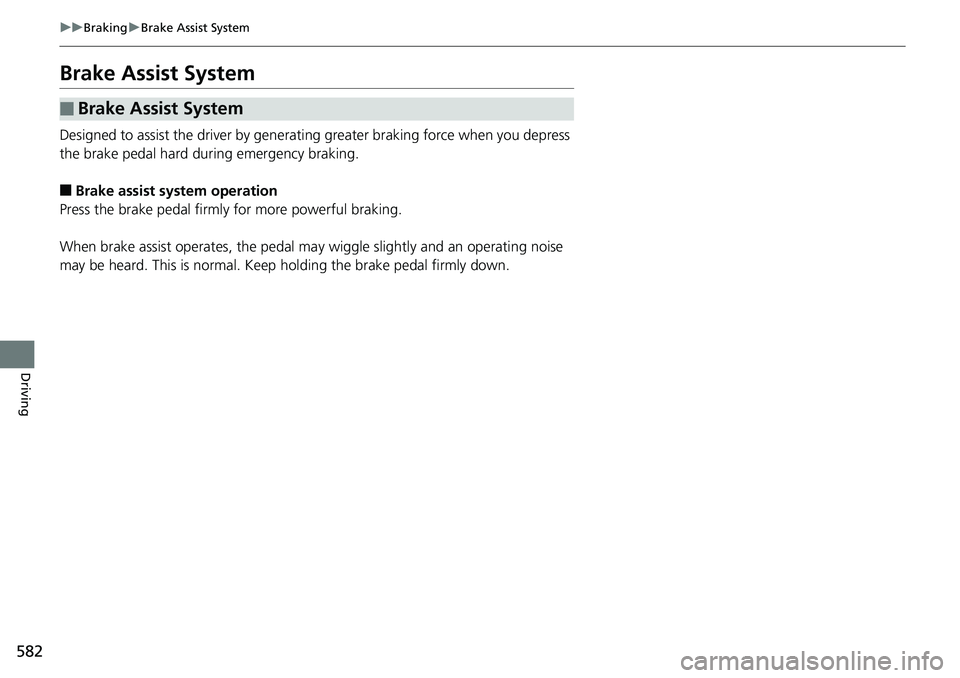

582 uu Braking u Brake Assist System
Driving Brake Assist System Designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.
■ Brake assist system operation
Press the brake pedal firmly for more powerful braking.
When brake assist operates, the pedal ma y wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.■ Brake Assist System

583Continued
Driving

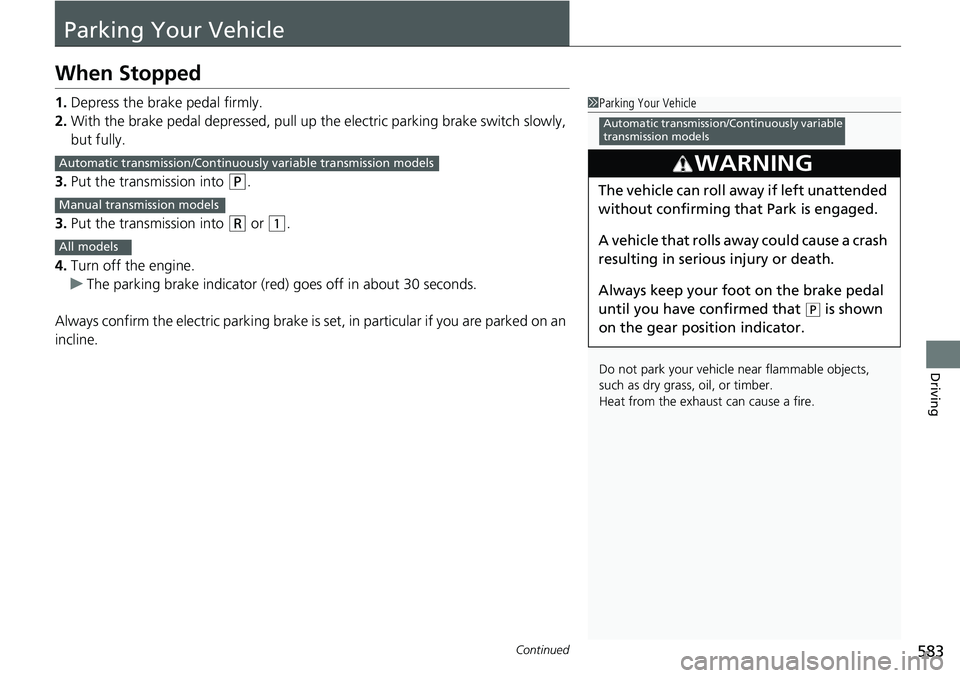

Parking Your VehicleWhen Stopped 1. Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up th e electric parking brake switch slowly,
but fully.
3. Put the transmission into ( P
.
3. Put the transmission into ( R
or ( 1
.
4. Turn off the engine.
u The parking brake indicator (red) goes off in about 30 seconds.
Always confirm the electric parking brake is set, in particular if you are parked on an
incline. 1 Parking Your Vehicle
Do not park your vehicle near flammabl e objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.3
WARNING The vehicle can roll aw ay if left unattended
without confirming that Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that ( P
is shown
on the gear position indicator. Automatic transmission/Continuously variable
transmission models
Automatic transmission/Continuousl y variable transmission models
Manual transmission models
All models

uu Parking Your Vehicle u When Stopped
584

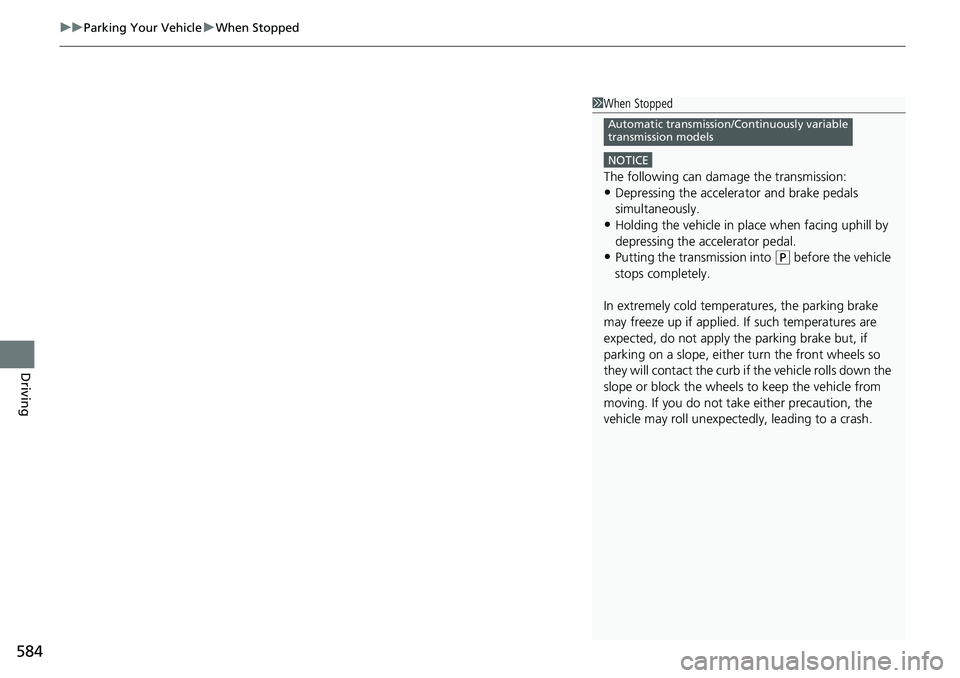

Driving 1 When Stopped
NOTICE
The following can dama ge the transmission:
• Depressing the accelera tor and brake pedals
simultaneously.
• Holding the vehicle in place when facing uphill by
depressing the accelerator pedal.
• Putting the transmission into ( P
before the vehicle
stops completely.
In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpected ly, leading to a crash. Automatic transmission/Continuously variable
transmission models

585uu Parking Your Vehicle u Parking Sensor System *
Continued
Driving
Parking Sensor System *The corner and center sensors monitor ob stacles around your vehicle, and the
beeper, driver information interface and a udio/information screen let you know the
approximate distance between your vehicle and the obstacle.
■ The sensor location and range 1 Parking Sensor System *
Even when the system is on, always confirm if there is
no obstacle near your ve hicle before parking.
The system may not work properly when:
• The sensors are covered with snow, ice, mud or
dirt.
• The vehicle is on uneven su rface, such as grass,
bumps, or a hill.
• The vehicle has been out in hot or cold weather.
• The system is affected by devices that emit
ultrasonic waves.
• Driving in bad weather.
The system may not sense:
• Thin or low objects.
• Sonic-absorptive materials, such as snow, cotton,
or sponge.
• Objects directly under the bumper.
Do not put any accessories on or around the sensors.Within about 24 in (60 cm) or lessFront Corner Sensors
Rear Corner Sensors
Within about 43 in (110 cm) or less Rear Center Sensors
* Not available on all models

uu Parking Your Vehicle u Parking Sensor System *
586
Driving ■ Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicato r in the button comes
on when the system is on.
The front corner, rear corner and rear center
sensors start to detect an obstacle when the
transmission is in ( R
, and the vehicle speed is
less than 5 mph (8 km/h).
The front corner sensors start to detect an
obstacle when the transmission is in any
position other than ( P
, and the vehicle speed
is less than 5 mph (8 km/h). 1 Parking Sensor System *
When you set the power mode to ON, the system will
be in the previously selected condition.
* Not available on all models

Continued
587uu Parking Your Vehicle u Parking Sensor System *
Driving
■ Screen Operation
You can switch between split view off and
split view on by touching the split screen tab. 1 Screen Operation
The split screen tab disappears, and the split view
returns to the last camera view mode under the
following conditions:
• If the parking sensor system is turned off.
• If there is a malfunction in the system.
Split Screen
TabSplit View Off
Split View On

588 uu Parking Your Vehicle u Parking Sensor System *
Driving ■ When the distance between your vehicle and obstacles behind becomes shorter
*1:At this stage, only the center sensors detect obstacles. Length of the
intermittent beep Distance between the Bumper and Obstacle
Indicator Audio/Information Screen
Corner Sensors Center Sensors
Moderate — Rear: About 43-24 in
(110-60 cm) Comes on in Yellow *1
Short About 24-18 in
(60-45 cm) About 24-18 in
(60-45 cm)
Comes on in Amber
Very short About 18-14 in
(45-35 cm) About 18-14 in
(45-35 cm)
Continuous About 14 in
(35 cm) or less About 14 in
(35 cm) or less Comes on in Red Indicators light where the
sensor detects an obstacle.
Indicators light where the
sensor detects an obstacle.
