HONDA ACCORD HYBRID 2019 Owners Manual

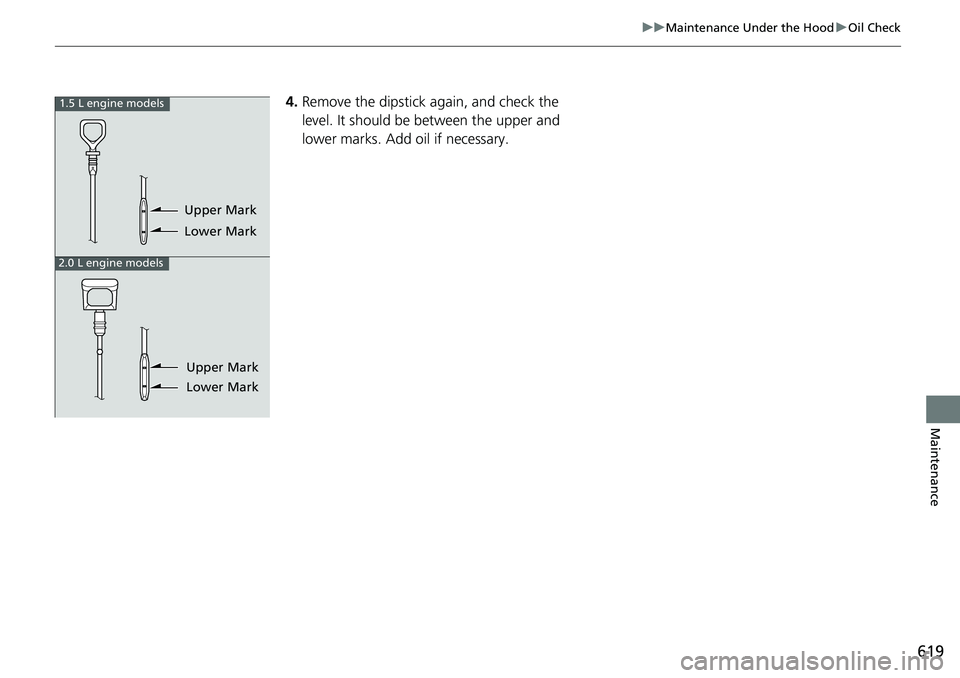

619uu Maintenance Under the Hood u Oil Check
Maintenance
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.1.5 L engine models
2.0 L engine models
Upper Mark
Lower Mark
Upper Mark
Lower Mark

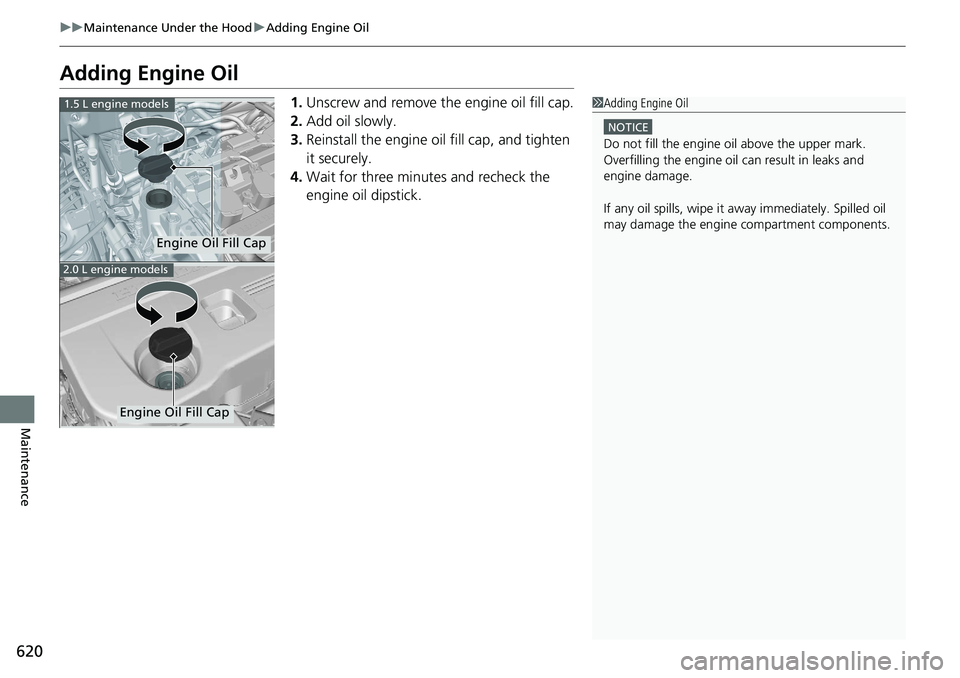

620 uu Maintenance Under the Hood u Adding Engine Oil
Maintenance Adding Engine Oil 1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick. 1 Adding Engine Oil NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.1.5 L engine models
2.0 L engine models
Engine Oil Fill Cap
Engine Oil Fill Cap

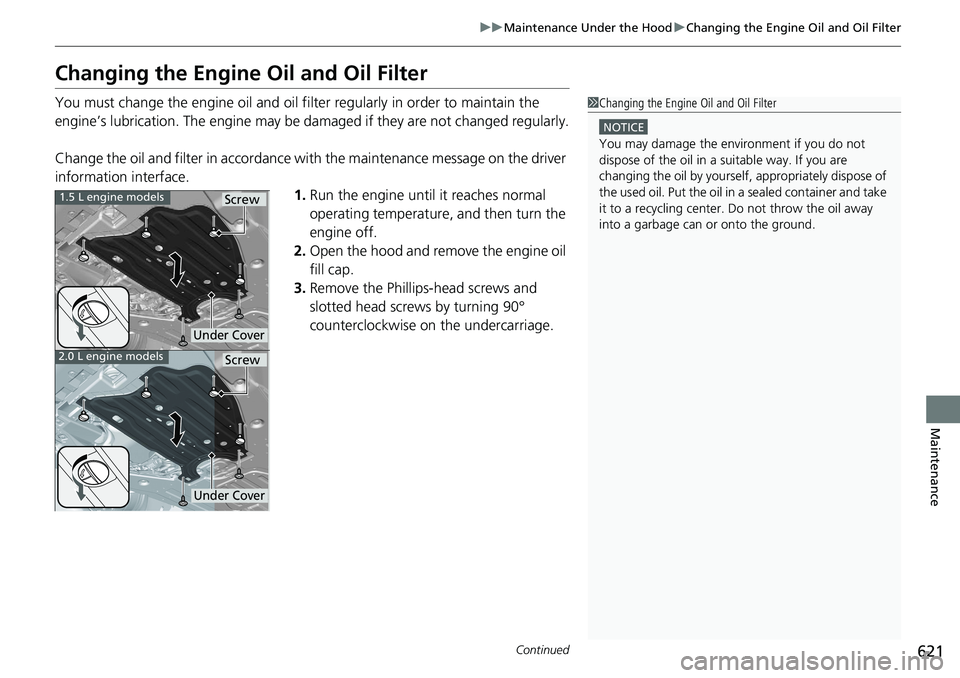

621uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Continued
Maintenance
Changing the Engine Oil and Oil FilterYou must change the engine oil and oil fi lter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the mainte nance message on the driver
information interface.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the Phillips-head screws and
slotted head screws by turning 90°
counterclockwise on the undercarriage. 1 Changing the Engine Oil and Oil Filter NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.1.5 L engine models
2.0 L engine models
Under Cover Screw
Under Cover Screw

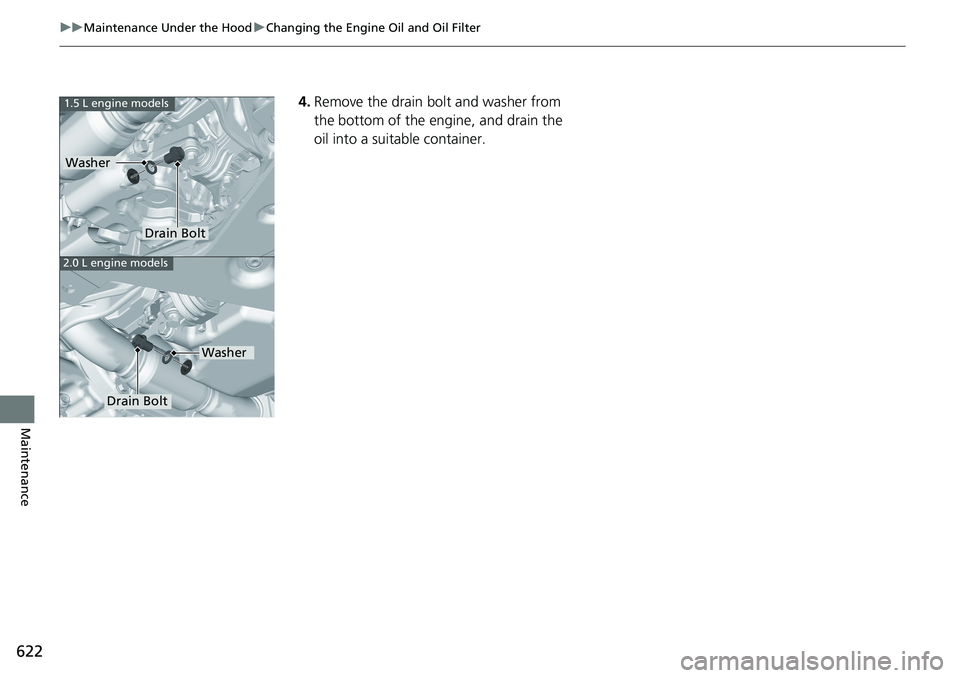

622 uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Maintenance 4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1.5 L engine models
2.0 L engine models
Drain BoltWasher
Drain Bolt Washer

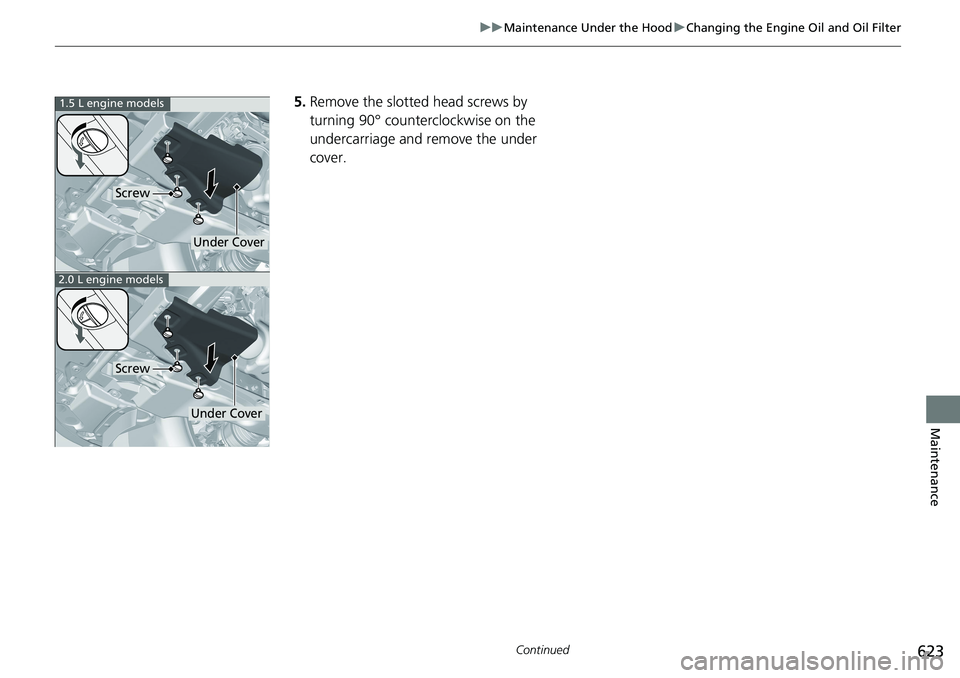

623uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
Continued
Maintenance
5. Remove the slotted head screws by
turning 90° counterc lockwise on the
undercarriage and remove the under
cover.1.5 L engine models
2.0 L engine models
Under CoverScrew
Under CoverScrew

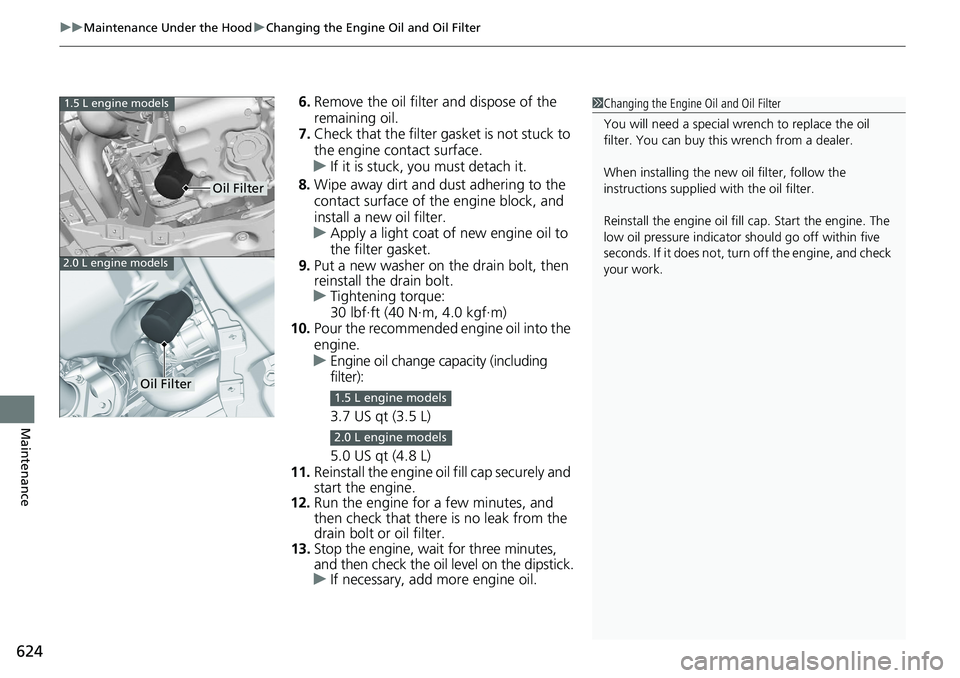

uu Maintenance Under the Hood u Changing the Engine Oil and Oil Filter
624
Maintenance 6. Remove the oil filter and dispose of the
remaining oil.
7. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
8. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
9. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
10. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.7 US qt (3.5 L)
5.0 US qt (4.8 L)
11. Reinstall the engine oil fill cap securely and
start the engine.
12. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
13. Stop the engine, wait for three minutes,
and then check the oil level on the dipstick.
u If necessary, add more engine oil. 1 Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.1.5 L engine models
2.0 L engine models Oil Filter
Oil Filter 1.5 L engine models
2.0 L engine models

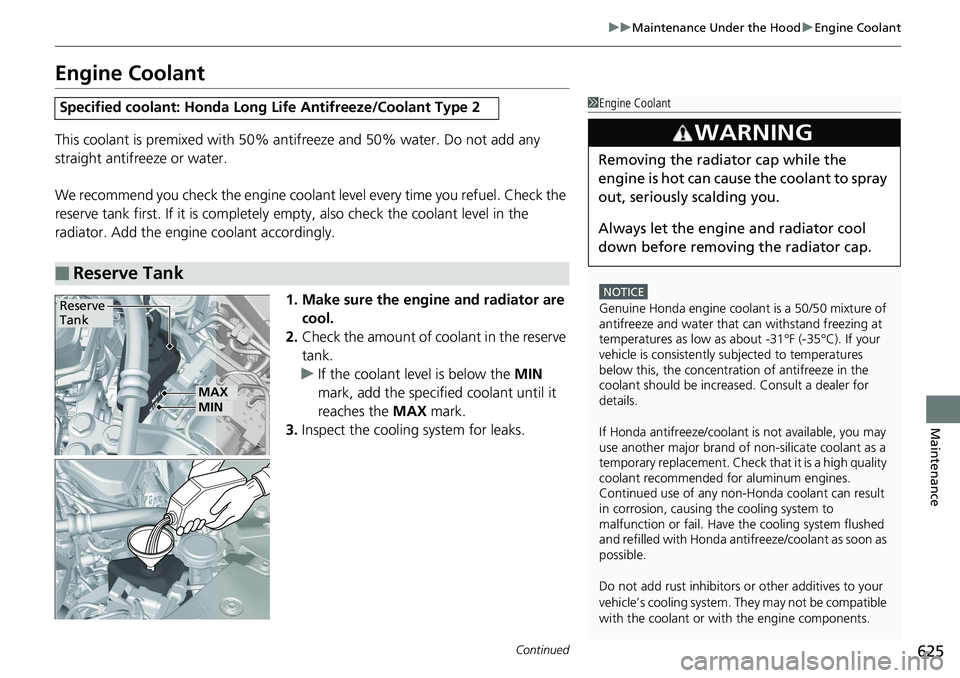

625uu Maintenance Under the Hood u Engine Coolant
Continued
Maintenance
Engine Coolant This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are
cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■ Reserve Tank 1 Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently s ubjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.3
WARNING Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN

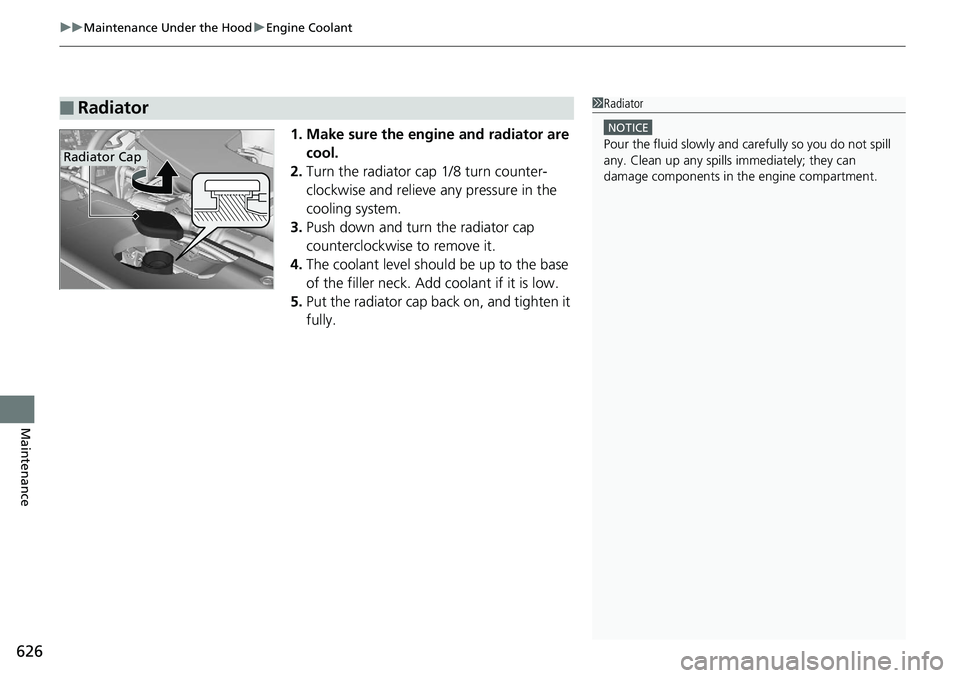

uu Maintenance Under the Hood u Engine Coolant
626
Maintenance 1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.■ Radiator 1 Radiator NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator Cap

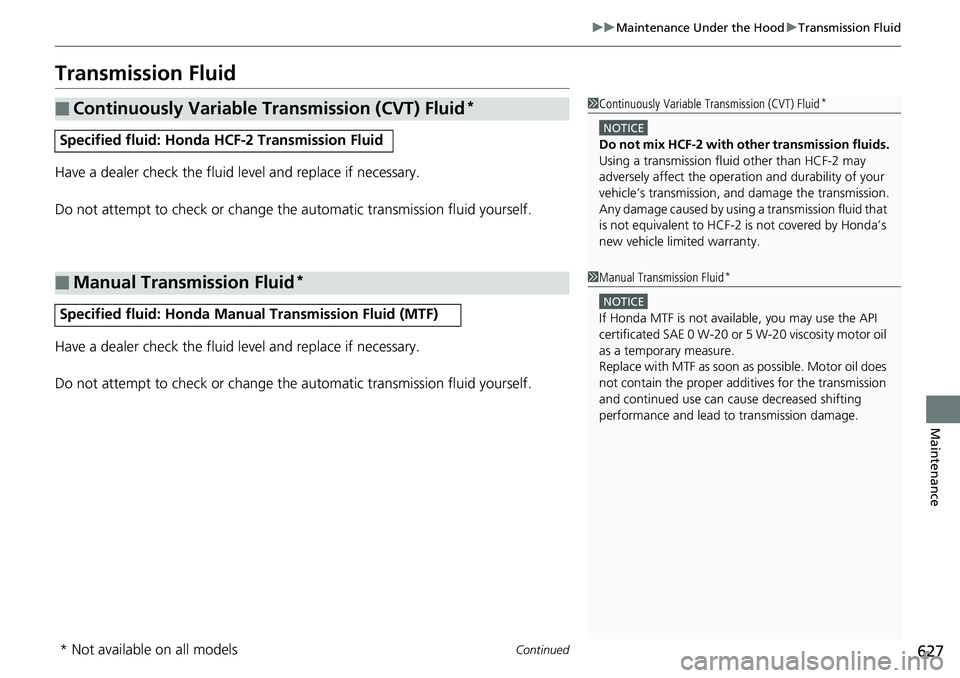

627uu Maintenance Under the Hood u Transmission Fluid
Continued
Maintenance
Transmission Fluid Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.■ Continuously Variable Transmission (CVT) Fluid *
Specified fluid: Honda HC F-2 Transmission Fluid
■ Manual Transmission Fluid *
Specified fluid: Honda Manual Transmission Fluid (MTF) 1 Continuously Variable Transmission (CVT) Fluid *
NOTICE
Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operati on and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda’s
new vehicle limited warranty.
1 Manual Transmission Fluid *
NOTICE
If Honda MTF is not availa ble, you may use the API
certificated SAE 0 W-20 or 5 W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper addi tives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.
* Not available on all models

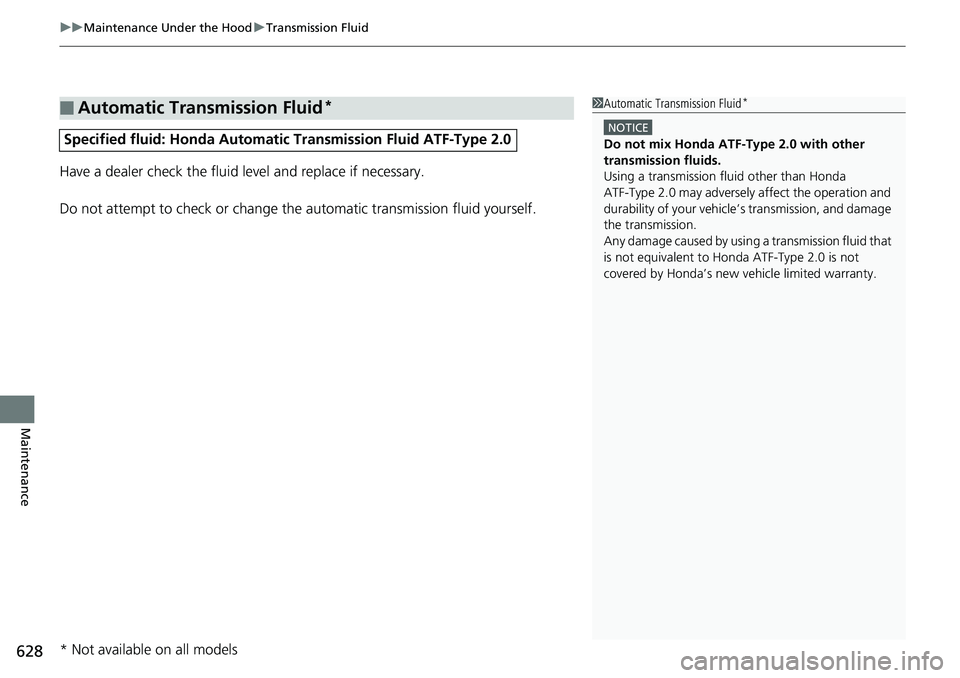

uu Maintenance Under the Hood u Transmission Fluid
628
Maintenance Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■ Automatic Transmission Fluid *
Specified fluid: Honda Automatic Transmission Fluid ATF-Type 2.0 1 Automatic Transmission Fluid *
NOTICE
Do not mix Honda ATF-Type 2.0 with other
transmission fluids.
Using a transmission fl uid other than Honda
ATF-Type 2.0 may adversel y affect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF-Type 2.0 is not
covered by Honda’s new ve hicle limited warranty.
* Not available on all models
