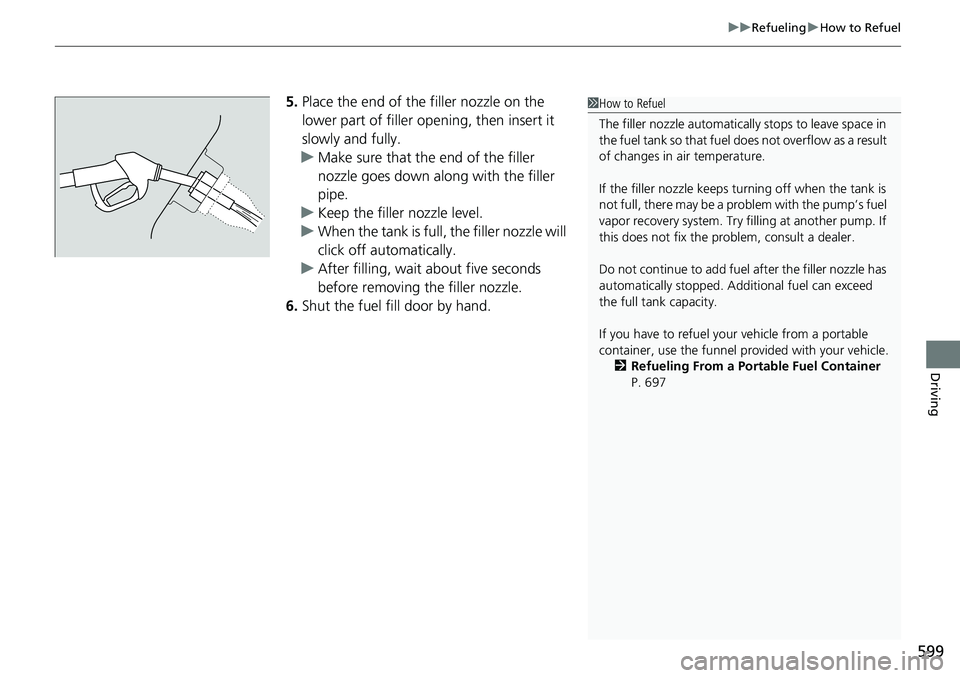

599 uu Refueling u How to Refuel
Driving
5. Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.
u Make sure that the end of the filler
nozzle goes down along with the filler
pipe.
u Keep the filler nozzle level.
u When the tank is full, the filler nozzle will
click off automatically.
u After filling, wait about five seconds
before removing the filler nozzle.
6. Shut the fuel fill door by hand. 1 How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
If you have to refuel y our vehicle fr om a portable
container, use the funnel pr ovided with your vehicle.
2 Refueling From a Portable Fuel Container
P. 697

600

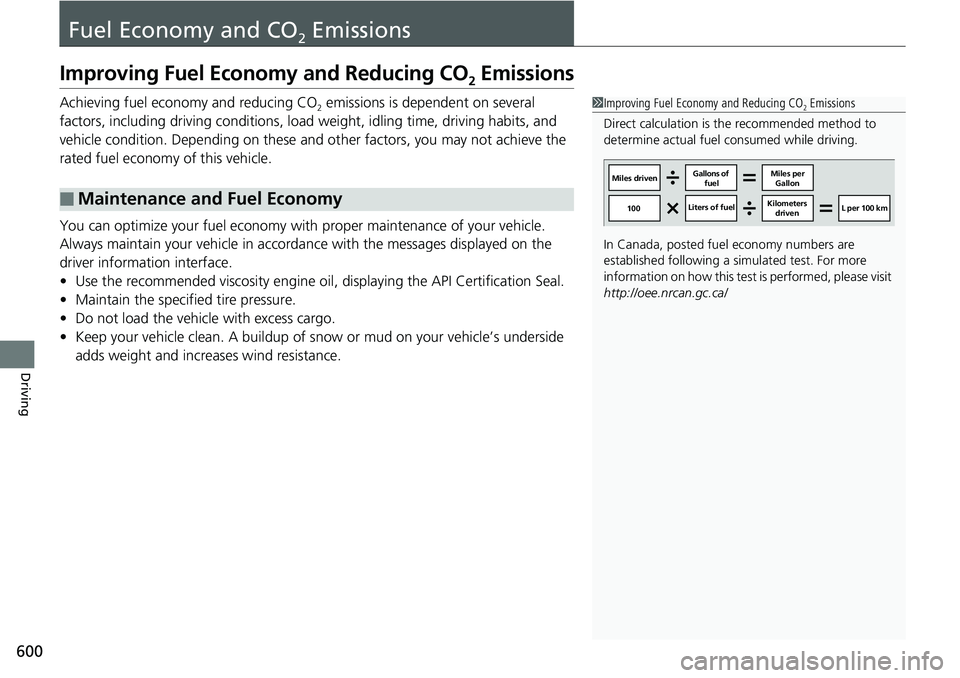

Driving Fuel Economy and CO 2
EmissionsImproving Fuel Economy and Reducing CO 2
EmissionsAchieving fuel economy and reducing CO 2
emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
driver information interface.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicl e with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.■ Maintenance and Fuel Economy 1 Improving Fuel Economy and Reducing CO 2
Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/ Miles driven Gallons of
fuel Miles per
Gallon
100 Liters of fuel Kilometers
driven L per 100 km

601
Driving

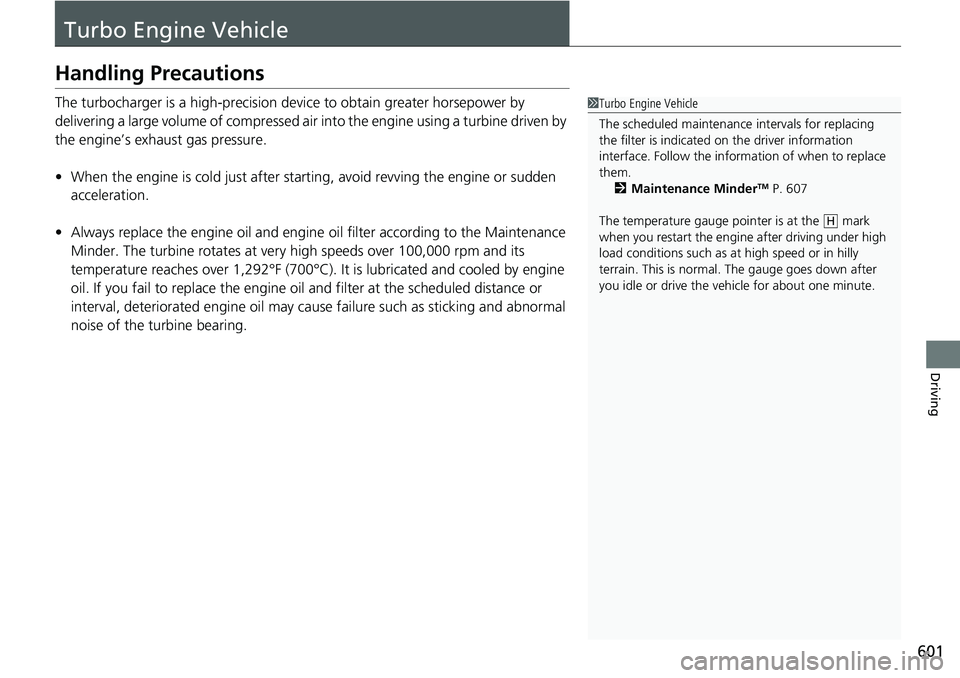

Turbo Engine VehicleHandling Precautions The turbocharger is a high-precision devi ce to obtain greater horsepower by
delivering a large volume of compressed air into the engine using a turbine driven by
the engine’s exhaust gas pressure.
• When the engine is cold just after sta rting, avoid revving the engine or sudden
acceleration.
• Always replace the engine oil and engine oil filter according to the Maintenance
Minder. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,29 2°F (700°C). It is lubricat ed and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may caus e failure such as st icking and abnormal
noise of the turbine bearing. 1 Turbo Engine Vehicle
The scheduled maintenance intervals for replacing
the filter is indicated on the driver information
interface. Follow the information of when to replace
them.
2 Maintenance Minder TM
P. 607
The temperature gauge pointer is at the mark
when you restart the engi ne after driv ing under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehi cle for about one minute. H

602

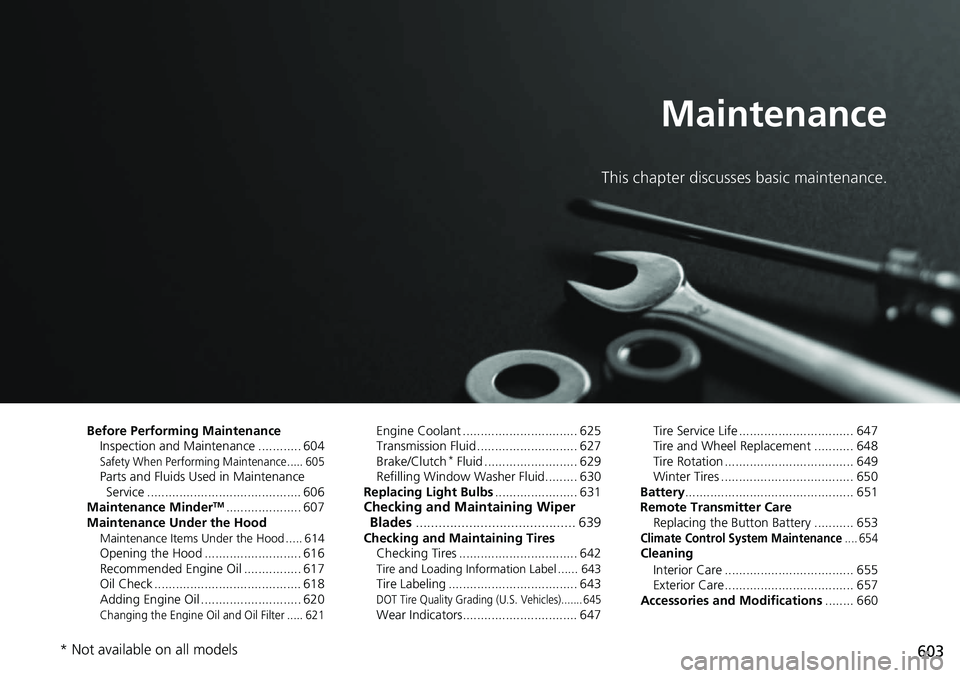

603Maintenance This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 604
Safety When Performing Maintenance..... 605
Parts and Fluids Used in Maintenance
Service ........................................... 606
Maintenance Minder TM
..................... 607
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 614
Opening the Hood ........................... 616
Recommended Engine Oil ................ 617
Oil Check ......................................... 618
Adding Engine Oil ............................ 620
Changing the Engine Oil and Oil Filter ..... 621 Engine Coolant ................................ 625
Transmission Fluid ............................ 627
Brake/Clutch *
Fluid .......................... 629
Refilling Window Washer Fluid......... 630
Replacing Light Bulbs ....................... 631
Checking and Maintaining Wiper
Blades .......................................... 639
Checking and Maintaining Tires
Checking Tires ................................. 642
Tire and Loading Information Label ...... 643
Tire Labeling .................................... 643
DOT Tire Quality Grading (U.S. Vehicles)....... 645
Wear Indicators................................ 647 Tire Service Life ................................ 647
Tire and Wheel Replacement ........... 648
Tire Rotation .................................... 649
Winter Tires ..................................... 650
Battery ............................................... 651
Remote Transmitter Care
Replacing the Button Battery ........... 653
Climate Control System Maintenance .... 654
Cleaning
Interior Care .................................... 655
Exterior Care.................................... 657
Accessories and Modifications ........ 660
* Not available on all models

604

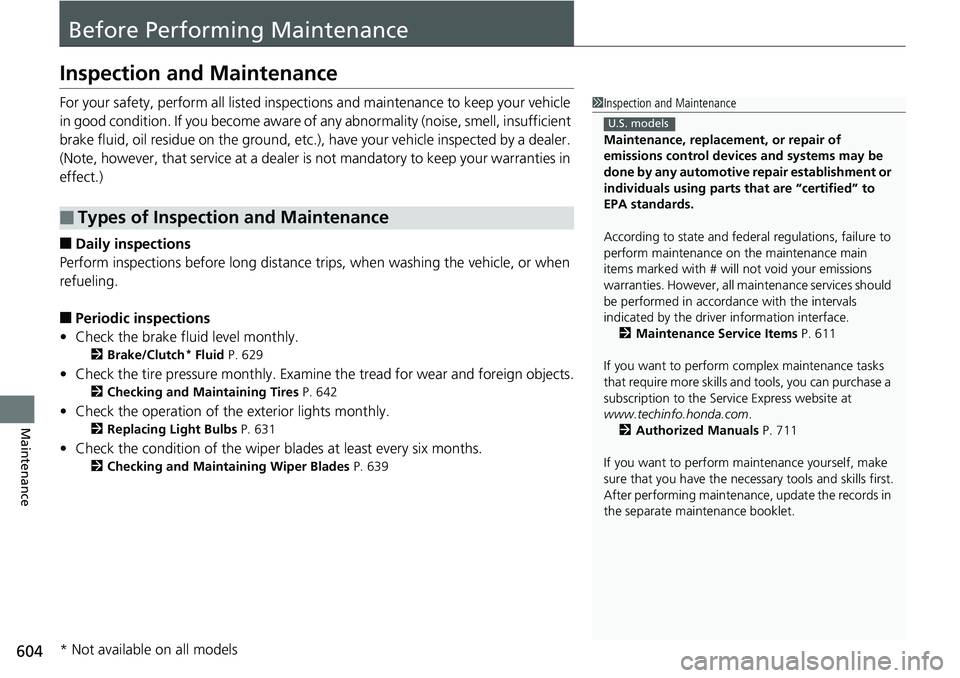

Maintenance Before Performing MaintenanceInspection and Maintenance For your safety, perform all listed inspecti ons and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■ Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■ Periodic inspections
• Check the brake fluid level monthly. 2 Brake/Clutch *
Fluid P. 629
• Check the tire pressure monthly. Examin e the tread for wear and foreign objects.2 Checking and Maintaining Tires P. 642
• Check the operation of the exterior lights monthly.2 Replacing Light Bulbs P. 631
• Check the condition of the wiper bl ades at least every six months.2 Checking and Maintaining Wiper Blades P. 639■ Types of Inspection and Maintenance 1 Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 611
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 711
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet. U.S. models
* Not available on all models

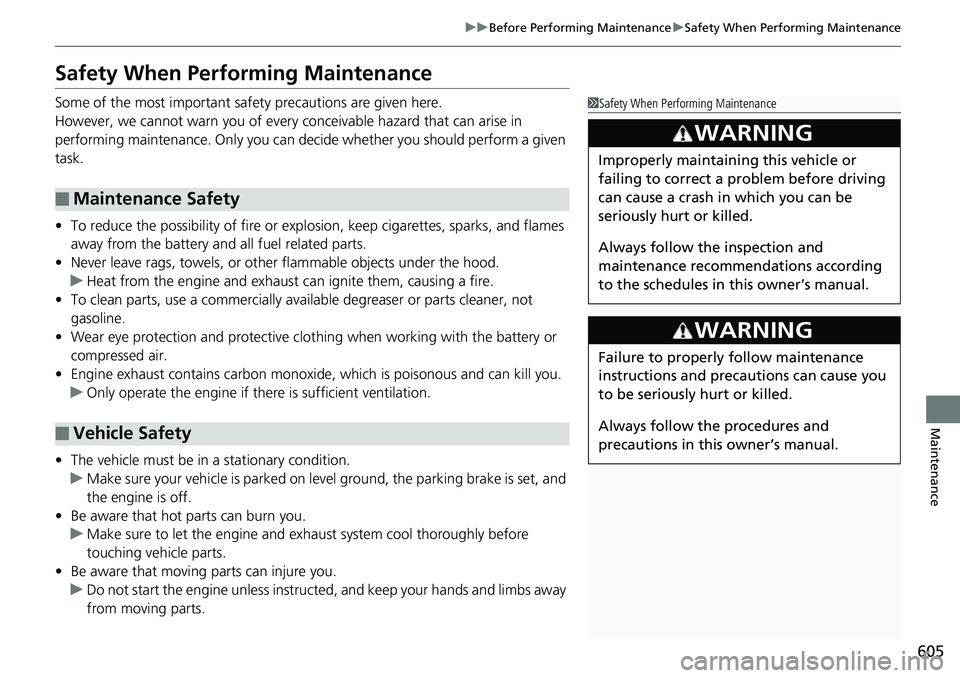

605uu Before Performing Maintenance u Safety When Performing Maintenance
Maintenance
Safety When Performing Maintenance Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreas er or parts cleaner, not
gasoline.
• Wear eye protection and protective clothi ng when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your ha nds and limbs away
from moving parts.■ Maintenance Safety
■ Vehicle Safety 1 Safety When Performing Maintenance
3
WARNING Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3
WARNING Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.

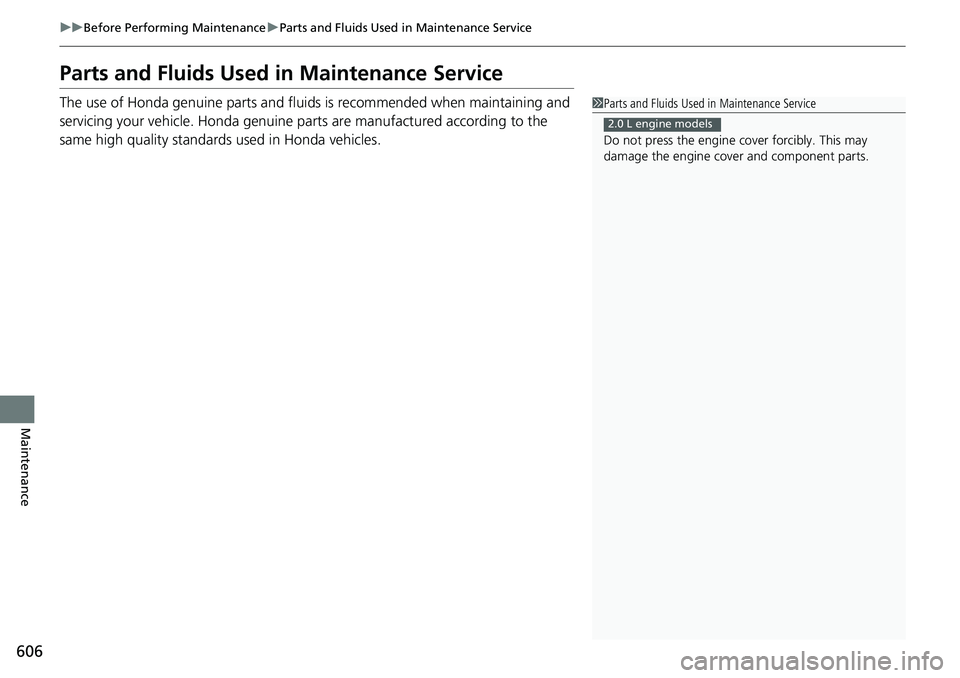

606 uu Before Performing Maintenance u Parts and Fluids Used in Maintenance Service
Maintenance Parts and Fluids Used in Maintenance Service The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles. 1 Parts and Fluids Used in Maintenance Service
Do not press the engine cover forcibly. This may
damage the engine cover and component parts. 2.0 L engine models

607
Maintenance

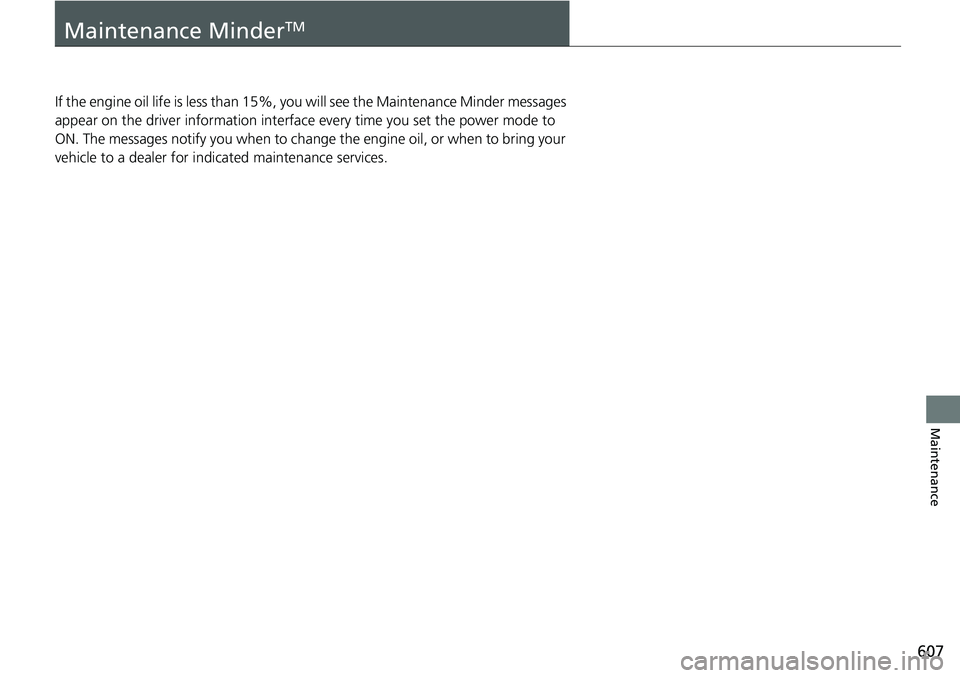

Maintenance Minder TM
If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the driver inform ation interface every time you set the power mode to
ON. The messages notify you when to change the engine oil, or when to bring your
vehicle to a dealer for indicated maintenance services.

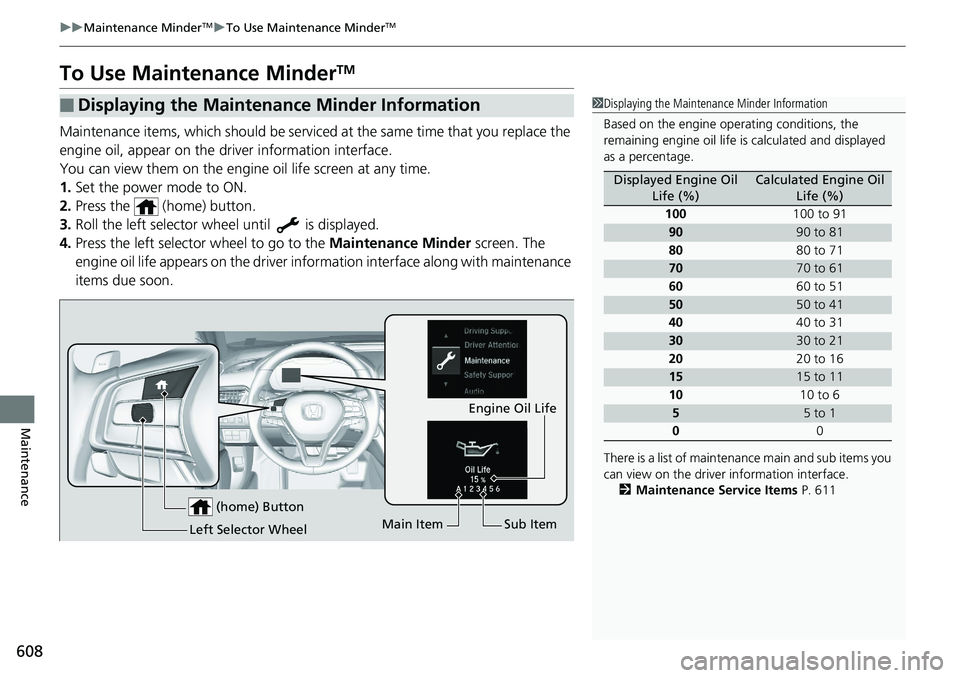

608 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance To Use Maintenance Minder TM
Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver information interface.
You can view them on the engine oil life screen at any time.
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the Maintenance Minder screen. The
engine oil life appears on the driver information interface along with maintenance
items due soon.■ Displaying the Maintenance Minder Information 1 Displaying the Maintena nce Minder Information
Based on the engine ope rating conditions, the
remaining engine oi l life is calculat ed and displayed
as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 611Displayed Engine Oil
Life (%) Calculated Engine Oil
Life (%)
100 100 to 91
90 90 to 81
80 80 to 71
70 70 to 61
60 60 to 51
50 50 to 41
40 40 to 31
30 30 to 21
20 20 to 16
15 15 to 11
10 10 to 6
5 5 to 1
0 0
(home) Button Engine Oil Life
Main Item Sub Item
Left Selector Wheel
