HONDA ACCORD HYBRID 2019 Owners Manual

609uu Maintenance Minder TM
u To Use Maintenance Minder TM
Continued
Maintenance

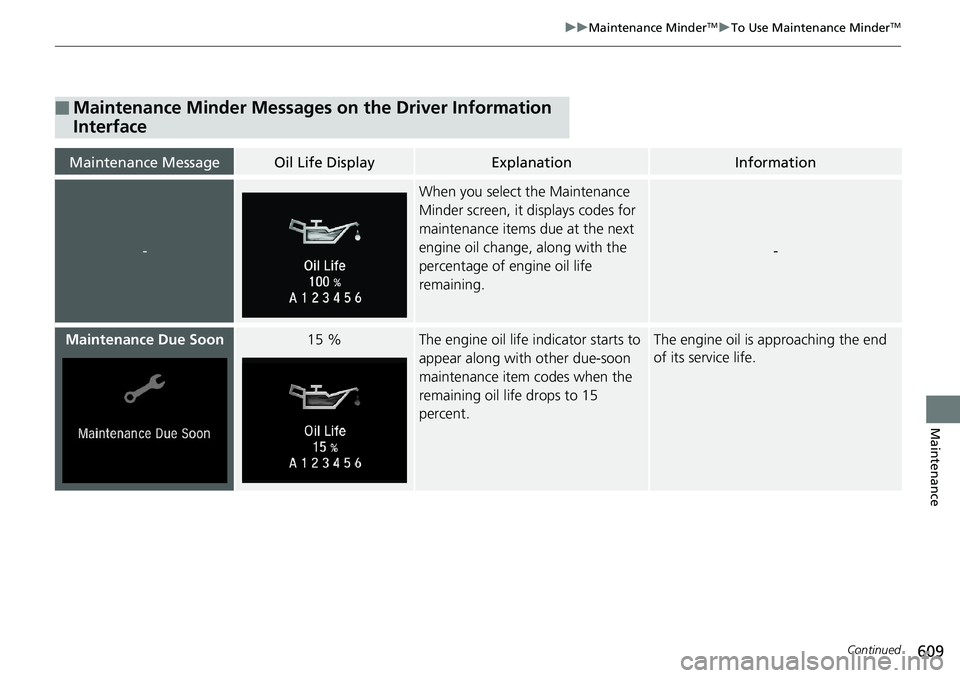

■ Maintenance Minder Messages on the Driver Information
Interface Maintenance Message Oil Life Display Explanation Information
- When you select the Maintenance
Minder screen, it displays codes for
maintenance items due at the next
engine oil change, along with the
percentage of engine oil life
remaining. -
Maintenance Due Soon 15 % The engine oil life i ndicator starts to
appear along with other due-soon
maintenance item codes when the
remaining oil life drops to 15
percent. The engine oil is approaching the end
of its service life.

610 uu Maintenance Minder TM
u To Use Maintenance Minder TM

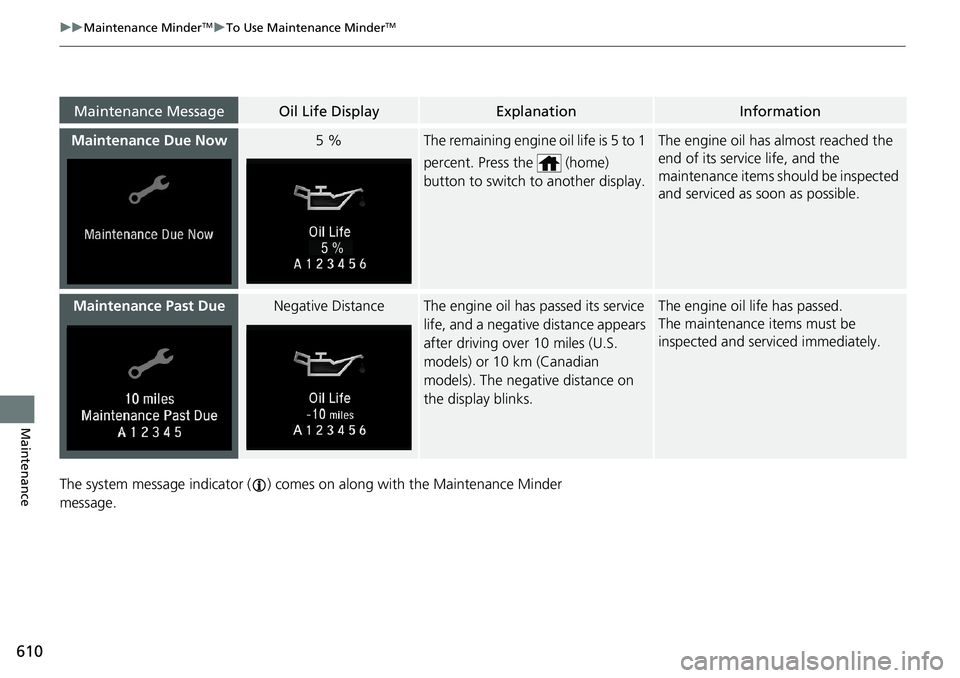

Maintenance The system message indicator ( ) comes on along with the Maintenance Minder
message. Maintenance Due Now 5 % The remaining engine oil life is 5 to 1
percent. Press the (home)
button to switch to another display. The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.
Maintenance Past Due Negative Distance The engine oil has passed its service
life, and a negative distance appears
after driving over 10 miles (U.S.
models) or 10 km (Canadian
models). The negative distance on
the display blinks. The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.Maintenance Message Oil Life Display Explanation Information
5 %

611uu Maintenance Minder TM
u To Use Maintenance Minder TM
Continued
Maintenance
■ Maintenance Service Items 1 Maintenance Service Items
• Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 709 .
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).CODE Maintenance Main Items
A ●
Replace engine oil *1
B ●
Replace engine oil *1
and oil filter●
Inspect front and rear brakes ●
Inspect tie rod ends, steering gearbox, and boots ●
Inspect suspension components ●
Inspect driveshaft boots ●
Inspect brake hoses and li nes (Including ABS/VSA ® )●
Inspect all fluid levels and condition of fluids ●
Inspect exhaust system #●
Inspect fuel lines and connections #
*4:
Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace air cleaner element *2●
Replace dust and pollen filter *3●
Inspect drive belt
3 ●
Replace transmission fluid *4
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *6
Continuously variable transmission models

612 uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance 1 Maintenance Service Items
• Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.Canadian models
*1: If a Maintenance Minder Message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4:
Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Message does not appear more than 36 months after the display for item 7 is
reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 709 .CODE Maintenance Main Items
A ●
Replace engine oil *1
0 ●
Replace engine oil *1
and oil filterContinuously variable transmission models CODE Maintenance Sub Items
1 ●
Rotate tires
2 ●
Replace air cleaner element *2●
Replace dust and pollen filter *3●
Inspect drive belt
3 ●
Replace transmission fluid *4
4 ●
Replace spark plugs ●
Inspect valve clearance
5 ●
Replace engine coolant
7 ●
Replace brake fluid *6
9 ●
Service front and rear brakes ●
Inspect tie rod ends, steering gear box, and boots ●
Inspect suspension components ●
Inspect driveshaft boots ●
Inspect brake hoses and li nes (including ABS/VSA ® ) ●
Inspect all fluid levels and condition of fluids ●
Inspect exha ust system #●
Inspect fuel lines and connections #

613uu Maintenance Minder TM
u To Use Maintenance Minder TM
Maintenance

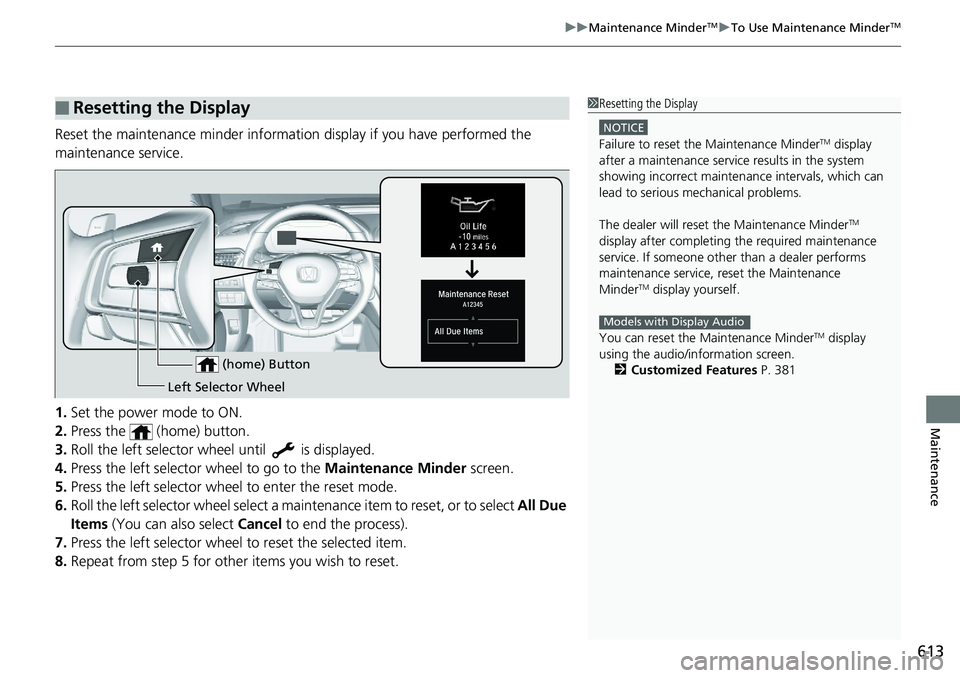

Reset the maintenance minder informatio n display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the Maintenance Minder screen.
5. Press the left selector wheel to enter the reset mode.
6. Roll the left selector wheel select a maintenance item to reset, or to select All Due
Items (You can also select Cancel to end the process).
7. Press the left selector wheel to reset the selected item.
8. Repeat from step 5 for other items you wish to reset.■ Resetting the Display 1 Resetting the Display NOTICE
Failure to reset the Maintenance Minder TM
display
after a maintenance servic e results in the system
showing incorrect maintena nce intervals, which can
lead to serious mechanical problems.
The dealer will reset the Maintenance Minder TM

display after completing th e required maintenance
service. If someone other than a dealer performs
maintenance service, reset the Maintenance
Minder TM
display yourself.
You can reset the Maintenance Minder TM
display
using the audio/information screen.
2 Customized Features P. 381Models with Display Audio
Left Selector Wheel (home) Button

614

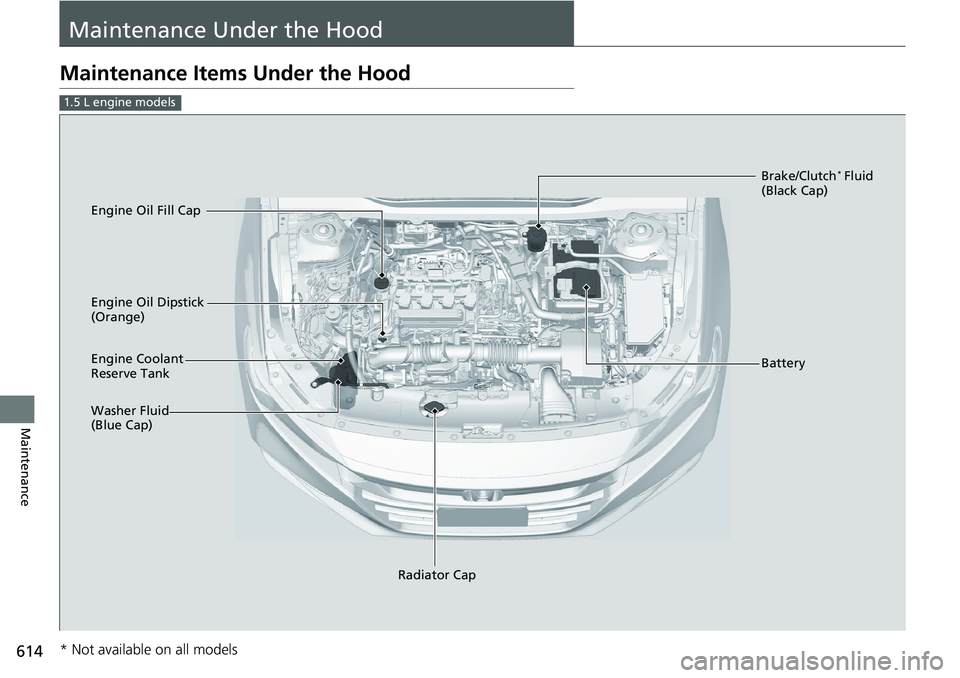

Maintenance Maintenance Under the HoodMaintenance Items Under the Hood 1.5 L engine models
Brake/Clutch *
Fluid
(Black Cap)
Engine Coolant
Reserve Tank
Radiator CapWasher Fluid
(Blue Cap)Engine Oil Dipstick
(Orange)Engine Oil Fill Cap
Battery
* Not available on all models

615uu Maintenance Under the Hood u Maintenance Items Under the Hood
Maintenance

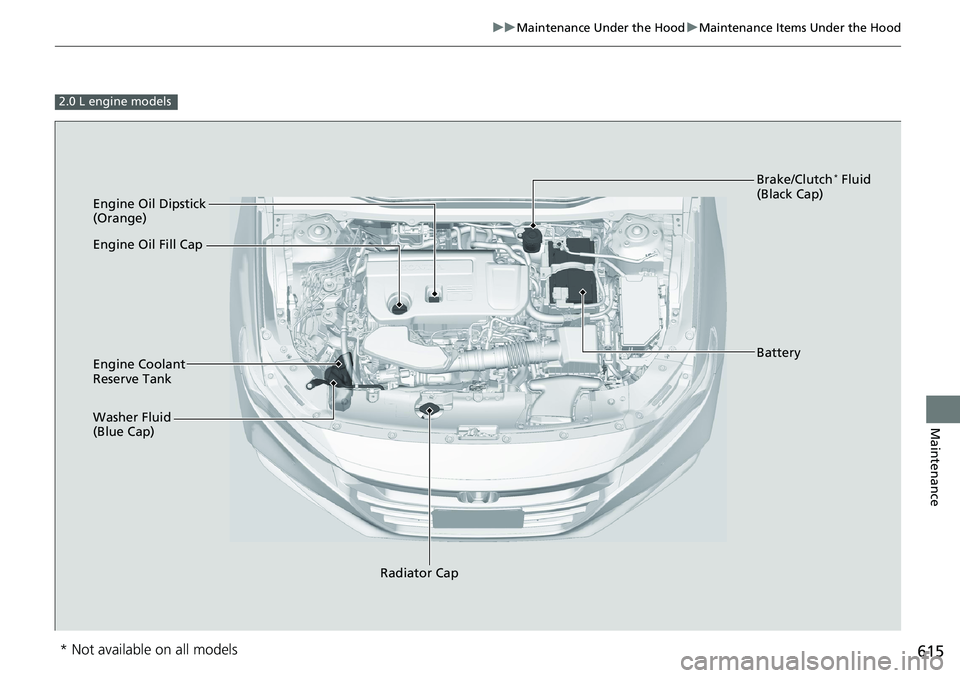

2.0 L engine models
Engine Oil Dipstick
(Orange)
Washer Fluid
(Blue Cap)Engine Coolant
Reserve Tank
Radiator Cap Brake/Clutch *
Fluid
(Black Cap)
Engine Oil Fill Cap
Battery
* Not available on all models

616 uu Maintenance Under the Hood u Opening the Hood

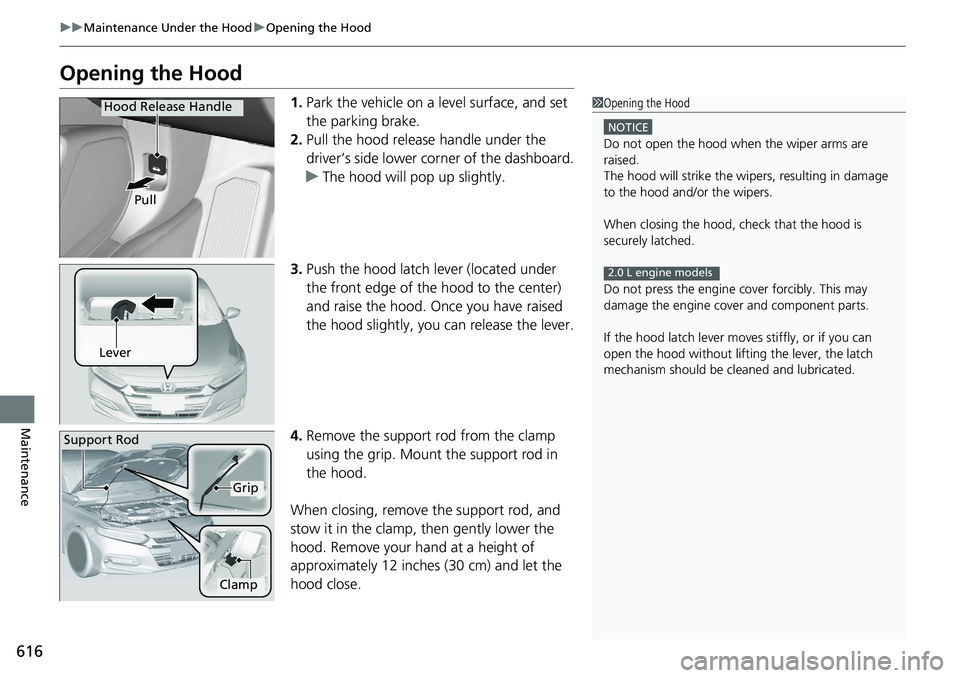

Maintenance Opening the Hood 1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower co rner of the dashboard.
u The hood will pop up slightly.
3. Push the hood latch lever (located under
the front edge of the hood to the center)
and raise the hood. Once you have raised
the hood slightly, you can release the lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close. 1 Opening the Hood NOTICE
Do not open the hood when the wiper arms are
raised.
The hood will strike the wipe rs, resulting in damage
to the hood and/or the wipers.
When closing the hood, check that the hood is
securely latched.
Do not press the engine cover forcibly. This may
damage the engine cover and component parts.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.2.0 L engine modelsHood Release Handle
Pull
Lever
Support Rod
Grip
Clamp

617uu Maintenance Under the Hood u Recommended Engine Oil
Maintenance

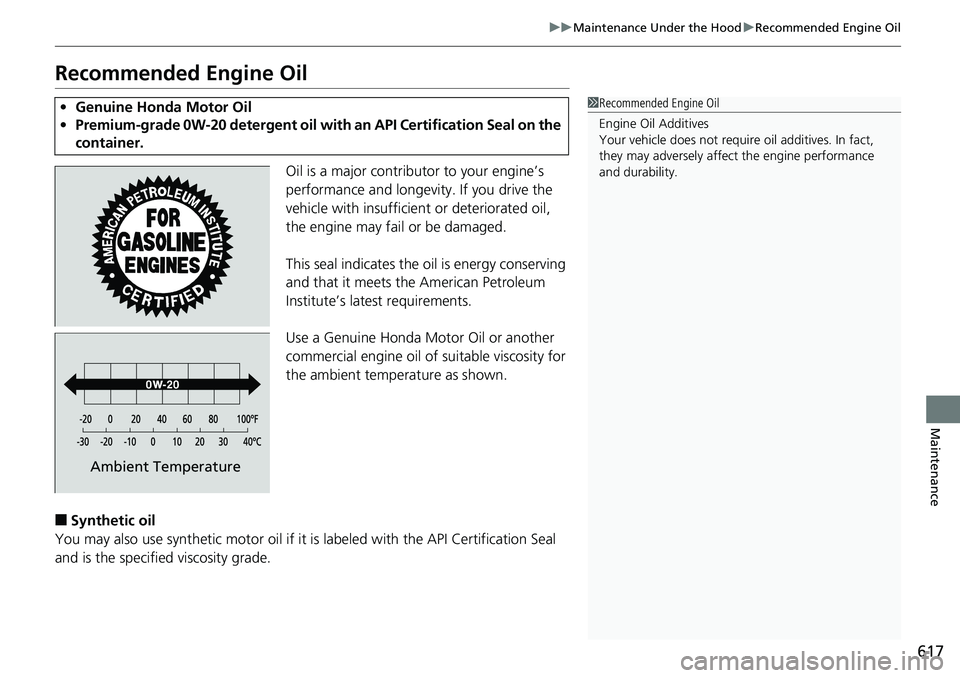

Recommended Engine Oil Oil is a major contributor to your engine’s
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the o il is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use a Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■ Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade. • Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certificati on Seal on the
container. 1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature

618 uu Maintenance Under the Hood u Oil Check

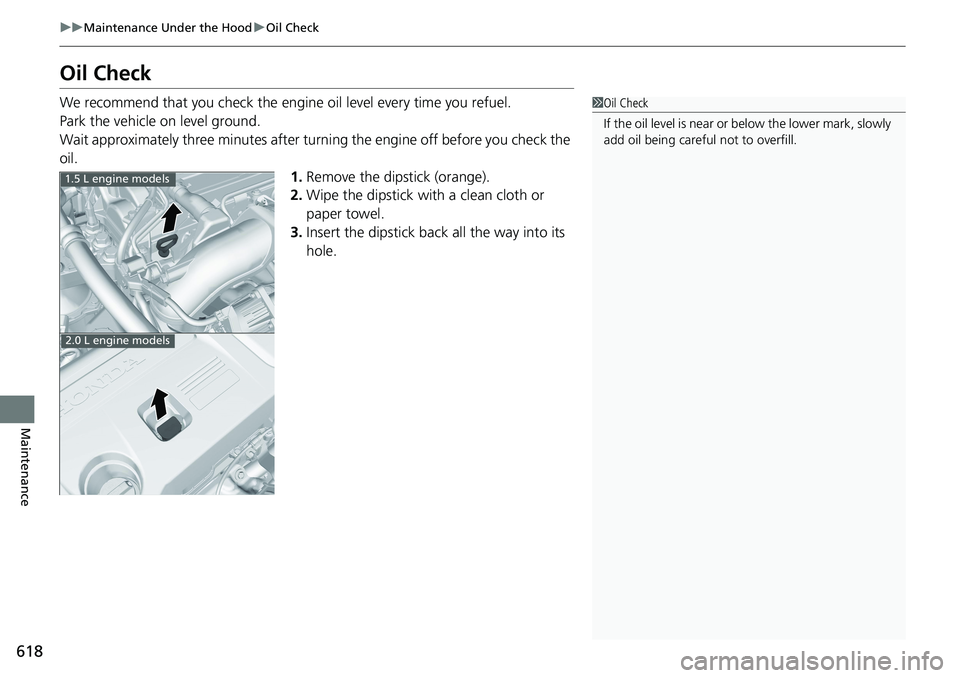

Maintenance Oil Check We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil.
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole. 1 Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.1.5 L engine models
2.0 L engine models
