HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

149
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

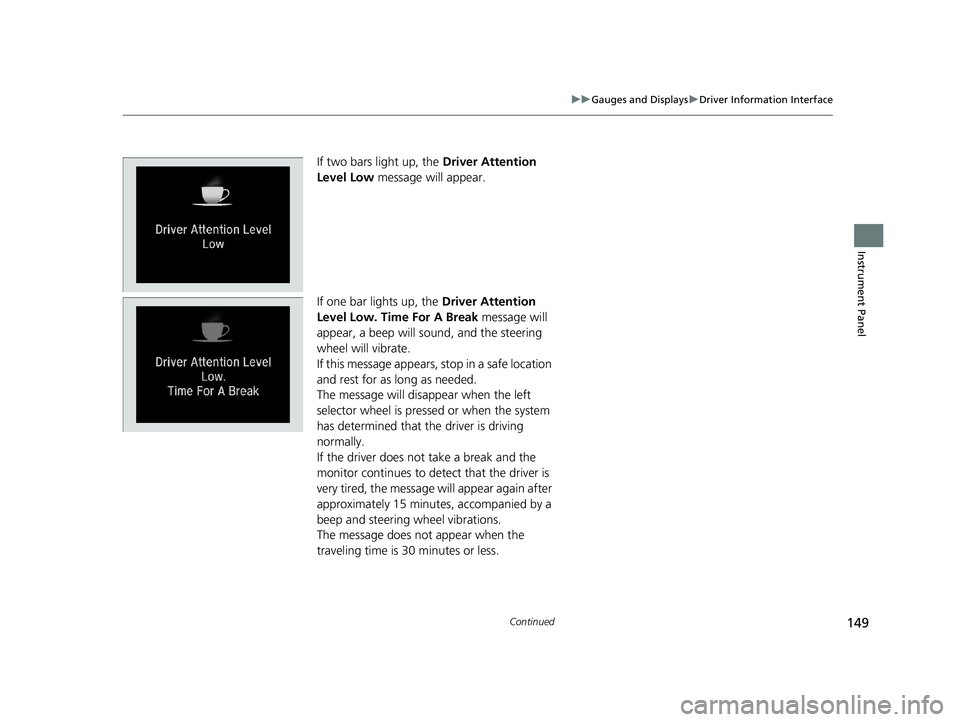

If two bars light up, the Driver Attention
Level Low message will appear.
If one bar lights up, the Driver Attention
Level Low. Time For A Break message will
appear, a beep will sound, and the steering
wheel will vibrate.
If this message appears, stop in a safe location
and rest for as long as needed.
The message will disappear when the left
selector wheel is presse d or when the system
has determined that the driver is driving
normally.
If the driver does not take a break and the
monitor continues to detect that the driver is
very tired, the message will appear again after
approximately 15 minutes, accompanied by a
beep and steering wheel vibrations.
The message does not appear when the
traveling time is 30 minutes or less.
18 ACCORD HYBRID-31TWA6000.book 149 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
150
Instrument Panel

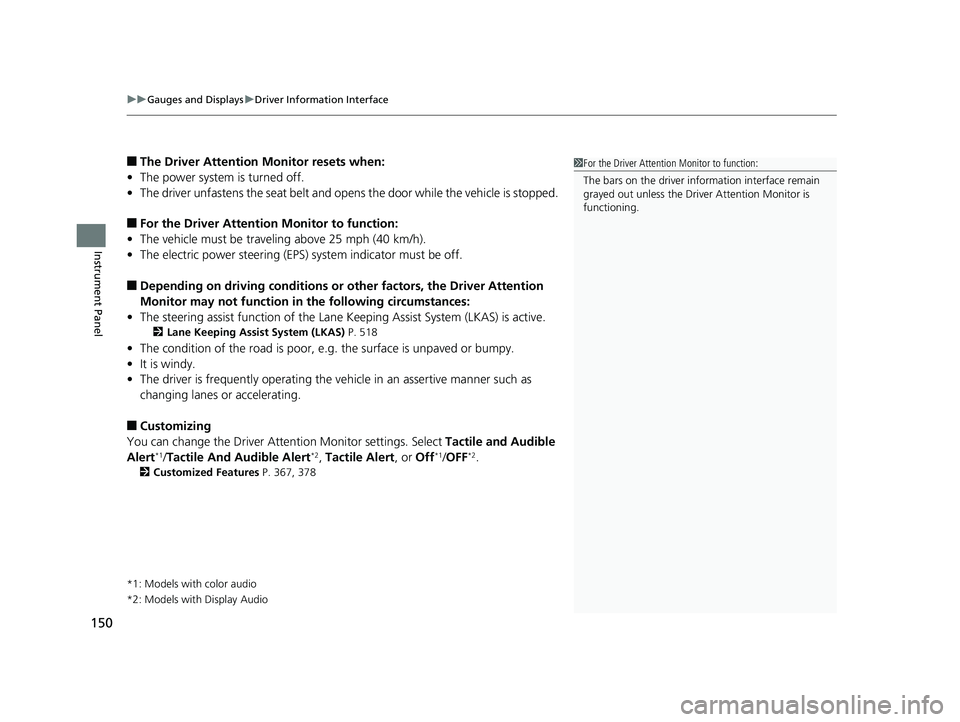

■The Driver Attention Monitor resets when:
• The power system is turned off.
• The driver unfastens the seat belt and op ens the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane Keeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 518
•The condition of the road is poor, e.g. the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner such as
changing lanes or accelerating.
■Customizing
You can change the Driver A ttention Monitor settings. Select Tactile and Audible
Alert
*1/ Tactile And Audible Alert*2, Tactile Alert , or Off*1/OFF*2.
2 Customized Features P. 367, 378
*1: Models with color audio
*2: Models with Display Audio
1 For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
18 ACCORD HYBRID-31TWA6000.book 150 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued151
uuGauges and Displays uDriver Information Interface
Instrument Panel

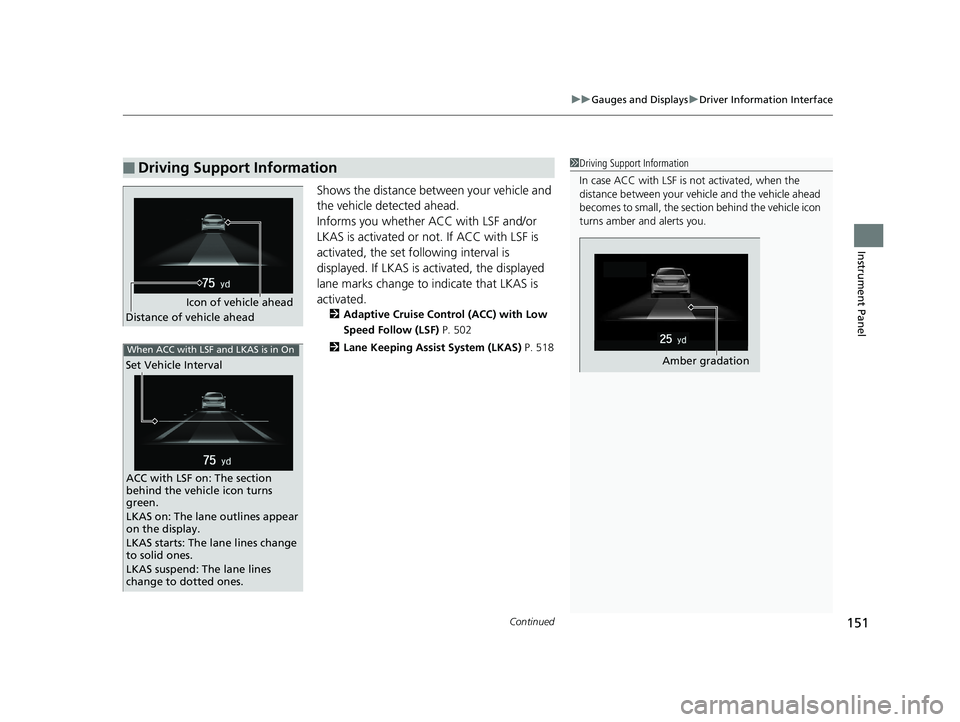

Shows the distance between your vehicle and
the vehicle detected ahead.
Informs you whether ACC with LSF and/or
LKAS is activated or not. If ACC with LSF is
activated, the set fo llowing interval is
displayed. If LKAS is activated, the displayed
lane marks change to indicate that LKAS is
activated.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) P. 502
2 Lane Keeping Assist System (LKAS) P. 518
■Driving Support Information1Driving Support Information
In case ACC with LSF is not activated, when the
distance between your vehi cle and the vehicle ahead
becomes to small, the sect ion behind the vehicle icon
turns amber and alerts you.
Amber gradation
Icon of vehicle ahead
Distance of vehicle ahead
When ACC with LSF and LKAS is in On
Set Vehicle Interval
ACC with LSF on: The section
behind the vehicle icon turns
green.
LKAS on: The lane outlines appear
on the display.
LKAS starts: The lane lines change
to solid ones.
LKAS suspend: The lane lines
change to dotted ones.
18 ACCORD HYBRID-31TWA6000.book 151 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
152
Instrument Panel

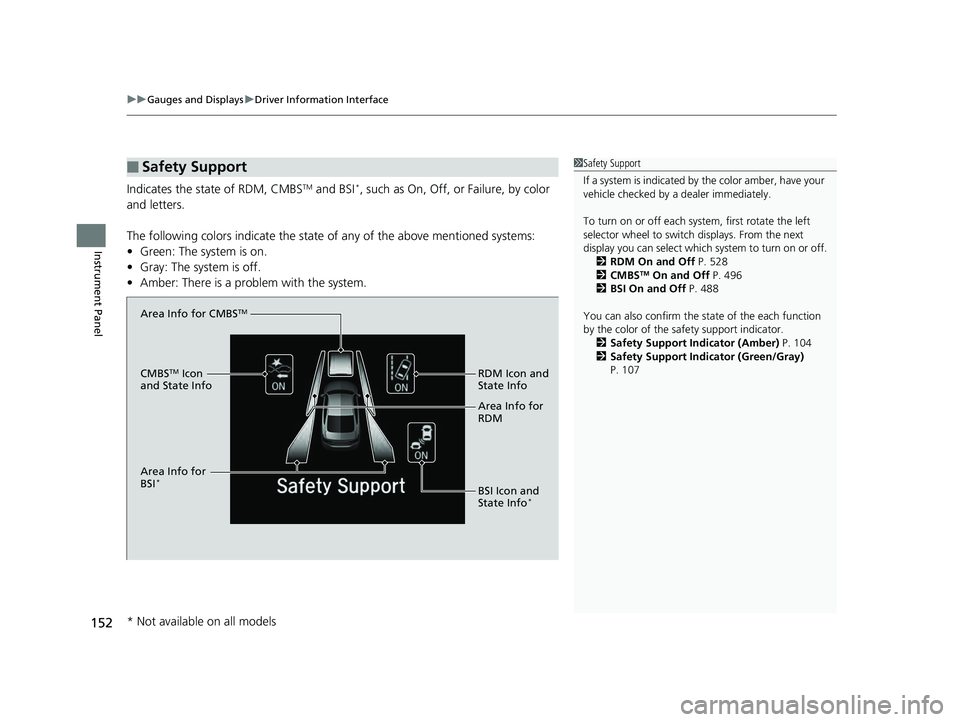

Indicates the state of RDM, CMBSTM and BSI*, such as On, Off, or Failure, by color
and letters.
The following colors indica te the state of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a probl em with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn on or off each system, first rotate the left
selector wheel to switch displays. From the next
display you can select which system to turn on or off.
2 RDM On and Off P. 528
2 CMBS
TM On and Off P. 496
2 BSI On and Off P. 488
You can also confirm the st ate of the each function
by the color of the sa fety support indicator.
2 Safety Support Indicator (Amber) P. 104
2 Safety Support Indicator (Green/Gray)
P. 107
Area Info for CMBSTM
CMBSTM Icon
and State Info
Area Info for
BSI
*
RDM Icon and
State Info
Area Info for
RDM
BSI Icon and
State Info
*
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 152 ページ ２０１８年１月３０日　火曜日　午後７時３８分

153
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

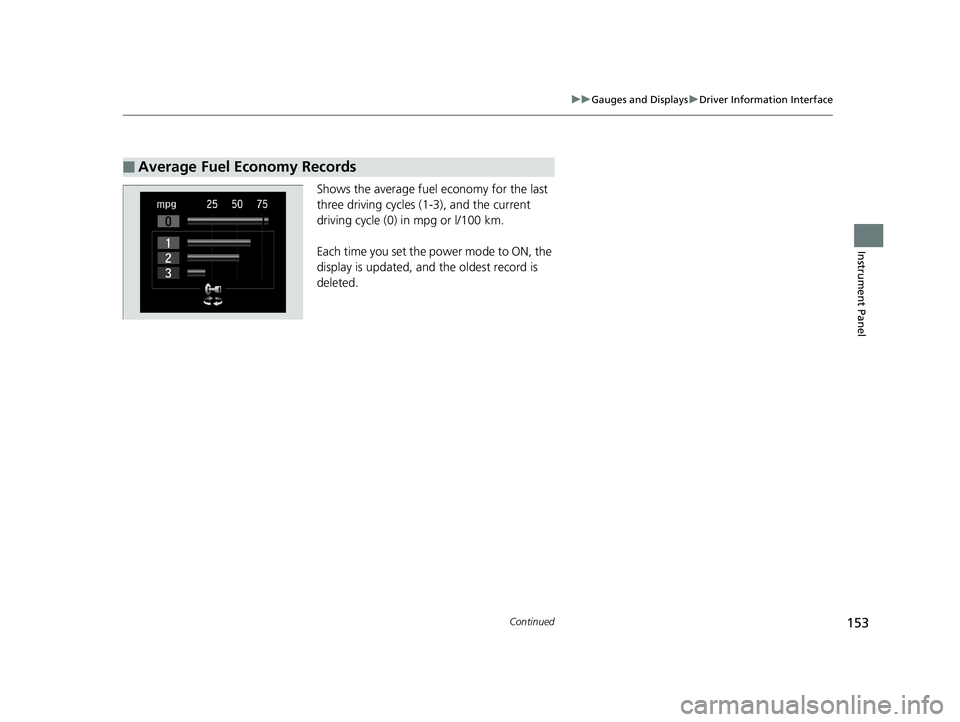

Shows the average fuel economy for the last
three driving cycles (1-3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Average Fuel Economy Records
18 ACCORD HYBRID-31TWA6000.book 153 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
154
Instrument Panel

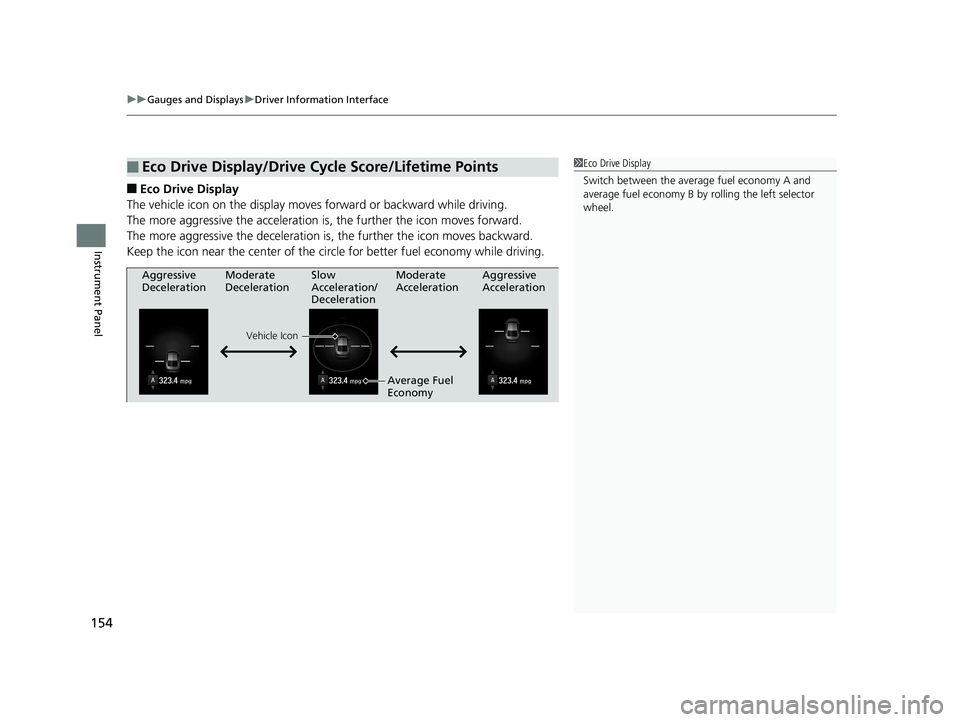

■Eco Drive Display
The vehicle icon on the display moves forward or backward while driving.
The more aggressive the acceleration is, the further the icon moves forward.
The more aggressive the deceleration is, the further the icon moves backward.
Keep the icon near the center of the circ le for better fuel economy while driving.
■Eco Drive Display/Drive Cycle Score/Lifetime Points1Eco Drive Display
Switch between the average fuel economy A and
average fuel economy B by rolling the left selector
wheel.
Aggressive
Deceleration
Vehicle Icon
Aggressive
Acceleration
Moderate
Deceleration Slow
Acceleration/
DecelerationModerate
Acceleration
Average Fuel
Economy
18 ACCORD HYBRID-31TWA6000.book 154 ページ ２０１８年１月３０日　火曜日　午後７時３８分

155
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

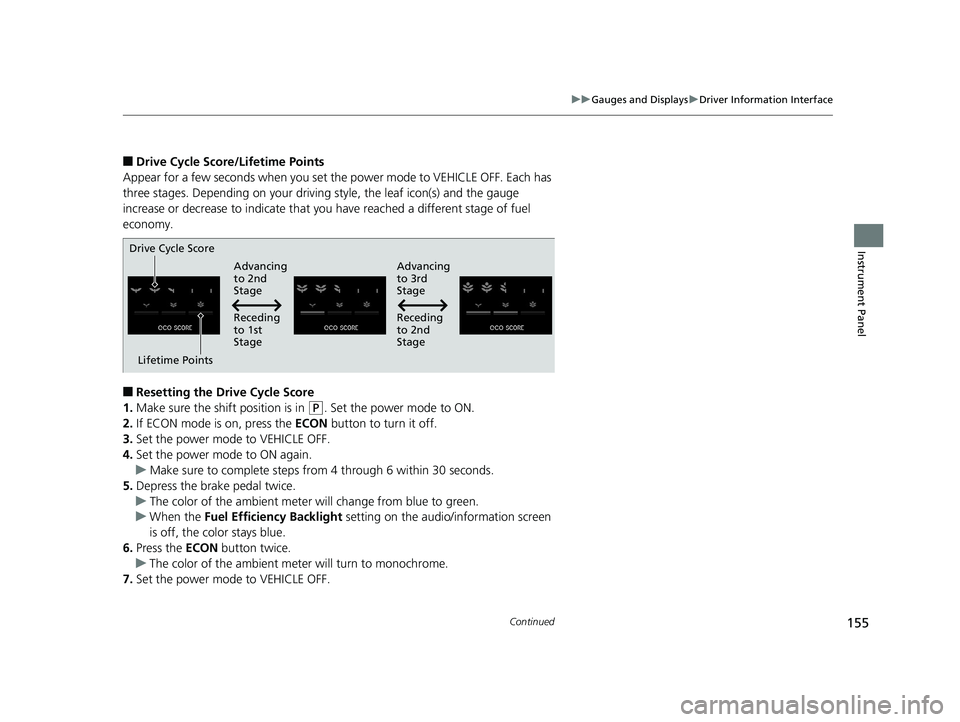

■Drive Cycle Score/Lifetime Points
Appear for a few seconds when you set th e power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that yo u have reached a different stage of fuel
economy.
■Resetting the Drive Cycle Score
1. Make sure the shift position is in
(P. Set the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Set the power mode to VEHICLE OFF.
4. Set the power mode to ON again.
u Make sure to complete steps fro m 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
u The color of the ambient meter wi ll change from blue to green.
u When the Fuel Efficien cy Backlight setting on the audio/information screen
is off, the color stays blue.
6. Press the ECON button twice.
u The color of the ambient mete r will turn to monochrome.
7. Set the power mode to VEHICLE OFF.
Drive Cycle Score
Lifetime Points Advancing
to 2nd
Stage
Receding
to 1st
Stage
Advancing
to 3rd
Stage
Receding
to 2nd
Stage
18 ACCORD HYBRID-31TWA6000.book 155 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuGauges and Displays uDriver Information Interface
156
Instrument Panel

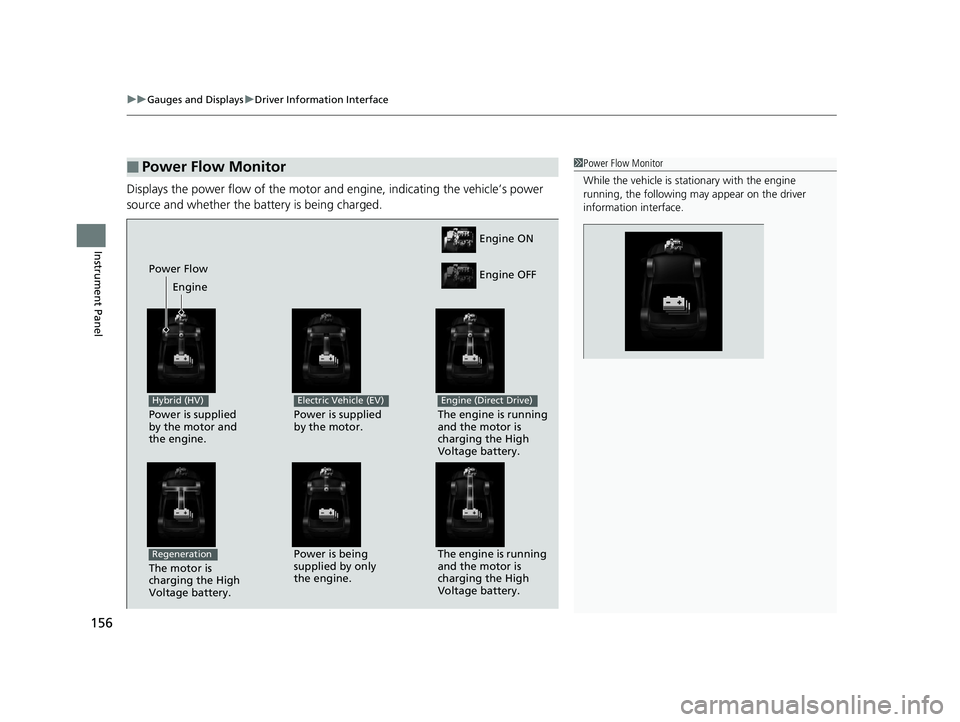

Displays the power flow of the motor an d engine, indicating the vehicle’s power
source and whether the battery is being charged.
■Power Flow Monitor1 Power Flow Monitor
While the vehicle is stat ionary with the engine
running, the following ma y appear on the driver
information interface.
Power is supplied
by the motor and
the engine.
Hybrid (HV)
The engine is running
and the motor is
charging the High
Voltage battery.Power is being
supplied by only
the engine.
Engine ON
Engine OFF
Power is supplied
by the motor.
Electric Vehicle (EV)
The engine is running
and the motor is
charging the High
Voltage battery.
Engine (Direct Drive)
Power Flow Engine
The motor is
charging the High
Voltage battery.
Regeneration
18 ACCORD HYBRID-31TWA6000.book 156 ページ ２０１８年１月３０日　火曜日　午後７時３８分

157
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel

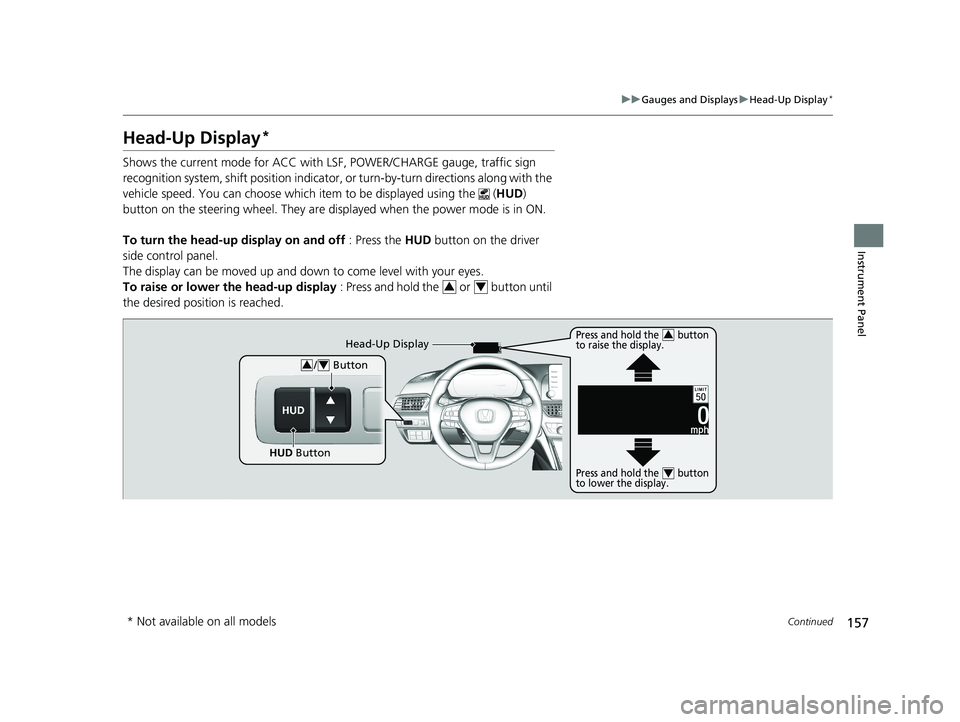

Head-Up Display*
Shows the current mode for ACC with LSF, POWER/CHARGE gauge, traffic sign
recognition system, shift position indicator, or turn-by-turn directions along with the
vehicle speed. You can choose which item to be displayed using the ( HUD)
button on the steering wheel. They are disp layed when the power mode is in ON.
To turn the head-up display on and off : Press the HUD button on the driver
side control panel.
The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached.
34
/ Button34
HUD Button Head-Up Display
Press and hold the button
to raise the display.3
Press and hold the button
to lower the display.4
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 157 ページ ２０１８年１月３０日　火曜日　午後７時３８分

158
uuGauges and Displays uHead-Up Display*
Instrument Panel

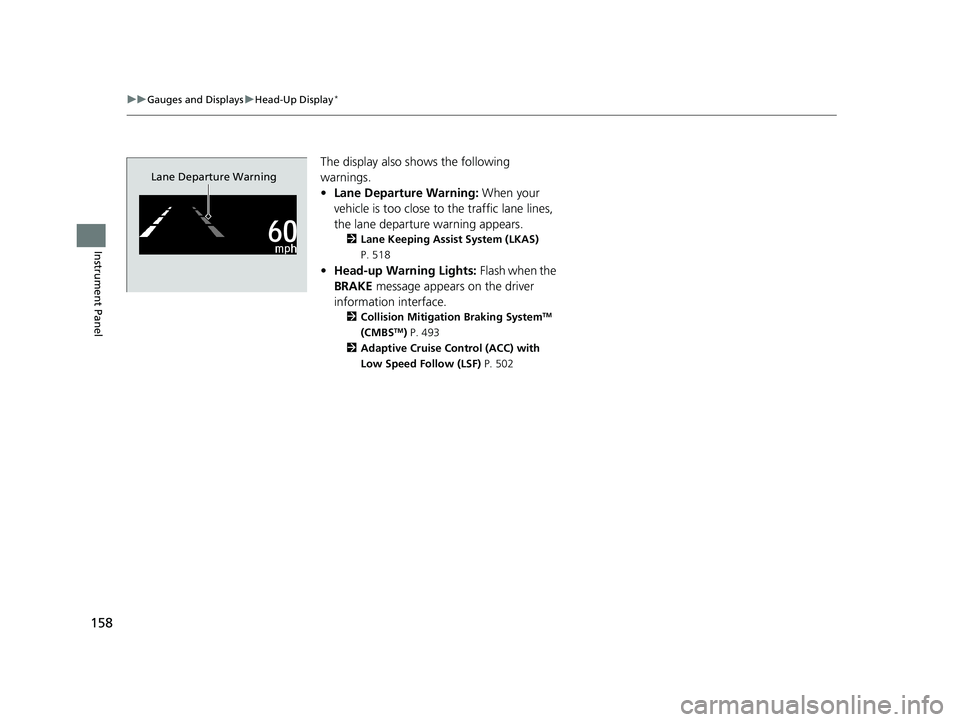

The display also s hows the following
warnings.
• Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 518
• Head-up Warn ing Lights: Flash when the
BRAKE message appears on the driver
information interface.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 493
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 502
Lane Departure Warning
18 ACCORD HYBRID-31TWA6000.book 158 ページ ２０１８年１月３０日　火曜日　午後７時３８分
