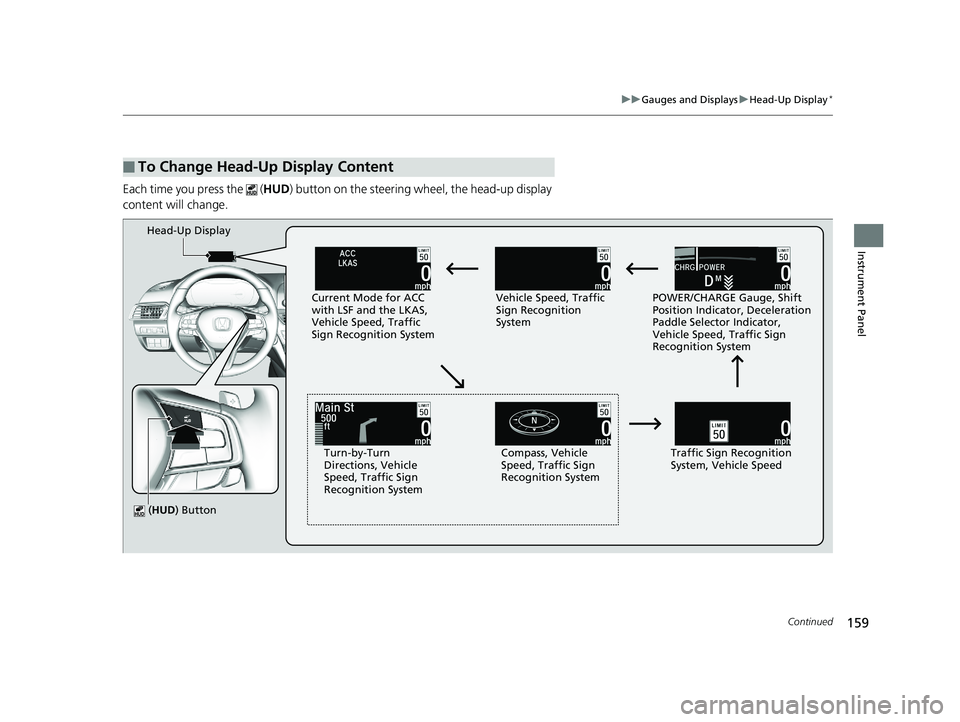

Page 161 of 683
159
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel
Each time you press the (HUD) button on the steering wheel, the head-up display
content will change.
■To Change Head-Up Display Content
Head-Up Display
Current Mode for ACC
with LSF and the LKAS,
Vehicle Speed, Traffic
Sign Recognition System Vehicle Speed, Traffic
Sign Recognition
System
POWER/CHARGE Gauge, Shift
Position Indicator, Deceleration
Paddle Selector Indicator,
Vehicle Speed, Traffic Sign
Recognition System
Traffic Sign Recognition
System, Vehicle Speed
Turn-by-Turn
Directions, Vehicle
Speed, Traffic Sign
Recognition System Compass, Vehicle
Speed, Traffic Sign
Recognition System
( HUD) Button
18 ACCORD HYBRID-31TWA6000.book 159 ページ 2018年1月30日 火曜日 午後7時38分

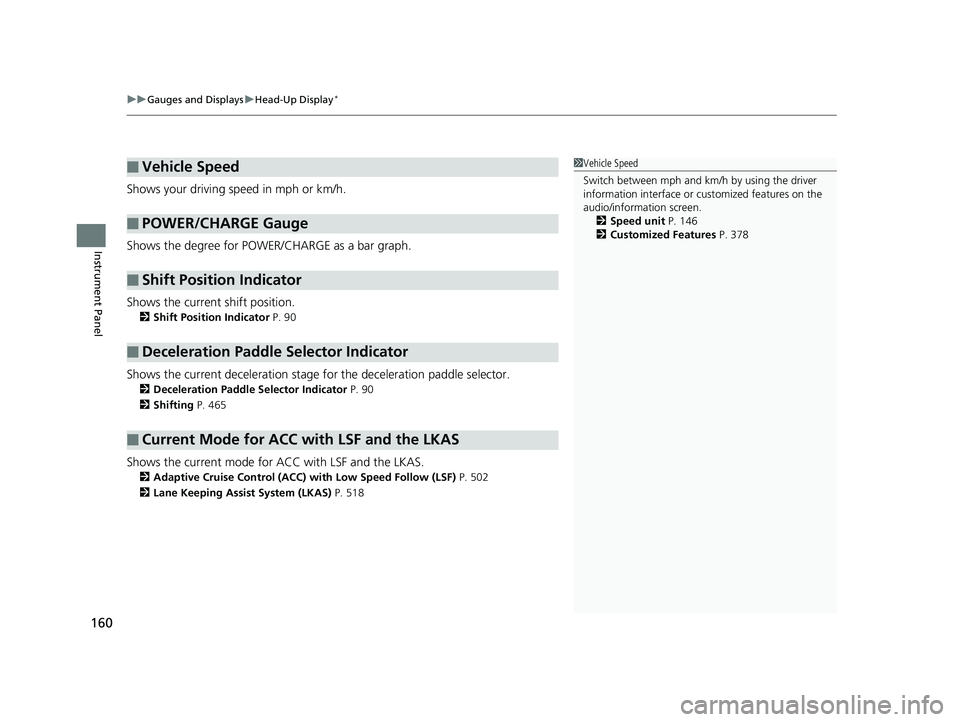

Page 162 of 683
uuGauges and Displays uHead-Up Display*
160
Instrument Panel
Shows your driving speed in mph or km/h.
Shows the degree for POWER/CHARGE as a bar graph.
Shows the current shift position.
2 Shift Position Indicator P. 90
Shows the current deceleration stage fo r the deceleration paddle selector.
2Deceleration Paddle Selector Indicator P. 90
2 Shifting P. 465
Shows the current mode for ACC with LSF and the LKAS.
2Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) P. 502
2 Lane Keeping Assist System (LKAS) P. 518
■Vehicle Speed
■POWER/CHARGE Gauge
■Shift Position Indicator
■Deceleration Paddle Selector Indicator
■Current Mode for ACC with LSF and the LKAS
1Vehicle Speed
Switch between mph and km/h by using the driver
information interface or cu stomized features on the
audio/information screen. 2 Speed unit P. 146
2 Customized Features P. 378
18 ACCORD HYBRID-31TWA6000.book 160 ページ 2018年1月30日 火曜日 午後7時38分
Page 163 of 683
161
uuGauges and Displays uHead-Up Display*
Instrument Panel
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
Shows the traffic sign recognition system.
2Traffic Sign Recognition System P. 530
■Turn-by-Turn Directions
■Traffic Sign Recognition System
1Turn-by-Turn Directions
The head-up display shows a compass when the
route guidance is not used.
You can select whether th e turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 378
18 ACCORD HYBRID-31TWA6000.book 161 ページ 2018年1月30日 火曜日 午後7時38分
Page 164 of 683
162
18 ACCORD HYBRID-31TWA6000.book 162 ページ 2018年1月30日 火曜日 午後7時38分
Page 165 of 683
163
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 164
Locking and Unlocking the Doors Key Type and Functions ................... 166
Low Smart Entry Remote Signal Strength .... 167Locking/Unlocking the Doors from the Outside .......................................... 168
Locking/Unlocking the Doors from the Inside ............................................. 174
Childproof Door Locks ..................... 176
Auto Door Locking/Unlocking .......... 177
Opening and Closing the Trunk ....... 178
Security System
Immobilizer System .......................... 181 Security System Alarm...................... 181
Opening and Closing the Windows.... 184Opening and Closing the Moonroof*..... 187Operating the Switches Around the
Steering Wheel POWER Button................................. 188
Turn Signals ..................................... 191
Light Switches.................................. 191
Fog Lights
*...................................... 193
Daytime Running Lights ................... 194
Auto High-Beam .............................. 195
Wipers and Washers ........................ 198
Rear Defogger/Heated Door Mirror Button .. 200
Heated Windshield Button* ............. 200
Brightness Control ........................... 201
Driving Position Memory System
*.... 203
Adjusting the Steering Wheel .......... 205
Adjusting the Mirrors Interior Rearview Mirror ................... 206
Power Door Mirrors ......................... 207
Adjusting the Seats .......................... 208
Interior Lights/Interior Convenience
Items ................................................ 217
Climate Control System Using Automatic Climate Control .... 232
Automatic Climate Control Sensors......235
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 163 ページ 2018年1月30日 火曜日 午後7時38分

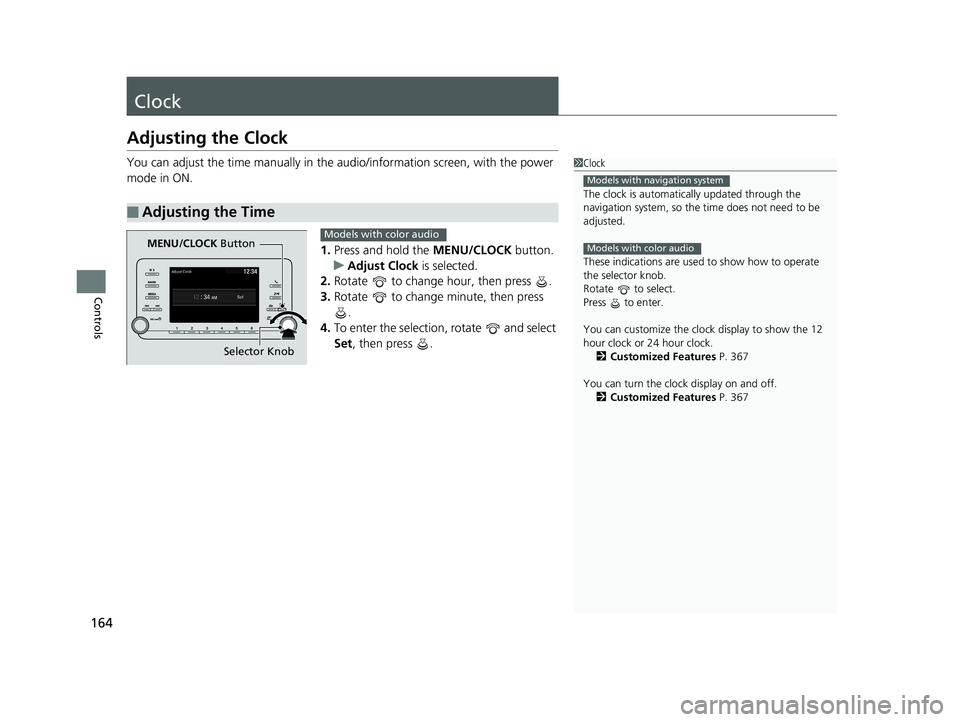

Page 166 of 683
164
Controls
Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
1.Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
■Adjusting the Time
1Clock
The clock is automatically updated through the
navigation system, so the ti me does not need to be
adjusted.
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 367
You can turn the clock display on and off. 2 Customized Features P. 367
Models with navigation system
Models with color audioMENU/CLOCK Button
Selector KnobModels with color audio
18 ACCORD HYBRID-31TWA6000.book 164 ページ 2018年1月30日 火曜日 午後7時38分

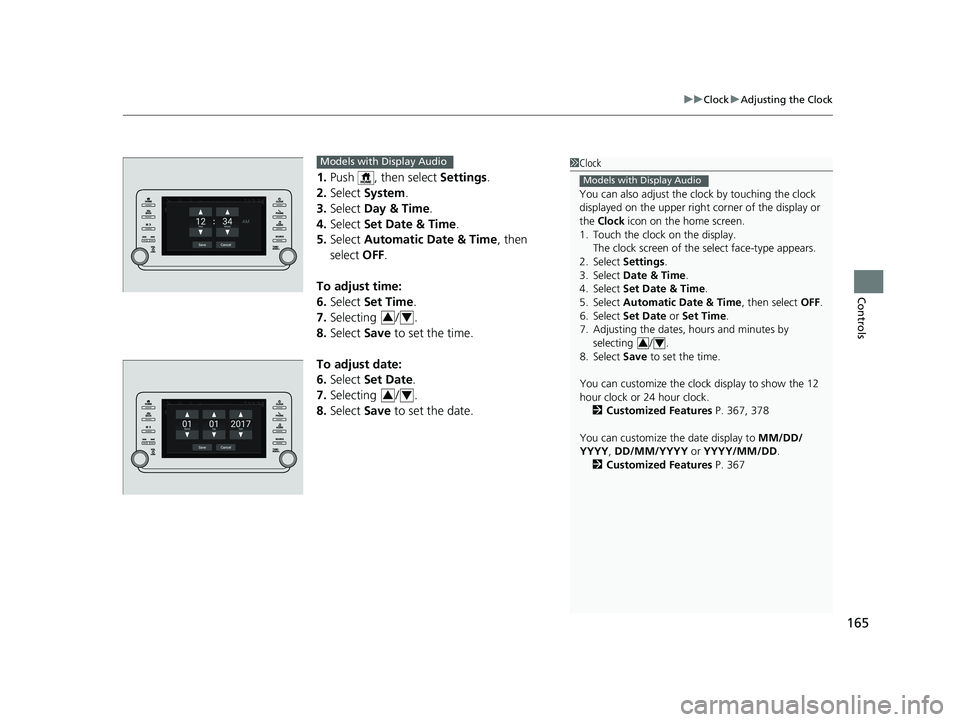

Page 167 of 683
165
uuClock uAdjusting the Clock
Controls
1. Push , then select Settings.
2. Select System.
3. Select Day & Time.
4. Select Set Date & Time .
5. Select Automatic Date & Time , then
select OFF.
To adjust time:
6. Select Set Time.
7. Selecting / .
8. Select Save to set the time.
To adjust date:
6. Select Set Date.
7. Selecting / .
8. Select Save to set the date.
1Clock
You can also adjust the clock by touching the clock
displayed on the upper right corner of the display or
the Clock icon on the home screen.
1. Touch the clock on the display.
The clock screen of the select face-type appears.
2. Select Settings .
3. Select Date & Time .
4. Select Set Date & Time .
5. Select Automatic Date & Time , then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by selecting / .
8. Select Save to set the time.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 367, 378
You can customize th e date display to MM/DD/
YYYY , DD/MM/YYYY or YYYY/MM/DD .
2 Customized Features P. 367
Models with Display Audio
34
Models with Display Audio
34
34
18 ACCORD HYBRID-31TWA6000.book 165 ページ 2018年1月30日 火曜日 午後7時38分

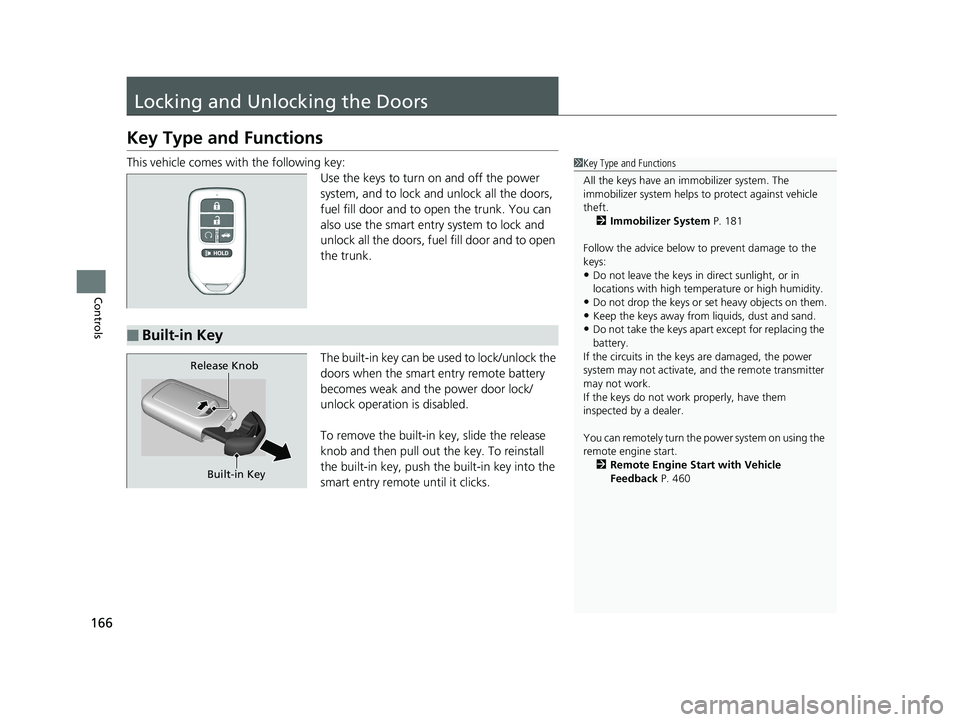

Page 168 of 683
166
Controls
Locking and Unlocking the Doors
Key Type and Functions
This vehicle comes with the following key:Use the keys to turn on and off the power
system, and to lock and unlock all the doors,
fuel fill door and to open the trunk. You can
also use the smart entry system to lock and
unlock all the doors, fuel fill door and to open
the trunk.
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key Type and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 181
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely turn the power system on using the
remote engine start.
2 Remote Engine Start with Vehicle
Feedback P. 460■Built-in Key
Built-in Key
Release Knob
18 ACCORD HYBRID-31TWA6000.book 166 ページ 2018年1月30日 火曜日 午後7時38分

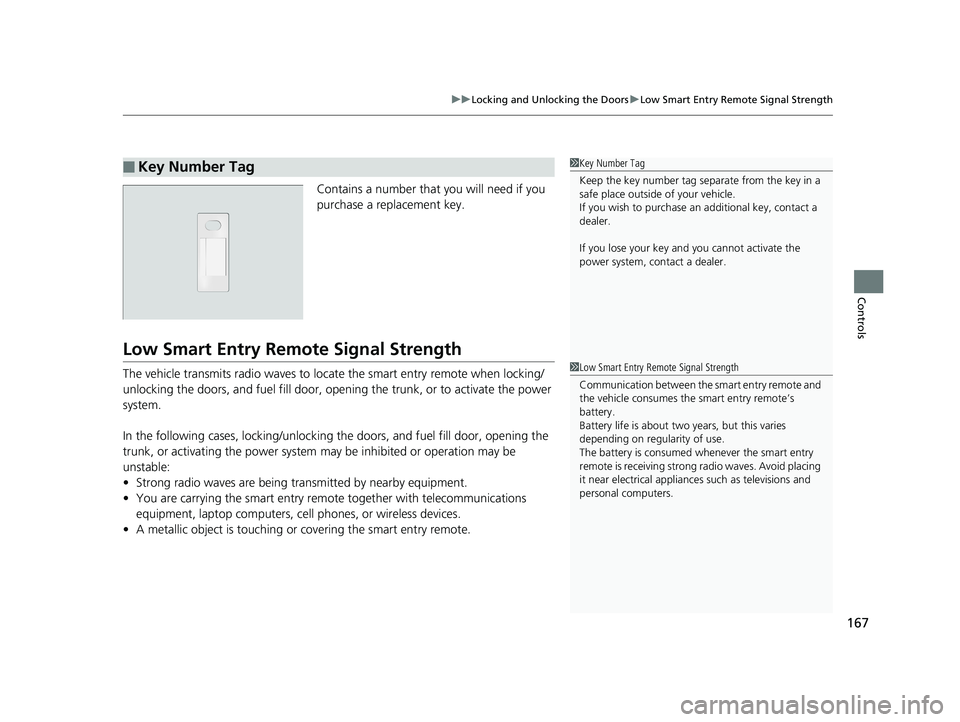

Page 169 of 683
167
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength
Controls
Contains a number that you will need if you
purchase a replacement key.
Low Smart Entry Remote Signal Strength
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors, and fuel fill door, open ing the trunk, or to activate the power
system.
In the following cases, locking/unlocking the doors, and fuel fill door, opening the
trunk, or activating the power system may be inhibited or operation may be
unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the smart entry remo te together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot activate the
power system, contact a dealer.
1 Low Smart Entry Remote Signal Strength
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on re gularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
18 ACCORD HYBRID-31TWA6000.book 167 ページ 2018年1月30日 火曜日 午後7時38分
Page 170 of 683
168
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors, fuel fill door and
open the trunk.
You can lock/unlock the doors and fuel fill
door within a radius of about 32 inches (80
cm) of the outside door handle. You can open
the trunk within about 32 inches (80 cm)
radius from the trunk release button.
■Locking the doors and the trunk
Touch the door lock sensor on the front door.u Some exterior lights flash; the beeper
sounds; all the doors and trunk lock; and
the security system sets.
■Using the Smart Entry with Push Button Start System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior lights come on when you unlock
the doors.
No doors opened: The light fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 217
1Using the Smart Entry with Push Button Start System
If you do not open a door within 30 seconds of
unlocking the vehicle with the smart entry system,
the doors and trunk will automatically relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors while someone else
with the remote is within range.
•The door may be locked or unlocked if the door
handle is covered with wate r in heavy rain or in a
car wash if the smart entry remote is within range.
•If you grip a front door ha ndle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may no t respond by locking or
unlocking the doors.
•After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds befo re gripping the handle,
otherwise the door will not unlock.
Door Lock
Sensor
18 ACCORD HYBRID-31TWA6000.book 168 ページ 2018年1月30日 火曜日 午後7時38分
