HONDA CIVIC COUPE 2016 10.G Owners Manual

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
120
Controls

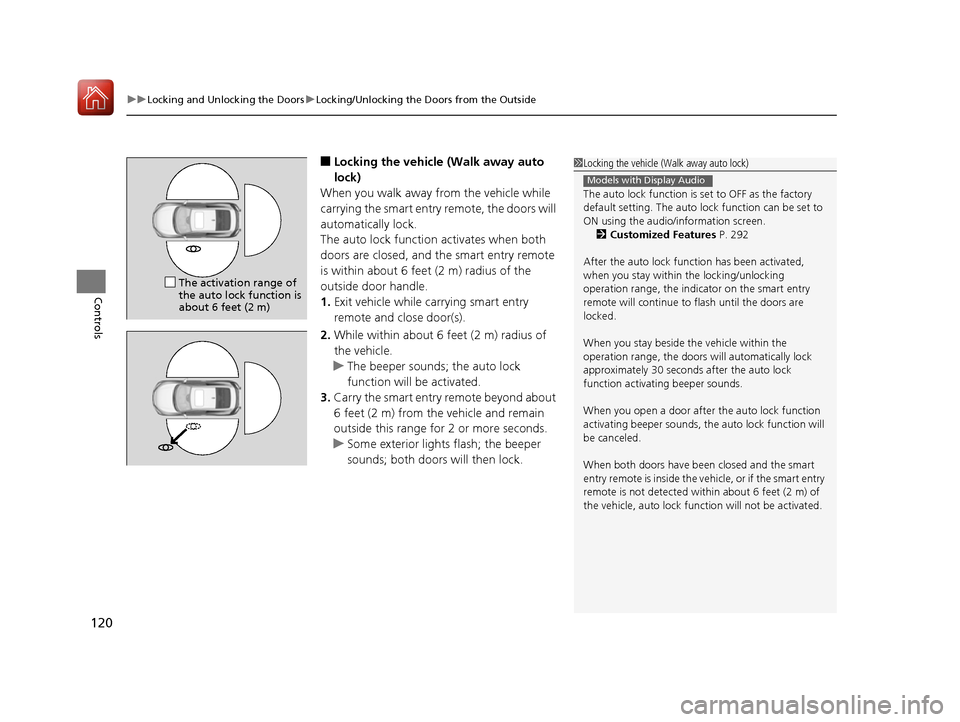

■ Locking the vehicle (Walk away auto
lock)
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when both
doors are closed, and the smart entry remote
is within about 6 feet (2 m) radius of the
outside door handle. 1. Exit vehicle while carrying smart entry
remote and close door(s).
2. While within about 6 feet (2 m) radius of
the vehicle.
uThe beeper sounds; the auto lock
function will be activated.
3. Carry the smart entry remote beyond about
6 feet (2 m) from the vehicle and remain
outside this range fo r 2 or more seconds.
uSome exterior lights flash; the beeper
sounds; both doors will then lock.
1Locking the vehicle (Walk away auto lock)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/information screen. 2 Customized Features P. 292
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors are
locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be canceled.
When both doors have been closed and the smart
entry remote is inside the vehicle, or if the smart entry
remote is not detected with in about 6 feet (2 m) of
the vehicle, auto lock func tion will not be activated.
Models with Display Audio
The activation range of the auto lock function is
about 6 feet (2 m)
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 120 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued121
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls

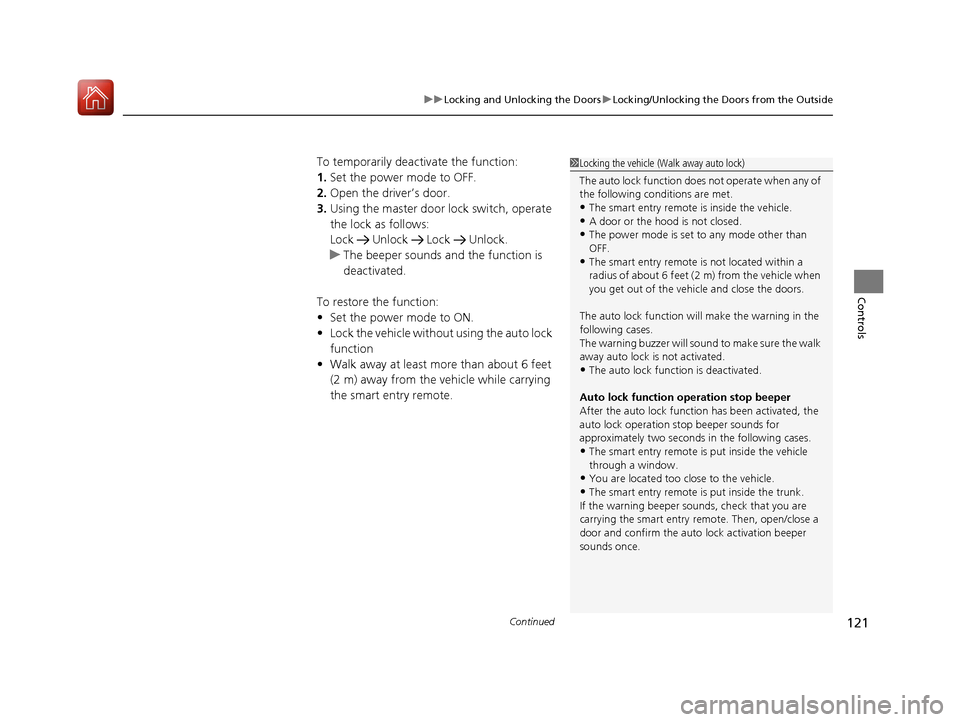

To temporarily deactivate the function: 1.Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
uThe beeper sounds an d the function is
deactivated.
To restore the function: • Set the power mode to ON.
• Lock the vehicle without using the auto lock
function
• Walk away at least more than about 6 feet
(2 m) away from the vehicle while carrying
the smart entry remote.
1Locking the vehicle (Walk away auto lock)
The auto lock function does not operate when any of
the following conditions are met.
• The smart entry remote is inside the vehicle.
• A door or the hood is not closed.
• The power mode is set to any mode other than
OFF.
• The smart entry remote is not located within a
radius of about 6 feet (2 m) from the vehicle when
you get out of the vehicle and close the doors.
The auto lock function will make the warning in the
following cases.
The warning buzzer will sound to make sure the walk
away auto lock is not activated.
• The auto lock func tion is deactivated.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
• The smart entry remote is put inside the vehicle through a window.
• You are located too close to the vehicle.
• The smart entry remote is put inside the trunk.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 121 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
122
Controls

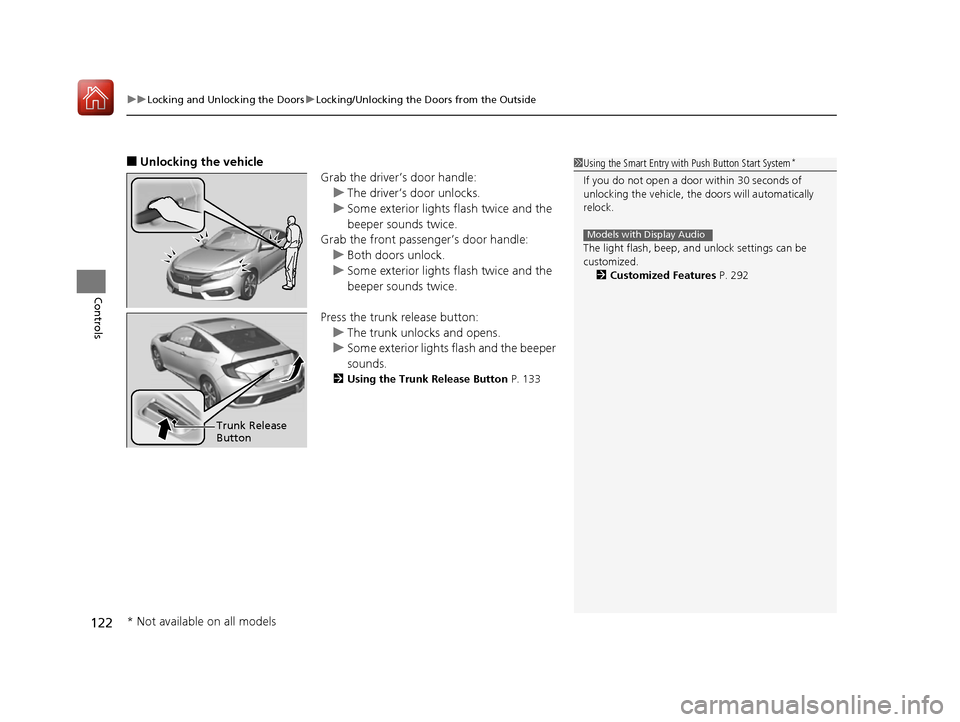

■ Unlocking the vehicle
Grab the driver’s door handle:
uThe driver’s door unlocks.
uSome exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
uBoth doors unlock.
uSome exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button:
uThe trunk unlocks and opens.
uSome exterior lights flash and the beeper
sounds.
2 Using the Trunk Release Button P. 133
1Using the Smart Entry with Push Button Start System *
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
The light flash, beep, a nd unlock settings can be
customized. 2 Customized Features P. 292
Models with Display Audio
Trunk Release Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 122 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued123
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors
Press the lock button.
Once:
uSome exterior lights flash, both doors
lock, and the security system sets.
Twice (within five se conds after the first
push):
uThe beeper sounds and verifies the
security system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will auto matically relock.
You can change the relock timer setting. 2 Customized Features P. 292
If the interior light switch is in the door activated
position, the interior light s come on when you press
the unlock button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 168
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode is in VEHICLE OFF.
The remote will not lock th e vehicle when a door is
open.
Models with Display Audio
Models without smart entry system
Models with smart entry system
All models
LED
Unlock Button
Lock Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 123 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
124
Controls

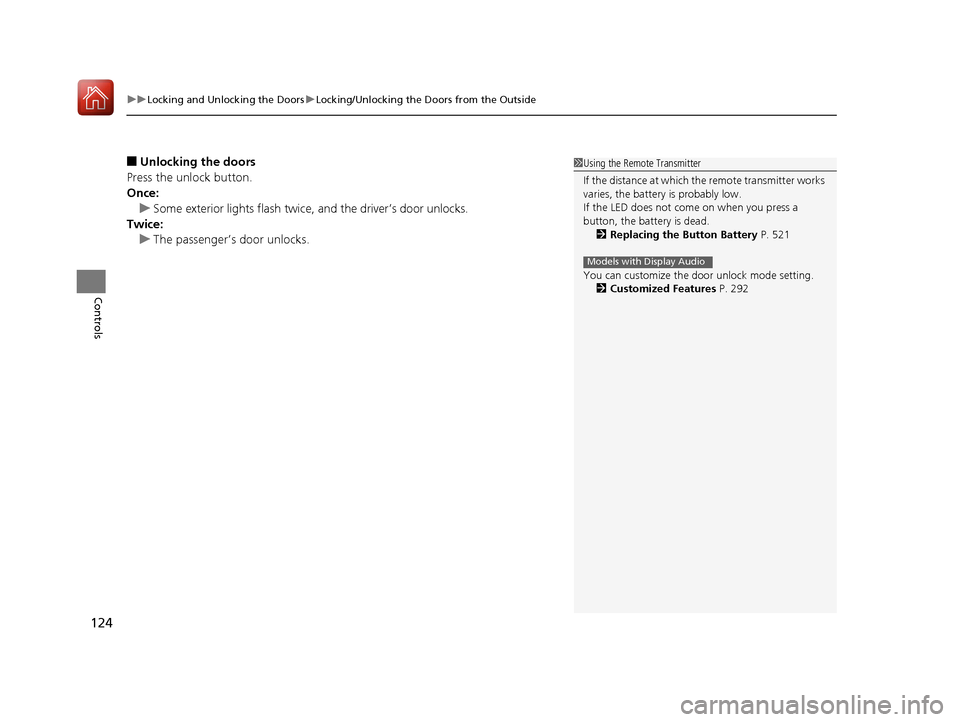

■ Unlocking the doors
Press the unlock button.
Once:
uSome exterior lights flash twice, and the driver’s door unlocks.
Twice:
uThe passenger’s door unlocks.
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 521
You can customize the door unlock mode setting. 2 Customized Features P. 292
Models with Display Audio
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 124 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

125
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls

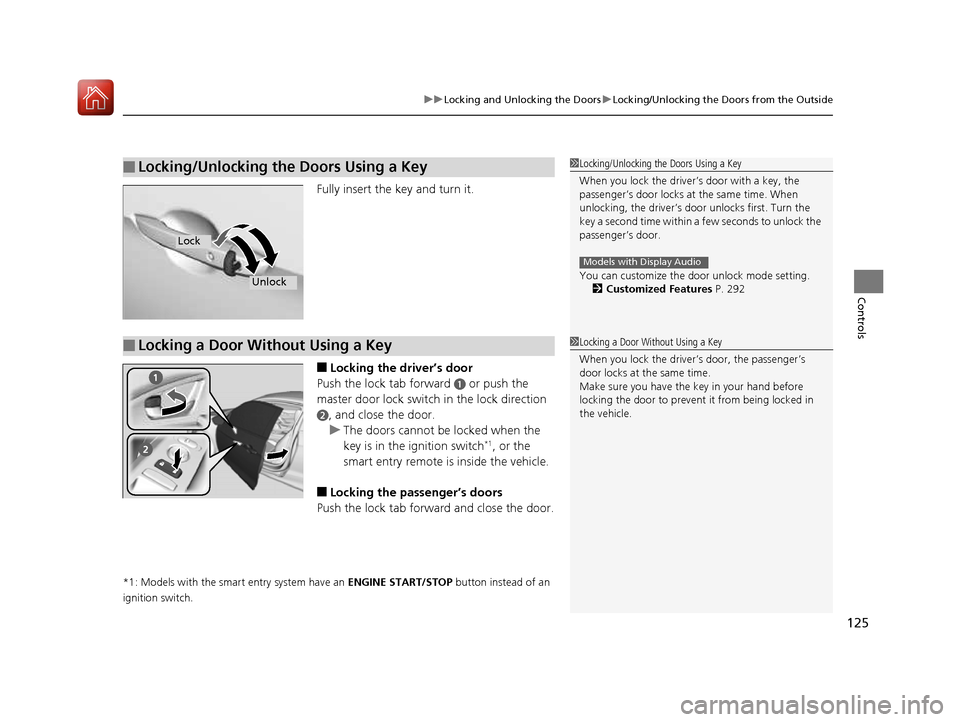

Fully insert the key and turn it. ■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
uThe doors cannot be locked when the
key is in the ignition switch *1
, or the
smart entry remote is inside the vehicle.
■ Locking the passenger’s doors
Push the lock tab forward and close the door.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, the
passenger’s door locks at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door.
You can customize the door unlock mode setting. 2 Customized Features P. 292
Models with Display Audio
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driv er’s door, the passenger’s
door locks at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in the vehicle.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 125 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

126
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Controls

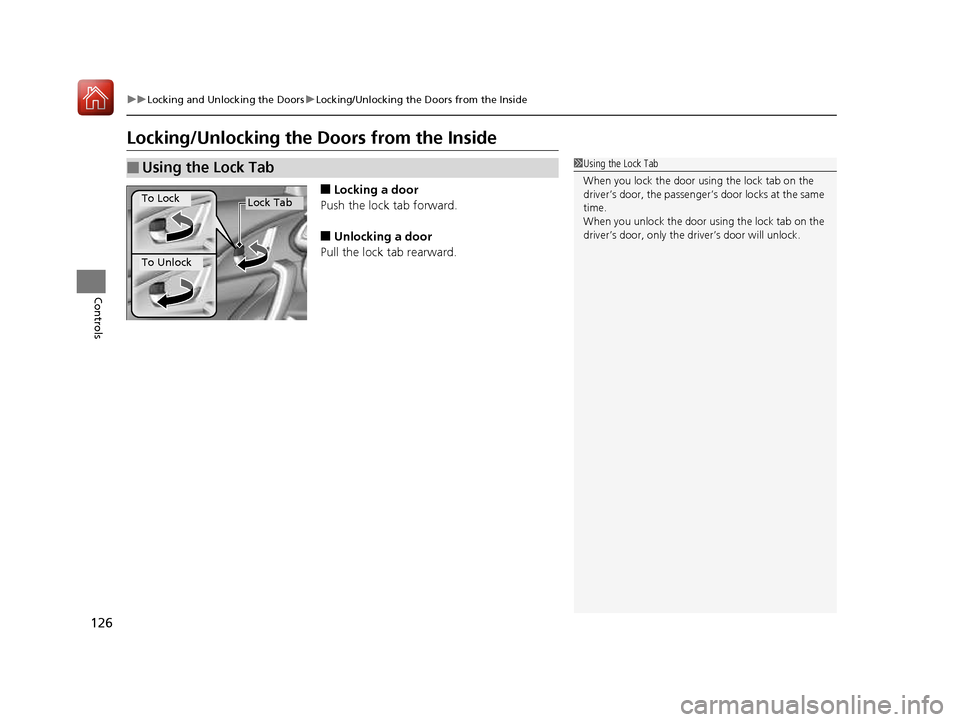

Locking/Unlocking the Doors from the Inside
■ Locking a door
Push the lock tab forward. ■ Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, the passenger’s door locks at the same
time.
When you unlock the door using the lock tab on the driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 126 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued127
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Controls

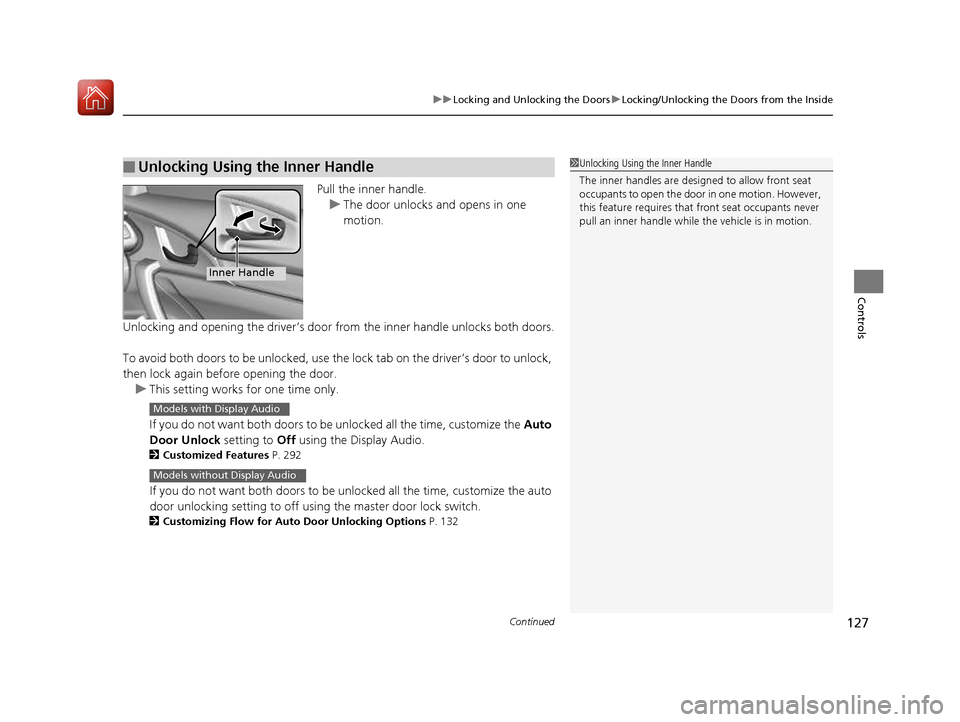

Pull the inner handle.
uThe door unlocks and opens in one motion.
Unlocking and opening the driver’s door from the inner handle unlocks both doors.
To avoid both doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door.
uThis setting works for one time only.
If you do not want both doors to be unlocked all the time, customize the Auto
Door Unlock setting to Off using the Display Audio.
2 Customized Features P. 292
If you do not want both doors to be unlocked all the time, customize the auto
door unlocking setting to off using the master door lock switch.
2 Customizing Flow for Auto Door Unlocking Options P. 132
■Unlocking Using the Inner Handle1Unlocking Using the Inner Handle
The inner handles are designed to allow front seat
occupants to open the door in one motion. However,
this feature requires that front seat occupants never
pull an inner handle while the vehicle is in motion.
Inner Handle
Models with Display Audio
Models without Display Audio
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 127 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
128
Controls

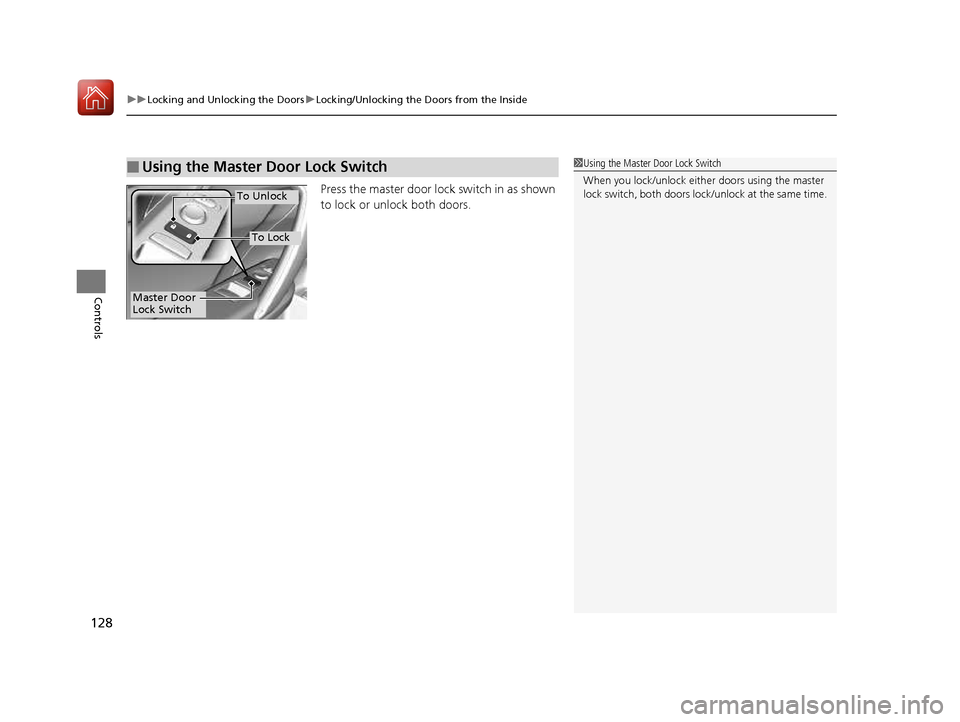

Press the master door lock switch in as shown
to lock or unlock both doors.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock eith er doors using the master
lock switch, both doors lock/ unlock at the same time.
To Unlock
Master Door Lock Switch
To Lock
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 128 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

129
uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks both doors automatically when a certain condition is
met. ■ Drive lock mode
Both doors lock when the vehicle’s speed reaches about 10 mph (15 km/h). ■ Driver’s door open mode
Both doors unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking setting us ing the master door lock
switch. 2 Customizing the Auto Door Locking/
Unlocking Setting P. 130
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the audio/
information screen.
2 Customized Features P. 292
Models without Display Audio
Models with Display Audio
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 129 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
