HONDA CIVIC COUPE 2016 10.G Owners Manual

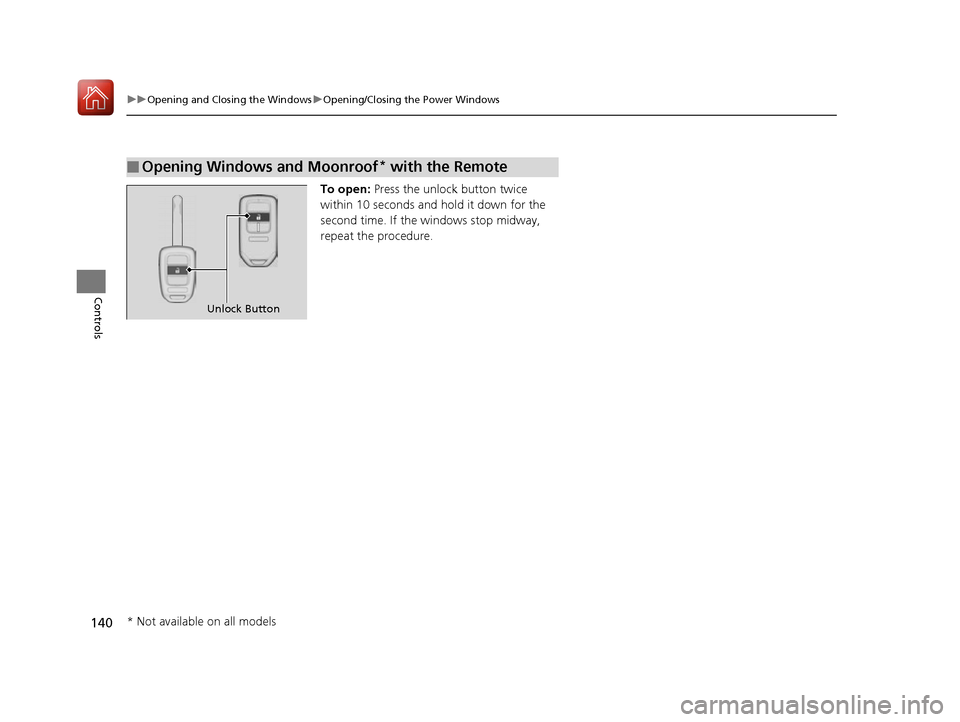

140
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Press the unlock button twice
within 10 seconds and hold it down for the
second time. If the windows stop midway,
repeat the procedure.
■Opening Windows and Moonroof *
with the Remote
Unlock Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 140 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

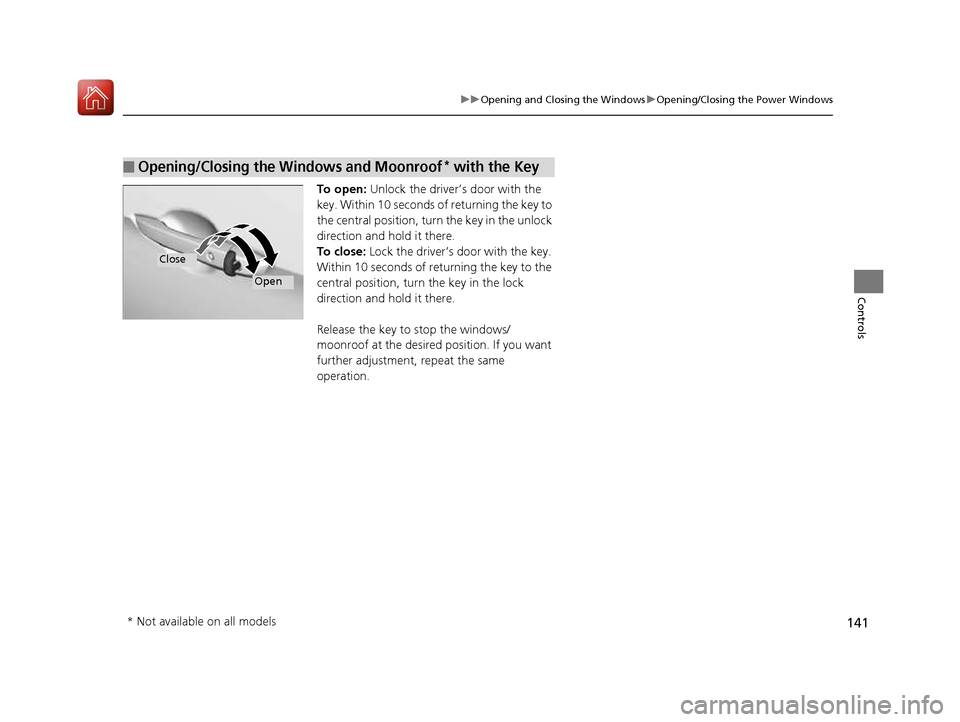

141
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Unlock the driver’s door with the
key. Within 10 seconds of returning the key to
the central position, turn the key in the unlock
direction and hold it there.
To close: Lock the driver’s door with the key.
Within 10 seconds of re turning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows/
moonroof at the desired position. If you want
further adjustment, repeat the same
operation.
■Opening/Closing the Windows and Moonroof* with the Key
Close
Open
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 141 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

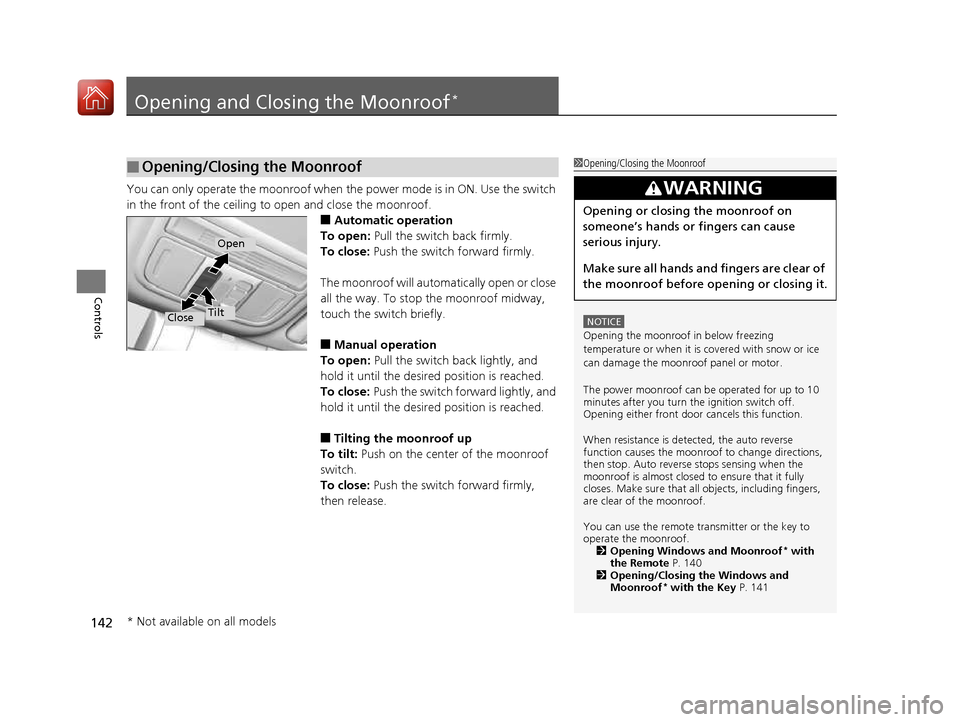

142
Controls
Opening and Closing the Moonroof*
You can only operate the moonroof when th
e power mode is in ON. Use the switch
in the front of the ceiling to open and close the moonroof. ■Automatic operation
To open: Pull the switch back firmly.
To close: Push the switch forward firmly.
The moonroof will automatically open or close
all the way. To stop the moonroof midway,
touch the switch briefly. ■ Manual operation
To open: Pull the switch back lightly, and
hold it until the desired position is reached.
To close: Push the switch fo rward lightly, and
hold it until the desired position is reached.
■ Tilting the moonroof up
To tilt: Push on the center of the moonroof
switch.
To close: Push the switch forward firmly,
then release.
■Opening/Closing the Moonroof1Opening/Closing the Moonroof
NOTICE
Opening the moonroof in below freezing
temperature or when it is covered with snow or ice
can damage the moonr oof panel or motor.
The power moonroof can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
When resistance is detected, the auto reverse
function causes the moonroof to change directions,
then stop. Auto reverse stops sensing when the moonroof is almost closed to ensure that it fully
closes. Make sure that al l objects, including fingers,
are clear of the moonroof.
You can use the remote transmitter or the key to operate the moonroof. 2 Opening Windows and Moonroof *
with
the Remote P. 140
2 Opening/Closing the Windows and
Moonroof *
with the Key P. 141
3WARNING
Opening or closing the moonroof on
someone’s hands or fingers can cause
serious injury.
Make sure all hands and fingers are clear of
the moonroof before opening or closing it.
Open
CloseTilt
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 142 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

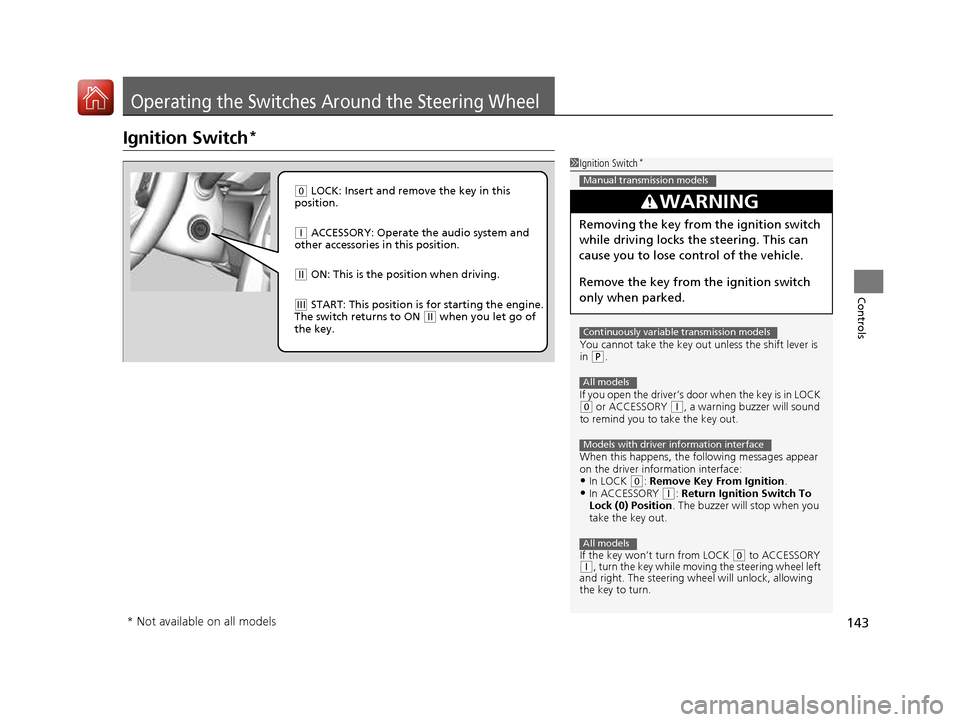

143
Controls
Operating the Switches Around the Steering Wheel
Ignition Switch*
1Ignition Switch
*
You cannot take the key out unless the shift lever is
in
(P .
If you open the driver’s door when the key is in LOCK
(0 or ACCESSORY (q, a warning buzzer will sound
to remind you to take the key out.
When this happens, the fo llowing messages appear
on the driver information interface:
• In LOCK
(0 : Remove Key From Ignition .
• In ACCESSORY (q : Return Ignition Switch To
Lock (0) Position . The buzzer will stop when you
take the key out.
If the key won’t turn from LOCK
(0 to ACCESSORY (q , turn the key while moving the steering wheel left
and right. The steering wh eel will unlock, allowing
the key to turn.
3WARNING
Removing the key from the ignition switch
while driving locks the steering. This can
cause you to lose control of the vehicle.
Remove the key from the ignition switch
only when parked.
Manual transmission models
Continuously variable transmission models
All models
Models with driver information interface
All models
(0 LOCK: Insert and remove the key in this
position.
(q ACCESSORY: Operate the audio system and
other accessories in this position.
(w ON: This is the position when driving.
(e START: This position is for starting the engine.
The switch returns to ON (w when you let go of
the key.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 143 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

144
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
Controls

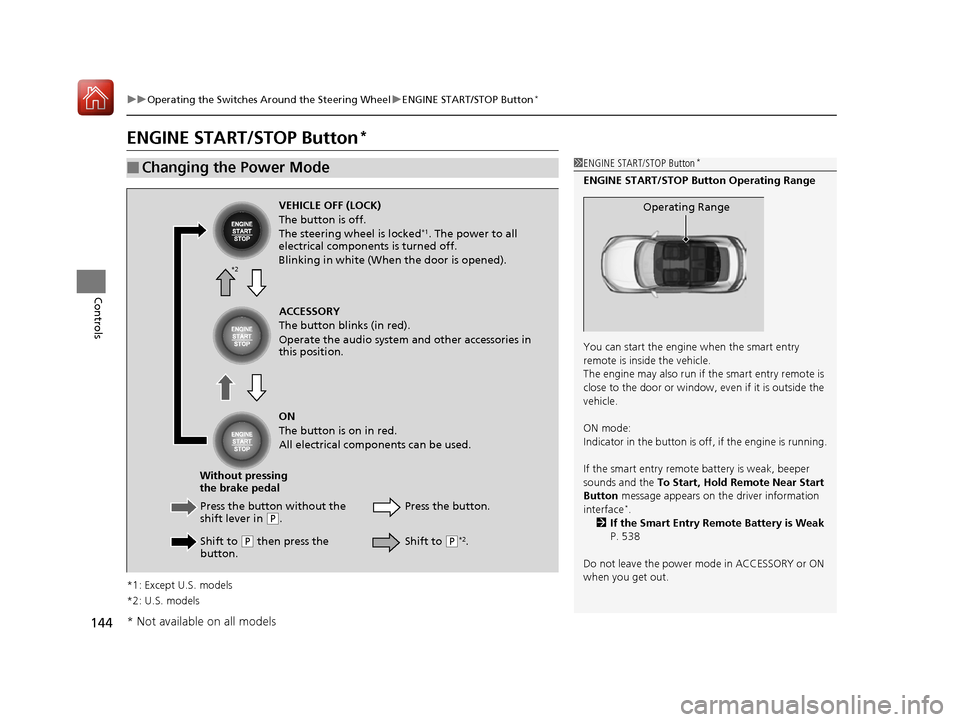

ENGINE START/STOP Button *
*1: Except U.S. models *2: U.S. models
■Changing the Power Mode1ENGINE START/STOP Button *
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle. ON mode:
Indicator in the button is of f, if the engine is running.
If the smart entry remote battery is weak, beeper sounds and the To Start, Hold Remote Near Start
Button message appears on th e driver information
interface *
.
2 If the Smart Entry Remote Battery is Weak
P. 538
Do not leave the power mode in ACCESSORY or ON
when you get out.
Operating RangeVEHICLE OFF (LOCK) The button is off.
The steering wheel is locked *1
. The power to all
electrical components is turned off.
Blinking in white (When the door is opened).
Press the butto n without the
shift lever in
(P .
Shift to
(P then press the
button. Press the button.
Without pressing
the brake pedal ACCESSORY
The button blinks (in red).
Operate the audio system and other accessories in this position. ON
The button is on in red.
All electrical components can be used.
Shift to (P*2
.
*2
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 144 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

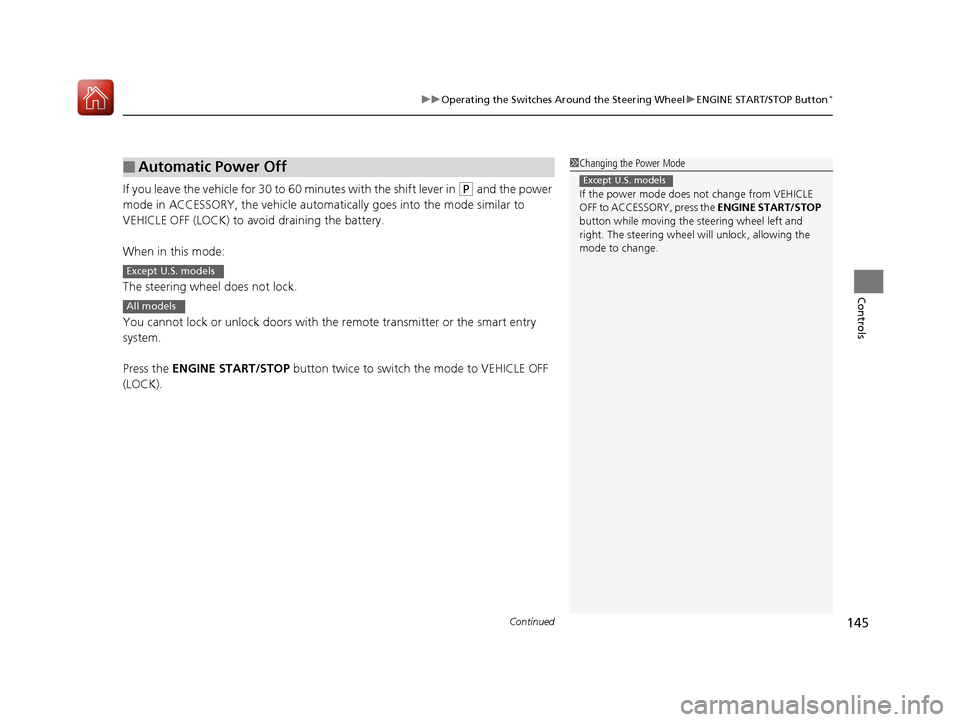

Continued145
uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
Controls
If you leave the vehicle for 30 to
60 minutes with the shift lever in (P and the power
mode in ACCESSORY, the vehicle automati cally goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with th e remote transmitter or the smart entry
system.
Press the ENGINE START/STOP button twice to switch the mode to VEHICLE OFF
(LOCK).
■Automatic Power Off1Changing the Power Mode If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the st eering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Except U.S. models
Except U.S. models
All models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 145 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

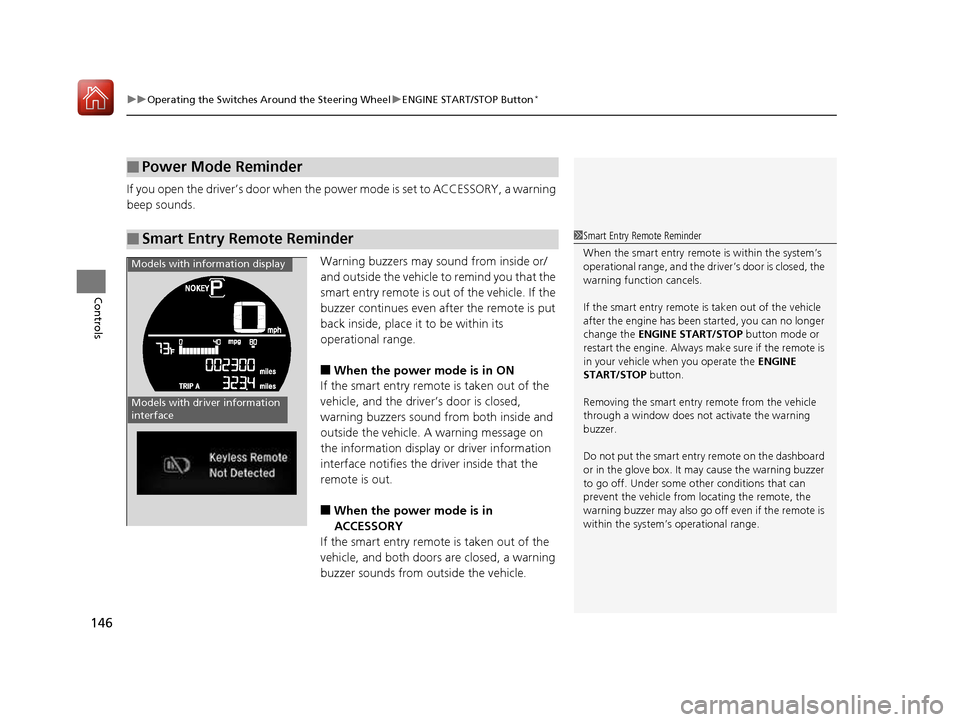

uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button*
146
Controls
If you open the driver’s doo r when the power mode is set to ACCESSORY, a warning
beep sounds.
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■ When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the information display or driver information
interface notifies the driver inside that the
remote is out. ■ When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and both doors are closed, a warning
buzzer sounds from outside the vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
Models with driver information
interface
Models with information display
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 146 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

147
uuOperating the Switches Around the Steering WheeluIgnition Switch and Power Mode Comparison
Controls

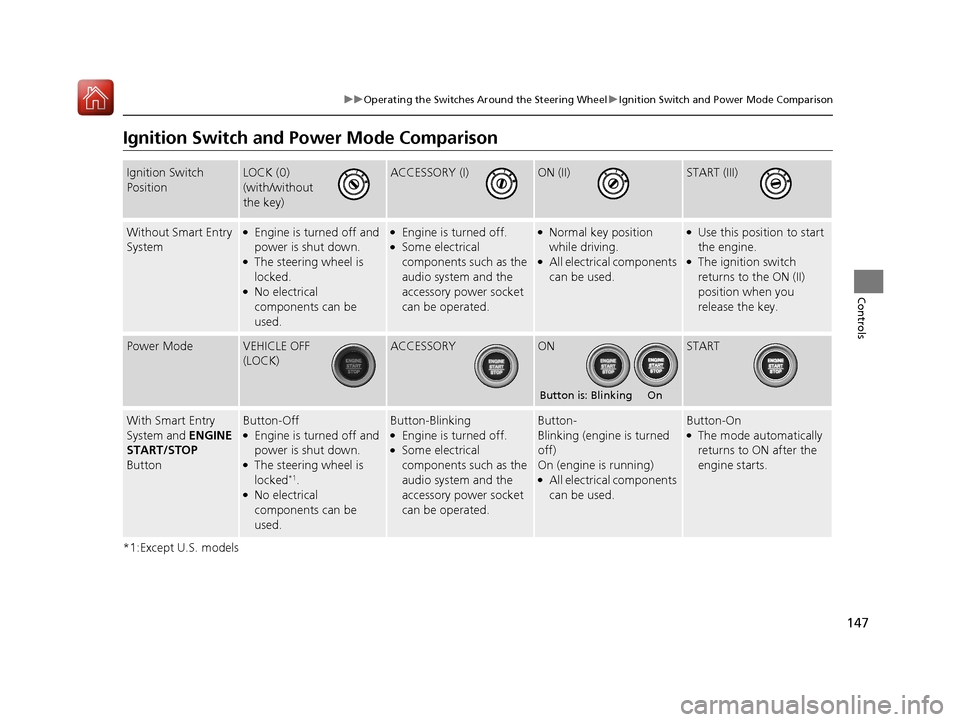

Ignition Switch and Power Mode Comparison
*1:Except U.S. models
Ignition Switch PositionLOCK (0)
(with/without
the key)ACCESSORY (I)ON (II)START (III)
Without Smart Entry
System● Engine is turned off and
power is shut down.
● The steering wheel is locked.
● No electrical
components can be used.●
Engine is turned off.
● Some electrical
components such as the
audio system and the
accessory power socket
can be operated.●
Normal key position
while driving.
● All electrical components
can be used.●
Use this position to start
the engine.
● The ignition switch
returns to the ON (II)
position when you
release the key.
Power ModeVEHICLE OFF
(LOCK)ACCESSORYONSTART
With Smart Entry
System and ENGINE
START/STOP
ButtonButton-Off ● Engine is turned off and
power is shut down.
● The steering wheel is locked *1
.
● No electrical
components can be used.Button-Blinking ●
Engine is turned off.
● Some electrical
components such as the
audio system and the
accessory power socket
can be operated.Button-
Blinking (engine is turned off)
On (engine is running) ●
All electrical components
can be used.Button-On ●The mode automatically
returns to ON after the
engine starts.
Button is: Blinking On
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 147 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

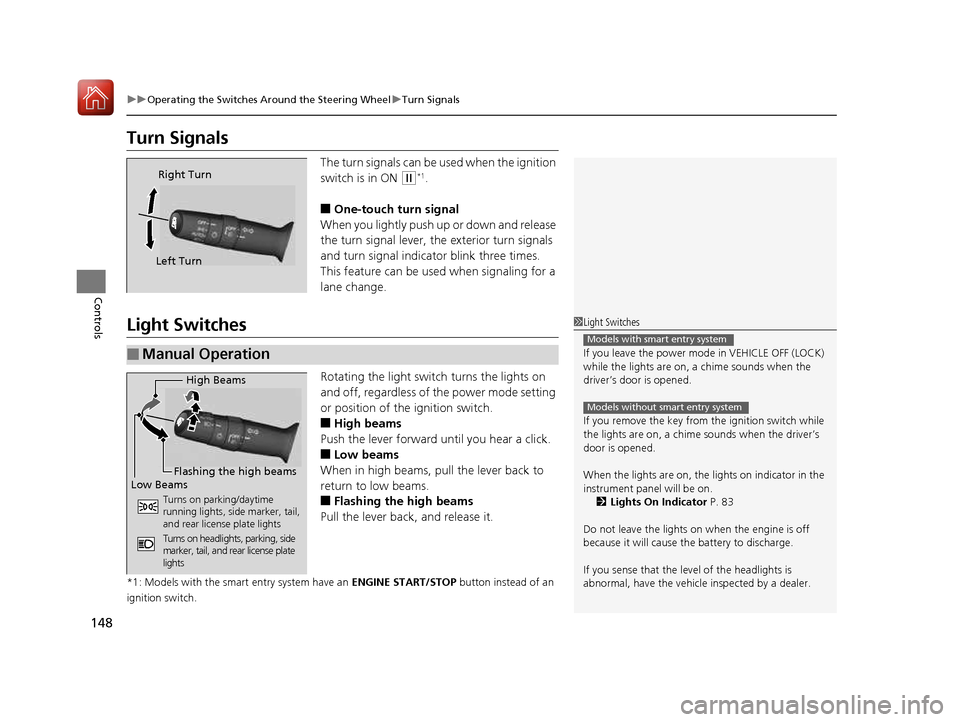

148
uuOperating the Switches Around the Steering WheeluTurn Signals
Controls
Turn SignalsThe turn signals can be used when the ignition
switch is in ON
(w*1
.
■ One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode setting
or position of the ignition switch. ■High beams
Push the lever forward until you hear a click. ■ Low beams
When in high beams, pull the lever back to
return to low beams. ■ Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
while the lights are on, a chime sounds when the driver’s door is opened.
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 83
Do not leave the lights on when the engine is off because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Models with smart entry system
Models without smart entry system
High Beams
Flashing the high beams
Low Beams
Turns on parking/daytime
running lights, side marker, tail,
and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 148 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

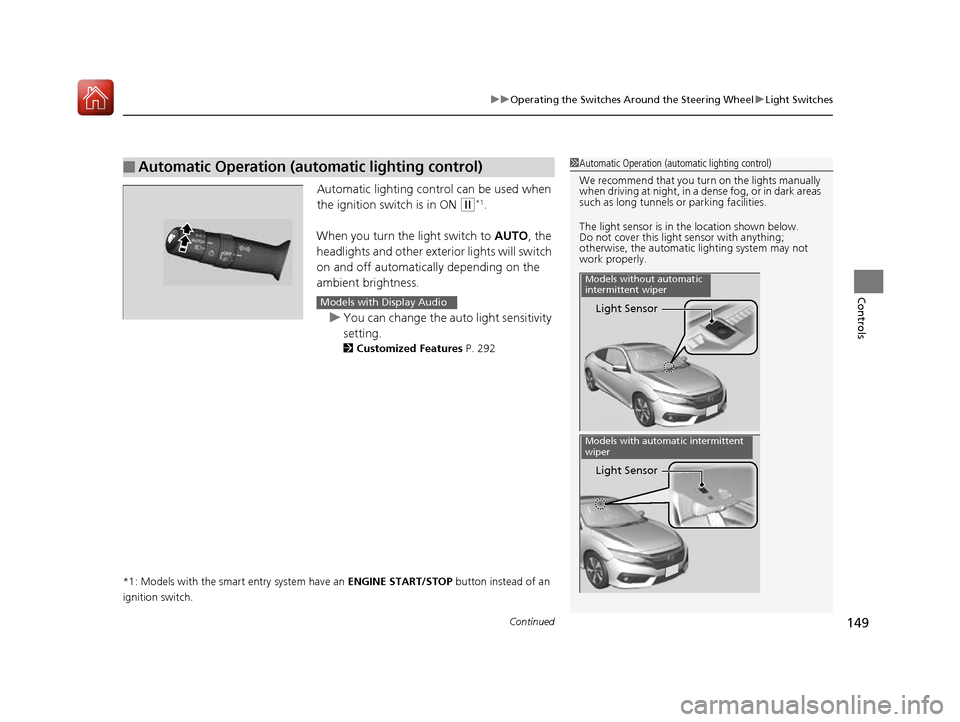

Continued149
uuOperating the Switches Around the Steering WheeluLight Switches
Controls
Automatic lighting control can be used when
the ignition switch is in ON
(w*1
.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
uYou can change the auto light sensitivity
setting.
2 Customized Features P. 292
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models without automatic
intermittent wiper
Light Sensor
Models with automatic intermittent
wiper
Models with Display Audio
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 149 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
