HONDA CIVIC COUPE 2016 10.G Owners Manual

130
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Controls

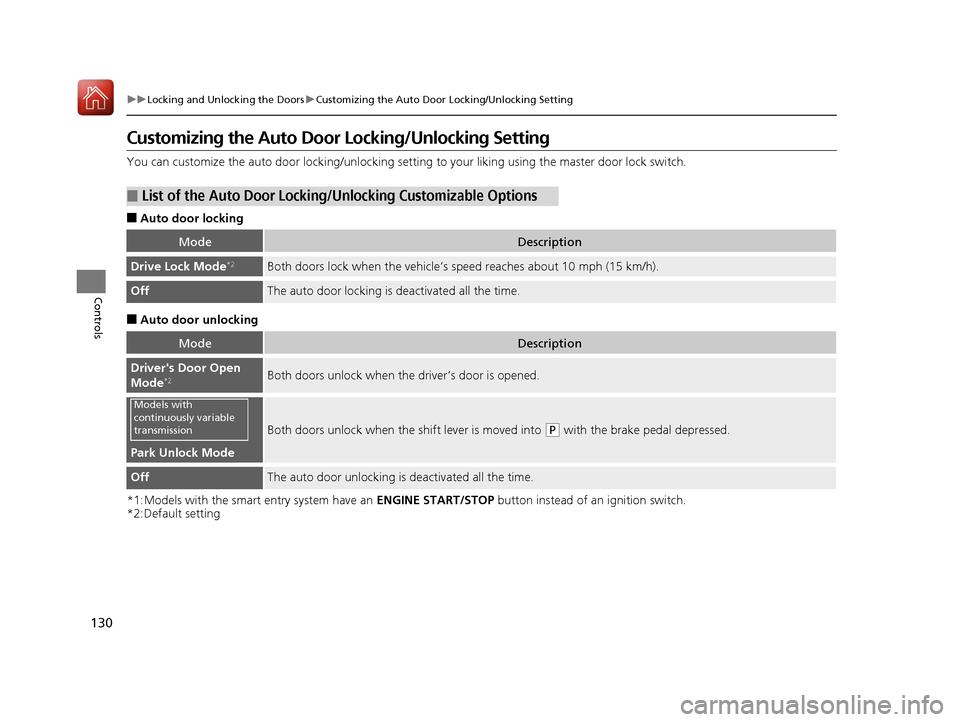

Customizing the Auto Door Locking/Unlocking Setting
You can customize the auto door locking/unlocking setting to your liking using the master door lock switch.
■ Auto door locking
■ Auto door unlocking
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting
■List of the Auto Door Locking/ Unlocking Customizable Options
ModeDescription
Drive Lock Mode*2Both doors lock when the vehicle’s
speed reaches about 10 mph (15 km/h).
OffThe auto door locking is deactivated all the time.
ModeDescription
Driver's Door Open
Mode*2Both doors unlock when the driver’s door is opened.
Park Unlock Mode
Both doors unlock when the
shift lever is moved into (P with the brake pedal depressed.
OffThe auto door unlocking is deactivated all the time.
Models with
continuously variable
transmission
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 130 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

131
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Continued
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting

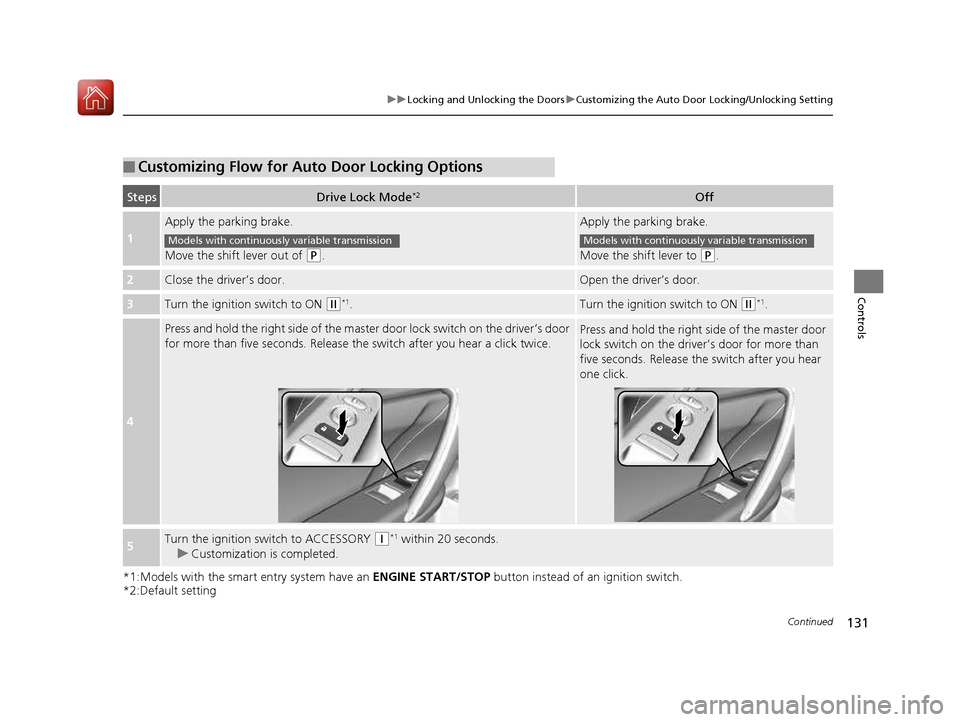

■Customizing Flow for Auto Door Locking Options
StepsDrive Lock Mode *2Off
1
Apply the parking brake.
Move the shift lever out of
(P
.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w*1
.Turn the ignition switch to ON (w *1
.
4
Press and hold the right side of the master door lock switch on the driver’s door
for more than five seconds. Release th e switch after you hear a click twice.Press and hold the right side of the master door
lock switch on the driver’s door for more than
five seconds. Release the switch after you hear
one click.
5Turn the ignition switch to ACCESSORY (q*1
within 20 seconds.
uCustomization is completed.
Models with continuously variable transmissionModels with continuously variable transmission
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 131 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

132
uuLocking and Unlocking the DoorsuCustomizing the Auto Door Locking/Unlocking Setting
Controls
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Default setting

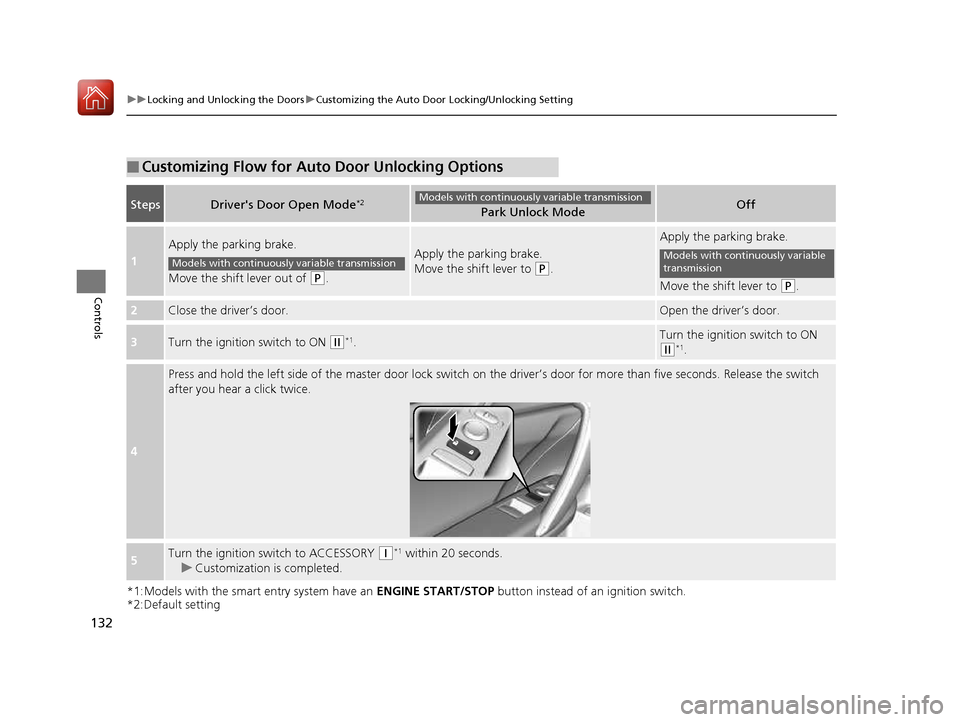

■Customizing Flow for Auto Door Unlocking Options
StepsDriver's Door Open Mode *2Park Unlock ModeOff
1
Apply the parking brake.
Move the shift lever out of
(P
.
Apply the parking brake.
Move the shift lever to
(P.
Apply the parking brake.
Move the shift lever to
(P.
2Close the driver’s door.Open the driver’s door.
3Turn the ignition switch to ON (w *1
.Turn the ignition switch to ON
(w *1
.
4
Press and hold the left side of the master door lock switch on the driver’s door for more than five seconds. Release the switch
after you hear a click twice.
5Turn the ignition switch to ACCESSORY (q *1
within 20 seconds.
uCustomization is completed.
Models with continuously variable transmission
Models with continuously variable transmissionModels with continuously variable
transmission
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 132 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

133
Continued
Controls

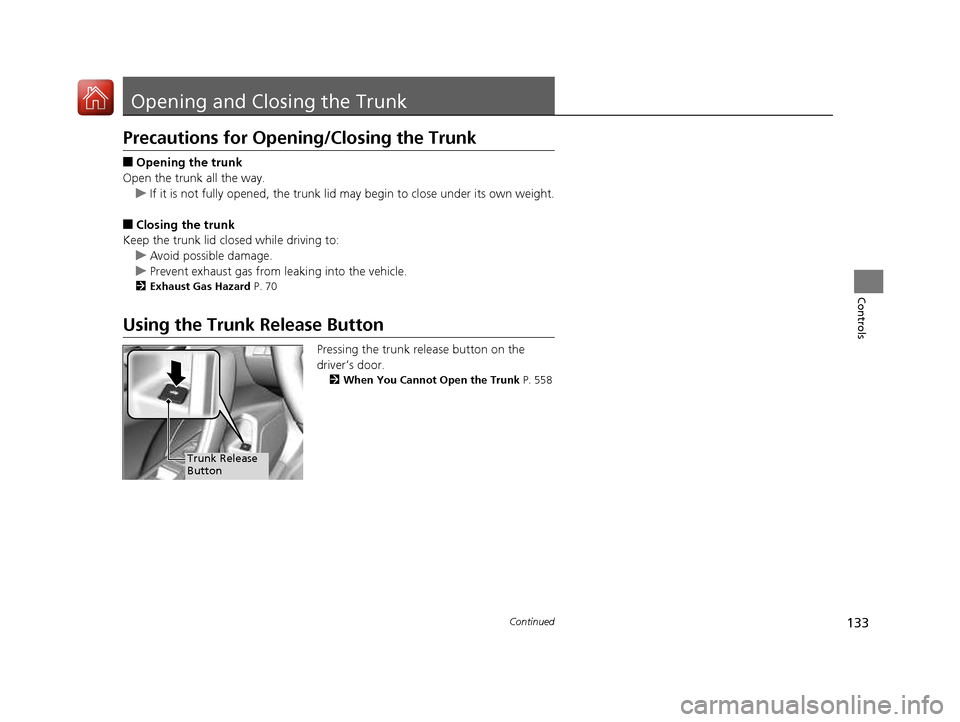

Opening and Closing the Trunk
Precautions for Openin
g/Closing the Trunk
■ Opening the trunk
Open the trunk all the way.
uIf it is not fully opened, the trunk lid may begin to close under its own weight.
■ Closing the trunk
Keep the trunk lid closed while driving to:
uAvoid possible damage.
uPrevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 70
Using the Trunk Release Button
Pressing the trunk release button on the
driver’s door.2 When You Cannot Open the Trunk P. 558
Trunk Release
Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 133 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuOpening and Closing the TrunkuUsing the Remote Transmitter
134
Controls

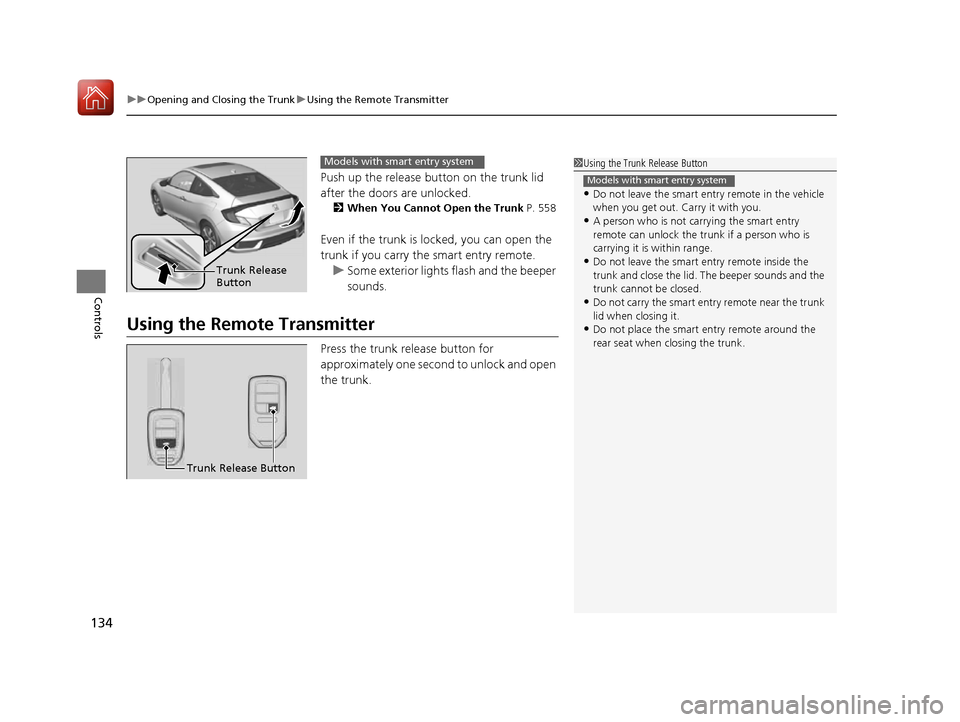

Push up the release button on the trunk lid
after the doors are unlocked. 2 When You Cannot Open the Trunk P. 558
Even if the trunk is locked, you can open the
trunk if you carry the smart entry remote.
uSome exterior lights flash and the beeper
sounds.
Using the Remote Transmitter Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
• Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
• A person who is not carrying the smart entry
remote can unlock the tr unk if a person who is
carrying it is within range.
• Do not leave the smart entry remote inside the
trunk and close the lid. The beeper sounds and the
trunk cannot be closed.
• Do not carry the smart entry remote near the trunk lid when closing it.
• Do not place the smart entry remote around the
rear seat when closing the trunk.
Models with smart entry system
Trunk Release Button
Models with smart entry system
Trunk Release Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 134 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

135
uuOpening and Closing the TrunkuEmergency Trunk Opener
Controls

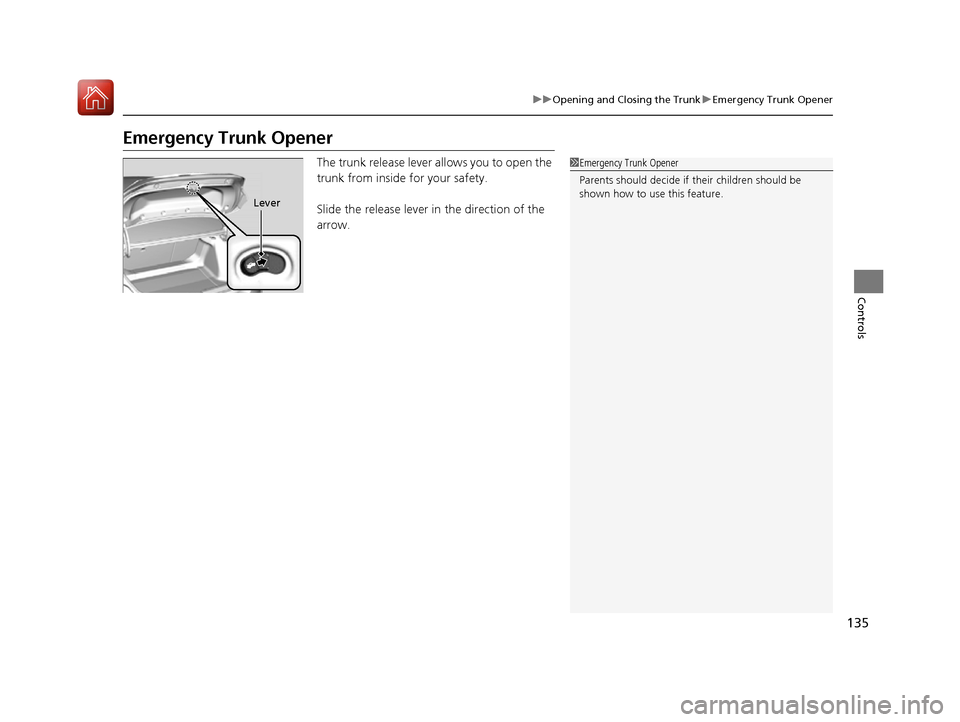

Emergency Trunk OpenerThe trunk release lever allows you to open the
trunk from inside for your safety.
Slide the release lever in the direction of the
arrow.
1Emergency Trunk Opener
Parents should decide if their children should be
shown how to use this feature.
Lever
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 135 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

136
Controls

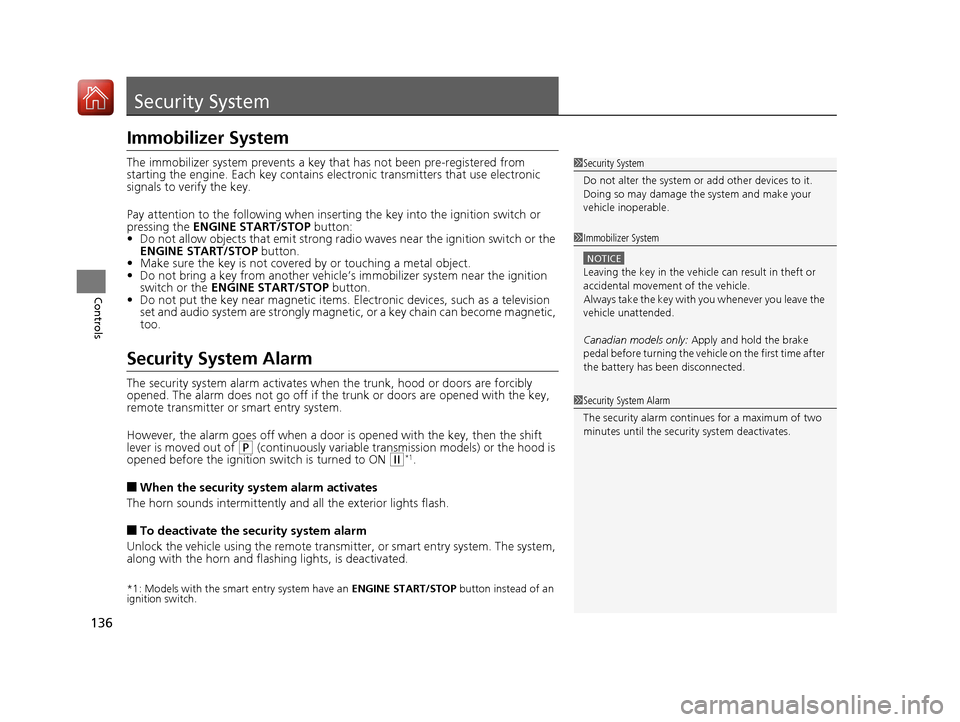

Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains el ectronic transmitters that use electronic
signals to verify the key.
Pay attention to the following when inserti ng the key into the ignition switch or
pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ignition switch or the
ENGINE START/STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from anot her vehicle’s immobilizer system near the ignition
switch or the ENGINE START/STOP button.
• Do not put the key near magnetic items. Electronic devices, such as a television
set and audio system are strongly magneti c, or a key chain can become magnetic,
too.
Security System Alarm
The security system alarm activates wh en the trunk, hood or doors are forcibly
opened. The alarm does not go off if the trunk or doors are opened with the key,
remote transmitter or smart entry system.
However, the alarm goes off when a door is opened with the key, then the shift
lever is moved out of
(P (continuously variable transmission models) or the hood is
opened before the ignition switch is turned to ON (w*1
.
■ When the security sy stem alarm activates
The horn sounds intermittently and all the exterior lights flash. ■ To deactivate the security system alarm
Unlock the vehicle using the remote transmi tter, or smart entry system. The system,
along with the horn and flashing lights, is deactivated.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Security System
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
1Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Canadian models only: Apply and hold the brake
pedal before turning the vehicle on the first time after
the battery has been disconnected.
1Security System Alarm
The security alarm continues for a maximum of two
minutes until the security system deactivates.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 136 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued137
uuSecurity SystemuSecurity System Alarm
Controls

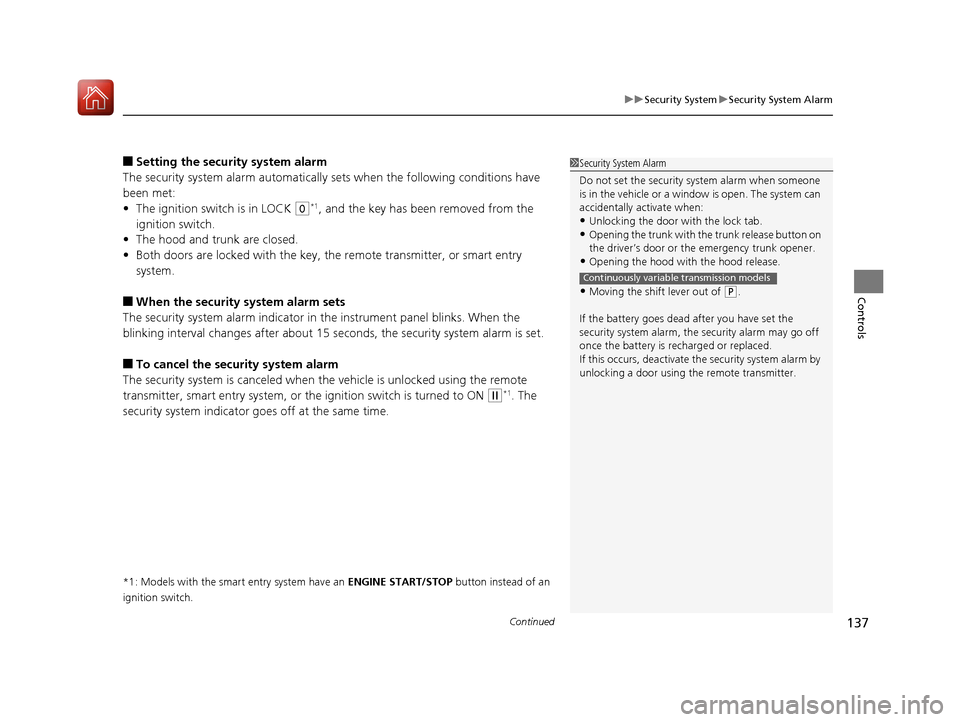

■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met: • The ignition switch is in LOCK
(0 *1
, and the key has been removed from the
ignition switch.
• The hood and trunk are closed.
• Both doors are locked with the key, the remote transmitter, or smart entry
system.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■ To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, smart entry system, or th e ignition switch is turned to ON
(w*1
. The
security system indicator go es off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when: • Unlocking the door with the lock tab.
• Opening the trunk with th e trunk release button on
the driver’s door or the emergency trunk opener.
• Opening the hood with the hood release.
• Moving the shift lever out of
(P .
If the battery goes dead after you have set the
security system alarm, the security alarm may go off once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using th e remote transmitter.
Continuously variable transmission models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 137 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

138
uuSecurity SystemuSecurity System Alarm
Controls

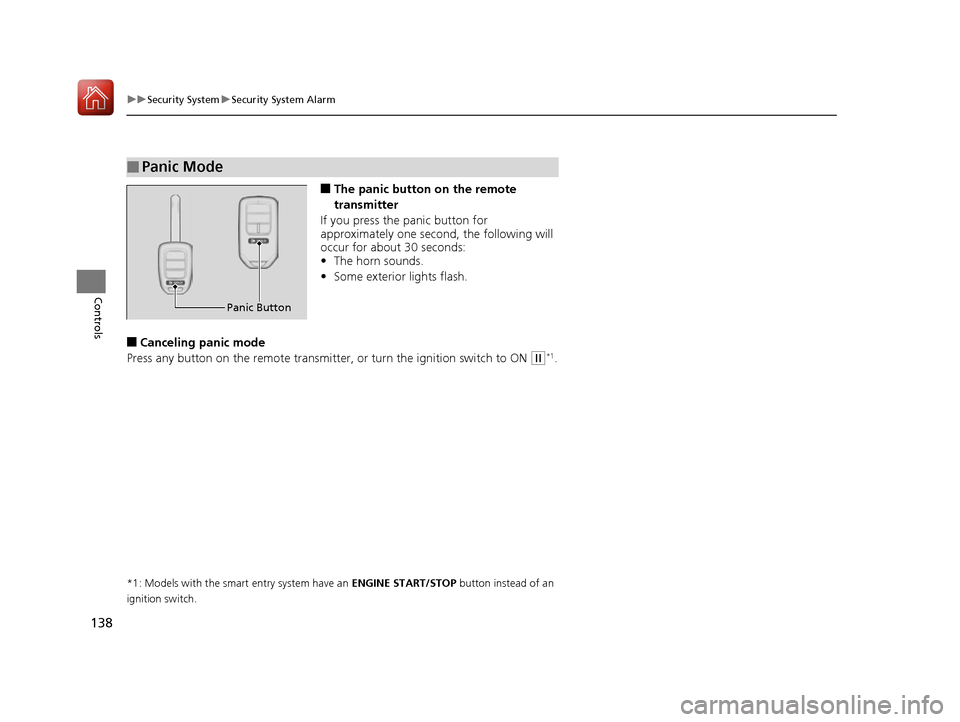

■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:• The horn sounds.
• Some exterior lights flash.
■ Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON
(w*1
.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Panic Mode
Panic Button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 138 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

139
Continued
Controls

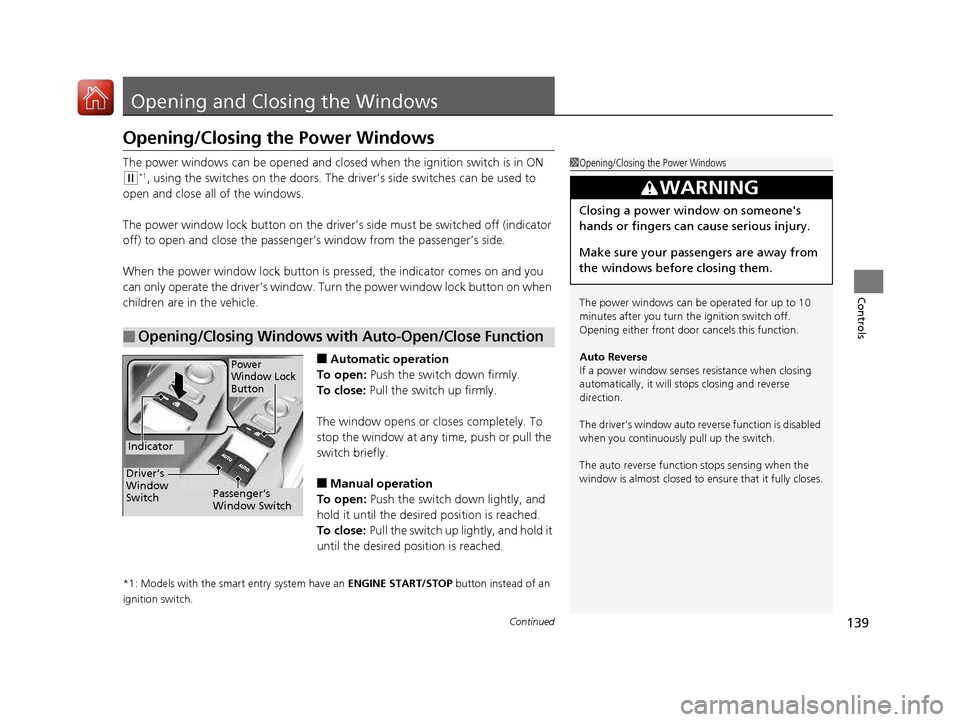

Opening and Clos
ing the Windows
Opening/Closing the Power Windows
The power windows can be opened and clos ed when the ignition switch is in ON
(w*1
, using the switches on the doors. The dr iver’s side switches can be used to
open and close all of the windows.
The power window lock button on the driver’s side must be switched off (indicator
off) to open and close the passenger’ s window from the passenger’s side.
When the power window lock button is pressed, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on when
children are in the vehicle.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly. ■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Opening/Closing Windows with Auto-Open/Close Function
1Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you turn the ignition switch off.
Opening either front door cancels this function.
Auto Reverse If a power window senses resistance when closing
automatically, it will st ops closing and reverse
direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone's
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Power
Window Lock
Button
Indicator
Driver’s
Window Switch
Passenger’s
Window Switch
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 139 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
