HONDA CIVIC COUPE 2016 10.G Owners Manual

uuAdjusting the SeatsuFront Seats
160
Controls

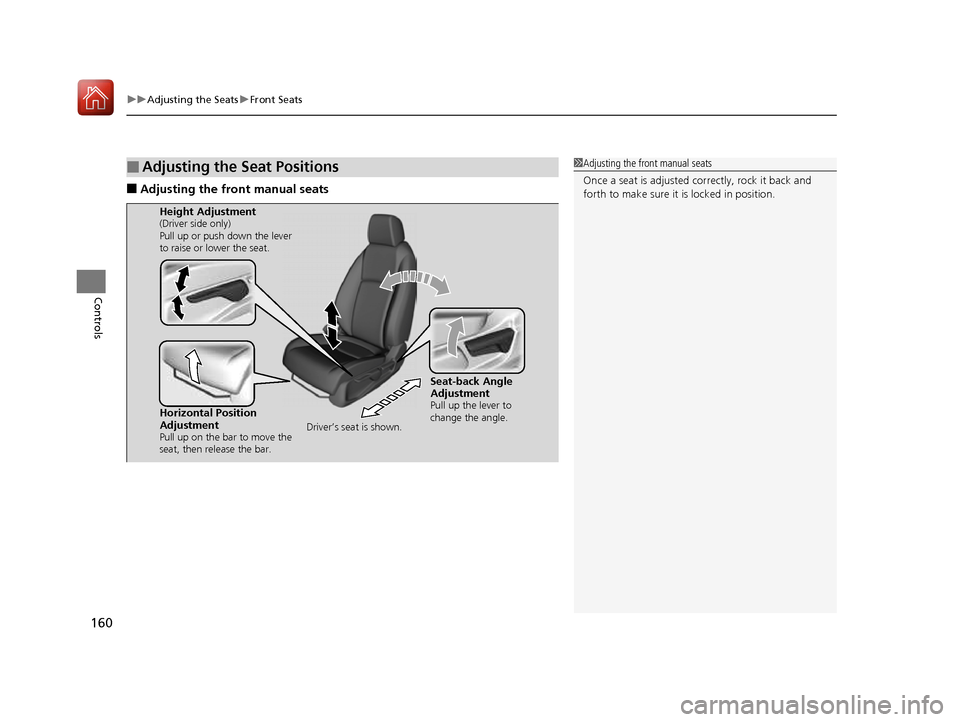

■ Adjusting the front manual seats
■Adjusting the Seat Positions1Adjusting the front manual seats
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.
Height Adjustment
(Driver side only)
Pull up or push down the lever
to raise or lower the seat.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
Driver’s seat is shown.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 160 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

161
uuAdjusting the SeatsuFront Seats
Controls

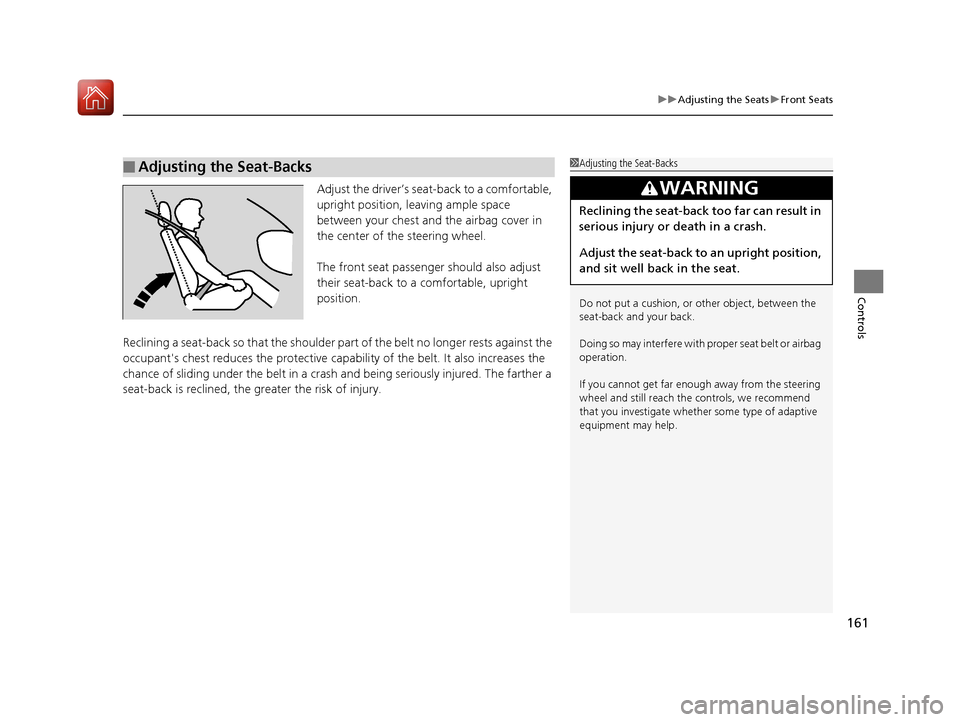

Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 161 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

162
uuAdjusting the SeatsuHead Restraints
Controls

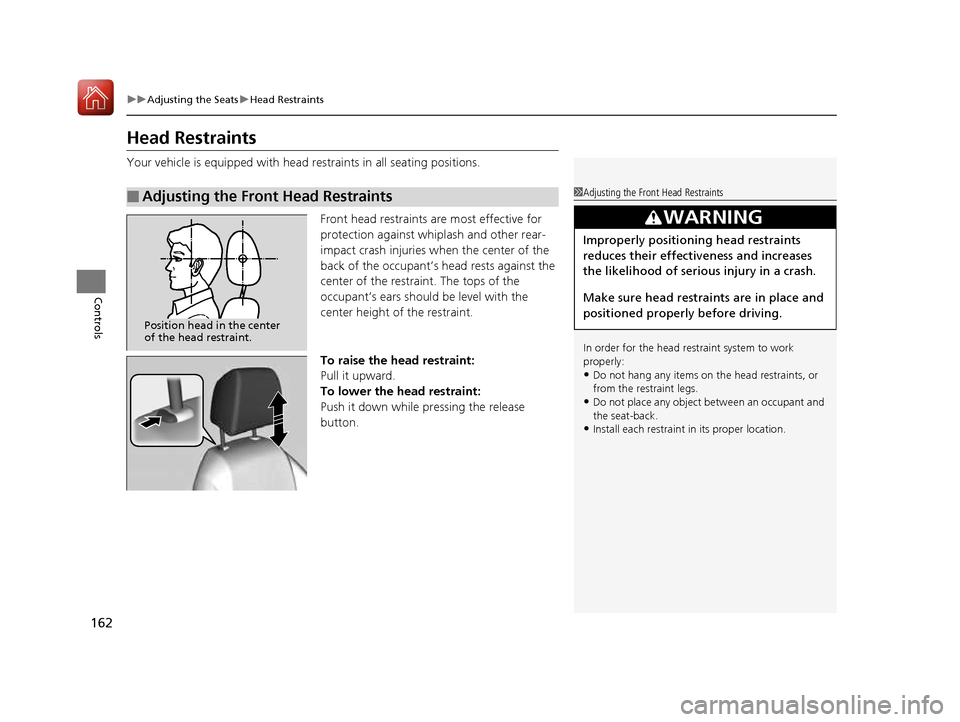

Head Restraints
Your vehicle is equipped with head restraints in all seating positions.Front head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release button.
■Adjusting the Front Head Restraints1Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:• Do not hang any items on the head restraints, or
from the restraint legs.
• Do not place any object be tween an occupant and
the seat-back.
• Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 162 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

163
uuAdjusting the SeatsuHead Restraints
Controls
Front head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■Removing and Reinstalling the Front Head Restraints1Removing and Reinstalling the Front Head Restraints
3WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the he ad restraints before
driving.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 163 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

164
uuAdjusting the SeatsuMaintain a Proper Sitting Position
Controls

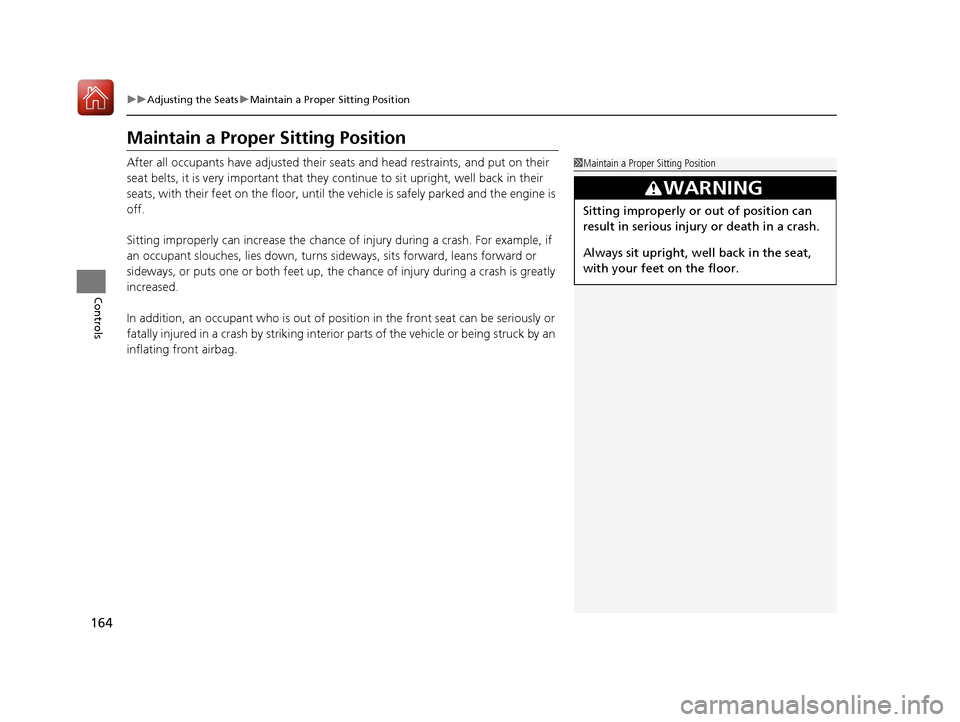

Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 164 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

165
uuAdjusting the SeatsuMaintain a Proper Sitting Position
Controls

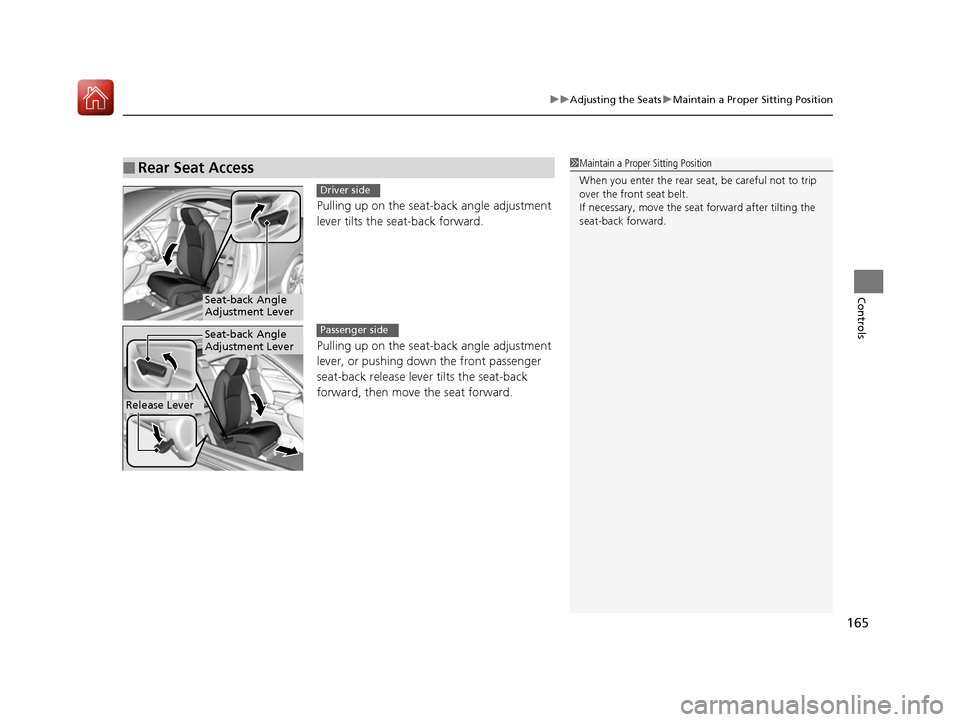

Pulling up on the seat-back angle adjustment
lever tilts the seat-back forward.
Pulling up on the seat-bac k angle adjustment
lever, or pushing down the front passenger
seat-back release lever tilts the seat-back
forward, then move the seat forward.
■Rear Seat Access1Maintain a Proper Sitting Position
When you enter the rear seat, be careful not to trip over the front seat belt.
If necessary, move the seat forward after tilting the
seat-back forward.
Seat-back Angle
Adjustment Lever
Driver side
Seat-back Angle
Adjustment Lever
Release Lever
Passenger side
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 165 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

166
uuAdjusting the SeatsuRear Seats
Controls

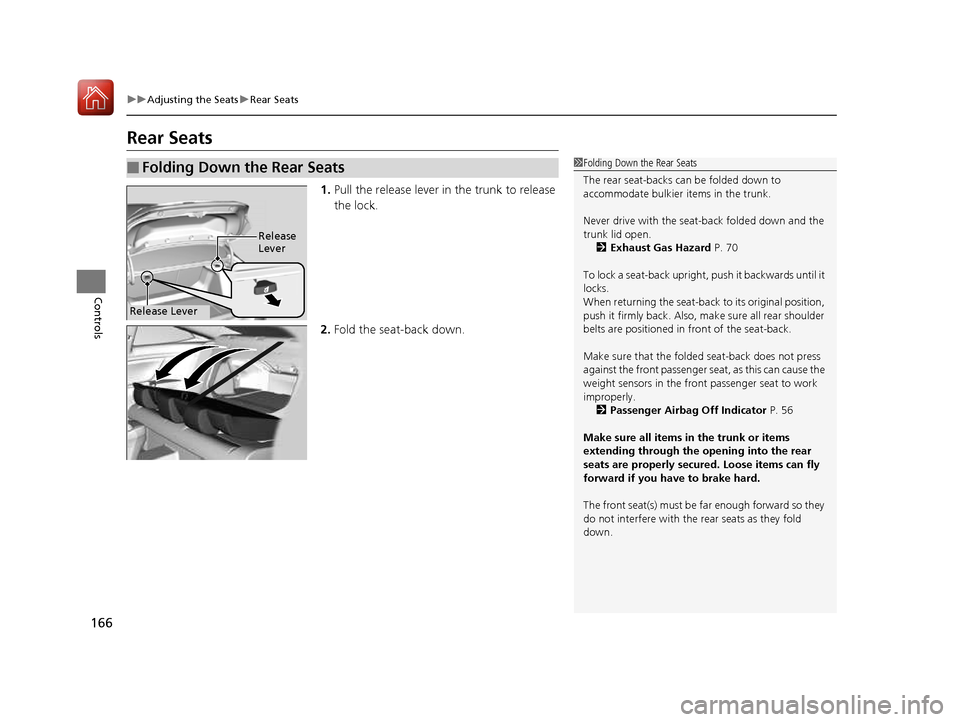

Rear Seats1.Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the trunk lid open.
2 Exhaust Gas Hazard P. 70
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger se at, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 56
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold down.
Release Lever
Release Lever
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 166 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

167
uuAdjusting the SeatsuArmrest
Controls

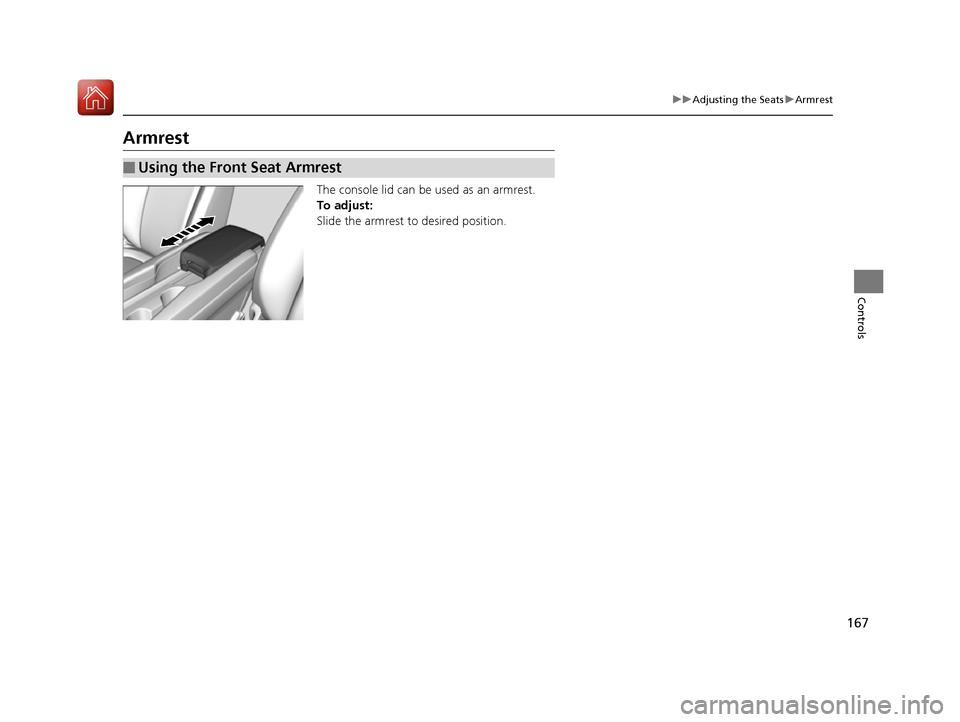

ArmrestThe console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
■Using the Front Seat Armrest
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 167 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

168
Controls

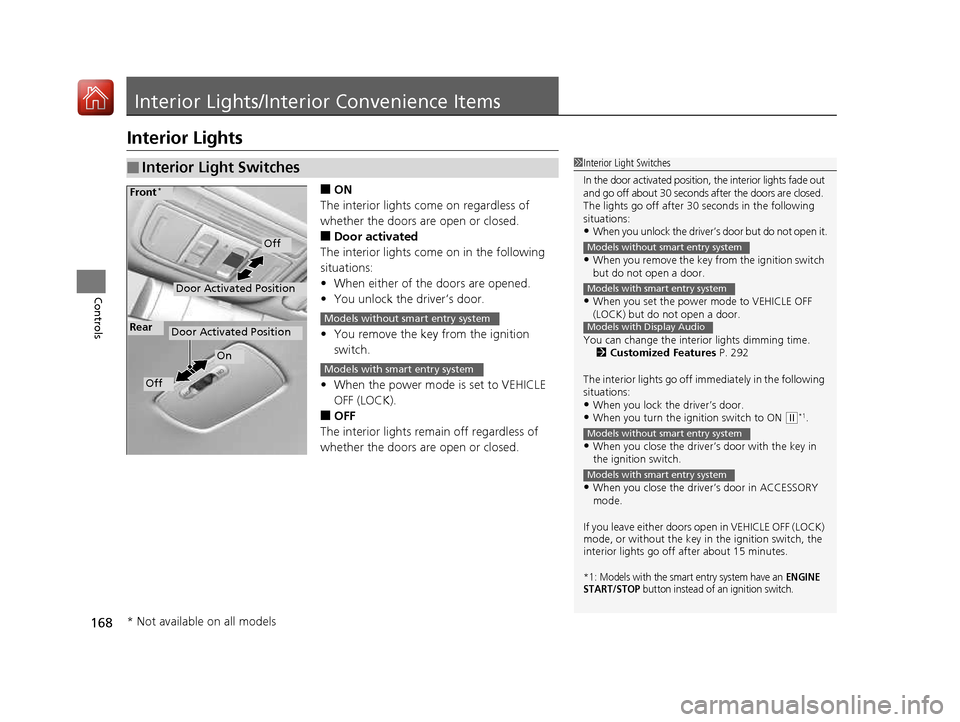

Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed. ■ Door activated
The interior lights come on in the following
situations: • When either of the doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition switch.
• When the power mode is set to VEHICLE OFF (LOCK).
■ OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
• When you unlock the driver’s door but do not open it.
• When you remove the key from the ignition switch
but do not open a door.
• When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 292
The interior lights go off i mmediately in the following
situations:
• When you lock the driver’s door.
• When you turn the ignition switch to ON
(w *1
.
• When you close the driver’s door with the key in
the ignition switch.
• When you close the driver’s door in ACCESSORY mode.
If you leave either doors open in VEHICLE OFF (LOCK) mode, or without the key in the ignition switch, the
interior lights go off after about 15 minutes.
*1: Models with the smart entry system have an ENGINE
START/STOP button instead of an ignition switch.
Models without smart entry system
Models with smart entry system
Models with Display Audio
Models without smart entry system
Models with smart entry system
Door Activated Position
Off
Front *
Door Activated Position
On
Off
RearModels without smart entry system
Models with smart entry system
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 168 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

169
uuInterior Lights/Interior Convenience ItemsuInterior Lights
Controls

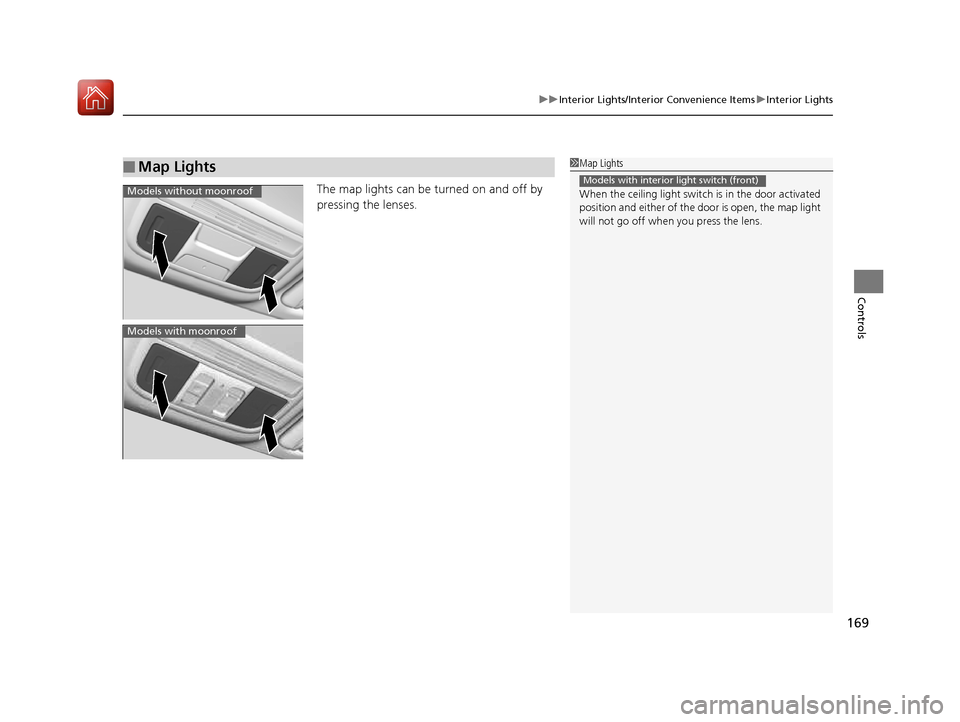

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the ceiling light switch is in the door activated
position and either of the door is open, the map light
will not go off when you press the lens.
Models with interior light switch (front)Models without moonroof
Models with moonroof
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 169 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
