HONDA CLARITY ELECTRIC 2017 Owner's Manual (in English)

Continued429
uuCharging uCharge the High Voltage battery using a Level 1, 2 or SAE J1772 DC charger
Driving
1. Stop your vehicle at a station specific for
electric vehicles. Park with the charge lid
closest to the charge plug, just in front of
the driver’s door.
2. Put the transmission into
(P.
3. Turn off the power system.
4. Press and hold the charge lid release
button.
u The lid opens.
u The illumination lamp inside the charge
lid comes on for a few minutes.
5. Open the charge lid.
6. Remove the inlet cap.

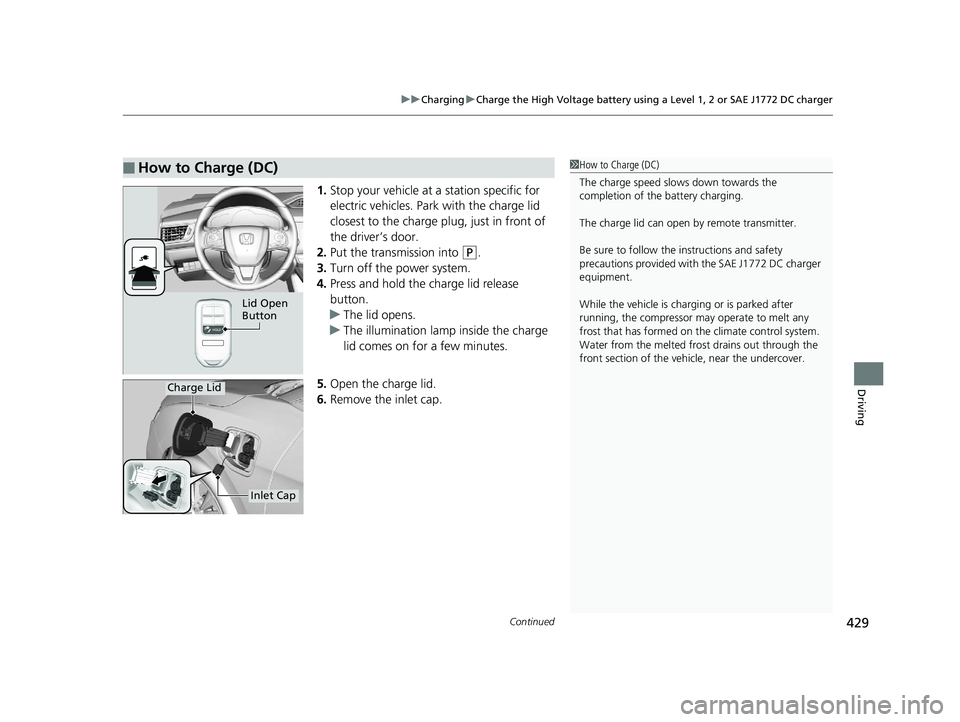

■How to Charge (DC)1How to Charge (DC)
The charge speed slows down towards the
completion of the battery charging.
The charge lid can open by remote transmitter.
Be sure to follow the instructions and safety
precautions provided with the SAE J1772 DC charger
equipment.
While the vehicle is charging or is parked after
running, the compressor may operate to melt any
frost that has formed on the climate control system.
Water from the melt ed frost drains out through the
front section of the vehi cle, near the undercover.
Lid Open
Button
Charge Lid
Inlet Cap
17 CLARITY BEV CSS-31TRV6000.book 429 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

uuCharging uCharge the High Voltage battery using a Level 1, 2 or SAE J1772 DC charger
430
Driving

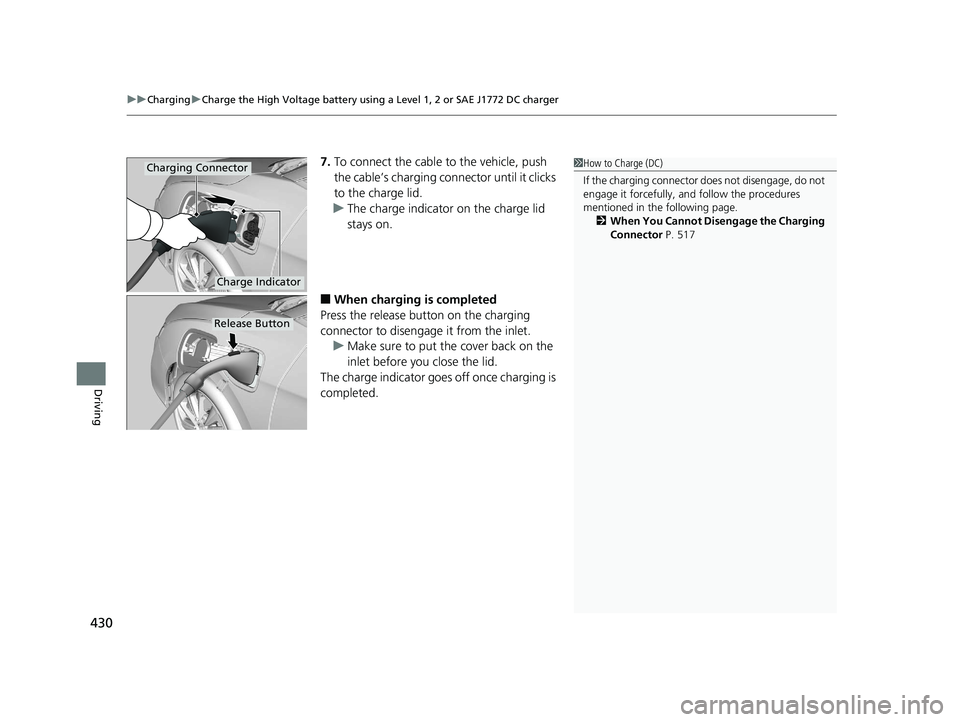

7. To connect the cable to the vehicle, push
the cable’s charging conn ector until it clicks
to the charge lid.
u The charge indicator on the charge lid
stays on.
■When charging is completed
Press the release button on the charging
connector to disengage it from the inlet. u Make sure to put the cover back on the
inlet before you close the lid.
The charge indicator goes off once charging is
completed.
1 How to Charge (DC)
If the charging connector does not disengage, do not
engage it forcefully, a nd follow the procedures
mentioned in the following page. 2 When You Cannot Disengage the Charging
Connector P. 517Charging Connector
Charge Indicator
Release Button
17 CLARITY BEV CSS-31TRV6000.book 430 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

431
uuCharging uControl Box
Continued
Driving

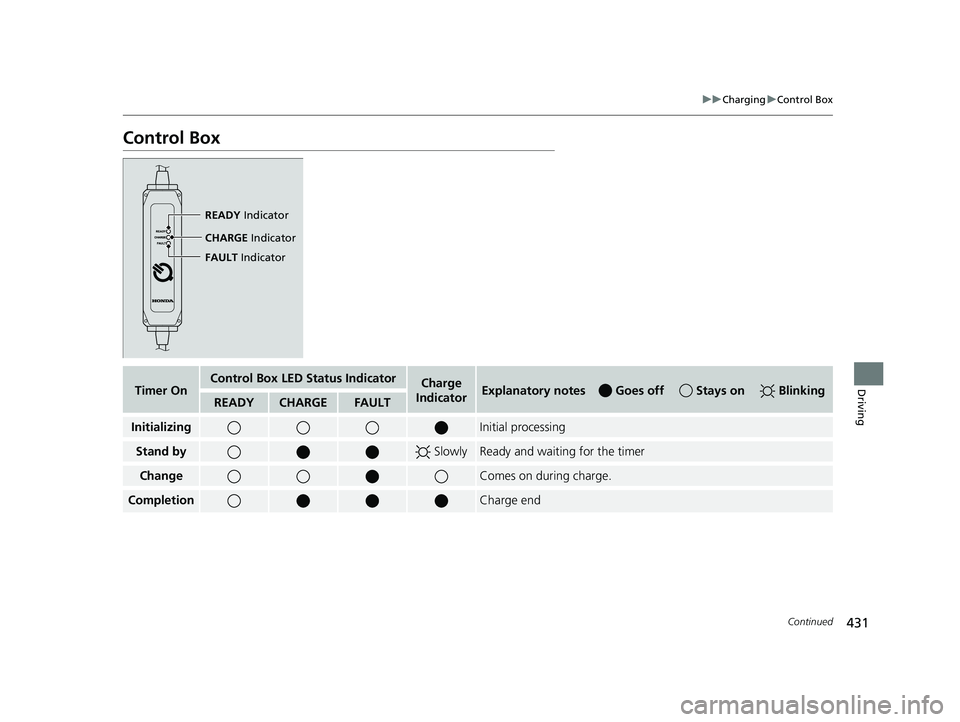

Control Box
READY Indicator
CHARGE Indicator
FAULT Indicator
Timer OnControl Box LED Status IndicatorCharge
IndicatorExplanatory notes Goes off Stays on BlinkingREADYCHARGEFAULT
InitializingInitial processing
Stand by SlowlyReady and waiting for the timer
ChangeComes on during charge.
CompletionCharge end
17 CLARITY BEV CSS-31TRV6000.book 431 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

432
uuCharging uControl Box
Driving

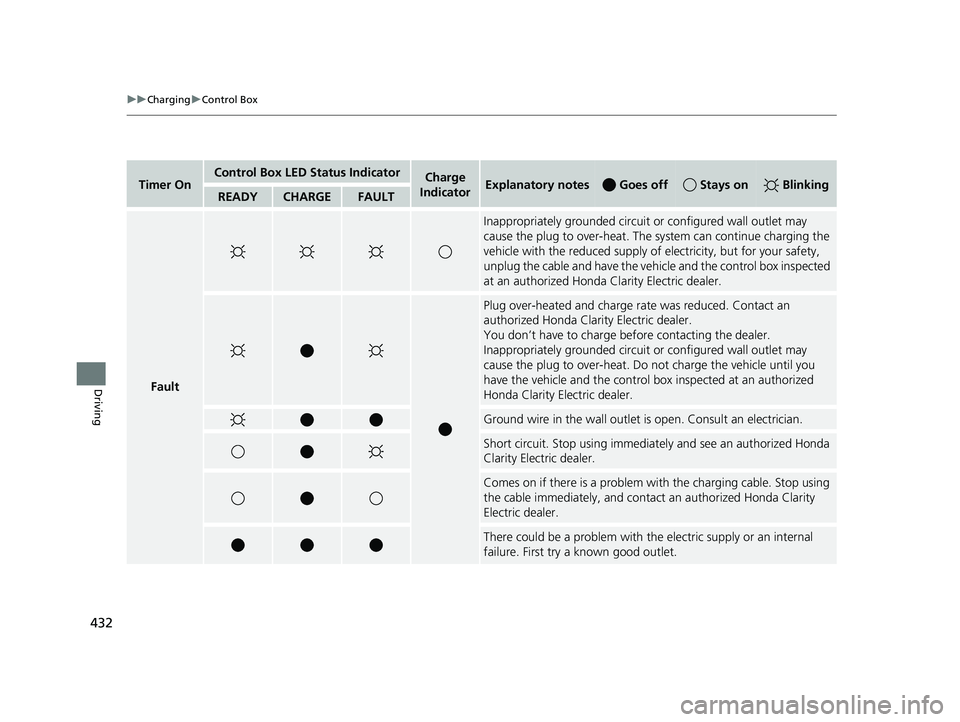

Timer OnControl Box LED Status IndicatorCharge
IndicatorExplanatory notes Goes off Stays on BlinkingREADYCHARGEFAULT
Fault
Inappropriately grounded circuit or configured wall outlet may
cause the plug to over-heat. The sy stem can continue charging the
vehicle with the reduced supply of electricity, but for your safety,
unplug the cable and have the vehicle and the control box inspected
at an authorized Honda Clarity Electric dealer.
Plug over-heated and charge ra te was reduced. Contact an
authorized Honda Clar ity Electric dealer.
You don’t have to charge before contacting the dealer.
Inappropriately grounded circuit or configured wall outlet may
cause the plug to over-heat. Do not charge the vehicle until you
have the vehicle and the control box inspected at an authorized
Honda Clarity Electric dealer.
Ground wire in the wall outlet is open. Consult an electrician.
Short circuit. Stop using immediat ely and see an authorized Honda
Clarity Electric dealer.
Comes on if there is a problem with the charging cable. Stop using
the cable immediately, and contac t an authorized Honda Clarity
Electric dealer.
There could be a problem with the electric supply or an internal
failure. First try a known good outlet.
17 CLARITY BEV CSS-31TRV6000.book 432 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

433
uuCharging uControl Box
Continued
Driving

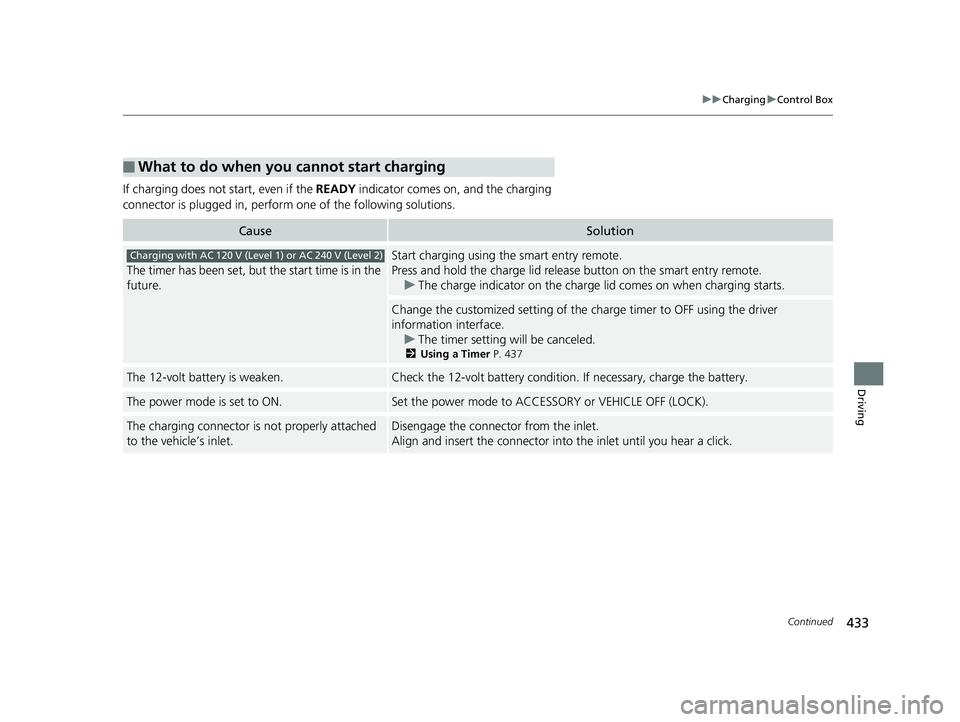

If charging does not start, even if the READY indicator comes on, and the charging
connector is plugged in, perform one of the following solutions.
■What to do when you cannot start charging
CauseSolution
The timer has been set, but the start time is in the
future.
Start charging using the smart entry remote.
Press and hold the charge lid releas e button on the smart entry remote.
u The charge indicator on the charge lid comes on when charging starts.
Change the customized setting of the charge timer to OFF using the driver
information interface.
u The timer setting will be canceled.
2 Using a Timer P. 437
The 12-volt battery is weaken.Check the 12-volt battery condition. If necessary, charge the battery.
The power mode is set to ON.Set the power mode to ACCESSO RY or VEHICLE OFF (LOCK).
The charging connector is not properly attached
to the vehicle’s inlet.Disengage the connector from the inlet.
Align and insert the connector into the inlet until you hear a click.
Charging with AC 120 V (Level 1) or AC 240 V (Level 2)
17 CLARITY BEV CSS-31TRV6000.book 433 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

434
uuCharging uControl Box
Driving

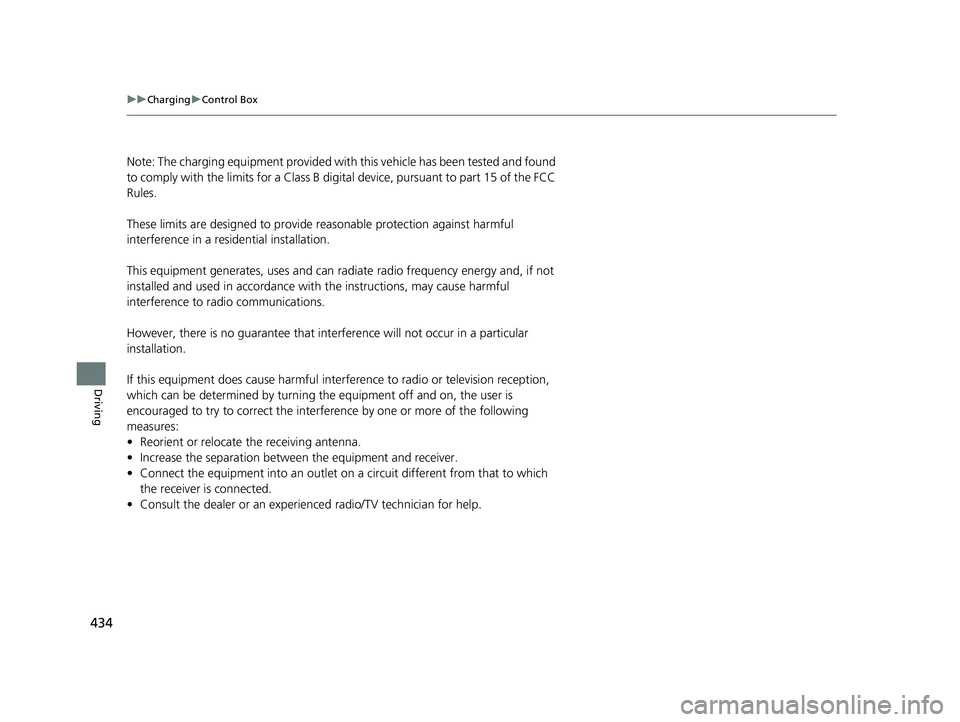

Note: The charging equipment provided with this vehicle has been tested and found
to comply with the limits fo r a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can ra diate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that inte rference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experien ced radio/TV technician for help.
17 CLARITY BEV CSS-31TRV6000.book 434 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

435
uuCharging uControl Box
Driving

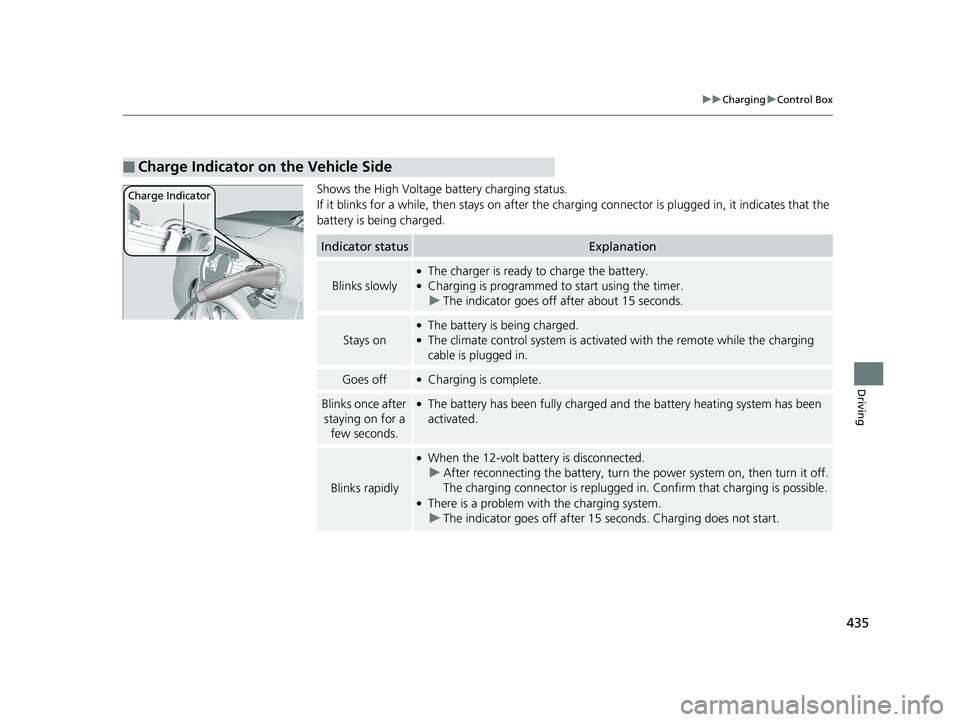

Shows the High Voltage battery charging status.
If it blinks for a while, then stays on after the char ging connector is plugged in, it indicates that the
battery is being charged.
■Charge Indicator on the Vehicle Side
Charge Indicator
Indicator statusExplanation
Blinks slowly
●The charger is ready to charge the battery.●Charging is programmed to start using the timer. u The indicator goes off after about 15 seconds.
Stays on
●The battery is being charged.●The climate control system is activate d with the remote while the charging
cable is plugged in.
Goes off●Charging is complete.
Blinks once after
staying on for a few seconds.●The battery has been fully charged and the battery heating system has been
activated.
Blinks rapidly
●When the 12-volt battery is disconnected. u After reconnecting the batter y, turn the power system on, then turn it off.
The charging connector is replugged in. Confirm that charging is possible.
●There is a problem with the charging system. u The indicator goes off after 15 se conds. Charging does not start.
17 CLARITY BEV CSS-31TRV6000.book 435 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

436
uuCharging uHigh Voltage Battery
Driving

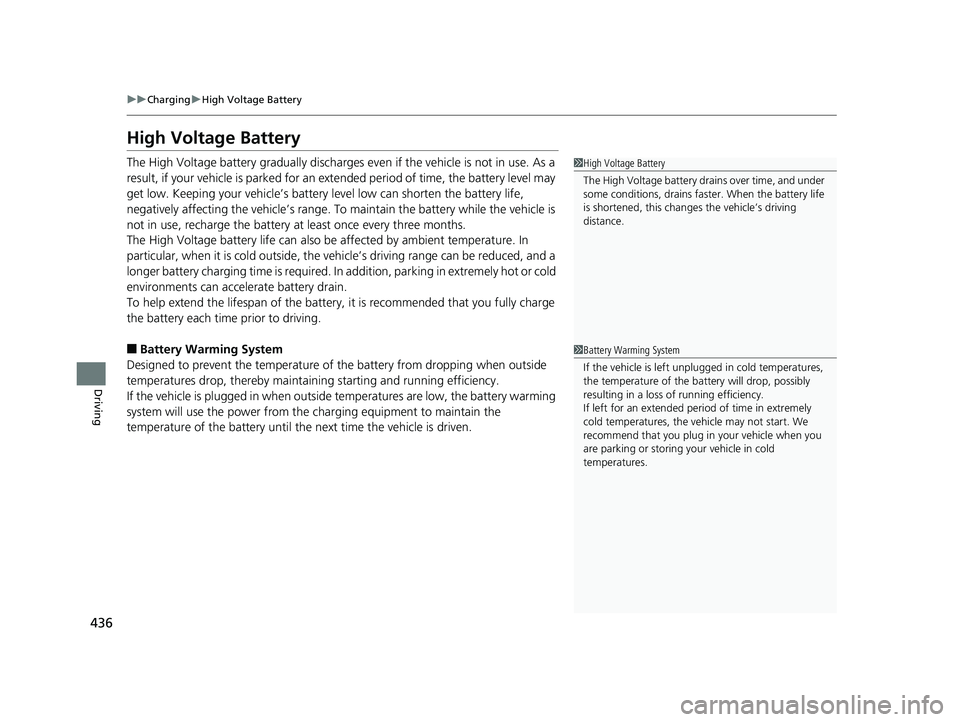

High Voltage Battery
The High Voltage battery gradually discharges even if the vehicle is not in use. As a
result, if your vehicle is parked for an ex tended period of time, the battery level may
get low. Keeping your vehicle’s battery level low can shorten the battery life,
negatively affecting the vehicle’s range. To maintain the battery while the vehicle is
not in use, recharge the battery at least once every three months.
The High Voltage battery life can also be affected by ambient temperature. In
particular, when it is cold outside, the vehicle’s driving range can be reduced, and a
longer battery charging time is required. In addition, park ing in extremely hot or cold
environments can accelerate battery drain.
To help extend the lifespan of the battery, it is recommended that you fully charge
the battery each time prior to driving.
■Battery Warming System
Designed to prevent the temperature of the battery from dropping when outside
temperatures drop, thereby maintainin g starting and running efficiency.
If the vehicle is plugged in when outside temperatures are low, the battery warming
system will use the power from the charging equipment to maintain the
temperature of the battery until the next time the vehicle is driven.
1 High Voltage Battery
The High Voltage battery dr ains over time, and under
some conditions, drains fast er. When the battery life
is shortened, this cha nges the vehicle’s driving
distance.
1 Battery Warming System
If the vehicle is left unplug ged in cold temperatures,
the temperature of the ba ttery will drop, possibly
resulting in a loss of running efficiency.
If left for an extended period of time in extremely
cold temperatures, the vehicle may not start. We
recommend that you plug in your vehicle when you
are parking or storing your vehicle in cold
temperatures.
17 CLARITY BEV CSS-31TRV6000.book 436 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

437
uuCharging uUsing a Timer
Continued
Driving

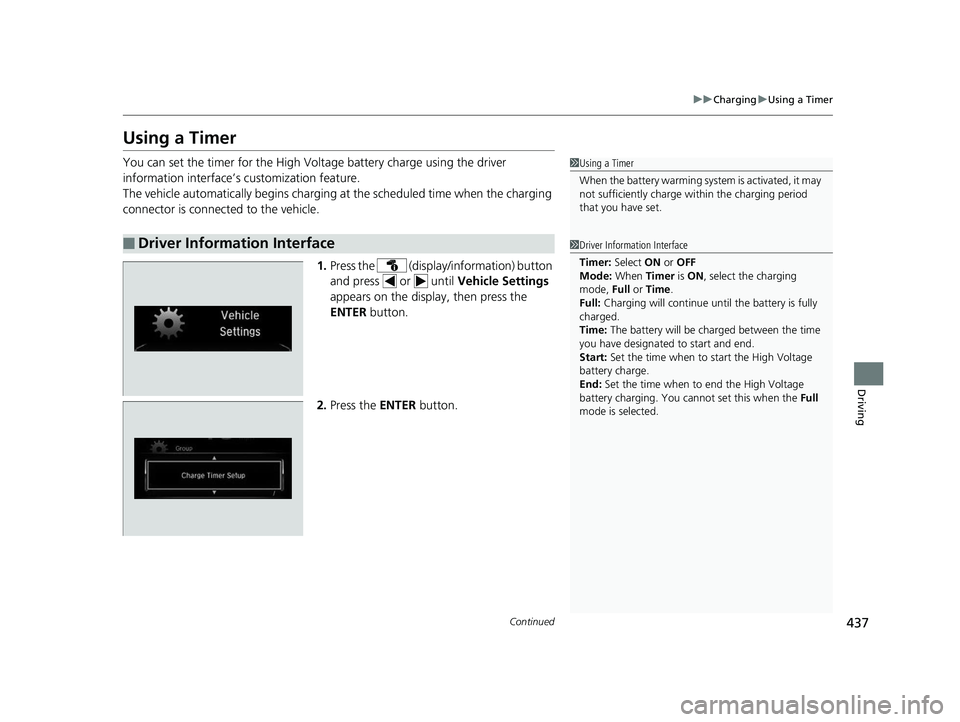

Using a Timer
You can set the timer for the High Volt age battery charge using the driver
information interface’s customization feature.
The vehicle automatically begi ns charging at the scheduled time when the charging
connector is connected to the vehicle.
1.Press the (display/information) button
and press or until Vehicle Settings
appears on the display, then press the
ENTER button.
2. Press the ENTER button.
■Driver Information Interface
1Using a Timer
When the battery warming system is activated, it may
not sufficiently charge within the charging period
that you have set.
1 Driver Information Interface
Timer: Select ON or OFF
Mode: When Timer is ON , select the charging
mode, Full or Time .
Full: Charging will continue unt il the battery is fully
charged.
Time: The battery will be ch arged between the time
you have designated to start and end.
Start: Set the time when to start the High Voltage
battery charge.
End: Set the time when to end the High Voltage
battery charging. You cannot set this when the Full
mode is selected.
17 CLARITY BEV CSS-31TRV6000.book 437 ページ ２０１７年４月１４日　金曜日　午前１１ 時８分

438
uuCharging uUsing a Timer
Driving

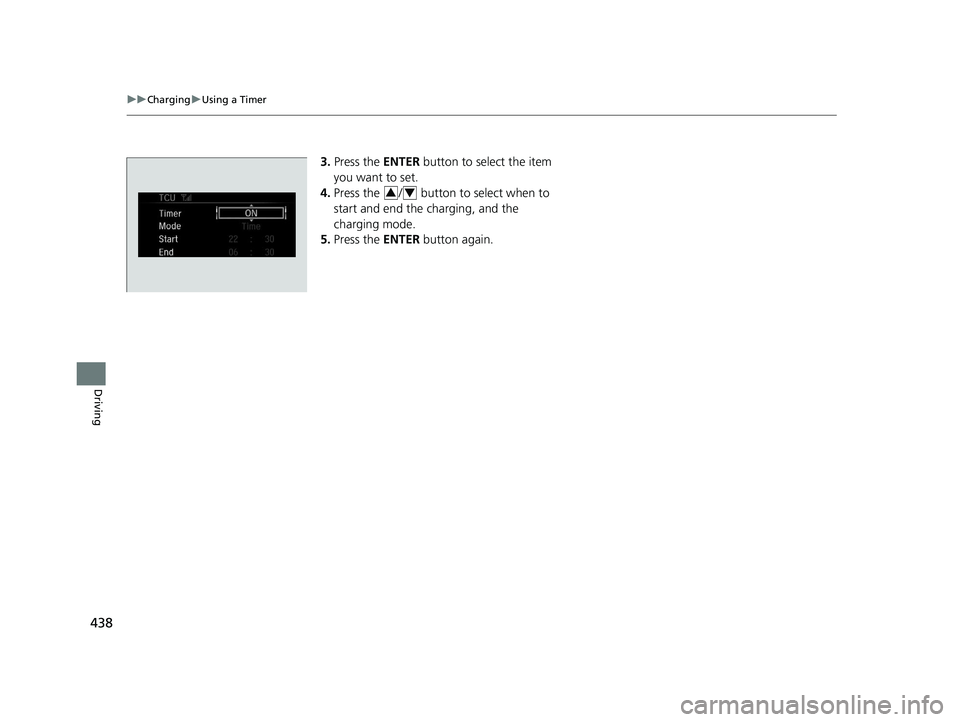

3. Press the ENTER button to select the item
you want to set.
4. Press the / button to select when to
start and end the charging, and the
charging mode.
5. Press the ENTER button again.
34
