HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Quick Guide

114    || 115
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Emergency Engine Stop*
The ENGINE START/STOP button may be used to stop the engine due to an 
emergency situation even while driving. If you must stop the engine, choose one of 
the following operations:
• 
Press and hold the ENGINE START/STOP button for 
two seconds, or
• 
Firmly press the ENGINE START/STOP button two 
times.
The steering wheel will not lock. The power mode changes to ACCESSORY, unless 
the shift lever is in Park (P), in which case the power mode changes to VEHICLE OFF.
Because turning off the engine also disables the power assist the engine provides 
to the steering and braking systems, it will require significantly more physical effort 
and time to steer and slow the vehicle. Downshift gears and use both feet on the 
brake pedal, if necessary, to slow the vehicle and stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary for the engine 
to be switched off.
*if equipped
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The 
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can 
damage the transmission.
NOTICE
Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving.
If your vehicle’s tire pressure becomes significantly low, 
the low tire pressure indicator comes on and a message
appears on the multi-information display.
What to Do Stop your vehicle in a safe place. Check the tire
pressure and adjust the pressure to the specified
level. The specified tire pressure is on a label on the 
driver’s doorjamb.
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
2WD models
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front 
tires and lift them off the ground. The rear tires remain on the ground.\
This is an
acceptable way to tow your vehicle.
AWD models
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the ONLY way to transport your vehicle.
Driving on an extremely underinflated tire can cause it to overheat. An overheated 
tire can fail. Always inflate your tires to the specified pressure.
NOTICE
TPMS Calibration
Any time you inflate, change, or rotate one of more of the tires, you \
need to
recalibrate the system.
On vehicles with information display
Press and hold the TPMS button on the dashboard. 
The TPMS indicator blinks, and calibration begins.
On vehicles with multi-information display (MID)
Use the buttons on the steering wheel to enter and operate the Vehicle Settings 
menu (see page 30).
1. Scroll to the Vehicle Settings screen and enter the menu.
2. Select TPMS Calibration.
3. Select Calibrate. Calibration begins.
4. Exit the menu.

116 ||    117
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Tire Pressure Monitoring System (TPMS) — Required Federal Explanatio\
n
U.S. models only
Each tire, including the spare (if provided), should be checked monthly 
when cold and inflated to the inflation pressure recommended by the 
vehicle manufacturer on the vehicle placard or tire inflation pressure\

label.
(If your vehicle has tires of a different size than the size indicated on the 
vehicle placard or tire inflation pressure label, you should determine the 
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped 
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you should
stop and check your tires as soon as possible, and inflate them to the 
proper pressure.
Driving on a significantly under-inflated tire causes the tire to overheat 
and can lead to tire failure. Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a substitute for proper tire maintenance, 
and it is the driver’s responsibility to maintain correct tire pressure, even 
if under-inflation has not reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator 
to indicate when the system is not operating properly. The TPMS
malfunction indicator is combined with the low tire pressure telltale. 
When the system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously illuminated. This \
sequence will continue upon subsequent vehicle start-ups as long as the 
malfunction exists.
When the malfunction indicator is illuminated, the system may not be able 
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the replacement
or alternate tires and wheels allow the TPMS to continue to function
properly.
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually 
to reduce speed. Then, stop in a safe place. Replace the flat tire wit\
h the compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or 
replaced.
Getting Ready to Change the Tire
Park the vehicle on a firm, level, non-slippery surface. Apply the parking brake, 
shift to Park (P), and turn the vehicle off. Turn on the hazard warning lights.
1. Open the tailgate. Turn on the cargo lights if
necessary (see page 39).
2. Open the cargo area floor lid.
3. Take the tool bag out of the cargo area. Take the 
jack handle bar and wheel nut wrench out of the 
tool bag.
4. Take the jack out of the spare tire area.
5. Unscrew the wing bolt and remove the spacer 
cone. Then remove the spare tire.
6. Place a wheel block or rock in front and rear of 
the wheel diagonal to the flat tire.
7. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that needs 
to be replaced.
8. Loosen each wheel nut about one turn using the 
wheel nut wrench.
Tool bagSpare tire

118 || 119
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Setting Up the Jack
1. Place the jack under the jacking point closest to
the tire to be changed.
2. Turn the end bracket clockwise (as shown in 
the image) until the top of the jack contacts the
jacking point. Make sure that the jacking point
tab is resting in the jack notch.
3. Raise the vehicle, using the jack handle bar and 
the jack handle, until the tire is off the ground.
The vehicle can easily roll off the jack, seriously injuring anyone unde\
rneath.
Follow the directions for changing a tire exactly, and never get under the
vehicle when it is supported only by the jack.
WARNING
Jack
handle
bar Wheel nut
Wrench as jack handle
The following instructions must be followed to use the jack safely:
• Do not use the jack with people or luggage in the vehicle.
•  Use the jack provided in your vehicle. Other jacks may not support the w\
eight
(“load”) or fit the jacking point.
• 
Do not use while the engine is running.
•  Use only where the ground is firm and level.
•  Use only at the jacking points.
• 
Do not get in the vehicle while using the jack.
• Do not put anything on top of or underneath the jack.
Replacing the Flat Tire
1. Remove the wheel nuts and flat tire.
2. Mount the compact spare tire. Replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not overtighten the 
wheel nuts.
If you drive with the spare tire installed, the 
low tire pressure/TPMS indicator appears. The 
indicator stays on until a regular tire is installed.
Loose items can fly around the interior in a crash and can seriously i\
njure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Storing the Flat Tire
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing bolt, flip 
it over, and insert it back on the bolt. Secure the 
flat tire with the wing bolt.
4. Securely store the wheel nut wrench and jack
handle bar back in the tool bag. Store the bag in 
the cargo area.
5. Store the jack in its holder. Turn the jack’s end bracket to lock it in place.
Wing bolt
Spacer
cone For compact
spare tireFor full-size tire

120 || 121
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any 
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the 
fuse in question by the fuse number and box cover number. 
Engine Compartment Fuse Box
Located under the hood near the brake fluid reservoir. Push the tabs to open the 
box.
89VSA ECU7.5 A
10 (7.5 A)
11STRLD7.5 A
12 20 A
13Premium Amp*(20 A)
14
15Hazard10 A
16
17IG Coil15 A
18
19Daytime Running Lights(10 A)
20 Passenger’s Power Seat
Reclining (20 A)
21Deicer(15 A)
22
23IGP15 A
24
25Right Headlight Low Beam10 A
26
27MG Clutch7.5 A
28
29Backu p10A
Circuit Protecte dAmps7.5 A
10 A
10 A
15 A
15 A
10 A
20 A
7.5 A
Sub Fan Rly CL
HornStop
IGP2
DBW
Left Headlight Low Beam SMALL
Interior Lights
Heated Door Mirror
*
Injector
Circuit ProtectedAmps
1
EPS70
APower Tailgate(40 A)ABS/VSA FSR20 AABS/VSA Motor40 AE-DPS*(30 A)Main Fuse120 A
2
Main50A
Fuse Box Main
Fuse Box Main 260A
Headlight High Beam Main
ST Magnetic Switch(30 A)
Rear Defogger
Heater Motor
Front Wiper Main Sub Fan Moto r
Main Fan Motor
3
DC/DC1(30 A)DC/DC2(30 A)IG MAIN(30 A)IG MAIN2(30 A)
4
5
6
7
60 A
30 A
30 A
40 A
30 A
20 A
20 A



(30 A)
*if equipped
Ta b
Circuit ProtectedAmps12ACG10
A3SRS10A4Fuel Pump15A
5Meter10A6Power Window7.5 A7VB SOL7.5 A
8Passenger’s Side Door Lock
Motor 2 (Unlock)15 A
9Driver’s Side Door Lock
Motor 1 (Unlock )15A
10 (7.5 A)
11Moonroof*(20 A)
12 Accessory Power Socket
(Center Console )20
A
13Washer Main*(15 A)
14 (20A )
15Driver’s Door Lock Motor
(Unlock)10 A
16 (20 A)
17Driver's Power Seat
Reclining*(20 A)
18
19ACC7. 5A
Driver's Power Seat Sliding*
Seat Heaters*
Trailer*
Front Passenger’s Seat
Sliding*(20 A)
2021Daytime Running Lights7.5 A
22
23Wipe r10 A
24
25Audio10 A
26 (20 A)
27Accessory Power Socket
(Front)20A
28 15A
29OPDS7.5A
30 Driver’s Door Lock Motor
(Lock) 10
A
31Smart*(10 A)
32 Passenger’s Side Door
Lock
Motor 2 (Lock )15
A
33Driver’s Side Door Lock
Motor 1 (Lock)15 A
34
35Illumination7.5 A
36 (10 A)
37Front Fog Lights*(20 A)
38
3910 A
40
41Door Loc k20 A
42 Driver’s Side Power
Window 20
A
43Rear Passenger’s Side
Power Window20 A
44 Front Passenger’s Side
Power Window 20
A
45Rear Driver’s Side Power
Window20 A
46
Circuit ProtectedAmps
Washer*
Power Tailgate*
7. 5A
ABS/VSA 7.
5A
A/C 7.5
A
ACC Key Lock
Right Headlight High Beam

10 A
Left Headlight High Beam Rear Wiper Main
*
10 A
Small Lights


Interior Fuse Box
Located under the dashboard.
*if equipped
Fuse label
Fuse box

122 || 123
MAINTENANCE
HANDLING THE UNEXPECTED

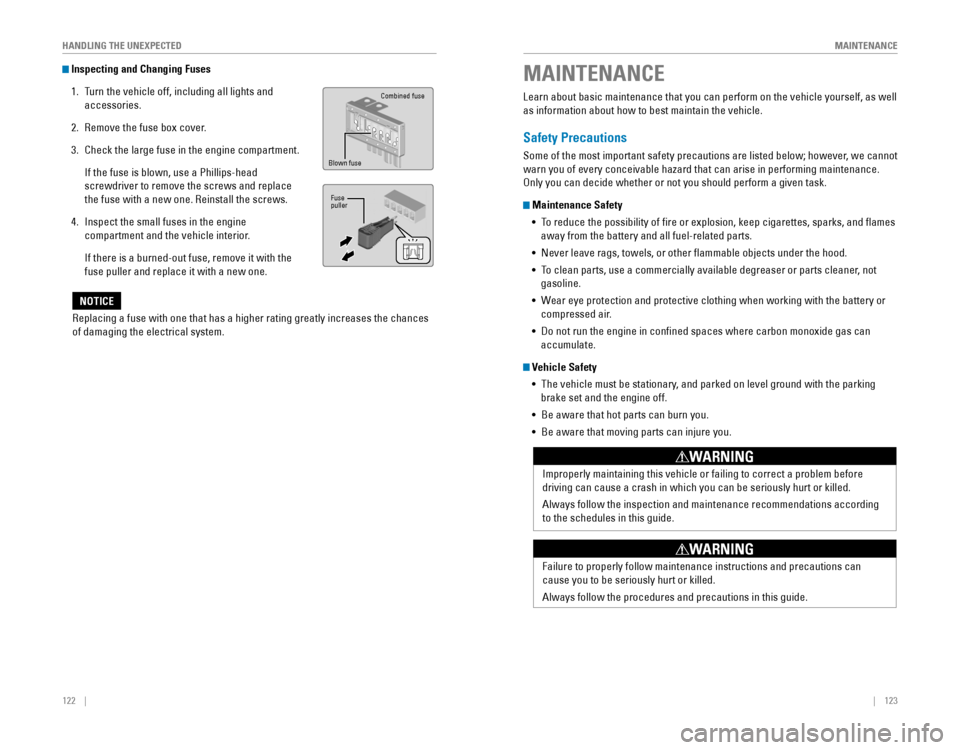

Inspecting and Changing Fuses
1. Turn the vehicle off, including all lights and
accessories.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
 If the fuse is blown, use a Phillips-head 
screwdriver to remove the screws and replace
the fuse with a new one. Reinstall the screws.
4. Inspect the small fuses in the engine 
compartment and the vehicle interior.
 If there is a burned-out fuse, remove it with the 
fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the\
chances
of damaging the electrical system.
NOTICE
Blown fuse
Combined fuse
Fuse
puller
Learn about basic maintenance that you can perform on the vehicle yourself, as well 
as information about how to best maintain the vehicle.
Safety Precautions
Some of the most important safety precautions are listed below; however, we cannot 
warn you of every conceivable hazard that can arise in performing maintenance. 
Only you can decide whether or not you should perform a given task.
Maintenance Safety • 
To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames 
away from the battery and all fuel-related parts.
• Never leave rags, towels, or other flammable objects under the hood.
• To clean parts, use a commercially available degreaser or parts cleaner, not 
gasoline.
• 
Wear eye protection and protective clothing when working with the battery or 
compressed air.
• 
Do not run the engine in confined spaces where carbon monoxide gas can 
accumulate.
Vehicle Safety • 
The vehicle must be stationary, and parked on level ground with the parking 
brake set and the engine off.
• Be aware that hot parts can burn you.
•  Be aware that moving parts can injure you.
MAINTENANCE
Improperly maintaining this vehicle or failing to correct a problem before 
driving can cause a crash in which you can be seriously hurt or killed. 
Always follow the inspection and maintenance recommendations according
to the schedules in this guide.
WARNING
Failure to properly follow maintenance instructions and precautions can \
cause you to be seriously hurt or killed.
Always follow the procedures and precautions in this guide.
WARNING

124    || 125
MAINTENANCE
MAINTENANCE
Maintenance Minder™
Reminds you when indicated maintenance service is due.
Models with information display
When maintenance is due, the Maintenance Minder indicator comes on and a\

message appears on the display every time you turn the vehicle on. Press the select/
reset knob to change displays.
Maintenance
Minder indicator
Main itemsSub items
Maintenance Minder message
Models with multi-information display
When maintenance is due, the system message indicator comes on and a mes\
sage
appears on the display every time you turn the vehicle on. Press the Info button on 
the steering wheel to change displays.
System message
indicator
Main itemsSub items
Maintenance Minder message
• Independent of the Maintenance Minder information, replace the brake fluid 
every 3 years.
• 
Inspect idle speed every 160,000 miles (256,000 km).
•  Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
U.S. models
Maintenance, replacement, or repair of emissions control devices and sys\
tems
may be done by any automotive repair establishment or individuals using \
parts
that are certified to EPA standards.
According to state and federal regulations, failure to perform maintenan\
ce on the
maintenance main items marked with # will not void your emissions warranties.
However, all maintenance services should be performed in accordance with the 
intervals indicated by the multi-information display.
Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change \
the engine oil every year.
#: See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
Replace engine oi l*1
BReplace engine oil*1 and oil lter
Inspect front and rear brakes
Check parking brake adjustment
Inspect tie rod ends, steering gearbox, and boots
Inspect suspension components
Inspect driveshaft boots
Inspect brake hoses and lines (Including ABS/VSA)
Inspect all uid levels and condition of uids
Inspect exhaust system#
Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every \
15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of s\
oot in the air from industry and diesel-powered vehicles, replace the dust and pollen lter every \
15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher
transmission temperatures. This requires transmission uid changes mo\
re frequently than
recommended by the Maintenance Minder. If you regularly drive your vehic\
le under these
conditions, have the transmission uid changed every 25,000 miles (4\
0,000 km).
CODEMaintenance Sub Items
1
Rotate tires
2Replace air cleaner element*2
Replace dust and pollen lter*3
Inspect drive belt
3
Replace transmission uid*4
4Replace spark plug s
Inspect valve clearance
5
Replace engine coolant
6Replace rear differential uid*

126 ||    127
MAINTENANCE
MAINTENANCE

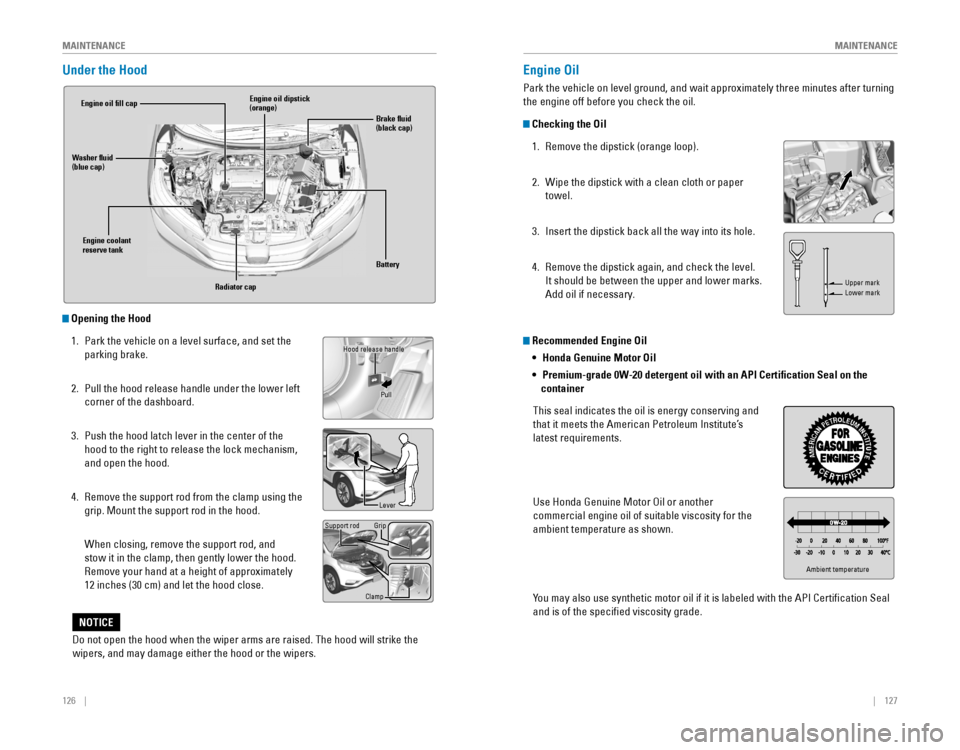

Under the Hood
Opening the Hood
1. Park the vehicle on a level surface, and set the
parking brake.
2. Pull the hood release handle under the lower left
corner of the dashboard.
3. Push the hood latch lever in the center of the
hood to the right to release the lock mechanism,
and open the hood.
4. Remove the support rod from the clamp using the
grip. Mount the support rod in the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the hood.
Remove your hand at a height of approximately
12 inches (30 cm) and let the hood close.
Engine coolant
reserve tank
Washer fluid
(blue cap)
Engine oil fill cap
Engine oil dipstick
(orange)
Brake fluid
(black cap)
Battery
Radiator cap
Hood release handle
Lever
Support rod Grip
ClampPull
Do not open the hood when the wiper arms are raised. The hood will strike the 
wipers, and may damage either the hood or the wipers.
NOTICE
Recommended Engine Oil
• 
Honda Genuine Motor Oil
•  Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container
This seal indicates the oil is energy conserving and
that it meets the American Petroleum Institute’s 
latest requirements.
Use Honda Genuine Motor Oil or another
commercial engine oil of suitable viscosity for the 
ambient temperature as shown.
You may also use synthetic motor oil if it is labeled with the API Certification Seal 
and is of the specified viscosity grade.
Engine Oil
Park the vehicle on level ground, and wait approximately three minutes after turning
the engine off before you check the oil.
Checking the Oil
1. Remove the dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or paper
towel.
3. Insert the dipstick back all the way into its hole.
4. Remove the dipstick again, and check the level.
It should be between the upper and lower marks. 
Add oil if necessary.
Ambient temperature
Upper mark
Lower mark

128 || 129
MAINTENANCE
MAINTENANCE
Adding Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten it
securely.
4. Wait for three minutes and recheck the engine oil
dipstick.Engine oil fill cap
Do not fill the engine oil above the upper mark. Overfilling the engine oil can result 
in leaks and engine damage.
NOTICE
Failure to reset the engine oil life after a maintenance service results\
in the system
showing incorrect maintenance intervals, which can lead to serious mecha\
nical
problems.
NOTICE
Resetting the Engine Oil Life
If you change or replace the vehicle’s engine oil yourself, you must reset the 
engine oil life. Use the buttons on the steering wheel to operate the Vehicle Menu 
(see page 31).
1. Press MENU.
2. Select Maintenance Info.
3. Press the SOURCE button to enter reset mode.
Select Yes. The maintenance codes disappear,
and the engine oil life display returns to 100%.
Engine Coolant
Park the vehicle on level ground. Check the reserve tank and the coolant\
level in the
radiator. Use Honda Long Life Antifreeze/Coolant Type 2.
Checking the Reserve Tank
1. Check the amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark, add 
the specified coolant until it reaches the MAX
mark.
3. Inspect the cooling system for leaks.
If temperatures consistently below −22°F (−30°C) are expected, the coolant 
mixture should be changed to a higher concentration. Consult a dealer for details 
for more information.
NOTICE
Reserve tank
MAX
MIN
Removing the radiator cap while the engine is hot can cause the coolant \
to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator 
cap.
WARNING
Pour the fluid slowly and carefully so you do not spill any. Clean up any spills
immediately; they can damage components in the engine compartment.
NOTICE
Adding Coolant
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system. Do 
not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base of the 
filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it fully.
6. Pour coolant into the reserve tank until it reaches
the MAX mark. Put the cap back on the reserve 
tank.
Radiator cap

130 || 131
MAINTENANCE
MAINTENANCE

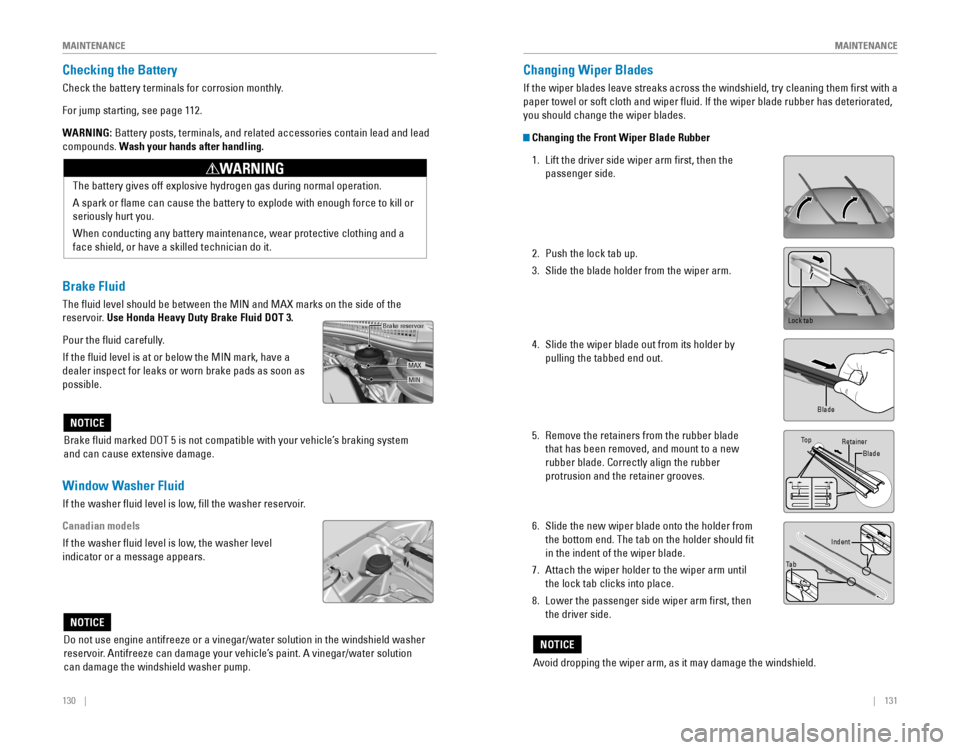

Checking the Battery
Check the battery terminals for corrosion monthly.
For jump starting, see page 112.
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or 
seriously hurt you.
When conducting any battery maintenance, wear protective clothing and a 
face shield, or have a skilled technician do it.
WARNING
Do not use engine antifreeze or a vinegar/water solution in the windshield washer 
reservoir. Antifreeze can damage your vehicle’s paint. A vinegar/water solution 
can damage the windshield washer pump.
NOTICE
Window Washer Fluid
If the washer fluid level is low, fill the washer reservoir. 
Canadian models
If the washer fluid level is low, the washer level 
indicator or a message appears.
Changing Wiper Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a 
paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, 
you should change the wiper blades.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Push the lock tab up. 
3. Slide the blade holder from the wiper arm.
4. Slide the wiper blade out from its holder by 
pulling the tabbed end out.
5. Remove the retainers from the rubber blade 
that has been removed, and mount to a new 
rubber blade. Correctly align the rubber 
protrusion and the retainer grooves.
6. Slide the new wiper blade onto the holder from 
the bottom end. The tab on the holder should fit 
in the indent of the wiper blade.
7. Attach the wiper holder to the wiper arm until
the lock tab clicks into place.
8. Lower the passenger side wiper arm first, then
the driver side.
Lock tab
Blade
To p Retainer
Blade
Ta b Indent
Avoid dropping the wiper arm, as it may damage the windshield.
NOTICE
Brake fluid marked DOT 5 is not compatible with your vehicle’s braking system 
and can cause extensive damage.
NOTICE
Brake Fluid
The fluid level should be between the MIN and MAX marks on the side of the 
reservoir. Use Honda Heavy Duty Brake Fluid DOT 3.
Pour the fluid carefully.
If the fluid level is at or below the MIN mark, have a 
dealer inspect for leaks or worn brake pads as soon as 
possible.
Brake reservoir
MIN
MAX

132 || 133
MAINTENANCE
MAINTENANCE

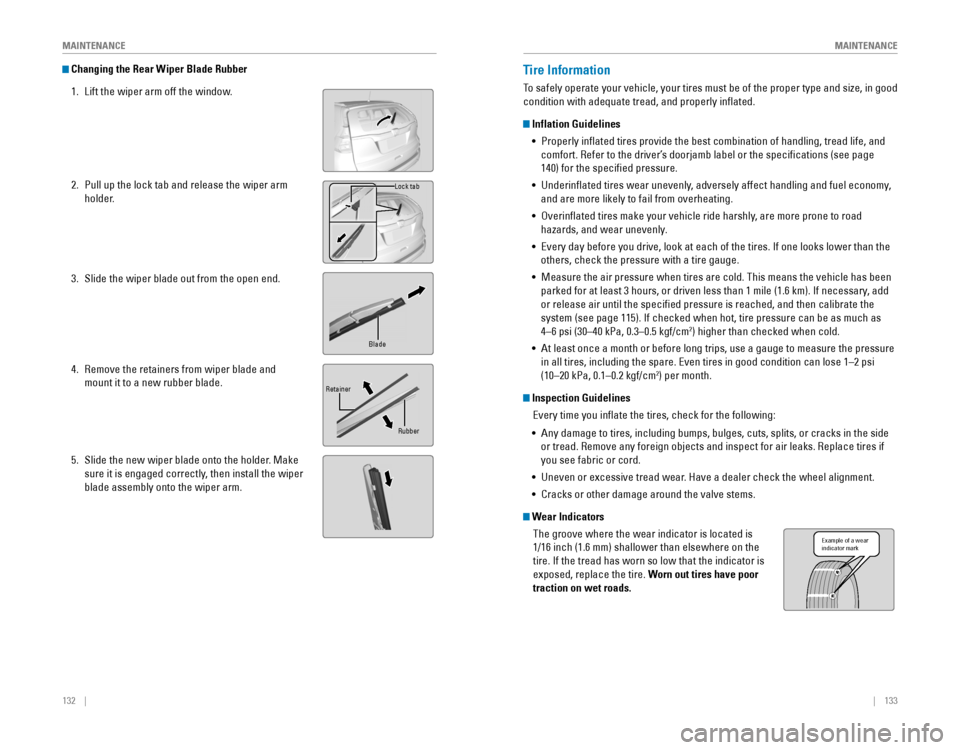

Changing the Rear Wiper Blade Rubber
1. Lift the wiper arm off the window.
2. Pull up the lock tab and release the wiper arm 
holder.
3. Slide the wiper blade out from the open end.
4. Remove the retainers from wiper blade and 
mount it to a new rubber blade.
5. Slide the new wiper blade onto the holder. Make 
sure it is engaged correctly, then install the wiper
blade assembly onto the wiper arm.
Lock tab
Blade
Retainer Rubber
Tire Information
To safely operate your vehicle, your tires must be of the proper type and size, in good 
condition with adequate tread, and properly inflated.
Inflation Guidelines• 
Properly inflated tires provide the best combination of handling, tread life, and 
comfort. Refer to the driver’s doorjamb label or the specifications (see page 
140) for the specified pressure.
•  Underinflated tires wear unevenly, adversely affect handling and fuel economy,
and are more likely to fail from overheating.
•  Overinflated tires make your vehicle ride harshly, are more prone to road
hazards, and wear unevenly.
• Every day before you drive, look at each of the tires. If one looks lower than the 
others, check the pressure with a tire gauge.
• 
Measure the air pressure when tires are cold. This means the vehicle has been 
parked for at least 3 hours, or driven less than 1 mile (1.6 km). If necessary, add 
or release air until the specified pressure is reached, and then calibrate the 
system (see page 115). If checked when hot, tire pressure can be as much as 
4–6 psi (30–40 kPa, 0.3–0.5 kgf/cm2) higher than checked when cold.
• 
At least once a month or before long trips, use a gauge to measure the pressure 
in all tires, including the spare. Even tires in good condition can lose 1–2 psi 
(10–20 kPa, 0.1–0.2 kgf/cm2) per month.
Inspection Guidelines
Every time you inflate the tires, check for the following:
• Any damage to tires, including bumps, bulges, cuts, splits, or cracks in the side 
or tread. Remove any foreign objects and inspect for air leaks. Replace tires if 
you see fabric or cord. 
•  Uneven or excessive tread wear. Have a dealer check the wheel alignment.
•  Cracks or other damage around the valve stems.
Wear Indicators
The groove where the wear indicator is located is
1/16 inch (1.6 mm) shallower than elsewhere on the 
tire. If the tread has worn so low that the indicator is 
exposed, replace the tire. Worn out tires have poor
traction on wet roads.
Example of a wear
indicator mark
