HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Quick Guide
Manufacturer: HONDA, Model Year: 2016, Model line: CR-V, Model: HONDA CR-V 2016 RM1, RM3, RM4 / 4.GPages: 80, PDF Size: 7.99 MB
Page 31 of 80
54    || 55
AUDIO AND CONNECTIVITY
V
EHICLE CONTROLS
Setting the Clock
Adjust the time using the steps described for your vehicle type.
Using the SETUP Button*
Use this method for vehicles with one display. Use the selector knob to make and 
enter selections.
1. Press the SETUP button.
2. Select Adjust Clock.
3. Select the hour and adjust as necessary.
4. Select the minutes and adjust as necessary.
5. Select Set when complete.
6. Press the Back button to exit the menus.
Using the Settings Menu*
Use this method for vehicles with touchscreen. Touch items to make selections.
On vehicles with navigation, the time is automatically set using GPS sig\
nals.
1. From the HOME screen, select Settings.
2. Select the Clock/Info tab.
3. Select Clock Adjustment.
4. Adjust the hour and minute vaules.
5. Select OK when complete.
*if equipped
Learn how to operate the vehicle’s audio system.
Basic Audio Operation
Connect audio devices and operate buttons and displays for the audio system.
USB Adapter Cable*
1. Open the center console. Unclip the USB
connector and loosen the adapter cable.
2. Connect a USB flash drive or other audio device,
such as an iPod® or iPhone®.
AUDIO AND CONNECTIVITY
*if equipped
Do not insert an automotive type cigarette lighter element. This can overheat the 
power socket.
NOTICE
USB Port*
1. Open the center console. Open one of the USB
covers.
2. Insert a USB flash drive into the USB port, or 
connect another audio device, such as an iPod®
or iPhone®, into the USB port.
iPod and iPhone are trademarks of Apple, Inc.State or local laws may prohibit the operation  of handheld electronic devices while operating a vehicle.
Accessory Power Socket
Open the socket cover in the front console to use
power when the vehicle is on. An additional power
socket is also located in the center console.
Page 32 of 80
56 ||    57
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
*if equipped
HDMI Port*
Play video from a compatible device through your vehicle. The device or video 
resolution must be 720p or lower to view in the touchscreen. This feature is limited 
while the vehicle is moving. Additonal cables and connectors are sold separately.
1. Open the center console. Open the HDMI cover.
2. Insert an HDMI cable to the HDMI port.
From the connected device, launch the video you
want to display on the touchscreen.
*if equipped
Adjusting the Sound
Adjust various sound settings.
Models with one display
Use the selector knob to make and enter selections.
1. Press the SETUP button.
2. Select Sound Settings.
3. Select a sound mode to change, and adjust it
using the selector knob.
4. Press the Back button to exit the menu.
Models with touchscreen
Make selections using the touchscreen.
1. From the HOME screen, select Settings.
2. Select Audio.
3. Select Sound.
4. Select the tabs to change the sound mode and 
adjust the setting.
5. Select OK when complete. Steering Wheel ControlsYou can operate certain functions of the audio
system using the steering wheel controls.
SOURCE button:
 Cycle through available audio 
modes.
t/u buttons:
 Change presets, tracks, albums, or 
folders.
+/- buttons: Adjust audio volume.
MENU button: From the audio screen, press and hold to choose options for the
current audio mode (models with touchscreen).
FM/AM/XM
® Radio
Press t or u for the next or previous station.
Press and hold t or u for the next or previous strong station.
CD/iPod
®/USB/Bluetooth® Audio
Press t or u for the next or previous track.
Press and hold t or u
 for the next or previous folder (CD/USB).
Pandora®
Press u for the next song.
Press and hold t or u for the next or previous station.
Auxiliary Input Jack*
Connect standard audio devices with a 1/8-inch 
(3.5 mm) stereo miniplug.
1. Open the AUX cover.
2. Insert the miniplug attached to the audio device 
into the jack. The audio system switches to
AUX mode. Use the device to control the audio.
Page 33 of 80
58 || 59
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with one display
Intelligent Multi-Information Display (i-MID)
Display audio information. Use the buttons to control the display and audio system.
Selector knob/
volume knob:
Make and enter
selections. Rotate
to adjust volume.
Power button:
Press to turn the
audio system on
and off.
SETUP button:
Select various audio
mode options, sound
settings, and clock
adjustment.
BACK button: Go back to the previous display.
i-MID
Press the Display button to scroll through
displays.
Models with one display
FM/AM Radio
Play FM or AM radio stations.
FM/AM button: Select a band.
Preset buttons (1-6):
Press and hold a
preset button to store the current station. Press a preset button to select a previously
stored station.
Seek/Skip buttons:
Search up and down
the selected band for a station with a strong
signal.
Selector knob: Press and rotate to tune radio frequency.
SCAN button: Press to
sample strong stations
on the selected band. Press again to turn off
scan.
(
) buttons:
Press to display a
radio data category.
Press Seek/Skip to search the band for stations in that
category.
FM/AM radio display
Page 34 of 80
60 || 61
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with one display

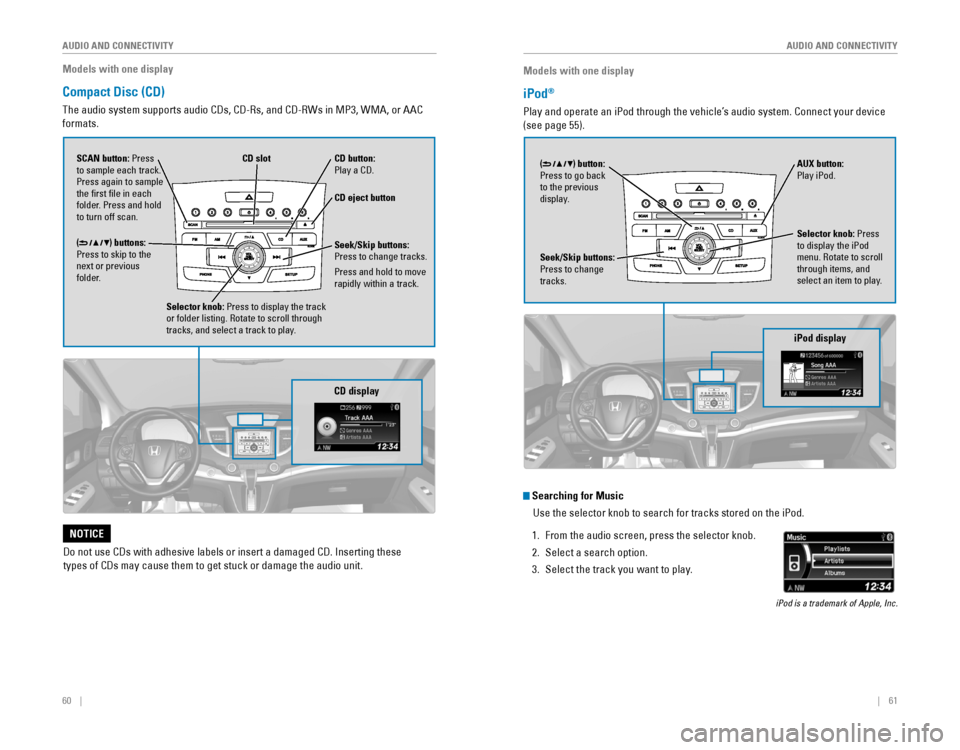

Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or AAC 
formats.
CD eject button
CD slotCD button: Play a CD.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these 
types of CDs may cause them to get stuck or damage the audio unit.
NOTICE
Selector knob: Press to display the track
or folder listing. Rotate to scroll through
tracks, and select a track to play.
CD display
() buttons:
Press to skip to the
next or previous
folder. SCAN button: Press
to sample each track.
Press again to sample
the first file in each
folder. Press and hold
to turn off scan.Seek/Skip buttons:
Press to change tracks.
Press and hold to move
rapidly within a track.
Models with one display
iPod®
Play and operate an iPod through the vehicle’s audio system. Connect your device
(see page 55).
iPod display
Seek/Skip buttons:
Press to change
tracks. AUX button:
Play iPod.
Selector knob: Press
to display the iPod
menu. Rotate to scroll
through items, and
select an item to play.
() button: Press to go back to the previous
display.
Searching for Music
Use the selector knob to search for tracks stored on the iPod.
1. From the audio screen, press the selector knob.
2. Select a search option.
3. Select the track you want to play.
iPod is a trademark of Apple, Inc.
Page 35 of 80
62 || 63
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Searching for Music
Use the selector knob to search for tracks stored on the flash drive.
1. From the audio screen, press the selector knob.
2. Select a folder.
3. Select the track you want to play.
Models with one display
USB Flash Drive
Play and operate a USB flash drive through the vehicle’s audio system. Connect your
device (see page 55).
Selector knob: Press to display the track
or folder listing. Rotate to scroll through
tracks, and select a track to play.
() buttons:
Press to skip to the
next or previous folder. SCAN button: Press
to sample each
track in the current
folder. Press again
to sample the first
file in each folder.
Press and hold to
turn off scan. AUX button: Play a
connected USB flash
drive.
USB display
Seek/Skip buttons:
Press to change
tracks.
Press and hold to
move rapidly within
a track.
Models with one display
Bluetooth® Audio
Play streaming or stored audio from your compatible phone through the vehicle’s 
audio system. Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility. Standard data rates apply. Connect your phone to Bluetooth®
HandsFreeLink®  (see page 75).
Seek/Skip buttons:
Change audio tracks. AUX button: Play
Bluetooth
® Audio.
Preset button 1:
Pause or resume
audio.
Bluetooth® Audio display
Notes:
•  Make sure the volume on your phone is properly adjusted.
• 
You may need to enable additional settings on your phone for playback.• The resume/pause function and remote audio controls are not supported on all phones.
State or local laws may prohibit the operation of  handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Page 36 of 80
64    || 65
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with one display
Pandora®
Play and operate Pandora from your phone through the vehicle’s audio system. Visit
handsfreelink.com
 to check phone compatibility. Standard data rates apply.
Available in the U.S. only.
Connect your phone when the vehicle is stopped.
For iPhone:
•  Connect via Bluetooth
® HandsFreeLink® (see page 75) or USB port (see page 55).
• A pop-up may appear on your phone requesting you to allow access for Pandora to be launched.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth® Audio. Make sure Pandora is selected on the audio system.
• 
If Pandora still does not operate, try rebooting the phone and reconnecting the cable if necessary. 
For Android or BlackBerry:
•  Connect via Bluetooth® HandsFreeLink® (see page 75).
Pandora display
Skip button: Go to
the next song.
Selector knob:
Press to enter the
Pandora menu.
Rotate and press to
make selections. AUX button: Play
Pandora.
() buttons:
Go to the next or
previous station.
State or local laws may prohibit the operation of  handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Models with touchscreen
Touchscreen Operation*
Use simple gestures—including touching, swiping, and scrolling—to \
operate certain
audio functions.
Some items may be grayed out during driving to reduce the potential for distraction. 
You can select them when the vehicle is stopped or use voice commands*.
Wearing gloves may limit or prevent touchscreen response.
*if equipped
**HondaLink can be accessed only if the app is installed on your smartphone, and the phone is connected to the system (see page 66).
Power button:
Turn audio on
or off.
HOME button
(screen shown)
MENU button:
Display menu items for the selected
screen.
BACK button:
Go back to the previous screen.
button:
Change screen
brightness. Settings: Choose
Audio for options. HondaLinkâ„¢:
View apps when
your phone is
connected through
HondaLink**.
Audio:
 Display current audio
information.
Volume
buttons
Page 37 of 80
66 ||    67
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY

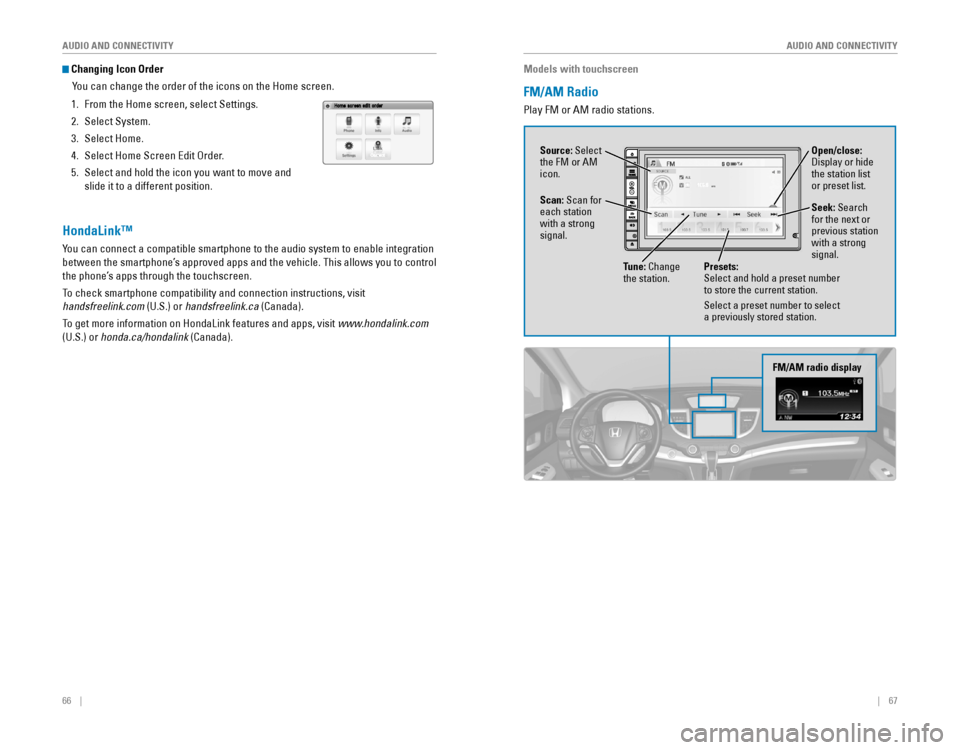

Changing Icon Order
You can change the order of the icons on the Home screen.
1. From the Home screen, select Settings.
2. Select System.
3. Select Home.
4. Select Home Screen Edit Order.
5. Select and hold the icon you want to move and
slide it to a different position.
Models with touchscreen
FM/AM Radio
Play FM or AM radio stations.
FM/AM radio display
Source: Select
the FM or AM
icon.
Tune: Change
the station. Seek: Search
for the next or
previous station
with a strong
signal. Open/close: Display or hide the station list
or preset list.
Scan: Scan for
each station
with a strong
signal.
Presets:
Select and hold a preset number to store the current station.
Select a preset number to select a previously stored station.
HondaLinkâ„¢
You can connect a compatible smartphone to the audio system to enable integration 
between the smartphone’s approved apps and the vehicle. This allows you to control 
the phone’s apps through the touchscreen.
To check smartphone compatibility and connection instructions, visit
handsfreelink.com (U.S.) or handsfreelink.ca (Canada).
To get more information on HondaLink features and apps, visit
www.hondalink.com 
(U.S.) or honda.ca/hondalink (Canada).
Page 38 of 80
68 || 69

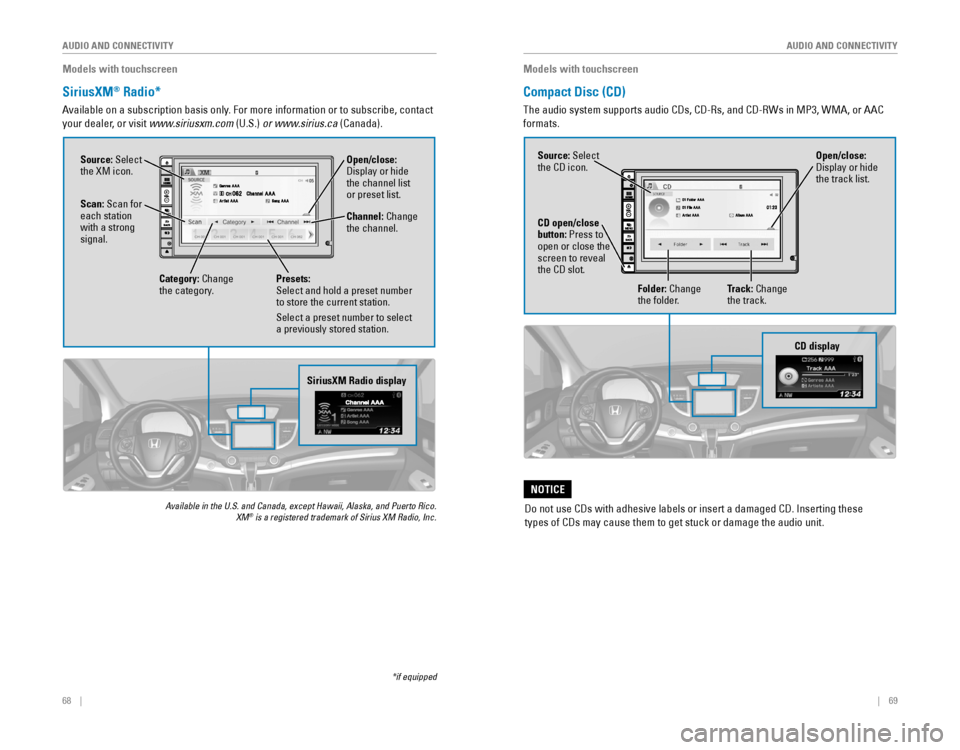

AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
SiriusXM Radio display
Open/close: Display or hide the channel list
or preset list.
Models with touchscreen
SiriusXM® Radio*
Available on a subscription basis only. For more information or to subscribe, contact 
your dealer, or visit www.siriusxm.com (U.S.) or www.sirius.ca (Canada).
Available in the U.S. and Canada, except Hawaii, Alaska, and Puerto Rico. XM® is a registered trademark of Sirius XM Radio, Inc.
Source: Select
the XM icon.
Category: Change
the category. Channel: Change
the channel.
Scan: Scan for
each station
with a strong
signal.
Presets:
Select and hold a preset number to store the current station.
Select a preset number to select a previously stored station.
*if equipped
Models with touchscreen
Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or AAC 
formats.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these 
types of CDs may cause them to get stuck or damage the audio unit.
NOTICE
Source: Select the CD icon.
Folder: Change
the folder.Open/close:
Display or hide the track list.
Track: Change
the track.
CD open/close button: Press to
open or close the
screen to reveal
the CD slot.
CD display
Page 39 of 80
70    ||    71
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with touchscreen
iPod®
Play and operate an iPod through the vehicle’s audio system. Connect your device to
the USB port (see page 55).
iPod display
Source: Select
the iPod icon.
Open/close:
Display or hide the track list.
MENU button:
Display menu options,
including
Music Search. Songs: Change
the track.
Models with touchscreen
USB Flash Drive
Play and operate a USB flash drive through the vehicle’s audio system. Connect your
device to the USB port (see page 55).
USB display
Source: Select
the USB icon.
Folder: Change
the folder. Open/close:
Display or hide the track list.
MENU button:
Display menu options,
including
Music Search. Track: Change
the track.
Searching for MusicUse the touchscreen to search for tracks stored on the iPod.
1. From the audio screen, press MENU. 
2. Select Music Search.
3. Select a search option.
4. Select the track you want to play.
Searching for MusicUse the touchscreen to search for tracks stored on the USB flash drive\
.
1. From the audio screen, press MENU. 
2. Select Music Search.
3. Select a folder.
4. Select the track you want to play.
Page 40 of 80
72    ||    73
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with touchscreen
Bluetooth® Audio
Play streaming or stored audio from your compatible phone through the vehicle’s 
audio system. Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility. Standard data rates apply. Connect your phone to Bluetooth®
HandsFreeLink® (see page 80).
ÛÛ
Bluetooth® Audio display
Source: Select
the Bluetooth
icon.
Open/close:
Display or hide the track list.
MENU button:
Display menu options,
including
Music Search. Track: Change
the track.
Play/pause Group: Change
the group.
Models with touchscreen
Pandora®
Play and operate Pandora from your compatible phone through the vehicle’s audio 
system. Visit handsfreelink.com to check phone compatibility. Standard data rates 
apply. Available in the U.S. only.
Connect your phone when the vehicle is stopped.
For iPhone:
• Connect via Bluetooth
® HandsFreeLink® (see page 80) or USB port (see page 55).
• 
A pop-up may appear on your phone requesting you to allow access for Pandora to be launched.
• If you cannot operate Pandora through the audio system, it may be streaming through Bluetooth® Audio. Make sure Pandora is selected on the audio system.
• 
If Pandora still does not operate, try rebooting the phone and reconnecting the cable if necessary. 
For Android or BlackBerry:
•  Connect via Bluetooth® HandsFreeLink® (see page 80).
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
Pandora display
Source: Select
the Pandora icon.
Station: Change
the station.
Skip: Go to
the next song. Open/close:
Display or hide information.
MENU button:
Display menu options,
including the
Station List. Like/dislike
song
Play/Pause
Notes:
•  Make sure the volume on your phone is properly adjusted.
• 
You may need to enable additional settings on your phone for playback.• The resume/pause function and remote audio controls are not supported on all phones.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so.
