HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Quick Guide

74    ||    75

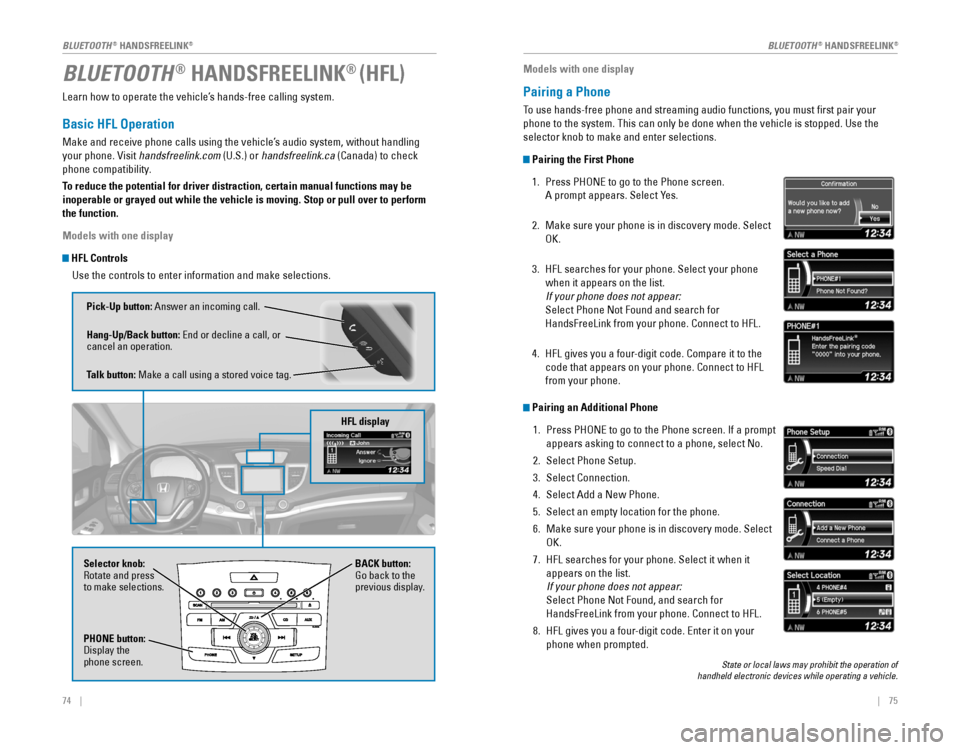

Learn how to operate the vehicle’s hands-free calling system.
Basic HFL Operation
Make and receive phone calls using the vehicle’s audio system, without handling
your phone. Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Stop or pull over \
to perform
the function.
Models with one display
HFL ControlsUse the controls to enter information and make selections.
BLUETOOTH® HANDSFREELINK® (HFL)
Pick-Up button: Answer an incoming call.
Hang-Up/Back button:
 End or decline a call, or cancel an operation.
Talk button: Make a call using a stored voice tag.
HFL display
Selector knob:
Rotate and press
to make selections. BACK button: Go back to the previous display.
PHONE button: Display the phone screen.
Models with one display
Pairing a Phone
To use hands-free phone and streaming audio functions, you must first p\
air your
phone to the system. This can only be done when the vehicle is stopped. Use the 
selector knob to make and enter selections.
Pairing the First Phone
1. Press PHONE to go to the Phone screen.
A prompt appears. Select Yes.
2. Make sure your phone is in discovery mode. Select
OK.
3. HFL searches for your phone. Select your phone
when it appears on the list.
If your phone does not appear:
Select Phone Not Found and search for
HandsFreeLink from your phone. Connect to HFL.
4. HFL gives you a four-digit code. Compare it to the
code that appears on your phone. Connect to HFL
from your phone.
Pairing an Additional Phone
1. Press PHONE to go to the Phone screen. If a prompt 
appears asking to connect to a phone, select No.
2. Select Phone Setup.
3. Select Connection.
4. Select Add a New Phone.
5. Select an empty location for the phone.
6. Make sure your phone is in discovery mode. Select
OK.
7. HFL searches for your phone. Select it when it
appears on the list.
If your phone does not appear: 
Select Phone Not Found, and search for
HandsFreeLink from your phone. Connect to HFL.
8. HFL gives you a four-digit code. Enter it on your 
phone when prompted.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle.
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

76    ||    77

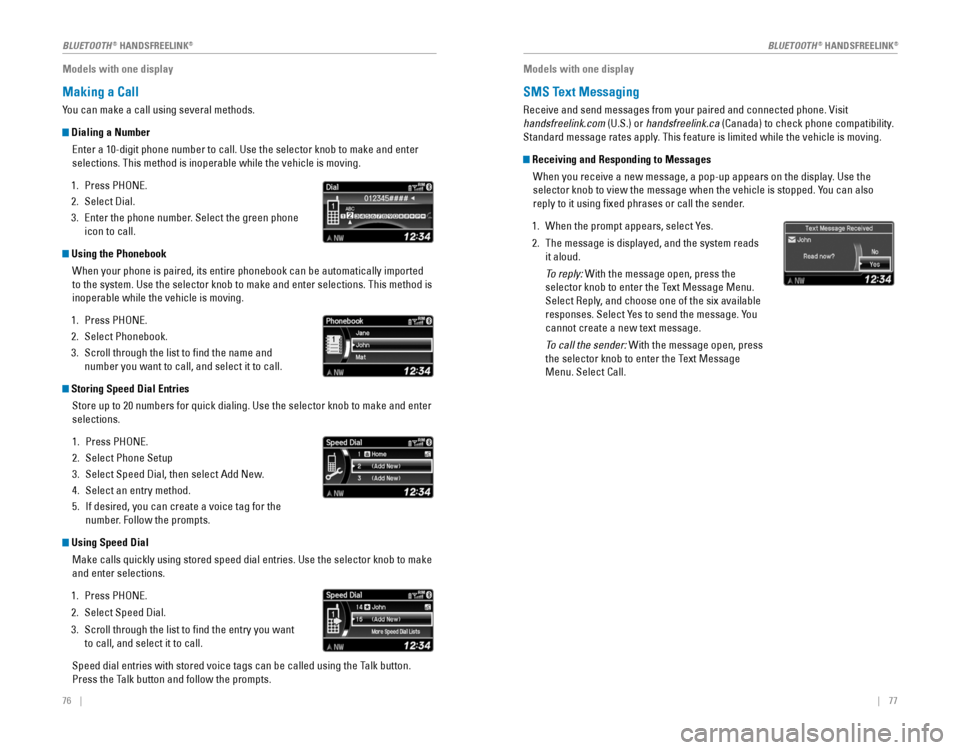

Models with one display
Making a Call
You can make a call using several methods.
Dialing a Number
Enter a 10-digit phone number to call. Use the selector knob to make and enter 
selections. This method is inoperable while the vehicle is moving.
1. Press PHONE.
2. Select Dial.
3. Enter the phone number. Select the green phone 
icon to call.
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported 
to the system. Use the selector knob to make and enter selections. This method is 
inoperable while the vehicle is moving.
1. Press PHONE.
2. Select Phonebook.
3. Scroll through the list to find the name and
number you want to call, and select it to call.
Storing Speed Dial Entries
Store up to 20 numbers for quick dialing. Use the selector knob to make and enter 
selections.
1. Press PHONE.
2. Select Phone Setup
3. Select Speed Dial, then select Add New.
4. Select an entry method.
5. If desired, you can create a voice tag for the 
number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries. Use the selector knob to make 
and enter selections.
1. Press PHONE.
2. Select Speed Dial.
3. Scroll through the list to find the entry you want
to call, and select it to call.
Speed dial entries with stored voice tags can be called using the Talk button. 
Press the Talk button and follow the prompts.
Models with one display
SMS Text Messaging
Receive and send messages from your paired and connected phone. Visit
handsfreelink.com (U.S.) or handsfreelink.ca
 (Canada) to check phone compatibility. 
Standard message rates apply. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the display. Use the
selector knob to view the message when the vehicle is stopped. You can also 
reply to it using fixed phrases or call the sender.
1. When the prompt appears, select Yes.
2. The message is displayed, and the system reads
it aloud.
To reply: With the message open, press the
selector knob to enter the Text Message Menu. 
Select Reply, and choose one of the six available 
responses. Select Yes to send the message. You
cannot create a new text message.
To call the sender: With the message open, press
the selector knob to enter the Text Message 
Menu. Select Call.
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

78    ||    79

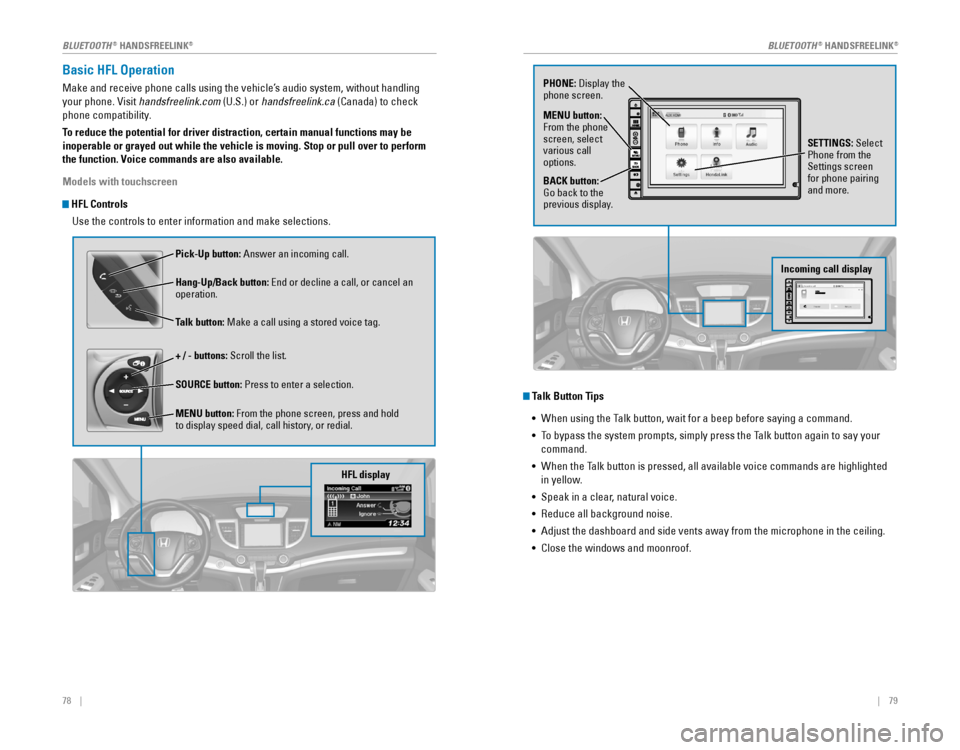

Basic HFL Operation
Make and receive phone calls using the vehicle’s audio system, without handling
your phone. Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check
phone compatibility.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Stop or pull over \
to perform
the function. Voice commands are also available.
Models with touchscreen
HFL Controls
Use the controls to enter information and make selections.
Pick-Up button: Answer an incoming call.
Hang-Up/Back button:
 End or decline a call, or cancel an operation.
Talk button: Make a call using a stored voice tag.
+ / - buttons: Scroll the list.
SOURCE button: Press to enter a selection.
MENU button: From the phone screen, press and hold
to display speed dial, call history, or redial.
HFL display
Talk Button Tips
• 
When using the Talk button, wait for a beep before saying a command.
• To bypass the system prompts, simply press the Talk button again to say your 
command.
• 
When the Talk button is pressed, all available voice commands are highlighted 
in yellow.
•  Speak in a clear, natural voice.
• 
Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
•  Close the windows and moonroof.
PHONE: Display the phone screen.
MENU button:
From the phone
screen, select
various call
options.
BACK button:
Go back to the previous display. SETTINGS: Select
Phone from the
Settings screen
for phone pairing
and more.
Incoming call display
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

80 || 81

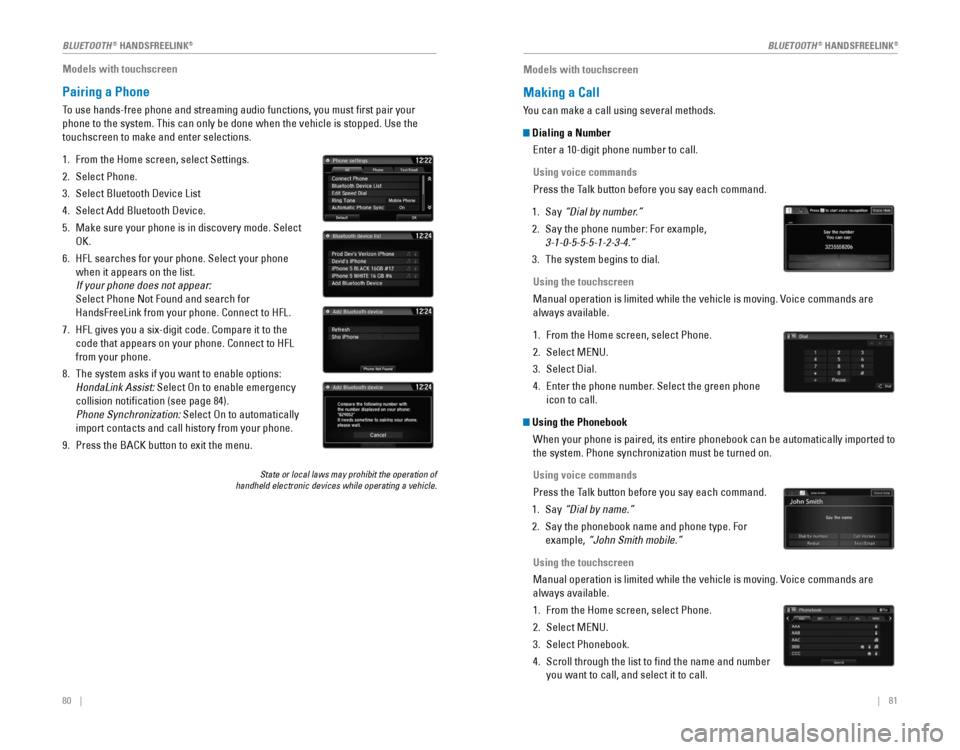

Models with touchscreen
Pairing a Phone
To use hands-free phone and streaming audio functions, you must first p\
air your
phone to the system. This can only be done when the vehicle is stopped. Use the 
touchscreen to make and enter selections.
1. From the Home screen, select Settings.
2. Select Phone.
3. Select Bluetooth Device List
4. Select Add Bluetooth Device.
5. Make sure your phone is in discovery mode. Select
OK.
6. HFL searches for your phone. Select your phone
when it appears on the list.
If your phone does not appear: 
Select Phone Not Found and search for
HandsFreeLink from your phone. Connect to HFL.
7. HFL gives you a six-digit code. Compare it to the
code that appears on your phone. Connect to HFL
from your phone.
8. The system asks if you want to enable options:
HondaLink Assist: Select On to enable emergency 
collision notification (see page 84).
Phone Synchronization: Select On to automatically
import contacts and call history from your phone.
9. Press the BACK button to exit the menu.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle.
Models with touchscreen
Making a Call
You can make a call using several methods.
Dialing a Number
Enter a 10-digit phone number to call.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by number.”
2. Say the phone number: For example,
3-1-0-5-5-5-1-2-3-4.”
3. The system begins to dial.
Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are
always available.
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Dial.
4. Enter the phone number. Select the green phone 
icon to call.
Using the Phonebook
When your phone is paired, its entire phonebook can be automatically imported to 
the system. Phone synchronization must be turned on.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the phonebook name and phone type. For 
example, “John Smith mobile.”
Using the touchscreen
Manual operation is limited while the vehicle is moving. Voice commands are
always available.
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Phonebook.
4. Scroll through the list to find the name and number 
you want to call, and select it to call.
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

82 || 83

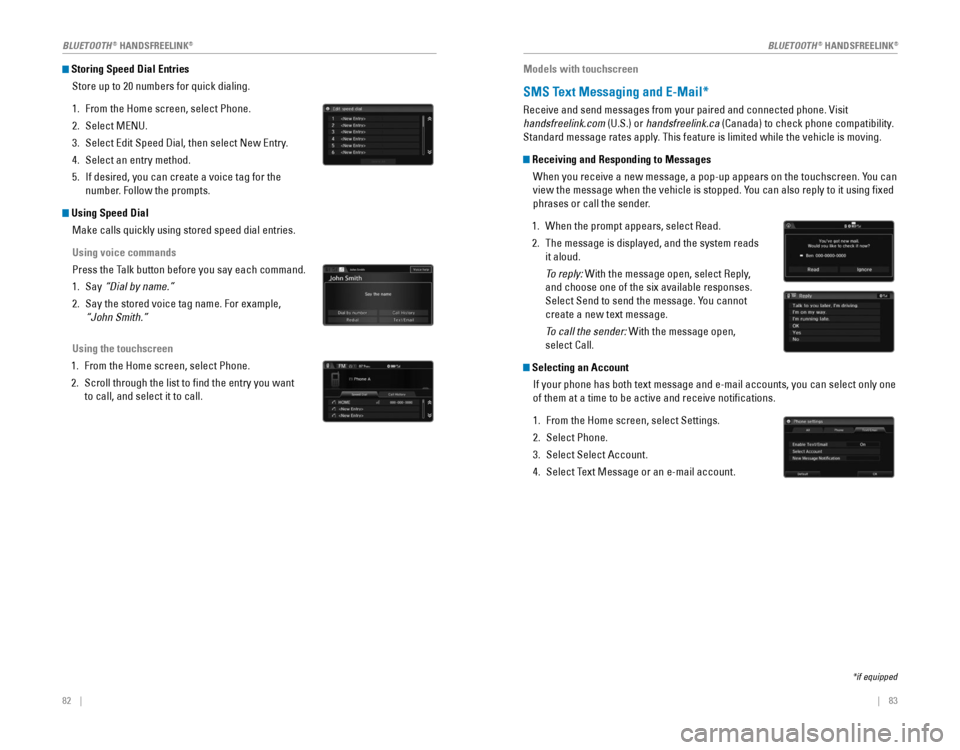

Storing Speed Dial Entries
Store up to 20 numbers for quick dialing. 
1. From the Home screen, select Phone.
2. Select MENU.
3. Select Edit Speed Dial, then select New Entry.
4. Select an entry method.
5. If desired, you can create a voice tag for the 
number. Follow the prompts.
Using Speed Dial
Make calls quickly using stored speed dial entries.
Using voice commands
Press the Talk button before you say each command.
1. Say “Dial by name.”
2. Say the stored voice tag name. For example,
“John Smith.”
Using the touchscreen
1. From the Home screen, select Phone.
2. Scroll through the list to find the entry you want
to call, and select it to call.
Models with touchscreen
SMS Text Messaging and E-Mail*
Receive and send messages from your paired and connected phone. Visit
handsfreelink.com (U.S.) or handsfreelink.ca
 (Canada) to check phone compatibility. 
Standard message rates apply. This feature is limited while the vehicle is moving.
Receiving and Responding to Messages
When you receive a new message, a pop-up appears on the touchscreen. You can
view the message when the vehicle is stopped. You can also reply to it using fixed
phrases or call the sender.
1. When the prompt appears, select Read.
2. The message is displayed, and the system reads
it aloud.
To reply: With the message open, select Reply,
and choose one of the six available responses. 
Select Send to send the message. You cannot
create a new text message.
To call the sender: With the message open,
select Call.
Selecting an Account
If your phone has both text message and e-mail accounts, you can select only one 
of them at a time to be active and receive notifications.
1. From the Home screen, select Settings.
2. Select Phone.
3. Select Select Account.
4. Select Text Message or an e-mail account.
*if equipped
BLUETOOTH® HANDSFREELINK®BLUETOOTH® HANDSFREELINK®

| 85
NAVIGATION84    |

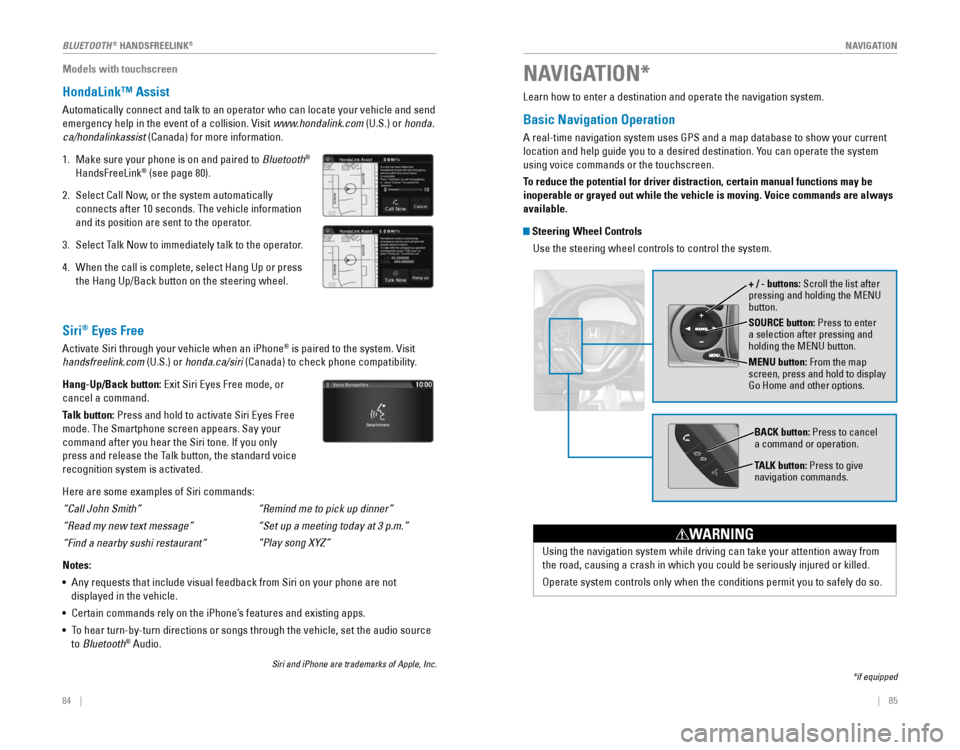

Models with touchscreen
HondaLink™ Assist
Automatically connect and talk to an operator who can locate your vehicl\
e and send
emergency help in the event of a collision. Visit www.hondalink.com (U.S.) or honda.
ca/hondalinkassist (Canada) for more information.
1. Make sure your phone is on and paired to Bluetooth®
HandsFreeLink® (see page 80).
2. Select Call Now, or the system automatically
connects after 10 seconds. The vehicle information
and its position are sent to the operator.
3. Select Talk Now to immediately talk to the operator.
4. When the call is complete, select Hang Up or press
the Hang Up/Back button on the steering wheel.
Learn how to enter a destination and operate the navigation system.
Basic Navigation Operation
A real-time navigation system uses GPS and a map database to show your current 
location and help guide you to a desired destination. You can operate the system
using voice commands or the touchscreen.
To reduce the potential for driver distraction, certain manual functions \
may be
inoperable or grayed out while the vehicle is moving. Voice commands are always
available.
Steering Wheel Controls
Use the steering wheel controls to control the system.
NAVIGATION*
*if equipped
SOURCE button: Press to enter
a selection after pressing and
holding the MENU button.
MENU button: From the map
screen, press and hold to display
Go Home and other options. + / - buttons: Scroll the list after
pressing and holding the MENU button.
Using the navigation system while driving can take your attention away f\
rom
the road, causing a crash in which you could be seriously injured or killed.
Operate system controls only when the conditions permit you to safely do\
so.
WARNING
BACK button: Press to cancel
a command or operation.
TALK button: Press to give
navigation commands.
Siri® Eyes Free
Activate Siri through your vehicle when an iPhone® is paired to the system. Visit
handsfreelink.com (U.S.) or honda.ca/siri
 (Canada) to check phone compatibility.
Hang-Up/Back button: Exit Siri Eyes Free mode, or 
cancel a command.
Talk button:
Press and hold to activate Siri Eyes Free 
mode. The Smartphone screen appears. Say your
command after you hear the Siri tone. If you only 
press and release the Talk button, the standard voice 
recognition system is activated.
Here are some examples of Siri commands:
“Call John Smith”
“Read my new text message”
“Find a nearby sushi restaurant”
Notes:
• 
Any requests that include visual feedback from Siri on your phone are not 
displayed in the vehicle.
•  Certain commands rely on the iPhone’s features and existing apps.
• 
To hear turn-by-turn directions or songs through the vehicle, set the audio source 
to Bluetooth® Audio.
Siri and iPhone are trademarks of Apple, Inc.
“Remind me to pick up dinner”
“Set
 up a meeting today at 3 p.m.”
“Play
 song XYZ”
BLUETOOTH® HANDSFREELINK®

86 ||    87
NAVIGATION
NAVIGATION

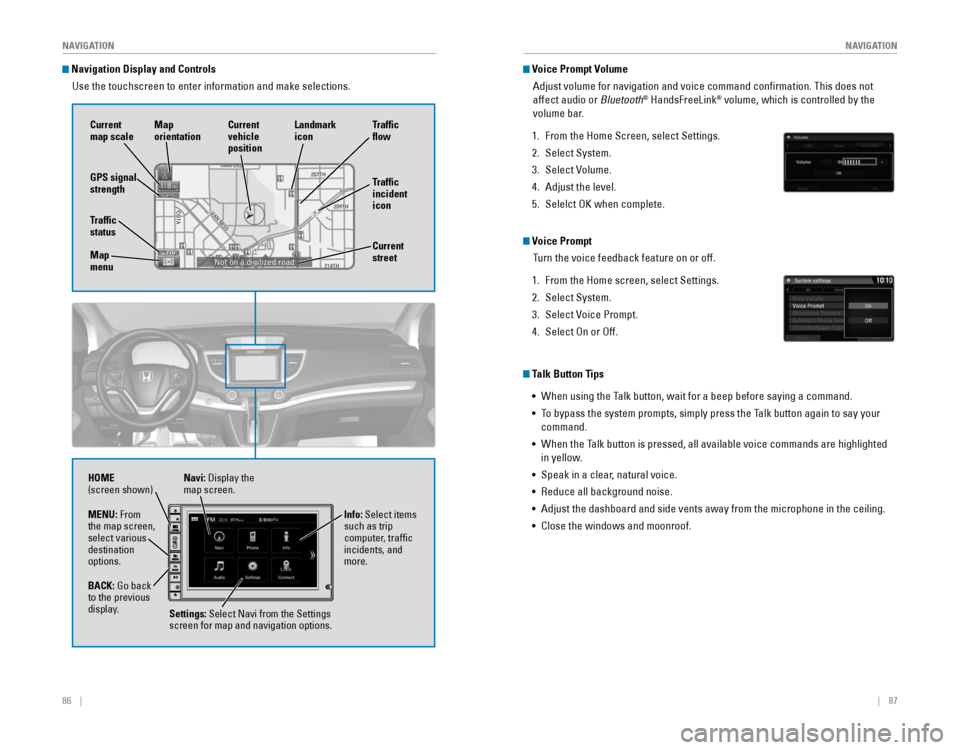

Navigation Display and Controls
Use the touchscreen to enter information and make selections.
Navi: Display the map screen.
HOME
(screen shown)
Info: Select items
such as trip
computer, traffic
incidents, and
more.
BACK:
Go back to the previous
display. Settings: Select Navi from the Settings
screen for map and navigation options.
MENU: From
the map screen,
select various
destination
options.
GPS signal
strength
Traffic
incident
icon Traffic
flow
Current
map scale Current
vehicle
position
Map
orientation
Current
street
Traffic
status
Map
menu Landmark
icon
Voice Prompt Volume
Adjust volume for navigation and voice command confirmation. This does\
not
affect audio or Bluetooth
® HandsFreeLink® volume, which is controlled by the 
volume bar.
1. From the Home Screen, select Settings.
2. Select System.
3. Select Volume.
4. Adjust the level.
5. Selelct OK when complete.
Voice Prompt
Turn the voice feedback feature on or off. 
1. From the Home screen, select Settings.
2. Select System.
3. Select Voice Prompt.
4. Select On or Off.
Talk Button Tips
• 
When using the Talk button, wait for a beep before saying a command.
• To bypass the system prompts, simply press the Talk button again to say your 
command.
• 
When the Talk button is pressed, all available voice commands are highlighted 
in yellow.
•  Speak in a clear, natural voice.
• 
Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
•  Close the windows and moonroof.

88 || 89
NAVIGATION
NAVIGATION

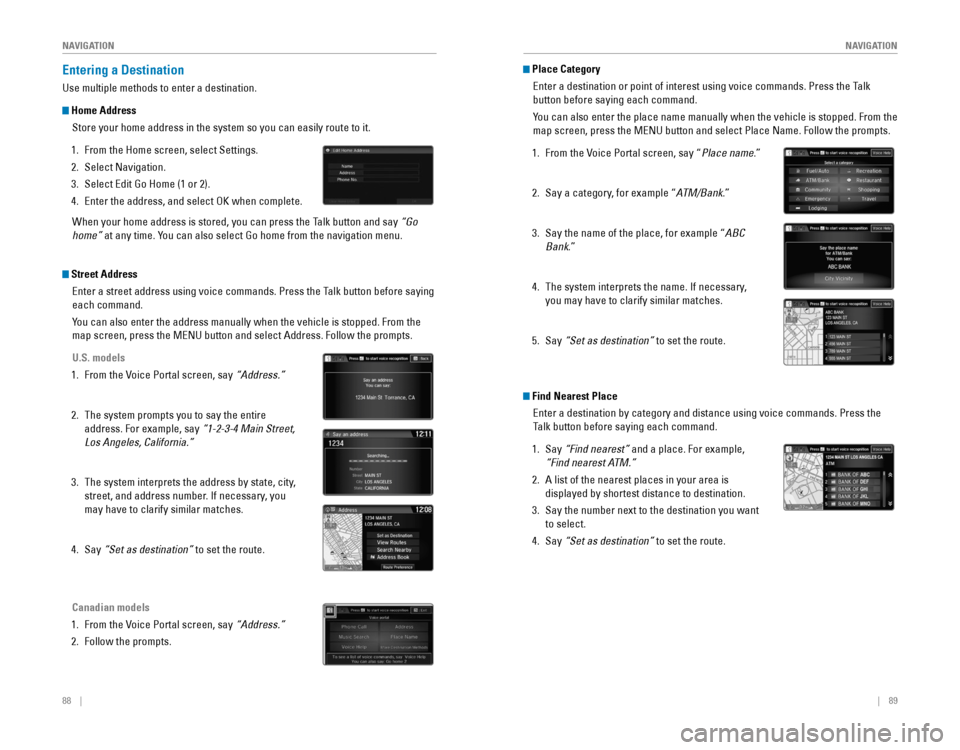

Entering a Destination
Use multiple methods to enter a destination.
Home Address
Store your home address in the system so you can easily route to it.
1. From the Home screen, select Settings.
2. Select Navigation.
3. Select Edit Go Home (1 or 2). 
4. Enter the address, and select OK when complete. 
When your home address is stored, you can press the Talk button and say “Go 
home” at any time. You can also select Go home from the navigation menu.
Place Category
Enter a destination or point of interest using voice commands. Press the Talk 
button before saying each command.
You can also enter the place name manually when the vehicle is stopped. F\
rom the
map screen, press the MENU button and select Place Name. Follow the prompts.
1. From the Voice Portal screen, say “Place name.”
2. Say a category, for example “ATM/Bank.”
3. Say the name of the place, for example “ABC 
Bank.”
4. The system interprets the name. If necessary, 
you may have to clarify similar matches.
5. Say “Set as destination” to set the route.
Street Address
Enter a street address using voice commands. Press the Talk button before saying 
each command.
You can also enter the address manually when the vehicle is stopped. From the
map screen, press the MENU button and select Address. Follow the prompts.
U.S. models
1. From the Voice Portal screen, say “Address.”
2. The system prompts you to say the entire
address. For example, say
“1-2-3-4 Main Street, 
Los Angeles, California.”
3. The system interprets the address by state, city, 
street, and address number. If necessary, you 
may have to clarify similar matches.
4. Say “Set as destination” to set the route.
Canadian models
1. From the Voice Portal screen, say “Address.”
2. Follow the prompts.
Find Nearest Place
Enter a destination by category and distance using voice commands. Press the 
Talk button before saying each command.
1. Say “Find nearest” and a place. For example,
“Find nearest ATM.”
2. A list of the nearest places in your area is
displayed by shortest distance to destination.
3. Say the number next to the destination you want 
to select.
4. Say “Set as destination” to set the route.

90 || 91
NAVIGATION
NAVIGATION

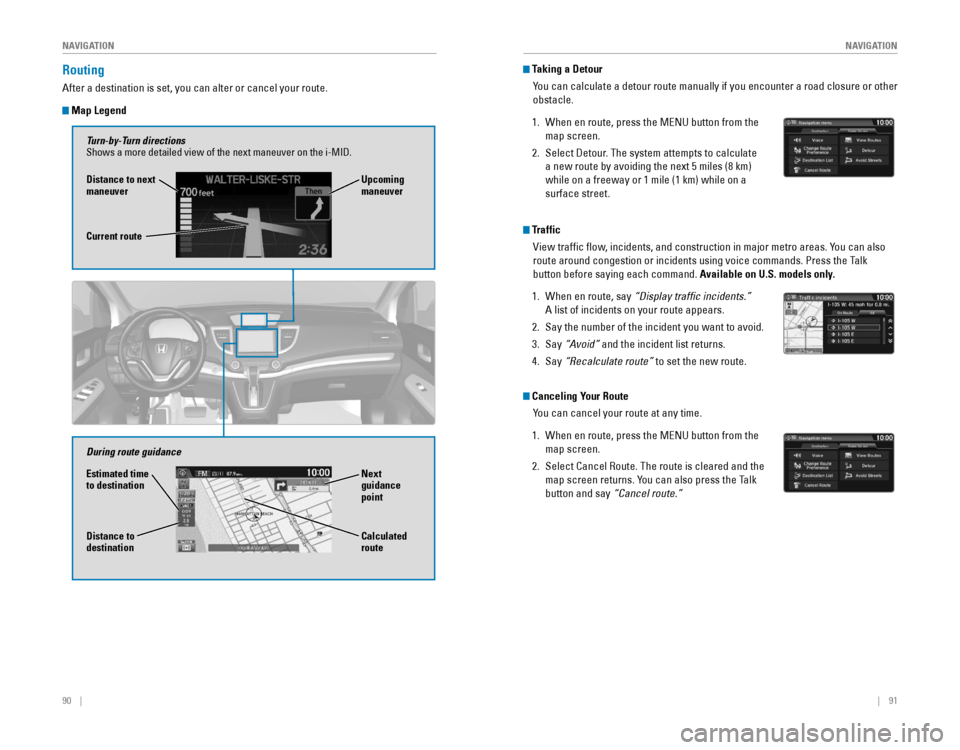

Routing
After a destination is set, you can alter or cancel your route.
Map Legend
During route guidance
Next
guidance
point
Estimated time
to destination
Turn-by-Turn directions
Shows a more detailed view of the next maneuver on the i-MID.
Distance to
destination
Calculated
route
Distance to next
maneuver
Current routeUpcoming
maneuver
Taking a Detour
You can calculate a detour route manually if you encounter a road closure\
or other
obstacle.
1. When en route, press the MENU button from the 
map screen.
2. Select Detour. The system attempts to calculate 
a new route by avoiding the next 5 miles (8 km) 
while on a freeway or 1 mile (1 km) while on a
surface street.
TrafficView traffic flow, incidents, and construction in major metro areas. You can also
route around congestion or incidents using voice commands. Press the Talk
button before saying each command. Available on U.S. models only.
1. When en route, say “Display traffic incidents.”
A list of incidents on your route appears.
2. Say the number of the incident you want to avoid.
3. Say “Avoid” and the incident list returns.
4. Say “Recalculate route” to set the new route.
Canceling Your Route
You can cancel your route at any time.
1. When en route, press the MENU button from the 
map screen.
2. Select Cancel Route. The route is cleared and the
map screen returns. You can also press the Talk
button and say “Cancel route.”

92 || 93
DRIVING
DRIVING
Learn about preparation for driving, as well as other features.

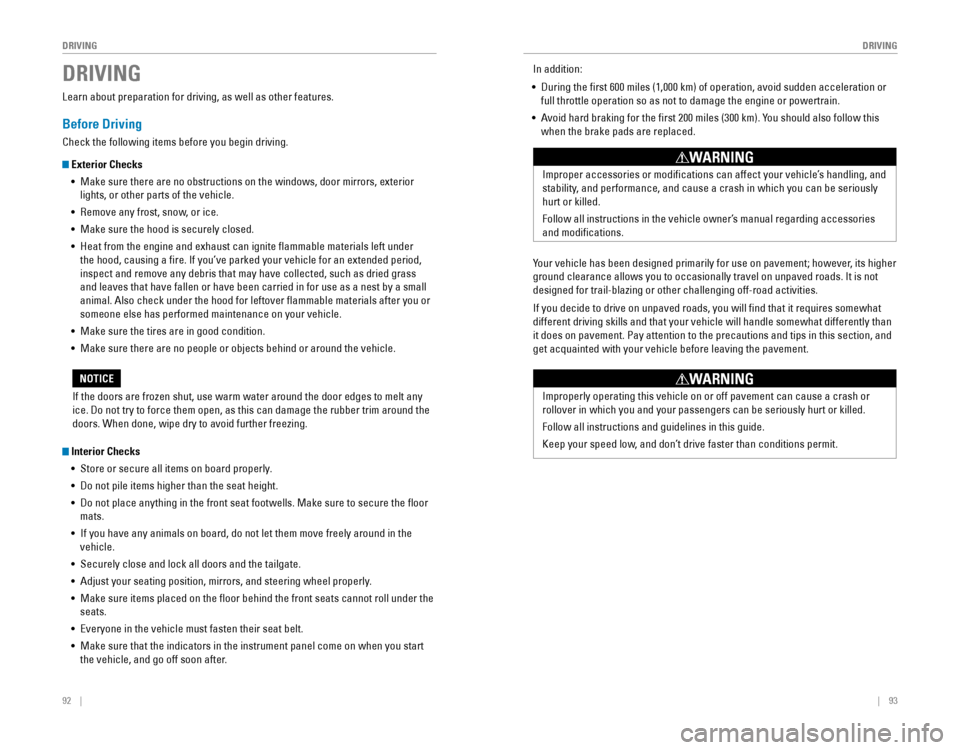

Before Driving
Check the following items before you begin driving.
Exterior Checks
• 
Make sure there are no obstructions on the windows, door mirrors, exterior 
lights, or other parts of the vehicle.
•  Remove any frost, snow, or ice.
•  Make sure the hood is securely closed.
• 
Heat from the engine and exhaust can ignite flammable materials left under 
the hood, causing a fire. If you’ve parked your vehicle for an extended period, 
inspect and remove any debris that may have collected, such as dried grass 
and leaves that have fallen or have been carried in for use as a nest by a small 
animal. Also check under the hood for leftover flammable materials after you or 
someone else has performed maintenance on your vehicle.
•  Make sure the tires are in good condition.
• 
Make sure there are no people or objects behind or around the vehicle.
DRIVING
If the doors are frozen shut, use warm water around the door edges to melt any 
ice. Do not try to force them open, as this can damage the rubber trim around the 
doors. When done, wipe dry to avoid further freezing.
NOTICE
Improper accessories or modifications can affect your vehicle’s handling, and 
stability, and performance, and cause a crash in which you can be seriously 
hurt or killed.
Follow all instructions in the vehicle owner’s manual regarding accessories
and modifications.
WARNING
In addition:
• During the first 600 miles (1,000 km) of operation, avoid sudden acceleration or 
full throttle operation so as not to damage the engine or powertrain.
• 
Avoid hard braking for the first 200 miles (300 km). You should also follow this 
when the brake pads are replaced.
Your vehicle has been designed primarily for use on pavement; however, its higher 
ground clearance allows you to occasionally travel on unpaved roads. It is not 
designed for trail-blazing or other challenging off-road activities.
If you decide to drive on unpaved roads, you will find that it requires somewhat 
different driving skills and that your vehicle will handle somewhat diff\
erently than
it does on pavement. Pay attention to the precautions and tips in this s\
ection, and
get acquainted with your vehicle before leaving the pavement.
Improperly operating this vehicle on or off pavement can cause a crash or 
rollover in which you and your passengers can be seriously hurt or killed.
Follow all instructions and guidelines in this guide.
Keep your speed low, and don’t drive faster than conditions permit.
WARNING
Interior Checks • 
Store or secure all items on board properly.
• Do not pile items higher than the seat height.
• Do not place anything in the front seat footwells. Make sure to secure the floor 
mats.
• 
If you have any animals on board, do not let them move freely around in the 
vehicle.
•  Securely close and lock all doors and the tailgate.
•  Adjust your seating position, mirrors, and steering wheel properly.
• 
Make sure items placed on the floor behind the front seats cannot roll under the 
seats.
• 
Everyone in the vehicle must fasten their seat belt.
•  Make sure that the indicators in the instrument panel come on when you s\
tart
the vehicle, and go off soon after.
