HONDA CR-V 2016 RM1, RM3, RM4 / 4.G Quick Guide

134    || 135
MAINTENANCE
MAINTENANCE

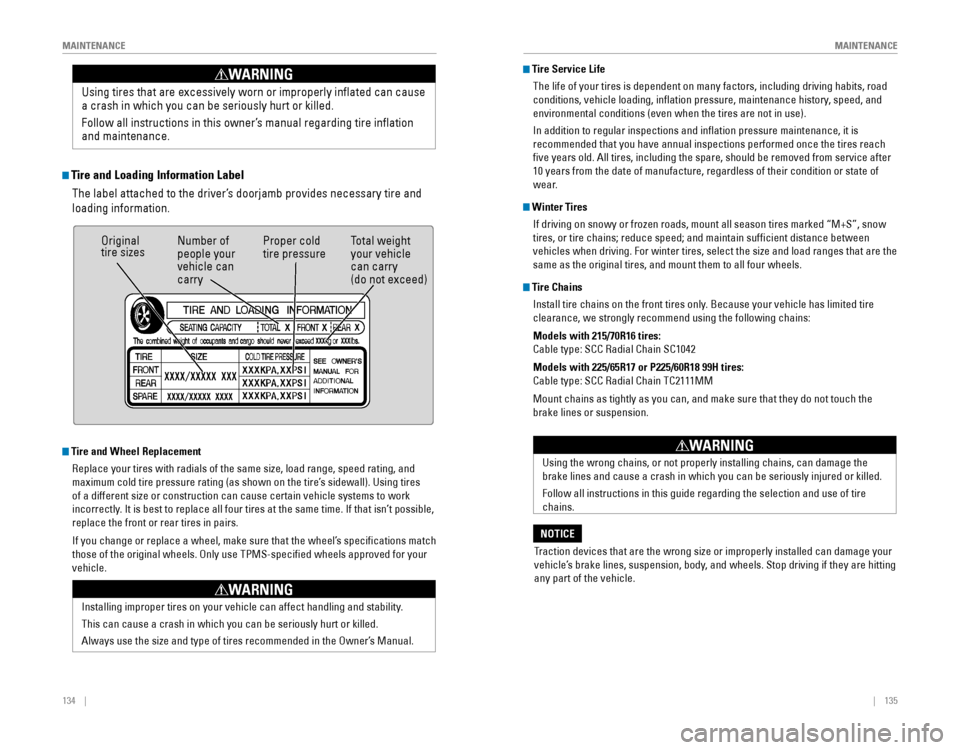

Tire and Loading Information Label
The label attached to the driver’s doorjamb provides necessary tire and 
loading information. Using tires that are excessively worn or improperly inflated can cause\

a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner’s manual regarding tire inflation
and maintenance
.
WARNING
Original tire sizesNumber of 
people your
vehicle can
carry
Proper cold
tire pressure
Total weight
your vehicle
can carry
(do not exceed)
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and 
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires
of a different size or construction can cause certain vehicle systems to work 
incorrectly. It is best to replace all four tires at the same time. If that isn’t possible, 
replace the front or rear tires in pairs.
If you change or replace a wheel, make sure that the wheel’s specifications match 
those of the original wheels. Only use TPMS-specified wheels approved \
for your
vehicle.
Installing improper tires on your vehicle can affect handling and stability.
This can cause a crash in which you can be seriously hurt or killed.
Always use the size and type of tires recommended in the Owner’s Manual.
WARNING
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road 
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is 
recommended that you have annual inspections performed once the tires re\
ach
five years old. All tires, including the spare, should be removed from service after 
10 years from the date of manufacture, regardless of their condition or \
state of
wear.
Winter Tires
If driving on snowy or frozen roads, mount all season tires marked “M+S”, snow 
tires, or tire chains; reduce speed; and maintain sufficient distance between 
vehicles when driving. For winter tires, select the size and load ranges that are the 
same as the original tires, and mount them to all four wheels.
Tire Chains
Install tire chains on the front tires only. Because your vehicle has limited tire 
clearance, we strongly recommend using the following chains:
Models with 215/70R16 tires:
Cable type: SCC Radial Chain SC1042
Models with 225/65R17 or P225/60R18 99H tires:
Cable type: SCC Radial Chain TC2111MM
Mount chains as tightly as you can, and make sure that they do not touch\
the
brake lines or suspension.
Traction devices that are the wrong size or improperly installed can damage your 
vehicle’s brake lines, suspension, body, and wheels. Stop driving if they are hitting 
any part of the vehicle.
NOTICEUsing the wrong chains, or not properly installing chains, can damage th\
e
brake lines and cause a crash in which you can be seriously injured or killed.
Follow all instructions in this guide regarding the selection and use of\
tire
chains.
WARNING

136 ||    137
MAINTENANCE
MAINTENANCE

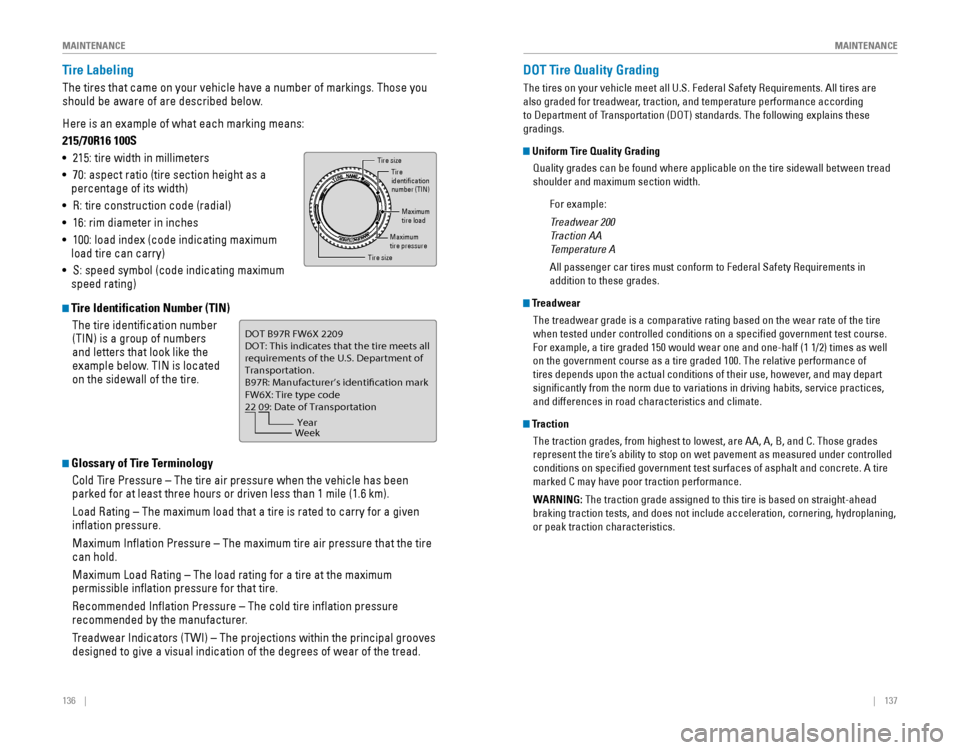

Tire Labeling
The tires that came on your vehicle have a number of markings. Those you 
should be aware of are described below.
Here is an example of what each marking means:
215/70R16 100S
•  215: tire width in millimeters
• 
70: aspect ratio (tire section height as a 
percentage of its width)
•  R: tire construction code (radial)
•  16: rim diameter in inches
•  100: load index (code indicating maximum
load tire can carry)
• 
S: speed symbol (code indicating maximum 
speed rating)
Tire Identification Number (TIN)
The tire identification number 
(TIN) is a group of numbers 
and letters that look like the
example below. TIN is located 
on the sidewall of the tire.
Glossary of Tire Terminology
Cold Tire Pressure – The tire air pressure when the vehicle has been 
parked for at least three hours or driven less than 1 mile (1.6 km).
Load Rating – The maximum load that a tire is rated to carry for a gi\
ven
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire 
can hold.
Maximum Load Rating – The load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure 
recommended by the manufacturer.
Treadwear Indicators (TWI) – The projections within the principal grooves 
designed to give a visual indication of the degrees of wear of the tread\
.
Tire size
Tire
identication
number (TIN)
Maximum
tire load
Maximum
tire pressure
Tire size
DOT B97R FW6X 2209\n
DOT: This in\ficat\bs t\nhat th\b tir\b m\b\bts all
r\bquir\bm\bnts of th\b U.S\n. D\bpartm\bnt of
Transportation.
B97R: Manufactur\br’s \ni\f\bntifcation mark
FW6X: Tir\b typ\b co\f\b
22 09: Dat\b of Transp\nortation

Year
Week
DOT Tire Quality Grading
The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are 
also graded for treadwear, traction, and temperature performance according
to Department of Transportation (DOT) standards. The following explains these 
gradings.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread 
shoulder and maximum section width.
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to Federal Safety Requirements in 
addition to these grades.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of the tire 
when tested under controlled conditions on a specified government test\
course.
For example, a tire graded 150 would wear one and one-half (1 1/2) times as well 
on the government course as a tire graded 100. The relative performance \
of
tires depends upon the actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving habits, service practices, 
and differences in road characteristics and climate.
TractionThe traction grades, from highest to lowest, are AA, A, B, and C. Those \
grades
represent the tire’s ability to stop on wet pavement as measured under controlled 
conditions on specified government test surfaces of asphalt and concre\
te. A tire
marked C may have poor traction performance.
WARNING:
 The traction grade assigned to this tire is based on straight-ahead 
braking traction tests, and does not include acceleration, cornering, hydroplaning, 
or peak traction characteristics.

138 || 139
MAINTENANCE
MAINTENANCE

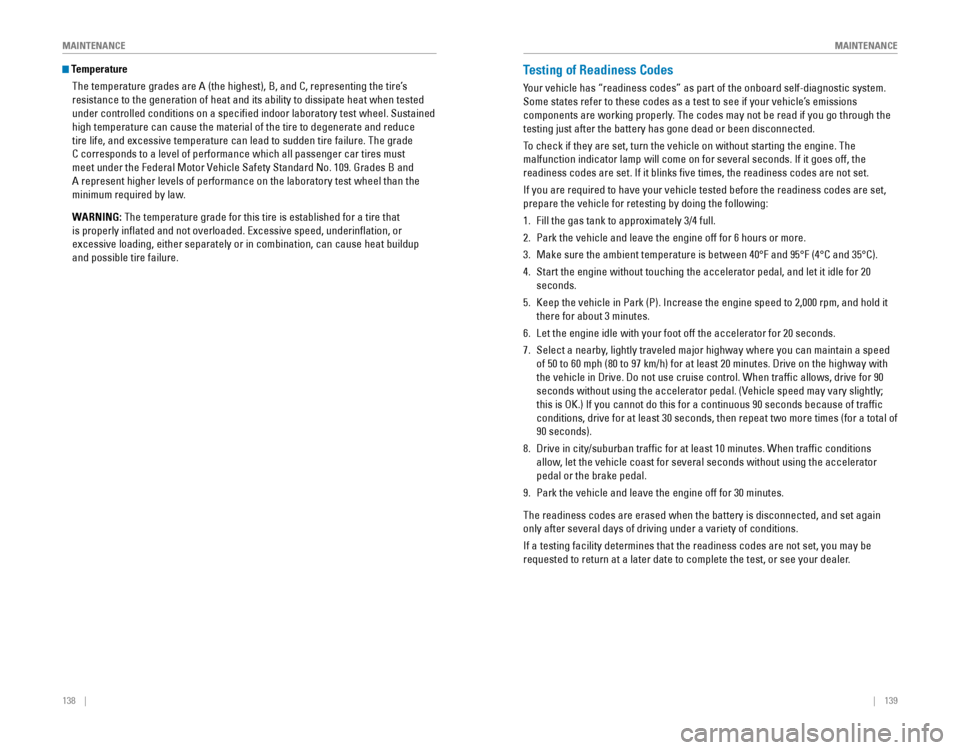

Temperature
The temperature grades are A (the highest), B, and C, representing the\
tire’s
resistance to the generation of heat and its ability to dissipate heat when tested 
under controlled conditions on a specified indoor laboratory test wheel. Sustained 
high temperature can cause the material of the tire to degenerate and re\
duce
tire life, and excessive temperature can lead to sudden tire failure. Th\
e grade
C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and
A represent higher levels of performance on the laboratory test wheel than the 
minimum required by law.
WARNING: The temperature grade for this tire is established for a tire that 
is properly inflated and not overloaded. Excessive speed, underinflation, or 
excessive loading, either separately or in combination, can cause heat buildup 
and possible tire failure.
Testing of Readiness Codes
Your vehicle has “readiness codes” as part of the onboard self-diagnostic system. 
Some states refer to these codes as a test to see if your vehicle’s emissions
components are working properly. The codes may not be read if you go through the 
testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine\
. The
malfunction indicator lamp will come on for several seconds. If it goes off, the 
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are set, 
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle\
for 20
seconds.
5. Keep the vehicle in Park (P). Increase the engine speed to 2,000 rpm, and hold it 
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Select a nearby, lightly traveled major highway where you can maintain a speed 
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway with 
the vehicle in Drive. Do not use cruise control. When traffic allows, drive for 90 
seconds without using the accelerator pedal. (Vehicle speed may vary slightly;
this is OK.) If you cannot do this for a continuous 90 seconds because of traffic 
conditions, drive for at least 30 seconds, then repeat two more times (\
for a total of
90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions 
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set again 
only after several days of driving under a variety of conditions.
If a testing facility determines that the readiness codes are not set, you may be 
requested to return at a later date to complete the test, or see your dealer.

140    ||    141
CUSTOMER INFORMATION
SPECIFICATIONS
Vehicle
*1:LX, EX and SE models with 2WD*2:EXL and TOURING models with 2WD*3:LX models with AWD*4:EX and SE models with AWD*5:EXL and TOURING models with AWD*6: LX models with 2WD
ModelHonda CR- VNo. of Passengers:
Front 2
Rear 3
Tota l5
Weights:Gross Vehicle Weight
Rating U.S.:4,464 lbs (2,025 kg )*14,519 lbs (2,050 kg)*2, *34,564 lbs (2,070 kg )*44,630 lbs (2,100 kg)*5Canada:2,025 kg*62,050 kg*32,070 kg*42,100 kg*5Gross Axle Weight
Rating (Front)U.S.:2,271 lbs (1,030 kg )*12,326 lbs (1,055 kg)*2, *3 , *42,348 lbs (1,065 kg )*5Canada:1,030 kg*61,055 kg*3, *41,065 kg*5Gross Axle Weight
Rating (Rear)U.S.:2,238 lbs (1,015 kg )*1, *2 , *32,282 lbs (1,035 kg )*42,326 lbs (1,055 kg)*5Canada:1,015 kg*3, *61,035 kg*41,055 kg*5
Engine and Fuel
Engine Specication s
FuelDisplacemen t144 cu-in (2,356 cm3)
Spark Plugs NG
K DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11 S
Fuel:
TypeUnleaded gasoline, Pump octane number of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 )
Tires
*1:Vehicle with 16-inch wheel*2:Vehicle with 17-inch wheel*3: Vehicle with 18-inch wheel
Regular
Size*1215/70R16 100 SPressure*1psi (k Pa [kgf/cm2])Front32 (220 [2.2])Rear32 (220 [2.2])Size*2225/65R17 102 TPressure*2psi (k Pa [kgf/cm2])Front33 (230 [2.3])Rear33 (230 [2.3])Size*3P225/60R18 99HPressure*3psi (k Pa [kgf/cm2])Front32 (220 [2.2])Rear30 (210 [2.1])
Compact
Spar e Size
T155/90D17 101M
Pr essure
psi (k Pa [kgf/cm
2])60 (420 [4.2])
Wheel SizeRegular16 x 6.5J*117 x 7J*218 x 7J*3Compact Spar
e17 x 4T
Light Bulbs
*1:Models with smart entry system*2:Models without smart entry system*3:Except Canadian models *4:Vehicle with 18 inch whee l*5: Models with moonroof
Headlights (Low Beam)55 W (H11 )Headlights (High Beam) 60 W (HB3)Fog Lights*135 W (H8)
Front Turn Signal/
Side Marker Light s
*128/8 W (Amber)
Front Turn Signal/Side Marker /
Parking Light s*228/8 W (Amber)
Side Turn Signal Lights
(on Door Mirrors )
*3, *4LED
Parking Light s*1LED
Upper Rear Side Marker/Taillight s3 CP
Lower Rear Side Marker/Brake/
Taillight s21/5 W
Back-Up Lights 21 W
Rear Turn Signal Light s21 W (Amber)
High- Mount Brak e LightL ED
Rear License Plate Light3 CP
In teri or Lights
Map Lights 8 W
Ceiling Light 8 W
Cargo Area Light 8 W
Vanity Mirror Lights
*51.4 W
Fluids
Washer Fluid
Tank Capacit yU.S.: 2.6 US qt (2.5 )
Canada: 4.8 US qt (4.5 )
Brake Fluid
Continuously Variable Transmission Fluid

*1: 2WD models
*2: AWD models
Rear Differential Fluid*
Specie dHonda Heavy Duty Brake Fluid DOT 3
SpeciedHonda HCF-2 Transmission Flui d
Capacity Change 3.9 US qt (3.7 )*14.5 US qt (4.3 )*2
Specie
dHonda Dual Pump Fluid II
Capacity Change
1.32 US qt (1.247 )
Tota l1 .57 US qt (1.488 )
Engine Oil
Engine Coolant
Recommende d· Honda Genuine Motor Oil 0W-2 0
· API Premium-grade 0W-20 detergent oi l
Capacity Change
4.4 US qt (4.2 )
Change
including
lter 4.6 US qt (4.4 )
Specie
dHonda Long Life Anti freeze/Coolant Type 2
Ratio 50/50 with distilled wate r
Capacity1.66 US gal (6.3 )
(change including the remaining
0.16 US gal (0.62 ) in the reserve tank )
Air ConditioningAir Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
SPECIFICATIONS
Learn about information specific to you as a Honda customer and how to get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that you may 
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 54. For vehicles with navigation, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button?*
A: The brake pedal must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’s exterior lights will automatically turn
 on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though 
 the keyless access remote is within range?*
A: If you pull the handle too quickly, the system may not have time to confirm the
 door is unlocked. Wait to hear a beep to confirm the door is unlocked. If you are
 wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for 
 a code. Where do I find this?
A: In most cases, you do not need to enter a code. Turn on the vehicle and the
 audio system, and press and hold the power button until the system reactivates.
Q: Why can’t I operate Pandora® through the audio system?
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode
 is selected and the phone cable is properly connected to the USB adapter.
Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: Visit handsfreelink.com (U.S.) or handsfreelink.ca (Canada) to check phone
 compatibility for Bluetooth® Audio, Bluetooth® HandsFreeLink®, and SMS text
messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn 
 these off?*
A: From the Home screen, select Settings. Select System. Select the Voice Recog
 tab, then select Voice Prompt. Select Off.
CUSTOMER INFORMATION
*if equipped

142    ||    143
CUSTOMER INFORMATION
CUSTOMER INFORMATION
Contact Us
Honda dealer personnel are trained professionals. They should be able to answer 
all your questions. If you encounter a problem that your dealership does not solve 
to your satisfaction, please discuss it with the dealership’s service manager or
general manager. If you are dissatisfied with the decision made by the dealership’s 
management, contact Honda Automobile Customer Service.
U.S. owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
1919 Torrance Blvd.
Mail Stop 500-2N-7A
Torrance, CA 90501-2746
Tel: (800) 999-1009
In Puerto Rico and
the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
When you call or write, please give us the following information:
• 
Vehicle Identification Number
• Date of purchase
•  Odometer reading of your vehicle
• 
Your name, address, and telephone number
• A detailed description of the problem
•  Name of the dealer who sold the vehicle to you Canadian owners
Honda Canada, Inc.
Customer Relations
180 Honda Blvd.
Markham, ON
L6C 0H9
Tel: (888) 946-6329
Fax: (877) 939-0909
e-mail: [email protected]

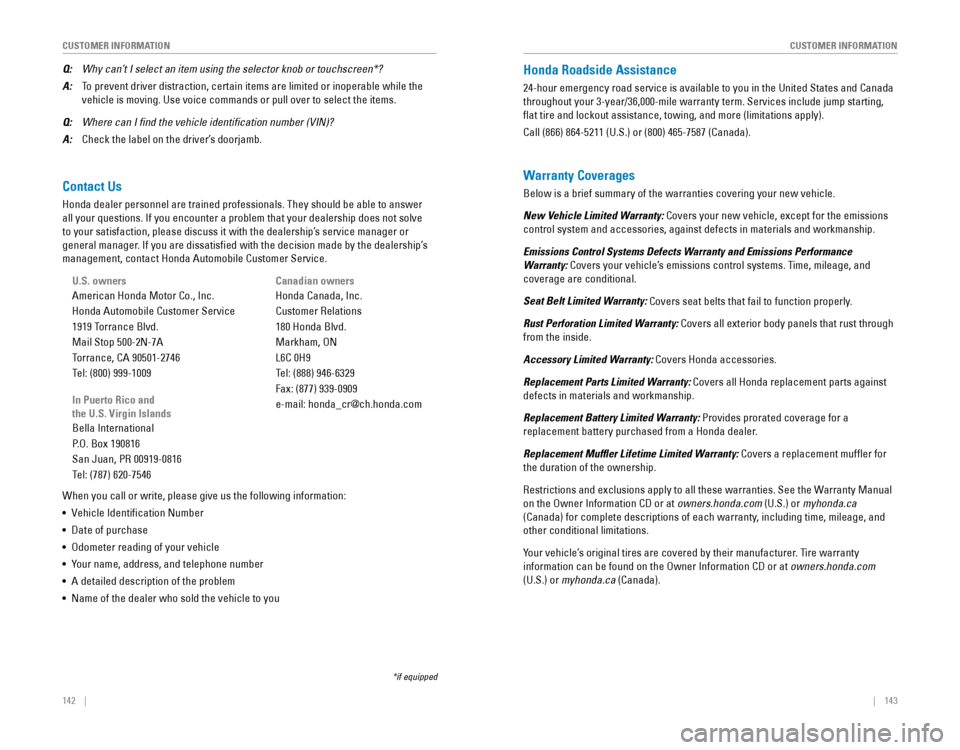

Q:
Why can’t I select an item using the selector knob or touchscreen*?
A: To prevent driver distraction, certain items are limited or inoperable while the
vehicle is moving. Use voice commands or pull over to select the items.
Q: Where can I find the vehicle identification number (VIN)?
A: Check the label on the driver’s doorjamb.
*if equipped
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada 
throughout your 3-year/36,000-mile warranty term. Services include jump starting, 
flat tire and lockout assistance, towing, and more (limitations apply\
).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada).
Warranty Coverages
Below is a brief summary of the warranties covering your new vehicle. 
New Vehicle Limited Warranty: Covers your new vehicle, except for the emissions
control system and accessories, against defects in materials and workman\
ship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty: Covers your vehicle’s emissions control systems. Time, mileage, and
coverage are conditional.
Seat Belt Limited Warranty:
Covers seat belts that fail to function properly. 
Rust Perforation Limited Warranty: Covers all exterior body panels that rust through 
from the inside.
Accessory Limited Warranty: Covers Honda accessories.
Replacement Parts Limited Warranty: Covers all Honda replacement parts against
defects in materials and workmanship.
Replacement Battery Limited Warranty: Provides prorated coverage for a
replacement battery purchased from a Honda dealer. 
Replacement Muffler Lifetime Limited Warranty: Covers a replacement muffler for
the duration of the ownership.
Restrictions and exclusions apply to all these warranties. See the Warranty Manual
on the Owner Information CD or at owners.honda.com (U.S.) or myhonda.ca
(Canada) for complete descriptions of each warranty, including time, mileage, and
other conditional limitations.
Your vehicle’s original tires are covered by their manufacturer. Tire warranty 
information can be found on the Owner Information CD or at owners.honda.com 
(U.S.) or myhonda.ca (Canada).

144    ||    145

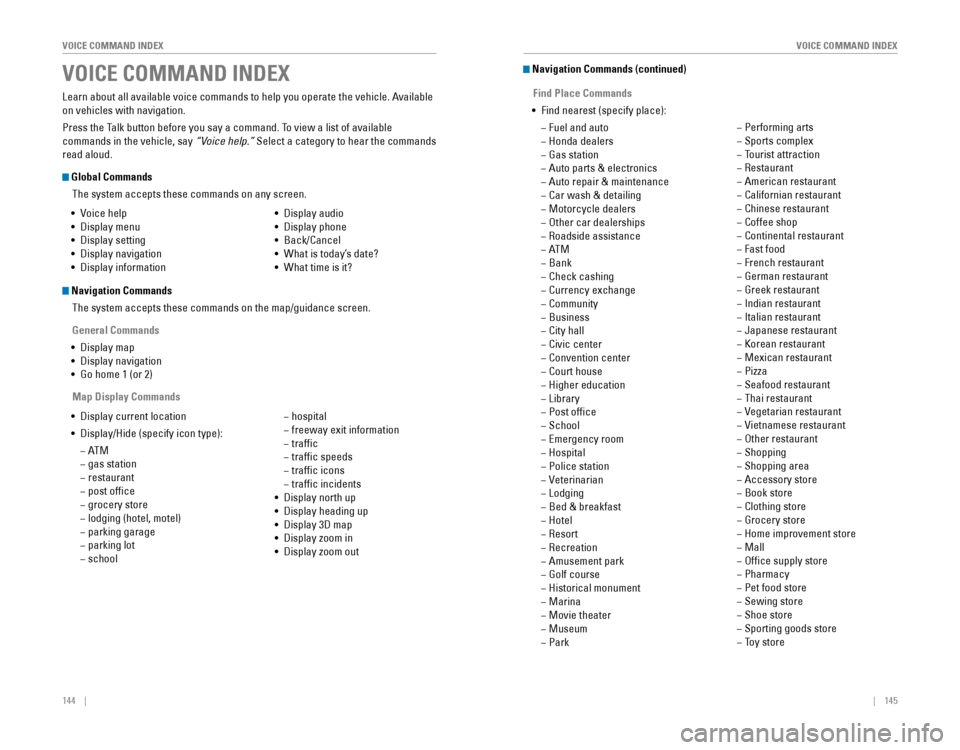

VOICE COMMAND INDEX
VOICE COMMAND INDEX
Learn about all available voice commands to help you operate the vehicle. Available 
on vehicles with navigation.
Press the Talk button before you say a command. To view a list of available 
commands in the vehicle, say “Voice help.” Select a category to hear the commands
read aloud.
Global Commands
The system accepts these commands on any screen.
Navigation Commands
The system accepts these commands on the map/guidance screen.
General Commands
• 
Display map
• Display navigation
•  Go home 1 (or 2)
Map Display Commands
•  Voice help
•  Display
 menu
•  Display
 setting
•  Display
 navigation
•  Display
 information •  Display
 audio
•  Display
 phone
•  Back/Cancel
•  What is today’s date?
•  What time is it?
•  Display current location
•  Display/Hide
 (specify icon type):
− AT M
−gas station
−restaurant
−post office
−grocery store
−lodging (hotel, motel)
−parking garage
−parking lot
−school
−hospital
−freeway exit information
−traffic
−traffic speeds
−traffic icons
−traffic incidents
•  Display
 north up
•  Display
 heading up
•  Display
 3D map
•  Display
 zoom in
•  Display
 zoom out
VOICE COMMAND INDEX Navigation Commands (continued)
Find Place Commands
•  Find nearest (specify place):
−Fuel and auto
−Honda dealers
−Gas station
−Auto parts & electronics
−Auto repair & maintenance
−Car wash & detailing
−Motorcycle dealers
−Other car dealerships
−Roadside assistance
−AT M
−Bank
−Check cashing
−Currency exchange
−Community
−Business
−City hall
−Civic center
−Convention center
−Court house
−Higher education
−Library
−Post office
−School
−Emergency room
−Hospital
−Police station
−Veterinarian
−Lodging
−Bed & breakfast
−Hotel
−Resort
−Recreation
−Amusement park
−Golf course
−Historical monument
−Marina
−Movie theater
−Museum
−Park
−Performing arts
−Sports complex
−Tourist attraction
−Restaurant
−American restaurant
−Californian restaurant
−Chinese restaurant
−Coffee shop
−Continental restaurant
−Fast food
−French restaurant
−German restaurant
−Greek restaurant
−Indian restaurant
−Italian restaurant
−Japanese restaurant
−Korean restaurant
−Mexican restaurant
−Pizza
−Seafood restaurant
−Thai restaurant
−Vegetarian restaurant
−Vietnamese restaurant
−Other restaurant
−Shopping
−Shopping area
−Accessory store
−Book store
−Clothing store
−Grocery store
−Home improvement store
−Mall
−Office supply store
−Pharmacy
−Pet food store
−Sewing store
−Shoe store
−Sporting goods store
−Toy store

146    ||    147
VOICE COMMAND INDEX
VOICE COMMAND INDEX

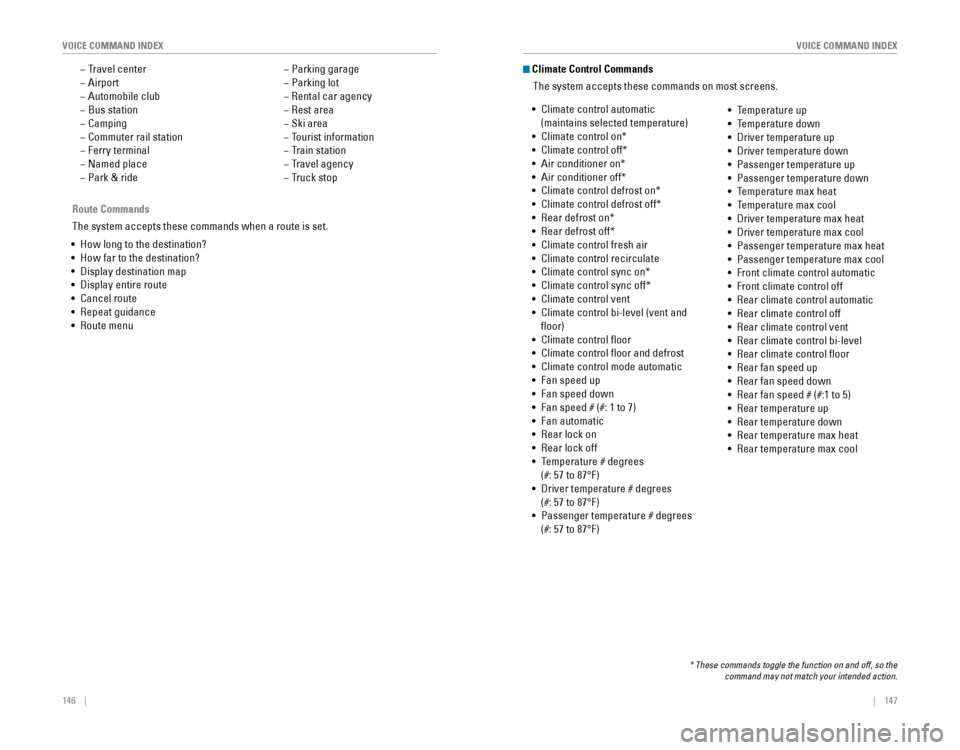

Route Commands
The system accepts these commands when a route is set.
•  How long to the destination?
•  How far to the destination?
• 
Display destination map
• Display entire route
•  Cancel route
•  Repeat guidance
•  Route menu
−Travel center
−Airport
−Automobile club
−Bus station
−Camping
−Commuter rail station
−Ferry terminal
−Named place
−Park & ride
−Parking garage
−Parking lot
−Rental car agency
−Rest area
−Ski area
−Tourist information
−Train station
−Travel agency
−Truck stop
Climate Control Commands
The system accepts these commands on most screens.
* These commands toggle the function on and off, so the command may not match your intended action.
•  Climate control automatic
(maintains selected temperature)
• 
Climate control on*
• Climate control off*
• Air conditioner on*
• Air conditioner off*
• Climate control defrost on*
• Climate control defrost off*
• Rear defrost on*
• Rear defrost off*
•  Climate control fresh air
•  Climate control recirculate
• 
Climate control sync on*
• Climate control sync off*
•  Climate control vent
• 
Climate control bi-level (vent and 
floor)
•  Climate control floor
•  Climate control floor and defrost
•  Climate control mode automatic
•  Fan speed up
•  Fan speed down
• 
Fan speed # (#: 1 to 7)
•  Fan automatic
•  Rear lock on
•  Rear lock off
•  Temperature # degrees
(#: 57 to 87°F) 
• Driver temperature # degrees         
(#: 57 to 87°F)
• Passenger temperature # degrees
(#: 57 to 87°F)
• Temperature up
•  Temperature down
• 
Driver temperature up
• Driver temperature down
•  Passenger temperature up
•  Passenger temperature down
•  Temperature max heat
•  Temperature max cool
• 
Driver temperature max heat
• Driver temperature max cool
•  Passenger temperature max heat
•  Passenger temperature max cool
•  Front climate control automatic
•  Front climate control off
•  Rear climate control automatic
•  Rear climate control off
•  Rear climate control vent
• 
Rear climate control bi-level
•  Rear climate control floor
•  Rear fan speed up
•  Rear fan speed down
•  Rear fan speed # (#:1 to 5)
•  Rear temperature up
•  Rear temperature down
•  Rear temperature max heat
•  Rear temperature max cool

148    ||    149
VOICE COMMAND INDEX
VOICE COMMAND INDEX
Audio Commands
The system accepts these commands on most screens. Audio volume levels
cannot be controlled using voice commands. 
FM/AM Radio Commands
• 
Audio on*
• Audio off*
• Radio on*
• Radio off*
•  Radio select FM
•  Radio select AM
• 
Radio tune to # FM (#: frequency, 
e.g., 95.5)
• 
Radio tune to # AM (#: frequency, 
e.g., 1020)
•  Radio seek up
•  Radio seek down
•  Radio next station
•  Radio preset # (#: 1 to 12)
•  Radio FM preset # (#: 1 to 12)
•  Radio AM preset # (#: 1 to 6)
• 
Radio scan*
SiriusXM® Radio Commands
•  Radio select XM
•  XM channel # (#: 0 to 255)
•  XM channel up
•  XM channel down
•  XM category up
•  XM category down
•  XM preset # (#: 1 to 12)
• 
XM scan*
•  XM category mode
•  XM channel mode Disc Commands
• 
Disc play
• Disc play track # (#: 1 to 30)
• Disc skip forward
• Disc skip back
• Disc track random*
• Disc track repeat*
• Disc track scan*
• Disc folder up
• Disc folder down
• Disc folder random*
• Disc folder repeat*
• Disc folder scan*
• Disc normal play
*These commands toggle the function on and off, so the command may not match your intended action.
Audio Commands (continued)
USB Commands
•  USB play
•  USB play track # (#: 1 to 30)
•  USB skip forward
• 
USB skip back
• USB track random*
• USB track repeat*
• USB track scan*
•  USB folder up
•  USB folder down
• 
USB folder random*
• USB folder repeat*
• USB folder scan*
•  USB normal play
Pandora
® Commands
• 
Pandora play*
•  Pandora skip forward
•  Pandora station up
•  Pandora station down
• 
Pandora pause*
• Pandora resume*
•  Pandora like this song
•  Pandora dislike this song
*These commands toggle the function on and off, so the command may not match your intended action.
iPod® Commands
•  Music search
•  iPod play
•  iPod play track # (#: 1-30)
•  iPod skip forward
• 
iPod skip back
• iPod track shuffle*
• iPod album shuffle*
• iPod track repeat*
•  iPod normal play
• 
What/Who am I listening to?
•  Who is this?
•  What’s playing?
•  Who’s playing?
• 
What album is this?
Bluetooth® Audio Commands
•  Bluetooth audio play
•  Bluetooth audio skip forward
• 
Bluetooth audio skip back
•  Bluetooth audio pause
•  Bluetooth audio resume
•  Bluetooth audio group up
•  Bluetooth audio group down
Commands may not work on some
phones or devices.
AUX Commands
•  Auxiliary play
Phone Commands
The system accepts these commands on most screens.
•  Dial/call by number •  Dial/call by voice tag
Info Commands
The system accepts these commands on most screens.
•  Trip computer
•  Display
 traffic list
•  Display
 traffic on my route •  Display
 clock
•  Display
 wallpaper
On-screen Commands
The system accepts these commands on any screen where applicable. All 
available commands are highlighted in yellow when you press the Talk button.
• Next (or Down)
•  Previous (or Up)
•  Return
•  OK (excluding Startup Confirmation screen)
•  Delete

150 || 151
INDEX
INDEX
INDEX
ABS .............................................................25ACC ...........................................................102
Accessory Power Socket ...............................55
Adaptive Cruise Control (ACC) ...............25, 102Airbags  ...............................................................9Advanced Airbags .........................................9Airbag Care ...................................................14Airbag System Components .......................13Airbag System Indicators ...........................11Front Airbags (SRS) .......................................9Passenger Airbag Off Indicator .................12Side Airbags ..................................................10Side Curtain Airbags ....................................10
Supplemental Restraint System indicator
.............................................11
Air Conditioning System ..................................51
All Wheel Drive (AWD) ....................................25Ambient Meter................................................ 100
Anti-Lock Brake System (ABS) ................25, 99
Audio Commands ...........................................148
Audio Operation ...............................................55
Accessory Power Socket ...........................55Auxiliary Input Jack .....................................56
Bluetooth® Audio ...................................63, 72Compact Disc (CD) .................................60, 69FM/AM Radio ..........................................59, 67HDMI Port ......................................................56
HondaLink™ ..................................................66Intelligent Multi-Information Display
(i-MID) ................................................58
iPod® .......................................................61, 70Pandora® .................................................64, 73SiriusXM® Radio ...........................................68Sound .............................................................57
Steering Wheel Controls .............................56
Touchscreen Operation ..............................65USB Adapter Cable ......................................55USB Flash Drive ......................................62, 71USB Port ........................................................55Automatic Dimming Rearview Mirror ...........49
Automatic Rain-Sensing Wipers ...................42
AUX Commands .............................................. 149
Auxiliary Input Jack .........................................56AWD  .............................................................25Battery ...........................................................130
Bluetooth® Audio .......................................63, 72Bluetooth® Audio Commands ......................149
Bluetooth® HandsFreeLink® (HFL) .................74E-Mail  .............................................................83
HFL Controls ............................................74, 78HondaLink™ Assist ......................................84
Making a Call ..........................................76, 81Pairing a Phone ......................................75, 80
Siri® Eyes Free ..............................................84
SMS Text Messaging ............................77, 83Speed Dial ...............................................76, 82Talk Button Tips ............................................79
Brake Assist System ........................................ 99
Brake Fluid
......................................................130
Brake system ..............................................24, 26Braking .............................................................99
Brightness Control ...........................................39Carbon Monoxide Gas....................................... 4
Cargo Area Lights ............................................39
Changing a Flat Tire .......................................117
Changing Settings ......................................30, 31
Changing Wiper Blades ................................131
Charging system ............................................... 24
Childproof Door Locks .....................................34
Child Safety .......................................................15
Child Seat ..........................................................17
Adding Security with a Tether ...................20LATCH-Compatible Child Seat ....................18
Selecting a Child Seat .................................17
Climate Control Commands ..........................147
Climate Control System ...................................52Clock .............................................................54
Collision Mitigation Braking System™ (CMBS™)
...................................25, 106Compact Disc (CD) .....................................60, 69Compact Disc (CD) Commands ....................148Condition Indicators ........................................26
Contact Us .......................................................142
Cruise Control ...........................................27, 101Customer Information.................................... 141Customized Features .......................................31Dashboard Controls .......................................... 2
Destination ........................................................88Detour  .............................................................91Dialing a Number .......................................76, 81Door Mirrors .....................................................49Door Operation .................................................34Doors  .............................................................33Door/tailgate open ...........................................26DOT Tire Quality Grading ..............................137Driving  .............................................................92
Adaptive Cruise Control (ACC) .................102
Braking ...........................................................99
Collision Mitigation Braking System™ (CMBS™)
.........................................106
Cruise Control .............................................101ENGINE START/STOP button .....................97
Ignition ...........................................................97Lane Departure Warning (LDW) ..............104
Lane Keeping Assist System (LKAS) .......105
LaneWatch™ ..............................................107 Maximum Load Limit
....................................94
Multi-View Rear Camera ..........................108
Power Mode .................................................97
Refueling ......................................................110
Shifting ...........................................................98
Towing a Trailer ............................................96Vehicle Stability Assist (VSA®) ................100Driving Position Memory System ..................48Eco Assist™ System ......................................100ECON Button ...................................................100ECON mode .......................................................27Electric Power Steering (EPS) .......................25Electronic Stability Control (ESC) ................100E-Mail  .............................................................83Emergency Engine Stop ................................114Emergency Towing ........................................114Engine and Fuel ..............................................140Engine Coolant................................................ 129Engine Oil......................................................... 127ENGINE START/STOP button .........................97Exterior lights ..............................................27, 40Fastening a Seat Belt ........................................7
Find Nearest Place ..........................................89
Find Place Commands ...................................145Flat Tire ...........................................................117
Floor Mats .........................................................46Fluids ...........................................................140FM/AM Radio ..............................................59, 67FM/AM Radio Commands .............................148
Fog lights .....................................................27, 40Foot Brake .........................................................99Frequently Asked Questions ........................141Front Airbags (SRS) ...........................................9Front Door Inner Handle .................................34
Front Seats ........................................................43
Front Wipers .....................................................41Fuel Information .............................................110
Fuse Locations ................................................ 120
Garage Opener
.................................................50HDMI Port.......................................................... 56Headlight-Wiper Integration ..........................41
Head Restraints ................................................45
Heated Windshield Button .............................52High beams .......................................................27
Home Address ..................................................88
HomeLink® Garage Opener ............................50
HondaLink™ ......................................................66
HondaLink™ Assist ..........................................84
Honda Roadside Assistance ........................143Hood ...........................................................126Ignition  .............................................................97i-MID  .............................................................58
Immobilizer ........................................................27Info buttons .......................................................29Info Commands............................................... 149
Information Display..........................................28Instrument Panel ..............................................24Intelligent Multi-Information Display
(i-MID) ................................................58Interior Lights.................................................... 39Intermittent Wipers..........................................41
iPod® .......................................................61, 70iPod® Commands ...........................................149
Jump Starting .................................................112Key .............................................................32Lane Departure Warning (LDW) ............25, 104Lane Keeping Assist System (LKAS) ....25, 105
LaneWatch™ ..................................................107Lap/Shoulder Seat Belts ...................................5LATCH-Compatible Child Seat ........................18Light Bulbs....................................................... 140Lights .............................................................39LKAS .....................................................27, 105Locking the Tailgate .........................................33Lock Tab .............................................................34Low fuel .............................................................26
Low oil pressure ...............................................24
Low tire pressure .............................................27
Maintenance ................................................... 123
Battery
.........................................................130
Brake Fluid ..................................................130Engine Coolant ............................................129Engine Oil .....................................................127
Maintenance Minder™ .......................26, 124Safety Precautions ....................................123
Service Codes .............................................125
Under the Hood ..........................................126
Window Washer Fluid ...............................130
Making a Call ..............................................76, 81Malfunction indicator lamp ............................25Malfunction Indicators.................................... 24Map Display Commands ...............................144
Map Legend ......................................................90
Map Lights ......................................................... 39
Master Door Lock Switch ...............................34
Maximum Load Limit ........................................ 94
Mirrors .............................................................49
Moonroof ...........................................................38Multi-Information Display ...............................29
Multi-View Rear Camera ..............................108
Navigation .........................................................85
Detour ............................................................91Display and Controls ....................................86Entering a Destination .................................88
Find Nearest Place ......................................89
Home Address ..............................................88
Map Legend ..................................................90
Place Category .............................................89
Routing ...........................................................90
Steering Wheel Controls .............................85

152 || 153
INDEX
INDEX
Street Address ..............................................88Traffic .............................................................91Turn-by-Turn Directions ..............................90
Voice Prompt ................................................. 87
Voice Recognition Tips
................................87
Navigation Commands ..................................144
One-Touch Turn Signal ....................................40On/Off Indicators ..............................................27
On-screen Commands ...................................149
Opening the Hood
..........................................126
Overheating ..................................................... 113
Pairing a Phone
..........................................75, 80Pandora® .....................................................64, 73Pandora® Commands ....................................148
Parking Brake .............................................26, 99Passenger Airbag Off Indicator .....................12Phone .......................................................75, 80Phonebook ..................................................76, 81Phone Commands ..........................................149
Place Category .................................................89Power Door Mirrors......................................... 49
Power Mode .....................................................97
Power Moonroof ..............................................38
Power sliding doors .........................................25
Power tailgate ............................................25, 36
Power Windows ...............................................37Radio .......................................................59, 67Rain-Sensing Wipers ....................................... 42
Readiness Codes ............................................ 139
Rear Camera
...................................................108
Rear Seats .........................................................47
Rearview Mirror ...............................................49
Rear Wiper ........................................................42
Refueling .......................................................... 110
Remote Battery Strength
..............................111
Remote Transmitter .........................................32Reporting Safety Defects................................ 23
Roadside Assistance .....................................143
Route Commands ...........................................146Routing .............................................................90Safety Information .............................................3Carbon Monoxide Gas ...................................4
Child Safety ...................................................15Handling Information .....................................4Reporting Safety Defects ............................23Safety Label Locations ................................22
Safety Messages ...........................................3
Seat Belts ............................................................5
Fastening a Seat Belt ....................................7Lap/Shoulder Seat Belts ...............................5Seat Belt Inspection ......................................6Seat belt reminder .......................................26Seat Belt with Detachable Anchor .............8
Shoulder Anchor ............................................7
Seat Heaters .....................................................53
Seats .............................................................43Select/reset knob .............................................28SEL/RESET button ............................................29
Service Codes ................................................. 125
Settings .......................................................30, 31
Setting the Clock ..............................................54Shifting .............................................................98Shift Lever Does Not Move ..........................111
Shoulder Anchor ................................................7Side Airbags...................................................... 10Side Curtain Airbags........................................10
Siri® Eyes Free ..................................................84
SiriusXM® Radio .............................................68
SiriusXM® Radio Commands ......................148Smart Entry System ...................................25, 33
SMS Text Messaging ................................77, 83Sound .............................................................57
Specifications .................................................140Speed Dial ...................................................76, 82Starter system ..................................................25
Steering Wheel ................................................. 48
Steering Wheel and Nearby Controls ............1
Steering Wheel Controls ...........................56, 85
Street Address .................................................. 88
Supplemental Restraint System (SRS)
...11, 24System message ..............................................26Tailgate .......................................................33, 35
Tailgate open ....................................................26
Talk Button Tips ..........................................79, 87Text Messaging ..........................................77, 83Tire Information ..............................................133DOT Tire Quality Grading ..........................137Inflation Guidelines ....................................133Tire and Loading Information Label ........134
Tire and Wheel Replacement ...................134
Tire Chains ...................................................135Tire Identification Number (TIN) ..............136Tire Labeling ................................................136
Tire Service Life ..........................................135
Tire Terminology .........................................136Wear Indicators .........................................133
Winter Tires .................................................135
Tire Pressure Monitoring System (TPMS)
.......................................25, 115Tires ...........................................................140
Touchscreen Operation ..................................65Towing ...........................................................114
Towing a Trailer ................................................96Traffic .............................................................91
Troubleshooting ..............................................141Turn-by-Turn Directions ..................................90
Turn signal ...................................................27, 40Under the Hood ..............................................126USB Adapter Cable ..........................................55
USB Commands .............................................. 148
USB Flash Drive..........................................62, 71USB Port ............................................................55Vehicle ...........................................................140
Vehicle Controls ...............................................32Vehicle Stability Assist (VSA®) ........25, 27, 100Visual Index......................................................... 1Voice Command Index ..................................144
Voice Prompt ....................................................87
Warranty Coverages .....................................143Wear Indicators .............................................133
Window Washer Fluid ...................................130
Windows ............................................................ 37
Winter Tires
.....................................................135
Wiper Blades ..................................................131
Wiper Operation ...............................................41
