Maintenance
Maintenance Under the Hood Changing the Engine Oil and Oil Filter

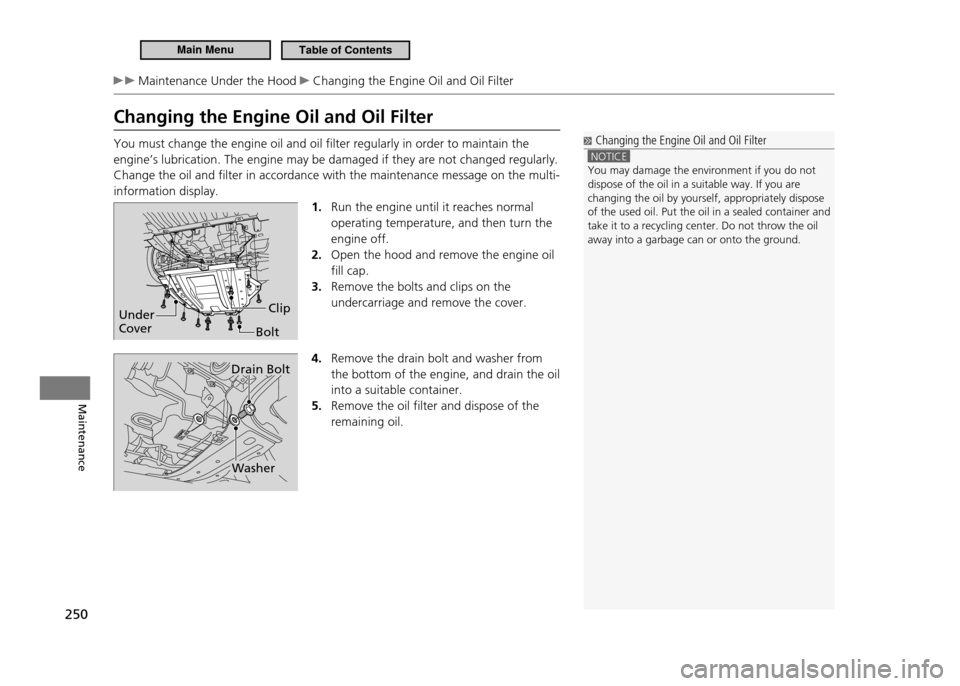

Changing the Engine Oil and Oil Filter You must change the engine oil and oil filter regularly in order to maintain the engine’s lubrication. The engine may be damaged if they are not changed regularly.Change the oil and filter in accordance with the maintenance message on the multi-information display.1. Run the engine until it reaches normal operating temperature, and then turn the engine off. Open the hood and remove the engine oil
2.
fill cap. Remove the bolts and clips on the
3.
undercarriage and remove the cover.
4. Remove the drain bolt and washer from the bottom of the engine, and drain the oil into a suitable container. Remove the oil filter and dispose of the
5.
remaining oil.
Changing the Engine Oil and Oil Filter
NOTICE You may damage the environment if you do not dispose of the oil in a suitable way. If you are changing the oil by yourself, appropriately dispose of the used oil. Put the oil in a sealed container and take it to a recycling center. Do not throw the oil away into a garbage can or onto the ground.
Under Cover
Bolt
Clip
Drain Bolt
Washer
Main MenuTable of Contents

251
Maintenance
Maintenance Under the Hood Changing the Engine Oil and Oil Filter

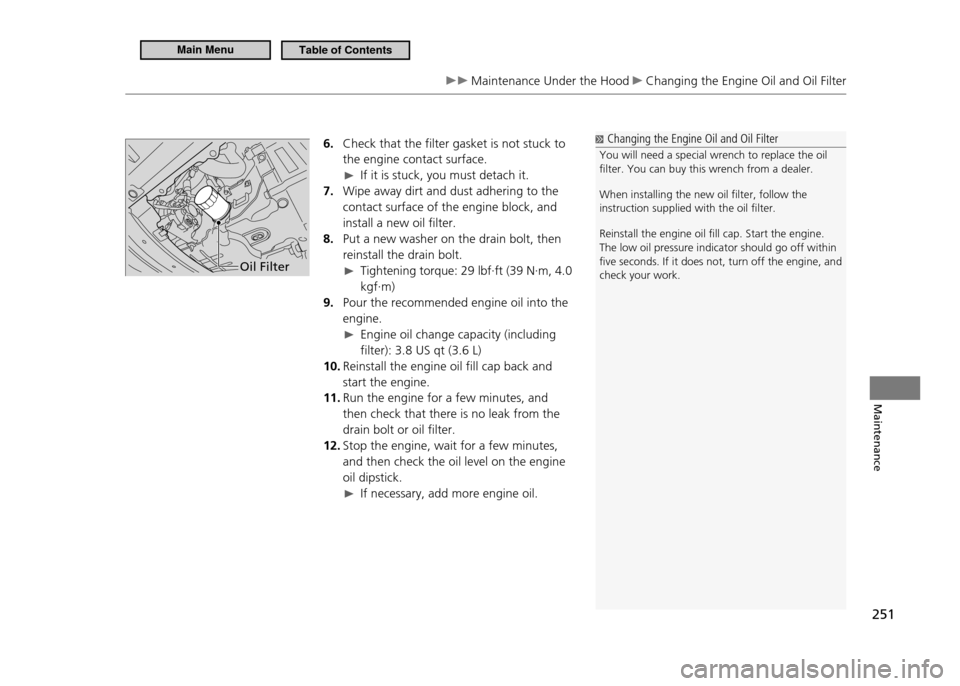

6. Check that the filter gasket is not stuck to the engine contact surface.
If it is stuck, you must detach it.
Wipe away dirt and dust adhering to the
7.
contact surface of the engine block, and install a new oil filter. Put a new washer on the drain bolt, then
8.
reinstall the drain bolt.
Tightening torque: 29 lbf∙ft (39 N∙m, 4.0 kgf∙m)
Pour the recommended engine oil into the
9.
engine.
Engine oil change capacity (including filter): 3.8 US qt (3.6 L)
Reinstall the engine oil fill cap back and
10.
start the engine. Run the engine for a few minutes, and
11.
then check that there is no leak from the drain bolt or oil filter. Stop the engine, wait for a few minutes,
12.
and then check the oil level on the engine oil dipstick.
If necessary, add more engine oil.
Oil Filter
Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil ilter. You can buy this wrench from a dealer. When installing the new oil ilter, follow the instruction supplied with the oil ilter. Reinstall the engine oil ill cap. Start the engine. The low oil pressure indicator should go off within ive seconds. If it does not, turn off the engine, and check your work.
Main MenuTable of Contents

252
Maintenance
Maintenance Under the Hood Engine Coolant

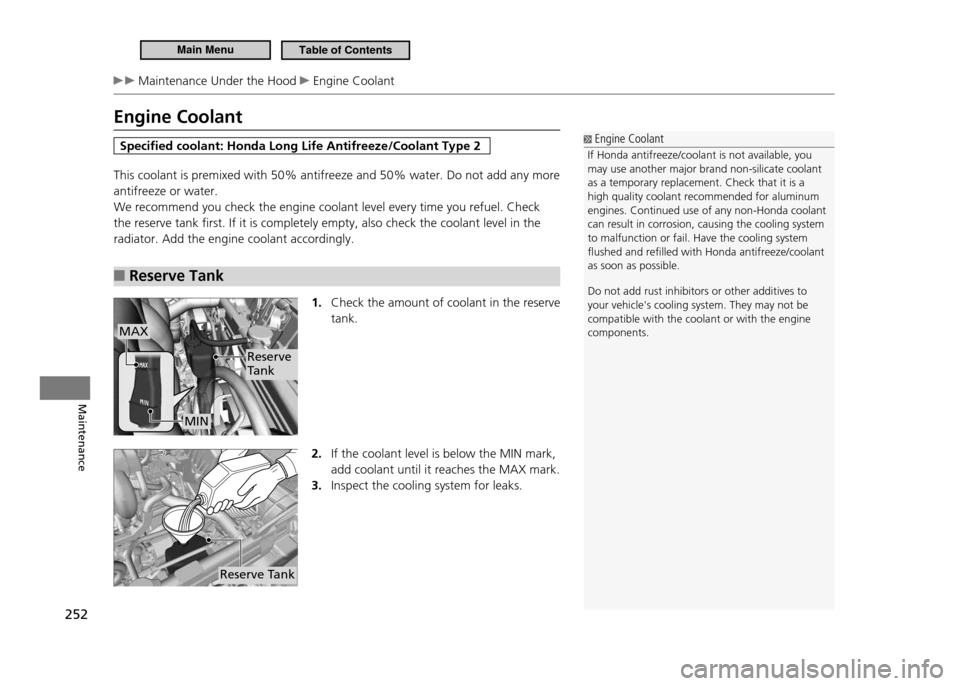

Engine Coolant
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
This coolant is premixed with 50% antifreeze and 50 % water. Do not add any more
antifreeze or water. We recommend you check the engine coolant level every time you refuel. Check the reserve tank first. If it is completely empty, also check the coolant level in the radiator. Add the engine coolant accordingly.
Reserve Tank

■
1. Check the amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark, add coolant until it reaches the MAX mark.Inspect the cooling system for leaks.
3.
Engine Coolant
If Honda antifreeze/coolant is not available, you may use another major brand non-silicate coolant as a temporary replacement. Check that it is a high quality coolant recommended for aluminum engines. Continued use of any non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail. Have the cooling system lushed and reilled with Honda antifreeze/coolant as soon as possible. Do not add rust inhibitors or other additives to your vehicle's cooling system. They may not be compatible with the coolant or with the engine components.
Reserve
Tank
MIN
MAX
Reserve Tank
Main MenuTable of Contents

253
Maintenance
Maintenance Under the Hood Engine Coolant

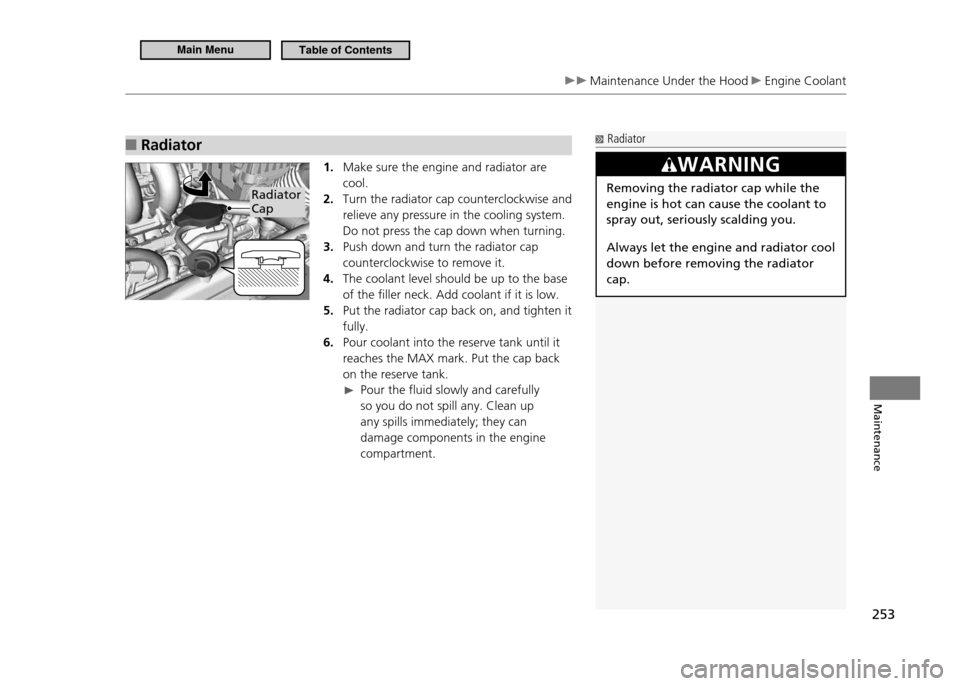

Radiator
■
1. Make sure the engine and radiator are cool.
Turn the radiator cap counterclockwise and
2.
relieve any pressure in the cooling system. Do not press the cap down when turning. Push down and turn the radiator cap
3.
counterclockwise to remove it. The coolant level should be up to the base
4.
of the filler neck. Add coolant if it is low.
Put the radiator cap back on, and tighten it
5.
fully.Pour coolant into the reserve tank until it
6.
reaches the MAX mark. Put the cap back on the reserve tank.
Pour the fluid slowly and carefully
so you do not spill any. Clean up any spills immediately; they can damage components in the engine compartment.
Radiator
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap.Radiator Cap
Main MenuTable of Contents

254
Maintenance
Maintenance Under the Hood Transmission Fluid

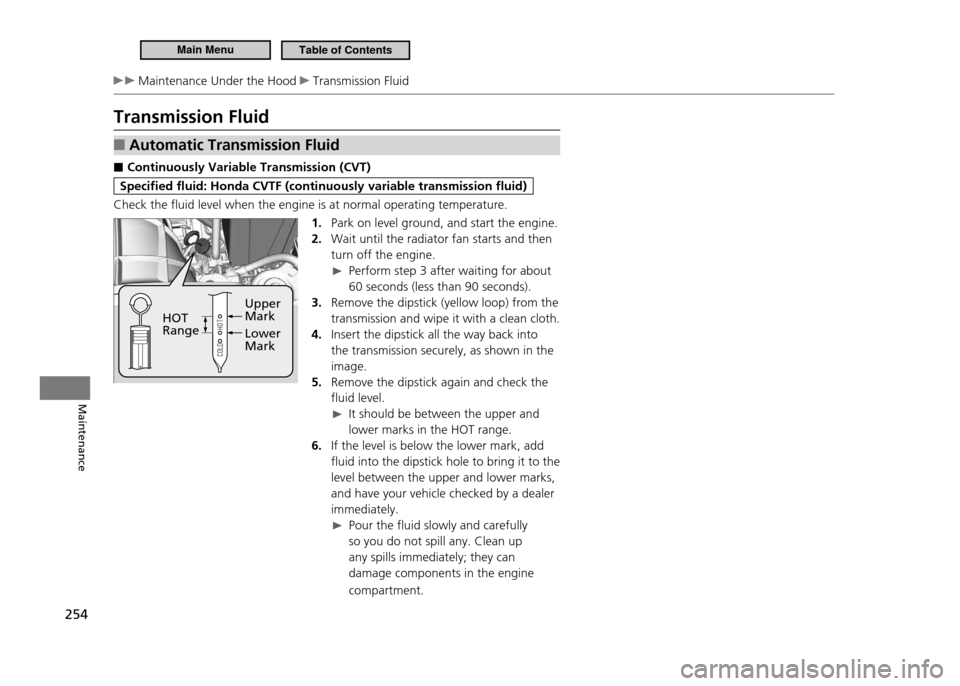

Transmission Fluid
Automatic Transmission Fluid
■
Continuously Variable Transmission (CVT)
■
Specified fluid: Honda CVTF (continuously variable transmission fluid)
Check the fluid level when the engine is at normal operating temperature. 1. Park on level ground, and start the engine. Wait until the radiator fan starts and then
2.
turn off the engine.
Perform step 3 after waiting for about 60 seconds (less than 90 seconds).
Remove the dipstick (yellow loop) from the
3.
transmission and wipe it with a clean cloth. Insert the dipstick all the way back into
4.
the transmission securely, as shown in the image. Remove the dipstick again and check the
5.
fluid level.
It should be between the upper and lower marks in the HOT range.
If the level is below the lower mark, add
6.
fluid into the dipstick hole to bring it to the level between the upper and lower marks, and have your vehicle checked by a dealer immediately.
Pour the fluid slowly and carefully
so you do not spill any. Clean up any spills immediately; they can damage components in the engine compartment.
Upper Mark Lower Mark
HOT Range
Main MenuTable of Contents

255
Maintenance
Maintenance Under the Hood Transmission Fluid

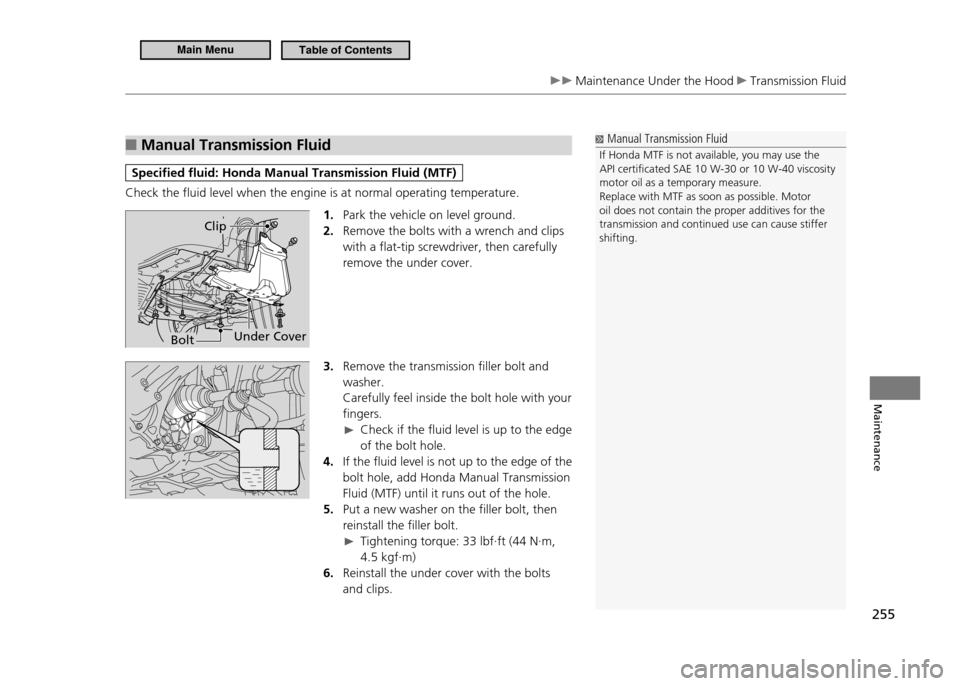

Manual Transmission Fluid
■
Specified fluid: Honda Manual Transmission Fluid (MTF)
Check the fluid level when the engine is at normal operating temperature.
1. Park the vehicle on level ground. Remove the bolts with a wrench and clips
2.
with a flat-tip screwdriver, then carefully remove the under cover.
3. Remove the transmission filler bolt and washer. Carefully feel inside the bolt hole with your fingers.
Check if the fluid level is up to the edge
of the bolt hole.
If the fluid level is not up to the edge of the
4.
bolt hole, add Honda Manual Transmission Fluid (MTF) until it runs out of the hole. Put a new washer on the filler bolt, then
5.
reinstall the filler bolt.
Tightening torque: 33 lbf∙ft (44 N∙m, 4.5 kgf∙m)
Reinstall the under cover with the bolts
6.
and clips.
Manual Transmission Fluid
If Honda MTF is not available, you may use the API certiicated SAE 10 W-30 or 10 W-40 viscosity motor oil as a temporary measure.Replace with MTF as soon as possible. Motor oil does not contain the proper additives for the transmission and continued use can cause stiffer shifting.
Under CoverBolt
Clip
Main MenuTable of Contents

256
Maintenance
Maintenance Under the Hood Brake/Clutch Fluid

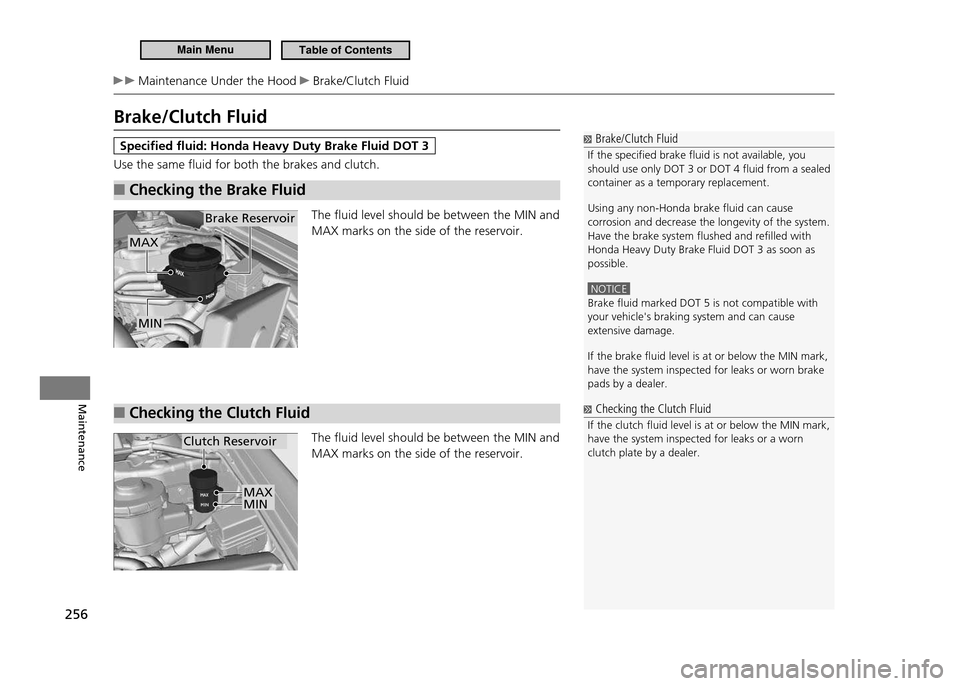

Brake/Clutch Fluid
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
Use the same fluid for both the brakes and clutch.
Checking the Brake Fluid

■
The fluid level should be between the MIN and MAX marks on the side of the reservoir.
Checking the Clutch Fluid

■
The fluid level should be between the MIN and MAX marks on the side of the reservoir.
Brake/Clutch Fluid
If the speciied brake luid is not available, you
should use only DOT 3 or DOT 4 luid from a sealed container as a temporary replacement. Using any non-Honda brake luid can cause corrosion and decrease the longevity of the system. Have the brake system lushed and reilled with Honda Heavy Duty Brake Fluid DOT 3 as soon as possible.
NOTICE Brake luid marked DOT 5 is not compatible with your vehicle's braking system and can cause extensive damage. If the brake luid level is at or below the MIN mark, have the system inspected for leaks or worn brake pads by a dealer.
Brake Reservoir
MIN
MAX
Checking the Clutch Fluid
If the clutch luid level is at or below the MIN mark, have the system inspected for leaks or a worn clutch plate by a dealer.
Clutch Reservoir
MINMAX
Main MenuTable of Contents

257
Maintenance
Maintenance Under the Hood Reilling Window Washer Fluid

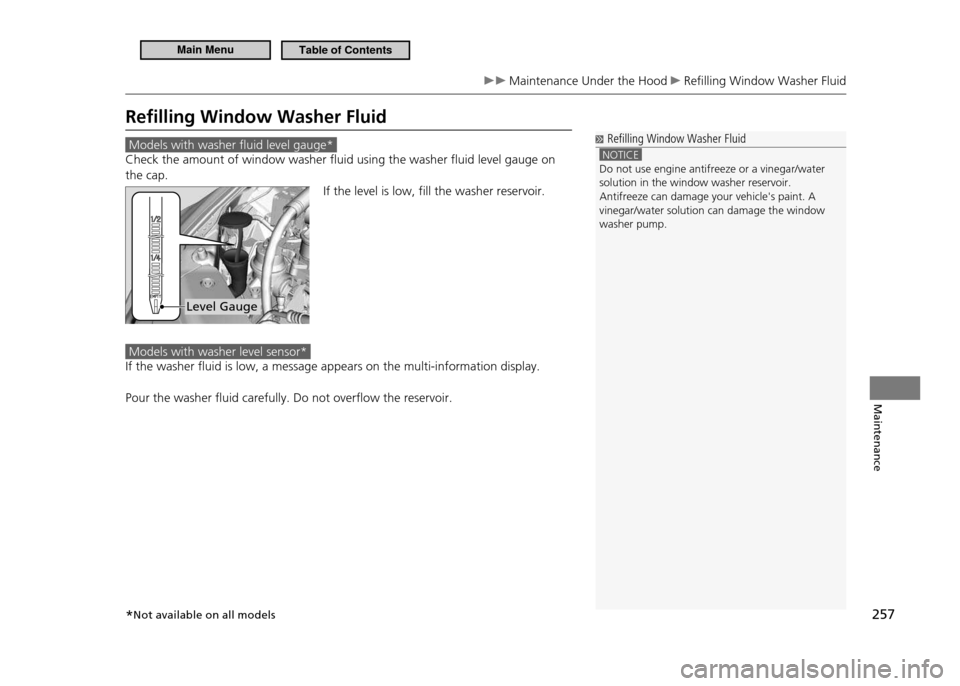

Reilling Window Washer Fluid
Models with washer fluid level gauge*
Check the amount of window washer fluid using the washer fluid level gauge on the cap.If the level is low, fill the washer reservoir.
Models with washer level sensor*
If the washer fluid is low, a message appears on the multi-information display. Pour the washer fluid carefully. Do not overflow the reservoir.
Reilling Window Washer Fluid
NOTICE Do not use engine antifreeze or a vinegar/water solution in the window washer reservoir.Antifreeze can damage your vehicle's paint. A vinegar/water solution can damage the window washer pump.
Level Gauge
*Not available on all models
Main MenuTable of Contents

258
Maintenance
Replacing Light Bulbs

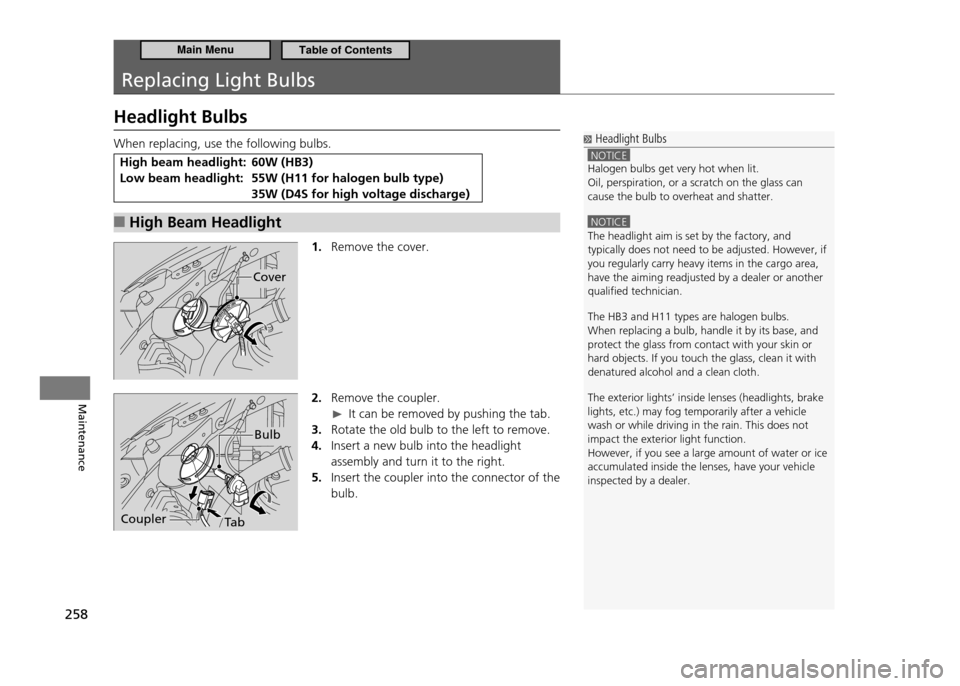

Headlight Bulbs
When replacing, use the following bulbs.
High beam headlight: 60W (HB3)
Low beam headlight: 55W (H11 for halogen bulb type)
35W (D4S for high voltage discharge)High Beam Headlight

■
1. Remove the cover.
2. Remove the coupler.
It can be removed by pushing the tab.
Rotate the old bulb to the left to remove.
3.
Insert a new bulb into the headlight
4.
assembly and turn it to the right.
Insert the coupler into the connector of the
5.
bulb.
Headlight Bulbs
NOTICE Halogen bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter.
NOTICE The headlight aim is set by the factory, and typically does not need to be adjusted. However, if you regularly carry heavy items in the cargo area, have the aiming readjusted by a dealer or another qualiied technician. The HB3 and H11 types are halogen bulbs. When replacing a bulb, handle it by its base, and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth. The exterior lights’ inside lenses (headlights, brake lights, etc.) may fog temporarily after a vehicle wash or while driving in the rain. This does not impact the exterior light function.However, if you see a large amount of water or ice accumulated inside the lenses, have your vehicle inspected by a dealer.
Cover
Bulb
TabCoupler
Main MenuTable of Contents

259
Maintenance
Replacing Light Bulbs Headlight Bulbs

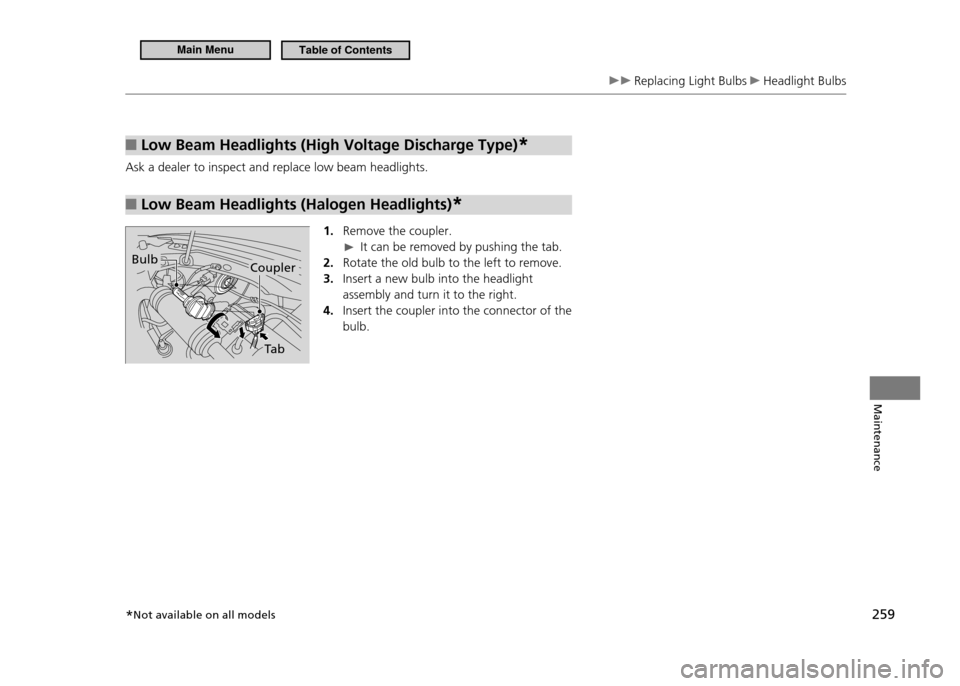

Low Beam Headlights (High Voltage Discharge Type)
■*
Ask a dealer to inspect and replace low beam headlights.
Low Beam Headlights (Halogen Headlights)

■*
1. Remove the coupler.
It can be removed by pushing the tab.
Rotate the old bulb to the left to remove.
2.
Insert a new bulb into the headlight
3.
assembly and turn it to the right.
Insert the coupler into the connector of the
4.
bulb.Bulb
Tab
Coupler
*Not available on all models
