HONDA CR-Z 2011 1.G Owners Manual

280
Maintenance

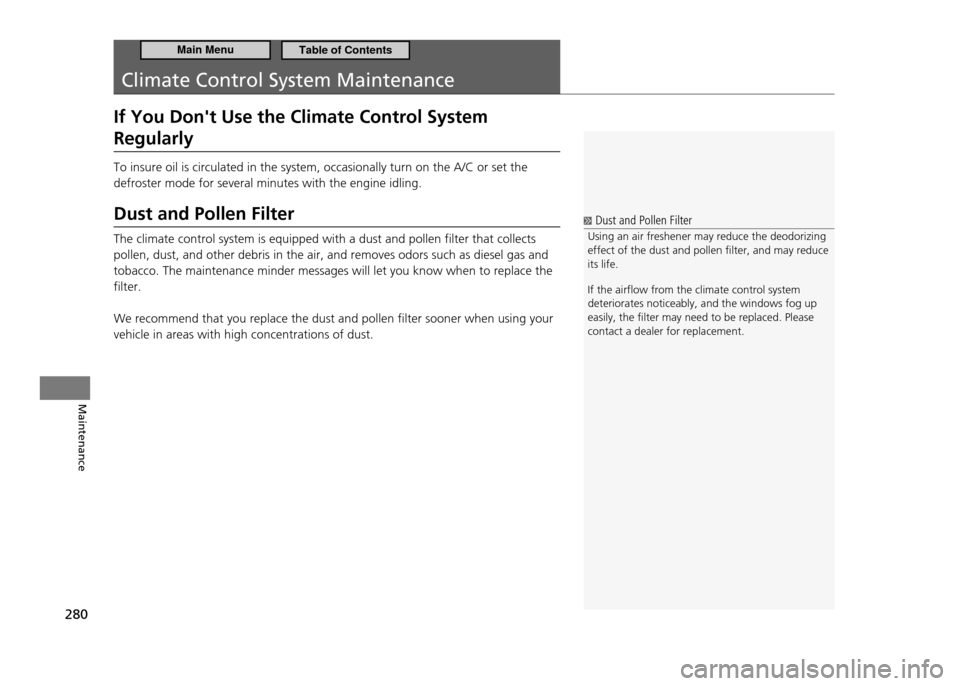

Climate Control System Maintenance
If You Don't Use the Climate Control System Regularly To insure oil is circulated in the system, occasionally turn on the A/C or set the defroster mode for several minutes with the engine idling. Dust and Pollen Filter The climate control system is equipped with a dust and pollen filter that collects pollen, dust, and other debris in the air, and removes odors such as diesel gas and tobacco. The maintenance minder messages will let you know when to replace the filter. We recommend that you replace the dust and pollen filter sooner when using your vehicle in areas with high concentrations of dust.
Dust and Pollen Filter
Using an air freshener may reduce the deodorizing effect of the dust and pollen ilter, and may reduce its life. If the airlow from the climate control system deteriorates noticeably, and the windows fog up easily, the ilter may need to be replaced. Please contact a dealer for replacement.
Main MenuTable of Contents

281
Maintenance

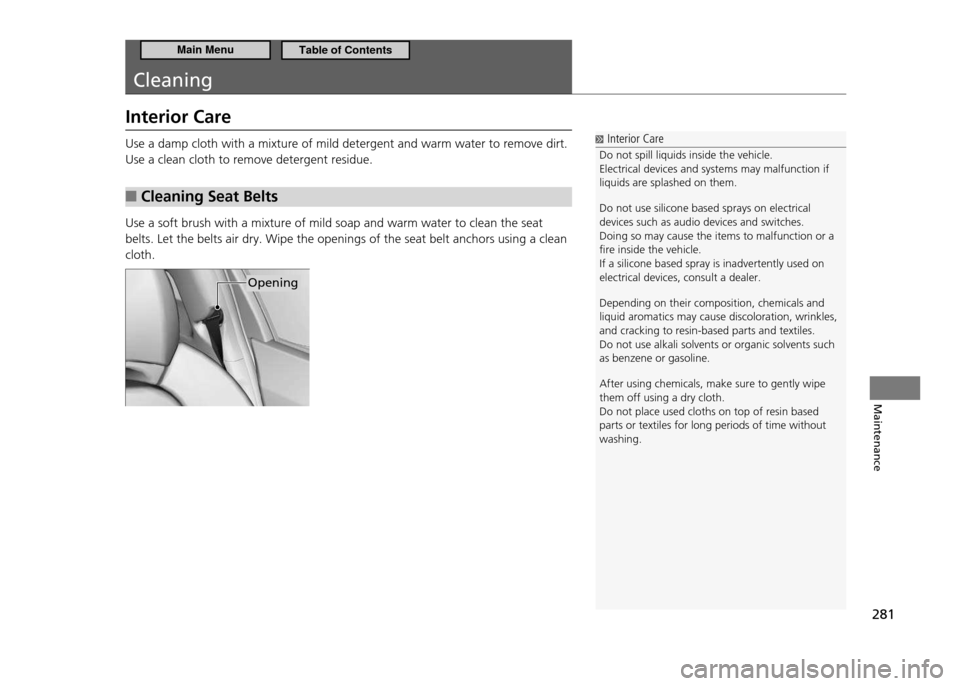

Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. Use a clean cloth to remove detergent residue.Cleaning Seat Belts

■
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts. Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
Interior Care
Do not spill liquids inside the vehicle. Electrical devices and systems may malfunction if liquids are splashed on them. Do not use silicone based sprays on electrical devices such as audio devices and switches.Doing so may cause the items to malfunction or a ire inside the vehicle.If a silicone based spray is inadvertently used on electrical devices, consult a dealer. Depending on their composition, chemicals and liquid aromatics may cause discoloration, wrinkles, and cracking to resin-based parts and textiles.Do not use alkali solvents or organic solvents such as benzene or gasoline. After using chemicals, make sure to gently wipe them off using a dry cloth.Do not place used cloths on top of resin based parts or textiles for long periods of time without washing.
Opening
Main MenuTable of Contents

282
Maintenance
Cleaning Interior Care

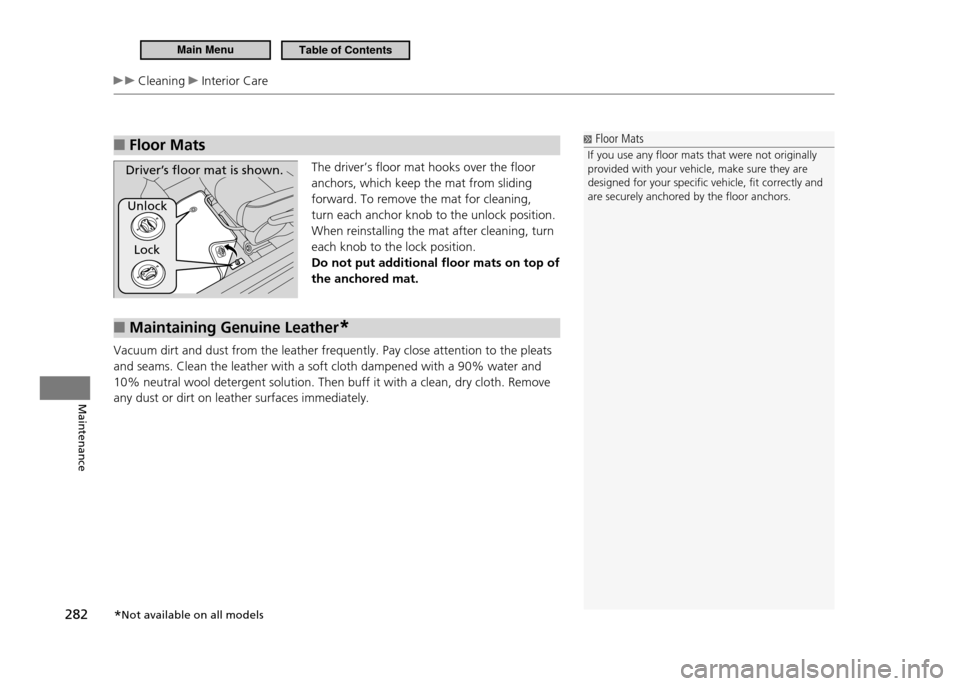

Floor Mats
■
The driver’s floor mat hooks over the floor anchors, which keep the mat from sliding forward. To remove the mat for cleaning, turn each anchor knob to the unlock position. When reinstalling the mat after cleaning, turn each knob to the lock position. Do not put additional floor mats on top of the anchored mat.
Maintaining Genuine Leather

■*
Vacuum dirt and dust from the leather frequently. Pay close attention to the pleats and seams. Clean the leather with a soft cloth dampened with a 90% water and 10% neutral wool detergent solution. Then buff it with a clean, dry cloth. Remove any dust or dirt on leather surfaces immediately.
Floor Mats
If you use any loor mats that were not originally provided with your vehicle, make sure they are designed for your speciic vehicle, it correctly and are securely anchored by the loor anchors.
Driver’s loor mat is shown.
Unlock
Lock
* Not available on all models
Main MenuTable of Contents

283
Maintenance
Cleaning Exterior Care
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it.Washing the Vehicle

■
Wash the vehicle frequently. Also, make sure to wash the vehicle in the following circumstances:
If driving on roads with road salt.
•
If driving in coastal areas.
•
If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
•
Using an Automated Vehicle Wash

■
Fold in the door mirrors. Make sure to follow the instructions indicated on the automated vehicle wash.
Using High Pressure Cleaners

■
Keep sufficient distance between the cleaning nozzle and the vehicle body.
•
Take particular care around the windows. Standing too close may cause water to
•
enter the vehicle interior. Do not spray water into the engine compartment.
Washing the Vehicle
Do not spray water directly into the air intake vents or engine compartment. It can cause a malfunction. Do not spray water onto the fuel ill door directly. A high-pressure spray may cause it to open.
Air Intake Vents
Main MenuTable of Contents

284
Maintenance
Cleaning Exterior Care

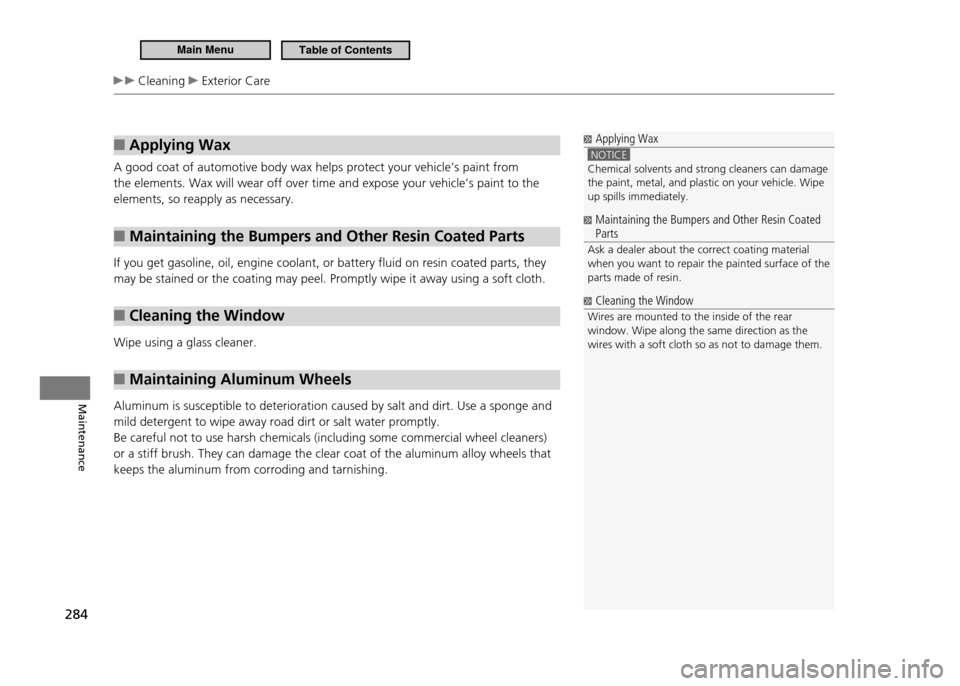

Applying Wax
■
A good coat of automotive body wax helps protect your vehicle’s paint from the elements. Wax will wear off over time and expose your vehicle’s paint to the elements, so reapply as necessary.
Maintaining the Bumpers and Other Resin Coated Parts

■
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they may be stained or the coating may peel. Promptly wipe it away using a soft cloth.
Cleaning the Window

■
Wipe using a glass cleaner.
Maintaining Aluminum Wheels

■
Aluminum is susceptible to deterioration caused by salt and dirt. Use a sponge and mild detergent to wipe away road dirt or salt water promptly.Be careful not to use harsh chemicals (including some commercial wheel cleaners) or a stiff brush. They can damage the clear coat of the aluminum alloy wheels that keeps the aluminum from corroding and tarnishing.
Applying Wax
NOTICE Chemical solvents and strong cleaners can damage the paint, metal, and plastic on your vehicle. Wipe up spills immediately.
Maintaining the Bumpers and Other Resin Coated
Parts
Ask a dealer about the correct coating material when you want to repair the painted surface of the parts made of resin.
Cleaning the Window
Wires are mounted to the inside of the rear window. Wipe along the same direction as the wires with a soft cloth so as not to damage them.
Main MenuTable of Contents

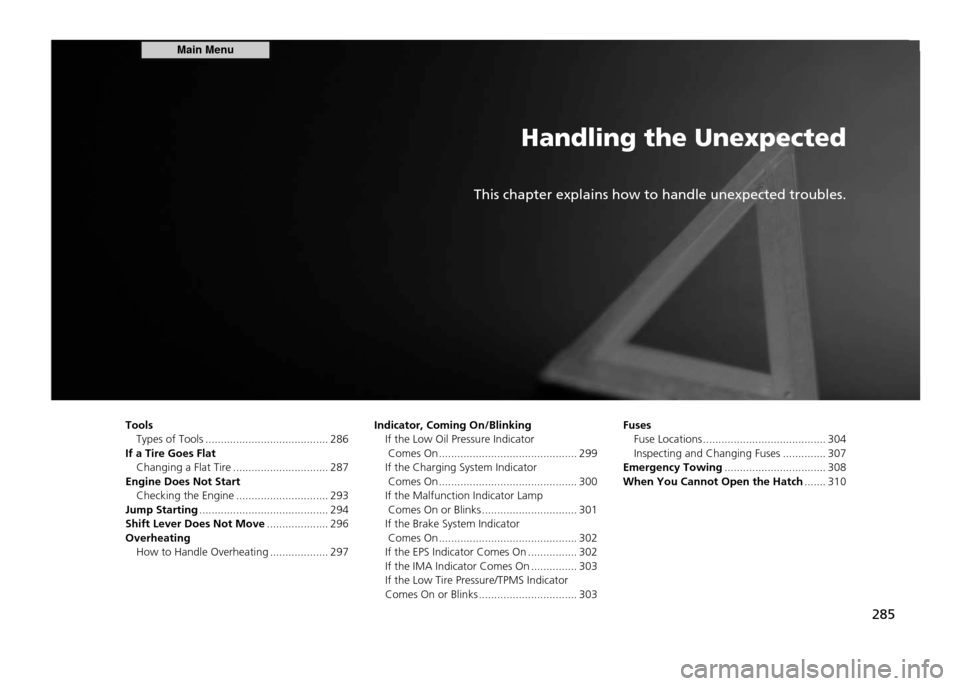

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
285
Tools
Types of Tools ........................................ 286
If a Tire Goes Flat Changing a Flat Tire ............................... 287
Engine Does Not Start Checking the Engine .............................. 293
Jump Starting .......................................... 294
Shift Lever Does Not Move .................... 296
Overheating How to Handle Overheating ................... 297 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator
Comes On ............................................. 299If the Charging System Indicator
Comes On ............................................. 300If the Malfunction Indicator Lamp
Comes On or Blinks ............................... 301If the Brake System Indicator
Comes On ............................................. 302
If the EPS Indicator Comes On ................ 302
If the IMA Indicator Comes On ............... 303If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ................................ 303 Fuses
Fuse Locations ........................................ 304
Inspecting and Changing Fuses .............. 307
Emergency Towing ................................. 308
When You Cannot Open the Hatch ....... 310
Main Menu

286
Handling the Unexpected

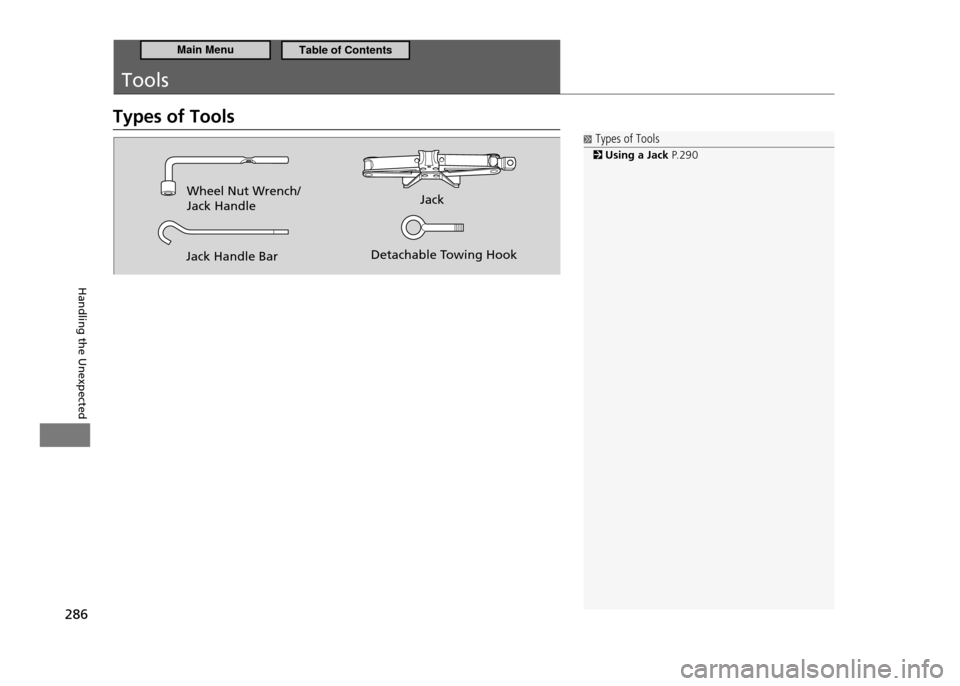

Tools
Types of Tools
Jack Handle BarWheel Nut Wrench/ Jack Handle
Detachable Towing HookJack
Types of Tools
Using a Jack
P. 2 9 0
Main MenuTable of Contents

287
Handling the Unexpected

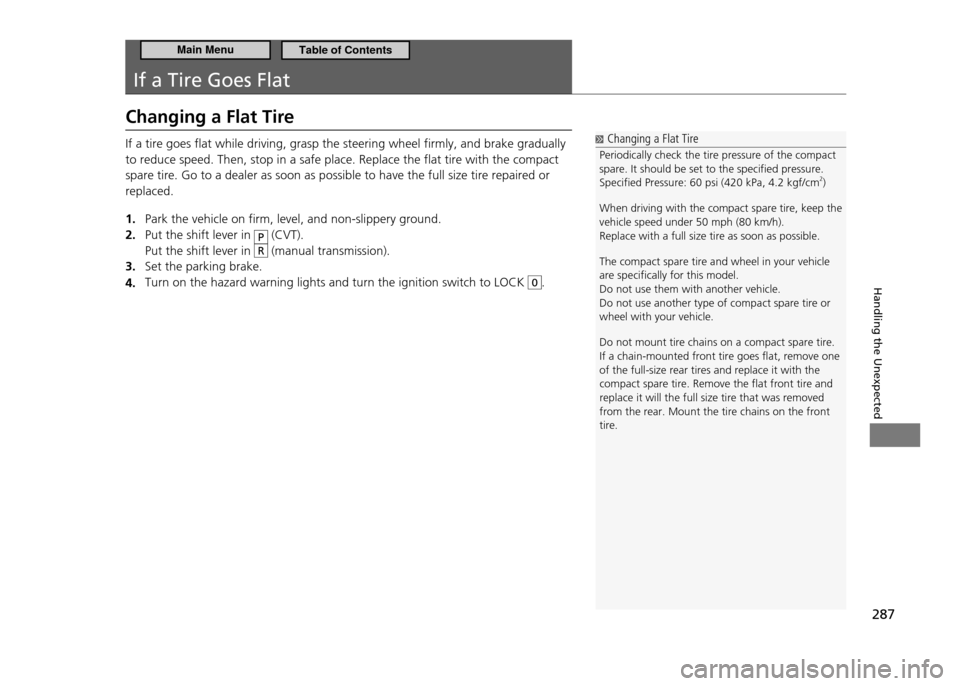

If a Tire Goes Flat
Changing a Flat Tire
Changing a Flat Tire
Periodically check the tire pressure of the compact spare. It should be set to the speciied pressure.Speciied Pressure: 60 psi (420 kPa, 4.2 kgf/cm 2
)
When driving with the compact spare tire, keep the vehicle speed under 50 mph (80 km/h).Replace with a full size tire as soon as possible. The compact spare tire and wheel in your vehicle are speciically for this model.Do not use them with another vehicle.Do not use another type of compact spare tire or wheel with your vehicle. Do not mount tire chains on a compact spare tire. If a chain-mounted front tire goes lat, remove one of the full-size rear tires and replace it with the compact spare tire. Remove the lat front tire and replace it will the full size tire that was removed from the rear. Mount the tire chains on the front tire.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually to reduce speed. Then, stop in a safe place. Replace the flat tire with the compact spare tire. Go to a dealer as soon as possible to have the full size tire repaired or replaced.
Park the vehicle on firm, level, and non-slippery ground.
1.
Put the shift lever in
2.
P (CVT).
Put the shift lever in
R (manual transmission).
Set the parking brake.
3.
Turn on the hazard warning lights and turn the ignition switch to LOCK
4.
0.
Main MenuTable of Contents

288
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire

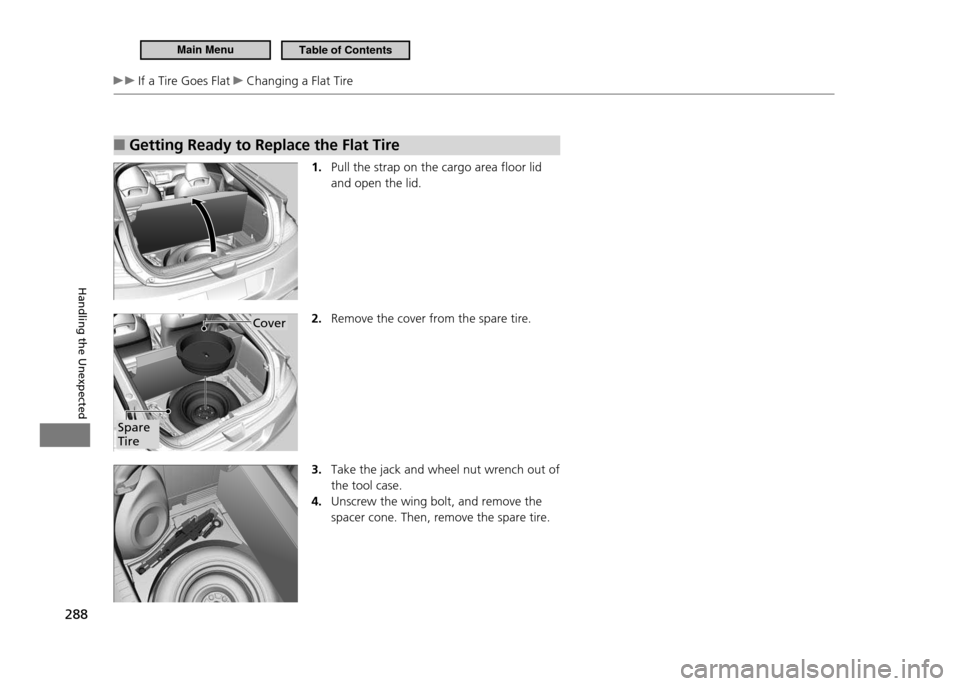

Getting Ready to Replace the Flat Tire
■
1. Pull the strap on the cargo area floor lid and open the lid.
2. Remove the cover from the spare tire.
3. Take the jack and wheel nut wrench out of the tool case.Unscrew the wing bolt, and remove the
4.
spacer cone. Then, remove the spare tire.
Spare
Tire
Cover
Main MenuTable of Contents

289
Handling the Unexpected
If a Tire Goes Flat Changing a Flat Tire

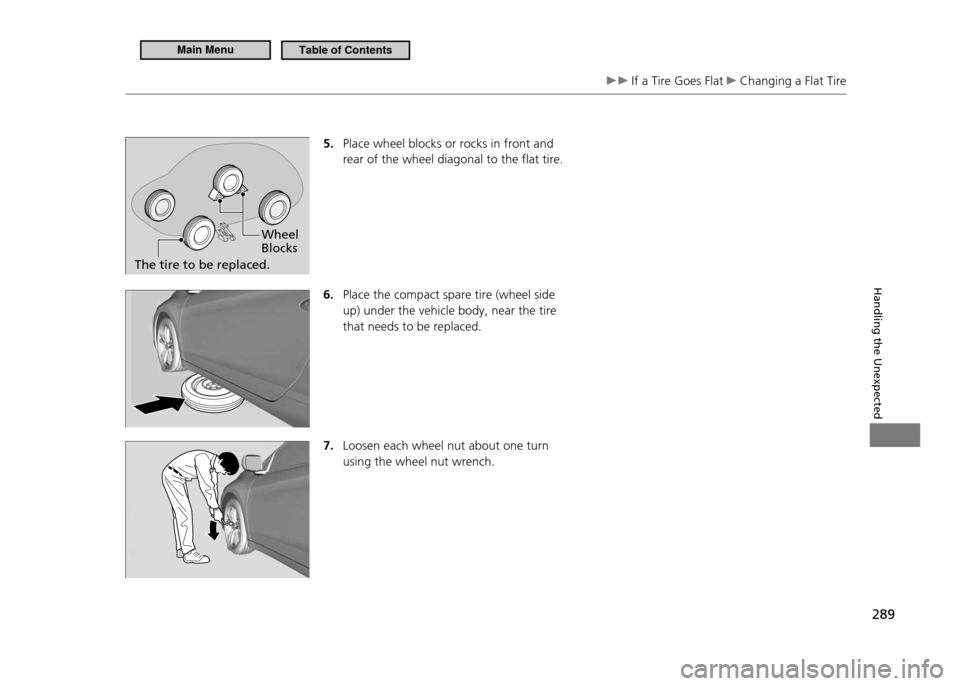

5. Place wheel blocks or rocks in front and rear of the wheel diagonal to the flat tire.
6. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced.
7. Loosen each wheel nut about one turn using the wheel nut wrench.
The tire to be replaced.
Wheel Blocks
Main MenuTable of Contents
